NIVELCO THERMOCUT TT Series Owner's manual

BKI16ATEX0015X  tbj5242a0600p_02  1 / 12

BKI16ATEX0015X  tbj5242a0600p_02  2 / 12
CONTENTS
1.INTRODUCTION .......................................................................3
2.ORDER CODES........................................................................3
3.TECHNICAL DATA...................................................................4
3.1GENERAL DATA...................................................................4
3.2ADDITIONAL DATA FOR EX APPROVED VERSIONS .................5
3.3DIMENSIONS .......................................................................5
3.4ACCESSORIES.....................................................................6
4.INSTALLATION AND ELECTRIC CONNECTION ...................6
4.1WIRING...............................................................................7
4.2SAFETY REGULATIONS FOR THE EX APPROVED UNITS ............7
5.PUTTING INTO OPERATION, PROGRAMMING.....................8
5.1PROGRAMMING ...................................................................8
5.1.1Display and keys of the SAP–202 display module 8
5.1.2Steps of programming ...........................................9
5.1.3Parameters – descriptions and programming........10
5.2ERROR CODES ....................................................................12
5.3HART COMMUNICATION ......................................................12
6.MAINTENANCE AND REPAIR.................................................12
7.STORAGE.................................................................................12

BKI16ATEX0015X  tbj5242a0600p_02  3 / 12
Thank you for choosing NIVELCO instrument!

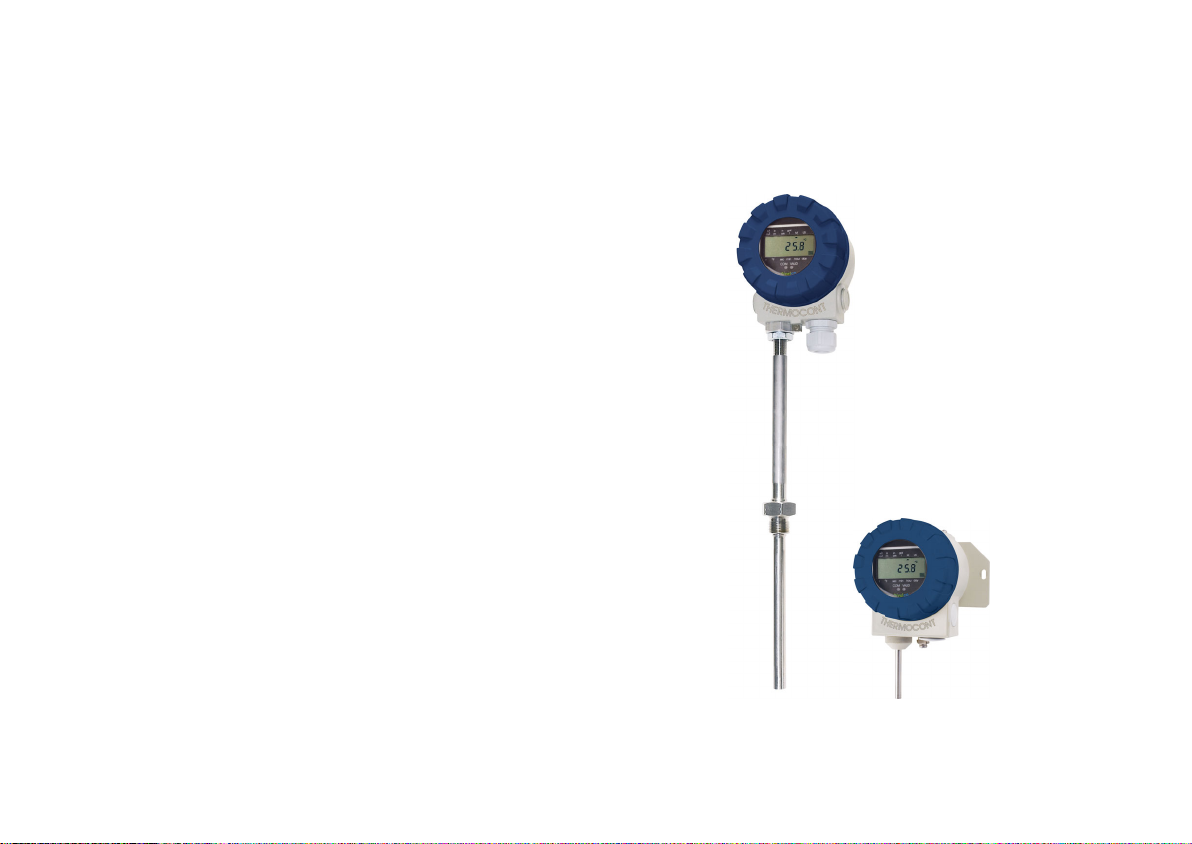

1. INTRODUCTION
THERMOCONT T–500/600 series 2-wire temperature transmitters are suitable for measuring, indicating and transmitting temperature of ordinary and hazardous
gases, fumes, liquids and masses. The Pt100 sensor of the unit is accommodated in normal or plastic-coated stainless-steel tube manufactured with different
intrusion length end process connection. Intelligent electronics and HART®communication provides application possibilities for the most different tasks.
2. ORDER CODES
THERMOCONT T – –
TYPE CODE PROCESS CONNECTION CODE HOUSING CODE SENSOR CODE INTRUSION CODE OUTPUT /EXCODE
Transmitter up to +200 °C T Wall moun
t
W
A
luminum 5 Withou
t
0 60 mm 0 4…20 m
A
2
Transmitter up to +600 °C V½" BSP C Plastic 6 Class
A
1 160 mm 1 4…20 mA / HART 4
Transmitter up to +200 °C
with plastic-coated probe W 3/4" BSP D Class B 2 250 mm 2 4…20 mA / Ex ia 6
½" NPT H 400 mm 3 4…20 mA / HART / Ex ia 8
Tx + display up to +200 °C B M20x1.5 J 500 mm 4 4…20 mA / Ex d A
Tx + display up to +600 °C L 1" TriClamp L 1000 mm 5 4…20 mA / HART / Ex d B
Tx + display up to +200 °C
with plastic-coated probe R 1½" Triclamp
K
1500 mm 6 4…20 mA / Ex d ia C
2" TriClamp N 2000 mm 7 4…20 mA / HART / Ex d ia D
DN25 pipe coupling O 2500 mm 8
DN40 pipe coupling P 3000 mm 9
DN50 pipe coupling R
DN50, St. St. flange F
+ PTFE
2” ANSI St. St. flange A
+ PTFE
1” NPT reinforced casing S
½” NPT reinforced casing Z
Not all combinations possible!
Ex certified units should have aluminum housing and Ex tag in the order code
Requirement for housing position ‘B’; ‘C’; ‘D’ i.e. other than ‘A’; should be specified with the order (See 3.3 Dimensions)

BKI16ATEX0015X  tbj5242a0600p_02  4 / 12
3. TECHNICAL DATA
3.1 General Data
TYPE TR--
TW--
TT--
TB--
TV--
TL--
TW--
Range –50…+200 °C (–58…+392 °F) –50…+600 °C (–58…+1112 °C)
Probe Pt100 sensor in PFA-coated St. St. (DIN 1.4571) tube Pt 100 sensor in St. St. (DIN 1.4571) tube
Maximum pressure ** 2.5 MPa (25 bar) in +20 °C (+68 °F) ; 1.6 MPa (16 bar) in +400 °C (+752 °F)
Output
4…20 mA / HART
4…20 mA limits of the output signal: 3.9…20.5 mA
minimum loop resistance with HART R tmin = 250 Ω
Display Mode 6-digit LCD, symbols, engineering units, bargraph
Resolution 0.1 °C (0.1 °F) 0.4 °C (0.4 °F)
Accuracy
Output
current
Pt 100 Class A (0.3+ |0.0025 t | )°C (1.5+ |0.004 t | )°C
Pt 100 Class B (0.4+ |0.0055 t | )°C (1.5+ |0.006 t | )°C
Temp. coefficient 0.02 °C /°C
Display
Pt100 Class A (0.2+ |0.0025 t | )°C (1.5+ |0.004 t | )°C
Pt100 Class B (0.35+ |0.0055 t | )°C (1.5+ |0.006 t | )°C
Temp. coefficient 0.002 °C /°C
Error indicaton By current output 3.8 mA or 22 mA
Power supply 10…36 VDC
Output load RL= (Us– 10 V) / 0.022 A, Us= supply voltage
Ambient temperature –40…+70 °C (–40…+158 °F) with display –25…+70 °C (–13…+158 °F)
Electric protection Class III
Ingress protection IP65
Process connection and intrusion ** According to order code
Electric connection Through plastic cable gland: M20x1.5 using shielded two-wire cable with diameter: 6…12 mm (0.236…0.47") and cross section: 0.25…1.5 mm2(AWG24…AWG16)
Housing Powder paint-coated, cast aluminum (EN AC-43100) or fibre-glass reinforced plastic Powder-coated cast aluminum (EN AC-43100)
Wetted parts ** PFA, PTFE Stainless steel: DIN 1.4571
Mass with plastic housing ~0.5 kg (~1.1 lbs) + probe 0.5 kg/m (0,336 lbs/ft) type TW … ~0.9 kg (~1.984 lbs)
with aluminum housing ~0.9 kg (~1.984 lbs) + probe 0.5 kg/m (0,336 lbs/ft) type TW … ~0.5 kg (~1.1 lbs)
* t = reading temperature
** No data for type TW …

BKI16ATEX0015X  tbj5242a0600p_02  5 / 12
3.2 Additional Data For Ex Approved Versions
Type T–5–6 Ex
T
–
5
–
8 Ex
T–5–A Ex
T
–
5
–
B Ex
T–5–C Ex
T
–
5
–
D Ex
Protection mode Intrinsically safe Flame proof casing Flame proof casing and intrinsically safe
Protection mark II 1 G Ex ia IIB T6...T1 Ga II 2 G Ex d IIB T6…T1 Gb II 1/2 G Ex d ia IIB T6…T1 Ga/Gb
Ex approved power supply data Umax = 30 V Imax = 140 mA Pmax = 1.0 W
Ci< 14 nF Li< 180
 H – Umax = 30 V Imax = 140 mA Pmax = 1.0 W
Ci< 14 nF Li< 180
 H
Cable gland Metal M20x1.5 cable diameter 6…12 mm (0.236…0.47") Metal M20x1.5 cable diameter: Ø9…11 mm (0.35…0.433")
Ambient temperature –40…+75 °C (–40…+167 °F)
with display
–
25…+70 °C (
–
75…+158 °F)
–40…+75 °C (–40…+167 °F)
with display
–
25…+70 °C (
–
75…+158 °F)
Housing Paint-coated aluminum (EN AC-43100)
Maximum temperatures allowed for the Ex approved units
Temperature class T6 T5 T4 T3 T2 T1
T ambient +60 °C (+140 °F) +75 °C (+167 °F) +75 °C (+167 °F) +70 °C (+158 °F) +60 °C (+140 °F) +45 °C (+113 °F)
T medium +80 °C (+176 °F) +95 °C (+203 °F) +120 °C (+248 °F) +190 °C (+374 °F) +290 °C (+554 °F) +440 °C (+824 °F)

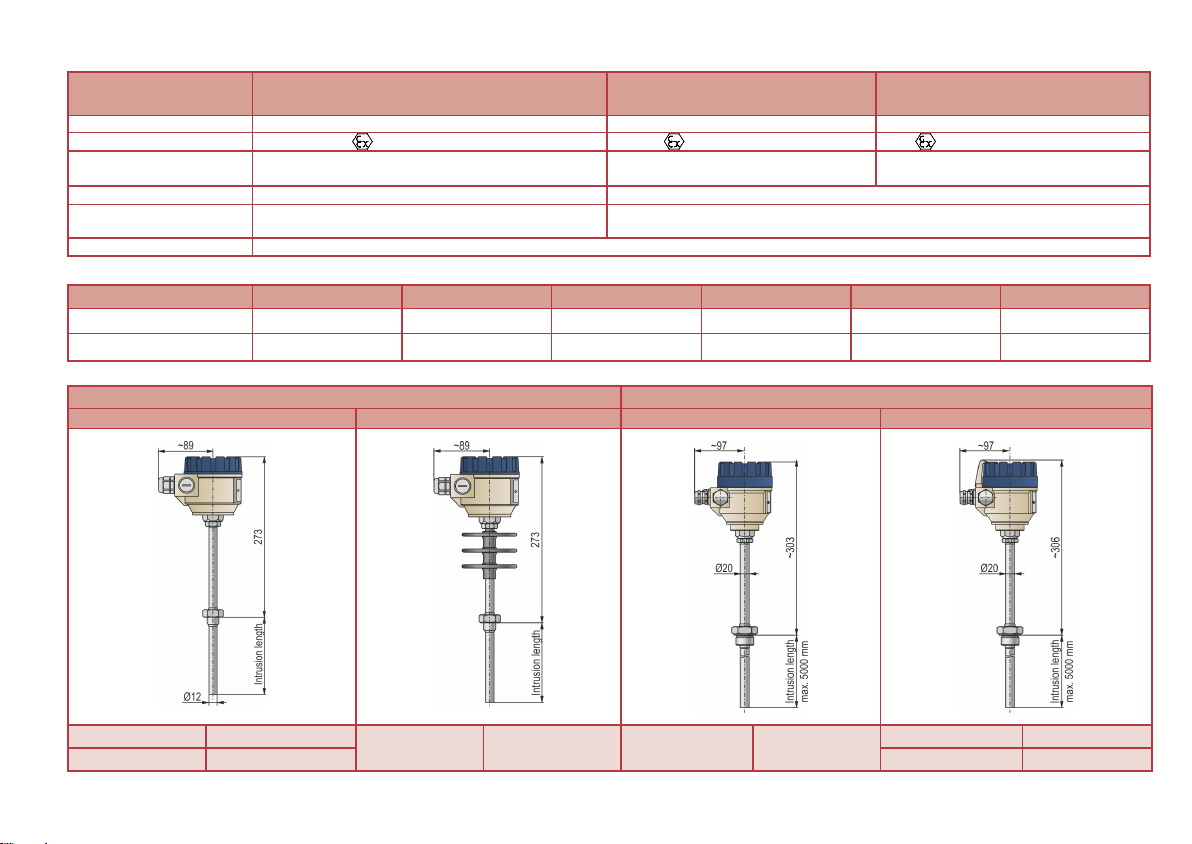

3.3 Dimensions
ORDINARY TYPES EXPLOSION PROOF TYPE
–50…+200 °C (–58…+392 °F) –50…+600 °C (–58…+1112 °F) INSTRINSICALLY SAFE FLAME PROOF CASING
TR––TW––TV––TL––T–5–6Ex T–5–8Ex T–5–AEx T–5–BEx
TT––TB––T–5–CEx T–5–DEx

BKI16ATEX0015X  tbj5242a0600p_02  6 / 12

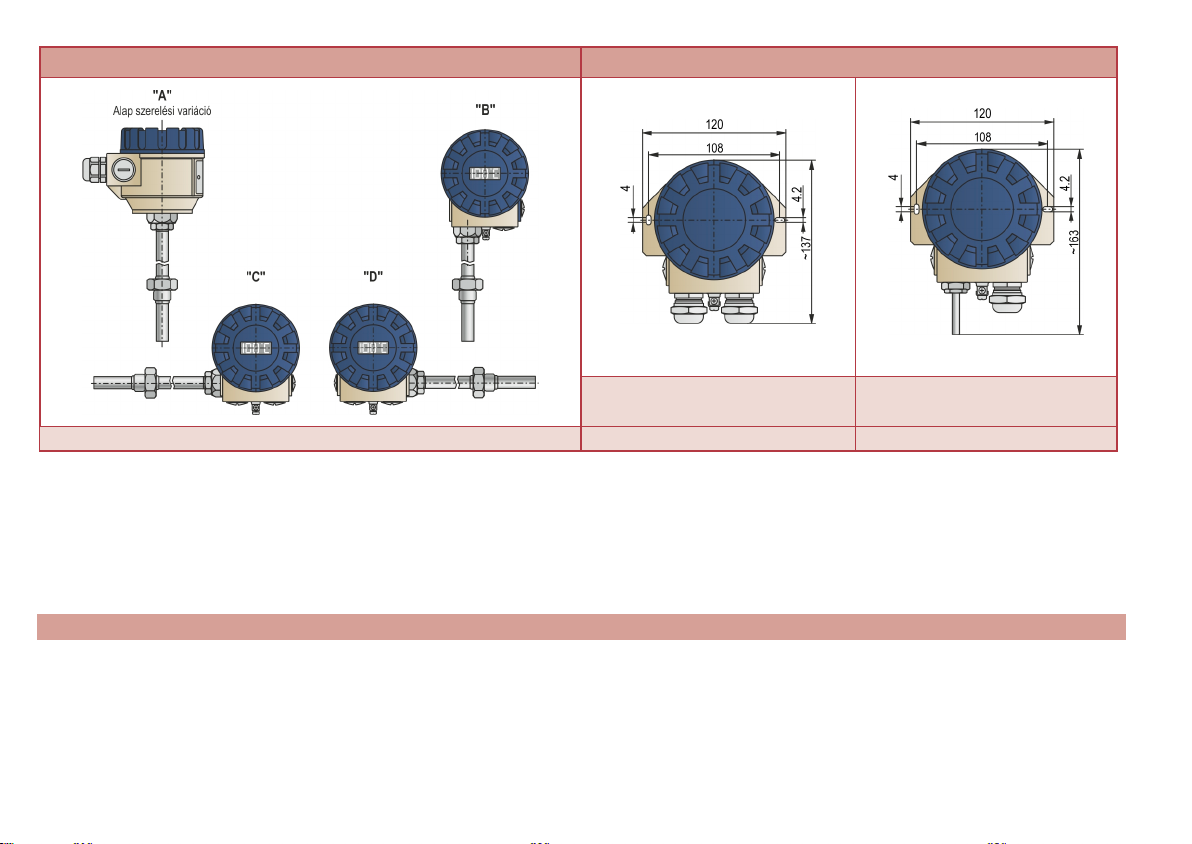

HOUSING POSITIONS VERSION FOR WALL MOUNTING
Without sensor With sensor
Requirement for housing position other than ‘A’; should be specified with the order TW–00–TW–0–
3.4 Accessories
Installation and Programming Manual
Warranty Card,
EU declaration of conformity,
2 cable glands
4. INSTALLATION AND ELECTRIC CONNECTION
Place of installation should be selected so that proper place should be available for handling.
Housing of the units with flange or threaded connection can be rotated. After installing the unit housing can be turned to reach best position for reading display.
Device should be fastened with two nuts of M4.

BKI16ATEX0015X  tbj5242a0600p_02  7 / 12

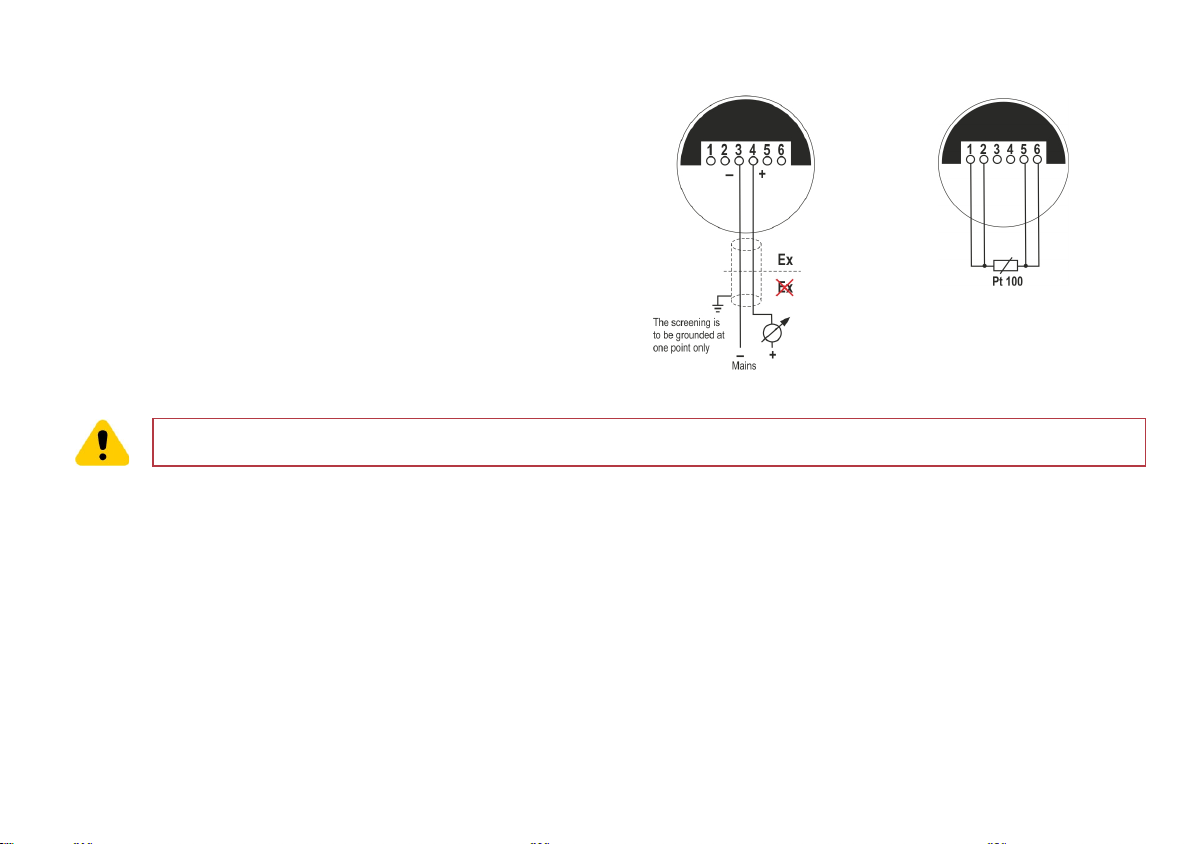

4.1 Wiring
Transmitters are used in 2-wire systems with power supply of
10…36 V DC. Resistance of the units in the loop depends on the voltage
of the power supply.
For wiring shielded cable suggested in the Technical Data should be used.
After removal of the housing cover and taking out the display module
(if any), the screw terminals can be accessed. Cover of the flame proof
housing can be removed after unhooking the clamp.
The unit should be grounded by the inner or outer grounding screw.
Loop should be connected to terminal 3 (–) and 4 (+). Other terminals are
for internal connection of the Pt sensor.
The Pt100 sensor for types TW--should be wired as shown on
drawing at the right.
Switch on the unit and make necessary programming.
After wiring and programming ensure proper sealing and closing of the
cover (and fastening of the clamp with the flame proof models).
The Pt100 sensor for types
TW-00-should be wired
as shown on drawing
The unit may be damaged by electrostatic discharge (EDS) via its terminal, thus apply the precautions commonly used to avoid
electrostatic discharge e.g. by touching a properly grounded point before removing the cover of the enclosure.
4.2 Safety regulations for the Ex approved units
Intrinsically safe units should be powered by duty certified intrinsically safe [Ex ia IIB] or [Ex ia IIC] device with features as per technical data above.
Plastic-coated probes may be charged electrostatically therefore such units should only be used for measurement of conductive medium and its specific
resistance must not exceed 104m, even under the most unfavourable conditions and at the most unfavourable place.
The Ex device should be grounded by its grounding screw.
The aluminum content of equipment with metallic enclosure exceeds the limit, the devices must be protected against impact and friction effects.

BKI16ATEX0015X  tbj5242a0600p_02  8 / 12
5. PUTTING INTO OPERATION, PROGRAMMING
Transmitter installed and wired correctly will operate after powering according to
the Manufacturer’s (Default) or to the last settings. Operability is indicated by
lighting of the LED VALID.
Unit with removed cover and without SAP-202 display module
5.1 Programming
Adjustment of the unit to the conditions of the application will be carried out by
programming parameters with the aid of the push buttons and following the
procedure on the display of the SAP-202 module. Manufacturer’s setting is as
below:
DEFAULT
Current output: 4 mA assigned to –50 °C (–58 °F) and 20 mA assigned
to +200 °C / +600 °C (+392 °F / +1112 °F),
Noise suppression: 50 Hz
Error indication: Iout = 3.8 mA
The THERMOCONT is fully operational without the SAP−202 display module
(incorporated in types TB−, TL− , and TR−).
It is for programming and/or displaying measurement values.
The unit will measure during programming in accordance with the
parameters set previously. The new, modified parameters will only be
effective after returning to the Measurement Mode
If the transmitter is left in Programming Mode by mistake, it will automatically
return to Measurement Mode after 3 minutes and will operate with the
parameters entered during the last completed programming.

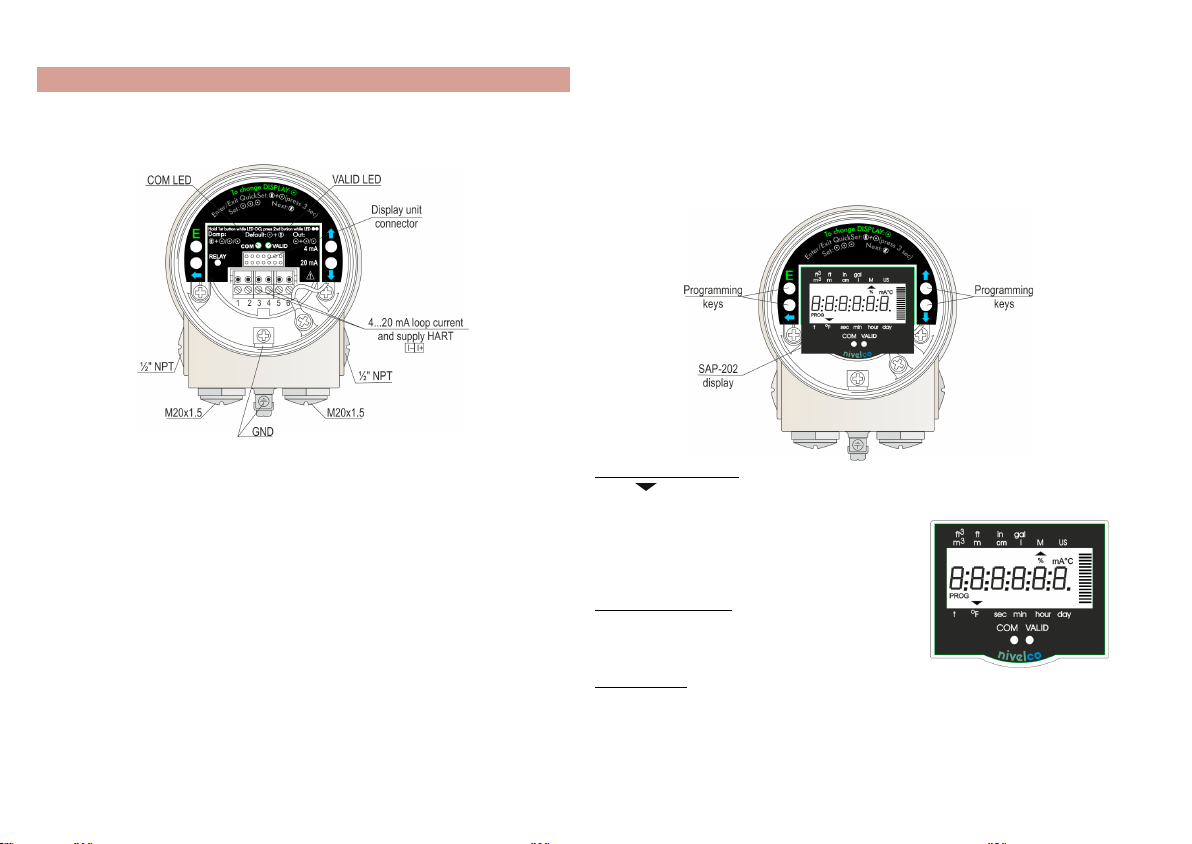

5.1.1 Display and keys of the SAP 202 display module
Symbols on the screen
– pointer (showing to the
relevant engineering unit)
°C – temperature grade Celsius
mA – current output (lighting)
% – display in percentage
PROG (blinking) – indicating programming
Symbols on the frame
Mmetric system
US calculation system
°F temp. in Fahrenheit
LED indication
COM indicating HART communication
VALID indicating operability

BKI16ATEX0015X  tbj5242a0600p_02  9 / 12
5.1.2 Steps of programming
Programming will be performed by pressing and releasing the relevant one or two keys (simultaneously).
The following description is for overview only, detailed programming is to find in 5.1.3
For entering calibration value decimal point will
automatically turn up. Its position can not be changed.
y or yy parameter address (0, 1, …19)
xxxx or xxxxx parameter value (dcba) or
calibration/measurement value
bargraph
sign
X
–
0
1
2
X
0
:
9
X
0
:
9
X
0
:
9
X
0
:
9
OPERATION OF PROGRAMMING KEYS OPERATION
E
+ (for minimum 3 sec!) *Enter or exit programming mode (Return to the Measurement mode means saving modifications of parameter value)
+ GET VALUE – function for automatic setting. Actual/measured value will be accepted as value to be programmed.
SET will be displayed for confirmation
pressing Keys while Parameter address blinking while Parameter value blinking
E
to select parameter address and go to parameter value to save parameter value and return to parameter address
+ Cancel all modifications of the actual programming
procedure. CANCEL will be displayed for warning.
Neglect modification of the parameter value (if any) and return
to the parameter address CANCEL will be displayed
+ Reset all parameter values to the manufacturer’s setting.
(Default). LOAD will be displayed for warning
Reset to the factory value of the relevant parameter address.
LOAD will be displayed for warning
Move blinking (changeability) of the digit to the left
/ Modify the blinking digit (increase or decrease value, minus sign) or scroll up/down … 8, 9, “ –“ ,0, 1, 2, …
Notes:
Double key pressing is indicated by “+” *Make sure that
E
would be pressed first!
If after pressing
E
blinking does not spring over from the parameter address to the parameter value this means that
the parameter is either a read-out type, or
the secret code prevents the modification (see P19)
If the modification of the parameter value is not accepted i.e. the parameter value keeps blinking after pressing ENTER
E
,
the modified value is either out of the range, or
the code entered is not a valid one

BKI16ATEX0015X  tbj5242a0600p_02  10 / 12
5.1.3 Parameters – descriptions and programming
P0: - - - a Assignment of the (lowest) measured temperature to 4 mA
P1: - - - a Assignment of the (highest) measured temperature to 20 mA
The lowest and highest (limit) value of the temperature range is to be assigned to the 4 and 20 mA output current. This can be performed by two
methods
a: manually i.e. by entering the relevant values in P0 and P1 (Make sure that values to be programmed does not exceed the range of the unit in
question, the modification of the parameter value will not be accepted i.e. after pressing
E
the parameter value will remain blinking and refuse to
return to the address.)
The procedure to assign for instance +160 °C (+320 °F) to 4 mA in P0 is the following: press
E
+ to enter programming mode, go to P1 with
E
,
enter 160 and press
E
to go back to the parameter address, finally press
E
+to exit programming/return to measurement mode).
b: automatically i.e. using the GET VALUE function at being in P0 and P1. For this method the probe should be in a medium with the required (zero
and high limit value) temperature. Successful setting will be indicated by the message SET displayed.
FACTORY DEFAULT: P0 −50 °C (−58 °F)
P1 +200 °C (+392 °F) or +600 °C (+1112 °F) respectively
P7: - - - a Offset of characteristic
Displayed (and transmitted) temperature value can be diverted from that of measured by the sensor. This represents an offset of the characteristic so
that the displayed value will be throughout the whole range in line with a - for instance - control measurement, performed by a control thermometer.
Difference value should be entered here with its mathematical sign (−) if it is minus.
FACTORY DEFAULT: 0
P9: - - - a Current generator test
In this parameter the actual current output (corresponding to the measured process value) will be displayed. Pressing
E
the blinking) current value
can be set for any value between 3.9 and 20.5 mA. The current output has to show the same value, which can be checked by an ampere meter.
P10: - - - a Engineering unit
aEngineering unit
0Celsius
1Fahrenheit
FACTORY DEFAULT: 0

BKI16ATEX0015X  tbj5242a0600p_02  11 / 12
P11: - c - - Noise suppression and displayed value
cNoise suppression dDisplayed value
050 Hz 0 Temperature (°C or F see P10)
160 Hz 1 %
FACTORY DEFAULT: 0 0
P12: - - - a Error indication
Find explanation of errors in 5.2
aError indication
03.8 mA
122 mA
FACTORY DEFAULT: 0
P13: - - - - HART short address
THERMOCONT involved in HART multidrop usage should be addressed here. Value of parameter is described in the Manual for the EView2 software
supplied with the HART capable THERMOCONT.
P14: - - - - Software version
The software number of your transmitter can be viewed in this parameter.
P19: - - - - Secret code
Settings can be protected by a 4-digit number (secret code) other than 0 entered as value of this parameter. If the secret code is active the symbol
PROG is lighting and the value of the parameters can only be viewed. . If there is no secret code or it is not active the symbol PROG is blinking.
For opening secret code the old code should be entered. For modifying or deleting the secret code (modifying to 0000) the new code can only be
entered after opening old code. The procedure is as below: Go to P19 press
E
to select parameter address and go to parameter value, enter the old
code; press
E
to go to address and
E
again to return to value; enter new code or 0000.
FACTORY DEFAULT: 0000

BKI16ATEX0015X  tbj5242a0600p_02  12 / 12
5.2 Error codes
In case of error the LED VALID will be blinking, and Errx message will be displayed indicating the following errors:
Error Code (x) Error description Causes and solutions
0 Sensor error or
exceeding default range by more than 10%
Contact local agent
Modify programming
1 Memory error Contact local agent
3 Programming error: same value in P0 and P1 Modify programming
5.3 HART communication
HART capable transmitters would communicate with the NIVELCO made MultiCONT interface according to the HART standard. MultiCONT provides for the powering
and makes possible remote programming of the transmitters while (transmitter parameter values and) measurement data can be forwarded from the MultiCONT on
RS485 line.
6. MAINTENANCE AND REPAIR
The device does not require regular maintenance. The warranty card contains the terms and conditions. Before returning the device for repairs, it must be cleaned
thoroughly. The parts in contact with the medium may contain harmful substances; therefore, they must be decontaminated. Our official form
(Returned Equipment Handling Form) must be filled and enclosed in the parcel. Download it from our website www.nivelco.com. The device must be sent back with a
declaration of decontamination. A statement must be provided in the declaration that the decontamination process was successfully completed and that the device is
clean from any hazardous substances.
7. STORAGE
Ambient temperature: –25...+60 °C (–13...+140 °F)
Relative humidity: max. 98%
tbj524en1803p
tbj5242a0600p_03
January, 2018p
Technical specification may be changed without notice.
