Norac UC4.5 User manual

Case IH 20 and 30 Series
In
sta
ll
at
i
o
n M
a
n
ua
l
CS3

Printed in Canada
Copyright 2012 by NORAC Systems International Inc.
Reorder P/N: UC4.5-BC-CS3-INST Rev C (Case IH 20 and 30 Series)
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and
without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information
contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.

Contents
1Introduction ............................................................................................................... 1
2General UC4.5 System Layout ................................................................................ 2
3Kit Parts...................................................................................................................... 3
4Pre-Install Checklist .................................................................................................. 7
5Ultrasonic Sensor Installation.................................................................................. 8
6Roll Sensor Installation ........................................................................................... 14
7Electrical Installation .............................................................................................. 17
8Hydraulic Installation.............................................................................................. 20
9Software Setup ........................................................................................................ 24
10Cable Drawings........................................................................................................ 25

1
1Introduction
Congratulations on your purchase of the NORAC UC4.5 Spray Height Control System. This
system is manufactured with top quality components and is engineered using the latest
technology to provide operating reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
Every effort has been made to ensure the accuracy of the information contained in
this manual. All parts supplied are selected to specially fit the sprayer to facilitate
a complete installation. However, NORAC cannot guarantee all parts fit as
intended due to the variations of the sprayer by the manufacturer.
Please read this manual in its entirety before attempting installation.

2
2General UC4.5 System Layout
Figure 1 illustrates the general layout of the UC4.5 system components:
Figure 1: General UC4.5 System Layout

3
3Kit Parts
3.1 Kit Overview
Figure 2: CS3 System Parts

4
3.2 Hydraulic Plumbing

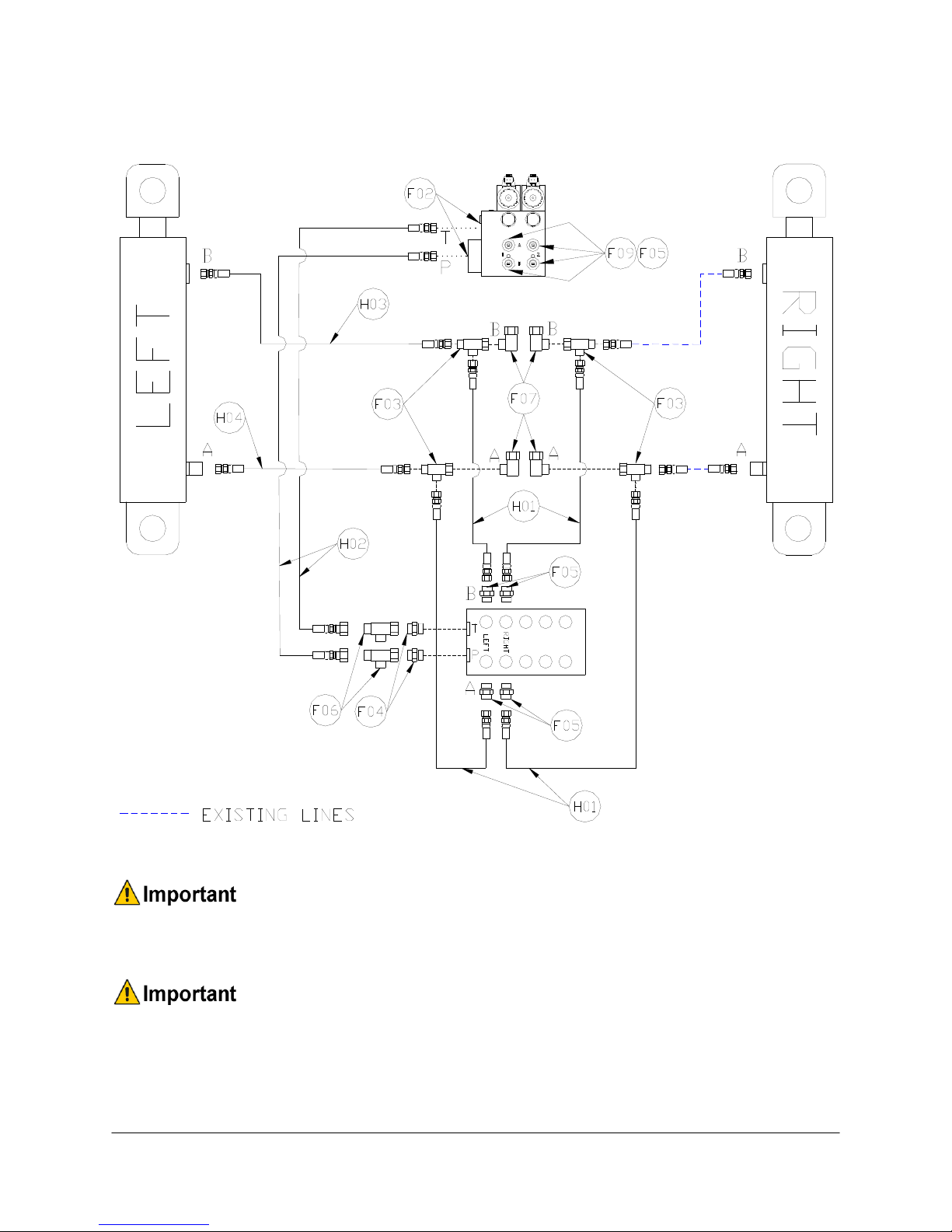

Figure 3: CS3 Hydraulic Plumbing
The use of dielectric grease is not recommended on any NORAC electrical
connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of
the supplied Permatex Anti-seize grease (M06) to all threaded parts upon
installation. Permatex Anti-seize lubricant is preferred, but other similar anti-seize
products may be used.

5
3.3 List of Parts
Item Part Number Name Quantity
B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1
B17 44972 SENSOR MOUNTING BRACKET LOW PROFILE RAINFLAP 16GA 2
B20 44971 SENSOR MOUNTING BRACKET LOW PROFILE 16GA 2
B21 44973 SENSOR MOUNTING BRACKET LOW PROFILE 16 GA LARGE FLANGE 1
C03 44656D CABLE VALVE VARIABLE RATE DT 1
C05 43210-20 CABLE UC5 NETWORK 18 AWG 20M 2
C07 43220-01 CABLE UC5 NETWORK 14 AWG 1M 1
C10 44650-50 CABLE UC4.5 POWER GENERIC SELF-PROPELLED 1
C11 44651-50 CABLE UC4.5 EXTENSION VALVE GENERIC 1
C12 44658-24 CABLE UC4 INTERFACE DT06-2X GND2 1
C16 44658-72 CABLE UC4 INTERFACE ROLL SENSE DT 1
C18 44658-47 CABLE UC4 INTERFACE DT2 MAIN EXTENSION 1
C30* 43250-04 CABLE UC5 BATTERY AMP FUSED - 5A 1
E01 45100 UC4.5 BOOM CONTROL PANEL 1
E03 43742 UC5 ROLL SENSOR W TEMPERATURE PROBE 1
E04 43741 UC5 ROLL SENSOR VER. 2 1
E05 43750 UC5 ULTRASONIC SENSOR 3
E11 43765 UC5 NETWORK COUPLER 8-WAY 1
E12 43764 UC5 NETWORK COUPLER 2-WAY 2
E20 43764T UC5 NETWORK COUPLER 2-WAY WITH TERMINATOR 2
H01 44862-08 HOSE ASSEMBLY 122R2-04 36 IN L 6FORX 6FORX 4
H02 44863-10 HOSE ASSEMBLY 122R2-06 60 IN L 6FJX 8FORX 2
H03 44863-25 HOSE ASSEMBLY 122R2-06 136 IN L 6FORX 6FORX 1
H04 44863-31 HOSE ASSEMBLY 122R2-06 106 IN L 6FORX 6FORX 1
H10 44865-06 HYDRAULICS FITTING KIT - CS3 1
M01
UC4.5-BC-MANUAL-
OPERATOR
OPERATOR MANUAL UC4.5 SPRAY HEIGHT CONTROL 1
M02 UC4.5-BC-CS3-INST MANUAL INSTALLATION UC4.5 CASE IH 20 AND 30 SERIES 1
M06 45015 ANTI-SEIZE LUBRICANT KIT 1
P01 106034 UC5 NETWORK 2 PIN PLUG 4
P03 106162 UC5 NETWORK 6 PIN PLUG 2
V01 44963D VALVE BLOCK ASSEMBLY 2 STATION CC/LS PROP DT 4 BOLT 1
* Systems purchased prior to early 2013 may not have a fused power cable.

6
3.4 Hydraulic Fitting Kit Details (P/N: 44865-06)
Item Part Number Name Quantity Picture
F02 103312 MALE ADAPTER - 6MB 6MJ 2
F03 104586 TEE ADAPTER - 6FORXR 6MORT 4
F04 104886 MALE ADAPTER - 8MOR 8MB 2
F05 44917 MALE ADAPTER - 6MB-6MOR MACHINED ORB 8
F06 104885 TEE ADAPTER - 8FORXR 8MORT 2
F07 104590 90 DEG ADAPTER - 6MOR 6FORX90 4
F08 104369 PLUG - 6MBP 2
F09 44928 ONE WAY ORIFICE INSERT - 0.047 4
F10 104592 O-RING HYD 3/8 IN FLAT FACE 2
F11 105184 ORIFICE INLINE 6 FLAT FACE 2
6 M B - 6 M OR X 90
SIZE IN
1/16TH'S
GENDER: MALE
OR FEMALE
90° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:

7
4Pre-Install Checklist
The pre-install checklist is necessary to check the existing sprayer functionality before the
installation.
1. Unfold the sprayer over a flat, unobstructed area (i.e. no power lines…etc.).
2. Ensure all boom-fold operations are functional (place a check mark in boxes below).
3. Bring engine to field-operational RPM and record below.
4. Record the time (seconds) it takes for a full stroke for all boom functions. To ensure
repeatable measurements, take the average of 3 trials.
5. Not all sprayers will have the functions listed below in Figure 4.
Ensure the boom has sufficient travel so it does not contact the ground during
these tests.
Figure 4: Pre-Install Boom Speeds

8
5Ultrasonic Sensor Installation
5.1 Ultrasonic Sensor Serial Number Arrangement
When installing the UC5 sensors, start with the smallest serial number on the left-hand side,
and proceed to the largest serial number on the right hand side. Each UC5 sensor has a serial
number stamped on the sensor housing.
Apply a light coating of the supplied Permatex Anti-seize grease (M06) to all
threaded parts upon installation.
Figure 5: Sensor Serial Number Arrangement

9
5.2 Ultrasonic Sensor Mounting Guidelines
The following guidelines will ensure optimal sensor performance and prevent sensor
measurement error. These rules should be followed for both the wing sensors and the main
lift (middle) sensor.
1. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground.
2. Ensure that there are no obstructions within a 12-inch diameter circle projected directly
below the center of the sensor.
3. The sensor should be approximately vertical at normal operating heights.
Figure 6: Sensor Mounting Guidelines

10
5.3 Low Profile Bracket Mounting Guidelines
1. Minimize the distance between the bolts to prevent bending the bracket and prevent the
bracket from loosening over time.
2. Ensure the bracket is mounted tight against the bottom of the boom, minimizing the
distance between the boom structure and the angled flange.
Figure 7: Bracket Mounting Guidelines
A problem can arise if a sensor is not mounted correctly. It is possible for the
sensor to read off of the boom instead of the ground. This may only become
apparent once the control system is switched from soil to crop mode.
Also be careful that the sensor bracket does not collide with any other part of the
boom when the boom is folded to transport position. If possible, mount the sensor
brackets while the booms are folded to ensure they will not cause interference.

11
5.4 Wing Sensor Installation
1. The wing sensor mounting brackets (B20) are the two brackets with the shorter mounting
flange.
2. The sensor bracket should be oriented forward (ahead of the boom).
3. Typically the best mounting location for the wing sensor brackets will be near the end of
the boom tips, approximately two feet (60cm) from the end.
4. Depending on the boom design, some breakaway sections will lift upwards as they break
back. If the sensor is mounted to this portion of the boom, the system will force the boom
downwards towards the ground as the boom folds backwards.
5. Mount the NORAC ultrasonic sensor into the sensor bracket and run the sensor cable
either through hole in the back or through the side cut-out and behind the bracket. Ensure
the cable is clear of moving parts and will not be damaged during folding.
Figure 8: Bracket Mounting Example
Front

12
5.5 Rainflap Installation
Rainflaps are only installed in the wing sensor brackets and are not installed for
120’ booms.
1. Insert one side of the rainflap rod into the pre-bent hinge tab on the sensor bracket.
(Figure 9)
Figure 9: Rainflap Rod in Pre-Bent Hinge Tab
2. Align the other side of the rainflap rod with the unbent hinge tab. (Figure 10)
Figure 10: Align Rainflap Rod
3. Bend the hinge tab inward over the rainflap rod until the hinge tab fits securely in the detent
groove on the backside of the sensor bracket. (Figure 11)
Figure 11: Bend Rainflap Hinge Tab
4. Ensure the rainflap actuates smoothly when the bracket is turned upside down and returns
to the open position when the sensor bracket is returned to its operating position (sensor
pointing downwards toward the ground).

13
5.6 Main Lift Sensor Installation
1. The main lift mounting bracket (B21) is the bracket with the longer mounting flange.
2. There are a variety of ways to mount the main lift bracket on most sprayers. The bracket
should position the sensor approximately in the center of the sprayer, forward of the
boom. An example of this mounting is illustrated in Figure 13.
Figure 12: Bracket Mounting Example
3. Mount the ultrasonic sensor to the main lift bracket. Run the sensor cable through hole
and behind the bracket.
Figure 13: Example Mounting of the Main Lift Bracket
Avoid mounting the main lift sensor over or near a wheel-track. Measurements
from the wheel-track do not provide an accurate crop height and will cause
measurement and control error.
Ensure the bracket does not collide with any other part of the sprayer throughout
the full range of main lift motion.
Front

14
6Roll Sensor Installation
6.1 Bracket Assembly
1. Securely mount the roll sensors to the included roll sensor brackets using the #6 machine
screw and nylon lock-nuts.
2. The orientation of the mounted roll sensor to the roll sensor bracket will depend on the
bracket mounting. The roll sensor CANbus connector must be pointing towards the right
side of the sprayer (when looking from the rear of the sprayer).

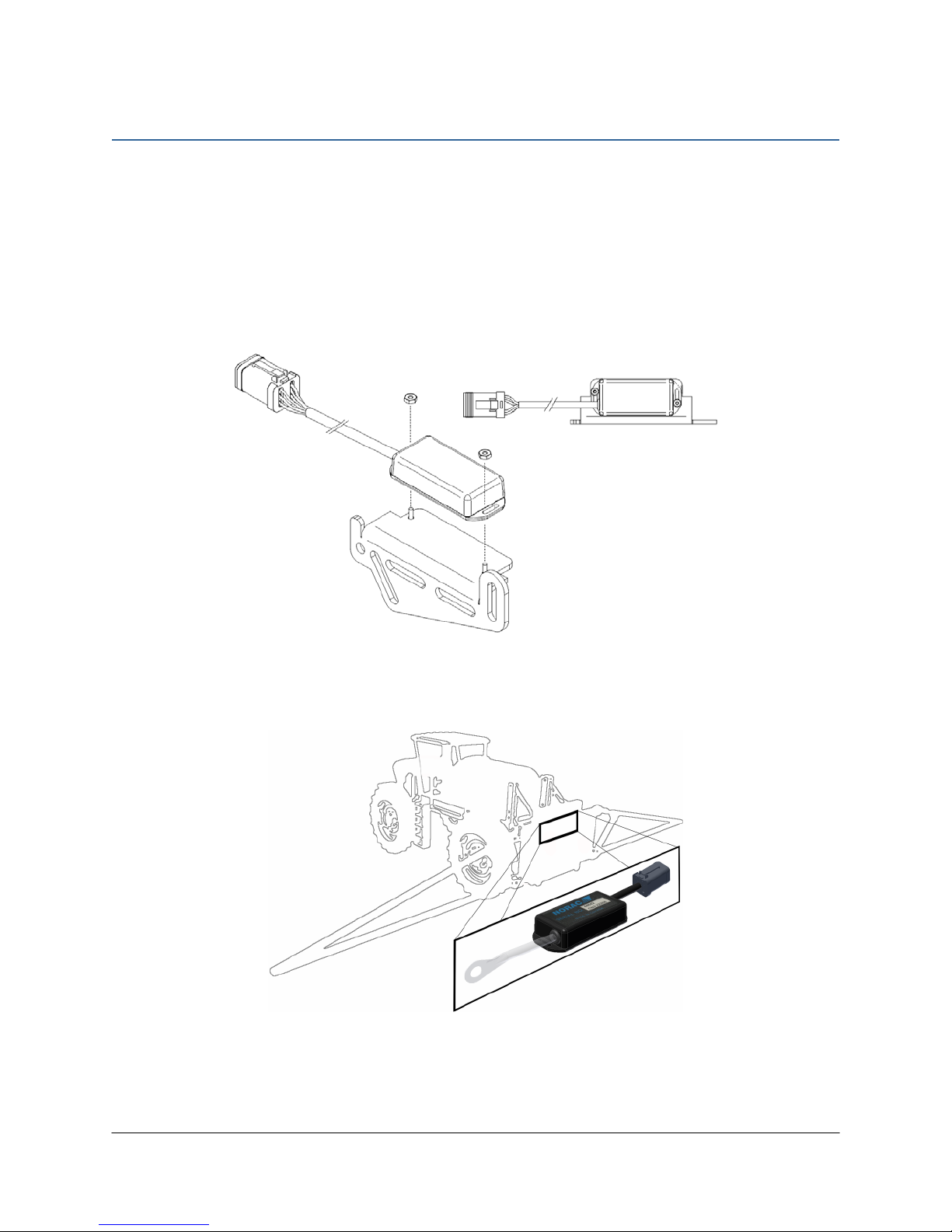

Figure 14: Mounting Roll Sensor to Bracket
Figure 15: Roll Sensor Orientation - Connector Facing Right Wing

15
6.2 Roll Sensor Mounting Guidelines: Trapeze-Suspended Booms
1. When mounting the roll sensors, mount the roll sensor without the temperature probe on
the trapeze link (boom frame) and the roll sensor with the temperature probe on the
trapeze support (chassis). For optimal performance, minimize the distance from the boom
frame roll sensor to the pivot point (A) and minimize the vertical distance between the
chassis roll sensor and the pivot point (B).
Figure 16: Roll Sensor Mounting on a Trapeze Suspended Boom
2. Ensure the roll sensors are relatively level when the sprayer boom and chassis are level.
3. Both roll sensor cables should be pointing towards the right hand wing of the sprayer.
4. Ensure both roll sensors are mounted adequately and that the cables provide enough slack
to allow sufficient boom roll.
6.3 Temperature Probe
Once the block is mounted, fasten the temperature probe from E03 to the NORAC valve
block using the included 3/8x1/2” bolt as illustrated in Figure 17.
Figure 17: NORAC Valve Block with Temperature Probe Installed

16
6.4 Roll Sensor Mounting on a Case Sprayer
Figure 18: Roll Sensor Mounting (Viewed from the rear of sprayer)

17
7Electrical Installation
1. Install the UC4.5 Control Panel (E01) in the cab of the sprayer. Mount the panel where it
will be clearly visible and within easy reach of the operator.
A good spot to mount the UC4.5 control panel is on the right hand side of the cab to the
Roll Over Protection Bar. Four pilot holes for the screws provided need to be drilled to
facilitate the control panel mounting.
Another option is to purchase an adapter for the flexible panel mount that has a 3/8" NC
threaded stud on the end to bolt through an existing mount. These are available at your
local outdoor store as a RAM mount part number RAM-B-236. (See http://www.ram-
mount.com/)
Figure 19: Cable Configurations: C10, C11 and C30
2. Connect the UC4.5 power cable (C10) to the UC4.5 Control Panel in the cab. Ensure that
both plugs (P16 and P4) are connected to the panel. Cable tie C10 to the RAM mount to
help provide strain relief.
3. Connect cable C30 to P6A of C10 using a 2-way coupler (E12). Connect the 3-pin AMP
connector C30 to an auxiliary power connection in the sprayer cab. If an appropriate
connector cannot be found, it may be necessary to cut off the connector and splice into the
existing wiring.
Ensure the UC4.5 Control Panel’s power is OFF for the remaining installation.
(Bottom of switch pressed IN).
4. Route the P12/P6 of C10 out of the cab.
5. Connect P12/P6 to R12/R6 of the extension cable (C11) outside of the cab.
