Norac UC4.5 User manual

J
ohn Deere
(30 Series Main Lift Option)
Installation Manual
J
D9

Printed in Canada
Copyright 2012 by NORAC Systems International Inc.
Reorder P/N: UC4.5-JD9-INST Rev A (John Deere 30 Series Main Lift Option)
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and
without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information
contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.

Contents
1Introduction................................................................................................................ 1
2Kit Parts ...................................................................................................................... 2
3Ultrasonic Sensor Installation .................................................................................. 5
4Hydraulic Installation ................................................................................................ 8
5Electrical Installation ............................................................................................... 10
6Software Setup......................................................................................................... 11
7Cable Drawings ........................................................................................................ 12

1
1Introduction
Congratulations on your purchase of the NORAC UC4.5 Spray Height Control System. This
system is manufactured with top quality components and is engineered using the latest
technology to provide operating reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
Every effort has been made to ensure the accuracy of the information contained in
this manual. All parts supplied are selected to specially fit the sprayer to facilitate
a complete installation. However, NORAC cannot guarantee all parts fit as
intended due to the variations of the sprayer by the manufacturer.
Please read this manual in its entirety before attempting installation.

2
2Kit Parts
2.1 Hydraulic Plumbing
Figure 1: JD9 Hydraulic Plumbing

3
2.2 List of Parts
The following tables list the John Deere 30 Series main lift kit (JD9) specific parts of the
NORAC UC4.5 system. This kit is to be used when installing the proportional main lift option
with existing John Deere installations.
Item Part Number Name Quantity
B21 44973 SENSOR MOUNTING BRACKET LOW PROFILE 16 GA LARGE FLANGE 1
C07 43220-01 CABLE UC5 NETWORK 14 AWG 1M 1
C17 44658-45D CABLE UC4 VALVE MAIN DT 1
E05 43750 UC5 ULTRASONIC SENSOR 1
E12 43764 UC5 NETWORK COUPLER 2-WAY 1
H03 44863-23 HOSE ASSEMBLY 122R2-06 32IN L 6FORX 6FORX 1
H10 44865-37 HYDRAULICS FITTING KIT - JD9 1
M01 UC4.5-JD9-INST MANUAL INSTALLATION UC4.5 JOHN DEERE 30 SERIES PROP MAIN LIFT OPTION 1
V01 44962D VALVE ASSEMBLY EXPANSION DPOC PROP DT 4 BOLT 1

4
2.3 Hydraulic Fitting Kit Details (P/N: 44865-37)
Item Part Number Name Quantity Picture
F03 104586 TEE ADAPTER - 6FORXR 6MORT 1
F05 44917 MALE ADAPTER - 6MB 6MOR 1
*F08 44926 ORIFICE INSERT 3/64" 1
F09 104369 PLUG - 6MBP 1
6 M B - 6 M OR X 90
SIZE IN
1/16TH'S
GENDER: MALE
OR FEMALE
90° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
* Orifice F08 is not required when installing on a John Deere 4930.
The use of dielectric grease is not recommended on any NORAC electrical
connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of
the supplied Permatex Anti-seize grease to all threaded parts upon installation.
Permatex Anti-seize lubricant is preferred, but other similar anti-seize products
may be used.

5
3Ultrasonic Sensor Installation

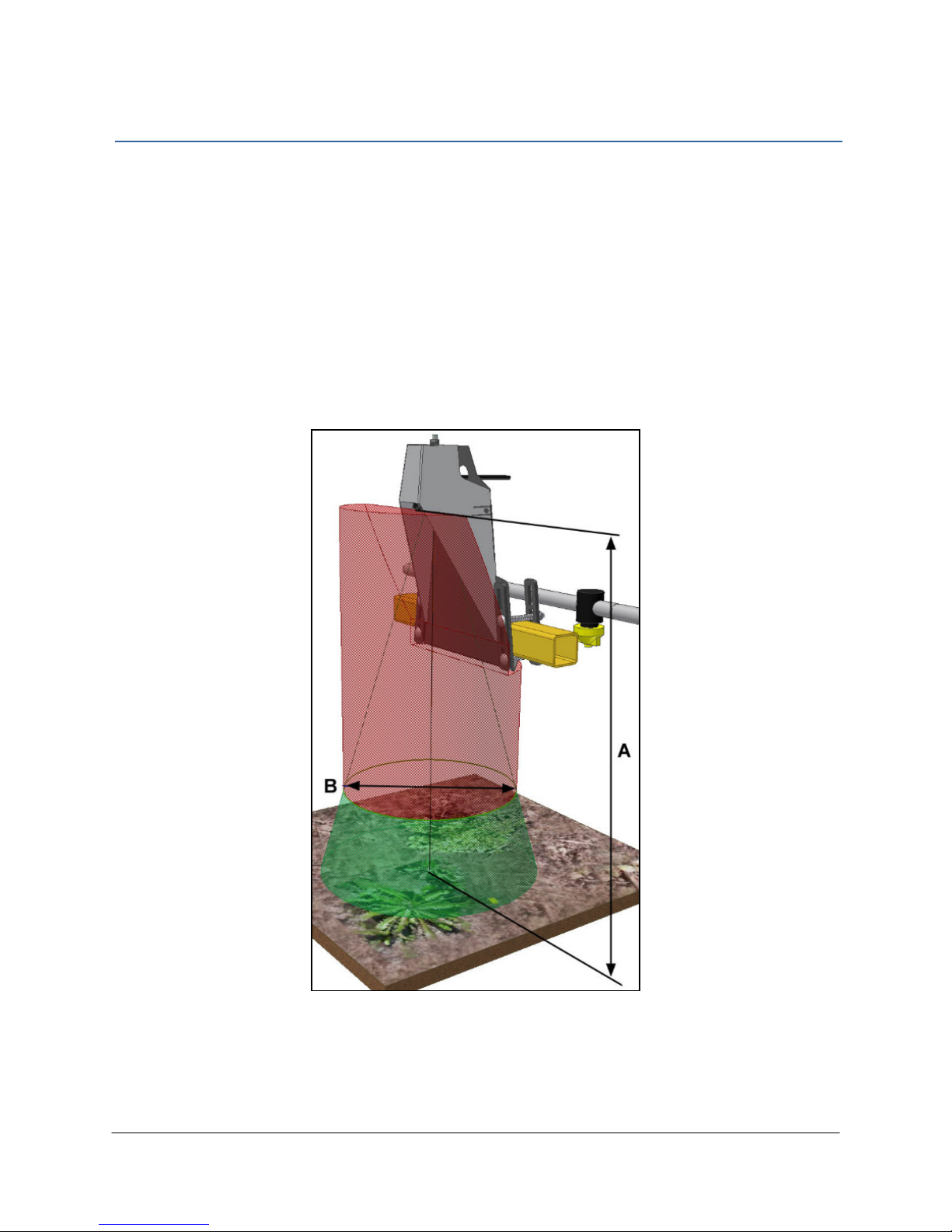

3.1 Ultrasonic Sensor Mounting Guidelines
The following guidelines will ensure optimal sensor performance and prevent
sensor measurement error. These rules should be followed for both the wing
sensors and the main lift (middle) sensor.
1. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground.
2. Ensure that there are no obstructions within a 12-inch diameter circle projected directly
below the center of the sensor.
3. The sensor should be approximately vertical at normal operating heights.
Figure 2: Sensor Mounting Guidelines

6

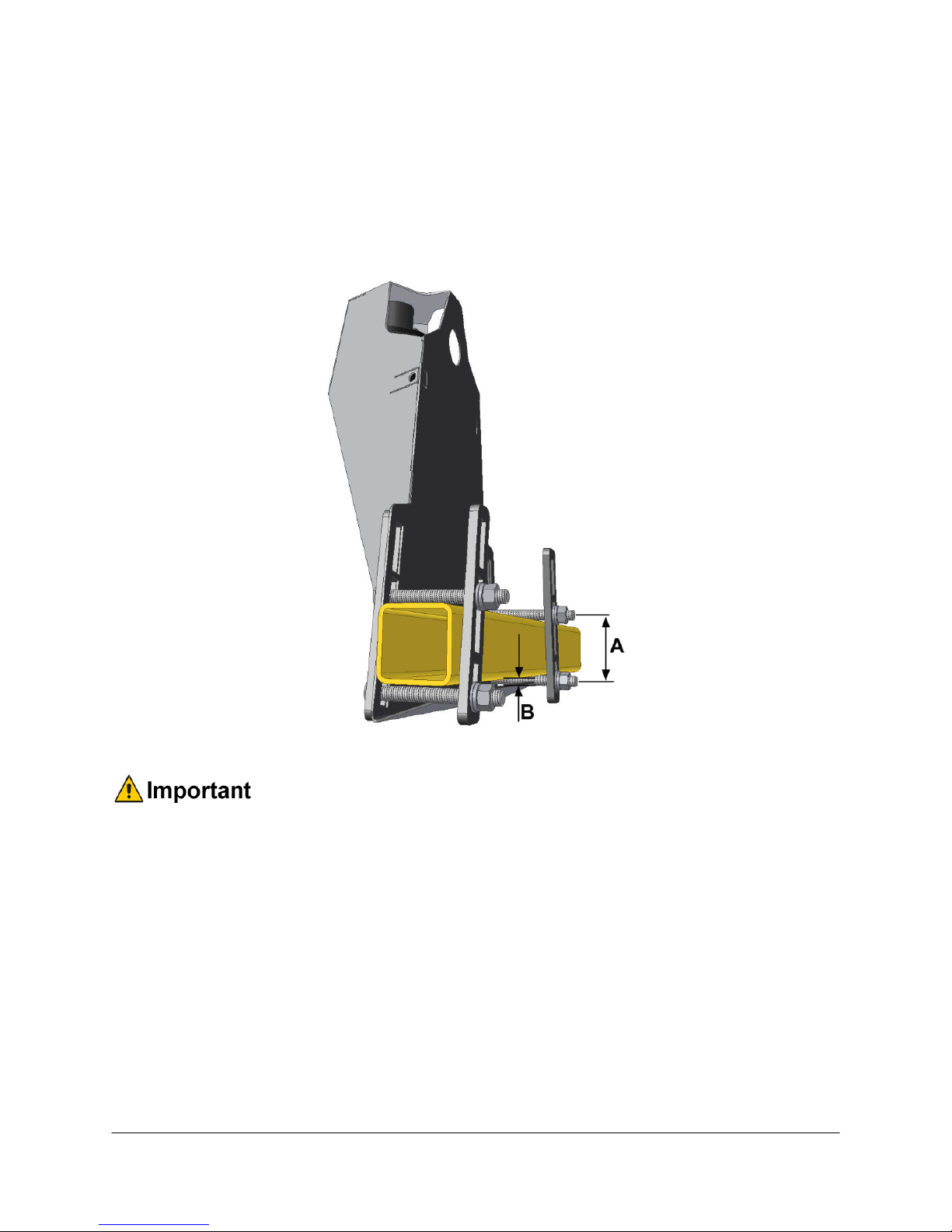

3.2 Low Profile Bracket Mounting Guidelines
1. Minimize the distance between the bolts to prevent bending the bracket and prevent the
bracket from loosening over time.
2. Ensure the bracket is mounted tight against the bottom of the boom, minimizing the
distance between the boom structure and the angled flange.
Figure 3: Bracket Mounting Guidelines
A problem can arise if a sensor is not mounted correctly. It is possible for the
sensor to read off of the boom instead of the ground. This may only become
apparent once the control system is switched from soil to crop mode.
Also be careful that the sensor bracket does not collide with any other part of the
boom when the boom is folded to transport position. If possible, mount the sensor
brackets while the booms are folded to ensure they will not cause interference.

7
3.3 Main Lift Sensor Installation
1. The main lift mounting bracket (B21) is the bracket with the longer mounting flange.
2. There are a variety of ways to mount the main lift bracket on most sprayers. The bracket
should position the sensor approximately in the center of the sprayer, forward of the
boom. An example of this mounting is illustrated in Figure 5.
Figure 4: Bracket Mounting Example
3. Mount the ultrasonic sensor to the main lift bracket. Run the sensor cable through hole
and behind the bracket.
Figure 5: Example Mounting of the Main Lift Bracket
Avoid mounting the main lift sensor over or near a wheel-track. Measurements
from the wheel-track do not provide an accurate crop height and will cause
measurement and control error.
Ensure the bracket does not collide with any other part of the sprayer throughout
the full range of main lift motion.
Front

8
4Hydraulic Installation
Ensure all pressure has been bled from the system before disconnecting any lines
or fittings. Hydraulic pressure will exist on the main lift circuit unless the main lift
is all the way down.
Component failure due to oil contamination is not covered under the NORAC
UC4.5 system warranty. It is recommended that a qualified technician perform the
hydraulic installation.
4.1 Expansion Block Assembly
1. Use Figure 1 as a reference for installing the hydraulics.
2. Loosen the existing 2-station valve block so that it can be moved and/or twisted for the
installation of the expansion block.
3. Remove the four 4MBP plugs from the 2 station valve block.
4. Coat the four o-rings in hydraulic oil and install them into the expansion block. Ensure the
o-rings are seated properly.
5. Attach the expansion block to the 2 station block using the included spring washers and
bolts.
6. Tighten the bolts to 31 ft-lbs.
Figure 6: NORAC Expansion Block Assembly

9
4.2 Hydraulic Plumbing
1. Install the orifice (F08) and the 6MB 6MOR fitting (F05) into the “B” port of the expansion
block.
The orifice is not required for John Deere 4930 sprayers.
2. Install the 6MBP plug (F09) into the “A” port of the expansion block.
3. If the valve block is not already installed on the sprayer, install it as outlined in the UC4.5
Spray Height Control installation manual.
4. Attach hose H01 to the “B” port on the expansion block. Route the free end of the hose
to the John Deere valve block.
5. Tee in H01 to the existing main lift line on the John Deere valve block, using the tee fitting
(F03).
Figure 7: Main Lift Tee Location
Figure 8: Main Lift Tee Fitting Installed
Ensure no hydraulic components will interfere with any sprayer parts or be pulled
tight at any time.
Main Lift Tee
F03
H03
Main Lift Tee

10
5Electrical Installation
Figure 9: Cable Connections
Only parts shown in black are included in this kit.
1. Connect the 6-pin shroud (S6) on C17 to T6 on C11 (previously installed).
2. Connect the 3-pin tower (T3) on C17 to S3 on C11.
Two connectors on C17 will remain disconnected. These are used when
installing other UC4.5 options.
3. Install the two 2-pin connectors on the end of cable C17 to the expansion block.
The connector marked “Main Up” goes on the port side of the block. The
port side of the block is the side with the hose connections.
4. Connect the main lift sensor to the 8-way coupler using cable C07 and a 2-way coupler
(E12). Cable C07 and item E12 may not be needed if the 8-way coupler is mounted close
enough to the main lift sensor.

11
6Software Setup
1. Start up the sprayer and test the sprayer’s functionality. The control panel does not need
to be powered on for the original switches to function.
Confirm that the cabling and hoses are agreeable to the entire range of motion.
2. If any functions do not work, review the hydraulic and electrical portions of this manual to
check for proper installation.
3. Turn on the power for the control panel using the switch on the side of the chassis.
4. Refer to the UC4.5 Spray Height Control Operator’s Manual to run an automatic install
with the JD9 type selected.

12
7Cable Drawings

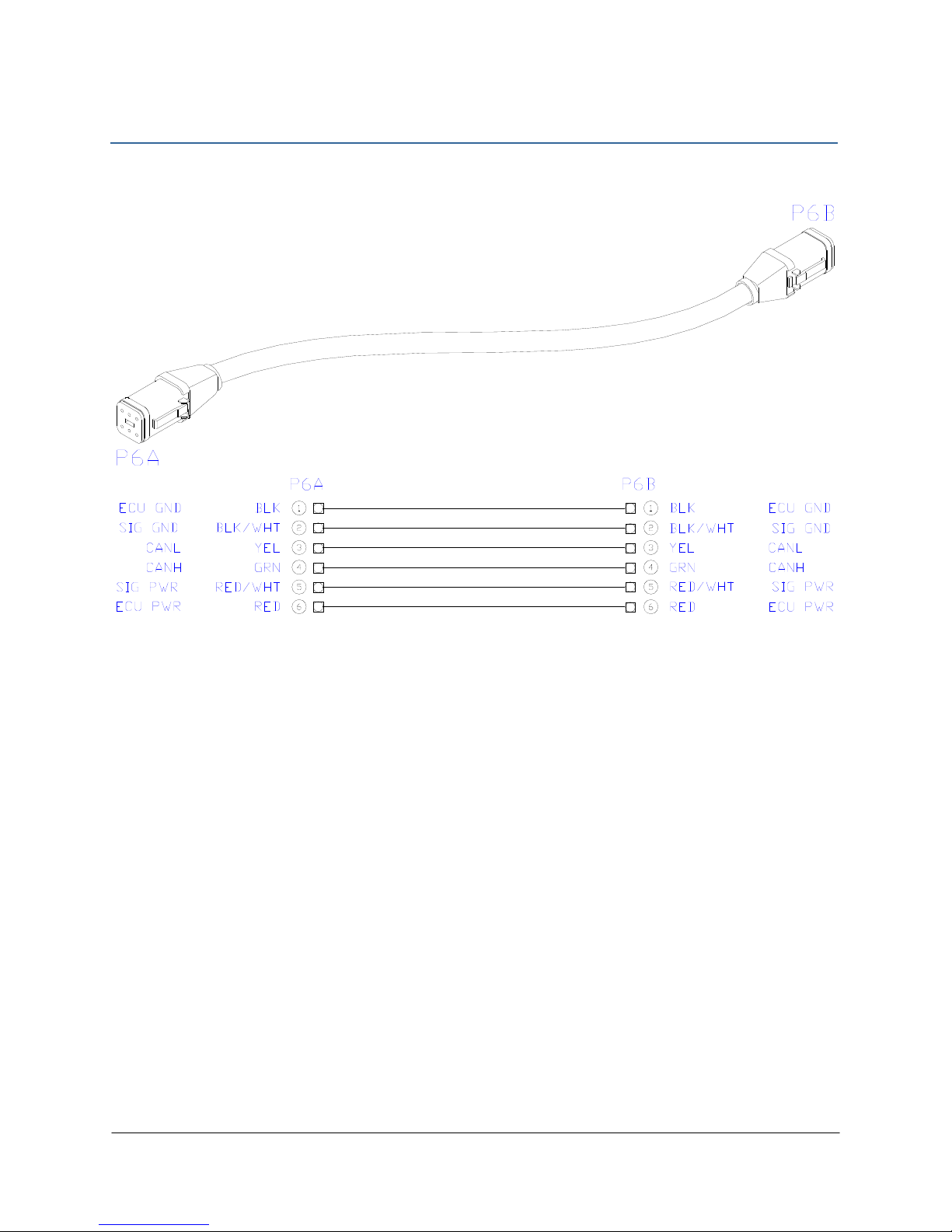

7.1 ITEM C07: 43220-01 - CABLE UC5 NETWORK 14 AWG - 1M

13

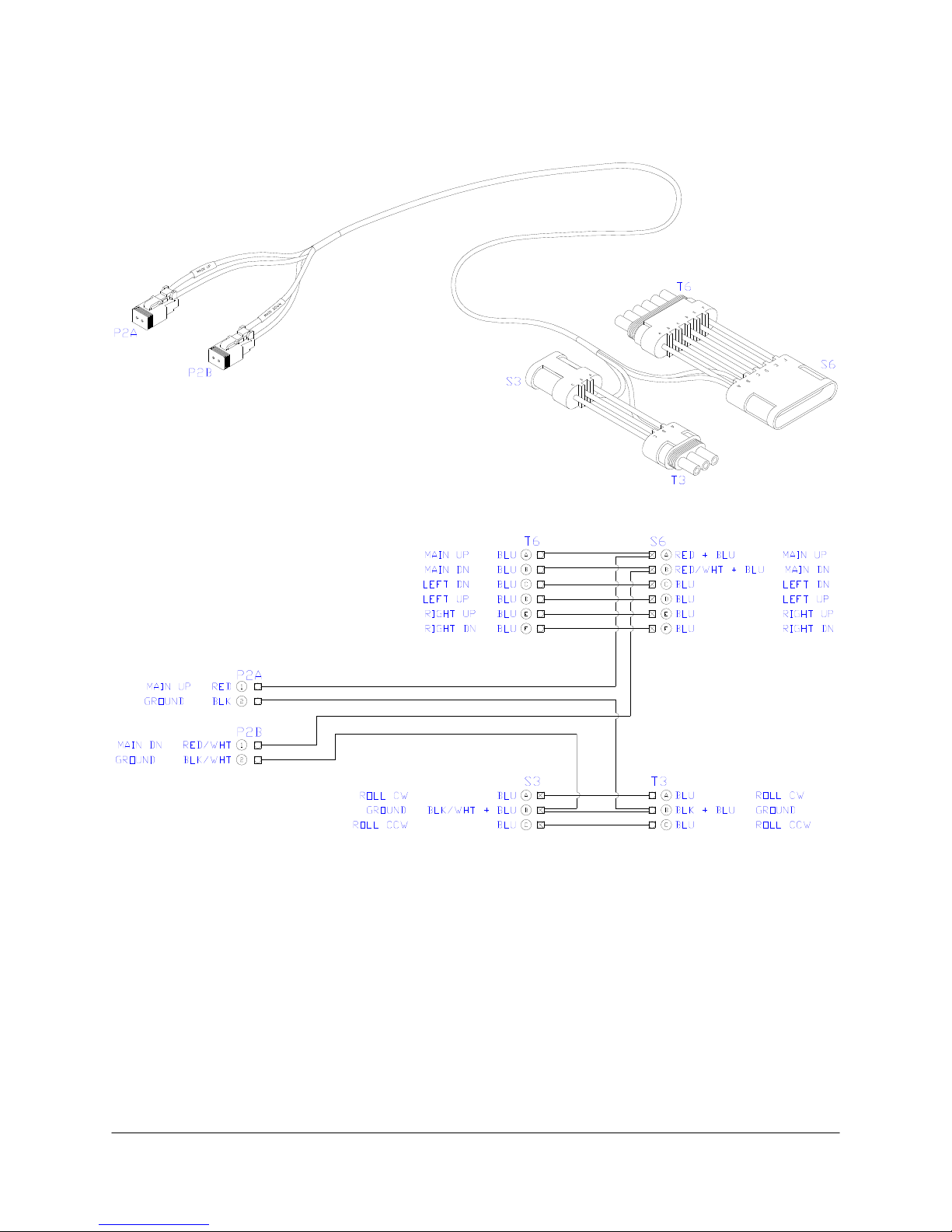

7.2 ITEM C17: 44658-45D – CABLE UC4 VALVE MAIN DT
