Oakley CRANKCASE THREE-HAND User manual

®
Crankcase 3hand_ENG 10/1/07 11:57 AM Page 1

SETTING THE TIME
Your Oakley timepiece features a screw-down crown for added protection against
moisture. After it is unscrewed from the case, the crown can be pulled out to two
click positions for setting the date and time. To set the date and time the
first
time (or to reset the date and time after the battery is changed), do the following:
CRANKCASE THREE-HAND INSTRUCTIONS MANUAL 03

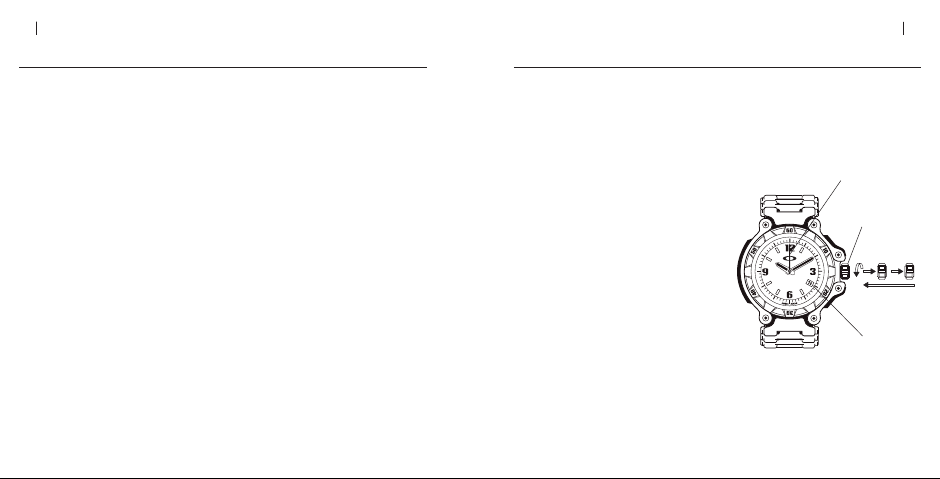

TO SET THE TIME
1. Pull the crown out to the first click position (a).
2. Turn the crown until yesterday’s date appears.
3. Pull the crown out to the second click
position (b).
4. Turn the hands forward until today’s date
appears, then continue forward until the
current time is reached. If the current time
is in the afternoon or evening, move the
hour hand all the way around the dial to
pass 12 o’clock noon.
5. Push the crown back in. Gently turn the
crown clockwise until it screws back into
the case.
To set the exact second, wait until the
second-counting hand reaches “60” before
you pull out the crown to the second click
position (b). Set the time then wait until
the exact second is reached before
pushing the crown back in.
ab
Second Hand
Date
Crown
CRANKCASE™THREE-HAND
Engineered for a life with momentum, this Swiss Made timepiece lets you gauge
the moments that refuse to stand still. Impact forged stainless steel puts an edge
of distinction on the art of Oakley, and precision is honed with 5 jewel movement.
Carbon reinforced impact bumpers are matched with a pure sapphire crystal and
case shielding that can withstand water pressure equivalent to a depth of 330
feet (100 meters). This sport-inspired design combines rugged durability with
sophisticated ease for a life in motion.
02 CRANKCASE THREE-HAND INSTRUCTIONS MANUAL
Crankcase 3hand_ENG 10/1/07 11:57 AM Page 2

USING THE ROTATING BEZEL
The top bezel can be rotated to measure time intervals. Rotate the bezel
counterclockwise to align the “60” mark (which is also the zero mark) with the
minute hand on the main dial face. After a time interval, use the numbers on
the bezel to read the elapsed time in minutes. Note that the bezel rotates in
only one direction.
POWER SAVING MODE
When the timepiece is not in use, the battery life can be prolonged by pulling the
crown out to the second click position (b). This will stop the hands and reduce
power consumption.
LOW BATTERY INDICATOR
When the battery is running low, the small second hand will move in four-second
intervals. If this occurs, the watch will continue to display time accurately but the
battery should be replaced as soon as possible.
CRANKCASE THREE-HAND INSTRUCTIONS MANUAL 05
TO ADJUST THE TIME AND DATE FOR SUBSEQUENT SETTINGS, USE
THESE SHORT PROCEDURES
TO SET THE TIME
1. Pull the crown out to the second click position (b).
2. Turn the crown until you reach the correct time.
3. Push the crown back in. Gently turn the crown
clockwise until it screws back into the case.
TO SET THE DATE
1. Pull the crown out to the first click position (a).
2. Turn the crown until you reach the correct date.
If the current time is between 9:30 PM and 3:00
AM, set the date to the following day. (This is
necessary to ensure the date display will
normally change at midnight instead of 12
noon.)
3. Push the crown back in. Gently turn the crown
clockwise until it screws back into the case.
04 CRANKCASE THREE-HAND INSTRUCTIONS MANUAL
ab
Second Hand
Date
Crown
Crankcase 3hand_ENG 10/1/07 11:57 AM Page 4

BAND ADJUSTMENT
METAL BRACELET MODEL
If links need to be added or removed from the band, the adjustment should be
done by an Authorized Oakley Timepiece Dealer. Do not attempt to shorten the
band by removing links yourself, as this may result in damage to the bracelet.
LEATHER STRAP MODEL
The natural leather of the strap may stretch slightly during break-in, so adjust the
fit accordingly.
LEATHER CARE
Even the highest quality leather has a finite lifespan that may be reduced by
excess wear and tear, exposure to the natural acids in perspiration, and
exposure to the environment. To maximize the longevity of natural leather
components in the leather strap model, avoid direct contact with solvents and
other chemicals; avoid prolonged exposure to sunlight; and avoid soaking the
components in water.
CLEANING
Failure to keep the case and band clean may result in a skin rash. Use a soft,
clean cloth to wipe off any moisture that adheres to the case or band.
CRANKCASE THREE-HAND INSTRUCTIONS MANUAL 07
06 CRANKCASE THREE-HAND INSTRUCTIONS MANUAL
BATTERY REPLACEMENT
The miniature battery that powers the timepiece is designed to last approximately
40 months in the three-hand small edition and 72 months in the three-hand
standard edition. However, because the battery is inserted at the factory for
extensive performance checks, its actual life, once in your possession, may be less.
Battery replacement may be performed only by an Authorized Oakley Service
Center. Any attempt to open the watch case by persons other than Authorized
Oakley Service Professionals will void the product warranty.
Within the United States, call Oakley global headquarters at 1-800-403-7449 to
find an Authorized Oakley Timepiece Service Professional near you. Customers
outside the United States should contact their local Authorized Oakley Timepiece
Dealer or visit the Oakley website at www.oakley.com for the number of the
nearest Oakley distributor.
Crankcase 3hand_ENG 10/1/07 11:57 AM Page 6

SPECIFICATIONS
MOVEMENT ..................................................................................Swiss Made, 5-jewel
TYPE OF OSCILLATOR ........................................................................Quartz tuning fork
FREQUENCY OF OSCILLATOR ......................................................32,768 cycles per sec.
ACCURACY....................................................................................-12 /+18 sec. per mo.
THERMAL OPERATING MIN ............................................................................0ºC (32ºF)
THERMAL OPERATING MAX. ......................................................................50ºC (122ºF)
WATER RESISTANCE ................................10 bar; equivalent to depth of 100m / 330ft
BATTERY (3-HAND SMALL EDITION)........................Silver oxide: No. 362, SR 721 SW
BATTERY (3-HAND STANDARD EDITION)................Silver oxide: No. 371, SR 920 SW
BATTERY ENDURANCE (3-HAND SMALL EDITION) ........................Approx. 40 months
BATTERY ENDURANCE (3-HAND STANDARD EDITION)..................Approx. 72 months
CRANKCASE THREE-HAND INSTRUCTIONS MANUAL 09
COMPOSITION
CASE BODY..............................................................................................Stainless steel
CASE STRUCTURE ..................................................Carbon reinforced impact bumpers
MANUFACTURING..................................Impact forged, high-precision CNC machined
CRYSTAL ..............................................................Sapphire with anti-reflective coating
CROWN ......................................................................Double seal for water resistance
STAINLESS STEEL BRACELET MODEL
BRACELET COMPOSITION................................................Impact forged stainless steel
KINETICS ................................Carbon fiber reinforced self-lubricating thrust washers
CLOSURE ............................Stainless steel deployment clasp w/ dual pusher release
LEATHER STRAP MODEL
STRAP COMPOSITION ..........................................................................Genuine leather
ATTACHMENT................................................................Stainless steel attachment link
CLOSURE ..............................................................Impact forged stainless steel buckle
UNOBTAINIUM®RUBBER STRAP MODEL
STRAP COMPOSITION ......................................................Oakley Unobtainium®rubber
ATTACHMENT................................................................Stainless steel attachment link
CLOSURE ....................................................................Stainless steel deployment clasp
08 CRANKCASE THREE-HAND INSTRUCTIONS MANUAL
Crankcase 3hand_ENG 10/1/07 11:57 AM Page 8

CRANKCASE THREE-HAND INSTRUCTIONS MANUAL 11
OAKLEY WARRANTY POLICY
All authentic Oakley timekeeping instruments are warranted against manufacturer’s
defects for two full years from the date of purchase. Coverage is valid only with
proof of purchase from an Authorized Oakley Timepiece Dealer.
IMPORTANT
This limited warranty does not cover the crystal, strap/band/bracelet, or
attachments. The deterioration of leather components is not covered, nor are
scratches to the case caused by use, nor is moisture damage if the timepiece is
a non-hydrophobic model, nor is damage caused by natural disaster such as fire,
flood, or earthquake. We reserve the right to relinquish all responsibility under
this guarantee for repair of damage when misuse or abuse is evident, including
defects related to tampering or servicing done by agents other than Authorized
Oakley Service Facilities. This warranty does not affect specific legal rights of
the consumer.
To qualify for service under the above guarantee, valid proof of purchase —
which clearly shows the purchase date and the name of the Authorized Oakley
Timepiece Dealer — must be presented if a repair claim is made during the
warranty period.
SAFEGUARDING
WATER EXPOSURE
Prior to exposing the timepiece to water, ensure the crown is pushed fully down
against the case then turn the crown clockwise to tighten the water seal. Rated at 10-
bar hydrophobic, the timepiece may be worn during bathing, swimming and shallow
diving. It is not designed for scuba or saturation diving. Do not pull out the crown or
use the buttons if the timepiece is wet. If used in seawater, rinse the timepiece with
fresh water and dry completely. For the leather strap model, avoid soaking the strap,
as this may damage the natural leather.
TEMPERATURE
For precision timekeeping, normal operating temperature is 0°C to 50°C (32°F to 122°F).
MAGNETISM
Strong magnetic fields can have an adverse affect on the timepiece. Keep it away
from magnetic objects.
CHEMICALS
The timepiece may become discolored or damaged if exposed to cosmetic spray,
detergents, adhesives, solvents, or paints.
SHOCK WAVE
Although the timepiece resists shock damage, impact against a hard surface may
cause damage to the movement or crystal.
PERIODIC MAINTENANCE
To ensure that the case, crown, crystal seal, and gasket remain resistant to water
exposure, it is recommended that the timepiece be inspected once every 2 to 3 years
by an Authorized Oakley Service Center.
