HOLESHOT
The technology of performance becomes the art of style with Oakley Holeshot, an
invention that brings sport into life. This true Swiss Made timepiece optimizes
accuracy with the precision of Swiss movement. It features an onboard
chronograph that conveniently measures cumulative time, intermediate time and
split time down to a tenth of a second.
Rugged meets refined in a durable chassis of 316L stainless steel that cradles a
six-hand analog display, shielded by a pure sapphire crystal. A band of supple
Unobtainium® offers a comfortable fit. The date display can be read at a glance,
and luminous phosphors on the minute and hour hands improve visibility in low
light. Water resistance is 10 bar, equivalent to the pressure at a depth of 330 feet
(100 meters).
02 HOLESHOT INSTRUCTION MANUAL

HOLESHOT INSTRUCTION MANUAL 03

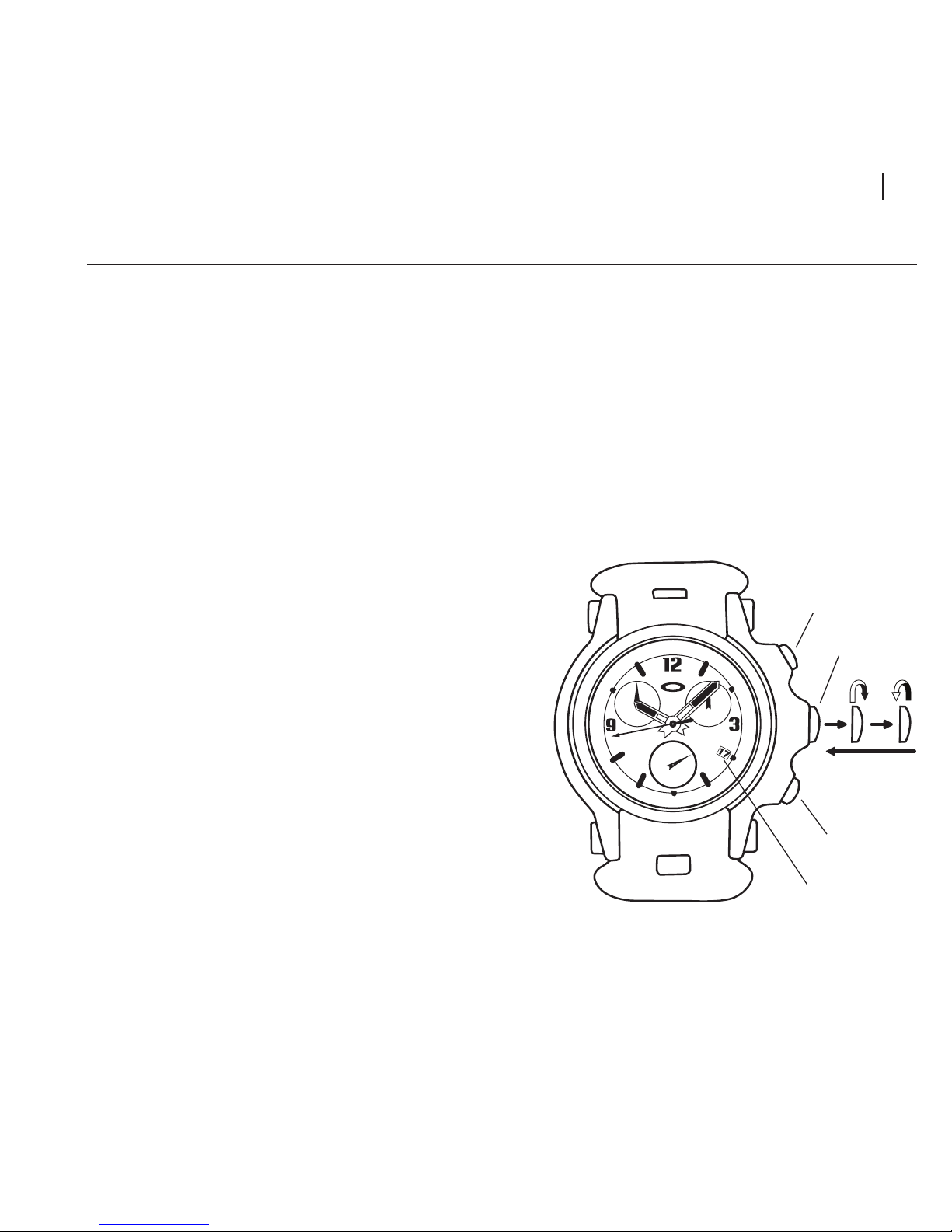

SETTING THE TIME
The crown can be pulled out to two click positions for setting the date and time.
To set the date and time the first time (or to reset the date and time after the
battery is changed), do the following:
TO SET THE TIME
1. Pull the crown out to the first click
position (a).
2. Turn the crown until yesterday’s date appears.
3. Pull the crown out to the second click
position (b).
4. Turn the hands forward until today’s date
appears, then continue forward until the
current time is reached. If the current time
is in the afternoon or evening, move the
hour hand all the way around the dial to
pass 12 o’clock noon.
5. Push the crown back down. To set the
exact second, wait until the hand in the
second-counting sub dial (at the bottom of
the main dial face) reaches “60” before
you pull out the crown. Set the time then
wait until the exact second is reached
before pushing the crown back down.
AB AB
Button A
Button B
Date
Crown

TO ADJUST THE TIME AND DATE FOR SUBSEQUENT SETTINGS,
USE THESE SHORT PROCEDURES
TO SET THE TIME
1. Pull the crown out to the second click position (b).
2. Turn the crown until you reach the correct time.
3. Push the crown back down.
TO SET THE DATE
1. Pull the crown out to the first click
position (a).
2. Turn the crown until you reach the
correct date. If the current time is
between 9 PM and midnight, set the
date to the following day.(This is
necessary to ensure the date display
will normally change at midnight
instead of 12 noon.)
3. Push the crown back down.
04 HOLESHOT INSTRUCTION MANUAL
AB
Button A
Chronograph
1/10 Second
Chronograph
Minutes
Seconds
Chronograph
Second Hand
Button B
Date
Crown

HOLESHOT INSTRUCTION MANUAL 05
USING THE CHRONOGRAPH
The chronograph includes three separate hands:
• The narrow hand on the main dial face counts seconds. One full rotation is
60 seconds.
• The hand on the sub dial at the left counts minutes. One full rotation is
30 minutes.
• The hand on the sub dial at the right counts 1/10 seconds. One full rotation
is 1 second.
The chronograph is controlled with two push buttons:
• Button “A” stops and starts the timer.
•Button “B” has several functions. In addition to pausing the display at the
current intermediate or “split” time, it allows the chronograph hands to catch
up to the ongoing time being measured, and it resets the chronograph hands
to the zero position.
Before using the chronograph functions, make sure the crown is fully against the
case and not at one of the click positions used for setting time and date. The
three chronograph hands should align precisely at the zero position. If they do
not, see the section on Adjusting the Chronograph Hands.

TO MEASURE CUMULATIVE TIME
START TIMING
Press button “A”.
STOP TIMING TEMPORARILY
Press button “A” to stop timing temporarily.
Press button “A” again to restart timing.
Continue to use button “A” to add
additional time intervals to the total
measure of time. When using button
“A” only, the time that occurs while the
chronograph hands are not moving IS
NOT ADDED to the total measure of
time. See the section on “To measure
intermediate time” if you wish to
include this “intermediate time” in the
total measure of time.
RESET
While timing is stopped, press button “B”.
06 HOLESHOT INSTRUCTION MANUAL
AB
Button A
Button B

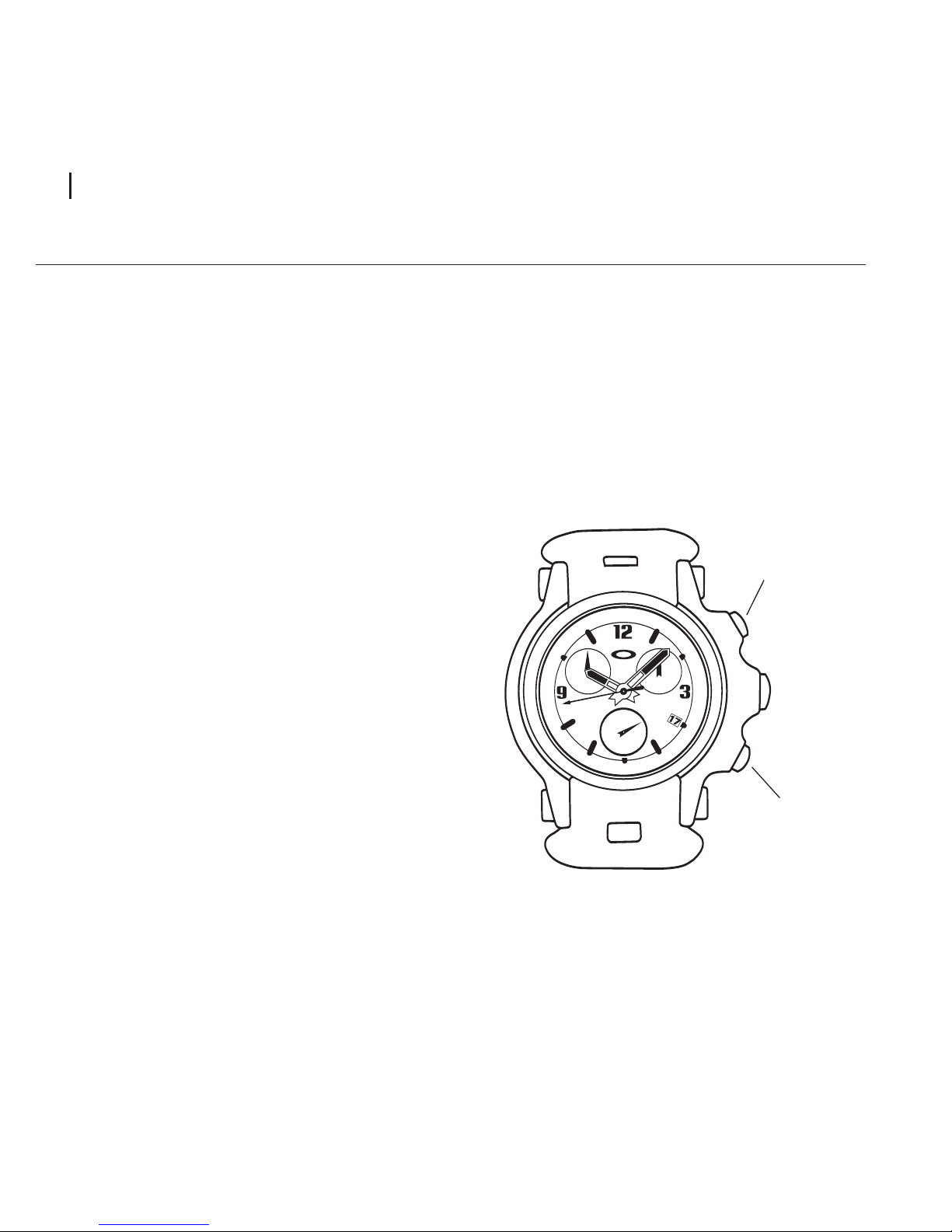

TO MEASURE INTERMEDIATE TIME / SPLIT TIMEGUARDING
START TIMING
Press button “A”.
PAUSE HANDS BUT CONTINUE TIMING
Press button “B” to pause the chronograph hands and read the current time total.
Although the hands are no longer moving, time is still being measured.
Press button “B” again to move the hands to the currently running time total.
Continue to use button “B” to pause the hands when desired. Time continues to
be measured.
STOP TIMING AND DISPLAY THE FINAL TIME TOTAL
While the hands are moving, press button “A” to fully stop timing and display the
total time measured.
RESET
While timing is stopped, press button “B”.
HOLESHOT INSTRUCTION MANUAL 07

USING THE TACHYMETER
The number scale around the rim of the dial face can be used to compute speed
based on travel time. Only speeds above “60” can be measured, but they can be
in miles per hour, kilometers per hour, or another unit of measure per hour.
TO MEASURE SPEED
START TIMING AT MARKER
When you reach a distance marker
(such as a mile or kilometer marker),
press button “A”.
STOP TIMING AT NEXT MARKER
When you reach the next marker,press
button “A” to stop timing.
The hand that counts seconds now
points to your speed on the tachymeter
scale. (Example: If mile markers were
used and the hand now points to “65,”
your speed is 65 mph.)
RESET
While timing is stopped, press button “B”.
08 HOLESHOT INSTRUCTION MANUAL
AB
70
75
80
90
100
120
140
160
240
300
60
180
200
65
400
500
T
A
C
H
Y
M
E
T
E
R
Button A
Tachymeter
Chronograph
Second Hand
Button B

HOLESHOT INSTRUCTION MANUAL 09
POWER SAVING MODE
When the timepiece is not in use, the battery life can be prolonged by pulling the
crown out to the second click position (b). This will stop the hands and reduce
power consumption.

10 HOLESHOT INSTRUCTION MANUAL
ADJUSTING THE CHRONOGRAPH HANDS
When the chronograph is reset with button “B,” the three chronograph hands return
to the zero position. If these hands do not align precisely with the zero position
(such as after a battery change), use the following procedure to adjust them.
TO ADJUST THE CHRONOGRAPH HANDS
1. If the chronograph hands currently show a measured time, use button “B” to reset
them near the zero position.
Note that the hands must be stopped before
using button “B” to reset them. If necessary,
use button “A” to stop the hands.
2. Pull the crown out to the first click position
(a). Press button “A” to adjust the
chronograph hand that counts 1/10 seconds.
(Press and hold the button for continuous
movement.)
Press button “B” to adjust the chronograph
hand that counts seconds. (Press and hold
the button for continuous movement.)
3. Pull the crown out one more click, to the
second click position (b).
Press button “A” to adjust the chronograph
hand that counts minutes. (Press and hold
the button for continuous movement.)
4. Push the crown back down.
AB
Button A
Chronograph
1/10 Second
Chronograph
Minutes
Chronograph
Second Hand
Button B
Crown

HOLESHOT INSTRUCTION MANUAL 11
BATTERY REPLACEMENT
The miniature battery that powers the timepiece is designed to last approximately
38 months. However, because the battery is inserted at the factory for extensive
performance checks, its actual life, once in your possession, may be less.
Battery replacement may be performed only by an Authorized Oakley Service
Center . Any attempt to open the watch case by persons other than Authorized
Oakley Service Professionals will void the product warranty.
Within the United States, call Oakley global headquarters at 1-800-403-7449 to
find an Authorized Oakley Timepiece Dealer or Service Professional near you.
Customers outside the United States should contact their local Authorized Oakley
Timepiece Dealer or visit the Oakley website at www.oakley.com for the number
of the nearest Oakley distributor.
CLEANING
Failure to keep the case and band clean may result in a skin rash. Use a soft,
clean cloth to wipe off any moisture that adheres to the case or band.

COMPOSITION
CASE BODY ............................................................................................ Stainless steel
CASE BACK ............................................................................................ Stainless steel
MANUFACTURING ................................ Impact forged, high-precision CNC machined
CRYSTAL.............................................................. Sapphire with anti-reflective coating
CROWN...................................................................... Double seal for water resistance
BRACELET COMPOSITION.............................................. Oakley Unobtainium® rubber
CLOSURE .................................................................................... Stainless steel buckle
12 HOLESHOT INSTRUCTION MANUAL

HOLESHOT INSTRUCTION MANUAL 13
SPECIFICATIONS
MOVEMENT ................................................................................ Swiss Made, 4-jewel
TYPE OF OSCILLATOR ........................................................................ Quartz tuning fork
FREQUENCY OF OSCILLATOR .................................................... 32,768 cycles per sec.
DRIVE SYSTEM .......................................................... Two-pole step motor (180º/sec.)
ACCURACY .................................................................................... -7 /+15 sec. per mo.
THERMAL OPERATING MIN............................................................................ 0ºC (32ºF)
THERMAL OPERATING MAX....................................................................... 50ºC (122ºF)
WATER RESISTANCE................................ 10 bar; equivalent to depth of 100m / 330ft
BATTERY .................................................................. Silver oxide: No. 394, SR 936 SW
BATTERY ENDURANCE .................................................................... Approx. 38 months

SAFEGUARDING
WATER EXPOSURE
Rated at 10-bar hydrophobic, the timepiece may be worn during bathing,
swimming and shallow diving. It is not designed for scuba or saturation diving.
Do not pull out the crown or use the buttons if the timepiece is wet. If used in
seawater, rinse the timepiece with fresh water and dry completely.
TEMPERATURE
For precision timekeeping, normal operating temperature is 0°C to 50°C (32°F
to 122°F).
MAGNETISM
Strong magnetic fields can have an adverse affect on the timepiece. Keep it away
from magnetic objects.
CHEMICALS
The timepiece may become discolored or damaged if exposed to cosmetic spray,
detergents, adhesives, solvents, or paints.
SHOCK WAVE
Although the timepiece resists shock damage, impact against a hard surface may
cause damage to the movement or crystal.
PERIODIC MAINTENANCE
Toensure that the case, crown, crystal seal, and gasket remain resistant to water
exposure, it is recommended that the timepiece be inspected once every 2 to 3
years by an Authorized Oakley Service Center.
14 HOLESHOT INSTRUCTION MANUAL

HOLESHOT INSTRUCTION MANUAL 15
OAKLEY WARRANTY POLICY
All authentic Oakley timekeeping instruments are warranted against
manufacturer’s defects for two full years from the date of purchase. Coverage is
valid only with proof of purchase from an Authorized Oakley Timepiece Dealer.
IMPORTANT
This limited warranty does not cover the crystal, strap/band/bracelet, or
attachments. The deterioration of leather components is not covered, nor are
scratches to the case caused by use, nor is moisture damage if the timepiece is
anon-hydrophobic model, nor is damage caused by natural disaster such as fire,
flood, or earthquake. We reserve the right to relinquish all responsibility under
this guarantee for repair of damage when misuse or abuse is evident, including
defects related to tampering or servicing done by agents other than Authorized
Oakley Service Facilities. This warranty does not affect specific legal rights of
the consumer.
To qualify for service under the above guarantee, valid proof of purchase —
which clearly shows the purchase date and the name of the Authorized Oakley
Timepiece Dealer — must be presented if a repair claim is made during the
warranty period.

OAKLEY WARRANTY POLICY
REGISTRATION
The cutting-edge technology within each Oakley timepiece serves as validation of
its authenticity. By registering your timepiece via mail or online at
www.oakley.com, you provide further credentials by allowing us to document
your purchase.
HOW TO MAKE A WARRANTY CLAIM
Within the United States, telephone our global headquarters at 1 [phone]
with your purchase information. Customers outside the United States should
contact their local Authorized Oakley Timepiece Dealer or visit the Oakley
website at www.oakley.com for the number of the nearest Oakley distributor.
Swiss Movement
Swiss Made
16 HOLESHOT INSTRUCTION MANUAL

HOLESHOT INSTRUCTION MANUAL 17
HOW TO MAKE A WARRANTY CLAIM
Oakley Global Headquarters, USA: 1 [phone]
Oakley Africa: [phone]
Oakley Brasil Ltda.: 0800-770-7822 ou 0xx11-4197-9999 (Grande São Paulo e celular)
Oakley Canada: 1-877-625-5396
Oakley Europe: Belgium: 0800 10 464 • Danmark: 800 10 631 • España: 900 993 385
•Finland: 0 800 11 33 80 • France: 0 800 037 619 • Nederland: 0800 022 9086
•Island: 800 83 82 • Italia: 800 343 467 • Luxemburg: 800 22 957
•Norge: 800 11 268 • Portugal: 800 833 011 • Sverige: 020 795 467
Oakley GMBH: Germany, Austria and Poland: [phone]
Oakley Japan: 0120 009 146
Oakley México: 52) 55 59503643
Oakley South Pacific (Australia): 1 800 637 001
Oakley South Pacific (New Zealand): 0800 696 255
Oakley UK: 01462 475400 Eire customers: 00 353 4439557

HOLESHOT
La innovación tecnológica se convierte en arte con Oakley Holeshot, un invento que
introduce el deporte en nuestras vidas. Este verdadero reloj suizo optimiza la
exactitud con la precisión de un mecanismo suizo. Está provisto de un cronógrafo
que mide el tiempo acumulado, los tiempos parciales y el tiempo dividido en
décimas de segundo.
Lo resistente y lo refinado se unen en un chasis resistente de acero inoxidable 316L
con una pantalla analógica de seis manecillas, protegida por un cristal de zafiro
puro. La correa de Unobtainium® flexible resulta muy cómoda. La pantalla con la
fecha se puede ver de un vistazo y el fósforo luminoso del minutero y del horario
mejora la visibilidad cuando hay poca luz. Tiene una resistencia al agua de 10 bar,
equivalente a la presión a una profundidad de 100 m.
18 HOLESHOT MANUAL DE INSTRUCCIONES

AJUSTE DE FECHA Y HORA
La corona se puede extraer hasta dos posiciones indicadas por un click para ajustar
la fecha y la hora.
Para ajustar la fecha y la hora por primera vez (o para reajustar la fecha y la hora
después de cambiar la pila), haga lo siguiente:
PARA AJUSTAR LA HORA
1. Tire de la corona hasta la posición del primer
click (a).
2. Gire la corona hasta que aparezca la fecha
del día de ayer.
3. Tire de la corona hasta la posición del
segundo click (b).
4. Gire las manecillas hacia delante hasta que
aparezca la fecha de hoy, luego continúe hacia
delate hasta situarlas en la fecha actual. Si la
hora actual es por la tarde o tarde / noche,
mueva la manecilla horaria alrededor de la
esfera hasta pasar las 12:00 del mediodía.
5. Presione la corona de nuevo hacia dentro. Para
ajustar el segundo exacto, espere hasta que el
segundero de la subesfera (en la parte inferior de
la esfera principal) alcance “60” antes de extraer
la corona. Ajuste la hora y luego espere hasta que
sea alcanzado el segundo exacto, antes de volver
apresionar la corona hacia dentro.
HOLESHOT MANUAL DE INSTRUCCIONES 19
AB
Botón A
Botón B
Fecha
Corona
