Oase Floating Fountain with Lights 1/4 HP User manual

1
1
Floating Fountain with Lights 1/4 HP
1/2 HP
Operating instructions
Notice d’emploi
Instrucciones de uso

- English -
2
REMINDER
CALL 1-866-627-3435
BEFORE RETURNING TO STORE.

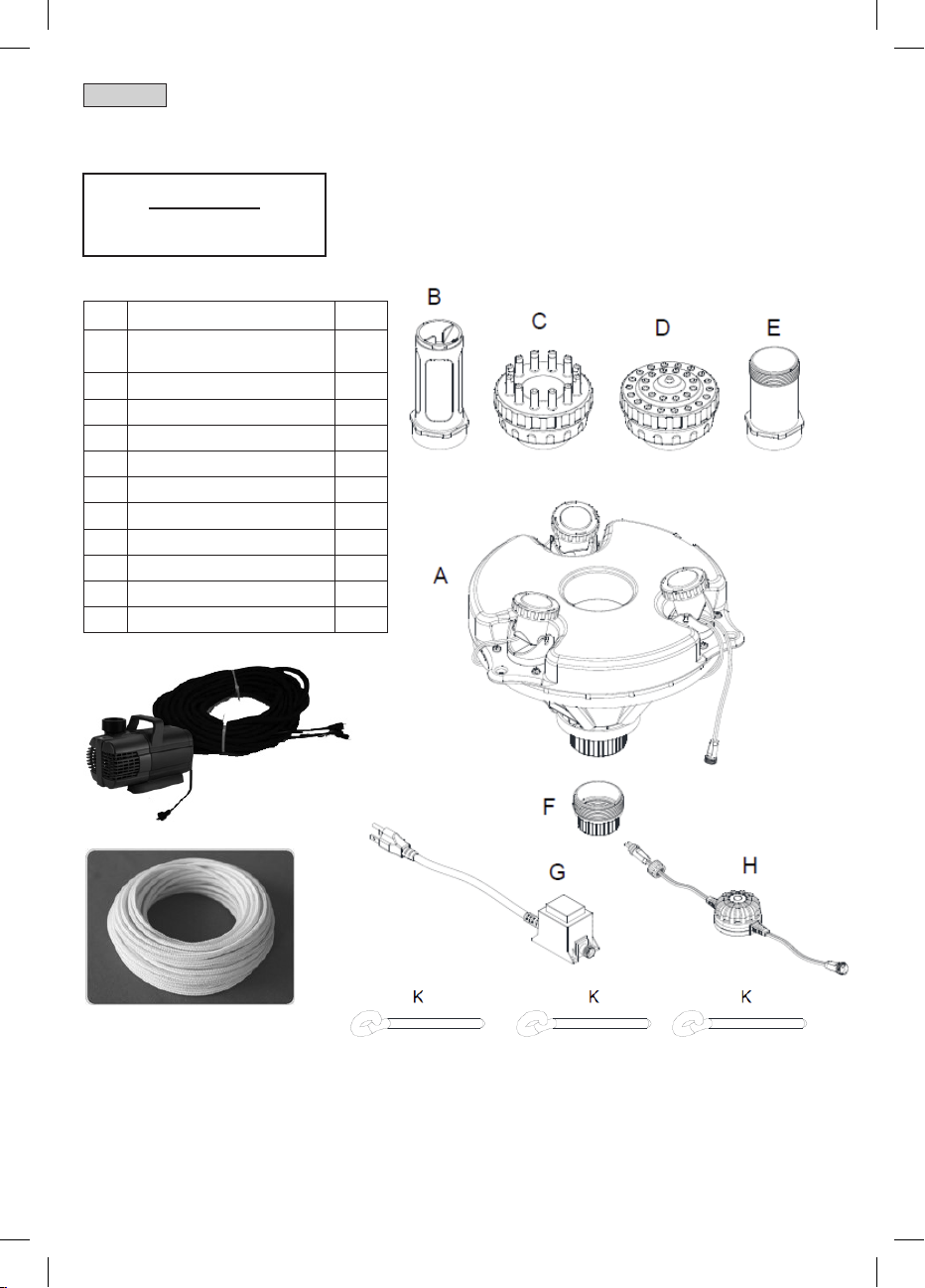

Part Description QTY
AFloating Attachment Assembly
with LED lights 1
B Trumpet Nozzle 1
CSingle Tier Nozzle 1
D3 Tier Nozzle 1
E Nozzle adapter (1/4 HP only) 1
F Coupler (1/4 HP only) 1
G Transformer 1
H Sensor 1
I Pump with cord for LED light 1
J Tether Line 1
KGround Anchor 3
Information about these operating instructions
Welcome to OASE Living Water. You made a great choice with the purchase of this product Floating Fountain with Lights
1/4 HP / 1/2 HP. Prior to operating the unit, please read the instructions of use carefully and fully familiarise yourself with
the unit. Ensure that all work on and with this unit is only carried out in accordance with these instructions. Please strictly
follow the enclosed instructions to ensure safe and correct handling of the product. Keep these instructions in a safe place.
Please also hand over the instructions when passing the unit on to a new owner.
J
I

Questions, problems, missing parts?
Before returning to your retailer, call us at 1-866-627-3435, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at [e-mail]. Or visit our website at www.oase-livingwater.com
- English -
3
2
WARNINGS AND CAUTIONS SYMBOLS
Symbols used in these instructions
The symbols used in this operating manual have the following meanings:
Risk of injury to persons due to dangerous electrical voltage.
This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate measures are
not taken.
Risk of personal injury caused by a general source of danger.
This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate measures are
not taken.
Important! The unit is equipped with a permanent magnet. The magnetic eld may affect the function of pacemakers.
Important information for trouble-free operation.
!
Intended use
Floating Fountain with Lights 1/4 HP / 1/2 HP, referred to in the following as “unit”, may only be used as specied in the
following:
• For creating a water fountain in lakes or large ponds with or without sh.
• For aeration and supplying oxygen to lakes or ponds.
• Operation under observance of the technical data.
The following restrictions apply to the unit:
• Do not use in swimming pools.
• CAUTION - this pump has been evaluated for use with water only.
• Never run the unit without water.
• Do not use for commercial or industrial purposes.
• Operate in fresh water only. Avoid heavily chlorinated water and water with high pH levels.
• Do not use in conjunction with chemicals, foodstuff, easily ammable or explosive substances.
• Do not connect to the domestic water supply.
• Do not exceed the input voltage shown on the pump and transformer.
• Do not submerge the transformer and the sensor.
• Do not lift the pump, oat assembly or the transformer by its power cord.
Use other than that intended
This unit can be dangerous and cause harm if not used in accordance with these instructions. Any use not in accordance
with these instructions or modication(s) to the unit will void the limited warranty.
!

- English -
4
B
CD
Installation
WARNING
Risk of electric shock – This pump is supplied with a grounding conductor and grounding-type attachment plug. To
reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type
receptacle. Do not remove the grounding pin from the power cord plug.
Inspect cord for damage before installation and/or maintenance. Replace the entire fountain assembly if damage is
found.
Always disconnect fountain from the power source before beginning any maintenance or work on the pump.
1. Remove assembled fountain from packaging and connect
pump to oating attachment assembly.
○ For 1/4 HP, use the coupler to connect the pump.
2. Choose a fountain head for the desired water effect, and
assemble your choice.
○ For 1/4 HP, use the nozzle adapter.
3. Connect the light to the cord (Part I) by pushing the plug
into the light socket until it is rmly seated. Hand tighten
the nut from the plug to the socket.
4. Connect the cord for LED light to the sensor by pushing
the plug into the sensor socket until it is rmly seated.
Hand tighten the nut from the plug to the socket.
2.
1.
Important:
●Do not lift the pump by its power cord.
Use the handle to lift and maneuver the pump.
4.
1/2 HP 1/4 HP
Coupler
3.
Sensor
cord for LED
B
CD
B
CD
B
CD
B
C
D
E E
1/2 HP 1/4 HP

Questions, problems, missing parts?
Before returning to your retailer, call us at 1-866-627-3435, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at [e-mail]. Or visit our website at www.oase-livingwater.com
- English -
5
4
1.
Start-up
Attention! The pump must never run dry.
Possible consequences: The pump will be destroyed.
Protective measures: Check the water level at regular intervals. Always place the unit below water level and make
sure it is floating.
Attention! The installed temperature sensor automatically turns the pump off, if it is overloaded. The pump
automatically switches on again once the motor has cooled down. Risk of accident!
Install the unit so that it is not exposed to direct sun radiation (max. 104 ºF - 40 ºC).
!
Important:
● The unit switches on automatically when power connection is
established.
● The light is designed to turn on when it gets dark, and turn off when it
gets light. To activate the light during daylight hours, cover the sensor.
1. Switching on: Connect power plugs to the socket.
2. Switching off: Disconnect the power plugs.
!
5. Connect the sensor to the transformer by pushing the
plug into the transformer socket until it is rmly seated.
Hand tighten the nut from the plug to the socket.
6. Use a knife to cut 3 pieces of tether Line, line length
depends on your lake size, attach one side of each line to
one of the three loops.
7. Place the fountain into the water and tether it with
supplied line and ground anchors into desired location.
Installation (cont.)
1/4 HP
5.
6.
B
CD
B
CD
B
CD
7.
1/4 HP
ground anchor
line

- English -
6
1.
Maintenance and cleaning
Attention! Dangerous electrical voltage.
Possible consequences: Death or serious injuries.
Protective measures:
• Electrical units and installations with a rated voltage of U > 12 V AC or U >30 V DC located in the water: Isolate the
units and installations (switch off and disconnect from the power supply) before reaching into the water.
• Isolate the unit before starting any work.
• Secure the unit to prevent unintentional switching on.
WARNING
This pump uses a very strong magnet to achieve superior performance. When removing the impeller assembly there
will be considerable magnetic force resisting the extraction of the impeller assembly. This is normal. Likewise when
replacing the impeller assembly there will be a strong magnetic force pulling the assembly into the pump to potentially
cause injury to ngers and in rare cases damaging the ceramic shaft or rear bearing. Use thick gloves when replacing
the impeller assembly.
Cleaning the unit
● Regular cleaning of the pump may be necessary depending
upon the environment in which it is operated. Clean the
fountain when a drop in visual performance is detected.
● If necessary, clean the unit with warm water using a soft brush.
●Never use aggressive cleaning agents or chemical solutions.
These could attack the housing surface or impair the function.
●In the event of stubborn furring (calcium deposits), a common
household cleaner free from vinegar and chlorine can be used.
Subsequently, clean the pump thoroughly using warm water.
Cleaning the pump
1. Disconnect the pump and the transformer from the
power source.
○ Disconnect the pump from the oating fountain.
2. Remove the screen and disassemble the impeller
housing to expose the impeller assembly.
3. Remove the impeller assembly by pulling on the back
round plate behind the impeller
4. Use a soft colth or brush to clean the impeller assembly
and the inside of the impeller housing.
●Check parts for damages such as cracked rotor,
cracks in the magnet, and broken plastics. Replace
parts if necessary.
5. Reassemble in the reverse order.
!
2.
3.
4.

Questions, problems, missing parts?
Before returning to your retailer, call us at 1-866-627-3435, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at [e-mail]. Or visit our website at www.oase-livingwater.com
- English -
7
6
Storage/Winterization
● Put the unit out of operation at water temperatures below 46 °F (8 °C) or, at the latest, when freezing temperatures are
to be expected.
● Thoroughly clean the unit, check for damage.
● Ensure that the storage place is inaccessible to children.
Wear parts
The impeller unit is a wear part and is excluded from the warranty.
Disposal
Do not dispose of this unit with domestic waste! Disable the unit beforehand by cutting off the cables. Further
information about the recycling of this product can be obtained from your local municipal authority.
Issue Cause Solution
The unit is not
performing
its suction
function
Power supply not connected Connect pump to power supply, check the supply lines to make
sure the voltage is correct
Impeller blocked, shaft broken Remove the inlet screen and/or pump cover, and impeller
housing to expose the impeller. Turn the impeller to ensure that it
is not broken or jammed by debris. Also check to make sure that
the ceramic shaft or bearings are not broken.
Pump is not completely submerged Place the unit bellow water, make sure it is oating.
Insufcient
ow
Pump screen clogged Clean
Pump is not completely submerged Place the unit bellow water, make sure it is oating.
Pump overload. The ow is
automatically stopped to protect
the pump.
○ Clean the pump housing and impeller assembly
○ Reduce the ambient temperature (e.g. ensure that the specied
water temperature is adhered to, avoid direct sunlight)
Impeller assembly of pump worn Replace impeller assembly for pump
Nozzle clogged Clean
Unit switches
off after a
short running
period
Excessive soiled water Clean impeller housing, bearing and impeller assembly
Impeller blocked, shaft broken Remove the inlet screen and/or pump cover, and impeller
housing to expose the impeller. Turn the impeller to ensure that it
is not broken or jammed by debris. Also check to make sure that
the ceramic shaft or bearings are not broken.
Water temperature too high Maximum water temperature: +95° F (+35 °C)
Lights do not
turn on
Power supply not connected Connect transformer power supply, check the supply lines to
make sure the voltage is correct
Sensor blocked Check that the sensor faces up and is not covered by dirt or
debris
Troubleshooting

8
Model Model
No.
Rated
voltage
Power
consumption
Max. ow
rate
Max. head
height Dimensions Weight
1/4
HP 45383
120V /
60 Hz
130 W 2300 GPH 20 ft. 14.3 x 18.9 in. 14.96 lbs.
1/2
HP 45393 230 W 5150 GPH 23 ft. 22.8 x 16.73 in. 19.25 lbs.
Floating Fountain with
Lights
EN Model trumpet single tier 3-Tier
1/4
HP
Adjustable
15.75 x 3.6 ft. 16 ft. x 10 ft. 6.5 x 10 ft.
1/2
HP
Adjustable
23 ft. x 5 ft. 28 ft. x 12 ft. 9 ft. x 12 ft.
- English -
Floating Fountain
with Lights

8

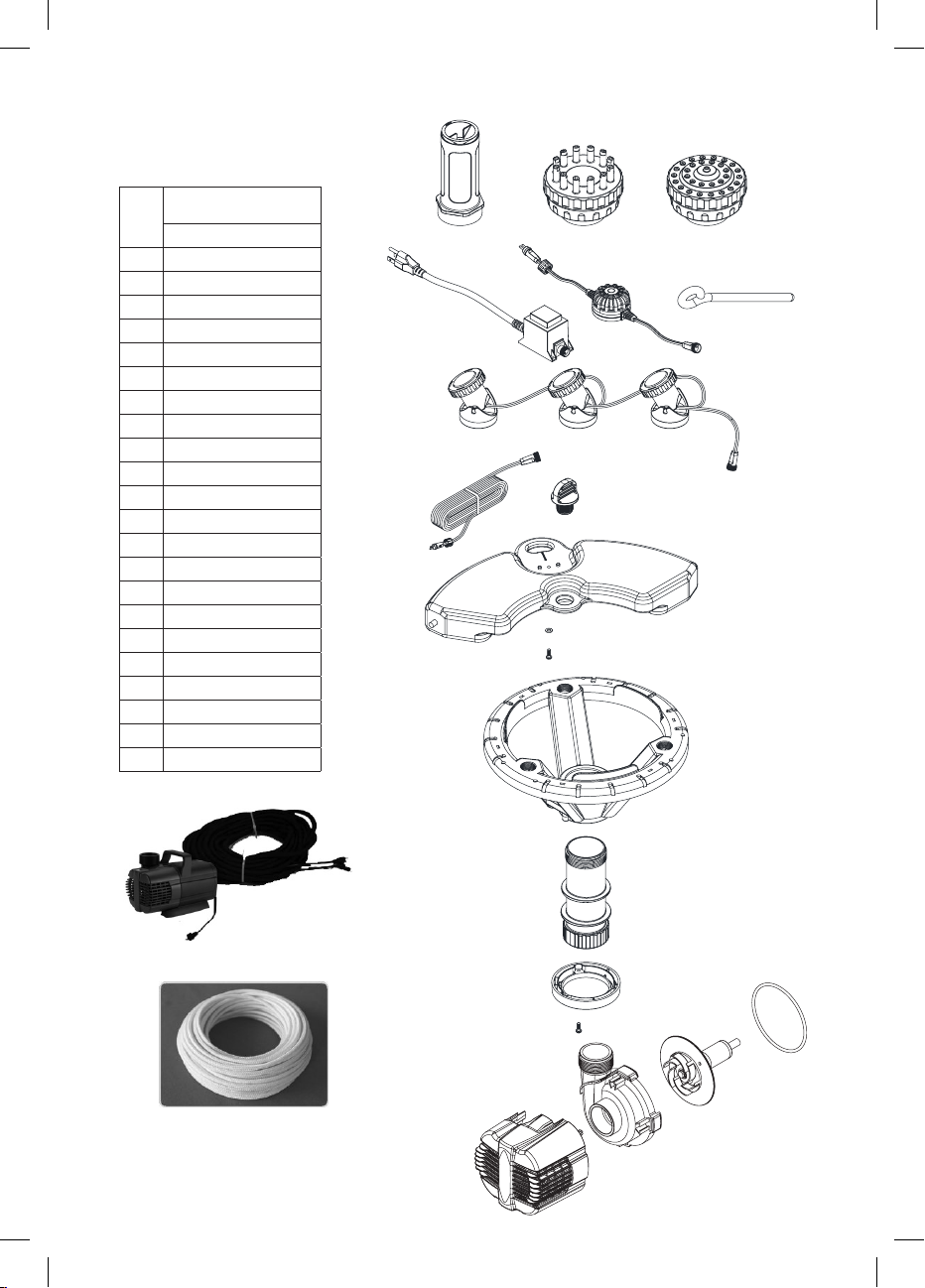

Pos.
Floating Fountain with
Lights
1/4 HP
1 Trumpet Nozzle
2Single Tier Nozzle
33 Tier Nozzle
4 Nozzle adapter
5 Coupler
6 Transformer
7 Sensor
8 Pump with cord for LED light
9 Tether Line
10 Ground Anchor
11 LED light set
12 Light cord Extension
13 Float
14 Bolt
15 Washer 1
16 Washer 2
17 Screw 1
18 Fountain Support
19 Nut
20 Adapter
21 Locking ring
22 Screw 2
23 Screen
24 Impeller housing
25 Impeller Assembly
26 O-ring
12 3 4 5
8
10
11
22
21
20
19
18
17
16
15
14
13
12
6
7
23
24
25
26
9
9

10
Pos.
Floating Fountain with
Lights
1/2 HP
1 Trumpet Nozzle
2Single Tier Nozzle
33 Tier Nozzle
4 Transformer
5 Sensor
6 Pump with cord for LED light
7 Tether Line
8Ground Anchor
9 LED light set
10 Light cord Extension
11 Float
12 Bolt
13 Washer 1
14 Screw 1
15 Fountain Support
16 Adapter
17 Locking ring
18 Screw 2
19 Screen
20 Impeller housing
21 Impeller Assembly
22 O-ring
12 3
4 5 8
9
10
11
22
21
20
19
18
17
16
15
14
13
12
7
6
RAPPEL
APPELEZ LE 1-866-627-3435
AVANT DE RETOURNER AU MAGASIN.

28
OASE North America INC. · www.oase-livingwater.com
47877/08-16
