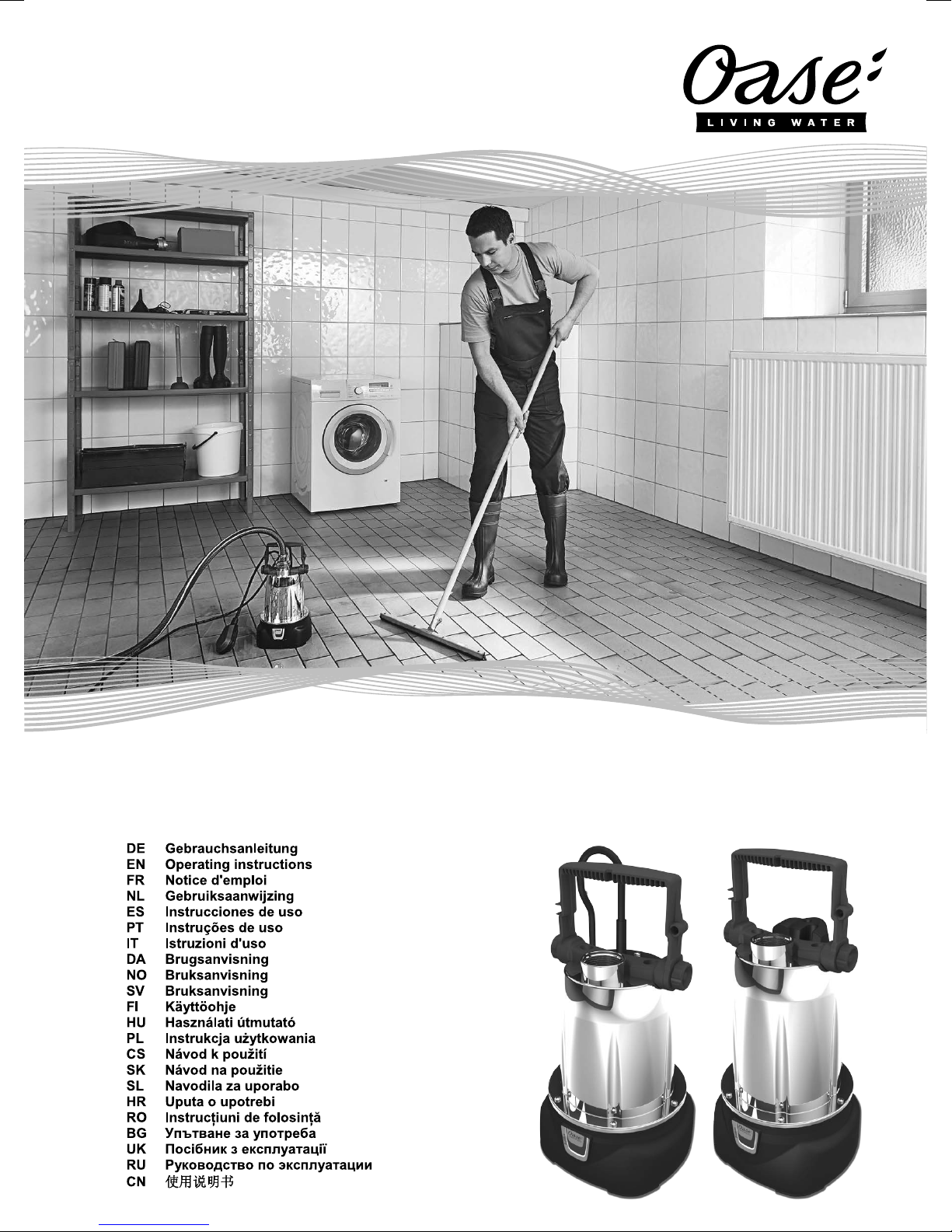

Oase promax cleardrain 7000 User manual

ProMax ClearDrain 7000 |11000 |14000
42322_Oase_GA_ProMax_ClearDrain-7000-14000_DE_A5_1015.indd 1 13.10.15 14:23
Downloaded from www.watergardeningdirect.com

2 ProMax ClearDrain 7000/11000/14000
A
POX0001
B
POX0002
C D
POX0004 POX0005
Downloaded from www.watergardeningdirect.com


3
E F
POX0007 POX0006
G H
POX0012 POX0003
Downloaded from www.watergardeningdirect.com

DE
EN
FR
NL
ES
PT
IT
DA
NO
SV
FI
HU
PL
CS
SK
SL
HR
RO
BG
UK
RU
CN
11
Translation of the original Operating
Instructions
INFORMATION ABOUT THIS
OPERATING MANUAL
Welcome to OASE Living Water. You
made a good choice with the purchase of
this product ProMax ClearDrain
7000/11000/14000.
Prior to commissioning the unit, please
read the instructions of use carefully and
fully familiarise yourself with the unit. En-
sure that all work on and with this unit is
only carried out in accordance with these
instructions.
Adhere to the safety information for the
correct and safe use of the unit.
Keep these instructions in a safe place!
Please also hand over the instructions
when passing the unit on to a new owner.
Symbols used in these instructions
Warnings
The warning information is categorised by
signal words, which indicate the extent of
the hazard.
WARNING
Indicates a possibly hazardous situa-
tion.
Non-observance may lead to death or
serious injuries.
NOTE
Indicates information intended to give the
user a better understanding.
Additional information
A Reference to a figure, e.g. Fig. A.
Reference to another section.
PRODUCT DESCRIPTION
Overview

A
ProMax Clear
Drain
7000 11000/
14000
1 Handle, ad-
justable


2 Spacer ring for
setting the resid-
ual water height


3 Pump base
4 Power connection
cable


5 Stepped hose ad-
apter


6 Connection, pres-
sure side G1¼


7 Float switch

–
8 Sensor, detects
the water level
and switches the
pump on
– 
9 Sensor slots, set-
ting the switch-on
height
– 
10 Metal contacts,
detect the mini-
mum water level
– 
Intended use
ProMax ClearDrain 7000/11000/14000,
referred to in the following as "unit", may
only be used as specified in the following:
For pumping clear water or rain water.
For pumping dirty water and max. 5 mm
large particles.
For irrigating and watering.
For transferring water from and draining
basins such as swimming pools.
Extraction of water from a well.
– Only for irrigation and watering pur-
poses!
For pumping the water out of water
butts/rain barrels or cisterns.
Downloaded from www.watergardeningdirect.com

12 ProMax ClearDrain 7000/11000/14000
Operation under observance of the
technical data.
Possible incorrect use
The following restrictions apply to the unit:
Not suitable for salt water.
Not suitable for drinking water.
Never use for pumping dirty wa-
ter/waste water.
Do not use for long-term operation (e.g.
continuous recirculation of the water in
a pond).
Do not use for commercial or industrial
purposes.
Do not use in conjunction with chemi-
cals, foodstuff, easily flammable or ex-
plosive substances.
Do not connect to the drinking water
supply.
SAFETY INFORMATION
This unit can be used by chil-
dren aged 8 and above and by
persons with reduced physical,
sensory or mental capabilities
or lack of experience and
knowledge if they are super-
vised or have been instructed
on how to use the unit in a safe
way and they understand the
hazards involved.
Do not allow children to play
with the unit.
Only allow children to carry out
cleaning and user maintenance
under supervision.
Electrical connection
Only connect the unit if the electrical
data of the unit and the power supply
coincide. The unit data is to be found on
the unit type plate, on the packaging or
in this manual.
Ensure that the unit is fused for a rated
fault current of max. 30 mA by means of
a fault current protection device.
Extension cables and power distributors
(e.g. outlet strips) must be suitable for
outdoor use (splash-proof).
Protect the plug connections from mois-
ture.
Only plug the unit into a correctly fitted
socket.
Safe operation
Dangerous electrical voltage. Possible
death or severe injury from electrocu-
tion! Before reaching into the water, al-
ways switch off and disconnect (isolate)
all units located in the water with a volt-
age of >12 V AC or >30 V DC and se-
cure them from being switched on
again.
Only operate the unit if no persons are
in the water.
Never operate the unit if either the elec-
trical cables or the housing are defec-
tive!
Do not carry or pull the unit by its elec-
trical cable.
Route cables/hoses such that they are
protected from damage and do not pre-
sent a tripping hazard.
Only open the unit housing or its at-
tendant components, when this is ex-
plicitly required in the operating instruc-
tions.
Only carry out work on the unit that is
described in this manual. If problems
cannot be overcome, please contact an
authorised customer service point or,
when in doubt, the manufacturer.
Only use original spare parts and acces-
sories for the unit.
Never carry out technical modifications
to the unit.
Downloaded from www.watergardeningdirect.com

DE
EN
FR
NL
ES
PT
IT
DA
NO
SV
FI
HU
PL
CS
SK
SL
HR
RO
BG
UK
RU
CN
13
Power connection cables cannot be re-
placed. If a cable is damaged, dispose
of the respective unit or components.
INSTALLATION AND CONNECTION
Connecting the pressure hose
An optimum flow rate is achieved with the
largest possible hose inside diameter.
How to proceed:
B
1.Adapt the stepped hose adapter to the
hose diameter
2.Connect the hose to the stepped hose
adapter.
– Secure the hose with a hose clip.
3.Screw the stepped hose adapter onto
the pump outlet.
Automatic mode ProMax ClearDrain
7000
When the water level rises, it lifts the float
switch until the switch-on point is reached
and the pump switches on.
When the water level drops, the float
switch lowers until the switch-off point is
reached and the pump switches off.
C
Push the float switch cable into the ca-
ble clip.
– The shorter the cable between the
float switch and the cable clip, the
lower the switch-on point and the
higher the switch-off point.
NOTE
To ensure faultless function, ensure that
the length of cable between the float
switch and the cable clip measures at
least 10 cm.
NOTE
The minimum residual water height is
only reached in manual mode.
Manual mode ProMax ClearDrain 7000
The pump remains permanently switched
on if the float switch is set vertically and
the cable points downward.
NOTE
The pump can run dry in manual mode.
Switch off the pump when the minimum
water level is reached.
Running the pump dry increases wear.
D
Move the handle into the horizontal po-
sition and push the cable directly at the
transition to the float switch into the ca-
ble clip such that the float switch is in a
vertical position.
Downloaded from www.watergardeningdirect.com

14 ProMax ClearDrain 7000/11000/14000
Automatic mode ProMax ClearDrain
11000/14000
The pump switches on when the rising wa-
ter reaches the sensor.
Metal contacts at the bottom of the sensor
strip detect the minimum water level
(switch-off point). When the minimum wa-
ter level is reached, the pump switches off.
E
Fit the sensor onto the sensor strip in
the desired switch-on position.
Manual mode ProMax ClearDrain
11000/14000
The pump remains permanently switched
on when the sensor is located in the top
position.
NOTE
The pump can run dry in manual mode.
Switch off the pump when the minimum
water level is reached.
Running the pump dry increases wear.
F
Fit the sensor onto the sensor strip in
the top position.
Setting the residual water level
The pump can pump the water down to a
depth of 6 mm to 8 mm or down to 1 mm.
G
Residual water level 6 … 8 mm: Fit the
spacer ring and secure with the retain-
ing ring (bayonet closure).
Residual water level down to 1 mm
(shallow extraction): Release the retain-
ing ring (bayonet closure) and remove
the spacer ring.
NOTE
Shallow extraction is only possible in
manual mode.
Installing the pump
H
Install the pump in a horizontal and sta-
ble position in the water.
If it needs to be lowered into a well or a
shaft, fasten a rope to the handle. Do
not carry it by the power connection
cable.
Install the pump such that it does not
take in dirt particles with a size >5 mm,
which would block the intake. Install the
pump in a raised position if necessary.
ProMax ClearDrain 7000: Ensure that
the float switch can always move freely.
OPERATION
WARNING
Dangerous electrical voltage!
Death or severe injury from electrocu-
tion.
Only connect the pump to the power
supply when there are no persons in or
reaching into the water.
Before stepping into or reaching into
the water, switch off all units located in
the water.
Switching on the unit
Insert the power plug into the socket.
– The pump is ready for operation.
– The pump will start up as soon as
the level of the water reaches the
switch-on height.
Downloaded from www.watergardeningdirect.com

DE
EN
FR
NL
ES
PT
IT
DA
NO
SV
FI
HU
PL
CS
SK
SL
HR
RO
BG
UK
RU
CN
15
Switching off the unit
Disconnect the power plug.
– When the pump is switched off, re-
sidual water in the hose may flow
back and out of the pump intake.
NOTE
Do not use the unit for long-term opera-
tion. Otherwise this will impair the operat-
ing life of the unit accordingly.
NOTE
Rinse the pump with clean water after
use.
REMEDY OF FAULTS
Malfunction Cause Remedy
Pump does not start. Power supply interrupted Check the fuse and electri-
cal plug connections.
Metal contacts soiled Clean the metal contacts.
Pump switches off after a
short running period.
Overload protection has
switched the pump off due
to overheating.
Clean the intake and
pressure hose.
Allow the pump to cool
down.
Pump does not switch off Metal contacts soiled Clean the metal contacts.
The pump is running but is
not delivering, or the deliv-
ered quantity is insufficient
Pressure hose blocked Route the pressure hose
without kinks
Check the outlet and
clean if necessary
Intake blocked Clean the intake
Air in the pressure hose Expel the air from the
pressure hose.
If applicable:
Non-return valve incorrectly
fitted in the pressure hose
or clogged
Correctly fit the non-re-
turn valve.
Clean the non-return
valve.
Impeller defective or worn Contact OASE
The impeller may only be
replaced by the OASE
Service.
Downloaded from www.watergardeningdirect.com

16 ProMax ClearDrain 7000/11000/14000
MAINTENANCE AND CLEANING
WARNING
Dangerous electrical voltage!
Death or severe injury from electrocu-
tion.
Before reaching into the water, switch
off the mains voltage of all units in the
water.
Isolate the unit (disconnect from the
power supply) before carrying out any
work on it.
NOTE
Recommendation on regular cleaning:
Clean the unit as required but at least
twice per year.
All pumps
Do not use aggressive cleaning agents
or chemical solutions as they could at-
tack the housing or impair the function
of the unit.
Recommended cleaning agent for re-
moving stubborn limescale deposits:
– Pump cleaning agent PumpClean
from OASE.
– Vinegar- and chlorine-free household
cleaning agent.
After cleaning, thoroughly rinse all parts
in clean water.
ProMax ClearDrain 11000/14000
A
Metal contacts detect the minimum and
maximum water level. If the minimum wa-
ter level is reached in automatic mode, the
pump switches off.
Regularly clean the metal contacts to
ensure that the pump switches on and
off reliably.
WEAR PARTS
Wear parts are excluded from the war-
ranty.
The following components are wear parts
and may only be replaced by the OASE
Service.
Impeller
STORAGE/OVER-WINTERING
The unit is not frost-proof and has to be
removed and put into storage if minus
temperatures are expected.
How to correctly store the unit:
Drain the unit as far as possible, clean
thoroughly and check for damage.
Empty all hoses, pipes and connections
as far as possible.
Thoroughly clean the unit, check it for
damage and replace any damaged
parts.
Store the unit in a dry and frost-free
place.
Do not immerse plugs in water.
DISPOSAL
Do not dispose of this unit with domestic
waste! For disposal purposes, please use
the return system provided. Render the
unit unusable beforehand by cutting the
cables.
Downloaded from www.watergardeningdirect.com

DE
EN
FR
NL
ES
PT
IT
DA
NO
SV
FI
HU
PL
CS
SK
SL
HR
RO
BG
UK
RU
CN
17
TECHNICAL DATA
ProMax ClearDrain 7000 11000 14000
Rated voltage V AC 230 230 230
Rated frequency Hz 50 50 50
Rated power W 375 650 950
Protection type IP68 IP68 IP68
Connection, pressure side – G1¼ G1¼ G1¼
Minimum switch-on height / maximum
switch-off height
mm 470/180 25/3 25/3
Maximum switch-on height / minimum
switch-off height
mm 640/70 150/3 150/3
Minimum water level for starting up mm 2 2 2
Flow rate Max. l/h 7500 11500 14500
Head height Max. m 7 8 12.5
Immersion depth Max. m 7 7 7
Switching
ON/switching OFF
Float switch

– –
Sensor –


Particle size Max. mm 5 5 5
Power connection
cable
Length m 10 10 10
Dimensions Length mm 193 193 193
Width mm 179 179 179
Height mm 352 393 393
Weight kg 4.7 6.4 7.7
Downloaded from www.watergardeningdirect.com

160 ProMax ClearDrain 7000/11000/14000
POX0036
Downloaded from www.watergardeningdirect.com

42322/11-15
Downloaded from www.watergardeningdirect.com
