UNPACKING
After unpacking unit, inspect carefully for any damage
that may have occurred during transit. Check for loose,
missing, or damaged parts. If any damage is observed, a
shipping damage claim must be filed with carrier. Do not
use the OEMTOOLS™ 24840 Transmission Jack if broken,
bent, cracked or damaged parts (including labels) are
noted. Any Transmission Jack that appears damaged in
any way, operates abnormally or is missing parts should
be removed from service immediately. If you suspect that
the Transmission Jack was subjected to a shock load
(a load that was dropped suddenly, unexpectedly, etc.),
immediately discontinue use until it has been checked by
a factory authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and
others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future reference.
The following safety information is provided as guidelines to help you operate your product under the safest
possible conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe
handling instructions are not known or not followed. The following safety instructions are to provide the user with the
information necessary for safe use and operation. Please read and retain these instructions for the continued safe use
of your product. Failure to follow instructions listed below may result in serious injury. In addition, make certain that
anyone who uses the product understands and follows these safety instructions as well.
Operating Instructions and Parts Manual 24840
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
[email protected]
Thank you very much for choosing an OEMTOOLS™Product!
For future reference, please register your new tool at www.oem-tools.com and complete the owner’s record below:
Model: _______________ Purchase Date: ___________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar
with this product before you begin using it. This product is designed for certain applications only. OEMTOOLS™
cannot be responsible for issues arising from modification. We strongly recommend this product is not modified and/
or used for any application other than that for which it was designed. If you have any questions relative to a particular
application, DO NOT use the product until you have first contacted customer service to determine if it can or should be
performed on the product.
Explanation of Safety Signal Words
WARNING:Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION:Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION:Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
NOTES:Provide clarity and helpful information.
1,000 LB. TELESCOPIC
TRANSMISSION JACK
1
6/18
2018 OEMTOOLS™
WARNING

2
Operating Instructions and Parts Manual 24840
6/18
2018 OEMTOOLS™
1,000 LB. TELESCOPIC
TRANSMISSION JACK
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your tool. Read this manual carefully. Learn the
tool’s applications and limitations, as well as potential
hazards specific to it.
2. Keep work area clean and well lit. Cluttered or dark
work areas invite accidents.
3. Keep children away. All children should be kept away
from the work area. Never let a child handle a tool
without strict adult supervision.
4. DO NOT operate this tool if under the influence of
alcohol or drugs. Read warning labels on prescriptions
to determine if your judgment or reflexes are impaired
while taking drugs. If there is any doubt, DO NOT
attempt to operate.
5. Use safety equipment. Eye protection should be
worn at all times when operating this tool. Use ANSI
approved safety glasses. Everyday eyeglasses are NOT
safety glasses. Dust mask, non-skid safety shoes, hard
hat or hearing protection should be used in appropriate
conditions.
6. Wear proper apparel. Loose clothing, gloves, neck-ties,
rings, bracelets or other jewelry may present a potential
hazard when operating this tool. Keep all apparel clear
of the tool.
7. DO NOT overreach. Keep proper footing and balance
at all times when operating this tool.
8. Check for damage. Check your tool regularly. If part of
the tool is damaged, it should be carefully inspected
to make sure that it can perform its intended function
correctly. If in doubt, the part should be repaired. Refer
all servicing to a qualified technician. Consult your
dealer for advice.
9. Keep away from flammables. DO NOT attempt
to operate this tool near flammable materials or
combustibles. Failure to comply may cause serious
injury or death.
10. Store idle tools out of the reach of children and
untrained persons. Tools may be dangerous in the
hands of untrained users.
11. Maintain tools with care.
12. Keep tools dry and clean.
13. DO NOT use a damaged tool. Tag damaged tools
“DO NOT USE” until repaired.
14. Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the tool’s operation.
15. Use only accessories that are recommended by the
manufacturer for your model. Accessories that may
be suitable for one tool may become hazardous when
used on another tool.
16. If damaged, have the tool serviced before using. Many
accidents are caused by poorly maintained tools.
17. Tool service must be performed only by qualified repair
personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.
18. When servicing a tool, use only identical replacement
parts. Use of unauthorized parts or failure to follow
maintenance instructions may create a risk of injury.
19. Maintain a safe working environment. Keep the work
area well lit. Make sure there is adequate surrounding
workspace. Keep the work area free of obstructions,
grease, oil, trash, and other debris. DO NOT use this
product in a damp or wet location.
20. Maintain labels and nameplates on this product. These
carry important information. If unreadable or missing,
contact OEMTOOLS™for a replacement.
21. Avoid accidental fire and/or explosion. DO NOT smoke
near product. DO NOT smoke near engine fuel and
battery components.
22. Before use, read and understand all warnings, safety
precautions, and instructions as outlined in the vehicle
manufacturer’s service manual. It is beyond the
scope of this manual to properly describe the correct
procedure and test data for each vehicle.
23. Always perform vehicle service in a properly ventilated
area. Never run an engine without proper ventilation
for its exhaust. Stop work and take necessary steps
to improve ventilation in the work area if you develop
momentary eye, nose, or throat irritation as this
indicates inadequate ventilation.
24. Engine parts that are in motion and unexpected
movement of a vehicle can injure or kill. When working
near moving engine parts, wear snug fit clothing and
keep hands and fingers away from moving parts. Keep
hoses and tools clear of moving parts. Always stay clear
of moving engine parts. Hoses and tools can be thrown
through the air if not kept clear of moving engine parts.
25. The unexpected movement of a vehicle can injure or
kill. When working on vehicles, always set the parking
brake and chock the wheels.
26. For safety purposes and the prevention of damage to
expensive components, it is advised that the user have
an understanding of basic automotive repair and a
working knowledge of automotive systems.
27. This equipment is intended only for professional use by
personnel trained in performing the service functions
for which it is has been designed.
28. This equipment is designed for servicing a variety
of vehicles in a safe, convenient manner. However,
differences in vehicle makes and models may make it
impossible to use this equipment as it is intended. DO
NOT attempt to force the use of this equipment on an
application for which it is not designed to perform.
29. The procedures documented in this manual are to
serve as guidelines for the use of this equipment.

3
Operating Instructions and Parts Manual 24840
6/18
2018 OEMTOOLS™
1,000 LB. TELESCOPIC
TRANSMISSION JACK
30. In addition to these guidelines, always follow the
manufacturer’s recommended procedures when
servicing each unique vehicle.
31. The use of this equipment is simple and straightforward
if you follow the instructions. When operating this
equipment, use common sense, and always stop to
think before using this tool.
32. We believe the information contained herein to be
reliable. However, general technical information is given
by us without charge and the user shall employ such
information at their own discretion and risk. We assume
no responsibility for results or damages incurred from
the use of such information in whole or in part. Always
refer to specific instructions and technical information
supplied by vehicle manufacturer.
NOTE: The manufacturer declines any and all
responsibility for damage to vehicles or components if
said damage is the result of unskillful handling by the
operator or of failure to observe the basic safety rules set
forth in the instruction manual.
WARNING:Read Rules for Safe Operation and
Instructions carefully.
IMPORTANT SAFETY INSTRUCTIONS
The warnings, precautions, and instructions discussed
in this manual cannot cover all possible conditions
and situations that may occur. The operator must
understand that common sense and caution are factors
which cannot be built into this product but must be
supplied by the operator.
PURPOSE
The OEMTOOLS™24840 Transmission Jack is designed
to be used as an aid in the removal and installation of
automotive and light truck transmissions, transfer cases
and transaxles. This telescopic style transmission jack is
for use under an overhead lift or in a garage pit.
PRODUCT SPECIFICATIONS
Rated Load: 1000 Lbs.
Min Height of Saddle: 51"
Max Height of Saddle: 70"
Net Weight of Jack: 63 Lbs.
Dimensions: 51" x 21" x 21"
WARNING: NEVER use for any purpose other than
those uses outlined above!
TRANSMISSION JACK
SPECIFIC INSTRUCTIONS
1. Verify that the product and application are compatible;
if in doubt, call OEMTOOLS™at 1-866-458-2472.
2. Before using this product, read the operator’s manual
completely and familiarize yourself thoroughly with
the product and its components, and recognize the
hazards associated with its use.
3. Wear appropriate safety gear during use, including heavy-
duty work gloves and ANSI-approved safety goggles.
4. Ensure that the jack rolls freely. Raise and lower the
unloaded jack throughout the lifting range before
putting into service to ensure the pump operates
smoothly. Replace worn or damaged parts.
5. DO NOT exceed the weight capacity of the jack. Make
sure weight is evenly distributed. Be aware of dynamic
loading! Sudden load movement may briefly create
excess load causing product failure. Exceeding the
maximum capacity for this product is dangerous and
can lead to serious injury or property damage.
6. Never use this device as a work/repair station. Transfer
the load immediately to a suitable work station.
7. Always evaluate your task before using this jack.
This jack is designed to support a transmission
or a differential as individual components. Use as
intended only.
8. Assemblies such as differential with axle, or
transmission with bell housing, can be bulky and
difficult to balance. Lifting or supporting such
assemblies, even within weight limit, can create an
off-balance situation, causing jack to tip over and MAY
lead to serious personal injury or property damage.
9. The load should be evenly distributed on the jack,
and should not extend beyond the area of the caster
wheelbase. Always use the chain to secure the load. If
extra support is required, safety straps (not included)
can also be used to secure the work piece.
10. Use only on a hard, level and flat surface capable
of bearing the combined weight of the Transmission
Jack, the load being lifted, the operator and any
tools being used.
11. If the loaded jack must be moved, make certain
that the load is secured by appropriate means, is
stable, is in the lowest possible position, is moved
over a smooth, hard level surface and that the lifting
platform is level.
12. If you are working and the load becomes off-balance
and/or the jack begins to tip over, DO NOT ATTEMPT
TO CATCH OR LIFT THE LOAD WHEN FALLING.
SERIOUS PERSONAL INJURY CAN RESULT! In this
event, clear the area as quickly and safely as possible
in order to avoid injury from the falling load, including
getting hit with flying fragments.

4
Operating Instructions and Parts Manual 24840
6/18
2018 OEMTOOLS™
1,000 LB. TELESCOPIC
TRANSMISSION JACK
13. Before each use, inspect the general condition of the
Transmission Jack. Check for oil leaks, jack operation,
loose components, free rotation and pivoting of saddle
adjustment components. If a problem occurs, have the
problem corrected before further use.
TO PREVENT SERIOUS INJURY:
DO NOT USE A DAMAGED OR
MALFUNCTIONING JACK
14. Make sure the casters are blocked before use.
15. The Transmission Jack is not designed to lift or lower
a vehicle.
16. If in doubt about the safety of your project, we advise
you to have the work done by a professional familiar
with applicable safety practices.
ASSEMBLY
1. Attach both Legs to Support Post using (2) M10 x 100
mm Bolts, (4) M10 Washers and M10 x 1.5 mm Lock
Nuts, inserting Bolts through upper holes in Legs and
through Support Post, making sure lower holes in Legs
align with lower holes in Support Post. Do not fully tighten.
2. Install (4) M10 x 25 mm Bolts, (8) M10 Washers, and (4)
M10 x 1.5 mm Lock Nuts through lower holes in each
Leg. DO NOT fully tighten.
3. Lay assembly on its side and attach (4) Casters using
(4) M12 Lock Nuts. Securely tighten.
4. Stand unit up. Ensure Support Post is perpendicular to
the Legs, and then fully tighten all 6 Leg Bolts and Nuts.
5. Attach Ram to Support Post using (4) M12x30 mm
Bolts, (8) M12 Washers and (4) M12 Lock Nuts.
6. Attach Transmission Adapter to Ram and tighten
Clamp Bolt. DO NOT overtighten.
7. Attach Slides, Safety Blocks and Chains and adjust
as necessary.
OPERATION
1. Follow the instruction for removal and installation of
transmission, transfer case or transaxle according to
the vehicle manufacturer’s service manual.
2. Prior to initial use, jack up the Saddle and, using
the Release Knob, attempt to lower it. Doing so will
familiarize the user with the control functions and jack.
3. Once the vehicle is safely and properly secured,
position the Transmission Jack underneath the vehicle.
4. Pump the Handle to raise the jack to contact and
bear transmission weight. After making contact with
the transmission, make sure it is centered within the
brackets on the Saddle Plate. Use Adjustment Knobs
to position the Saddle Base.
5. After contact, lift the jack slightly to transfer the weight
of the transmission from the vehicle chassis to the
Transmission Jack.
6. Remove transmission fasteners, freeing it from the
vehicle. Make sure there is nothing to restrict the
movement of the transmission.
7. Back transmission away to free from engine.
8. Check the Saddle, making sure it is securely holding
and aligned with the transmission and not showing
any signs of stress. Carefully lower transmission and
Saddle by turning the Release Knob.
9. Secure the Chain tightly over the transmission and
safely move the Transmission Jack.
10. After removal, lower the jack to the lowest possible point.
WARNING: The jack is designed to lift loads only for
short periods of time. DO NOT use to suspend a load for
more than 30 minutes at a time.
11. To re-mount the transmission, reverse this procedure.
MAINTENANCE
IMPORTANT: Use only good quality hydraulic jack oil.
Avoid mixing different types of fluid and NEVER use brake
fluid, turbine oil, transmission fluid, motor oil or glycerin.
Improper fluid can cause premature failure of the jack and
the potential for sudden and immediate loss of load.
ADDING OIL
1. With saddle fully lowered, set jack in its upright, level
position. Remove oil filler plug.
2. Fill until oil is level with the oil filler hole, reinstall oil
filler plug.
CHANGING OIL
For best performance and longest life, replace the
complete fluid supply at least once per year.
1. With saddle fully lowered, remove oil filler plug.
2. Lay the jack on its side and drain the fluid into a
suitable container.

5
Operating Instructions and Parts Manual 24840
6/18
2018 OEMTOOLS™
1,000 LB. TELESCOPIC
TRANSMISSION JACK
NOTE: Dispose of hydraulic fluid in accordance with
local regulations.
3. Set jack in its level position. Fill until oil is level with the
oil filler hole; reinstall oil filler plug.
LUBRICATION
A periodic coating of light lubricating oil to pivot points,
axles and hinges will help to prevent rust and assure that
casters and pump assemblies move freely.
CLEANING
Periodically check the pump piston and ram for signs of rust
or corrosion. Clean as needed and wipe with an oily cloth.
NOTE: Never use sandpaper or abrasive material on
these surfaces!
STORAGE
When not in use, store the jack with saddle fully lowered.
Always store the jack in a well-protected area where it will
not be exposed to inclement weather, corrosive vapors,
abrasive dust, or any other harmful elements.
DISPOSAL
At the end of the useful life of the product, dispose
of the components according to all state, federal and
local regulations.
Figure Description Qty.
A Support 1
B Legs 2
C 8 Ton Long Ram 1
D Handle 1
E Saddle 4
F Transmission Adapter 1
G Bolt M12X30 (Not Shown) 4
H Washer 12 (Not Shown) 8
I Nut M12 (Not Shown) 4
J Bolt M10X35 (Not Shown) 4
K Washer 10 (Not Shown) 6
L Nut M10 (Not Shown) 6
M Bolt M10X25 (Not Shown) 4
N Bolt M10X15 (Not Shown) 1
O Hook Bolt M8 1
P Chain 1
Q Caster 4
R Nut M12 4
Description Qty.
M10X25 mm Bolt 4
M10X35 mm Bolt 4
M12X25 mm 4
M12 Flat Washer 4
M10 Flat Washer 8
M12 Split Lock Washer 4
M10 Split Lock Washer 4
M12 Nyloc Hex Nut 4
M10 Hex Nut 4
M12 Cap Nut 4
PARTS DESCRIPTION
HARDWARE INCLUDED
PRODUCT LAYOUT
A
B
D
C
P
O
F
E
Q
R
NOTE: Not all components of the product are replacement
items but are illustrated as a convenient reference for
location and position in the assembly sequence.
OEMTOOLS™and/or its distributors have provided the
parts list and assembly diagram as a reference only. Neither
OEMTOOLS™nor its distributors make any representation or
warranty of any kind to the buyer and/or user of this tool that
he or she is qualified to do any repairs or replace any parts
of this product. OEMTOOLS™and its distributors expressly
state that all repairs or parts replacement should be done
by certified or licensed technicians. The buyer assumes
all risk and liability arising out of his or her repairs or parts
replacement to the original production.

6
Operating Instructions and Parts Manual 24840
6/18
2018 OEMTOOLS™
1,000 LB. TELESCOPIC
TRANSMISSION JACK

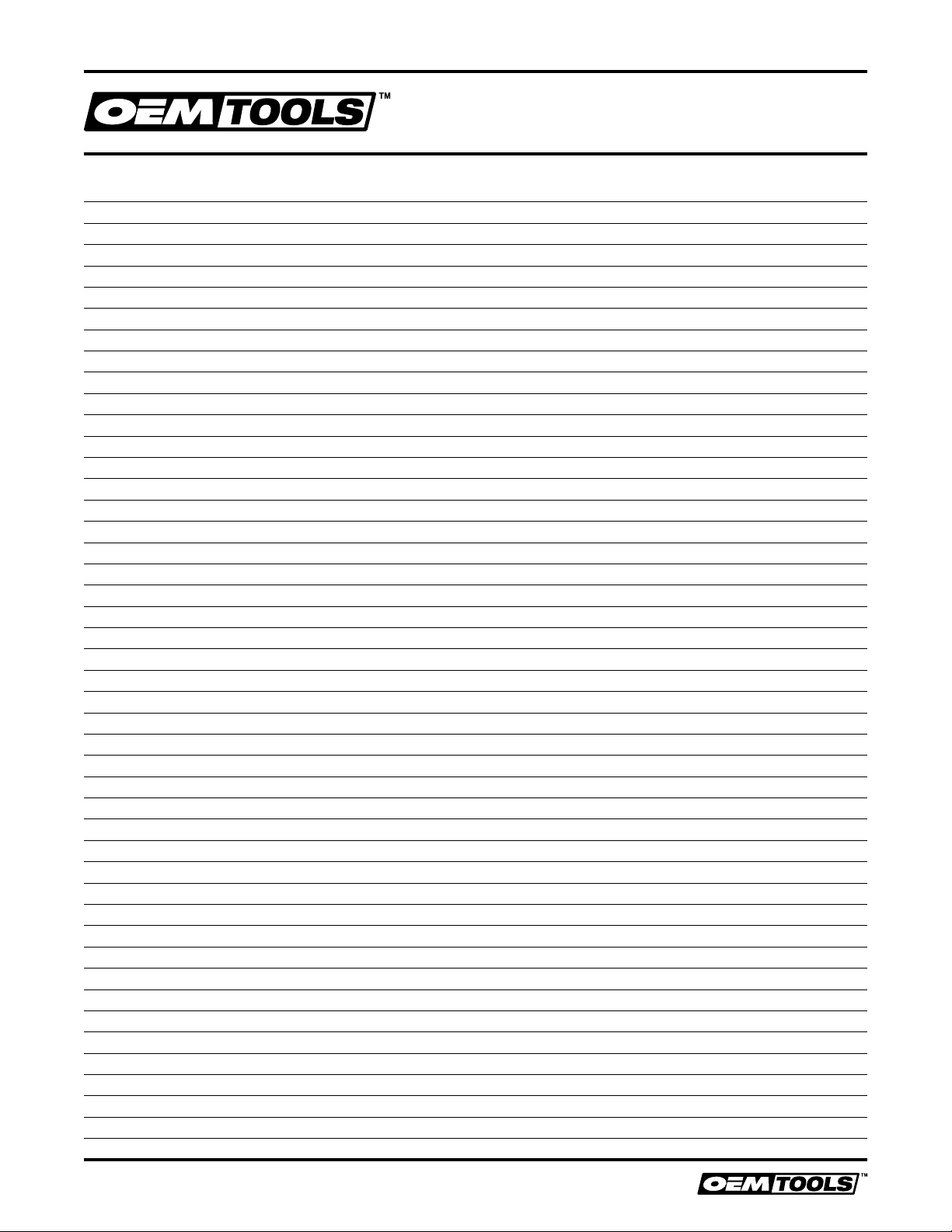

NOTES:

7
Operating Instructions and Parts Manual 24840
6/18
2018 OEMTOOLS™
1,000 LB. TELESCOPIC
TRANSMISSION JACK
NOTES:

8
Operating Instructions and Parts Manual 24840
6/18
2018 OEMTOOLS™
1,000 LB. TELESCOPIC
TRANSMISSION JACK
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
Tel: [phone]
www.oem-tools.com
OEMTOOLS™ONE YEAR WARRANTY
For up to one year from the date of purchase of this OEMTOOLS™product, if you find any defect in material or
workmanship (through normal usage), return it to the place of purchase or to OEMTOOLS™for repair or replacement at
our discretion. In order to obtain this service, send the product and proof of purchase (transportation pre-paid) to:
OEMTOOLS™Q.A. Dept, 3580 E. Raines Road #3, Memphis, TN 38118.
We will not be responsible for lost or damaged goods during transportation; please insure your package. If our
inspection verifies the defect, we will either repair or replace the product, or we may elect to refund the purchase price
if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if
we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you
must bear the cost of returning the product.
OEMTOOLS™does not provide warranty for products labeled other than OEM®or OEMTOOLS™. OEMTOOLS™will
not provide any warranty for products subjected to abnormal use. Abnormal use includes (but is not limited to) abuse,
accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not cover bits,
blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or replace blades, bits,
files, and batteries as necessary. OEMTOOLS™reserves the right to make any changes in construction or design at
any time without any obligation in incorporating such changes to tools or equipment previously sold. OEMTOOLS™
makes every effort to ensure that its products meet high quality and durability standards, and warrants to the original
purchaser that this product is free from defects in materials and workmanship for the period of one year from the
date of purchase. This warranty does not apply to damage due directly or indirectly to misuse, abuse, negligence or
accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to
lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY
IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state.
Don’t forget to register your new OEMTOOLS™product at www.oem-tools.com.
