Oki C3400n User manual

3
Status Lights and Buttons (cont’d)

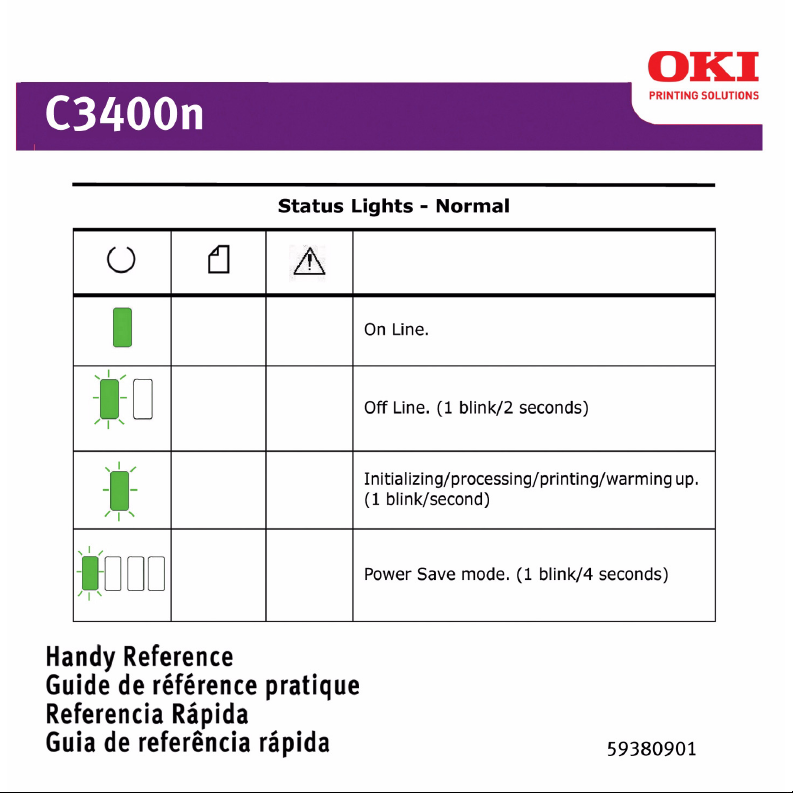

Status Lights
1. Normal status (Green): the printer
is operating normally, e.g. it is on
line or processing.
2. Warning status (Amber): you can
continue to use the printer without
intervention but an error may
result.
3. Error status (Amber, blinking):
you cannot continue to use the
printer. Intervention is required to
recover from the error.
Detailed Printer Status
See the Status Monitor if you are
using Windows, or the Printer Driver
in Mac.
Buttons
On Line
Cancel
Power Paper Alarm
Press
1 sec.
•Shifts to Off Line.
•When prompted,
begins printing side
2 of a 2-sided
document.
Press
2 sec. Status Page prints.
Press
5 sec. Demo Page prints.
Press
2 sec.
Cancels job 2 seconds
after start of switch
operation.

4
Status Monitor
Double-click the taskbar icon to
maximize the status monitor, or click
on Start > Programs and select
Okidata OKI 3400 Status Monitor. The
current printer status is shown.
Printer State tab
This tab displays detailed information
about the status of the printer.
Printer Setup tab
Selecting this tab provides access to
the following:
Select Printer button
When selected, allows you to
monitor the status of any printer
configured for use with your
computer.
Open Configuration button
This button enables you to access
the printer menu. From the printer
menu, you can configure your
printer settings.
Preferences tab
Selecting this tab allows you to
choose the information displayed by
the Status Monitor and how/when the
Status Monitor appears.

5
Status Monitor (cont’d)
User Settings
On the Status Monitor Setup tab,
click the Open Configuration button.
The User Settings Print Menu
appears. You change user settings
options from this menu.
Printer Menu utility (Mac only)
There is no status monitor in Mac.
You can change printer user settings
through the Printer Menu utility. You
can use Windows Print Control Server
Software to manage your printer in
Mac. For more information, see the
User’s Guide.

6
Printing
Print a demo page
Press and hold On Line for 5 seconds.
Print a Status Page
Press and hold OnLine for 2 seconds.
Manual 2-sided Printing
(Windows only)
1. Ensure that there is enough paper
in the cassette tray to carry out
the print job.
2. Select File > Print and click the
Properties button.
3. Select either “Long Edge” or “
Short Edge”.
Note: If you require further
information, click the Duplex Help
button.
4. Click the OK button.
5. Every second page of your
document is printed first.

7
Printing (cont’d)
Using the Cassette Tray
1. Open the cassette tray.
2. Place the printed paper in the tray,
printed side facing up.
3. Press the On Line button.
Using the Multi-Purpose Tray
1. Take the paper from the output
tray.
2. Feed one sheet at a time with the
printed side facing down and the
top of the page facing into the
printer.
3. Press the On Line button.

8
Loading Paper
Loading Paper
Cassette Tray Multi-Purpose Tray

9
Loading Paper (Cont’d)
Paper Exit
Face Down Stacker
•150 sheets of 20 lb. [80g/m2 ]
•Pages print in reading order (last
page on top, facing down)
Face Up Stacker
•Open the paper support to exit via
this path.
•Holds 10 sheets of 20 lb. [80g/m2]
•Handles stocks up to 54 lb. (203g/
m2)
•Always use the Face Up Stacker and
the Multi Purpose Tray for paper
stocks heavier than 32 lb. (120g/m2)

10
Color Printing
Note: See the online User’s Guide for
a more complete guide to color
printing on your C3400n Printer.
AUTO Settings
For general use, the automatic
settings will produce good results for
most documents.
Manual Settings
The printer drivers supplied with your
printer provide several controls for
changing the color output
From a Windows application:
1. Choose File > Print.
2. Click the Properties button.
3. On the Color tab select Advanced
Color (1).
4. Choose the Manual color setting
(2).
1
2

11
Color Printing (cont’d)
Color Printing from MAC
1. Open the document you want to
print.
2. Select File > Print.
3. Select your printer.
4. Select the Color option.
Tips for Printing in Color
Printing Photographic images
Use the Monitor (6500k) Perceptual
setting. If the colors look too dull, try
the Monitor (6500k) Vivid or Digital
Camera settings.
Printing from Microsoft Office
Applications
Use the Monitor (9300k) setting. This
may help if you are having problems
with specific colors from applications
such as Microsoft Excel or Microsoft
Powerpoint.
Printing Specific Colors (e g.
company Logo)
There are 2 utilities on your printer
driver CD-ROM that can help match
specific colors:
- Color Swatch Utility
- Color Correct Utility
Adjusting the Brightness or
Intensity of a Print
If the print is too light/dark, use the
Brightness control to adjust it.
If the colors are too intense/not
intense enough, use the Saturation
control.

12
Paper Recommendations
Cassette Tray
Multi-Purpose Tray
Weight Sizes Dimensions
Light: 17-19 lb. (64-74
g/m2)
Medium: 20-27 lb. (75-
90 g/m2)
Heavy:28-32 lb. (91-
120 g/m2)
A6 to
Legal
14in.
105 x 148mm
to
216 x 356mm
Use paper designed for use in
copiers and laser printers.
Pre-printed stationery must be
designed to use with high fuser
temperatures.
Weight Sizes Dimensions
Medium: 20-27 lb. (75-
90 g/m2)
Heavy: 28-32lb. (91-
120 g/m2)
Ultra heavy: 33-54 lb.
(124-203g/m
2
)
Envelopes
Labels
A6 to
Legal
14in.
100mm x
1200mm
(banner
printing)
Feed each sheet of paper or
envelope one-by-one.
For very heavy paper stock, always
use the face up (rear) paper stacker.
Envelopes should be the rectangular
flap type, with glue that can
withstand hot roll pressure fusing.
Window envelopes are not suitable.
Use labels recommended for use in
copiers and laser printers in which
the base carrier page is entirely
covered by labels.

13
Paper Jams
Clearing from Inside
1.
CAUTION! Do not touch the green
image drum surface or expose it the
light for more than 5 minutes.
2.
3.
WARNING: The fuser will be hot. Do
not touch.
4. If the sheet is well advanced into
the fuser , do not attempt to pull it
back. Follow the next step to
remove it from the rear.

14
Paper Jams (cont’d)
Clearing at Back
1.
2. If the sheet is difficult to remove,
it is probably still gripped by the
fuser. Raise the top cover, reach
around and press down on the
fuser pressure release lever (1).
Clearing at Front
1.
2.
1

15
Supplies
Where to Purchase
•Consult the dealer where you
purchased your C3400n.
•Consult an Oki Data Authorized
Sales or Service Dealer. For the
nearest dealer, call
1-800-654-3282.
•U.S., Puerto Rico, Guam, U.S. Virgin
Islands: Order on the Internet
www.okiprintingsolutions.com .
•U.S. only: Order toll-free at
1-800-654-3282, using
VISA®, MasterCard®or AMEX®.
•Check office supply catalogs.
Take Advantage of
OKI’s Supply Manager!
•Calculates your usage based on
information you provide.
•Sends you an E-mail when it’s time
to reorder.
To register, go to
www.okiprintingsolutions.com .
Toner Cartridges
Color OKI Part #
Black............................. 43459304
Cyan ............................. 43459303
Magenta ........................ 43459302
Yellow............................ 43459301
Image Drums
Color OKI Part #
Black............................. 43460204
Cyan ............................. 43460203
Magenta ........................ 43460202
Yellow............................ 43460201
Other Replacement Parts
Item Oki Part #
Fuser, 120 V .................. 43377001
Fuser, 220 V .................. 43377002
Transfer Belt .................. 43378001

16
OKI Print Media
Oki
®
Synflex™*
•Waterproof, Tear Resistant
•White, 8½'' x 11'' (216 x 279 mm)
Oki Bright White Proofing
Paper
•White, 32-lb.
•8½'' x 11'' (216 x 279 mm)
Oki Premium Envelopes
*
•COM-10 (#10), white wove
•Security tinted, Redi-Strip seal
Oki Banner Paper
*
•70 lb. Index (128 g/m2)
•Size 8½'' x 35.4'' (216 x 899 mm)
Oki Premium Card Stock
*
•Acid-free archival quality
•White, 8½'' x 11'' (216 x 279 mm)
* For best printing results:
OKI Part # Qty
52205901 100/box
OKI Part # Qty
52206101 500/box
OKI Part # Qty
52206301 100/box
52206302 500/box
OKI Part # Qty
52207901 25/box
52206002 100/box
OKI Part # Weight Qty
52205601 60 lb. Cover 250/box
52205602 90 lb. Index 250/box
52205603 110 lb. Index 250/box
Temperature range Humidity
65 to 77°F (18 to 25°C) 40 to 65%RH

17
Service and Support
First …
If an alarm (amber light) displays:
1. Make sure paper is loaded in the
printer.
2. Turn the printer off and on again.
3. Make sure the toner lock levers
are in the locked position.
4. Reinstall the drum/toner units,
making sure the toner lock levers
are in the locked position.
5. Open the status monitor for an
explanation of the alarm.
Consult the store where you
purchased your printer.
OKI Resources
• Available 24 hours a day, 7 days a
week
• Visit our multilingual web site:
WWW.OKIPRINTINGSOLUTIONS.COM
• Visit my.okidata.com .
• Call 1-800-654-3282.
OKI is a registered trademark of Oki Electric Industry Company, Ltd.
3M is a trademark or registered trademark of 3M.
AmEx is a registered trademark of American Express Co.
AMasterCard is a registered trademark of MasterCard International, Inc.
VISA is a registered trademark of Visa.
Windows is either a registered trademark or trademark of Microsoft Corporation in the
United States and other countries.
Xerox is a trademark of Xerox Corporation.

Français
Guide de référence pratique

1 - Français
Illumination et signification
Fonctionnement Normal
On Line (EN LIGNE).
Off Line (HORS LIGNE). ( cycle de 2 s )
Réception de données, impression,
préchauffage
. ( cycle de 500 ms )
Mode économie d’énergie. ( 4,5 s allumé
et 500 ms éteint
)

2 - Français
Illumination et signification
Un avertissement est indiqué/Erreur
Une alarme de manque de papier.
bourrage papier. (cycle de 1 secondes)
Advertissement: Toner Bas/Tambour
presque fin. Imprime ou la page d’état;
pression de 2 secondes, (pression 2) pour
afficher Recommendations/Warnings.
Toner non verrouillé/une alarme de
consommables usagés / une erreur de
capot ouvert . (cycle de 1 secondes)
Éteignez rallumez puis l’imprimante. Si
cela n’efface pas le message,
comminique avec uncentre de
réparation.
(cycle de 2/1 secondes)
