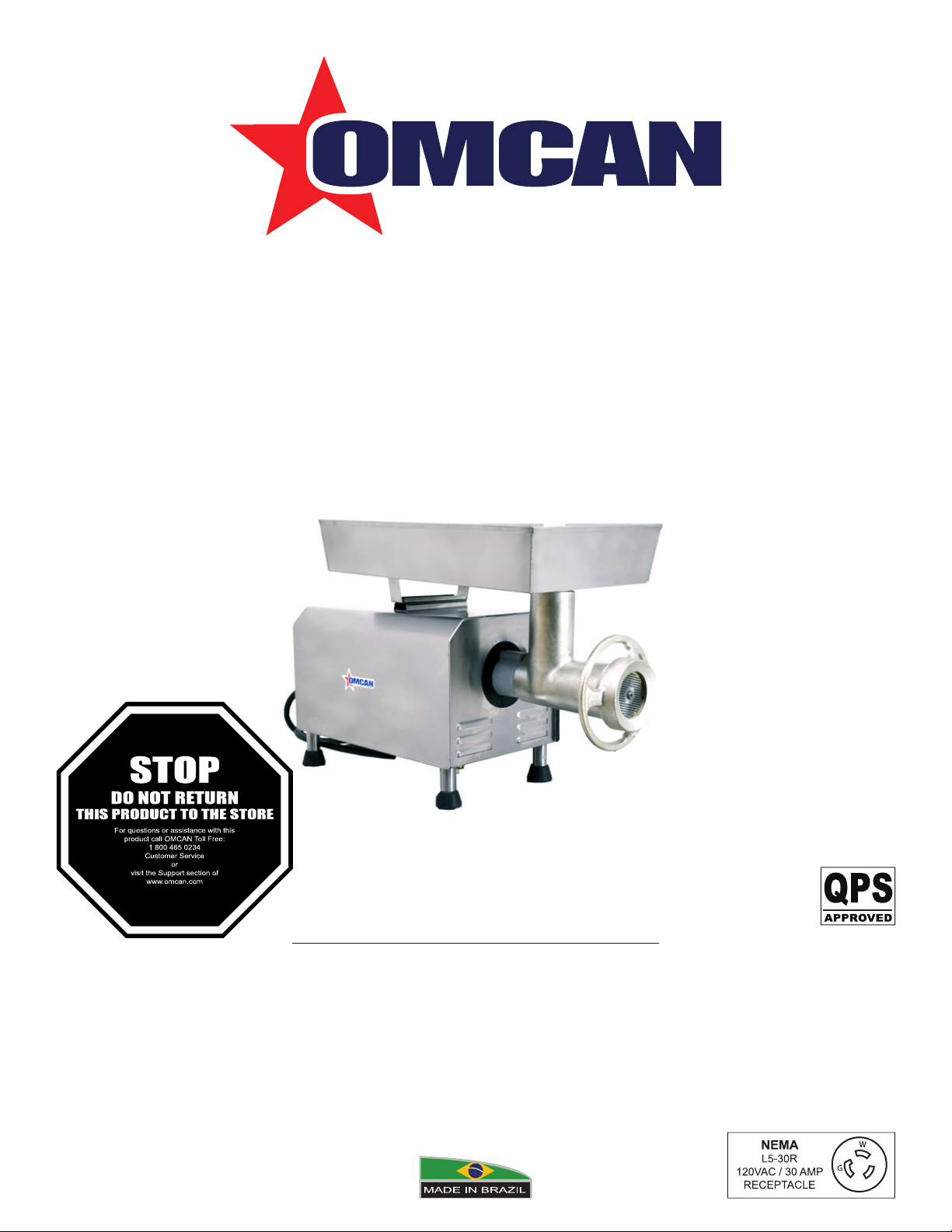

Meat Grinder

Model MG-BR-0022

Item 11067

Instruction Manual

2

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 6

-------------------------------------------------------------------------- 6

-------------------------------------------------------------------------------------------- 7

----------------------------------------------------------------------------------------- 7 - 8

------------------------------------------------------------------------------------- 8 - 9

---------------------------------------------------------------------------- 10 - 11

---------------------------------------------------------------------------- 12

------------------------------------------------------------------------------------------- 13 - 14

---------------------------------------------------------------------------- 15

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Installation

Operation

Maintenance

Parts Breakdown

Electrical Schematics

Notes

Warranty Registration

Model MG-BR-0022

3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

4

General Information

Safety and Warranty

GENERAL SAFETY REGULATIONS

This meat grinder is designed to grind meat products safely and efciently. Unless the operator is properly

trained and supervised, however, there is the possibility of a serious injury. It is the responsibility of the owner

to ensure that this machine is used properly and safely, strictly following the instructions contained in this

manual and any requirements of local law.

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre leer y familiarizarse con todas las instrucciones de

operación y seguridad.

Omcan quisiera darles las gracias por la compra de esta máquina. Es de la máxima importancia para

guardar estas instrucciones para referencias en el futuro. También guarde la caja original y el embalaje

para envío del equipo si el mantenimiento o la devolución de la máquina es necesaria.

5

Safety and Warranty

This machine can be potentially dangerous when used incorrectly. Therefore, read all the following instructions

carefully to avoid damage:

• Before cleaning, disconnect machine from power source.

• Always turn machine off in case of power supply lack.

• Provide enough space around machine to avoid breakings.

• Never use tools not belonging to machine to help operation.

• Never feed by hand; always use stomper.

• Never put your ngers or any other object but the stomper inside the feed throat.

• Never connect power source with wet hands or wet clothes.

• Never spray water or other liquid substances directly at motor, power switch, or any other electrical

components.

• Keep your working area clean and dry to prevent it from becoming slippery.

• Always install equipment in working area with adequate light and space away from children and visitors.

• Never operate without all warning labels attached and owner/operator manual available to operator.

• Never leave unattended while operating.

• Stop the machine immediately if you hear abnormal noises to prevent injuries.

• Never let dust or water get into electrical and mechanical comp machine.

• Always ground machine properly.

• Do not modify original features of the machine.

• Do not take out nor tear off any safety or identication label.

• Contact your distributor if you have any problems with the installation and operation of this machine.

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure

or other damages resulting from installation in non-commercial or residential applications. The right

is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as

possible.

1 YEAR PARTS AND LABOR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either

an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see https://omcan.com/disclaimer for complete info.

6

Technical Specications

Safety and Warranty

Model MG-BR-0022

Power 2 HP / 1.5 kW

Throat 1.6” / 41mm

Motor RPM 1750

Worm RPM 150

Electrical 110V / 60Hz / 1

Weight 89.8 lbs. / 40.7 kgs.

Packaging Weight 105 lbs. / 47.6 kgs.

Dimensions 28” x 13” x 24.8” / 711 x 330 x 629mm

Packaging Dimensions 21.5” x 33.5” x 22.5” / 546 x 851 x 572mm

Item Number 11067

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

7

Operation

Installation

MAIN COMPONENTS

The machine consists of an electrical motor that, through a gear box, operates a worm. The worm feeds the

meat to the knife and hole plate. Several types of hole plates are available. The holes on these plates have

different diameter. The type of plate is chosen depending on

the desired ground meat characteristics.

The feed throat (No. 02; Figure 1) and worm (No. 03; Figure

2) receive an special treatment to isolate and facilitate the

cleaning.

The knife (No. 05; Figure 2) and disc (No. 06; Figure 2) are

made of hard material to provide a long life cutting quality.

INSTALLATION OF THE GRINDER

• The meat grinder must be installed on a level, non-skid

surface with a maximum recommended height of 850 mm

by qualied or experienced people.

• There should have a suitable space for the tray to collect

processed meat in front of the grinding device.

• Check the voltage of the machine. The unit voltage must

be the same as the power source.

• Grounding wire must always be connected.

01. Stomper

02. Feed Throat

03. Locking Ring

04. Tray

05. Motor Housing

06. ON/OFF Switch

Figure 1

PRE-OPERATION

• Check if the machine is rm; no movement shall be allowed on the supporting surface.

• It is recommended that the machine be carefully cleaned before rst operation.

• Clean the grinder as explained in the maintenance section.

• After cleaning, reassemble the components in the following order: barrel, ber washer, worm, worm pin,

knife, plates, and locking ring (See Figure 2).

• Then check if all removable components are reassembled properly.

• Turn locking ring (No. 07) counterclockwise until it applies a slight pressure on the hole plate and on the

knife.

NOTE: Do not tighten the locking ring too much, as an excessive pressure on the hole plate and knife may

lead to their abnormal wear.

8

Operation

Maintenance

Clean the machine before rst use and after use. To do the cleaning, proceed as follows:

• Turn off the machine and disconnect it from power source.

• Remove pusher (No. 01; Figure 1) and tray (No. 04; Figure 1).

• Remove Locking Ring (No. 03; Figure 1), turning it clockwise, and the internal components of the barrel,

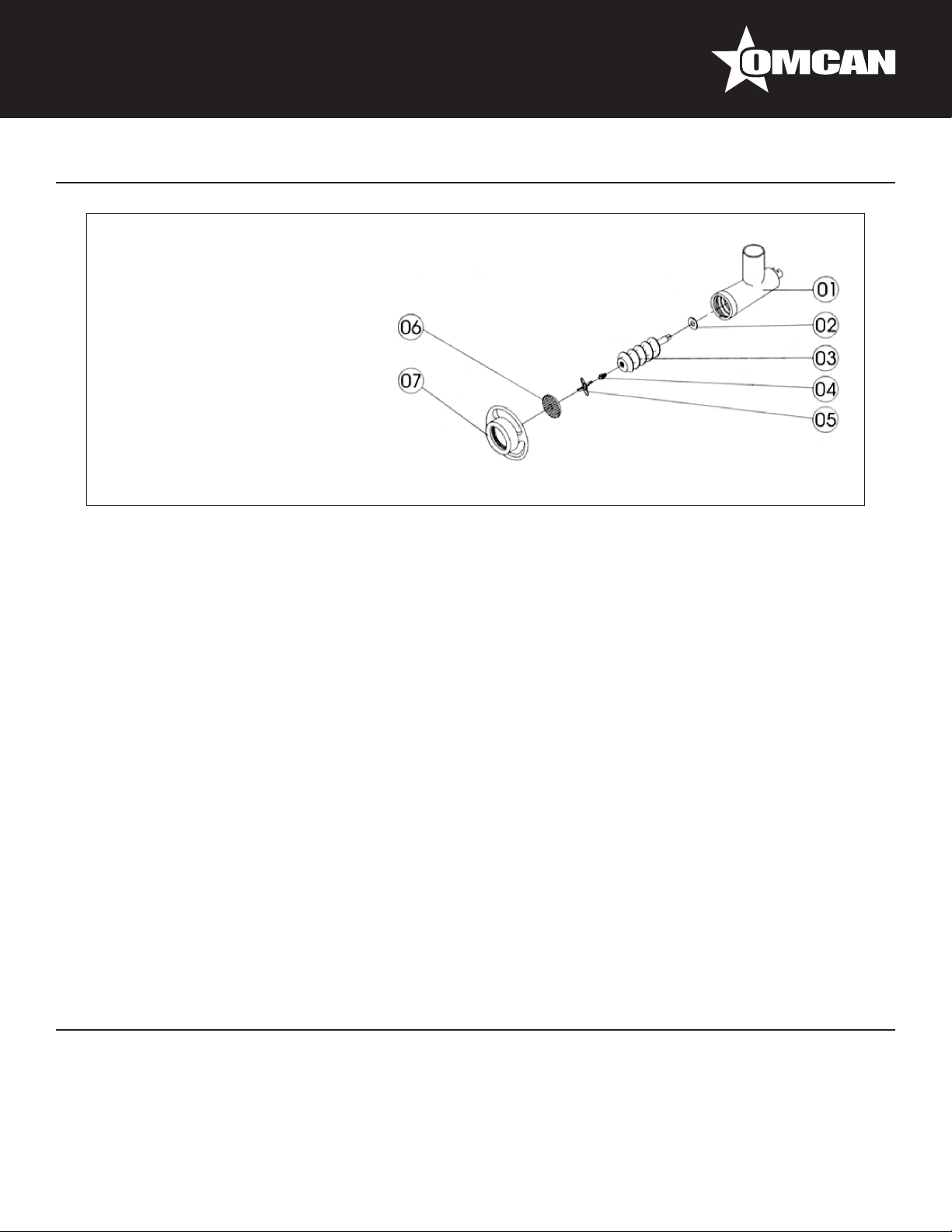

01. Barrel

02. Fiber Washer

03. Worm

04. Worm Pin

05. Knife

06. Plates: 3 mm, 5 mm or 8 mm (optional)

07. Locking Ring Figure 2

NOTE: Assemble the components following the order shown above (Figure 2). It is recommended that you

follow the order carefully. Assembling the components in a different order could cause serious damages to

the grinding device. When re-installing the knife in the worm stud, make sure that the cutting edge is facing

outwards.

After following the pre-operation instructions, your meat grinder is now ready to operate.

OPERATING THE MEAT GRINDER

1. Start the machine. This meat grinder is very high speed and, therefore, needs a fast feeding too.

2. Put the meat lumps on the tray.

3. Using the stomper (No. 01; Figure 1), push the meat into the feed throat where they will be sucked in by

the worm.

4. Feed meat at a constant rate for better grinding.

IMPORTANT: Only use the stomper to push the meat into the feed throat; never use your hands or any other

kind of instrument. It is strongly recommended that the meat chopper is not being operated without meat in

feed. Therefore, never let the machine to work without loading. If it happens, the temperature may rise as high

as 180°F in approximately 3 minutes, causing serious damages to the grinding components. Never leave any

kind of knives, metal hooks, or other instruments on the tray.

9

Maintenance

pulling them out.

NOTE: Do not try to pull the plate, knife, and worm out off the barrel as this may result in serious injury to the

hands.

• To remove the barrel, loosen the locking knob located on the left side of the barrel with both hands, and

move it to the left and right pulling it at the same time.

• Proceed washing the components with warm water and neutral soap.

• Wipe the body of the machine with a damp clean cloth.

10

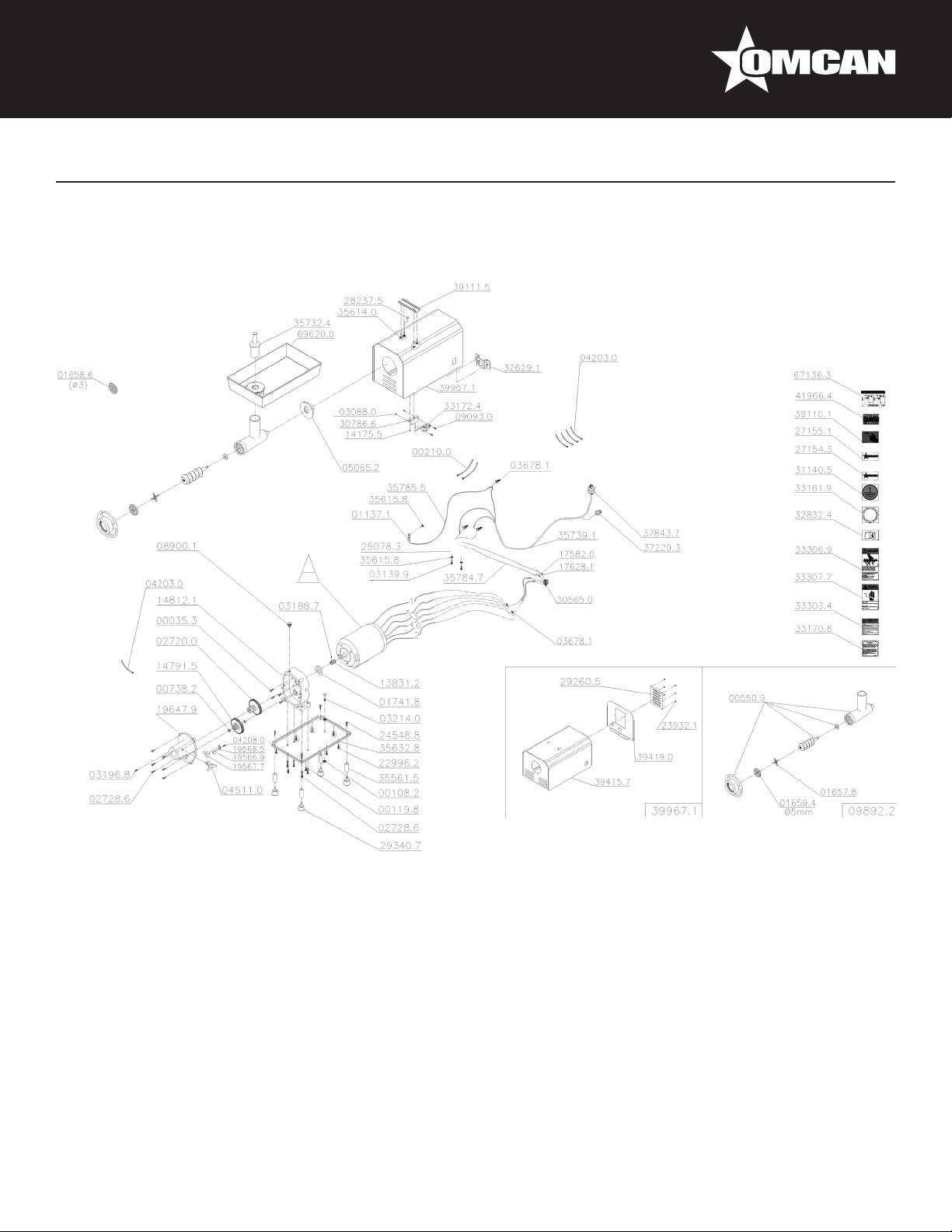

Parts Breakdown

Model MG-BR-0022 11067

11

Parts Breakdown

Model MG-BR-0022 11067

Item No. Description Position Item No. Description Position Item No. Description Position

38388 PFS Sex UNC1/4x1 RTZB for 11067 00035.3 38572 Complete #22 Meat Grinding Head for

11067 09892.2 AF906 Thermal Protector Label Ingles for 11067 33161.9

38531 PCA Sex UNC 3/8 ZB for 11067 00108.2 38581 Motor Gear for 11067 13831.2 AF907 Attention Ear Wire Label Ingles/Frances

for 11067 33170.8

30258 Washer L 5/16 ZB for 11067 00119.8 30047 Nut M4 DIN 934 for 11067 14175.5 67041 Key 40127 A2E3Q-NA KEMA for 11067 33172.4

27688 Clamp K22 (T 50R) for 11067 00210.0 21842 Fiber Gear for 11067 14791.5 AF908 Attention Warning Label for 11067 33303.4

38548 Throat Set N°22 for 11067 00550.9 AH534 Eng. Box W/Pin (Hammed C.) for 11067 14812.1 AH538 English/French Danger Label for 11067 33306.9

21843 Ball Bearing 6001 for 11067 00738.2 30050 Terminal Cover for 11067 17582.0 AF910 Warning Label Ingl./Franc. for 11067 33307.7

AE670 Term. Eyelet for 11067 01137.1 38528 Term.Positiv Lock 2 A 4 for 11067 17628.1 AH539 PE Extensioner for 11067 35561.5

38545 Blades for Meat Grinders for 11067 01657.8 38542 Copper Tube for 11067 19566.9 AH540 PCA M6 Special ZB for 11067 35614.0

38518 Machine Plate 3” Dia for 11067 01658.6 38590 Lid Coupling Connection for 11067 19567.7 AH541 PCA M4 Special ZB for 11067 35615.8

38546 Disc 5mm Nº22 for 11067 01659.4 38541 Meat Mincer Stable for 11067 19568.5 AH542 Certied Base (Gray) for 11067 35632.8

16401 Retainer Seal 00784BR1(F.0122) for

11067 01741.8 38539 Gear Box Lid (C.Martel.) for 11067 19647.9 AH543 2CV 60Hz W Engine with Thermal

Protector for 11067 35706.5

21844 Worm Gear for 11067 02720.0 38593 Screw M5x6 DIN 84 Stainless Steel

for 11067 22996.2 AH544 Socket NO.22 Certicate for 11067 35732.4

38534 PFS M8x25 DIN 933 ZB for 11067 02728.6 38412 PFS M4x5 DIN 7985 INOX for 11067 23932.1 AH545 CB.3x5.3mm2 SJX2M Certif. for 11067 35739.1

38393 Screw Nut M3 DIN 934 ZB for 11067 03088.0 38177 PFS M10x12 DIN 933 ZB for 11067 24548.8 AH546 Wire EL.Flex.5.3x300mm Cert. for 11067 35784.7

AH532 PFS M4x16 DIN 7985 ZB for 11067 03139.9 AH535 Cont.CWM32-00-30D13 110V 50/60Hz

for 11067 25078.3 AH547 Wire EL.Flex.5.3x670mm Cert. for 11067 35785.5

27695 Allen Screw M6x8 for 11067 03188.7 27720 Omcan Logo (Machines) for 11067 27154.3 AH548 Cable Press PG21 Black6PCA W/

Red.9A14 for 11067 37229.3

38395 PFS M8x10 DIN 933 ZB for 11067 03196.8 30059 Omcan Packaging Logo for 11067 27155.1 AH549 American Plug Certif.30A 125V 4A262

for 11067 37843.7

38530 PFS Sex UNC3/8x2.3/4 RPZB for 11067 03214.0 AH536 Micro Drive Pin for 11067 28237.5 AH550 Warning Label for 11067 38110.1

27696 Nylon Cover CN 4478 for 11067 03678.1 AF901 Shutter 25x5x100 for 11067 29260.5 AH551 CS Tray Support for 11067 39111.5

27699 Cramp T 18R Small for 11067 04203.0 67037 Foot Bor.Red.C/PFS M10x30

D.50x34x30 ALT for 11067 29340.7 AH552 CS Certied Cabinet for 11067 39415.7

30038 Screw M3x6 DIN 84 ZB for 11067 04208.0 AE677 Key W / Prot.30223 M2FT2FE3V / 19

for 11067 30565.0 AH553 Certied Back Cover 1.5CV for 11067 39419.0

21578 Knob with Bar M10x30mm for 11067 04511.0 AH537 Micro Support for 11067 30786.6 AH554 Completed Cabinet Certicate for 11067 39967.1

38523 Rubber Cover for 11067 05065.2 67038 Grounded Wire Label for 11067 31140.5 AH555 Spanish/English Fragile Label for 11067 41966.4

21577 Oil Cap PSN/EE-CMSE for 11067 08900.1 AF905 Thermal Protector Protection for 11067 32629.1 AH556 Mouth Fixation Label for 11067 67136.3

AH533 PFS M3x16 DIN 7985 ZB for 11067 09093.0 67040 Instruction Manual Label for 11067 32832.4 AH557 CS Tray No.22 Cert. for 11067 69620.0

12

Electrical Schematics

Model MG-BR-0022 11067

13

Notes

________________________________________________________________________________________

14

Notes

________________________________________________________________________________________

15

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

https://omcan.com/warranty-registration/

or email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour diffusion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 6,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 6500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 6,500 productos con origen a nivel mundial.

Omcan MG-BR-0022 User manual

Popular Meat Grinder manuals by other brands
