Omcan Mg-cn-0012-s User manual

Meat Grinders

Models MG-CN-0012-S, 0022-S

Items 23580, 23626

Instruction Manual

Revised - 10/06/2016

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

2

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 6

-------------------------------------------------------------------------- 6

--------------------------------------------------------------------- 6 - 7

------------------------------------------------------------------ 7 - 8

------------------------------------------------------------------------------ 9 - 11

---------------------------------------------------------------------------- 12

------------------------------------------------------------------------------------------- 13 - 14

---------------------------------------------------------------------------- 15

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Assembly and Operation

Maintenance and Cleaning

Parts Breakdown

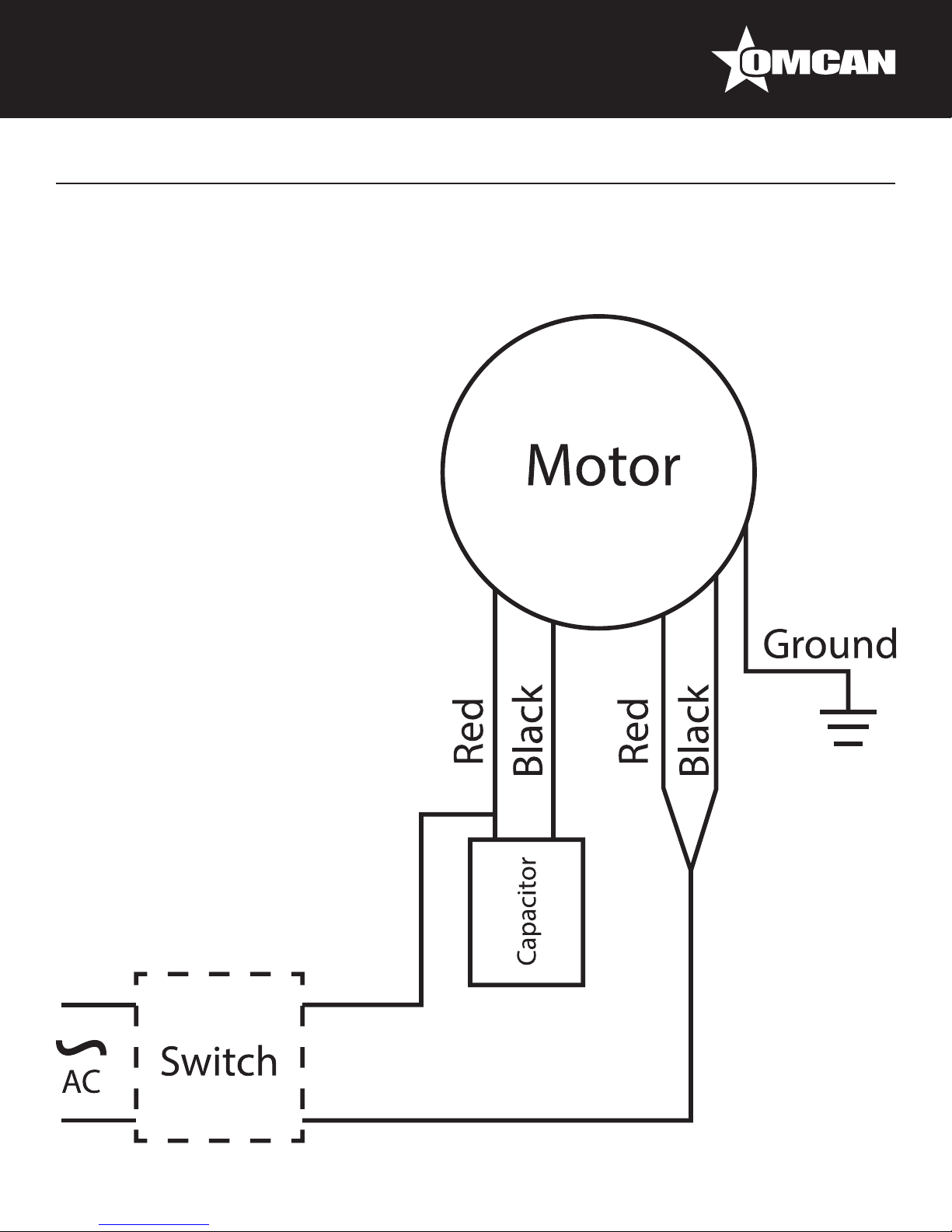

Electrical Schematics

Notes

Warranty Registration

Model MG-CN-0012-S / Model MG-CN-0022-S

3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

4

Safety and Warranty

IMPORTANT SAFEGUARDS

When using any electrical appliances, basic safety precautions should always be followed including the

following:

• Read all instructions.

• To protect against risk of electrical shock do not put meat grinder in water or other liquid.

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre leer y familiarizarse con todas las instrucciones de

operación y seguridad.

Omcan quisiera darles las gracias por la compra de esta máquina. Es de la máxima importancia para

guardar estas instrucciones para referencias en el futuro. También guarde la caja original y el embalaje

para envío del equipo si el mantenimiento o la devolución de la máquina es necesaria.

General Information

5

Safety and Warranty

• Close supervision is necessary when any appliance is used near children.

• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.

• Avoid contacting moving parts. Never feed meat by hand. Always use the pusher.

• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is

dropped or damaged in any manner. Return appliance to the Omcan service facility for examination, repair

or electrical or mechanical adjustment.

• The use of attachments not recommended or sold by Omcan may cause re, electric shock or injury.

• Do not use outdoors.

• Do not let cord hang over edge of table or counter.

• Do not let cord contact hot surface, including the stove.

• Do not use ngers to scrape food away from discharge disc while appliance is operating.

• Do not use hands to push product into the machine throat while machine is in operation.

• SAVE THESE INSTRUCTIONS.

CAUTION

• When carrying the unit, be sure to hold Motor Housing with both hands, do not hold only Hopper Plate. Be

careful to carry the unit, as it is very heavy.

• Do not grind hard foods such as bones, frozen meat, nuts, or vegetables.

• Do not grind ginger and other materials with hard ber.

• To avoid jamming, do not force to operate the unit with excessive pressure.

• If the unit jams, switch off immediately and clean the unit. (See “Jamming”, page 7)

• Always connect your device to a grounded electrical outlet.

• Do not unplug the appliance by pulling on cord. To unplug, grasp the plug not the cord.

• The appliance should be used strictly in accordance with these instructions as no liability can be accepted

for any damage caused by non-compliance with these instructions, or any other improper or handling.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either

an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see www.omcan.com/warranty.html for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

6

Technical Specications

Assembly and Operation

Model MG-CN-0012-S MG-CN-0022-S

Peak Power 650 Watts / 0.87HP 1100 Watts / 1.5 HP

Throat Opening 2.25” / 57mm

Capacity per Hour 260 lbs. / 117.9 kgs. 485 lbs. / 220 kgs.

Electrical 110V/60/1

Weight 59 lbs. / 26.8 kgs. 80 lbs. / 36.3 kgs.

Dimensions (DWH) 17.62” x 7.62” x 13.37”

448 x 194 x 340mm

22.5” x 9” x 16.25”

572 x 229 x 413mm

Item Number 23580 23626

BEFORE USE

Make sure that the voltage and frequency indicated on the rated plate are the same as your local supply, and

that the mains are properly ground. Wash all the parts (except those that do not touch meat) in warm soapy

water. Before plugging in, ensure switch is off and unit is thoroughly dry.

TO MINCE / GRIND MEAT

Assembling

1. Place auger tube tightly onto opening of motor housing.

2. Holding tube with one hand, tighten locking knob clockwise.

3. Place auger into the tube, long end rst, by turning auger slightly until it is set into motor housing and cover

the transmission shaft.

4. Place cutting blade onto auger with the blade facing the front as illustrated.

• If it is not tted properly, meat will not be ground.

5. Place the desired cutting plate next to cutting blade, and align the pin with the plate.

6. Screw the locking ring onto the auger tube.

7. Do not over tighten. Place hopper plate on head and x into position.

8. Position the unit on a rm surface.

• The air passage at the bottom and the side of motor housing should be kept free and not blocked,

maintain a minimum of 4”/10cm free space around the grinder.

Safety and Warranty

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

7

Assembly and Operation

Mincing / Grinding meat

Cut all boneless meat into pieces so that they t easily into hopper opening. Plug in, then switch the machine

on.

1. Use the pusher to feed the meat into the grinder.

• After use, switch off and unplug.

TROUBLE SHOOTING:

If the minced meat is not discharged smoothly or in the form of paste, the causes and remedies could be:

• Screw cap is tightened too much thus, the cutting blade does not contact properly with the cutting plate.

Readjust it.

• The cutting plate is blocked. Clean it.

• Cutting blade edges is dull. Sharpen or replace it.

JAMMING

When the circuit breaker automatically stops the motor, or when the motor continues to function but no meat

comes out of cutting plate, due to jamming, switch off.

• Do not switch on. Press CIRCUIT BREAKER to reset. Turn switch to REVERSE to clear the jam.

• Reverse operation will continue for as long as REVERSE is held. Clean the unit.

Maintenance and Cleaning

ALWAYS UNPLUG THE MACHINE FROM THE ELECTRICAL SOCKET BEFORE PERFORMING ANY

MAINTENANCE OR CLEANING!

TO CLEAN

Disassembling

Make sure that the motor has stopped completely. Disconnect the plug from the power outlet.

Locking ring has 3 at sides, convenient for unscrewing. If locking ring is too tight, please knock at the at

sides with a soft-handle, then locking ring will be unscrewed easily.

Unscrew the locking knob, and take out the auger tube (with cutting plate, cutting blade and feed screw), then

point the auger tube mouth downward in order to take out cutting plate, cutting blade and feed screw.

Cleaning

Remove meat, etc. wash each part in warm soapy water.

• A bleaching solution containing chlorine will discolor aluminum surfaces.

• Do not immerse motor housing in water, but only wipe it with a damp cloth.

8

Maintenance and Cleaning

A little salad oil on the plate & knife after washing and drying will keep them lubricated.

REFERENCE

Item Number Model Number Description Manufacturer Model Number

23580 MG-CN-0012-S Meat Grinder #12 Stainless Steel

0.9 HP / 649 W 110V/60/1 cETLus BSM12

23626 MG-CN-0022-S Meat Grinder #22 Stainless Steel

1.5 HP / 1119 W 110V/60/1 cETLus BSM22

9

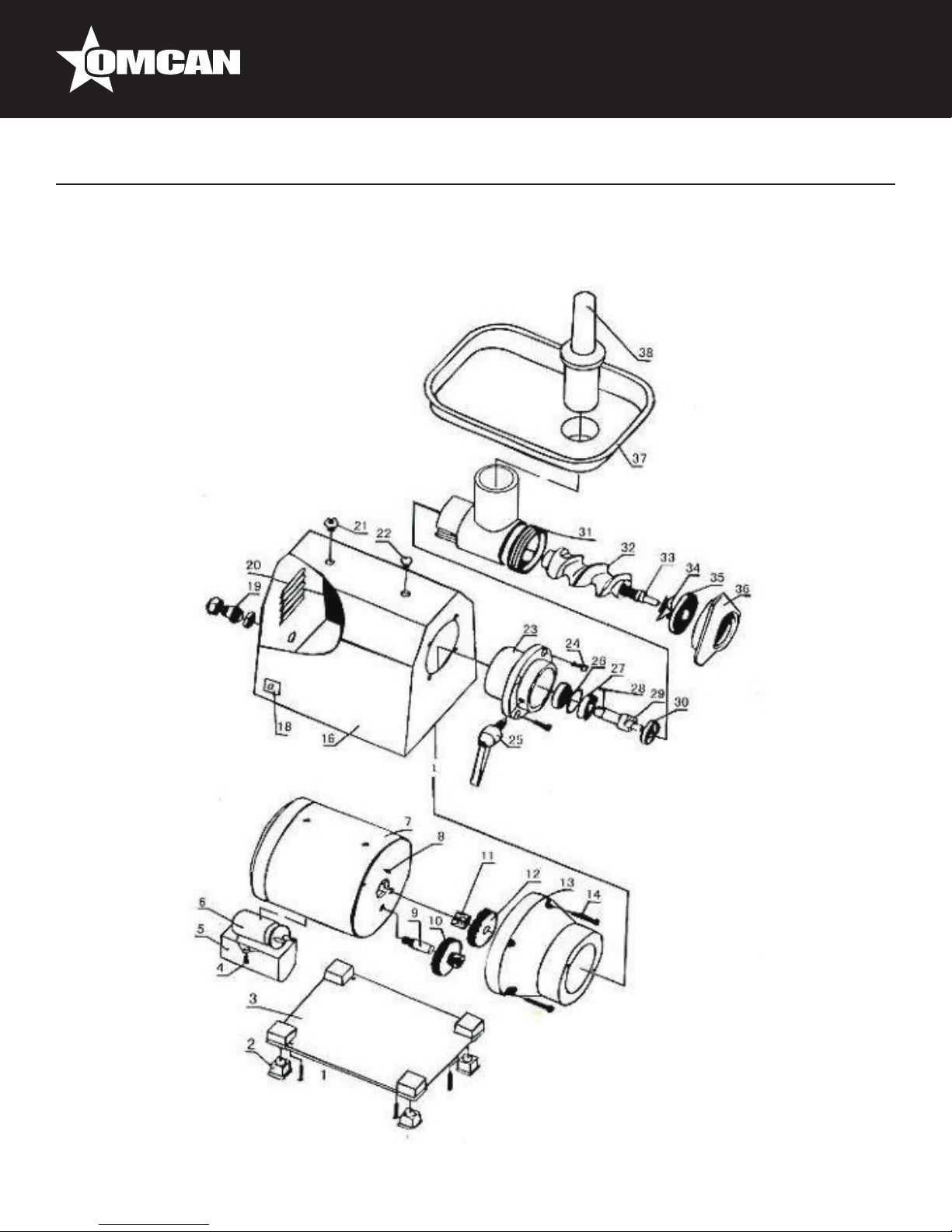

Parts Breakdown

Model MG-CN-0012-S 23580

10

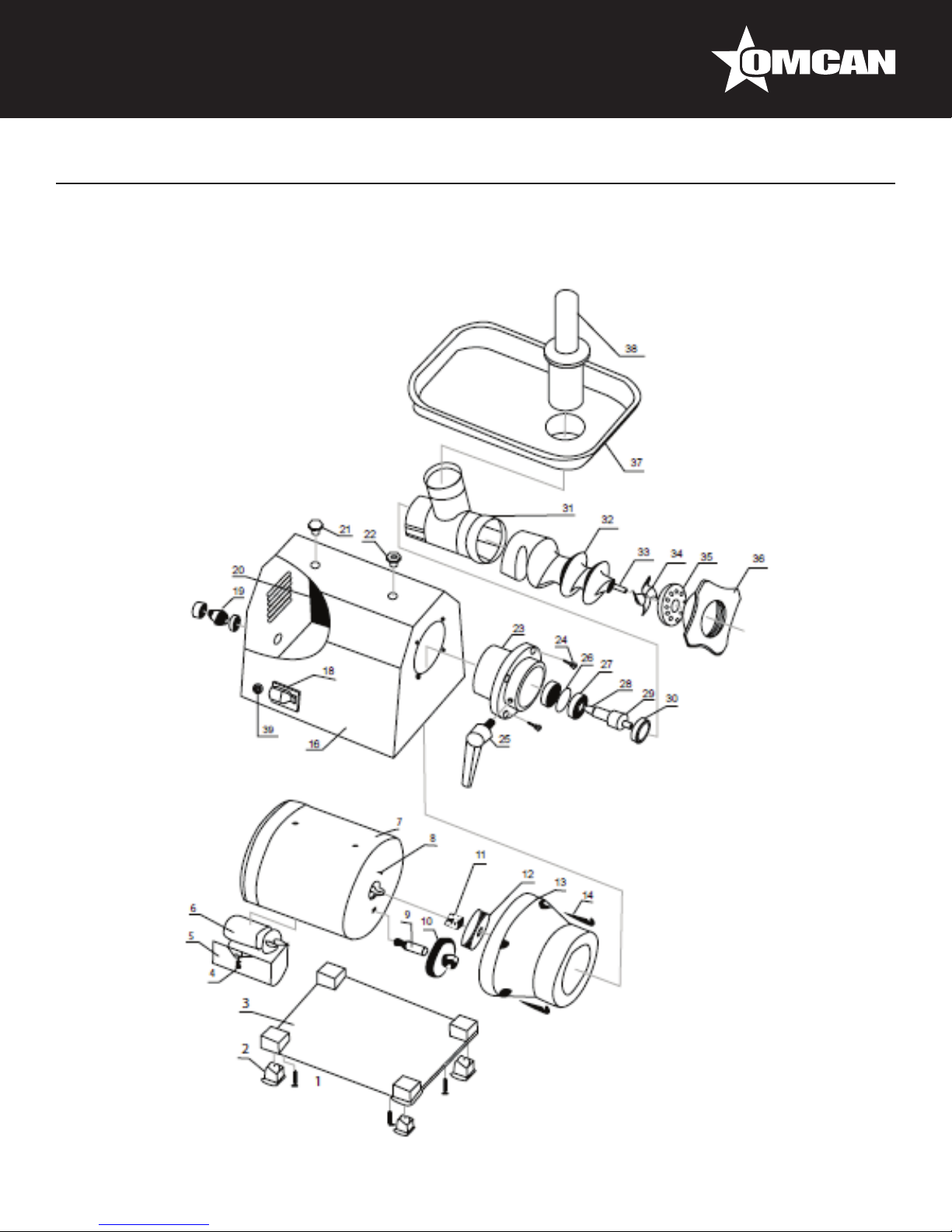

Parts Breakdown

Model MG-CN-0022-S 23626

11

Parts Breakdown

Model MG-CN-0012-S 23580

Item

No. Description Position Item

No. Description Position

30953 Screw M5x32 for BSM12 1 30966 Screw M5x40 for BSM12 14 30978 Shaft for BSM12 29

30954 Foot for BSM12 2 30967 Case for BSM12 16 30979 Seal Oil for BSM12 30

30955 Bottom Plate for BSM12 3 30968 Switch for BSM12 18 31251 Head for BSM12 31

30956 Screw M4x8 for BSM12 4 30969 Cable Clips for BSM12 19 31252 Feed Screw for BSM12 32

30957 Capacitor Support for BSM12 5 30970 Sponge Pad for BSM12 20 30980 Arbor for BSM12 33

30958 Capacitor for BSM12 6 30971 Motor Locking Screw for BSM12 21 30981 Blade for BSM12 34

30959 Motor for BSM12 7 30972 Oil Stopper for BSM12 22 30982 Discharge Plate for BSM12 35

30960 Key 4x12 for BSM12 8 31250 Grinder Mount for BSM12 23 30983 Retaining Nut for BSM12 36

30961 Shaft for BSM12 9 30973 Screw M6x20 for BSM12 24 30984 Feed Pan for BSM12 37

30962 Dual Gear for BSM12 10 30974 Lock Handle for BSM12 25 30985 Food Pusher for BSM12 38

30963 Gear I (13T) for BSM12 11 30975 Retainer Ring for BSM12 26 30986 Circuit Breaker for BSM12 39

30964 Gear IV (40T) for BSM12 12 30976 Ball Bearing for BSM12 27

30965 Gearbox Case for BSM12 13 30977 Key 5x10 for BSM12 28

Model MG-CN-0022-S 23626

Item

No. Description Position Item

No. Description Position

30987 Screw M5x32 for BSM22 1 31000 Screw M5x40 for BSM22 14 31012 Shaft for BSM22 29

30988 Foot for BSM22 2 31001 Case for BSM22 16 31013 Seal Oil for BSM22 30

30989 Bottom Plate for BSM22 3 31002 Switch for BSM22 18 30440 Head for BSM22 31

30990 Screw M4x8 for BSM22 4 31003 Cable Clips for BSM22 19 30441 Feed Screw for BSM22 32

30991 Capacitor Support for BSM22 5 31004 Sponge Pad for BSM22 20 31014 Arbor for BSM22 33

30992 Capacitor for BSM22 6 31005 Motor Locking Screw for BSM22 21 31015 Blade for BSM22 34

30993 Motor for BSM22 7 31006 Oil Stopper for BSM22 22 31016 Discharge Plate for BSM22 35

30994 Key 4x12 for BSM22 8 30443 Grinder Mount for BSM22 23 31017 Retaining Nut for BSM22 36

30995 Shaft for BSM22 9 31007 Screw M6x20 for BSM22 24 31018 Feed Pan for BSM22 37

30996 Dual Gear for BSM22 10 31008 Lock Handle for BSM22 25 31019 Food Pusher for BSM22 38

30997 Gear I (13T) for BSM22 11 31009 Retainer Ring for BSM22 26 31020 Circuit Breaker for BSM22 39

30998 Gear IV (40T) for BSM22 12 31010 Ball Bearing for BSM22 27

30999 Gearbox Case for BSM22 13 31011 Key 5x10 for BSM22 28

12

Electrical Schematics

Model MG-CN-0012-S 23580

Model MG-CN-0022-S 23626

13

Notes

________________________________________________________________________________________

14

Notes

________________________________________________________________________________________

15

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

www.omcan.com/warrantyregistration.html

or Email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour diffusion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 3,500 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 3,500 productos con origen a nivel mundial.

Omcan MG-CN-0012-S User manual

Popular Meat Grinder manuals by other brands
