Omcan Mg-it-0022 User manual

Meat Grinder

Revised - 03/11/2020

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

Model MG-IT-0022

Item 41421

Instruction Manual

CSA

Approved

2

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

-------------------------------------------------------------------------- 6

-------------------------------------------------------------------- 6 - 8

------------------------------------------------------------------------------------- 8 - 9

------------------------------------------------------------------------------- 9 - 10

---------------------------------------------------------------------------- 10 - 11

---------------------------------------------------------------------------- 12

------------------------------------------------------------------------------------------- 13 - 14

---------------------------------------------------------------------------- 15

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Installation and Operation

Maintenance

Troubleshooting

Parts Breakdown

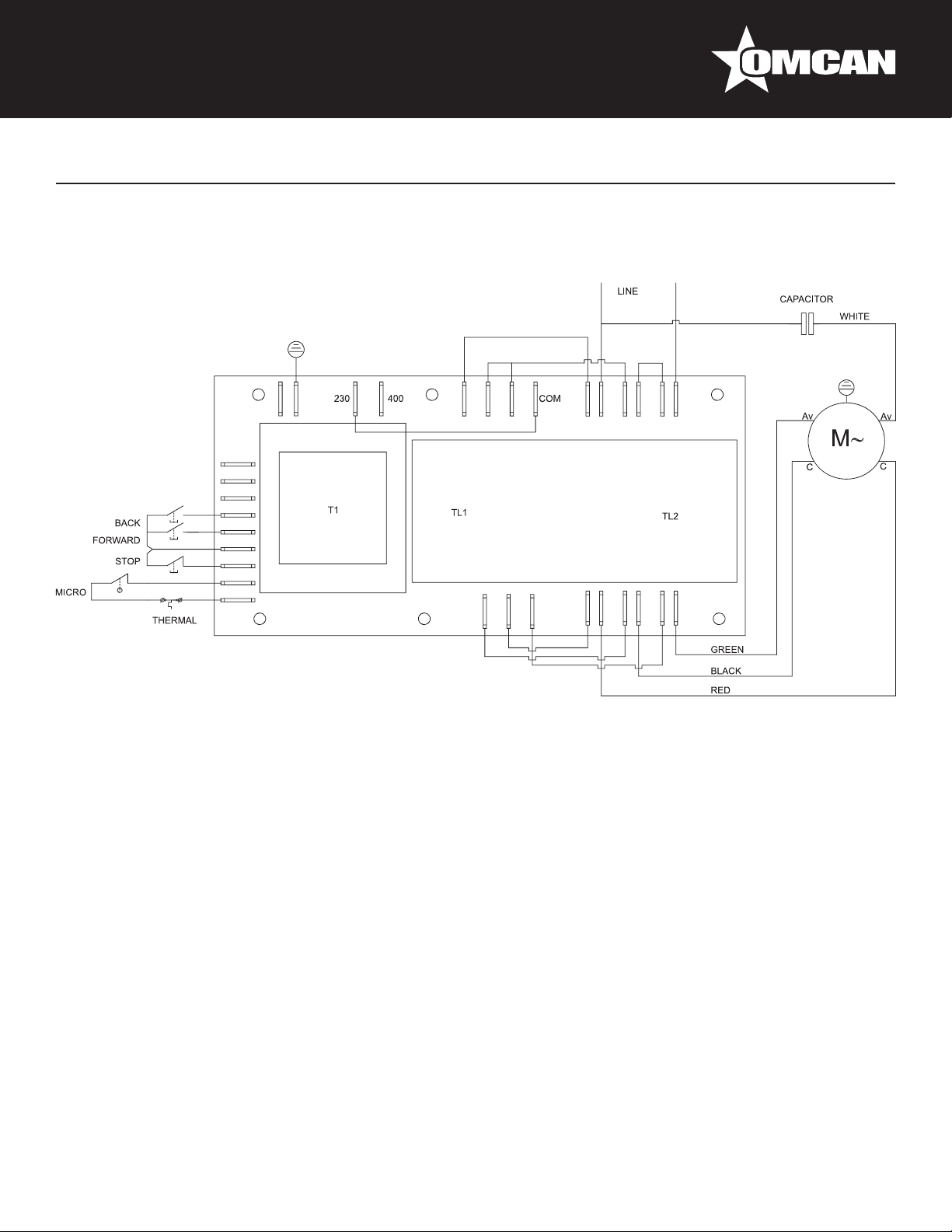

Electrical Schematics

Notes

Warranty Registration

Model MG-IT-0022

3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

4

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para

salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

WARNINGS ON THE RESIDUAL RISKS

RESIDUAL RISK DUE TO THE FIXED PROTECTIONS REMOVAL OR INTERRUPTION ON BROKEN/

WORN PARTS.

The operator must not try to open or remove a xed protection or tamper with a safety device.

General Information

Safety and Warranty

5

During operation, maintenance and cleaning, keep hands or other body parts away from the machines

dangerous areas, a residual risk remains due to:

1. Knocks with the machines manufacturing parts.

2. Grazing and/or abrasion with the machines rough parts.

3. Cuts with the sharp parts.

PROTECTION DEVICES ON THE MACHINE

The machine protections and safety devices must not be removed.

The machines transmission parts are completely isolated by means of xed protections which does not allow

access. The moving elements are not isolated from xed protections, moving protections or other safety

devices. The grinding group parts are placed away from access points so they are not reachable.

1 YEAR PARTS AND LABOUR BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either

an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures not

improper use.

Please see https://omcan.com/disclaimer for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Safety and Warranty

6

Installation and Operation

TRANSPORTATION, HANDLING AND STORAGE

All transportation and handling operations must be performed from trained personnel and must have read and

understood the safety precautions mentioned in this manual.

1. Perform the machine handling and transportation only when unplugged.

2. Verify that the lifting means are able to support the loading weight and overall dimensions in safe

conditions.

3. Avoid dropping or shaking the unit during transportation.

PREPARATION PRELIMINARY OPERATIONS

STABILITY

The machines stability is designed so that it can be used without the risk of falling or unwanted movement.

Ensure the machine is situated on a stable and level surface.

ELECTRICAL SUPPLY

The electrical supply connection must be in conformance with the country legislation in which it is being used.

1. The electrical supply must match the required specications indicated on the rating plate. If excessive

voltages are applied, some components will be damaged beyond repair.

2. The device must be grounded in conformance to the local standards.

3. The electrical supply cable outside the machine cover must be adequately protected, to ensure it is not

damaged.

Model MG-IT-0022

Horsepower 1.25 HP

Power 920 W

RPM 100

Throat Opening 2” / 51mm approx

Electrical 110V / 60Hz / 1

Weight 40 lbs. / 18 kgs.

Packaging Weight 42 lbs. / 19 kgs.

Dimensions 19.9” x 9.5” x 15.8” / 505 x 240 x 400mm

Packaging Dimensions 26” x 20” x 20” / 660 x 508 x 508mm

Item Number 41421

Technical Specications

7

Installation and Operation

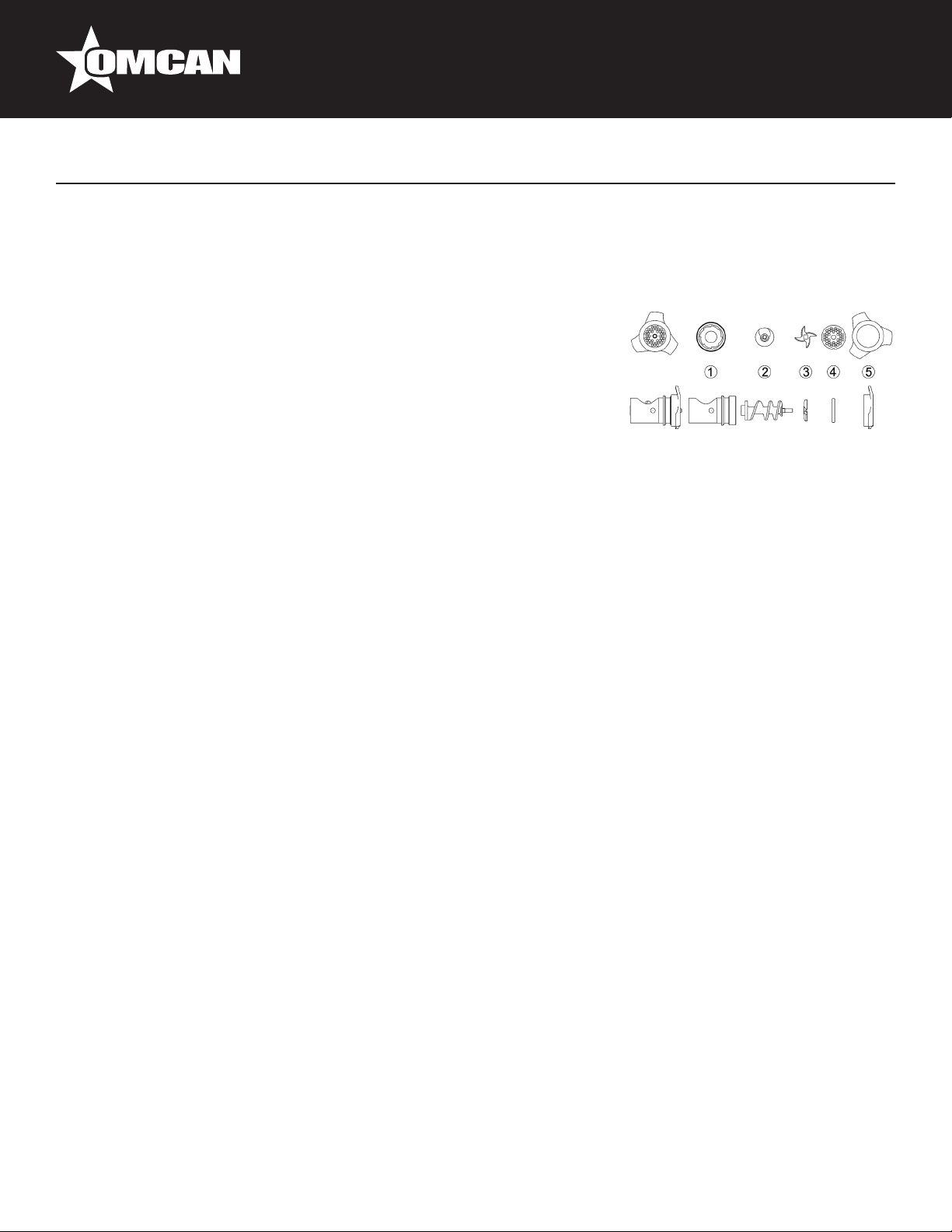

GRINDING GROUP ASSEMBLY / DISASSEMBLY

The assembly / disassembly operations of any machine part are performed with the machine in the OFF

position, and the plug disconnected from the socket.

To assemble the grinder, do the following steps in this order:

1. Insert into the shaft (1) in order: the worm (2), the cutting knife oriented

as shown in the gure (3), and the plate (4).

2. Screw down and tighten the screw (5).

To disassemble, do the above procedure in the reverse order.

OPERATION INSTRUCTIONS

STARTING THE MACHINE

To start the machine, the switch has to be placed on the “I” position.

STOPPING THE MACHINE

To stop the machine, the switch has to be placed on the “O” position.

FUNCTIONING SAFETY

If the machine is under stress, operated for a long period of time or overloaded, it will stop immediately when

the thermal protection turns on. In this case wait for the unit to cool completely before using again.

OPERATION

The machine operator can begin operation of the machine when:

1. The machine is installed properly.

2. The machine is connected to the electrical supply.

3. The hopper is inserted in the correct position.

4. The grinding group assembly is installed correctly.

5. The worm rotates in the correct direction.

6. Tests the switch.

7. Check that all safety conditions are being met.

8. Check that the plug is in the correct socket.

9. Place a collecting tray below the shaft to collect the nal product.

10. Start the machine by placing the switch to the “I” position.

11. Manually introduce the chopped meat into the machine neck and use the supplied stomper to push the

meat into the shaft.

12. Once the operation is completed, or when the product no longer comes out of the plate, place the switch to

the “O” position to stop the machine.

It is recommended to only operate the machine when there is product in the unit.

8

Maintenance

PROTECTIVE SAFETY DEVICES

For any procedures described in this section, it is necessary to remove some of the xed protections from

their positions. The removal can only be performed by an authorized Omcan technician. At the end of the

maintenance procedures, these protections must be replaced and fastened in their original positions.

The machine must be switched off and unplugged prior to any maintenance and cleaning.

EXTRAORDINARY MAINTENANCE

In the event of any extraordinary maintenance, it can only be completed by an authorized Omcan service

technician.

CLEANING

All cleaning procedures must be started only when the machine is no longer in operation and is unplugged

from the electrical socket.

The machine, the electrical equipment and electrical components must never be submerged, sprayed, or

washed with water. Use a dry cloth to wipe these components.

Installation and Operation

AFTER EACH USE

Once the machine has been operated and is no longer in use, please do the following:

1. Before turning off the unit, wait until the food product has nished going through the plate.

2. Turn off the machine by placing the switch to the “O” position.

3. Unplug the unit from the electrical socket.

4. Perform the cleaning and maintenance steps detailed in the “Maintenance” section.

UNBLOCK IN CASE OF OBSTRUCTION

During operation, or during the worm rotation, due to the food products being introduced with incompatible

parts (ie: bones), the machine could become blocked and cause a malfunction.

To be able to resume normal operation, the grinding group must be disassembled, and the blockage must be

removed.

9

Maintenance

Troubleshooting

Follow the steps as listed:

FREQUENCY PERSONNEL SOLUTION

At the end of

every use and

before daily use.

Operator DISINFECTION

• Use PH neutral detergents.

• Use demineralized water if temperatures exceed 60°C/140°F.

• If any other products are used, they must be adequate to the

materials being disinfected.

PERIODS OF LONG INACTIVITY

• If the machine has been inactive for a long period of time, vigorously

wipe the machine with a cloth soaked in Vaseline to create a

protective barrier.

PRODUCTS NOT TO USE:

• Compressed or pressurized air jets.

• Vapor equipment.

• Detergent that contains any of the following compounds:

- Bleach.

- Hydrochloric acid.

- Products that are used to clear drains.

- Caustic soda products for cleaning marble.

- Etc.

• Steel wool, brushes or abrasive discs produced with other metals or

alloys, or tools that have previously cleaned other metals or alloys.

• Detergents in abrasive dust.

• Fuel, solvents or inammable and/or corrosive uids.

• Substances used to clean silver.

The following indicated problems that may occur:

TYPE POTENTIAL CAUSE/S SOLUTIONS

The electrical supply is not

adequate.

General blackout. Contact an electrician.

Blown fuse. Replace the fuse, if the problem

continues, contact an electrician.

The machine stops. The protection device stops the

machine.

Contact an electrician to eliminate

the causes, once the cause has

been determined, restore the

machine to the recommended

function.

The cause could not be identied. Contact Omcan directly.

10

Troubleshooting

The machine doesn’t function: the

worm will not rotate.

The electrical supply is not

adequate.

Check and restore the electrical

supply.

The switch is on the “O” position. Place the switch to the “I” position.

Blown fuse. Replace the fuse.

The unit is overheated. Wait for the unit to cool completely

before starting.

REFERENCE

Item Number Model Number Description Manufacturer Model

Number

41421 MG-IT-0022 Meat Grinder #22 Cast Iron 100 RPM

1.25 HP / 920 W 110V/60/1 cCSAus 19600/CSA

Parts Breakdown

Model MG-IT-0022 41421

Item No. Description Position Item No. Description Position Item No. Description Position

15241 Plunger for 19600/CSA 1 27660 Sealing Ring for 19600/CSA 10 67479 Spacers Kit and Screws Kit and Gasket

for 19600/CSA 33+34+44

20266 Hopper for 19600/CSA 2 15255 Housing for 19600/CSA 11 15247 Motor Cover for 19600/CSA 40

15250 Plastic Hopper for 19600/CSA 2 27663 Motor Reducer Gasket for 19600/CSA 12 31249 Switch for 19600/CSA 41

27649 Body without Bearing for 19600/CSA 3 19151 Large Gear for 19600/CSA 13 45128 Switch Box for 19600/CSA 42

15264 Plastic Bushing for 19600/CSA 4 66043 Small Gear for 19600/CSA 14 67477 Capacitor for 19600/CSA 43

24546 Worm with Pin for 19600/CSA 5+6 AC998 Stainless Steel Motor Covering for

19600/CSA 19 40300 Cooling Fan for 19600/CSA

15230 Worm Pin for 19600/CSA 6 AC996 Base for 19600/CSA 20 67480 Motoreduction Unit for 19600/CSA

67476 Screw Ring for 19600/CSA 9 15246 Knob for 19600/CSA 23

11

Parts Breakdown

Model MG-IT-0022 41421

12

Electrical Schematics

Model MG-IT-0022 41421

110V-60Hz

13

Notes

________________________________________________________________________________________

14

Notes

________________________________________________________________________________________

15

Warranty Registration

Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,

cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:

Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la

carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

https://omcan.com/warranty-registration/

or email to: [email protected]

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Would you like to extend the warranty? Yes No



Por correo en Canadá

Pour postale au Canada

For mailing in Canada

Por correo en los EE.UU.

Pour diffusion aux États-Unis

For mailing in the US

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North

American food service industry. Our success over these many years can be attributed to our commitment

to strengthen and develop new and existing relationships with our valued customers and manufacturers.

Today with partners in North America, Europe, Asia and South America, we continually work to improve

and grow the company. We strive to offer customers exceptional value through our qualied local sales

and service representatives who provide convenient access to over 5,000 globally sourced products.

Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et

matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces

nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles

et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en

Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et

développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à

nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 5000

produits provenant du monde entier.

Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros

de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir

a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos

clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan

continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor

excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un

fácil acceso a más de 5,000 productos con origen a nivel mundial.

Omcan MG-IT-0022 User manual

Popular Meat Grinder manuals by other brands
