Omcan MG-CN-0010 User manual

Revised - 7/23/2015
Toll Free: 1-800-465-0234
Fax: [phone]
Email: [email protected]
www.omcan.com
Meat Grinder
Model MG-CN-0010
Item 21640
Instruction Manual

2
Page
------------------------------------------------------------------------------------- 3 - 4
------------------------------------------------------------------------------------- 4 - 5
------------------------------------------------------------------------------------ 5
------------------------------------------------------------------------------------------------------- 6
---------------------------------------------------------------------------------------------- 6 - 7
----------------------------------------------------------------------------------------- 8 - 9
-------------------------------------------------------------------------------------- 10
-------------------------------------------------------------------------------------- 11
Table of Contents
Section
General Information
Safety and Warranty
Technical Specications
Operation
Maintenance
Parts Breakdown

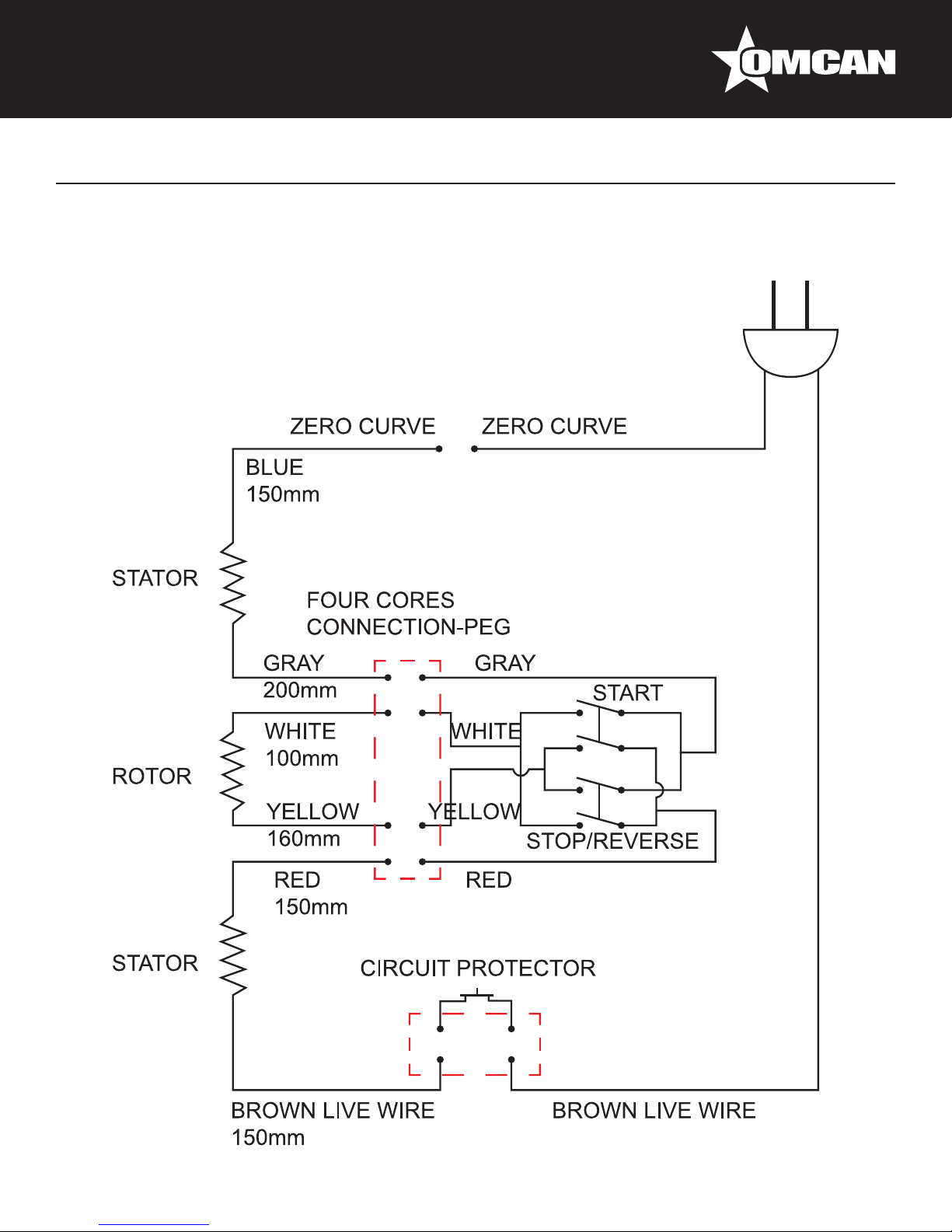

Electrical Schematics
Warranty Registration
Model MG-CN-0010

3
General Information
Omcan Manufacturing and Distributing Company Inc. and Food Machinery of America, Inc. dba Omcan
are not responsible for any harm or injury caused due to any person’s improper or negligent use of
this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and
not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this
machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any
warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while
in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Omcan Fabrication et distribution Companie Limité et Food Machinery d’ Amerique, dba Omcan ne
sont pas responsables de tout dommage ou blessure causé du fait que toute personne ait utilisé
cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de plus de 18
ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour utiliser
cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication de la
machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine ou
des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan no son responsables de ningun daño o perjuicío causado por cualquier persona inadecuada o
el uso descuidado de este equipo. El producto solo podra ser operado por una persona mayor de 18
años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido entrenado
en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada. Cualquier
modicación a la máquina anúla la garantía y puede causar daños a las personas usando la máquina
mientras esta en el funcionamiento.

4
General Information
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Safety and Warranty
When using electrical appliances, basic safety precautions should always be followed including the following:
• Read all instructions.
• To protect against the risk of electrical shock do not put meat grinder in water or other liquid.
• Close supervision is necessary when any appliance is used near children.
• Unplug from the outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts. Never feed food by hand. Always use the food pusher.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is
dropped or damaged in any manner. Return the appliance to Omcan for examination, repair, electrical or
mechanical adjustment.
• The use of attachments not recommended or sold by the manufacturer may cause re, electric shock or
injury.
• Do not use outdoors, indoor use only.
• Do not let cord hang over edge of table or counter.
• Do not let cord contact hot surface, including the stove.
• Do not use ngers to scrape food away from discharge disc while appliance is operating. Injury may result.
• Save these instructions.
CAUTIONS
• Unplug when assembling or disassembling the unit.
• Close supervision is necessary when any appliance is used near children.
• When carrying the unit, be sure to hold motor housing with both hands, not to hold only the hopper plate.
• Do not x cutting blade and cutting plate when using Kubbe attachments.
• Never feed food by hand. Use the food pusher.
• Do not grind hard foods such as bones and nuts.
• Do not grind ginger and other materials with hard ber.
• To avoid jamming, do not force to operate the unit with excessive pressure.
• If the unit jams due to hard materials lodged on to feed screw or cutting blade, switch off immediately and
clean the unit (see Jamming).

5
• When the circuit breaker activates, do not switch on.
• When switching from ON to OFF/REVERSE or vice versa, wait about 6 seconds to assure that the motor
has stopped completely before reversing direction.
• Never try to undo the parts or to repair the unit by yourself.
• This product is intended for household use only, not for commercial application.
• Not to be used by children.
• If the supply cord is damaged, it must be replaced by Omcan or an authorized service agent in order to
avoid a hazard.
1 YEAR PARTS AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either
an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the
equipment.
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not
improper use.
Please see www.omcan.com/warranty.html for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without difculty.
In any case, for suitable recycling, we suggest disposing of the products separately (differentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Safety and Warranty
Model MG-CN-0010
Power 0.5 HP / 372.8 W
Electrical 110V / 60 Hz / 1
Plate Size 5mm, 8mm, 10mm / 0.19”, 0.31”, 0.39”
Spout Size 12mm, 17mm, 20mm / 0.47”, 0.66”, 0.78”
Throat Opening 50.8mm / 2”
Dimensions 412.8 x 203.2 x 444.5mm / 16.25” x 8” x 17.5”
Item # 21640
Technical Specications

6
Operation
Maintenance
BEFORE USE
• Make sure that the voltage and frequency indicated on the rating plate are the same as your local supply.
• Wash all the parts (except those that do not touch food products) in warm soapy water.
• Before plugging in, ensure the switch is off.
TO MINCE MEAT
1. Place the head tightly onto opening of motor housing. While holding the head with one hand, place the
locking knob into the hole on the side of motor housing and tighten it clockwise.
2. Place the worm into the head, long end rst, then turn the worm slightly until it is set into the motor housing.
3. Place the cutting blade onto the worm with the blade facing the front.
▪ If it is not tted properly, meat will not be ground.
4. Place the desired cutting plate next to the cutting blade, tting the protrusions on the housing in the slots on
the plate.
5. Screw the cap into place until tight, tighten by hand only.
▪ Do not over tighten.
▪ Place the hopper plate on the head and x into position.
▪ Place the unit on a stable surface.
▪ The air vents at the bottom and the side of the motor housing should be kept free of obstructions.
▪ Cut all food product into pieces so that they t easily into the hopper opening.
▪ Plug in, then switch on.
6. Feed food products into the hopper plate.
▪ Use the food pusher.
▪ Do not use frozen products or products with bones.
7. After use, switch off and unplug.
8. Clean the grinder after each use.
JAMMING
When the circuit breaker automatically stops the motor, or when the motor continues to function but no meat
comes out of cutting plate due to jamming of bone or other materials, switch off the grinder.
• Turn the machine off and unplug from the electrical socket.
▪ Press CIRCUIT BREAKER to reset.
▪ Press OFF/REVERSE to clear the jammed material.
• Reverse operation will continue for as long as OFF/REVERSE is pressed.
▪ Do not run in reverse for an extended period of time.

7
Maintenance
TO CLEAN
Make sure that the motor has stopped completely. Disconnect the plug from the power outlet. Disassemble by
reversing the steps 1 - 5 in the Operation section.
• To remove the cutting plate easily, lightly tap the head on the table with the cutting plate facing up to loosen
the worm.
• Remove all excess meat. Wash each part in soapy water.
▪ A bleaching solution containing chlorine will discolor aluminum surfaces.
▪ Do not immerse the motor housing in water, only wipe it with a damp cloth.
▪ Thinners and benzines will crack or change the color of the unit.
▪ Metal parts of the product are not suitable for the dishwasher.
▪ After cleaning, metal parts must be dried, otherwise mold or rust may appear.
• A little food safe oil (such as Omcan Item # 27336) on the worm, knives, and plates after washing and
drying will keep them lubricated and rust free.

8

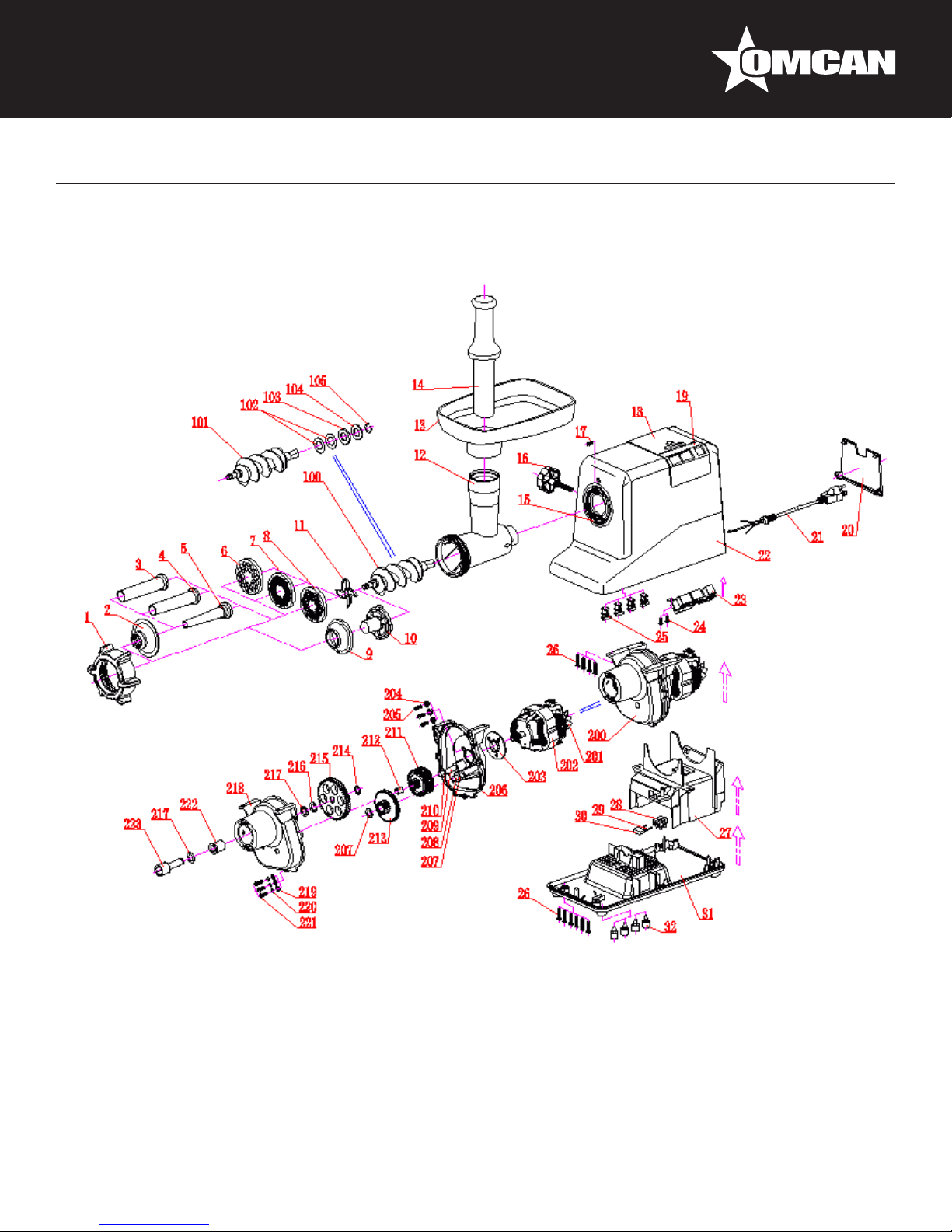

Parts Breakdown
Model MG-CN-0010 21640

9
Parts Breakdown
Model MG-CN-0010 21640
Item
No. OMC ID Description Position Item No. OMC ID Description Position Item No. OMC ID Description Position
19992 SMG5001 Cap for SM-G50 1 19981 SMG5022 Motor Housing for
SM-G50 22 42201 SMG50204 Insulated Washer for SM-G50 204
20049 SMG5002-5 Sausage Maker Tie-In for
SM-G50 2 19979 SMG5023 Switch for SM-G50 23 42202 SMG50205 Bolt M5x12 for SM-G50 205
20049 SMG5002-5 Sausage Maker (Large)
for SM-G50 3 42186 SMG5024 Self-Tap Bolt 4x10 for SM-G50 24 42203 SMG50206 Back-Gearbox for SM-G50 206
20049 SMG5002-5 Sausage Maker (Medium)
for SM-G50 4 27145 SMG5025 Bolt Seat for SM-G50 25 42204 SMG50207 Washer 10x0.5 for SM-G50 207
20049 SMG5002-5 Sausage Maker (Small)
for SM-G50 5 42187 SMG5026 Self-Tap Bolt 4x20 for SM-G50 26 39877 SMG50208 10 Shaft for SM-G50 208
19990 SMG5006 Cutting Plate (Coarse) for
SM-G50 6 42188 SMG5027 Cord Compartment for SM-G50 27 39878 SMG50209 8 Shaft for SM-G50 209
19988 SMG5007 Cutting Plate (Fine) for
SM-G50 7 42189 SMG5028
Terminal Block PA10
(Only for G50-EMC) for
SM-G50
28 39879 SMG50210 Washer 8x0.5 for SM-G50 210
19989 SMG5008 Cutting Plate (Medium) for
SM-G50 8 42190 SMG5029
Resistance 1MΩ0.25W
(Only for G50-EMC) for
SM-G50
29 24557 SMG50211 Bevel Wheel for SM-G50 211
19991 SMG5009-10 Kubbe Attachment A for
SM-G50 9 42191 SMG5030
Capacitance 0.22μF
(Only for G50-EMC) for
SM-G50
30 39880 SMG50212 Sleeve for SM-G50 212
19991 SMG5009-10 Kubbe Attachment B for
SM-G50 10 42192 SMG5031 Bottom Board for SM-G50 31 24558 SMG50213 Coupled Gear for SM-G50 213
19987 SMG5011 Cutting Blade for SM-G50 11 27146 SMG5032 Rubber Underlay for
SM-G50 32 42205 SMG50214 Spring Ring 12 for SM-G50 214
19985 SMG5012 Head for SM-G50 12 19986 SMG50100 Feed Screw Assembly for
SM-G50 100 27171 SMG50215 52 Gear Wheel for SM-G50 215
19984 SMG5013 Hopper Plate for SM-G50 13 42769 SMG50101 Feed Screw for SM-G50 101 42206 SMG50216 Washer 12x0.5 for
SM-G50 216
19983 SMG5014 Food Pusher for SM-G50 14 42193 SMG50102 Washer 16x0.2 for
SM-G50 102 42207 SMG50217 Washer 12x0.2 for SM-G50 217
19982 SMG5015 Opening for SM-G50 15 42194 SMG50103 POM Washer for SM-G50 103 42208 SMG50218 Fore-Gearbox for SM-G50 218
19980 SMG5016 Locking Knob for SM-G50 16 42195 SMG50104 Washer16x1.5 for SM-G50 104 42209 SMG50219 Washer 5 for SM-G50 219
42184 SMG5017 Self-Tap Bolt 4x10-VCr for
SM-G50 17 42196 SMG50105 Wire Loop for SM-G50 105 42210 SMG50220 Spring Washer 5 for SM-G50 220
27144 SMG5018 Cover for SM-G50 18 42197 SMG50200 Gearbox Assembly for
SM-G50 200 42211 SMG50221 Bolt M5x12 for SM-G50 221
27178 SMG5019 Switch Panel for SM-G50 19 42198 SMG50201 Fan for SM-G50 201 42212 SMG50222 12 Bushing for SM-G50 222
42172 SMG5020 Cord Compartment Cover
for SM-G50 20 42199 SMG50202 Motor for SM-G50 202 42213 SMG50223 13 Shaft for SM-G50 223
31607 SMG5021 Supply Cord for SM-G50 21 42200 SMG50203 Quakeproof Washer for
SM-G50 203

10
Electrical Schematics
Model MG-CN-0010 21640

11
Warranty Registration
Gracias por comprar un producto Omcan usted. Para registrar su garantía para este producto, complete la información a continuación,
cortar la tarjeta en la perforación y luego enviarlo a la dirección indicada a continuación. También puede registrarse en línea en:
Merci d’avoir acheté un produit Omcan. Pour enregistrer votre garantie pour ce produit, complétez les informations ci-dessous, détachez la
carte au niveau de la perforation, puis l’envoyer à l’adresse spécié ci-dessous. Vous pouvez également vous inscrire en ligne en visitant:
Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at
the perforation and then send to the address specied below. You can also register online by visiting:
OMCAN INC.
PRODUCT WARRANTY REGISTRATION
3115 Pepper Mill Court,
Mississauga, Ontario
Canada, L5L 4X5
www.omcan.com/warrantyregistration.html
Purchaser’s Information
Name: Company Name:
Address:
Telephone:
City: Province or State: Postal or Zip: Email Address:
Country: Type of Company:
Restaurant Bakery Deli
Dealer from which Purchased: Butcher Supermarket Caterer
Dealer City: Dealer Province or State: Institution (specify):
Invoice: Other (specify):
Model Name: Model Number: Serial Number:
Machine Description:
Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):

Por correo en Canadá
Pour postale au Canada
For mailing in Canada
Por correo en los EE.UU.
Pour diffusion aux États-Unis
For mailing in the US
OMCAN
PRODUCT WARRANTY REGISTRATION
4450 Witmer Industrial Estates, Unit 4,
Niagara Falls, New York
USA, 14305
Thank you for choosing Omcan | Merci d’avoir choisi Omcan | Gracias por elegir Omcan

Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North
American food service industry. Our success over these many years can be attributed to our commitment
to strengthen and develop new and existing relationships with our valued customers and manufacturers.
Today with partners in North America, Europe, Asia and South America, we continually work to improve
and grow the company. We strive to offer customers exceptional value through our qualied local sales
and service representatives who provide convenient access to over 3,500 globally sourced products.
Depuis 1951 Omcan a grandi pour devenir un des “leaders” de la distribution des équipements et
matériel pour l’industrie des services alimentaires en Amérique du Nord. Notre succès au cours de ces
nombreuses années peut être attribué à notre engagement à renforcer et à développer de nouvelles
et existantes relations avec nos clients et les fabricants de valeur. Aujourd’hui avec des partenaires en
Amérique du Nord, Europe, Asie et Amérique du Sud, nous travaillons continuellement à améliorer et
développer l’entreprise. Nous nous efforçons d’offrir à nos clients une valeur exceptionnelle grâce à
nos ventes locales qualiées et des représentants de service qui offrent un accès facile à plus de 3500
produits provenant du monde entier.
Desde 1951 Omcan ha crecido hasta convertirse en un líder en la distribución de equipos y suministros
de alimentos en América del Norte industria de servicios. Nuestro éxito en estos años se puede atribuir
a nuestro compromiso de fortalecer y desarrollar nuevas relaciones existentes con nuestros valiosos
clientes y fabricantes. Hoy con socios de América del Norte, Europa, Asia y América del Sur, que trabajan
continuamente para mejorar y crecer la empresa. Nos esforzamos por ofrecer a nuestros clientes valor
excepcional a través de nuestro local de ventas y representantes de los servicios que proporcionan un
fácil acceso a más de 3,500 productos con origen a nivel mundial.
