Omega Lift Equipment 23226 Quick setup guide

23226-M0_082018
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
SFA Companies, Inc.
10939 N. Pomona Ave.
Kansas City, MO 64153
Phone [phone], Fax [phone]
US Patent No. 6,012,377 & 5,946,912
Air Return Axle Jack
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or property damage.
!
© August 2017
Model Number
23226
Capacity
22 Tons/44,000 lbs.
File name: A2102_1706OUT
Date: 2017.06.08
Drawn By: 黃家威
Checked By:
Approved By:
Model No. A2102
WARNING: Cancer and Reproductive Harm.
AVERTISSEMENT: Cancer et dommages au système reproducteu
r.
ADVERTENCIA: Cáncer y daño reproductivo.
www.P65Warnings.ca.gov

32
SPECIFICATIONS
Model Capacity Base Size Min. Height Max. Height
23226 22 Ton 19-3/4” x 61-5/8” 10-5/8” 19-5/8”
SAFETY AND GENERAL INFORMATION
Save these instructions. For your safety, read, understand, and follow the information provided with and on this
device before using. The owner and/or operator shall have an understanding of the device, its operating characteristics
and safety operating instructions before operating the equipment. The owner and/or operator shall be aware that use
and repair of this product may require special skills and knowledge. Instructions and safety information shall be read
to and discussed with the operator in the operator's native language, making sure that the operator comprehends
their contents, before use of this equipment is authorized. If any doubt exists as to the safe and proper use of this
device, remove from service immediately.
Inspect before each use. Do not use if abnormal conditions such as cracked welds, damaged, loose or missing
parts are noted. Any equipment that appears damaged in any way, is found to be worn, or operates abnormally shall
be removed from service until repaired. If the equipment has been or is suspected to have been subjected to an
abnormal load or shock, immediately discontinue use until inspected by a factory authorized repair facility (contact
distributor or manufacturer for list of authorized repair facilities). It is recommended that an annual inspection be
made by an authorized repair facility. Labels and Operator's Manuals are available from the manufacturer.
PRODUCT DESCRIPTION
Hydraulic Truck Jacks are designed to lift, but not support, rated capacity partial vehicle loads consisting of one end
of a vehicle. Immediately after lifting, support loads with a matched pair of appropriately rated jack stands.
PREPARATION
Reference Replacement Parts pages 6 and 7 for parts location & assembly sequence. Assemble, align and insert
the handle assembly and handle position bar into the handle sleeve, then tighten the bolt on handle sleeve to prevent
accidental removal of handle while in use.
Before Use
1. Verify that the product and application are compatible, if in doubt call Omega Lift Technical Service [phone].
2. Before using this product, read the operator's manual completely and familiarize yourself thoroughly with the
product, its components and recognize the hazards associated with its use.
3. To familiarize yourself with basic operation, locate and turn the release valve (handle knob):
a. Clockwise until rm resistance is felt to further turning. This is the ‘CLOSED’ release valve position used to
raise the load.
b. Counter-clockwise, no more than 1 full turn from closed position. This is the ‘OPEN’ release valve position
used to lower the load. The further the release valve is turned counter-clockwise, the faster the load descends.
4. With ram fully lowered, remove the oil ller screw. Check oil level. Proper oil level should be just below the rim of
the opening. Reinstall the oil ller screw.
5. Pour a teaspoon of good quality air tool lubricant into the air supply inlet of the lift control valve. Connect to air
supply, then squeeze the lift control valve for 3 seconds to evenly distribute lubricant.
NOTICE: These models are equipped with 1/4" NPT air couplers. If installing a dierent air coupler, ensure thread
tape or compound is used on connections. To ensure dependable, trouble free operation an inline air dryer and oiler
is recommended.
6. Ensure that jack rolls freely. Raise and lower the unloaded ram throughout the lifting range before putting into
service to ensure the jack operates smoothly. Replace worn or damaged parts and assemblies with Omega
authorized replacement parts only.
Bleeding/Venting Trapped Air
1. Open oil ller plug.
2. Open release valve.
3. Activate air motor to vent air.
4. Remove set screw and use a screw driver to hold down check ball while very slowly pumping air motor until oil
exiting from screw hole is steady without bubbles.
5. Reinstall set screw approximately two turns into hole (do not fully tighten).
6. Activate air motor a few additional times to vent air, while slowly tightening set screw. Ram should start to raise
as screw is fully tightened.
7. Check oil level and reinstall ller plug.

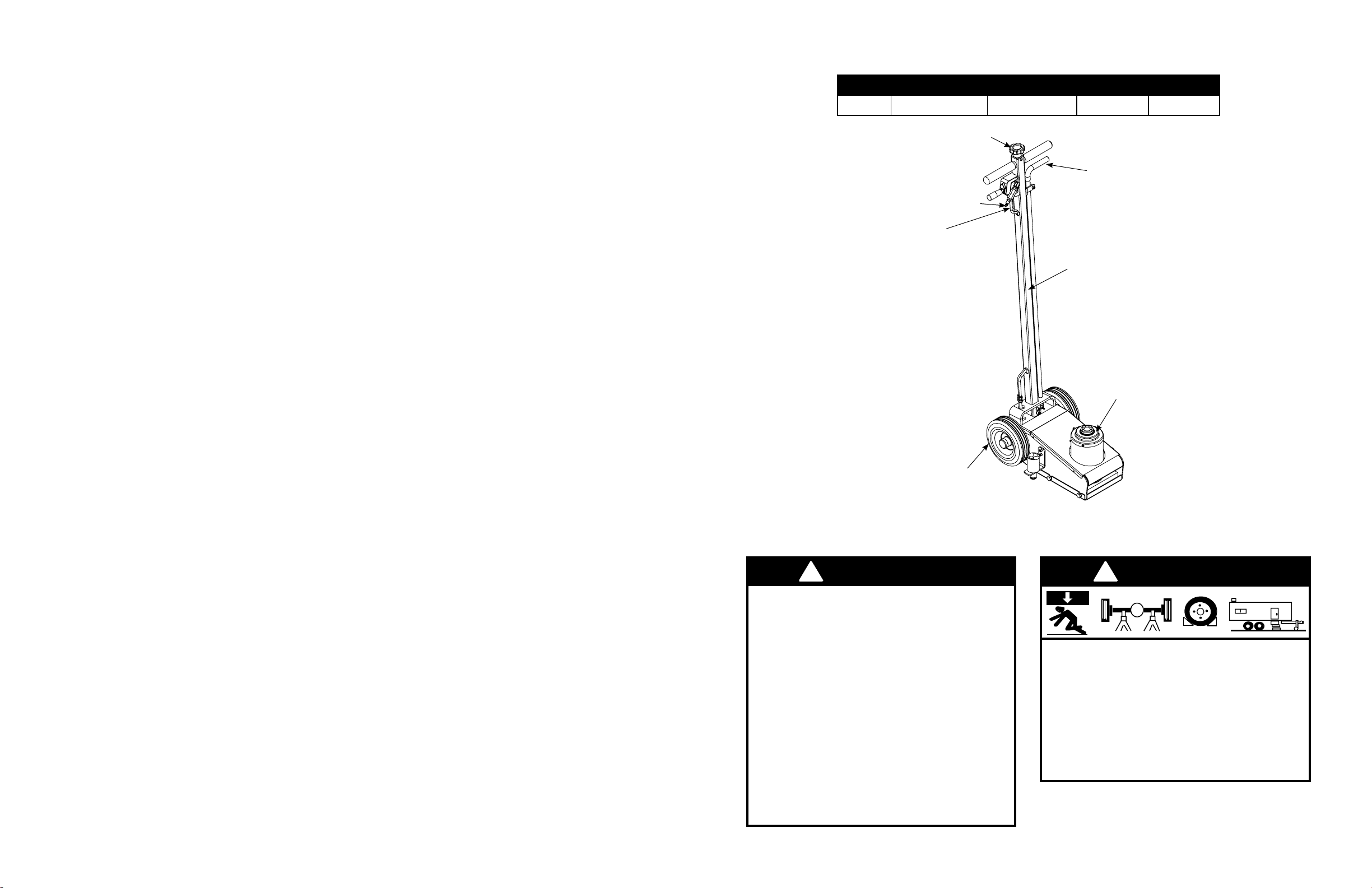

Figure 1 - Model 23226 Nomenclature
• Study, understand, and follow all instructions
before operating this device.
• Do not exceed rated capacity.
• Use only on hard, level surface capable of
supporting the load.
• Lifting device only. Immediately after lifting,
support the vehicle with appropriate means.
• Do not move or dolly the vehicle while on the jack.
• Lift only on areas of the vehicle as specied by
the vehicle manufacturer.
• No alterations shall be made to this product.
• Failure to heed these markings may result in
personal injury and/or property damage.
To avoid crushing and related injuries:
• Never work on, under or around a load supported
only by hydraulic jack.
• Always use adequately rated jack stands.
• Chock each unlifted tire in both directions.
• Do not use this device to lift, level, lower, support nor
move a house, mobile home, travel trailer, camper or
any building structure.
• Be alert and sober when using this product. Do not
operate under the inuence of drugs or alcohol.
X
File name: A2102_1706OUT
Date: 2017.06.08
Drawn By: 黃家威
Checked By:
Approved By:
Model No. A2102
Lift Control
Valve
Handle Position
Release
Handle Knob
(release valve)
Air Supply Inlet,
1/4NPT
Handle
Wheel
Saddle
WARNING
!WARNING !

54
MAINTENANCE
NOTICE: Use only good quality hydraulic jack oil. Avoid mixing dierent types of uid and NEVER use brake uid,
turbine oil, transmission uid, motor oil or glycerin. Improper uid can cause premature failure of the jack and the
potential for sudden and immediate loss of load. Premium hydraulic jack oil is recommended.
Adding/ Changing Oil
For best performance and longest life, replace the complete uid supply at least once per year.
1. With saddle fully lowered remove cover plate, then oil ller screw.
2. Lay jack on its side and drain uid into a suitable container.
NOTICE: Dispose of hydraulic uid in accordance with local environmental regulations.
3. Set jack in its upright, level position.
4. Fill with oil. Proper oil level is just below the rim of the opening. Reinstall the oil ller screw.
5. Perform Bleeding/Venting Trapped Air procedure (page 2 & 3).
Lubrication
A periodic coating of light lubricating oil to pivot points, axles and hinges will help to prevent rust and assure that
wheels move freely and the pump functions smoothly. To help ensure trouble free operation, an inline air dryer and
oiler is recommended.
Cleaning
Periodically check the ram for signs of rust or corrosion. Clean as needed and wipe with an oily cloth.
NOTICE: Do not use sandpaper or abrasive material on ram and pump piston surfaces.
Storage
When not in use, store the jack with saddle fully lowered.
REPLACEMENT PARTS (ref. page 6 & 7)
Not all components of the jack are replacement items, but are illustrated as a convenient reference of location and
position in the assembly sequence. When ordering parts, please give the model number, part number and parts
description. Call or write for current pricing: SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153, U.S.A.
E-Mail: [email protected] Tel: [phone] Fax: [phone] Omega Website: http://www.omegalift.com
TROUBLESHOOTING
Symptom Possible Causes Corrective Action
Jack will not lift load
• Release valve not tightly closed
• Load is too heavy
• Air supply inadequate
• Ensure release valve tightly closed
• Consider higher capacity jack
• Ensure adequate air supply
Jack will lift, but not maintain pressure
•Release valve not tightly closed
• Hydraulic unit malfunction
•Ensure release valve tightly closed
• Discontinue use, contact Omega
technical service
Jack will not lower after unloading • Reservoir overlled • Drain uid to proper level
Poor lift performance
• Fluid level low
•Air trapped in system
• Ensure proper uid level
•Follow Bleeding/Venting Trapped
Air procedure on page 2.
Will not lift to full extension • Fluid level low • Ensure proper uid level
ASSEMBLY
1. Remove handle and axle jack base from packaging.
2. Line up the square handle tube and the locking
release member with the mating assembly on the
base frame.
OPERATION (ref. Figure 1)
Lifting
NOTICE: These jacks are equipped with handle position locks. To adjust the handle, release lock device by pulling the
lever up, lever is spring loaded and will lock into desired position. Ensure lever locking mechanism is fully engaged
before leaving.
1. Connect adequate air source to the air supply inlet.
2. Follow the vehicle manufacturer’s recommended guidelines for lifting. Engage the emergency brake and chock
each unlifted wheel in both directions to prevent inadvertent vehicle movement.
3. Close the release valve by turning the handle knob clockwise until rm resistance is felt.
4. Center jack saddle under lift point, then squeeze the lift control valve until saddle contacts the lift point. To lift,
continue squeezing the lift control valve until load reaches desired height. Simply release your grip on the lift
control valve to end lift event.
5. Transfer the load to appropriately rated jack stands.
WARNING: Never wire, clamp or otherwise disable the lift control valve to function by other than
operator's hand.
WARNING: Only attachments and/or adapters supplied by the manufacturer shall be used.
Lowering
WARNING: Clear all tools and personnel before lowering load. Open release valve slowly. The further handle
knob is turned counter-clockwise, the faster the load will descend. Maintain control of load at all times.
1. Raise load high enough to clear jack stands.
2. Remove jack stands carefully.
3. Slowly turn handle knob counter-clockwise, but no more than 1 full turn.
If the load fails to lower:
a. Use another jack to raise vehicle high enough to reinstall jack stands.
b. Remove the malfunctioning jack and then the jack stands.
c. Use the functioning jack to lower vehicle.
4. After removing jack from under vehicle, fully retract the jack to reduce ram exposure to rust and contamination.
!
!
!
3. Using the provided (2) socket head cap screws and
lock washers, connect square handle tube with base
frame.
4. Connect the (2) loose air lines from the handle to
the (2) loose air lines from the base, order is not
important.
5. Ensure the handle locking lever works in all positions.
6. Connect to appropriate air supply and conrm air
features work.
File name: A2102_1706OUT
Date: 2017.06.08
Drawn By: 黃家威
Checked By:
Approved By:
Model No. A2102
Loose Air
Lines
File name: A2102_1706OUT
Date: 2017.06.08
Drawn By: 黃家威
Checked By:
Approved By:
Model No. A2102
Square
Handle Tube
Base
Frame
File name: A2102_1706OUT
Date: 2017.06.08
Drawn By: 黃家威
Checked By:
Approved By:
Model No. A2102
Socket Head
Cap Screws And
Lock Washers

76
1
J
I
H
F
L
K
C
D
E
B
A
G
2
3
4
5
6
7
8
9
10
12
11
13
14
15
16
17
18
19
20
22
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
No. Item # Description Qty
1 A21-1-1002-109 Hydraulic Unit 1
2 N/A Frame Assy. 1
3 A09-3-2800-104 Flexible Joint Assy. 1
4 A21-4-3400-109 Rubber Wheel Assy. 2
5 511-3-0202-046 Washer 2
6 667-5-0190-002 Retaining Ring "C" 2
7 653-1-0100-702 Screw 4
8 605-3-0100-506 Spring Washer 4
9 A21-5-3220-103 Cover Plate 1
10 A21-6-3214-104 Base Plate 1
11 A09-6-1103-105 Saddle 1
12 612-1-0060-808 Screw 4
13 A09-5-1104-101 Adapter 1
14 651-7-0008-105 Brass Connector 1
15 653-7-0004-101 Brass Connector 1
16 A26-6-5202-102 Bush 2
17 A26-6-3230-107 Wheel Axle 2
18 661-2-0200-100 Nylon Locking Nut 2
19 A26-3-2104-109 Handle Fork 1
20 A21-4-2200-106 Handle Assy. 1
21 A26-6-3201-100 Adapter Stand 2
22 605-3-0060-500 Spring Washer 8
23 649-1-0060-113 Hex. Socket Head Bolt 4
24 A21-6-2209-106 Air Hose 1
25 652-7-0008-102 Coupler 1
26 A21-6-2208-104 Air Hose 1
27 652-7-0005-106 Coupler 1
28 524-2-0105-005 Compression Spring 1
29 524-2-0105-106 Compression Spring 1
30 A21-6-5206-105 Wheel Axle Cover 2
31 A26-6-2404-109 Rubber Grip 2
32 421-6-2202-209 Handle Knob 1
33 A21-4-2900-104 Air Filter Assy. 1
34 G831-03200-000 Air Pump Assy. 1
35 324-4-1900-208 Filler Screw Assy. 1
36 A09-5-1701-109 Release Valve 1
* A21-3-9902-107 Repair Kit
(includes A~L)
1
Replacement Parts for Model 23226:Parts Illustration for Model 23226:
Figure 2 - Model 23226 Parts Breakdown

8
1 YEAR LIMITED WARRANTY
For a period of one (1) years from date of purchase, SFA COMPANIES, INC. will repair or replace, at its
option, without charge, any of its products which fails due to a defect in material or workmanship, or which fails to
conform to any implied warranty not excluded hereby.
Performance of any obligation under this warranty may be obtained by returning the warranted product,
freight prepaid, to SFA COMPANIES, INC. Warranty Service Department, 10939 N. Pomona Ave., Kansas City, MO
64153.
Except where such limitations and exclusions are specically prohibited by applicable law, 1) THE CONSUM-
ER’S SOLE AND EXCLUSIVE REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS
AS DESCRIBED ABOVE, AND 2) SFA COMPANIES, INC. SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGE OR LOSS WHATSOEVER, AND 3) THE DURATION OF ANY AND ALL EXPRESSED
AND IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO A PERIOD OF ONE (1) YEARS FROM DATE OF
PURCHASE.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not
apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. This warranty gives you specic legal rights, and you may also
have other rights which vary from state to state.
SFA Companies, Inc.
10939 N. Pomona Ave.
Kansas City, MO 64153
Phone [phone], Fax [phone]
