Components
1
2
2
3
4
6
57
89
1. Main Skin......................................................................(1)
2. Quarter Windows(Left and Right).............................(2)
3. Rear Window...............................................................(1)
4. Bow Assembly w/ Connecting Tubes........................(1)
5. Tailgate Bar w/ Mini Tonneau & Hardware..............(1)
6. Off-Road Organizer....................................................(1)
7. Soft Top Storage Bag..................................................(1)
8. Windshield Channel w/ Hardware............................(1)
9. Tub Belt Rail Kit w/ Hardware.....................................(1)

Copyright © 2020 Omix-Ada®, Inc.
460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: [phone] | FAX: [phone] | [email protected]
Complete Soft Top, CJ & YJ with Full Doors
Page 2/10
OMIX-ADA®TECHNICAL SUPPORT
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: [email protected]
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
Hardware
Tub Belt Rail Kit
1. 5/16" Tapping Plates...........................(12)
2. 5/16" Flat Washers...............................(12)
3. 5/16" Torx Bolts.....................................(12)
4. Side Rail Pins.........................................(2)
Tailgate Bar Kit
1. #10 - 24x1/2" Phillips Machine Screw....................(4)
2. #10 - 24 Nyloc Nuts.................................................(4)
3. #10 Flat Washers.....................................................(4)
4. #10 Star Washers.....................................................(4)
5. #8 x 1" Sheet Metal Screws....................................(2)
Header Channel
1. #8 x 1/4" Sheet Metal Screws
Important Safety Information
NOTE: Installation of the top in warm weather is optimal for ease of installation. Ideal installation
temperature should not be less than 70˚ (21C). Initial installation is the most difficult as the
fabric has not been stretched. The top will loosen slightly with use and warm temperature.
Allow about at least an hour for the initial installation.
***Please follow instructions for ease of installation and correct fit.***

Copyright © 2020 Omix-Ada®, Inc.
460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: [phone] | FAX: [phone] | [email protected]
Complete Soft Top, CJ & YJ with Full Doors
Page 3/10
2. Position Windshield Channel onto vehicle.
Once in position, secure Windshield Channel
using the included (11) - #8 x ¼” Sheet Metal
Screws.
NOTE: In some cases the holes on the Windshield
Channel will line up with existing holes. In this
case, ensure holes are not too large to install the
new screws included in the package. If holes are
to big, you must replace the included screws
with larger screws, found at any local hardware
store. If you are replacing a hardtop, use the
Windshield Channel as a template to drill 1/8”
holes.
3. Locate Passenger Side Belt Rail, (4) – 5/16” Torx
Bolts, (4) – 5/16” Flat Washers, and (4) – 5/16”
Tapping Plates.
Position Side Belt Rail onto vehicle and secure it
using the hardware listed in this step. The sheet-
metal has pre-drilled holes from the factory that
will line up with the Belt Rail.
Repeat this step for the opposite side.
1. Remove existing soft top or hard top.
NOTE: The Complete Top for 1976-1995 Jeep CJ7 and Wrangler YJ's can only be installed on
vehicles with full steel doors.

Copyright © 2020 Omix-Ada®, Inc.
460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: [phone] | FAX: [phone] | [email protected]
Complete Soft Top, CJ & YJ with Full Doors
Page 4/10
5.Locate Passenger Tailgate Bracket, (2) - #10-24
x 1/2” Phillips Machine Screws, (2) - #10 star lock
washers, (2) - #10 Flat Washers and (2) - #10-24
Nyloc Nuts. In some cases the holes on the
Tailgate Bracket will line up with existing holes. In
this case, use the existing holes as pilots to drill
3/16” holes on the vehicle.
Note: Carefully check under the drilling area to
be sure you do not drill into any concealed
wiring.
Note: If you are replacing a hardtop, use the
Tailgate Bracket as a template to drill 3/16” holes.
Position Tailgate Bracket and secure it by using
the hardware listed in this step
Repeat this step for opposite side.
6.Lay Bow Assembly on a flat clean surface and
identify the Front and Rear Bow.
Note: The Front Bow will include foam padding
where as the rear will not.
Assemble the two halves of the Bow Assembly
using the included Connection Tubes with push
buttons.
Note: It may be helpful to use a flat screwdriver
to push down the buttons while sliding the Bow
halves together. Also, it may be helpful for two
people to slide both sides of the Bow Assembly
forward simultaneously.
4.Locate Passenger Corner Belt Rail, (2)
–5/16” Torx Screws, (2) – 5/16” Flat
Washers, and (2) – Tapping Plates.
Position Corner Belt Rail onto vehicle
and secure it by using hardware listed
in this step.
Note: There may be a slight gap
between the Corner and the Side Belt
Rail. This is Normal.
Repeat this step for opposite side.

Copyright © 2020 Omix-Ada®, Inc.
460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: [phone] | FAX: [phone] | [email protected]
Complete Soft Top, CJ & YJ with Full Doors
Page 5/10
8.Loosen the visor bolts on both visors attached
to the windshield.
Remove the 2 torx bolts that attach the roll bar
to the windshield frame on each side of the
vehicle.
Slide the sheet metal Windshield frame bracket
between the roll bar mounts and the windshield
then reinstall the roll bar mount bolts.
Note: For CJ7 models, additional holes must be
drilled in the mounts and sheet metal screws
must be used to attach to the windshield frame.
Screws not provided.
9.Install the lower door frame mounts onto the
side body channel as shown using 5/16” torx
screws.
Now insert the door frame assembly into the
mounts at the windshield header and at the
vertical retainer mount.
7.With the Bow Assembly secured together,
slide the ends of the front and the rear bows
into the tracks in the Side Belt Rails on each side
of the vehicle
Note: Slide the Bow Assembly from the rear of
the vehicle towards the front. Secure Bow Ends
by Inserting Side Rail Pin into Side Rail.

Copyright © 2020 Omix-Ada®, Inc.
460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: [phone] | FAX: [phone] | [email protected]
Complete Soft Top, CJ & YJ with Full Doors
Page 6/10

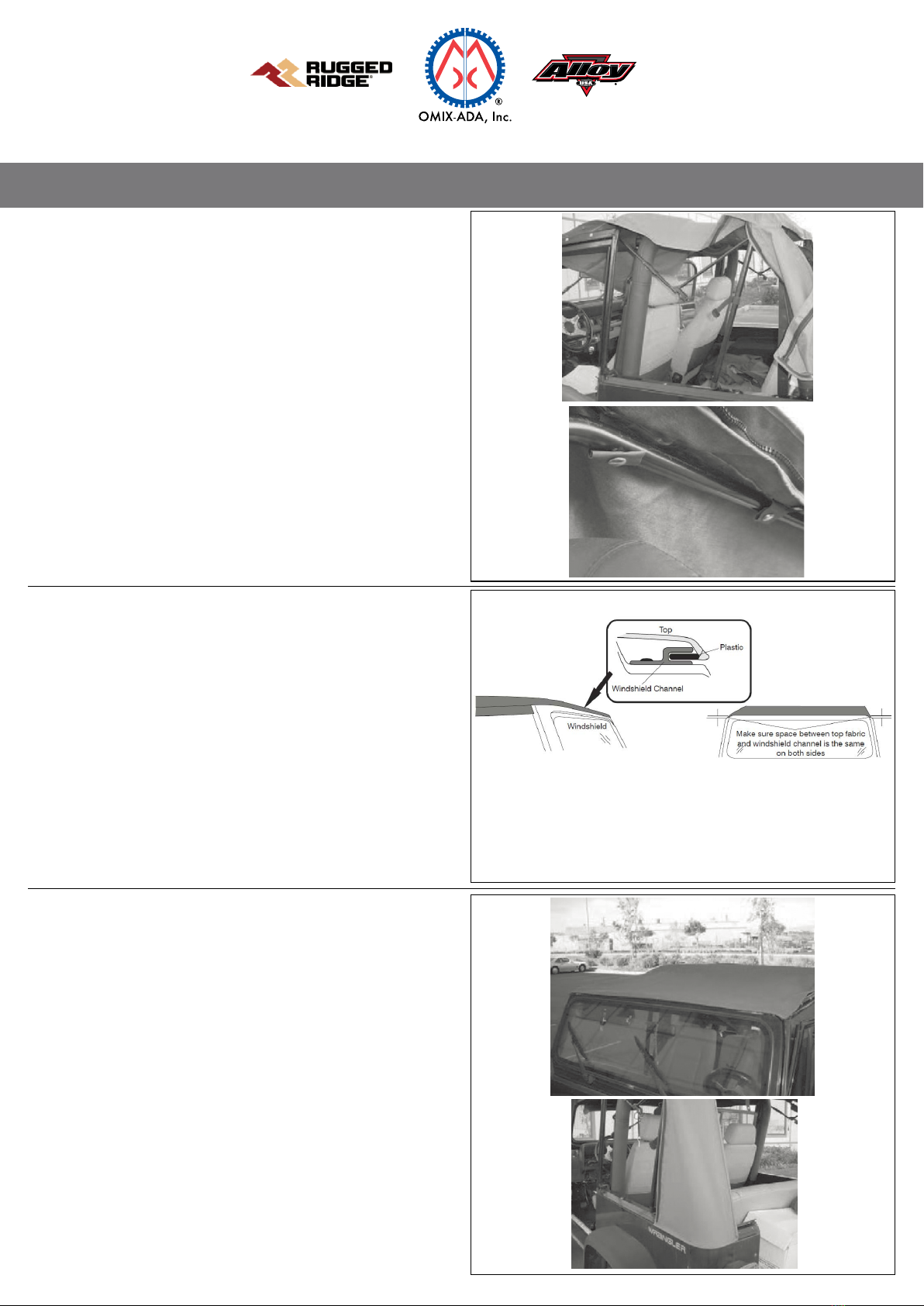

11.Insert the front of the top into the
Windshield Channel.
12.Insert the front of the top into the
Windshield Channel. Connect snaps at corners
of main skin to corners of windshield frame.
Insert rear corners of top into rear corner Belt
Rail.
10.Lay the new main skin over the hardware.
Attach the corresponding snaps to the
middle and rear bows.
Fabric Installation

Copyright © 2020 Omix-Ada®, Inc.
460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: [phone] | FAX: [phone] | [email protected]
Complete Soft Top, CJ & YJ with Full Doors
Page 7/10
14.With the Bow Assembly in position, locate
the Adjustable Spreader Bar.
Lock it in the up/straight position. Secure it by
inserting the steel pin through the hole of the
spreader bar-straight pin portion facing inside
the vehicle.
15.To loosen or tighten your soft top, locate the
adjustable sleeve on the Spreader Bar. Remove
pin and twist to tighten or loosen the soft top.
Reinsert pin after adjustment is made.
Note: Ensure to adjust the spreader bar equally
on both sides of the vehicle.
The adjustable bar can be used to keep your
soft top fabric tight in hot weather.
13.Pull the bottom of the rear support bow
back until it snaps into the notch in the Side
Belt Rail.
NOTE: Bow must slip into notch in Side Belt
Rail.

Copyright © 2020 Omix-Ada®, Inc.
460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: [phone] | FAX: [phone] | [email protected]
Complete Soft Top, CJ & YJ with Full Doors
Page 8/10

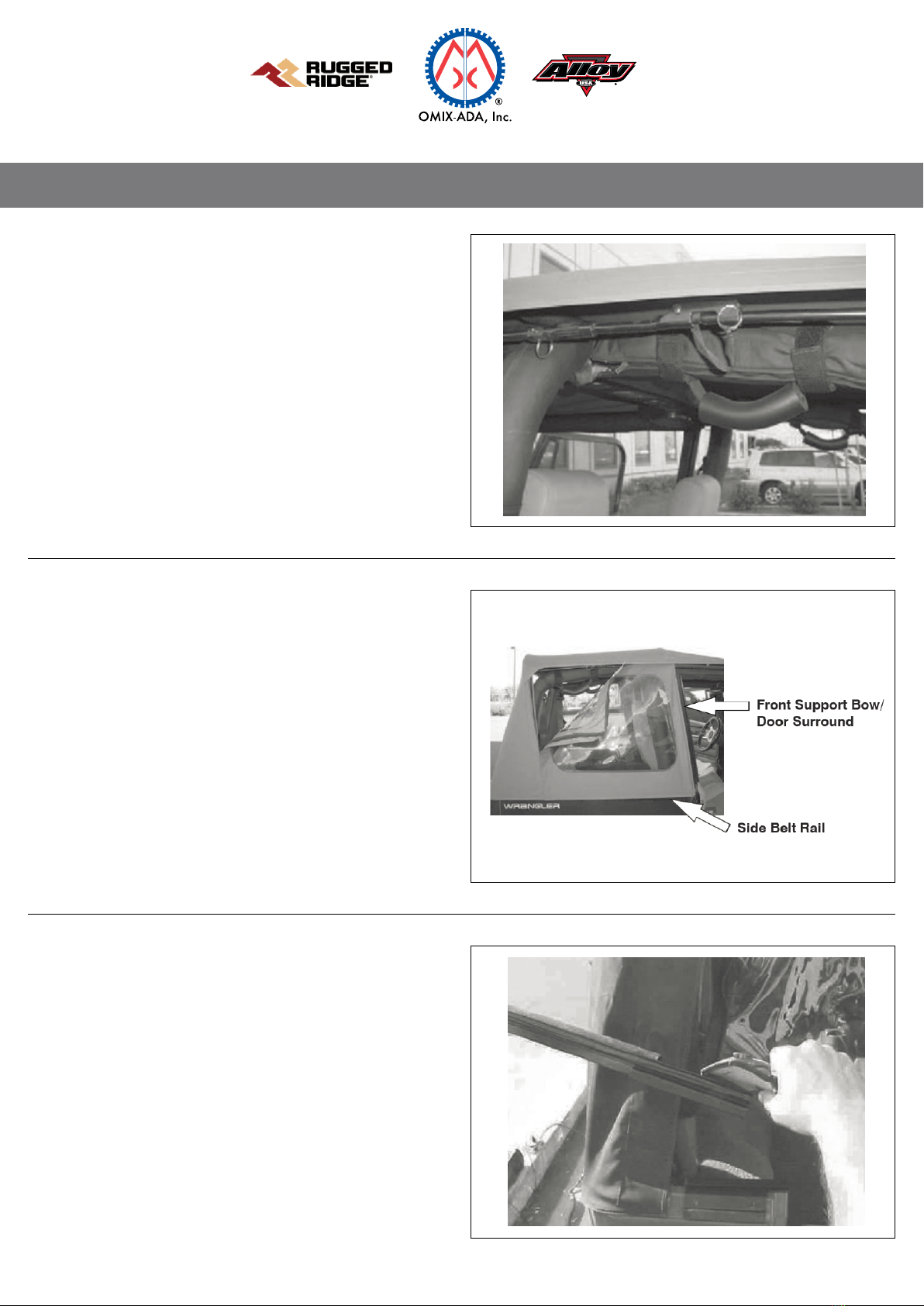

17.Start zipper on the side window about 6
inches. Insert the plastic strip on the front of the
side window into channel on the front support
bow/door surround. Insert the plastic strip on the
bottom of the side window into the side Belt Rail.
Note: Start at front end of the strip and work
along it to the other end. Close the horizontal
and vertical zippers on the side window. Repeat
this step for opposite side.
18.Install rear window to main skin by bringing
both zipper pulls to end of zipper on driver side
and sliding the tab on the window side through
both. Pull the upper zipper pull up and over to
the opposite side.
Slide the Tailgate Bar onto the flap bottom of
the rear window. Center the Tailgate Bar to the
vehicle.
16.Push the Spreader Bars up until they snap into
place. Reinsert locking pin.

Copyright © 2020 Omix-Ada®, Inc.
460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: [phone] | FAX: [phone] | [email protected]
Complete Soft Top, CJ & YJ with Full Doors
Page 9/10

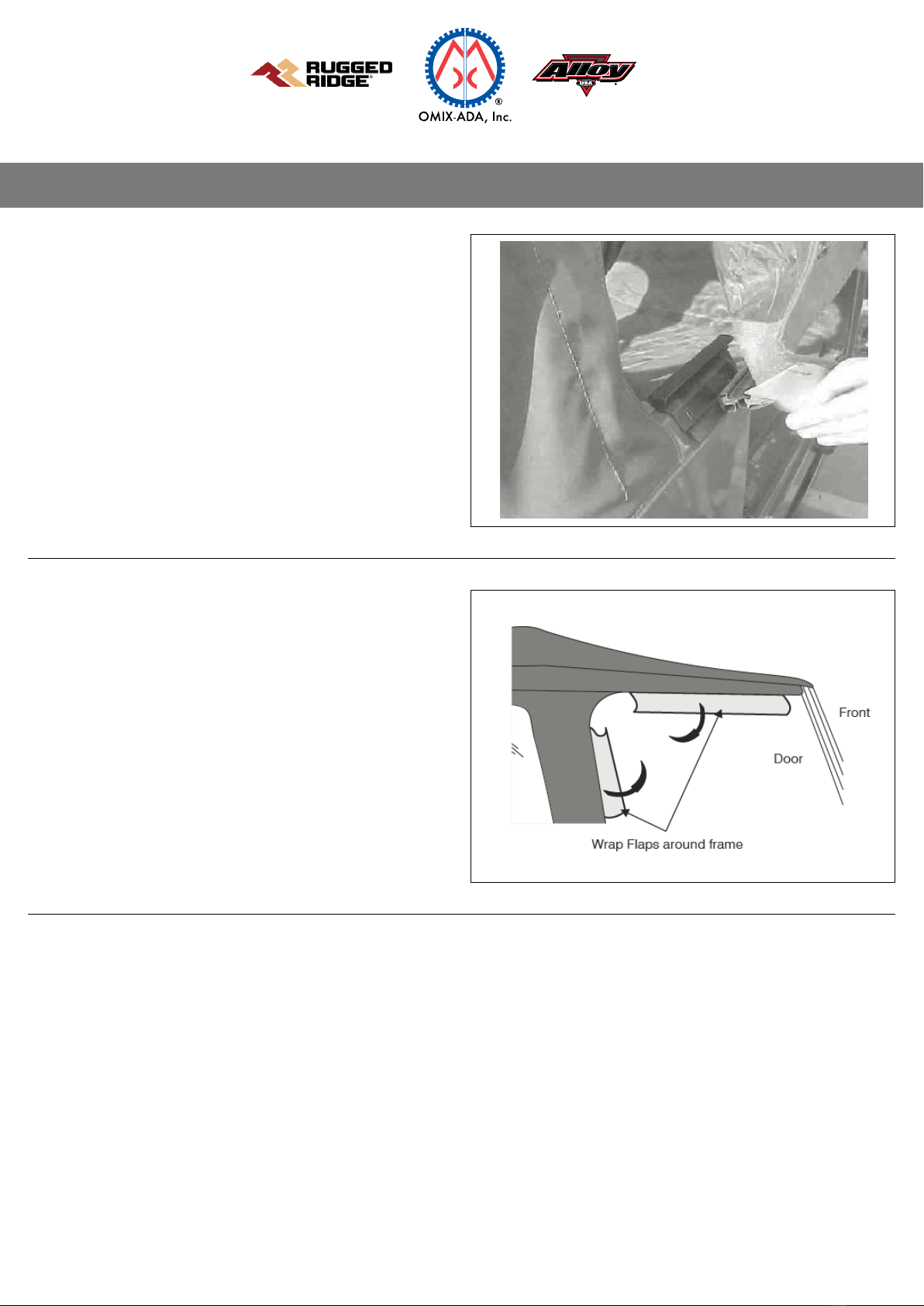

20.Wrap the door flaps around the door
