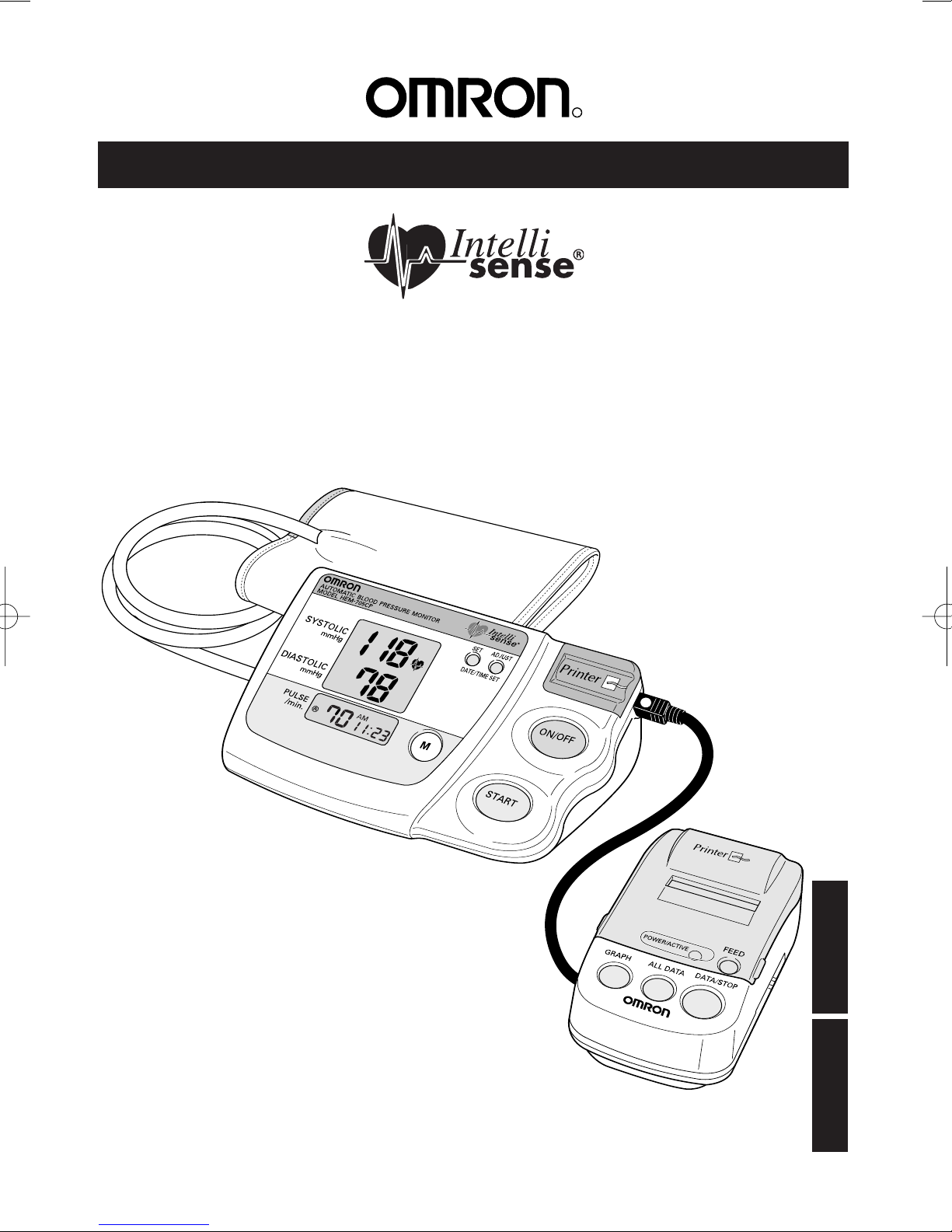

Omron INTELLISENSE HEM-705CP User manual

Automatic Blood Pressure Monitor
with Printer
Model HEM-705CP
INSTRUCTION MANUAL
R
ENGLISH ESPAÑOL
HEM-705CP-IM-US 7/19/05 9:26 AM Page 1

TITLE
2
TITLE
TABLE OF CONTENTS
Before Using the Monitor
Introduction ........................................................................................ 3
Important Safety Notes ....................................................................... 4
Before Taking a Measurement ........................................................... 5
Operating Instructions
Know Your Unit .................................................................................. 6
Battery Installation ............................................................................. 7
Connecting the Printer ........................................................................ 8
Loading the Paper ............................................................................... 9
Setting the Date and Time ................................................................ 10
Applying the Arm Cuff .................................................................... 12
Taking a Measurement ..................................................................... 14
Using the Memory Function ............................................................ 16
Using the Printer ............................................................................... 17
Care and Maintenance
Care and Maintenance ...................................................................... 20
Error Indicators and Troubleshooting Tips ...................................... 21
Quick Reference Guide .................................................................... 23
FCC Statement ................................................................................. 25
Warranty Information ....................................................................... 26
Specifications ................................................................................... 27
HEM-705CP-IM-US 7/19/05 9:26 AM Page 2

INTRODUCTION
3
Thank you for purchasing the Omron®HEM-705CP Intellisense®
Automatic Blood Pressure Monitor with Printer
Fill in for future reference
DATE PURCHASED: ______
SERIAL NUMBER: ________
Staple your purchase receipt here.
Your new digital blood pressure monitor uses the oscillometric method of
blood pressure measurement. This means the monitor detects your blood’s
movement through your brachial artery and converts the movements into
a digital reading. An oscillometric monitor does not need a stethoscope
so the monitor is simple to use.
The HEM-705CP comes with the following components:
•Monitor •Standard Cuff(9''-13'' arm circumference)
•Printer •Printer Tape
•Instruction Manual printed in English and Spanish
The HEM-705CP Intellisense®Automatic Blood Pressure Monitor with
Printer is intended for home use.
SAVE THESE INSTRUCTIONS
HEM-705CP-IM-US 7/19/05 9:26 AM Page 3

4
IMPORTANT SAFETY NOTES
To assure the correct use of the product basic safety measures should
always be followed including the precautions listed below:
þRead all information in the instruction book and any other
literature included in the box before using the unit.
þContact your physician for specific information about your
blood pressure. Follow the instructions of your healthcare provider.
þOperate the unit only as intended. Do not use for any other purpose.
þThe unit is intended for use in measuring blood pressure and
pulse rate in adult patient population. Do not use on infants.
þDo not use a cellular phone near the unit. It may result in
operational failure.
þDo not plug or unplug the adapter power cord with wet hands.
þChanges or modifications not approved by Omron Healthcare will
void the user warranty. Do not disassemble or attempt to repair
the unit or components.
HEM-705CP-IM-US 7/19/05 9:26 AM Page 4

BEFORE TAKING A MEASUREMENT
5
To ensure a reliable reading follow these recommendations:
1. Avoid eating, smoking, and exercising for 30 minutes before taking
a measurement. Rest for at least 15 minutes before taking
the measurement.
2. Stress raises blood pressure. Avoid taking measurements during
stressful times.
3. Measurements should be taken in a quiet place.
4. Remove tight-fitting clothing from your left arm.
5. Sit in a chair with your feet flat on the floor. Rest your left arm on
a table so that the cuff is at the same level as your heart.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your
physician. A single measurement does not provide an accurate
indication of your true blood pressure. You need to take and record
several readings over a period of time. Try to measure your blood
pressure at the same time each day for consistency.
8. Wait 2-3 minutes between measurements. The wait time allows the
arteries to return to the condition prior to taking the blood pressure
measurement. You may need to increase the wait time depending on
your individual physiological characteristics.
HEM-705CP-IM-US 7/19/05 9:26 AM Page 5

TITLE
TITLE

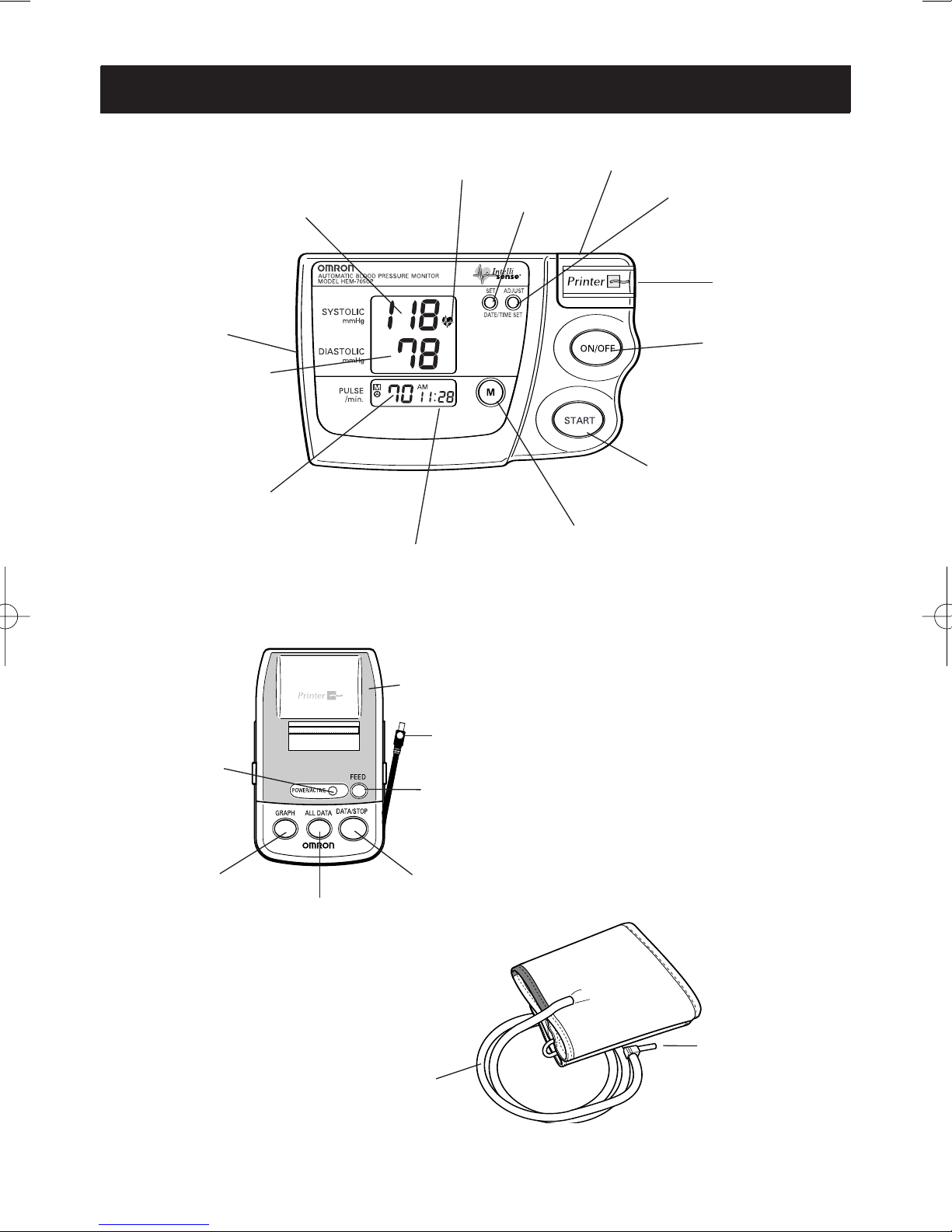

KNOW YOUR UNIT
START Button
Paper Feed
Pulse Rate
Print Graph
Date/Time Display
Heart Symbol
Air Tube
Memory Button
Systolic Blood Pressure
ON/OFF Button
Set Date/Time Adjust Date/Time
Diastolic Blood
Pressure
Print All Data
Print Current
Data/Stop Printing
Printer Cover
Air Plug
(Connects to Air Jack)
Main Unit:
Components:
AC Adapter Jack
Printer Jack
Cuff Jack
Printer Cable Plug
Power/Operation
Light
6
Arm Cuff
Printer
HEM-705CP-IM-US 7/19/05 9:26 AM Page 6

TITLE
TITLE
BATTERY INSTALLATION/REPLACEMENT
1. Press the ▼OPEN indicator
on the battery cover and slide
the cover off in the direction
of the arrow.
2. Install 4 “AA” size batteries
so the + (positive) and -
(negative) polarities match
the polarities of the battery
compartment as indicated.
3. Replace the battery cover.
Main Unit: Printer Unit:
7
BATTERYREPLACEMENT
LowBattery Indicator
When the Low Battery Indicator appears on the display screen remove
all the batteries. Replace with four new batteries at the same time.
Long-life alkaline batteries are recommended.
NOTE: Measurement values stored in the memory will not be
deleted during battery replacement. After replacing the
batteries, reset the date and time. Refer to page 9, Setting
the Date and Time.
HEM-705CP-IM-US 7/19/05 9:26 AM Page 7

TITLE
8
TITLE
CONNECTING THE PRINTER
1. Remove the printer cord from
around the printer unit.
2. Connect the printer to the blood pressure monitor. Insert the cable plug
with the indicator facing upward.
CAUTION: Inserting the cable plug in any other position will
damage the monitor.
HEM-705CP-IM-US 7/19/05 9:26 AM Page 8

9

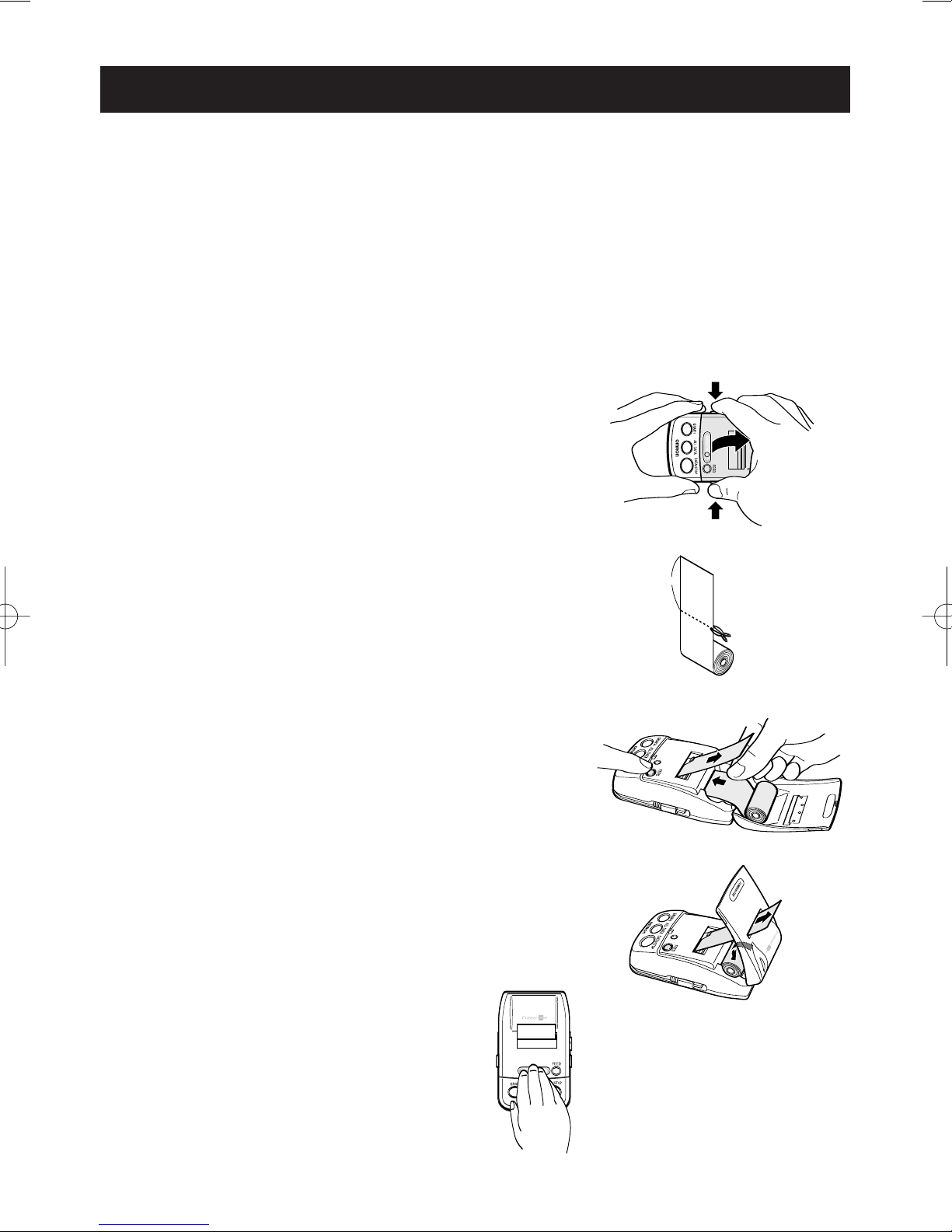

LOADING THE PRINTER PAPER
This printer uses OMRON®thermal paper, part number 90TRP. Use
only this thermal paper or thermal paper of similar size, width 38mm,
roll diameter not to exceed 26mm.
NOTE: For information on where to purchase printer paper visit
our website at www.omronhealthcare.com or call
customer service at 1-800-634-4350.
1. Open the printer cover in the direction
as indicated by the arrow symbols in
the illustration.
2. Peel back the glued edge of the printer paper.
Cut offthe first 4 inches of the paper with
apair of scissors.
3. Insert the edge of the printer paper in paper
feeding slot. Press the FEED button until
the paper extends approximately 3 inches.
4. Insert the paper through the printer cover.
Make sure the paper extends out from the top.
5. Close the printer cover.
4in
HEM-705CP-IM-US 7/19/05 9:26 AM Page 9

SETTING THE DATE AND TIME
10
The Blood Pressure Monitor automatically stores up to 28 measurement
values with the date and time.
Set the monitor to the current date and time before taking a
measurement for the first time. If the current date and time is not set,
adefault date and time will display.
1. SETTING THE YEAR
When the batteries are installed, the 12:00 AM
will display.
Press and hold the SET button for 2 seconds to
adjust the year.
The year flashes on the display.
2. SETTING THE YEAR
The year can be set between 2001 and 2030. When the display reaches
2030, it will return to 2001.
Press the ADJUST button to advance by increments
of one year.
Press the SET button to set the current year.
The month flashes on the display.
NOTE: Press and hold the ADJUST button to
advance the value quicker.
HEM-705CP-IM-US 7/19/05 9:26 AM Page 10

TITLE

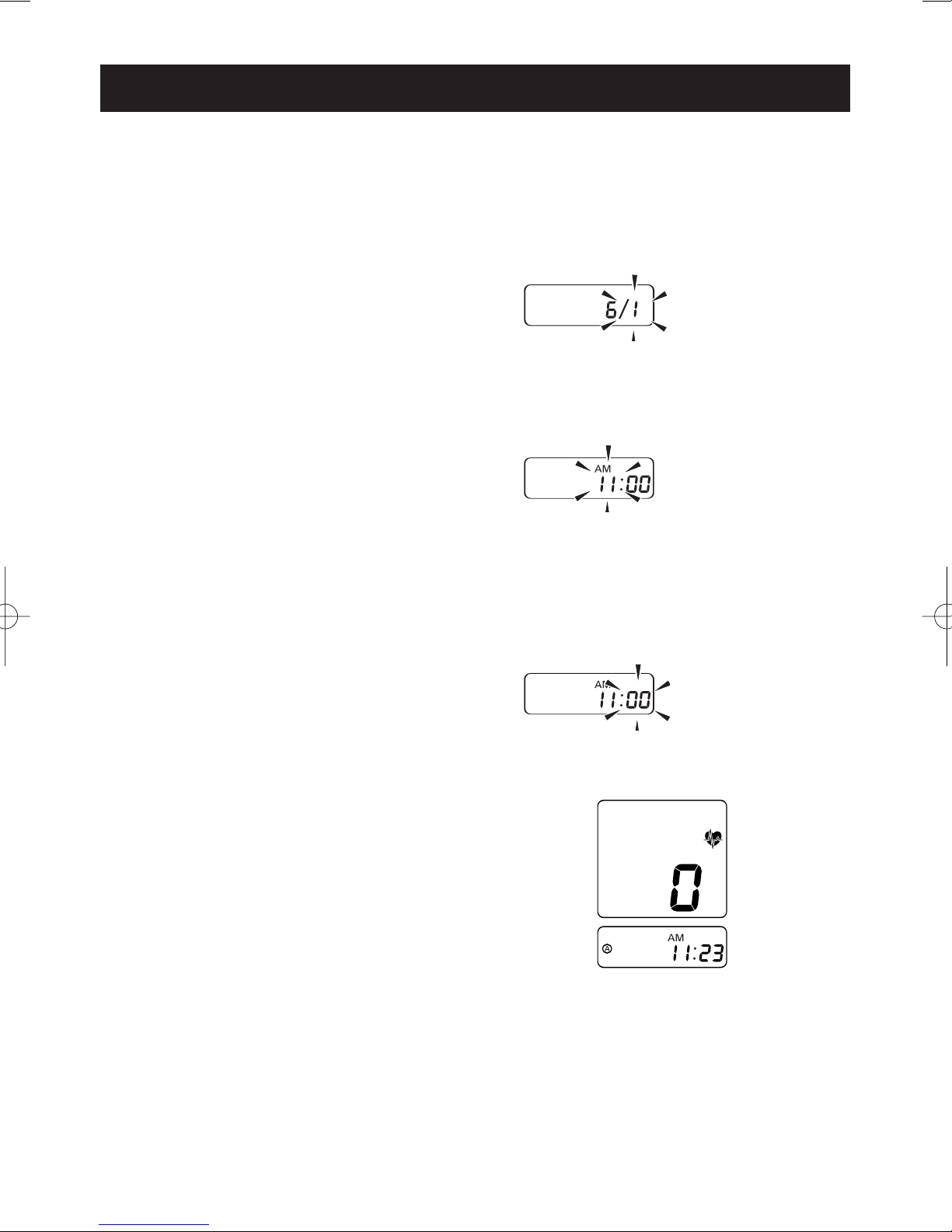

SETTING THE DATE AND TIME
11
3. SETTING THE MONTH
Press the ADJUST button to advance by increments of
one month.
Press the SET button to set the current month.
The day flashes on the display.
4. SETTING THE DAY
Press the ADJUST button to advance by increments of one day.
Press the SET button to set the current day.
The hour flashes on the display.
5. SETTING THE HOUR
Press the ADJUST button to advance by increments
of one hour.
Press the SET button to set the current hour.
The minutes flash on the display.
6. SETTING THE MINUTE
Press the ADJUST button to advance by increments of one minute.
Press the SET button to set the current
minute.
The unit will be ready to take a reading.
7. Press the ON/OFF button to turn the display off.
HEM-705CP-IM-US 7/19/05 9:26 AM Page 11

TITLE
12
TITLE
TITLE
APPLYING THE ARM CUFF
1. Make sure the air plug is securely
inserted in the main unit.
2. Remove tight-fitting clothing from
your upper arm.
3. Sit in a chair with your feet
flat on the floor. Place your
arm on a table so the cuff is
level with your heart.
APPLYING THE CUFF ON THE LEFT UPPER ARM
4. Put your arm through the cuff
loop. The Green Marker on
the cuff should lie over the
brachial artery on the inside
of the arm. The air tube runs
down the inside of your arm.
The bottom of the cuff should
be approximately 1/2'' above
your elbow.
SYSTOLIC
DIASTOLIC
PULSE/min
AUTOMATICBLOOD PRESSURE MONITOR
MODELHEM-711
READY TO
MEASURE
REPLACE
BATTERIES
PROGRESS
ON/OFF
START
Bottom Edge 1/2 Inch
Green Marker
Cuff Tube
HEM-705CP-IM-US 7/19/05 9:26 AM Page 12

5. Pull the cuff so the top and bottom edges are
tightened evenly around your arm.
6. When the cuff is positioned correctly, press
the sewn hook material FIRMLY against the
pile side of the cuff.
7. Make certain the cuff fits snugly around your arm.
The cuff should make good contact with your
skin.
NOTE: You should be able to fit your
index finger between the cuff
and your arm easily, so you can
pull the cuffoff and on.
8. Relax your arm and turn your palm upward.
9. Be sure there are no kinks in the air tubing.
13
TITLE
TITLE
TITLE
APPLYING THE ARM CUFF
HEM-705CP-IM-US 7/19/05 9:26 AM Page 13

TITLE
14
TITLE
TITLE

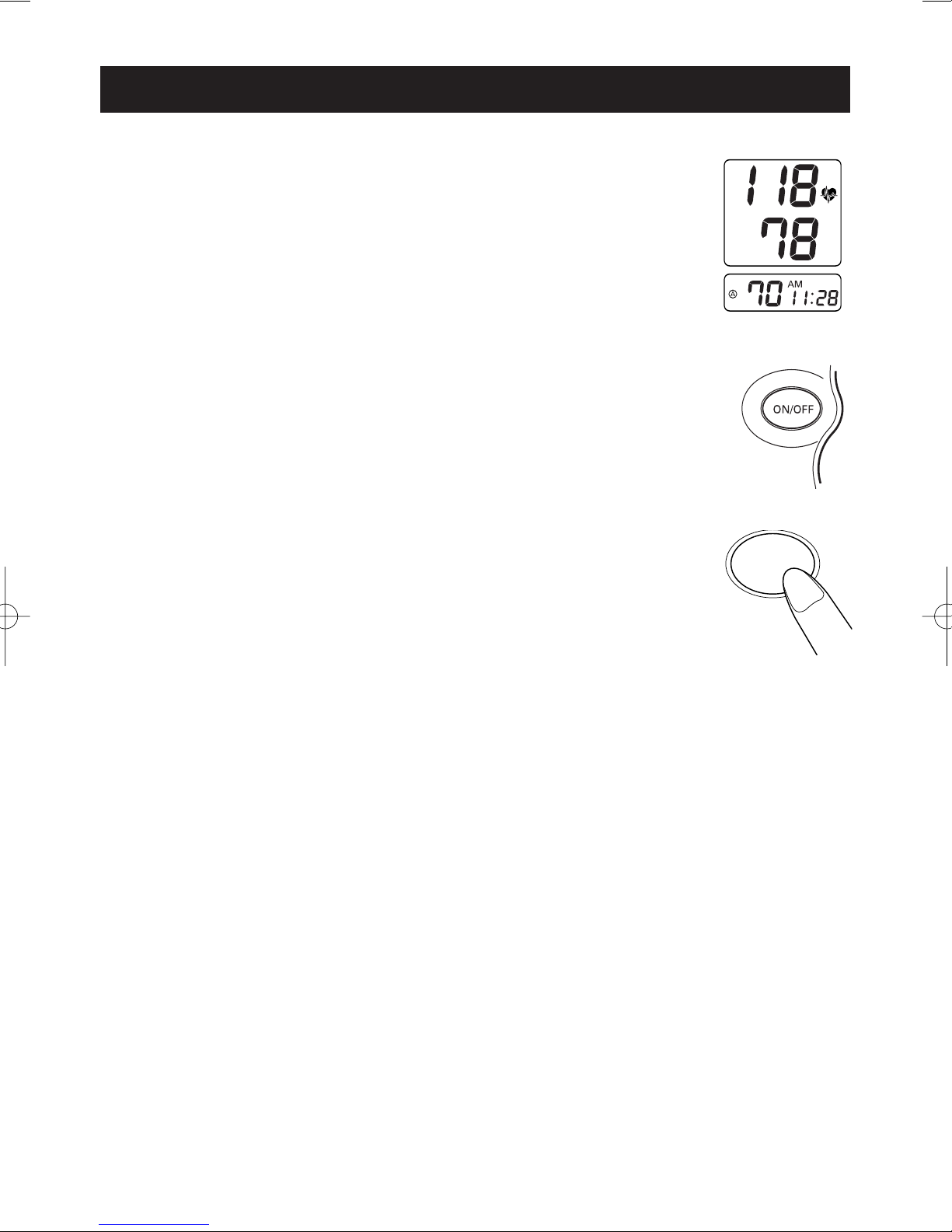

TAKING A MEASUREMENT
The monitor automatically determines your ideal inflation level. In rare
circumstances when a higher inflation may be necessary, the monitor
automatically re-inflates the cuff up to 30mmHg higher than the initial
inflation and restarts the measurement.
The monitor detects the pulse during inflation. Do not move your arm and
remain still during the measurement.
1. Press the ON/OFF button
All display symbols appear on the screen. The cuff starts
to inflate automatically.
NOTE: To stop the inflation or measurement, push the
START/STOP button. The monitor will stop inflating,
start deflating, and will turn off.
2. Press the START button
As the cuff begins to inflate, the monitor automatically
determines your ideal inflation level. Because this
monitor detects the pulse even during inflation, do not
move your arm and remain still until the entire
measurement completes.
3. Inflation stops automatically and the measurement is started.
As the cuff deflates, decreasing numbers appear on the display. The
Heart Symbol flashes at every heartbeat.
Inflation Deflation
HEM-705CP-IM-US 7/19/05 9:26 AM Page 14

15
TITLE
TITLE
TITLE
TAKING A MEASUREMENT
START
4. When the measurement is complete, the arm cuff
completely deflates. Your blood pressure and pulse
rate are displayed.
5. Press the ON/OFF button to turn the monitor off.
NOTE: The monitor will automatically turn off after
five minutes.
INSTRUCTIONS FOR SPECIAL CONDITIONS
If your systolic pressure is known to be more than
220mmHg, press and hold the START button until the
monitor inflates 30 to 40 mmHg higher than your
suspected systolic pressure.
NOTE:
•Do not apply more pressure than necessary.
•The monitor will not inflate above 299 mmHg.
HEM-705CP-IM-US 7/19/05 9:26 AM Page 15

Every time you complete a measurement the monitor stores the blood
pressure and pulse rate in the memory. The Blood Pressure Monitor
automatically stores up to 28 measurement values. When 28 sets of
measurement values are stored in the memory, the oldest record is
deleted to save the most recent measurement values.
TO DISPLAY THE MEASUREMENT VALUES
The date and time is alternately displayed with the measurement values.
1. Press the button down while the Heart Symbol is displayed.
The most recent measurement values will be displayed.
NOTES:
•Press the button repeatedly to display the next values.
•Press and hold the button to display the values faster.
2. Press the START/STOP button to turn the power off.
16
TITLE
TITLE
TITLE
USING THE MEMORY FUNCTION
START
TO DELETE ALL VALUES STORED IN THE MEMORY
You cannot partially delete records stored in the memory. All records will
be deleted.
1. Press and hold the memory button and START button
simultaneously for more than 2 seconds.
HEM-705CP-IM-US 7/19/05 9:26 AM Page 16

17
TITLE
TITLE
USING THE PRINTER
The HEM-705CP printer unit has the capability to print all the of
measurement values stored in the memory of the Blood Pressure Monitor.
NOTES:
•The correct date and time must be set up on the monitor before
taking a reading. If the date and time is not set, the numerical
values will not appear on the print out.
•The printer unit must be connected to the monitor. The monitor
does not have to be ON to operate the printer unit.
• The printer unit will automatically shut off when the printing is
completed.
•To stop printing, press the DATA/STOP button at any time.

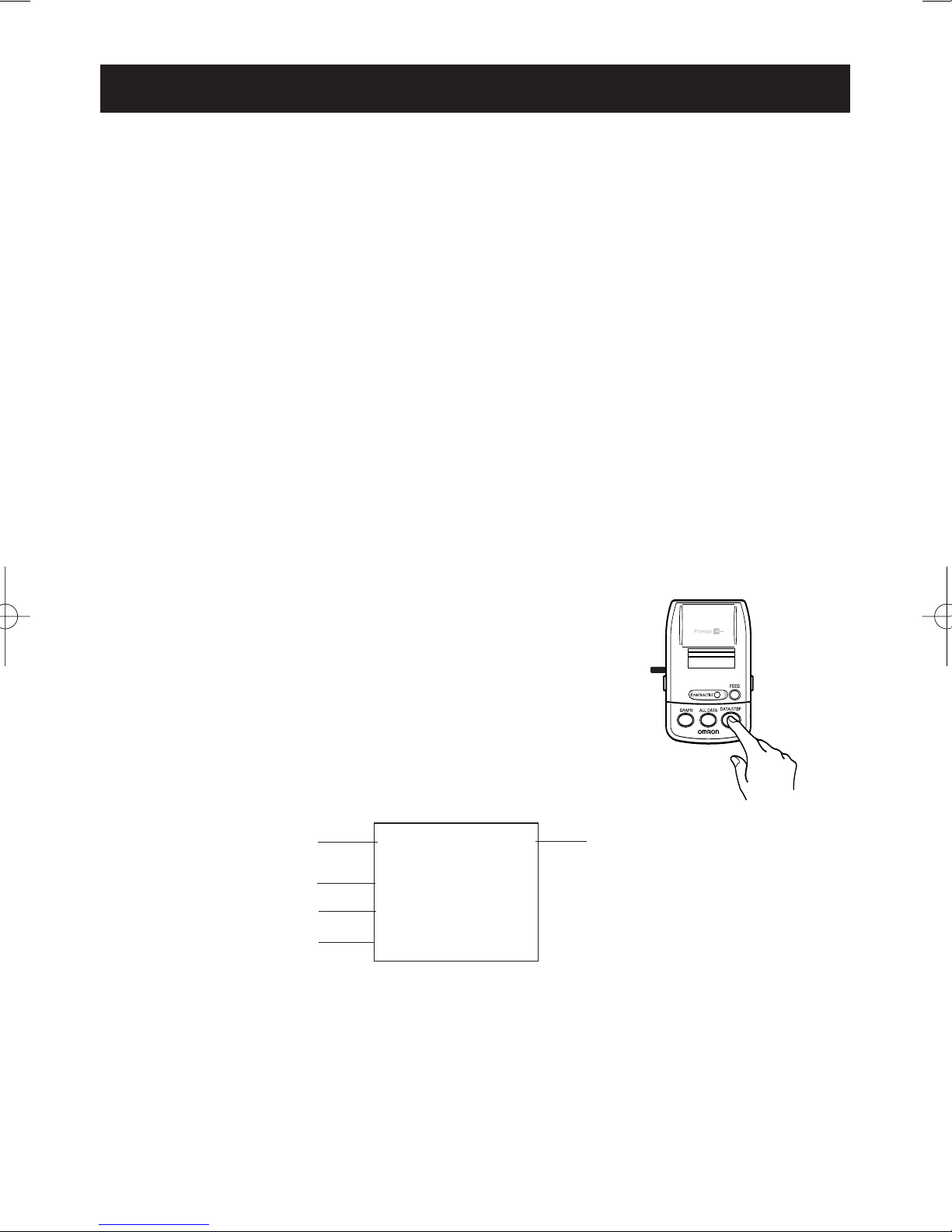

1. TO PRINT THE MOST RECENT MEASUREMENT VALUES
Press the DATA/STOP button.
The numeric results of the most recent
reading will print.
7/9 6:36 AM
SYS
111mmHg
DIA 67mmHg
PULSE 77/min
Month/Date
Systolic Reading
Diastolic Reading
Pulse Reading
Time
HEM-705CP-IM-US 7/19/05 9:26 AM Page 17

TITLE
18
TITLE
USING THE PRINTER
2.TO PRINT ALL THE MEASUREMENT VALUES
Press the ALL DATA button.
The numeric printout will list all of the readings stored
in the memory starting with the oldest reading to the
most recent reading followed by the average of all the
stored readings.
The stored data will print as illustrated in the following example:
3-6 mmHg /min
D. T. SYS DIA PUL
20 15 113 75 67
23 11 117 69 64
1 15 113 71 63
314 110 67 66
5 7 112 66 64
15 7 110 61 64
20 12 106 66 65
312 110 65 64
10 12 108 61 67
12 14 111 56 62
14 7 107 64 64
21 15 111 64 64
22 12 121 62 66
46 112 64 63
*AV. 112 65 65
Date
Time/Hour
Systolic Reading
Column
Diastolic Reading
Column
Pulse Reading
Column
Oldest reading stored
Average of all stored
readings
Month(s) –The month or months will print.
For example: If the blood pressure readings were stored during
the months of March through June, then the printout will indicate 3-6.
Date –The day’s date will print.
For example: If the measurement was stored on June 1st, then the
printout will indicate 1 under the column ''D''.
Time/Hour –The hour in military time will print.
For example: If the measurement was stored at 3:00pm, then the
printout will indicate 15 under the column ''T''.
Month(s)
Most recent reading
HEM-705CP-IM-US 7/19/05 9:26 AM Page 18

19
TITLE
TITLE
USING THE PRINTER
3. TO PRINT A GRAPH OF ALL MEASUREMENT VALUES
Press the GRAPH button.
The graph will list all of the readings stored
in the memory.
The stored data will print as illustrated in the following example:
50 100 150 200
mmHg
3-6
Diastolic Reading Systolic Reading
Average systolic reading of
stored measurements
Average diastolic reading of
stored measurements
Oldest reading stored
If reading is lower than 50
mmHg or higher than 200
mmHg, (
3)will appear.
Most recent reading
Month(s)
HEM-705CP-IM-US 7/19/05 9:26 AM Page 19

TITLE
TITLE
CARE AND MAINTENANCE
To keep your digital blood pressure monitor in the best condition and
protect the unit from damage follow the directions listed below:
•Keep the monitor in the storage case when not in use.
• Do not forcefully bend the arm cuff or air tube. Do not fold tightly.
•Clean the monitor with a soft dry cloth. Do not use any abrasive or
volatile cleaners. Do not attempt to clean the cuff. Never immerse the
monitor or any components in water.
•Store the monitor in a safe and dry location. Do not subject the
monitor to extreme hot or cold temperatures, humidity and
direct sunlight.
•Avoid subjecting the monitor to strong shocks, such as dropping
the unit on the floor.
•Removethe batteries if the unit will not be used for three months
or longer. Always replace all the batteries with new ones at the
same time.
•Use the unit consistent with the instruction provided in this manual.
Use only authorized parts and accessories.
20
HEM-705CP-IM-US 7/19/05 9:26 AM Page 20
