Omron H8CA-S Series User manual

Mounting style Surface/flush mounting
Operating function Preset counter/timer (selectable)
Operating system (mode) Counter: reversible (Three input modes and four operating modes are selectable)
Timer: time-limit operation, integrating operation (Four operating modes are
selectable.)
Backup power supply for memory protection Provided: Approx. 10 years at 20°C (68°F)
Number of counts 0 to 999999 (6 digits)
Timing ranges 0.00 to 9999.99 s, 0.0 to 99999.9 min, 0.0 to 99999.9 h (6 digits)
External connection Socket
Display type 6-digit backlit LCD; 8mm (0.32 in) Present Value, 4mm (0.16 in) Set Value
Count and reset input for counter function; No-voltage input * Voltage input
reset and gate input for timer function (solid-state/contact input)
Control output Contact Solid-state Contact Solid-state
Power supply/ AC 30 cps H8CA-SAL H8CA-SALS H8CA-SALV H8CA-SALVS
counting speed 1 kcps H8CA-SAH H8CA-SAHS H8CA-SAHV H8CA-SAHVS
DC 30 cps H8CA-SDL H8CA-SDLS H8CA-SDLV H8CA-SDLVS
1 kcps H8CA-SDH H8CA-SDHS H8CA-SDHV H8CA-SDHVS
* Do not use the contact input at a counting speed of 1 kcps.

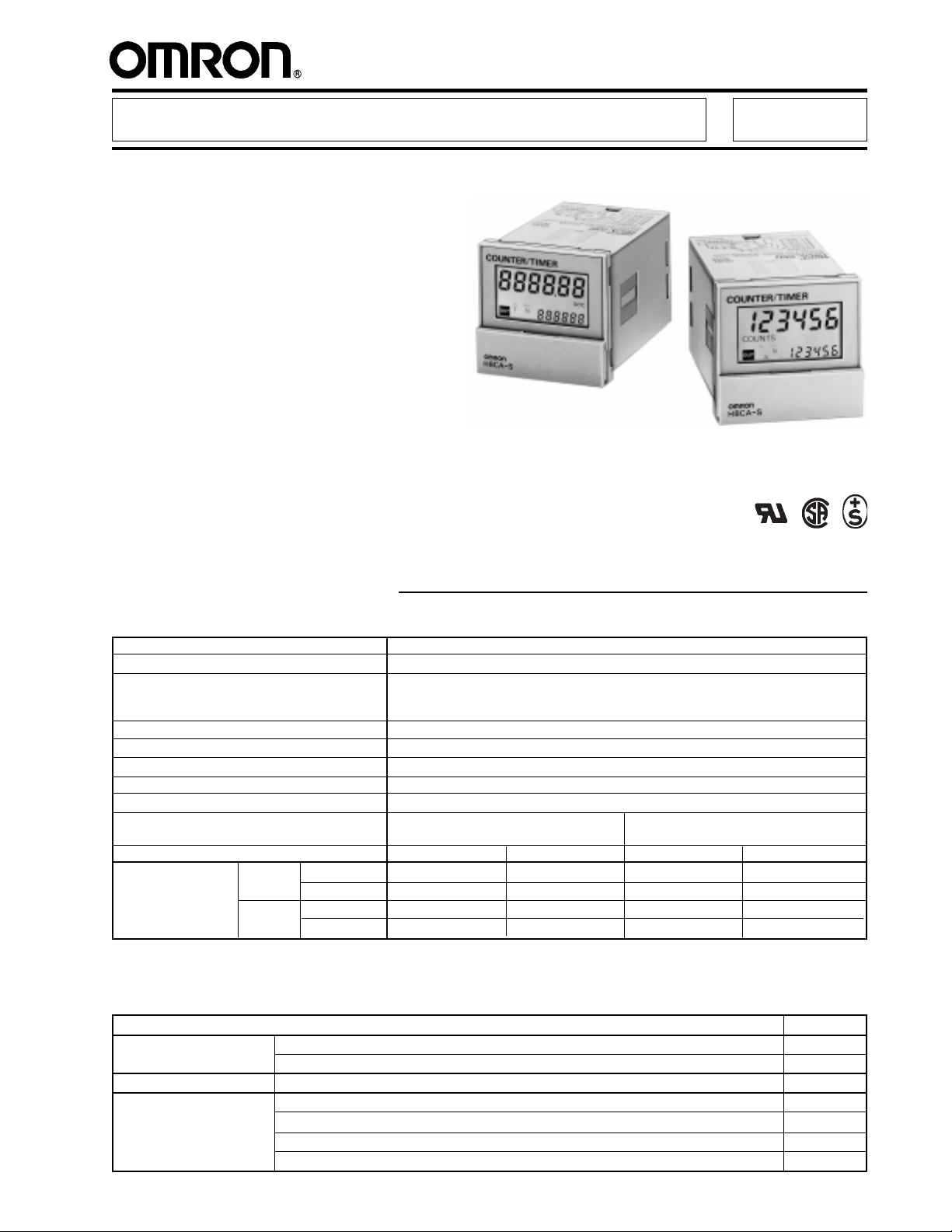

Solid-State Counter/Timer H8CA-S
1/16 DIN, Easy-to-Operate
Combination Counter and Timer
■Operation selectable as preset
counter or timer
■6-digit LCD display —
Present Value: 8 mm (.32 in)
Set Value: 4 mm (.16 in)
■Nonsignificant zeros suppressible
from preset or count value display
■Selectable power supply voltages 24
to 240 V AC and 12 to 120 V DC
■Memory protection
■4 programmable output modes
available for both counter and timer
functions
Ordering Information
■COUNTER/TIMER
■ACCESSORIES
Description Part number
Sockets Bottom surface or track mounting, top screw terminals P2CF-11
Back mounting, for use with Y92F-30 mounting adapter, bottom screw terminals P3GA-11
Panel mounting adapter Fits behind panel, ideal for side by side installation (Use P3GA-11 socket) Y92F-30
Mounting track DIN rail, 50 cm (1.64 ft) length PFP-50N
DIN rail, 1 m (3.28 ft) length PFP-100N
End plate PFP-M
Spacer PFP-S
Power supply/
counting speed

H8CA-S
2
H8CA-S
Specifications
Supply voltage AC 24 to 240 VAC, 50/60 Hz
DC 12 to 120 VDC (20% max. permissible ripple)
Operating voltage range 90 to 110% of rated voltage
Power consumption* Approx. 2.2 VA (at 240 VAC, 50 Hz)
Approx. 1 W (at 120 VDC)
Max. counting speed of CP1 and CP2 In counter function mode:
30 cps (contact and solid-state inputs):
Minimum pulse width: 16.7 ms (ON/OFF ratio: 1:1)
1 kcps (solid-state input):
Minimum pulse width: 0.5 ms (ON/OFF ratio: 1:1)
Reset system External reset (common to contact and solid-state inputs) and manual reset:
Minimum reset signal width: 20 ms
Start and gate response time In timer function mode:
Start and gate response time (common to contact and solid-state inputs):
L-type: 16.5 ms
H-type: 0.5 ms
Count and reset inputs for counter function/ No-voltage input:**
Start and gate inputs for timer function Maximum short-circuit impedance: 1 kΩ
Short-circuit residual voltage: 0.5 V max. (1.3 V max.)
Minimum open impedance: 100 kΩ
Voltage input:
5 to 30 V at "High" level
0 to 2 V at "Low" level
Input impedance: Approx. 4.7 kΩ
Control output Contact output type: SPDT 250 VAC 3 A p.f.=1 (resistive load)
Solid-state output type: Open collector 30 VDC max. 100 mA max.
■RATINGS
* On power application, the following inrush current flows for 0.5 ms.
3.7 A at 240 VAC, 2.3 A at 120 VDC
** The source current output from each input terminal when using no-voltage input is 2 mA max.
Approved by the following standards
UL
CSA
SEV
In timer Repeat accuracy ±0.05% ±0.05 s
function Setting error ±0.1% ±0.005 s
mode Variation due to ±0.05% ±0.05 s max.
voltage change
Variation due to
temperature change
Insulation resistance 100 MΩ min. at 500 VDC
Dielectric strength 1,500 VAC 50/60 Hz for 1 minute
Vibration Mechanical durability: 10 to 55 Hz, 0.75 mm (0.030 in ) double amplitude
Malfunction durability: 10 to 55 Hz, 0.3 mm (0.012 in ) double amplitude
Shock Mechanical durability: approx. 30 G
Malfunction durability: approx. 10 G
Ambient temperature Operating: -10°to +55°C (+14°to 131°F)
Storage: -25°to +65°C (-13°to +149°F)
Humidity 35 to 85% RH
Service life Mechanically: 10,000,000 operations min.
Electrically: See "Engineering Data"
Weight Approx. 130 g (4.59 oz)
■CHARACTERISTICS
* Operate time of output circuit is included in the overall error.

3
H8CA-SH8CA-S

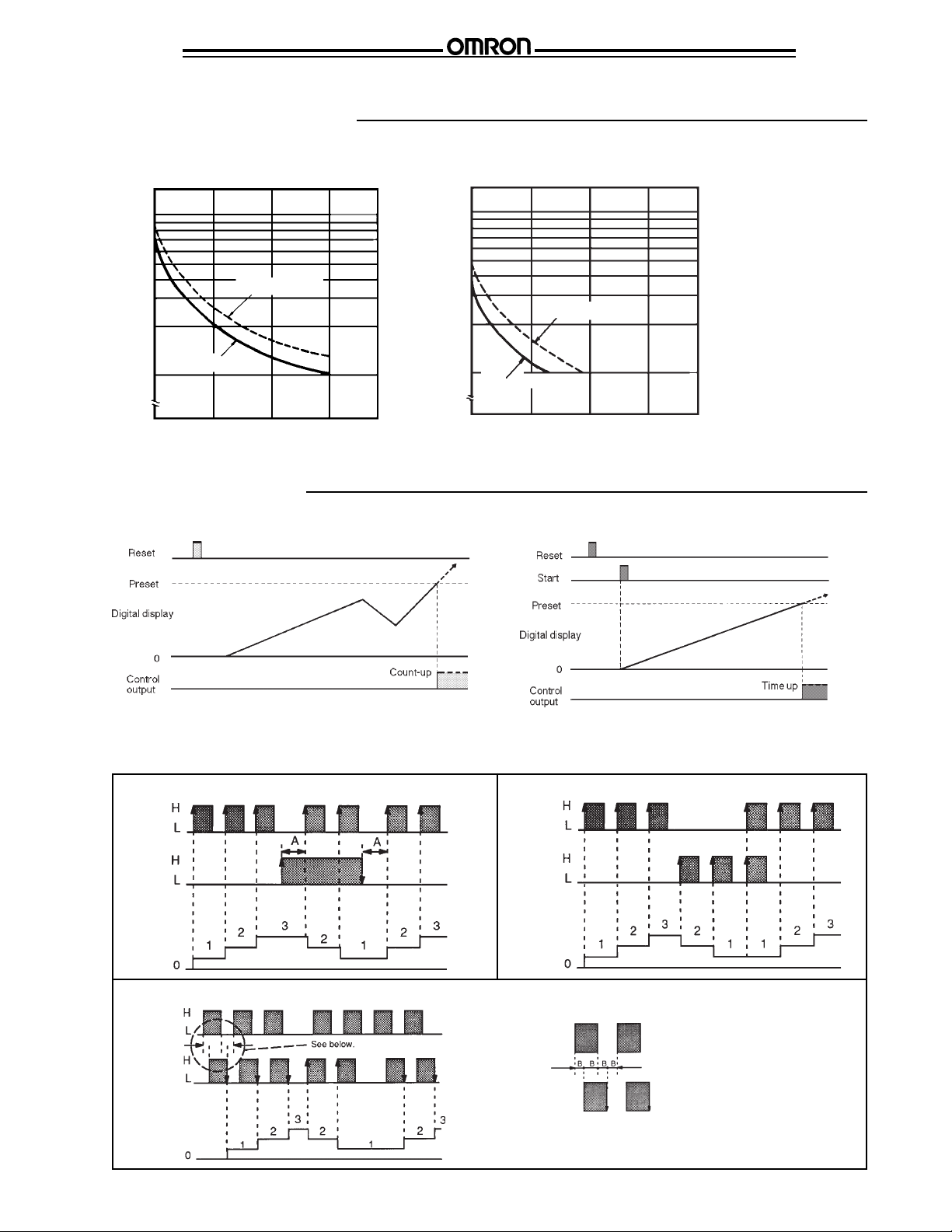

Engineering Data
■ELECTRICAL SERVICE LIFE
TimingCharts
Resistive Load Inductive Load
■IN COUNTER FUNCTION MODE
■COUNT INPUT MODES
In the timing charts below, "A" is the minimum signal width. "B" must be at least 1/2 of minimum signal width, otherwise, signals may not
be counted if the miniums for "A" and "B" are not met.
Count
input 1
Count
input 2
Digital
display
Command Input Mode A
Count
input 1
Count
input 2
Digital
display
Phase Difference Input Mode C
Count
input 1
Count
input 2
Digital
display
Individual Input Mode B
Counting speeds of CP1 and CP2 must
be the same for Reversible C.
Enlargement from left.
■IN TIMER FUNCTION MODE
Switching operations (x103)
30 VDC (p.f. = 1)
250 VAC (p.f. = 1)
1000
500
100
0 0 1 2 3
Load current (A)
30 VDC (L/R = 7 ms)
1000
500
100
00 1 2 3
250 VAC
(p.f. = 0.4)
Switching operations (x103)
Load current (A)

H8CA-S
4
H8CA-S
Input type Counter output Signal high Signal low
No-voltage Contact The contact turns ON The contact turns OFF
Solid-state The open collector transistor is in the ON state The transistor is in the OFF state
Voltage Both Input signal voltage level is 5 to 30 V Input signal voltage level is 0 to 2 V
■FUNCTIONS OF INPUT SIGNALS
Input Counter mode A Counter mode B Counter mode C Timer
(command input) (individual input) (phase difference) operation
Count input 1 Count input: Addition count The count value is increased Start input
The count value is input by one when phase of count
increased by one input 2 (CP2) is delayed with
when count input 2 (CP2) respect to phase of count
voltage goes low. The input 1 (CP1).
count value is decreased The count value is decreased
by one when count input 2 by one when phase of count
(CP2) voltage goes high. input 2 (CP2) is ahead with
respect to phase of count
input 1 (CPI).
Count input 2 Addition/subtraction control Subtraction count input Gate input
Output Mode N Present value display and outputs are
maintained until reset.
Output Mode F Present value runs continuously. Outputs
are maintained until reset.
Output Mode C Present value is placed in reset start status
as soon as preset count is reached; the preset is not actually
displayed. Outputs are one-shot, fixed at 0.5 second, and
operate repeatedly.
Output Mode R Present value display returns to reset start
status after expiration of one-shot time period. Outputs are
one-shot, fixed at 0.5 second, and operate repeatedly.
Reset
Preset
Digital
display
0
Control
output
Reset
Preset
Digital
display
0
Control
output
Reset
Preset
Digital
display
0
Control
output
Reset
Preset
Digital
display
0
Control
output
One-shot control output, set to 0.5 second
■OUTPUT MODES IN BOTH COUNTER AND TIMER OPERATIONS
Sustained control output

5
H8CA-SH8CA-S
Panel cutout
Note: Recommended panel
thickness is 1 to 3.2 mm.
Panel cutout conforms to
DIN 43700.
50
(1.97)
45
(1.77)
(1.97)
50
45 (1.77)
■SOCKETS
11-Pin Sockets
P2CF-11 Bottom Surface or Track Mounting Socket
Eleven
M3.5 x 7.5
sems
Two
4.5 dia.
mounting
holes
7.8
4
34.5
(Top view)
Mounting holes
Two 4.5 dia. socket
mounting holes
40 ±0.2
35.4
(1.57)
Terminal arrangement
P3GA-11 Back Mounting Socket Terminal arrangement
■PANEL MOUNTING ADAPTER
Y92F-30 Mounting Adapter
Adapter installs behind the panel. It is ideal for side by side installation. Use a P3GA-11 socket.
Unit: mm (inch)

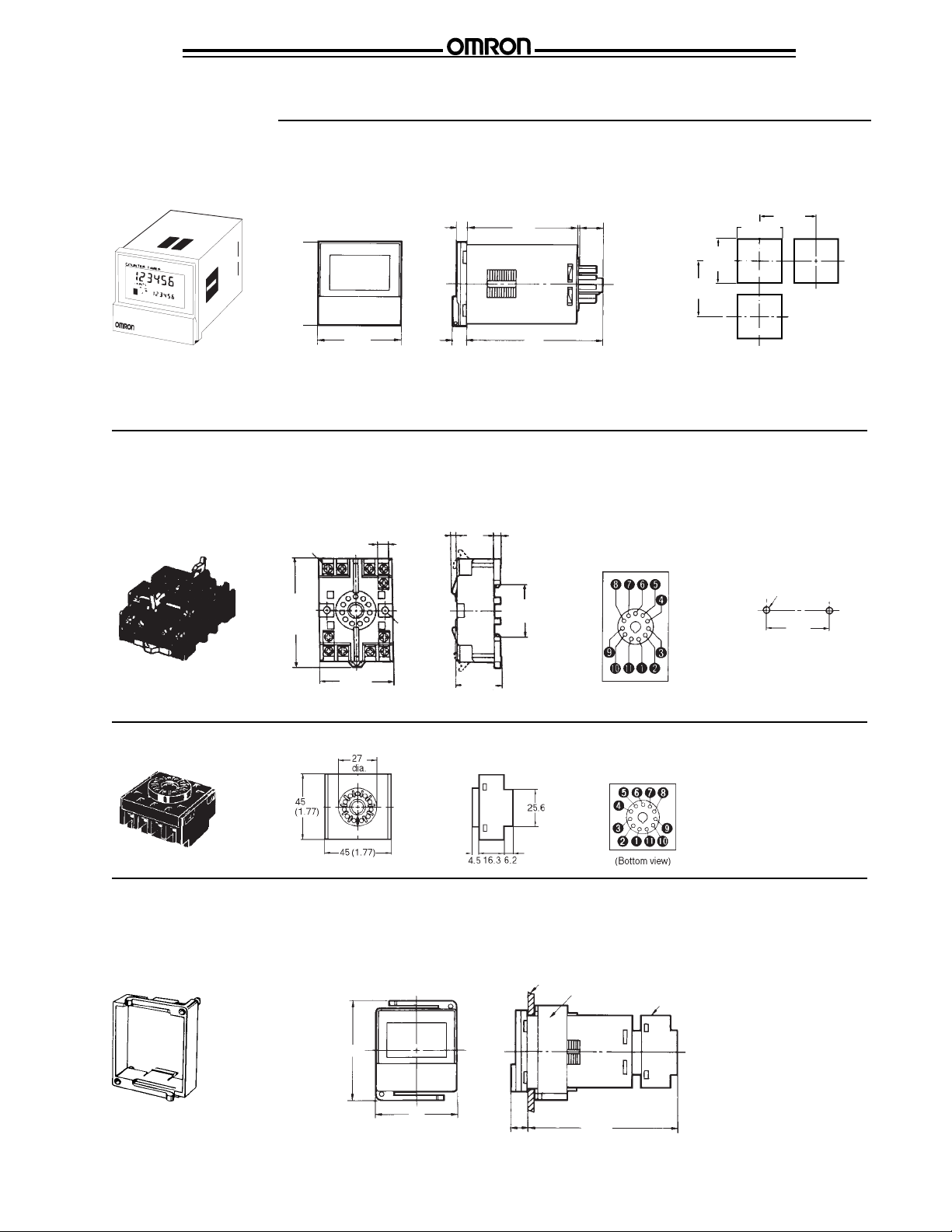

Dimensions
■H8CA-S COUNTER/TIMER
Adapter for flush
mounting Y92F-30
P3GA-11 back connecting
socket
48
(1.89)
48
(1.89)
48
(1.89)
78
(3.07)
6
(0.24)
0.7
(0.03) 13.6
(0.54)
8
(0.31)
91.9
(3.62)
Panel
63.7
(2.51)
58
(2.28)
8
(0.31)
74
(2.91)
max.
31.2
(1.23)
max.
50
(1.97)
max.

H8CA-S
6
H8CA-S
Programming
■SELECTING FUNCTION MODE
Select timer or counter function first. It is not necessary for
power to be ON to set this function. When the H8CA-S is
shipped, it is set to counter function, input mode “A”, output
mode “N”, and preset value 1.
1. Terminals 1 and 3 must be connected to select timer or
counter function using the key.
MODE is lit. The function, input mode, or output mode display
will be blinking. (The Power OFF display will stop blinking when
power comes ON.)
Short circuit

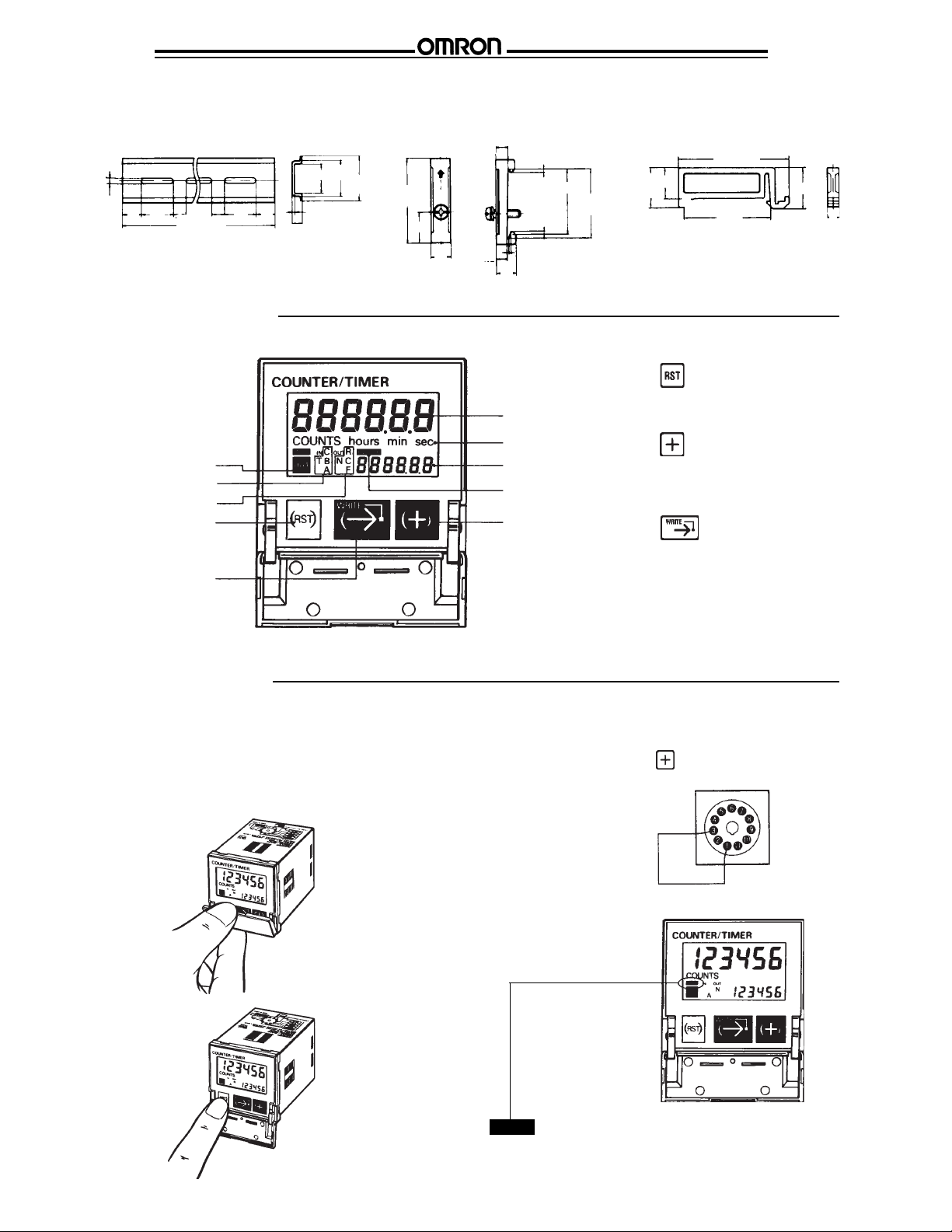

■MOUNTING TRACK AND ACCESSORIES
Nomenclature
Key function:
Resets the Present value
display and the output.
Sets the set value. Selects
timer or counter function, and
input and output modes.
Selects the function and mode,
and writes. Normally used to
write, or advance one column
when setting the set value.
Output display
Input mode display
Output mode display
Reset key
Advance/Write key
Present value display
Set value display
Power OFF display
Power OFF display
Setting key
PFP-100N/PFP-50N DIN Rail PFP-M End Plate PFP-S Spacer
4.5
(.18)
15
(.59) 25
(.98) 1000
[500]
10
(.39)
10
(.39)
25
(.98) 15
(.59)
50
(1.97)
10
(.39)
10
(.39)
1.5
35±0.3
24 27±0.15
7.3±0.13 11.5
6.2
(.24) 1.8
(.07)
37.3
(1.47)
35.3
1.8
1.3
4.8
34.8
(1.37)
16
(.63)12
44.3 (1.74)
5
16.5
5

7
H8CA-SH8CA-S
(Select counter
or timer function)
(For the counter
function, select
the input mode.) (Select the
output mode.)
COUNTS
min
hours
sec
A
B
C
N
F
C
R
* Displayed automatically
when the timer function
is selected.
• Press the key until the
desired output mode appears.
• Press the key to write the
desired output mode.
• Press the key until the
desired input mode appears.
• Press the key to write
the desired input mode.
• Press the key until the
desired function appears.
• Press the key to write
the desired input mode.
■SETTING EXAMPLE
1. Selecting the counter function with input mode “A” and
output mode “N”. (Terminals 1 and 3 connected.)
“MODE ” lights on the display.
“COUNTS” will begin blinking when the key is pressed.
(Press the keys until the desired place is reached.) Press the key. “A” will stop blinking and one of the
output modes will begin blinking.
Press the key until output mode “N” begins blinking.
Blinking
Blinking
Press the key. “COUNTS” will stop blinking and one of the
input modes will be blinking.
Press the key until input mode “A” begins blinking.
Blinking
2. Press the key to select counter or timer function, input mode,
and output mode. The characters below will flash when the key
is pressed.
Disconnect terminals 1 and 3 before setting values. When
terminals 1 and 3 are disconnected, the “ MODE ” display will
turn OFF and output mode “N” will stop blinking.
Always disconnect terminals 1 and 3 when finished selecting
the function. Values cannot be preset if terminals 1 and 3 are
connected.

H8CA-S
8
H8CA-S
Blinking
Press the key. “sec” will stop blinking and one of the output
modes will begin blinking. The INPUT MODE will automatically
enter “T”.
Blinking
Disconnect terminals 1 and 3 before setting values. When
terminals 1 and 3 are disconnected, the “ MODE ” display will turn
OFF and output mode “N” will stop blinking.
Always disconnect terminals 1 and 3 when finished selecting the
function. Values cannot be preset if terminals 1 and 3 are
connected.
■PRESETTING NUMERIC VALUES
Preset values after selecting the function. Values can be preset
whether the power supply is ON or OFF. Continue pressing the and keys until the smallest
digit has been set.
Blinking
To complete presetting, press the key so that no place on
the display is blinking.
*Preset unnecessary higher digits at 0. (i.e. 000015)
The output will go ON if the set value is 0 (0.0 or 0.00) and the
displayed count is also 0 (0.0 or 0.00). In this case, press reset
after presetting, and the output will go OFF.
Notice
High-order
digits Low-order digits
→→→
1
↓
2
↓
↓
9
↓
0
…
key: (Press this key to move
to the next column.)
key: (Press this key to
increment values.)
Press the key to set the desired value.
Blinking
Press the key until the desired digit begins blinking.
2. Selecting the timer function with “sec” and output mode
“N”. (Terminals 1 and 3 connected.)
If set for timer, “sec” will begin blinking when the key is
pressed. (Press the keys until the desired place is reached.)
Press the key until input mode “N” begins blinking.

9
H8CA-SH8CA-S

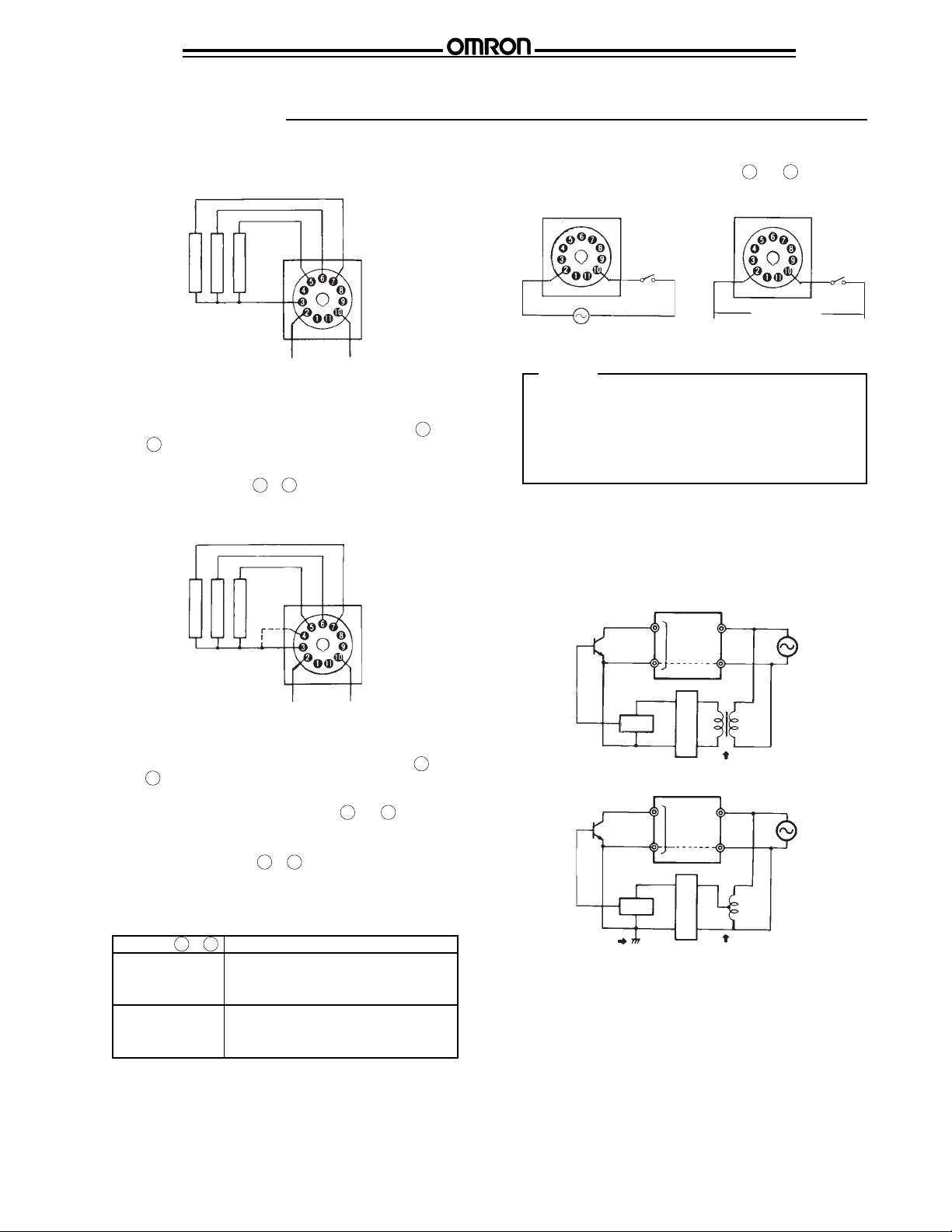

Connections
Reset input
Power
Supply
Reset input
Start input
Gate input
Power
Supply
Count input 1
Count input 2
■POWER SUPPLY CONNECTION
Connect power supply across terminals 2 and 10 and apply
one of the specified voltages. (Pay special attention to the
polarity when using a DC-operated model.)
Cautions
Do not touch the input terminals while power is supplied to
the H8CA-S; otherwise, you will feel electric shock,
because the counter does not have any power transformer
built in. Use of a model rated at a low DC voltage is
recommended when the counter is to be installed at a
location where the input terminals are easily accessible.
Notice:
When connecting external signal input contacts and transis-
tors, use a power supply having a power transformer whose
primary and secondary circuits are isolated from each other
with the secondary circuit not grounded, for the input devices,
to prevent current feedback and short-circuiting.
H8CA-S
Input
terminals
Circuit
Power supply
Insulated transformer is
necessary
Rectifier
Input
terminals
H8CA-S
Power supply
Circuit
Autotransformer
Grounding
Rectifier
Correct:
Incorrect:
Notice:
Do not arrange the peripheral circuits of the counter in either
way, as the internal circuit may be destroyed, rendering the
counter unoperational.
To input a signal from a single input contact to several
H8CA-Ss at the same time, be sure to connect the terminals of
the same numbers in parallel.
■TERMINAL ARRANGEMENTS
In counter function mode
Note: When the control power supply is DC, terminals 2 and
3 are internally connected.
Mode switch terminals ( 1& 3 )
When these terminals are short-circuited, set the input and
output modes with the RESET key, not the MODE key.
In timer function mode
Note: When the control power supply is DC, terminals 2 and
3 are internally connected.
* Check the operating status of terminals 3 and 4 (see
table below) before connecting or disconnecting them.
Timer control terminals ( 3& 4 )
Be sure these terminals are not connected when using
H8CA-S as a counter. These terminals are used as shown
below only when H8CA-S functions as a timer.
Open
24 to 240 VAC (50/60 Hz)
12 to 120 VDC
(-) (+)
Short-circuited
Terminals 3 & 4 Operation
Timer operation temporarily interrupted
when power failure accures in control
power supply
Timer operation continues even when
power failure accurs in control power
supply

H8CA-S
10
H8CA-S
■CONNECTION OF LOAD CIRCUIT
CONTROL OUTPUT
Contact output type
Power supply for load
(250 VAC max.)
Load
Load
Power supply for load
(250 VAC max.)
(+)
(–)
Notes:
1. The load is turned on when the set count or time is up.
2. Be sure to connect terminal 8 when an inductive load is
connected.
Output delay time
The output delay time is the time from the application of the
count input signal of the preset value until the generation of
control output. The delay time differs depending on counting
speed and model of control output used, as shown in the
table below.
Common to
hours, minutes
and seconds
Type of Max. counting speed Output delay
control or rated time time
output
Contact
output
Solid-state
output
30 cps
1 kcps
30 cps
1 kcps
Reset input contact
(Resets the unit when
turned ON.)
Reset input NPN
transistor
(Resets the unit
when turned ON.)
30 VDC max.
(+)
(–)
Voltage input type
Reset input contact
(Resets the unit
when turned ON.)
E (30 VDC max.)*
R
Reset input NPN
transistor
(Resets the unit
when turned OFF.)
*At ``High'' level
4.7 E
4.7 + R (V) 5 V
E (30 VDC max.)*
30 VDC max.
Reset input PNP
transistor
(Resets the unit
when turned ON.)
R
Reset input NPN
transistor
(Resets the unit
when turned OFF.)
*At ``High'' level
4.7 E
4.7 + R (V) 5 V
■CONNECTION OF COUNT INPUTS
No-voltage input type
■RESET INPUT CONNECTION
Input 2
Input 1 (Counts when
turned ON.)
Input 1 Input 2 (Counts when
turned ON.)
30 ms max.
10 ms max.
30 ms max
2 ms max.
Note: The load is turned on when the set count or time is up.
Solid-state output type

11
H8CA-SH8CA-S
Input 1
(+) Input 2
(A count signal is input
when turned ON.)
(–)
E (30 VDC max.)*
(+)
RR
Input 1 Input 2 (A count signal
is input when
turned OFF.)
(V) 5V
*At ``High'' level
4.7E
4.7 + R
30 VDC max.
■POWER FAILURE DETECTION
The H8CA-S is capable of detecting and indicating a power
failure on the display. Before power application or when a
power failure occurs, the “ PW OFF ” display flickers indicating
that the control power supply is off.
Relation among t1, t2, and supply voltage
Operations
Likewise, on power application, there is a period during which
the counter does not respond to the input signal, as shown
below because of a lag in the rise in the internal circuit voltage.
■OPERATION AND DISPLAY
“OUT ” is displayed when counting or timing is completed.
When “ MODE ” lights on display, terminals 1 and 3 are
connected. In this case, it is not possible to preset values. Be
sure to disconnect the terminals.
The H8CA-S uses “regular read format,” so the preset values
can be changed whether power is ON or OFF.
When changing the preset value during timer or counter
operation, a signal will be output when the new value is the
same as the displayed value.
The front panel keys operate at a touch. Do not press the keys
with excessive force or tools, such as a screwdriver. Press only
with fingers.
After presetting values, part of the display might be blinking.
The H8CA-S will operate normally in this condition, but press
the key so that characters do not blink.
(–)
*At ``High'' level
4.7E
4.7 + R (V) 5V
Input 2
Input 1 (A count signal
is input when
turned OFF.)
CONNECTION OF COUNT INPUTS (Continued)
Voltage Input type
When a power failure occurs, there is a period during which
the counter does not respond to the input signal, as shown
below, because of lag in the rise in the internal circuit voltage.
(–)
(+) 30 VDC max.
(A count
signal is
input when
turned ON.)
Input 2 Input 1
(–)
(+)
R
R

H8CA-S
12
H8CA-S
Omron Europe B.V. EMA-ISD, tel:[phone], fax:[phone], http://www.eu.omron.com/ema
Cat.No.GC CN4A 6/98/26M Specifications subject to change without notice.Printed in the U.S.A.
NOTE:DIMENSIONS SHOWN ARE IN MILLIMETERS.To convert millimeters to inches,divide by 25.4.
P3GA-11Y92F-30
H8CA-S
+
Adapter
91.9
8
Wiring duct, etc.
Hook 20
Panel
105.7
P2CF-11
H8CA-S
■PANEL MOUNTING
Using Y92F-30 adapter for flush mounting
Insert the H8CA-S into a square-cut hole from the front of the
mounting panel; insert the adapter from the rear of the
H8CA-S until the clearance between the panel surface and the
adapter is minimized. Then secure the H8CA-S with two
screws onto the panel.
Mounting
There is no limitation in mounting direction. However, avoid
mounting the unit at an angle.
■SURFACE MOUNTING
Using P2CF-11 front connecting socket
When a number of the H8CA-S are mounted in a vertical line
or when an H8CA-S is mounted close to an obstacle such as a
wiring duct, be sure to provide a separation of approx. 20 mm
(0.79 in.) between adjacent units or between the unit and the
obstacle to allow room for engagement and disengagement of
hooks as shown below.
By attaching the P3GA-11 back connecting socket to a panel
mounted H8CA-S, wiring can be performed in the same
manner as the front connecting socket.
Removal
To remove an H8CA-S panel mounted with a Y92F-30
adapter, loosen the two screws of the adapter, pry up the top
and bottom hooks of the adapter, and pull the H8CA-S out
from the front of the panel.
Caution
The H8CA-S has a built-in lithium battery. Be sure to
dispose of the old H8CA-S properly, as lithium batteries
are likely to explode if incinerated.
When mounting two or more counters in a vertical line,
arrange all the adapters so that the molded springs of the
Y92F-30 adapters are positioned on the right and left sides.
Molded spring
Molded spring
When mounting two or more counters in a horizontal line,
arrange all the adapters so that the molded springs of the
Y92F-30 adapters are positioned on the top and bottom sides.
