Optika Italy SLX Series User manual

Ver. 2.0 2019
Model
SLX-1
SLX-2
SLX-3
SLX-4
SLX-5
SLX Series
INSTRUCTION MANUAL

Page 2
Table of Contents
1. Warning 3
2. Symbols and conventions 3
3. Safety Information 3
4. Intended use 3
5. Overview 4
5.1 SLX-1 4
5.2 SLX-2 / SLX-3 5
5.3 SLX-4 / SLX-5 6
6. Unpacking 7
7. Assembly 7
7.1 SLX-1 7
7.2 SLX-2 8
7.3 SLX-3 8
7.4 SLX-4 / SLX-5 9
7.5 Assembling procedure 10
7.5.1 SLX-1 / SLX-2 / SLX-3 10
7.5.2 SLX-4 / SLX-5 11
8. Use of the microscope 14
8.1 Adjust interpupillary distance 14
8.2 Focus 14
8.3 Adjusting the tension of the focus knob 14
8.4 Dioptric compensation 15
8.5 Magnification 15
8.6 Use of additional lens 16
8.6.1 Use of 0.5X additional lens (ST-085.1) 16
8.6.2 Use of 1.5X additional lens (ST-086.1) 17
8.7 Use of illumination 17
8.8 Use with rechargeable batteries 17
8.9 Use of eye shields 17
8.10 Use of overhanging stand 18
9. Microphotography 20
9.1 Use of C-mount adapter 20
9.2 Use of Reflex cameras 20
10. Maintenance 21
11. Troubleshooting 22
Equipment disposal 23

Page 3
1. Warning
This microscope is a scientic precision instrument designed to last for many years with a minimum of mainte-
nance. It is built to high optical and mechanical standards and to withstand daily use. We remind you that this
manual contains important information on safety and maintenance, and that it must therefore be made acces-
sible to the instrument users. We decline any responsibility deriving from incorrect instrument use uses that does
not comply with this manual.
2. Symbols and conventions
The following chart is an illustrated glossary of the symbols that are used in this manual.
CAUTION
This symbol indicates a potential risk and alerts you to proceed with caution.
ELECTRICAL SHOCK
This symbol indicates a risk of electrical shock.
3. Safety Information
Avoiding Electrical Shock
Before plugging in the power supply, make sure that the supplying voltage of your region matches with the
operation voltage of the equipment and that the lamp switch is in o󰀨 position. Users should observe all safety
regulations of the region. The equipment has acquired the CE safety label. However, users have full responsibil-
ity to use this equipment safely. Please follow the guidelines below, and read this manual in its entirety to ensure
safe operation of the unit.
4. Intended use
Standard models
For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.
IVD Models
Also for diagnostic use, aimed at obtaining information on the physiological or pathological situation of the
subject.

Page 4
5. Overview
MAGNIFICATION
CHANGER
STAGE CLIPS
TRANSPORTATION
HANDLE
5.1 SLX-1
FOCUS KNOB
STAND
EYEPIECES
TRANSMITTED LIGHT
ON/OFF AND
INTENSITY CONTROL
INCIDENT LIGHT
ON/OFF AND
INTENSITY CONTROL
MICROSCOPE
BODY
TRANSLUCENT DISC
(TRANSMITTED LIGHT)
INCIDENT LIGHT
ILLUMINATOR

Page 5
5.2 SLX-2 / SLX-3
TRANSPORTATION
HANDLE
MICROSCOPE BODY
-) SLX-2: BINOCULAR
-) SLX-3: TRINOCULAR
INCIDENT LIGHT
ON/OFF AND
INTENSITY CONTROL
TRANSMITTED LIGHT
ON/OFF AND
INTENSITY CONTROL
FOCUS KNOB
INCIDENT LIGHT
ILLUMINATOR
STAGE CLIPS
STAND
TRANSLUCENT DISC
(TRANSMITTED LIGHT)
EYEPIECES
ZOOM KNOB
PHOTO/TV PORT
(ONLY SLX-3)

Page 6
5.3 SLX-4 / SLX-5
MICROSCOPE BODY
-) SLX-4: BINOCULAR
-) SLX-5: TRINOCULAR
EYEPIECES
ZOOM KNOB
PHOTO/TV PORT
(ONLY SLX-5)
BASE
MANOPOLA DI
MESSA A FUOCO
PILLAR
DROP
PREVENTION
RING
VERTICAL ARM
FIXING KNOB
HORIZONTAL ARM
FIXING KNOBS
FIXING KNOB

Page 7
6. Unpacking
The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container
and lift the top half of the container. Take some care to avoid that the optical items (objectives and eyepieces)
fall out and get damaged. Using both hands (one around the arm and one around the base), lift the microscope
from the container and put it on a stable desk.
Do not touch with bare hands optical surfaces such as lenses, lters or glasses. Traces of grease or other
Residuals may deteriorate the nal image quality and corrode the optics surface in a short time.
7. Assembly

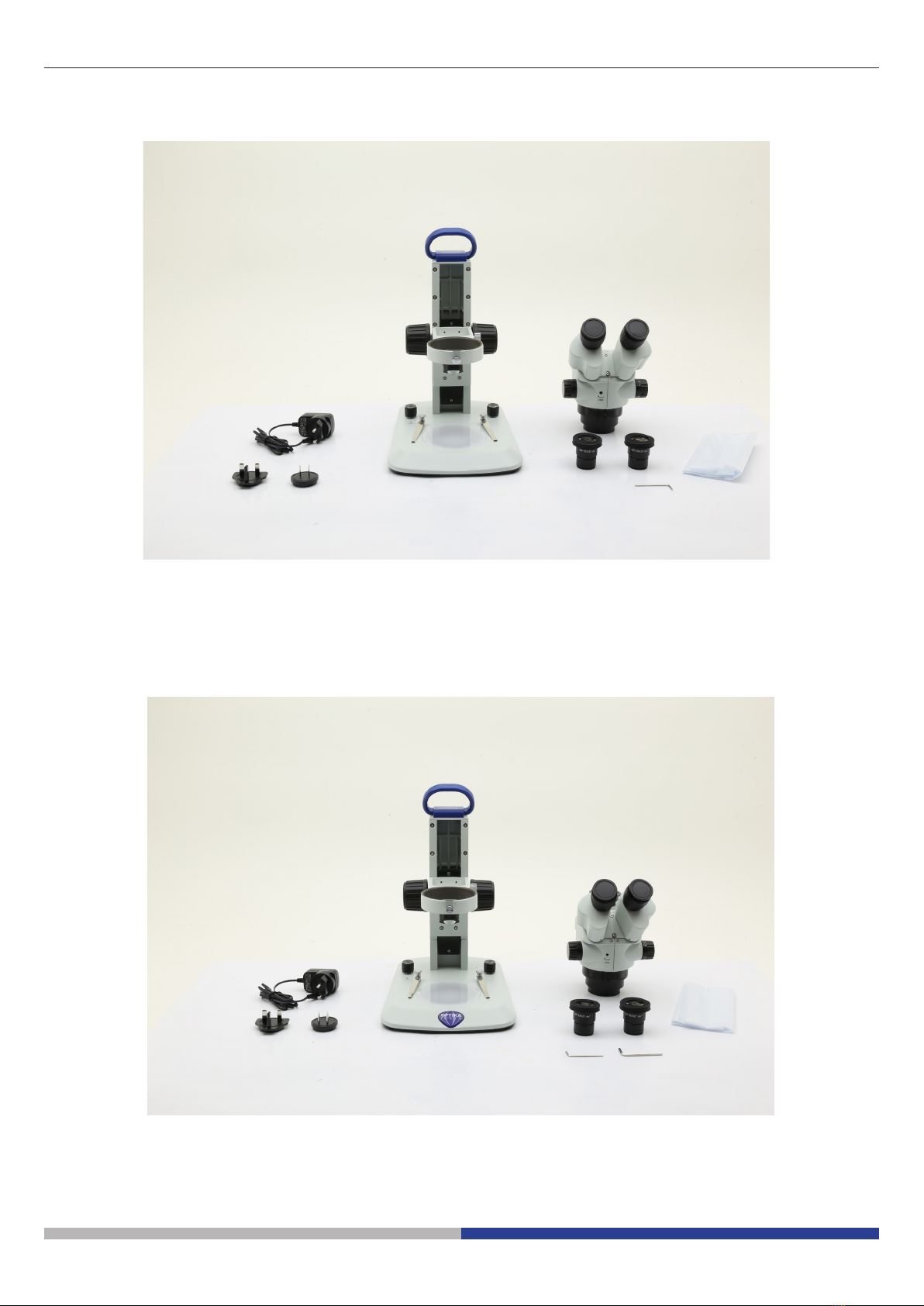

Once opened the microscope box, the microscope parts are the following:
7.1 SLX-1
① Microscope body
② Eyepieces
③ Microscope stand
④ Stage clips (one pair)
⑤ Dust cover
⑥ Power supply
①
③
④
⑤
⑥ ②

Page 8
7.2 SLX-2
① Microscope body
② Eyepieces
③ Microscope stand
④ Stage clips (one pair)
⑤ Dust Cover
⑥ Power supply
⑦ Allen Wrench
①
③
④
⑤
⑥ ⑦
②
7.3 SLX-3
① Microscope body
② Eyepieces
③ Microscope stand
④ Stage clips (one pair)
⑤ Dust Cover
⑥ Power supply
⑦ Allen Wrench (2 pcs)
①
③
④
⑤
⑥⑦
②

Page 9
7.4 SLX-4 / SLX-5
① Microscope body
② Eyepieces
③ Overhanging stand
④ Focus
⑤ Dust cover
⑥ Allen wrench
①
③
④
⑤
⑥
②

Page 10
7.5 Assembling procedure
7.5.1 SLX-1 / SLX-2 / SLX-3
• The microscope is shipped from the factory
with the batteries already installed. However,
in some cases it is necessary to ship the mi-
croscope with the batteries disconnected.
1. Open the lid of the battery compartment. (Fig. 1)
2. Insert the provided rechargeable batteries (re-
specting the polarity of each battery). (Fig. 2)
3. Close the lid.
4. Insert the microscope body in the holder. (Fig. 3)
5. Lock the xing knob ①. (Fig. 4)
Fig. 1
Fig. 2
Fig. 3
Fig. 4
①

Page 11

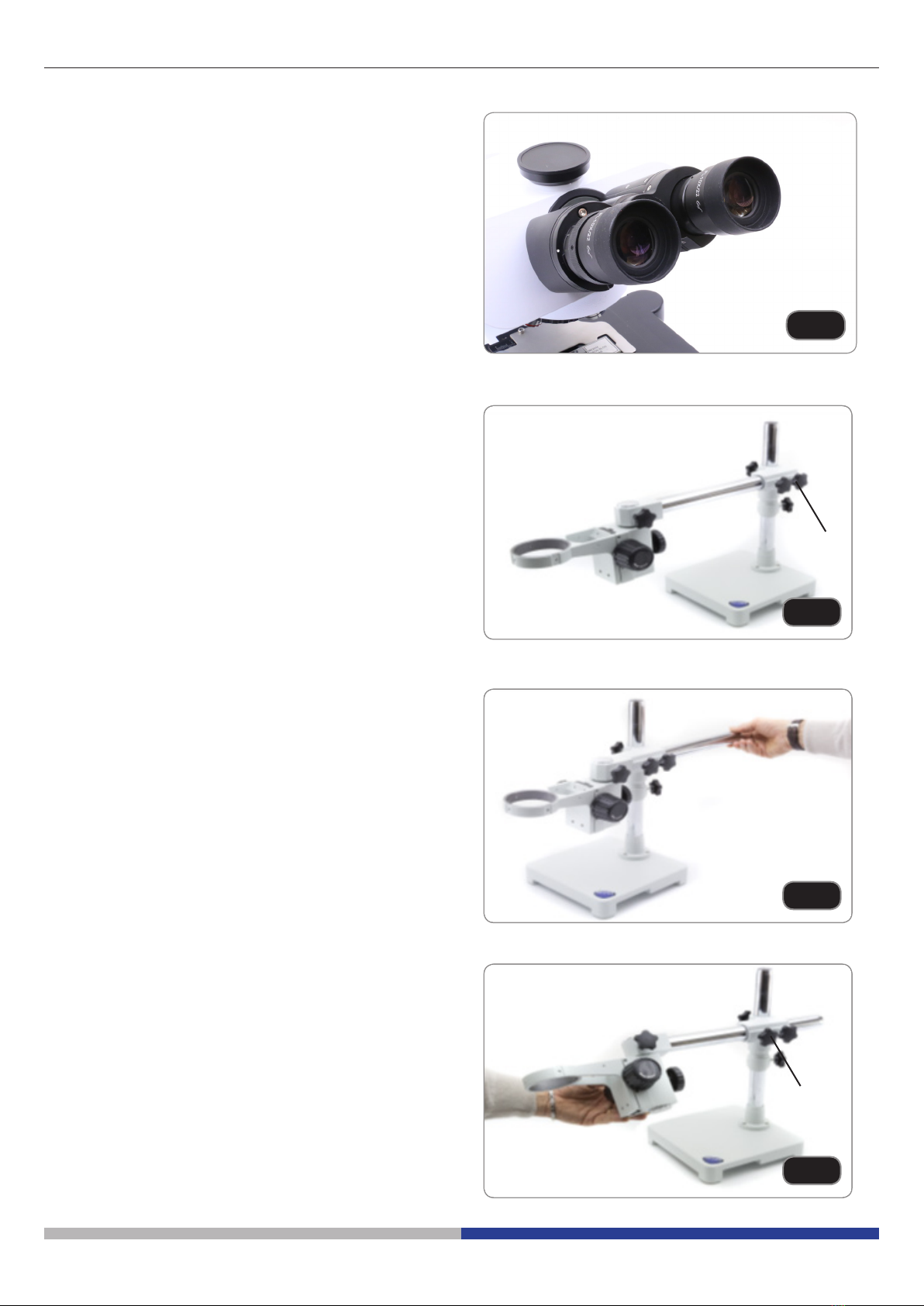

6. Remove the eyepieces dust caps and insert the
eyepieces in the empty eyepiece sleeve. (Fig. 5)
7. Connect the jack of the power supply to the sock-
et in the rear part of the microscope base. (Fig. 6)
7.5.2 SLX-4 / SLX-5
1. Screw the pillar on the base. (Fig. 7)
2. Tighten the screw to lock the pillar. (Fig. 8)
Fig. 5
Fig. 6
Fig. 7
Fig. 8

Page 12

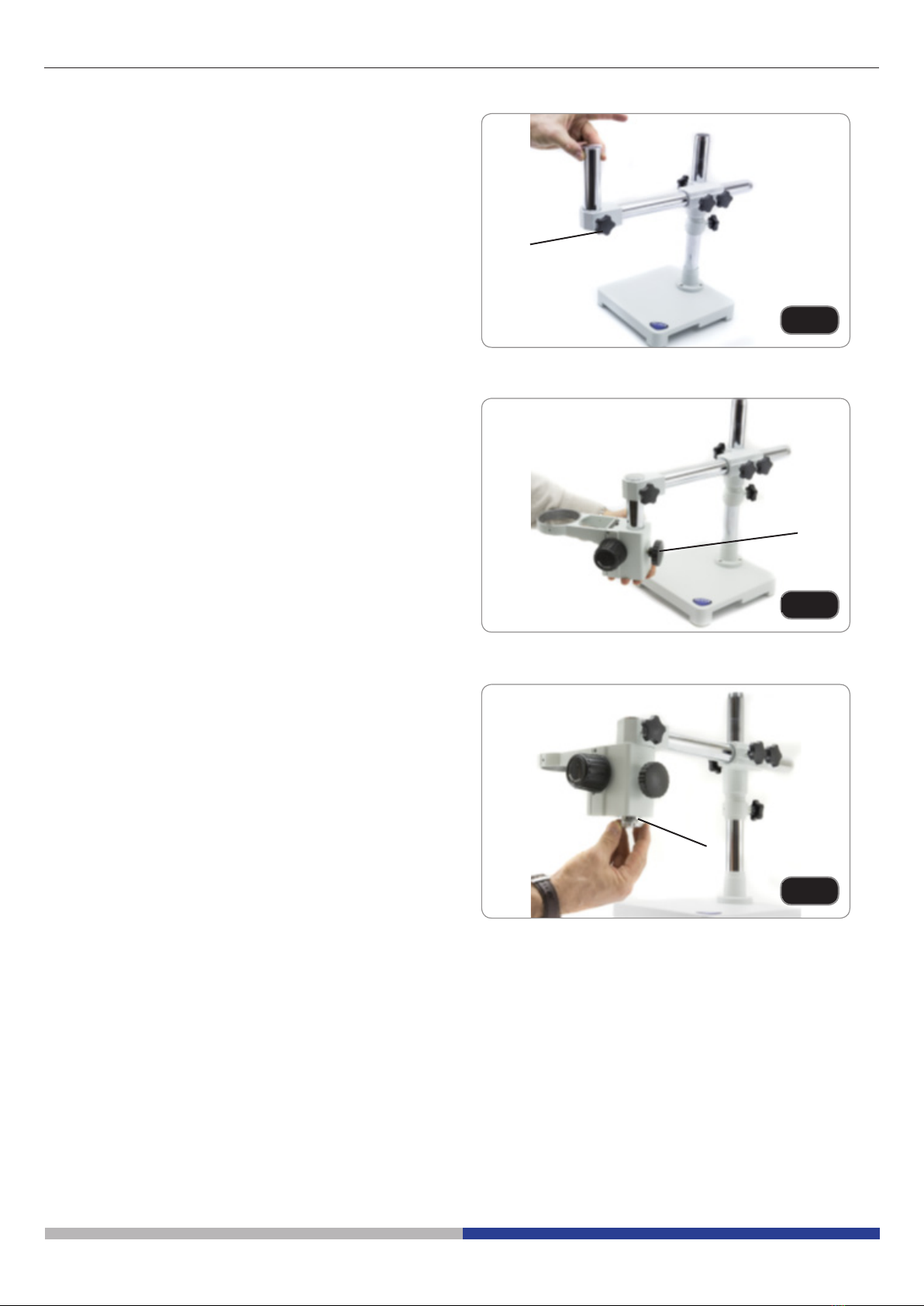

3. Insert the drop preventing ring and x it at the de-
sired height by screwing the xing knob. (Fig. 9)
4. Insert the horizontal arm and secure it with the
xing screw ①. (Fig. 10 - 11)
5. Install the head holder. Unscrew the locking knob
③ and insert the arm for the focus support from
above ② into the hole of the horizontal arm. (Fig.
12 - 13)
Fig. 9
Fig. 10
Fig. 11
Fig. 12
②
③
①

Page 13
6. Once fully inserted, tighten the xing screw ④
(Fig. 11)
7. Insert from below the focusing system, tighten the
xing screw ⑤ and re-tighten the locking knob ③
from below. (Fig. 14 - 15)
8. Install the microscope body as explained in chap-
ter 7.4..1
Fig. 13
Fig. 14
Fig. 15
④
⑤
③

Page 14
8. Use of the microscope
8.1 Adjust interpupillary distance

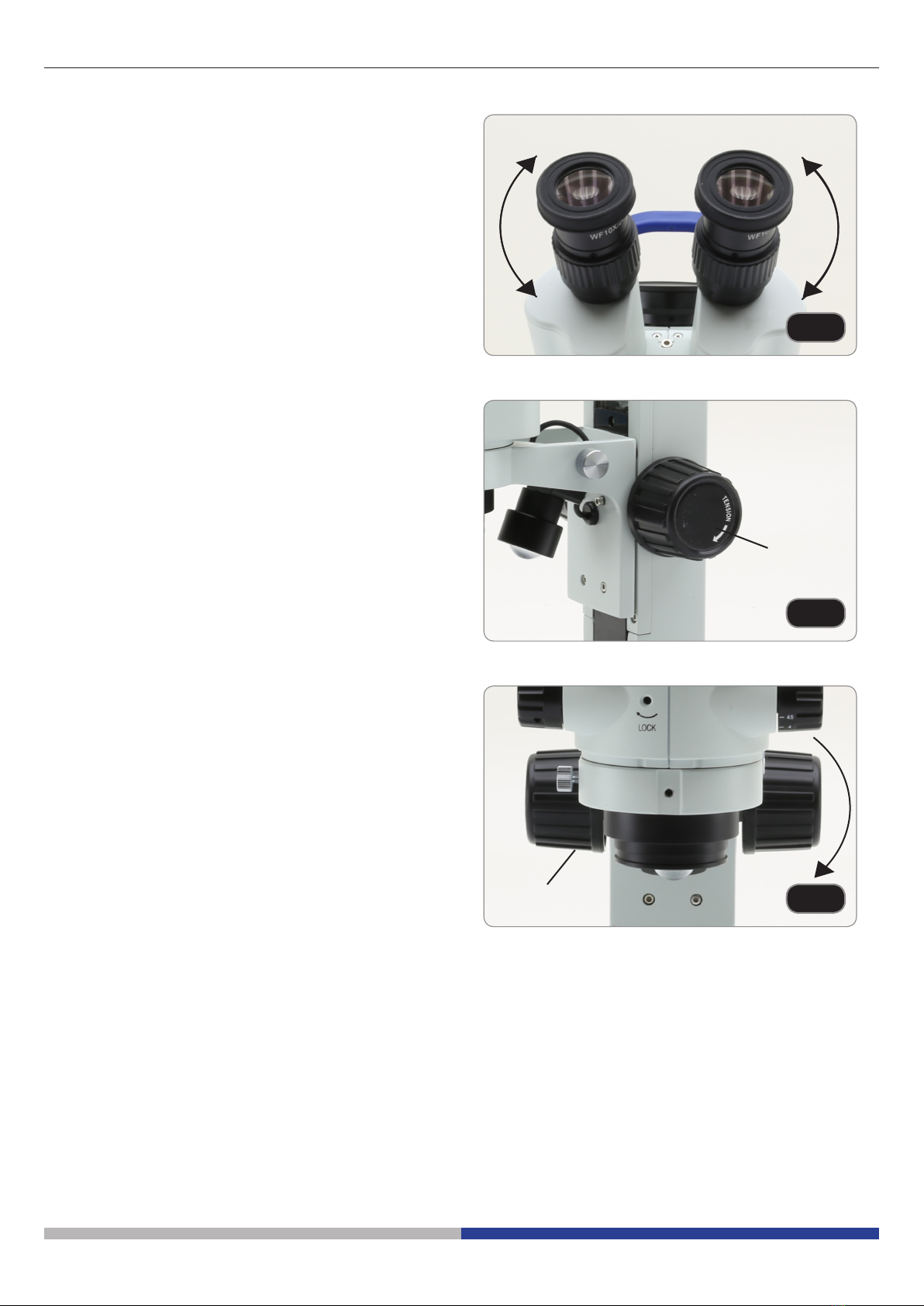

Hold the right and left eyepiece tube with both han-
ds and adjust the interpupillary distance by moving
the two parts (Fig. 16) until one circle of light can be
seen. If two circles appear, the interpupillary distance
is too big, and if two overlapped circles appear, the
interpupillary distance is too small.
8.2 Focus
Put the sample to be observed on the stage plate
and focus the sample using the focusing knobs of the
stand ①. (Fig. 17)
8.3 Adjusting the tension of the focus knob
• This adjustment allows to increase or decre-
ase the tension of the knob by avoiding an
involuntary descent of the microscope body
under its own weight. Adjust the tension just
above the point where the focus is stable.
Grab the focus knobs with both hands and, holding
left knob rotate the right one in the direction shown
in Fig. 18 to increase the tension. Tension increases
or decreases according the sense of rotation of the
right focus knob.
Fig. 19
Fig. 17
Fig. 18
①
HOLD

Page 15
Fig. 19
②
③
8.4 Dioptric compensation
• This compensation makes possible for peo-
ple wearing glasses to adjust the microscope
to their eyes and use the microscope without
glasses.
1. Put the zoom ② down to the lowest magnication
and focus the specimen with the focusing knobs
③. (Fig. 19)
2. Put the zoom to the maximum magnication and
repeat the focusing.
3. Return to the lowest magnication: the specimen
will be out of focus.
4. Adjust the diopter compensation ring of the right
eyepiece ④ until the image of the right eyepiece
is clear and sharp (Fig. 20). Repeat the procedu-
re for the left eyepiece.
5. Then, check the focus of the image for the whole
zoom range. It should now be perfectly parfocal
(focus is always maintained during the change of
magnication).
8.5 Magnification
SLX-1

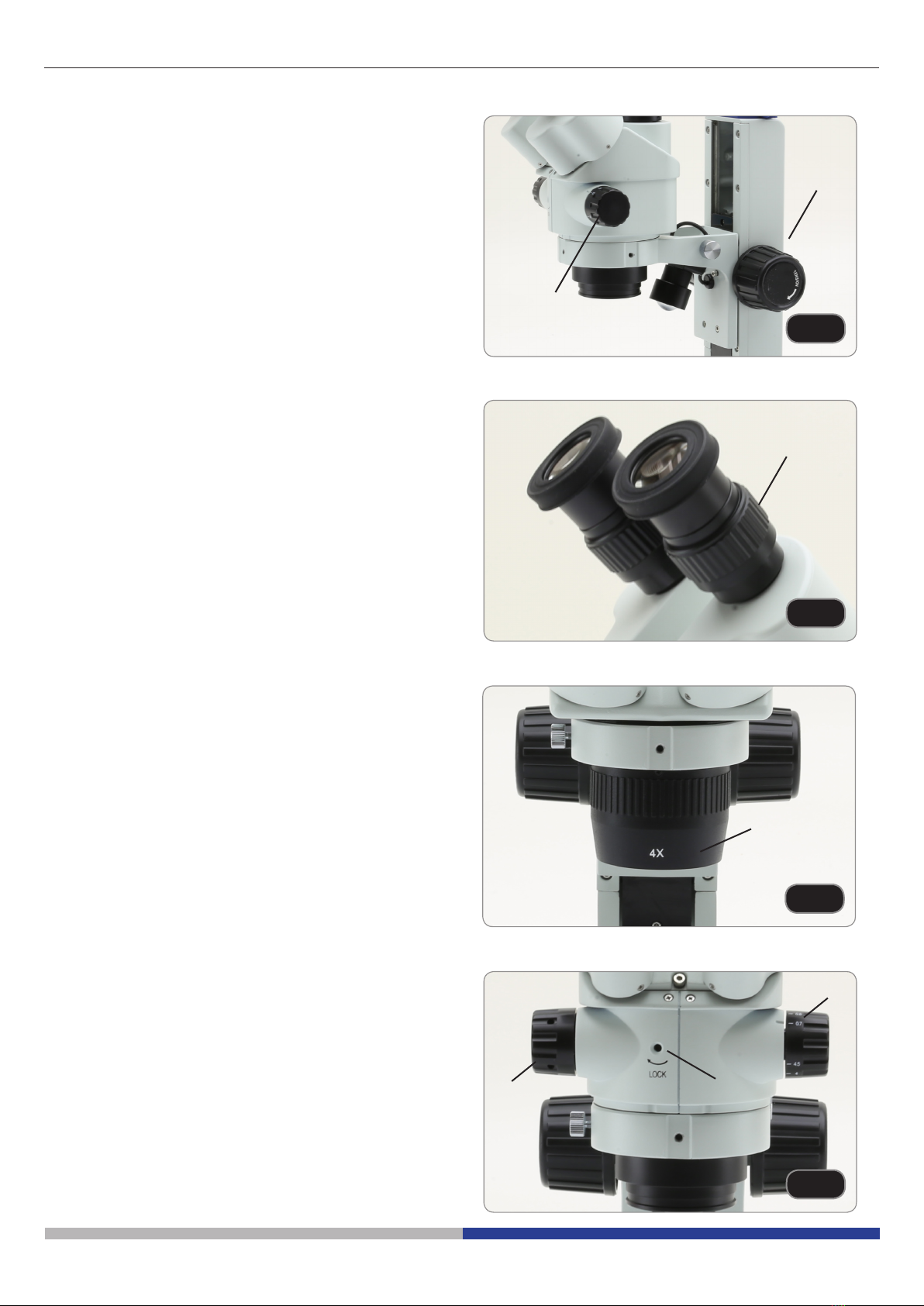

1. Rotate the magnication changer ⑤ to insert the
desired lens in the optical path. (Fig. 21)
• Rotation in clockwise direction will move from 2X
to 4X lens.
• Counterclockwise rotation will change from 4X to
2X.
SLX-2 / SLX-3
1. Select the desired magnication by adjusting the
zoom knob ⑥.
• Change the eyepieces and/or add an appropriate
additional lens if necessary.
• The microscope body is equipped with a “ma-
gnication lock” function that allows to obtain a
precise setting of the desired magnication. Ma-
gnication lock can be activated or deactivated
by operating with the provided allen wrench in the
hole ⑦ placed in front of the microscope body.
(Fig. 22)
Fig. 21
⑤
Fig. 22
Fig. 20
④
⑥⑦
⑥

Page 16
8.6 Use of additional lens
• Additional lenses can be used on models SLX-2 /
SLX-3 / SLX-4 / SLX-5.
1. Screw the desired additional lens on the micro-
scope body. (Fig. 14)
• Each additional lens has a specic Working Di-
stance (see table below).
• (SLX-2 / SLX-3 only): The stroke of the focus
adapter could not compensate the di󰀨erent wor-
king distances of the several additonal lenses.
Fig. 23
Total magnication used can be calculated as:
Eyepiece magnication * Zoom magnication * Objective lens magnication.
Eyepiece 10X 15X 20X
Field number 21 15 10
Objective Total mag. F.O.V. (mm) Total mag. F.O.V. (mm) Total mag. F.O.V. (mm)
0,5X (W.D.165 mm) 3.5X-22.5X 59.99-9.32 5.25X-33.75X 28.57-4.44 7X-45X 14.28-2.22
0.75X (W.D. 114 mm) 5.25X-33.75X 40-6.21 7.87X-50.62X 19.06-2.96 10.50X-67.5X 9.52-1.48
1X (W.D. 100 mm) 7X-45X 29.99-4.66 10.5X-67.5X 10.95-2.22 14X-90X 7.14-1.11
1.5X (W.D. 47 mm) 10.50X-67.5X 20-3.10 15.75X-101.25X 9.52-1.48 21X-135X 4.76-0.74
Fig. 24
Fig. 25

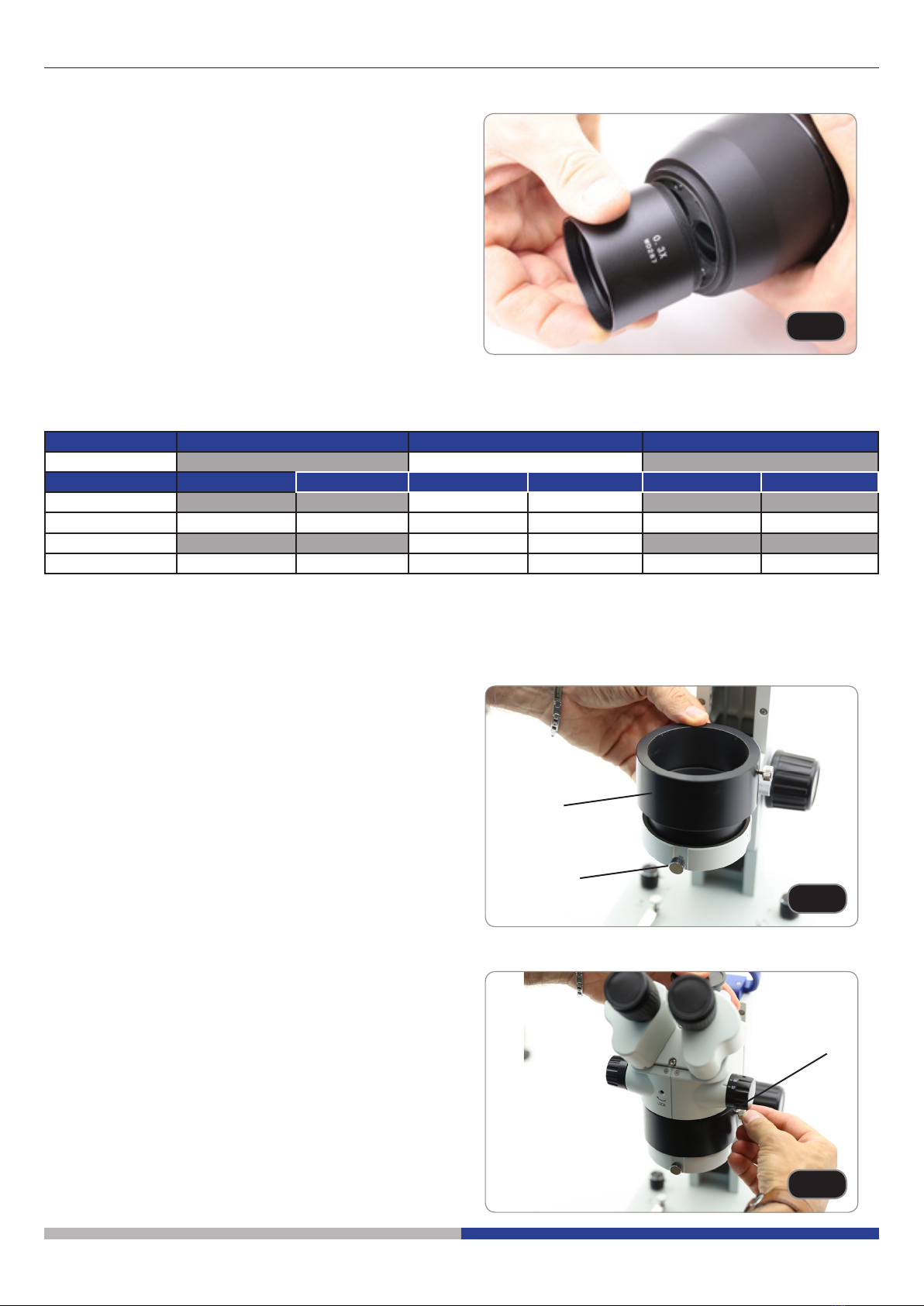

8.6.1 Use of 0.5X additional lens (ST-085.1)
0.5X additional lens has a Working Distance of 165
mm and therefore the total stroke of the focus pillar
cannot compensate.
In order to let the 0.5X additional lens working pro-
perly (when used with SLX-2 / SLX-3 models), pro-
ceed as follows:
1. Screw the additional lens on the microscope body
as already described in chapter 8.6.
2. Uninstall the microscope body from the head hol-
der.
3. Install the provided spacer ① in the head holder
and screw the xing knob ②.(Fig. 24)
4. Re-install the microscope body onto the spacer
and screw the xing knob ③.(Fig. 25)
5. Begin working normally.
③
②
①

Page 17
8.6.2 Use of 1.5X additional lens (ST-086.1)
1.5X additional lens has a Working Distance of 47
mm and, in case of very thin specimens (when wor-
king with SLX-2 / SLX-3 models), the microscope
cannot get a proper focus.
In order to overcome this e󰀨ect, the 1.5X lens is pro-
vided with a transparent spacer ④ that must be pla-

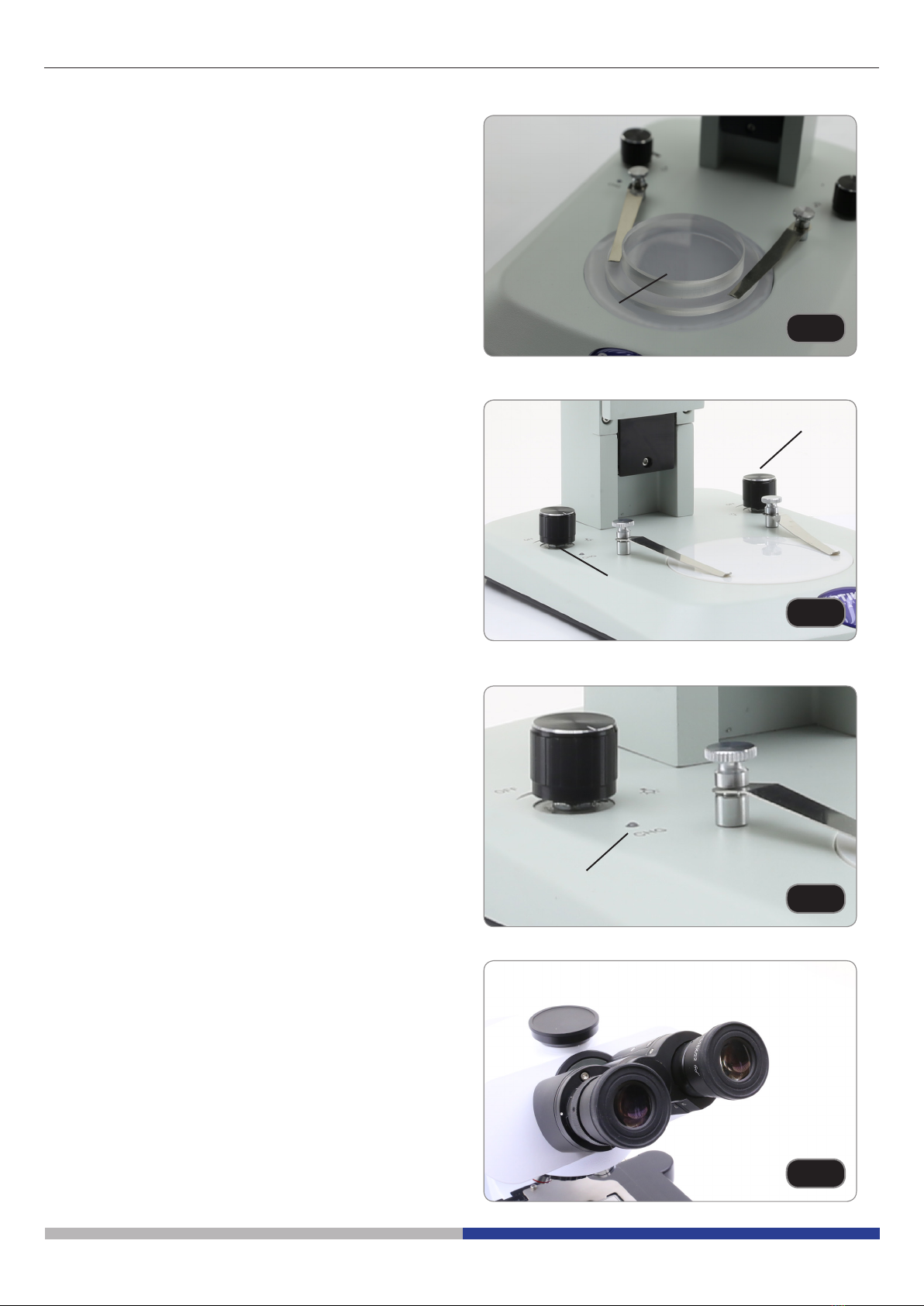

ced on the base plate (Fig. 26).
Once placed the transparent spacer, the user can put
the specimen on the spacer and begin the observa-
tion as usual.
8.7 Use of illumination
1. Turn the transmitted light knob ⑤ in order to turn
ON/OFF or to change the intensity of the transmit-
ted light LED. (Fig. 27)
2. Turn the incident light knob ⑥ in order to turn ON/
OFF or to change the intensity of the incident light
LED.
• It is possible to use both illuminations at the same
time.
8.8 Use with rechargeable batteries
When the power supply is connected to the micro-
scope socket, the “CHG” led ⑦ is lit. (Fig. 28)
RED light: battery with low charge or recharging
GREEN light: battery charged.
• NOTE: when the power supply is disconnected,
the CHG led is always o󰀨.
8.9 Use of eye shields
• Use with eyeglasses
Fold rubber eyeshields with both hands. Folded
eyeshields avoid scratching the lenses of eyeglasses.
(Fig. 29)
Fig. 28
⑦
Fig. 26
Fig. 27
④
⑤
⑥
Fig. 29

Page 18
• Use without eyeglasses
Raise eye shields and observe at the microscope
placing eyes to the shields, avoiding external light to
disturb the observation. (Fig. 30)
8.10 Use of overhanging stand
Moving the horizontal arm
1. Unlock the knob on the right side of the horizontal
arm ①. (Fig. 31)
2. The arm can be extended or shortened according
to specic needs. (Fig. 32)
Swivel the head
1. Unlock the xing knob ① and rotate the head to
the desired swivel angle (left or right), then tighten
the knob again. (Fig. 33)
Fig. 30
Fig. 31
Fig. 32
①
Fig. 33
②

Page 19
Rotating the horizontal arm
1. Loosen the horizontal arm xing knob ② and
rotate the arm, then tighten again the xing knob.
(Fig. 34)
• NOTE: 180° rotation of the microscope with
respect to the base could cause a rollover of
the entire system.
Fig. 34
③

Page 20
9. Microphotography
9.1 Use of C-mount adapter
1. Loosen the clamping screw ① on the trinocular
port and remove the dust cap ②. (Fig. 35)
2. Screw the C-mount adapter ③to the camera ④
and insert the round dovetail of the C-mount into
the empty hole of the trinocular port (Fig. 36),
then tighten the clamping screw ①.
9.2 Use of Reflex cameras
1. Insert the Reex adapter ① into the relay tube
②.
2. Screw the “T2” ring ③ (not provided) to the reex
adapter.
3. Connect the Reex camera ④ to the “T2” ring just
installed. (Fig. 37)
4. Mount the other end of the relay tube ② into the
empty hole of the trinocular port, then tighten the
clamping screw. (Fig. 35)
• “T2” ring is not provided along with the microsco-
pe, but is commercialy available.
• While shooting dark specimens, darken eyepie-
ces and viewnder with a dark cloth to miminize
the di󰀨used light.
• To calculate the magnication of the camera:
objective magnication * camera magnication *
lens magnication.
• When using an SLR camera, mirror mo-
vement may cause the camera to vibrate.
We suggest lifting the mirror, using long ex-
posure times and a remote cord.
Fig. 35
Fig. 36
Fig. 37
①
②
④
③
①②
③
④
