Optika Italy SZR Series User manual

Ver. 1.1 2022
INSTRUCTION MANUAL
SZR Series
Model
SZR-180

Page 2
Table of Contents
1. Warning 3
2. Safety Information 3
3. Package content 4
4. Unpacking 5
5. Intended use 5
6. Symbols and conventions 5
7. Instrument description 6
8. Assembling 8
9. Using the microscope 10
9.1 Adjusting interpupillary distance 10
9.2 Diopter compensation 10
9.3 Magnication 11
9.4 Use of aperture diaphragm 11
9.5 Use of trinocular port 11
9.6 Use of transmitted light illumination 12
9.7 Use of conversion lens 13
10. Microphotography 14
10.1 Installing the camera 14
10.2 Parfocality adjustment 14
11. Maintenance 15
12. Troubleshooting 16
Equipment disposal 17

Page 3
1. Warning
This microscope is a scientic precision instrument designed to last for many years with a minimum of maintenance. It
is built to high optical and mechanical standards and to withstand daily use. We remind you that this manual contains
important information on safety and maintenance, and that it must therefore be made accessible to the instrument users.
We decline any responsibility deriving from incorrect instrument use uses that does not comply with this manual.
2. Safety Information
Avoiding Electrical Shock
Before plugging in the power supply, make sure that the supplying voltage of your region matches with the operation voltage
of the equipment and that the lamp switch is in o󰀨 position. Users should observe all safety regulations of the region. The
equipment has acquired the CE safety label. However, users have full responsibility to use this equipment safely. Please
follow the guidelines below, and read this manual in its entirety to ensure safe operation of the unit.

Page 4
3. Package content
① Base
② Microscopebody
③ Objective
④ Observationhead
⑤ Eyepieces
⑥ Powersupply
⑦ Dustcover
③
④
①
②
⑤
⑥
⑦

Page 5
4. Unpacking
The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container and lift the
top half of the container. Take some care to avoid that the optical items (objectives and eyepieces) fall out and get dam-
aged. Using both hands (one around the arm and one around the base), lift the microscope from the container and put it
on a stable desk.
Do not touch with bare hands optical surfaces such as lenses, lters or glasses. Traces of grease or other
residuals may deteriorate the nal image quality and corrode the optics surface in a short time.
5. Intended use
Standard models
For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.
IVD Models
Also for diagnostic use, aimed at obtaining information on the physiological or pathological situation of the subject.
6. Symbols and conventions
The following chart is an illustrated glossary of the symbols that are used in this manual.
CAUTION
This symbol indicates a potential risk and alerts you to proceed with caution.
ELECTRICAL SHOCK
This symbol indicates a risk of electrical shock.

Page 6
7. Instrument description
OBSERVATION
HEAD
MICROSCOPE BODY
OBJECTIVE
APERTURE DIAPHRAGM
COARSE
FOCUS
KNOB
FINE
FOCUS
KNOB
MAIN
SWITCH
LIGHT
INTENSITY
ADJUSTMENT
KNOB

Page 7
Opposite side
LIGHT SPLIT
SELECTOR
TV PORT
CONVERSION
LENS LEVER
EYEPIECE
OIC CONTROL LEVER
BASE
COLUMN
ZOOM KNOB

Page 8
8. Assembling
FFig. 1ig. 1
FFig. 2ig. 2
FFig. 3ig. 3
FFig. 4ig. 4
1. Put the microscope base ①at on the workbench. (Fig. 1)
2. Align the holes of the connecting plate ② of the stand column
with the holes of the microscope base.
3. Use the provided xing screws to connect the base and the
column rmly.
④
①
②
⑤
⑥
4. Insert the zoom body dovetail ③into the ovetail of the focus
system ④. (Fig. 2).
5. Lock the xing screws ⑤.
6. Install the head by aligning the round dovetail of the head
with the hole of the microscope body. (Fig. 2)
7. Lock the xing screw ⑥.
8. Insert eyepieces into empty eyepieces sleeves. (Fig. 4)
③

Page 9
11. Plug the jack of the power supply in the socket of the micro-
scope base.
FFig. 5ig. 5

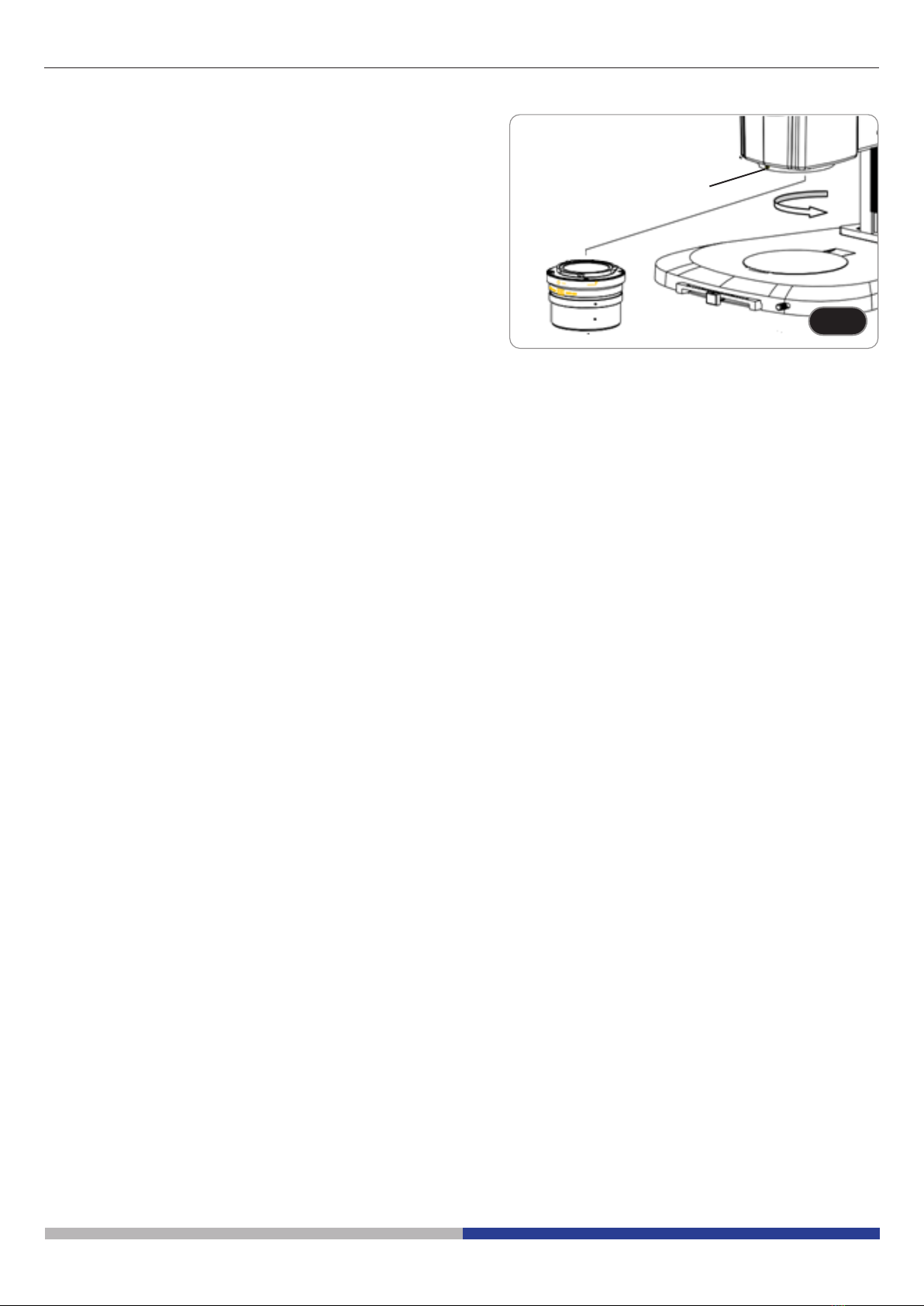

9. Screw the objective in the bottom part of the microscope
body. (Fig. 5)
10. Lock the objective by screwing the xing screw ⑦.
⑦

Page 10
FFig. 6ig. 6
FFig. 7ig. 7
FFig. 8ig. 8
②
①
9. Using the microscope
9.1 Adjusting interpupillary distance
1. Hold the right and left eyepiece tube with both hands and ad-
just the interpupillary distance by moving the two parts until
one circle of light can be seen. (Fig. 6)
• If two circles appear, the interpupillary distance is too big.
• If two overlapped circles appear, the interpupillary distance
is too small.
③④
9.2 Diopter compensation
• This compensation makes possible for people wearing
glasses to adjust the microscope to their eyes and use
the microscope without glasses.
1. Put the zoom down to the lowest magnication ① and focus
the specimen with the focusing knobs ②. (Fig. 7)
2. Put the zoom to the maximum magnication and repeat the
focusing.
3. Return to the lowest magnication: the specimen will be out
of focus.
4. Adjust the diopter compensation ring of the right eyepiece
③ (Fig. 8) until the image of the right eyepiece is clear and
sharp. Repeat the procedure for the left eyepiece ④.
5. Check the focus of the image for the whole zoom range. It
should be perfectly parfocal (focus is maintained during the
change of magnication).

Page 11
9.3 Magnication
1. Select the desired magnication by adjusting the zoom knob
①. (Fig. 9)
• Change the eyepieces if a di󰀨erent magnication range is
needed.
• The microscope body is equipped with a “click-stop”
function that allows to obtain a precise setting of the desired
magnication.
• Total magnication used can be calculated as:
Eyepiece magnication * Zoom magnication * Objective lens
magnication.
Eyepiece 10x
Field number (mm) 24
Objective Total Mag F.O.V (mm)
1X 7.5X - 135X 30.67 - 1.7
FFig. 10ig. 10
FFig. 11ig. 11
②
③
FFig. 9ig. 9
①
④⑤
9.4 Use of aperture diaphragm
By varying the diaphragm aperture, the user can adjust the image
to achieve better contrast and greater depth of eld. (Fig. 10)
1. Move the aperture diaphragm lever ② to the right or left.
Rotation towards “ ” opens the diaphragm while rotation
towards “ ” closes it.
2. Adjust the diaphragm during observation to optimize the
e󰀨ect on contrast and depth of eld.
• Do not close the diaphragm too tightly so as not to have
a poor image quality and not to have an excessively dark
image.
9.5 Use of trinocular port

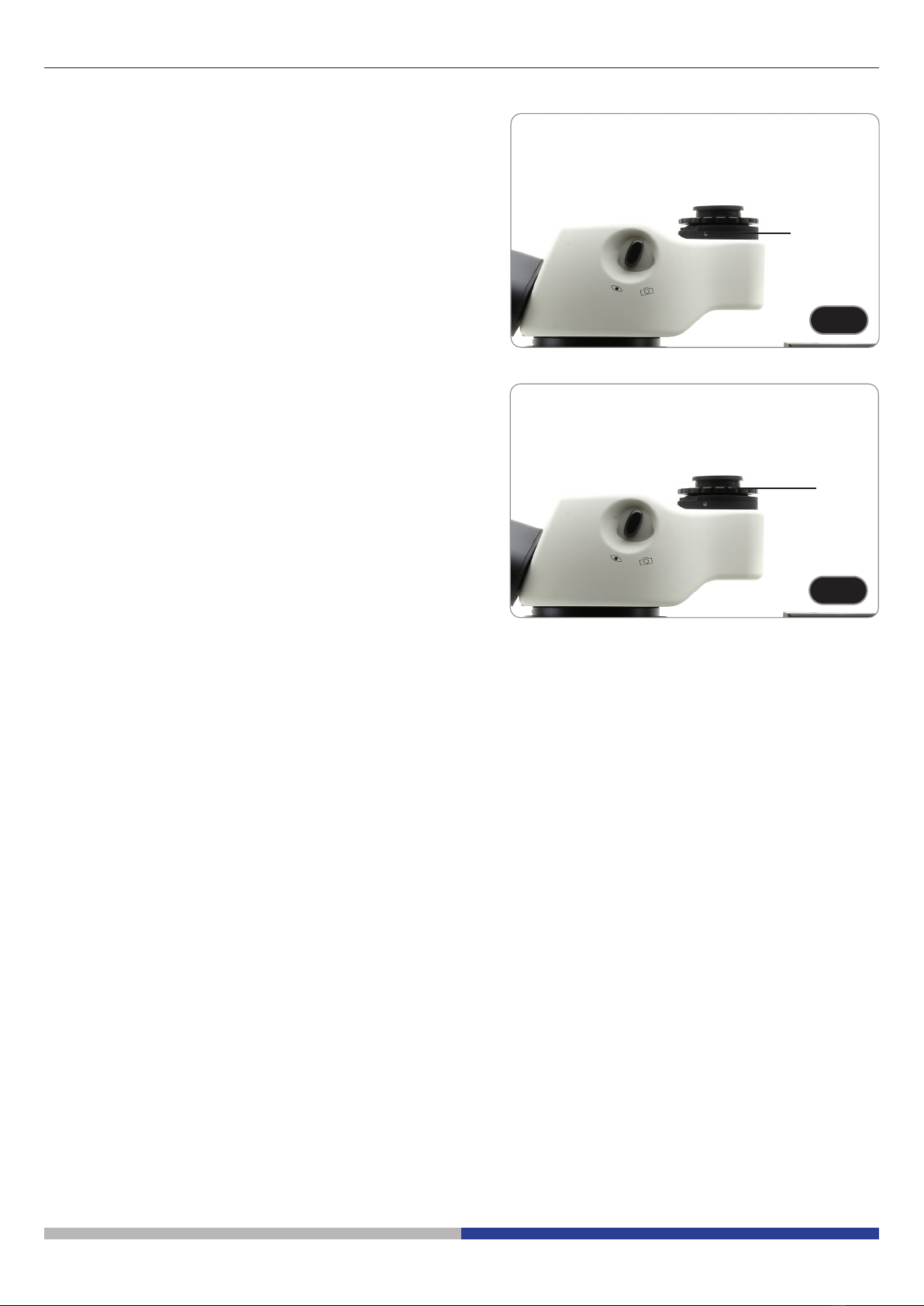

Observation head is equipped with a light split selector ③.(Fig.
11)
1. Moving the selector to the “eye” position ④ allows the
binocular observation.
2. Moving the selector to the “camera” position ⑤ allows the
trinocular observation.
• When the selector is in the “camera” position the right
eyepiece will be completely dark. This is not a defect.

Page 12
9.6 Use of transmitted light illumination

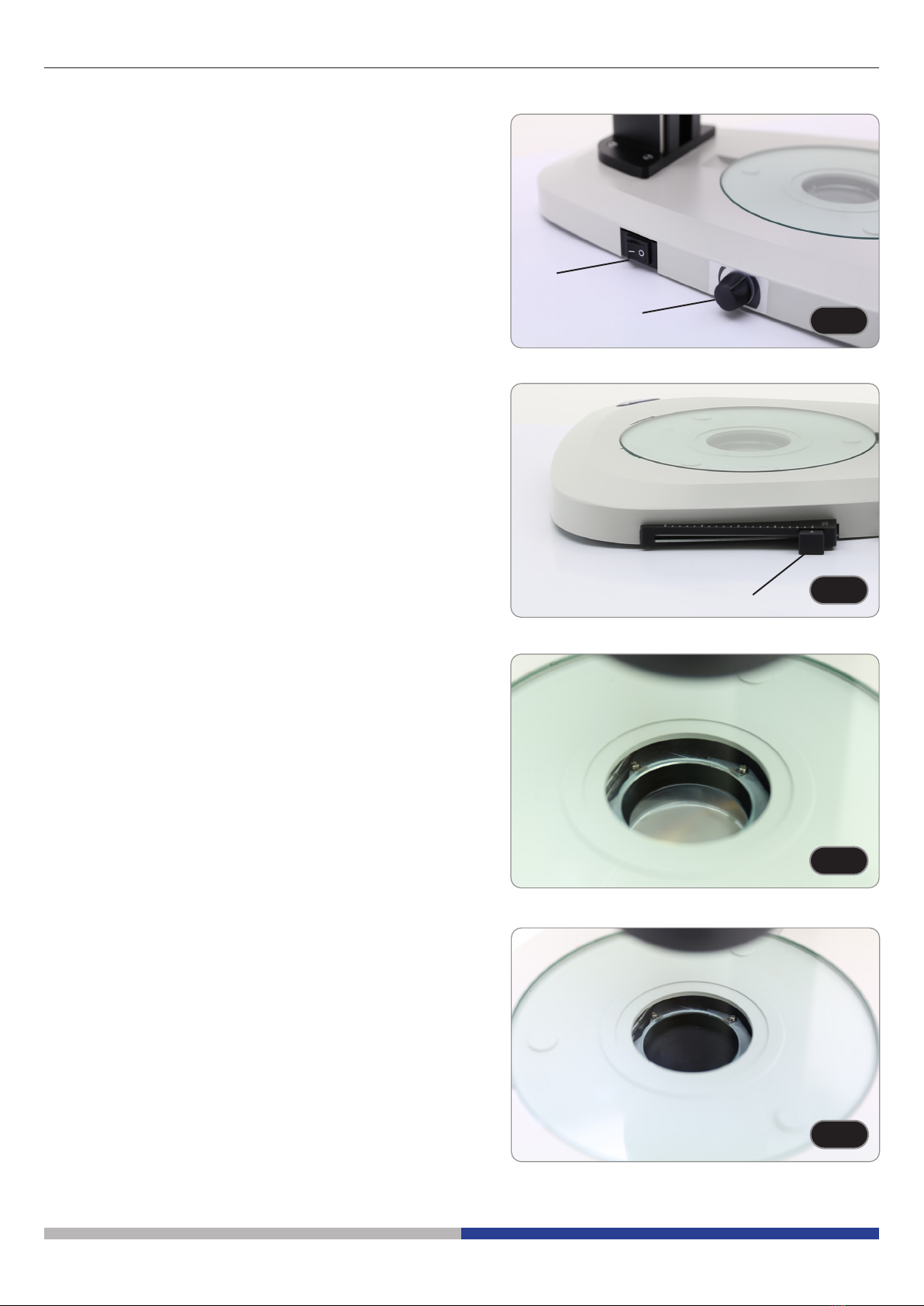

1. Set the main switch ① to “I” to turn on the base. (Fig. 12)
2. Turn the light intensity adjustment knob ② to adjust the
brightness to the sample under observation.
FFig. 12ig. 12
FFig. 13ig. 13
FFig. 14ig. 14
FFig. 15ig. 15
③
①
②
3. Move the lever ③ located on the right side of the base. (Fig.
13)
• This lever controls a black foil which slides horizontally along
the light exit.
• Using the OIC (Oblique Illumination Contrast) system allows
you to modulate the light to obtain three di󰀨erent types of
observation.
4. When the foil is outside the optical path (Fig. 14), brighteld
(BF) observation is obtained.
5. When the foil is completely inside the optical path (Fig. 15),
dark eld (DF) observation is obtained.

Page 13
FFig. 16ig. 16
FFig. 17ig. 17
①
6. Moving the foil to an intermediate position (Fig. 16) results in
the modulation of light called Oblique Illumination (OIC).
9.7 Use of conversion lens
• The conversion lens is used to optimize the light intensity
according to the objective in use. (Fig. 17)
1. Fully insert the lever ① when using 1.6x or 2x objectives.
2. Pull lever ① all the way out when using 0.5x or 1x objectives.
• There are currently no additional objectives available
other than the standard 1X objective.

Page 14
FFig. 18ig. 18
10. Microphotography
10.1 Installing the camera
1. Screw the camera on the provided C-mount adapter.
2. To obtain a perfect alignment of the camera with respect to
the eyepieces, loosen the xing screw ① on the C-mount
adapter, rotate the camera until correct alignment is achieved,
then tighten the screw. (Fig. 18)
①
10.2 Parfocality adjustment
In order to have the same focus when observing the specimen
through the eyepieces and on the screen/monitor, please check
that the microscope is properly installed and follow the instruc-
tions below.
1. Use a low power magnication and focus the specimen.
2. Reach the highest magnication available using the zoom
knob and then focus the specimen again.
3. Turn on the live-view on the camera, without changing the
focus on the microscope.
4. While observing the image on the screen/monitor, adjust the
focus by turning the knurled knob ② on the C-mount adapt-
er. (Fig. 19) FFig. 19ig. 19
②

Page 15
Operative environment
This microscope is recommended to be used in a clean, dry and shock free environment with a temperature of 5°-40°C and
a maximum relative humidity of 75 % (non condensing). Use a dehumidier if needed.
To think about when and after using the microscope
• The microscope should always be kept vertically when moving it and be careful so that no moving
parts, such as the eyepieces, fall out.
• Never mishandle or impose unnecessary force on the microscope.
• Never attempt to service the microscope yourself.
• After use, turn o󰀨 the light immediately, cover the microscope with the provided dust-cover, and keep
it in a dry and clean place.
Electrical safety precautions
• Before plugging in the power supply, make sure that the supplying voltage of your region matches
with the operation voltage of the equipment and that the lamp switch is in o󰀨- position.
• Users should observe all safety regulations of the region. The equipment has acquired the CE safety
label. However, users do have full responsibility to use this equipment safely.
Cleaning the optics
• If the optical parts need to be cleaned try rst to: use compressed air.
• If that is not su󰀩cient: use a soft lint-free piece of cloth with water and a mild detergent.
• And as a nal option: use the piece of cloth moistened with a 3:7 mixture of ethanol and ether.
• Note:ethanolandetherarehighlyammableliquids.Donotusethemnearaheatsource,nearsparksornear
electric equipment. Use these chemicals in a well ventilated room.
• Remember to never wipe the surface of any optical items with your hands. Fingerprints can damage the optics.
• Do not disassemble objectives or eyepieces in attempt to clean them.
Forthebestresults,usetheOPTIKAcleaningkit(seecatalogue).
If you need to send the microscope to Optika for maintenance, please use the original packaging.
11. Maintenance

Page 16
12. Troubleshooting
Review the information in the table below to troubleshoot operating problems.
PROBLEM CAUSE SOLUTION
I. Optical Section:
The illumination is ON, but the eld of
view is dark. The plug is not connected to the illu- mination Connect the cable
The brightness is too low Adjust to a proper setting
The edge of the eld of view is vignetted
or the brightness is asymmetric. The incident illuminator is not correctly oriented Change the angle of the incident illu- minator
Dust and stains can be seen in the eld
of view. There are stains and dust on the spec- imen Clean the specimen
There are stains and dust on the eye-
piece Clean the eyepiece
Poor image quality:
• The image is not sharp
• The contrast is not high
• The details are not clear
• Image glares
The lenses (additional lens, objective,
eyepieces) are dirt Throughly clean all the optical system
One side of the image is out of focus. The specimen is out of place (tilted) Place the specimen at on the stage.
II. Mechanical Section:
The focus knob is hard to turn. The tension adjustment collar is too
tight Loosen the tension adjustment collar
The focus is unstable. The tension adjustment collar is too
loose Tighten the tension adjustment collar
III. Electric Section:
The LED doesn’t turn on. No power supply Check the power cord connection
The brightness is not enough The brightness adjustment is low Adjust the brightness
The light blinks The power cord is poorly connected Check the power cord
IV. Viewing tube assembly:
The eld of view of the two eyes is dif-
ferent The interpupillary distance is not cor- rect Adjust the interpupillary distance
The diopter correction is not right Adjust the diopter correction
The viewing technique is not correct,
and the operator is straining the eye-
sight
When look into the eyepieces, do not
stare at the specimen but look at the
whole eld of view. Periodically, move
the eyes away to look at a distant ob-
ject, then back into the eyepieces
V. Microphotography and video:
The image is unfocused Incorrect focusing Adjusting the focus system as in the
present manual
Bright patches appear on the image Stray light is entering the microscope
through the eyepieces and through the
camera viewnder
Cover the eyepieces and the viewnd-
er with a dark cloth

Page 17
Art.13 Dlsg 25 July 2005 N°151. “According to directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to the reduc-
tion in the use of hazardous substances in electrical and electronic equipment and waste disposal.”
The basket symbol on equipment or on its box indicates that the product at the end of its useful life should be collected sep-
arately from other waste. The separate collection of this equipment at the end of its lifetime is organized and managed by
the producer. The user will have to contact the manufacturer and follow the rules that he adopted for end-of-life equipment
collection. The collection of the equipment for recycling, treatment and environmentally compatible disposal, helps to pre-
vent possible adverse e󰀨ects on the environment and health and promotes reuse and/or recycling of materials of the equip-
ment. Improper disposal of the product involves the application of administrative penalties as provided by the laws in force.
Equipment disposal

OPTIKA S.r.l.
Via Rigla, 30 - 24010 Ponteranica (BG) - ITALY Tel.: [phone]
[email protected] - www.optikamicroscopes.com
OPTIKA Spain
[email protected]
OPTIKA USA
[email protected]
OPTIKA China
[email protected]
OPTIKA India
[email protected]
OPTIKA Central America
[email protected]
®
®
®
®
®
®

Ver. 1.1 2022
Serie SZR
MANUALE DI ISTRUZIONI
Modello
SZR-180

Pagina 20
Sommario
1. Avvertenza 21
2. Informazioni sulla sicurezza 21
3. Contenuto della confezione 22
4. Disimballaggio 23
5. Uso previsto 23
6. Simboli 23
7. Descrizione dello strumento 24
8. Assemblaggio 26
9. Uso del microscopio 28
9.1 Regolazione della distanza interpupillare 28
9.2 Compensazione diottrica 28
9.3 Ingrandimento 29
9.4 Uso del diaframma di apertura 29
9.5 Use della porta trinoculare 29
9.6 Uso dell’illuminazione in luce trasmessa 30
9.7 Uso della lente di conversione 31
10. Microfotografia 32
10.1 Installazione della camera 32
10.2 Regolazione della parafocalità 32
11. Manutenzione 33
12. Guida alla risoluzione dei problemi 34
Smaltimento 35
