Optoma BM-5001U Guide

Description Qty. Part #
A
main plate 1 055-1939
Bextension bracket 4 055-1940
Cprecision gear projector mount 1 055-KPRGU-B-3
D10-32 x 3/8" socket pin serrated washer head screw 2520-1151
E10-32 x 1/4" socket pin with lock patch 1 520-1196
F4 mm security allen wrench 1560-9646
G6.5 ID x 17.8 OD x 1.6 mm flat washer 2540-1078
H#14 x 2.5 hex phillips wood screw 2 5S1-015-C03
Ialligator anchor 2 590-0097
J2 mm security allen wrench 1560-1097
K#4 flat washer 8 540-1049
L.219 ID x .5 OD x .125 spacer 6540-1032
M.219 ID x .5 OD x .25 spacer 4540-9413
N#8 flat washer 8540-1001
OM3 x 12 mm socket pin serrated washer head screw 4 510-1003
PM4 x 16 mm socket pin serrated washer head screw 4510-1087
QM4 x 8 mm socket pin serrated washer head screw 4510-1005
RM6 x 16 mm socket pin screw 4520-1132
AA connection block 1580-1065
Parts List
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Installation and Assembly:
Optoma Universal Projector Mount By Peerless
B
C
A
DE
H
F
IJ
KL
NOTE: The following pages show the attachment points and hardware required to attach main plate
to projectors.
NOTE: Before installation review the directory on page 2 to nd projector conguration.
MNO P Q R
3215 W. North Ave. • Melrose Park, IL 60160 • [phone] or [phone] • Fax: [phone] • www.peerlessmounts.com
G
Model: BM-5001U This product is intended for use with UL
Listed products and must be installed by a
qualied professional installer.

Max Load Capacity: 50 lb (22.6 kg)
AA

Locate Projector Model, Corresponding Page
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
2 of 11
1
Projector Config. Page Screw Projector Config. Page Screw Projector Config. Page Screw Projector Config. Page Screw
DS611 F 7 4 EP1691 D 6 4 HD200X A 4 3 TW775 I 8 6
DS316 A 4 3 EP7155 D 6 4 HD640 A 4 3 TW1692 D 6 4
DS317 F 7 4 ES520 F 7 4 HD700X A 4 3 TWR1693 J 9 3
DV11 A 4 3 ES522 F 7 4 HD710 A 4 3 TX532 F 7 4
DX606V A 4 3 ES526 A 4 3 HD803 E 6 4 TX536 A 4 3
DX607 J 9 3 ET700XE A 4 3 HD806 E 6 4 TX542 A 4 3
DX608 B 5 3 EW536 A 4 3 HD808 I 8 6 TX612 A 4 3
DX609V A 4 3 EW1610 A 4 3 HD930 E 6 4 TX615 A 4 3
DX612 F 7 4 EX530 F 7 4 HD980 E 6 4 TX727 A 4 3
DX617 F 7 4 EX525S
T
H 8 4 HD2200A 4 3 TX728 A 4 3
DX619 A 4 3 EX532 F 7 4 HD6800 B 5 3 TX735 F 7 4
EP620 A 4 3 EX536 A 4 3 HD7000 A 4 3 TX761 A 4 3
EP721 A 4 3 EX542 A 4 3 HD7200 E 6 4 TX763 A 4 3
EP726S A 4 3 EX612 A 4 3 HD8000 E 6 4 TX765W G 7 4
EP727 A 4 3 EX615 A 4 3 HD8000‐L
V
E 6 4 TX770 A 4 3
EP728 A 4 3 GT700 A 4 3 HD8200 I 8 6 TX771 J 9 3
EP738 A 4 3 GT720 A 4 3 HD806ISF E 6 4 TX773 B 5 3
EP741 A 4 3 HC815 E 6 4 HD8600 I 8 6 TX774 J 9 3
EP751 C5 3 HD20 A 4 3 HT720 A 4 3 TX775 J 9 3
EP758 C 5 3 HD22 A 4 3 HT108
0
E 6 4 TX778W G 7 4
EP759 C 5 3 HD32 A 4 3 HT120
0
E 6 4 TX779 K 10 4
EP761 A 4 3 HD65 A 4 3 PRO150S A 4 3 TX780 C 5 3
EP763 A 4 3 HD66 A 4 3 PRO350
W
A 4 3 TX785 I 8 6
EP747 B 5 3 HD70 A 4 3 PRO450W A 4 3 TX782W G 7 4
EP770 A 4 3 HD71 A 4 3 PRO520X A 4 3 TX1080 E 6 4
EP771 J 9 3 HD72 B 5 3 TH106
0
K 10 4 TX7155 D 6 4
EP772 J 9 3 HD80 E 6 4 TS526 A 4 3 TX7156 D 6 4
EP774 J 9 3 HD80‐LV E 6 4 TS721 A 4 3 TXR774 J 9 3
EP780 C 5 3 HD82I 8 6 TS725 F 7 4
EP910 E 6 4 HD86 I 8 6 TW536 A 4 3
EP1690 B 5 3 HD180 A 4 3 TW766
W
G 7 4
ProjectorModelDirectory

Place projector mount assembly (C) on ceiling as a template and mark the center of the two mounting holes. Make
sure that the mounting holes are in the center of the wood joist. Drill two 5/32” (4 mm) dia. holes to a minimum
depth of 2.5” (64 mm). Attach projector mount assembly (C) with two #14 x 2.5” (6 mm x 65 mm) wood screws (H)
and two 1/4” at washers (G) as shown in gure 2.1 or gure 2.2 depending on joist orientation.
Note: Mounting slots on projector mount assembly (C) allow for 30° (±15°) of swivel adjustment before fully
securing wood screws.
Tighten wood screws (H) using 3/8” (10 mm) socket wrench, phillips screwdriver or 10 mm open end wrench until
projector mount assembly (C) is rmly attached.
Installation To Wood Joist Ceilings
HH
GG
2
• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
• Tighten wood screws so that projector mount assembly is rmly attached, but do not overtighten. Overtightening
can damage the screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an “edge to edge” stud nder
is highly recommended.
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-
ers are responsible to provide hardware for other types of mounting situations.
WARNING
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
3 of 11
FRONT OF
MOUNT
ARROW ON TOP OF PRO-
JECTOR MOUNT ASSEM-
BLY INDICATES FRONT
OF MOUNT
WOOD JOIST
WOOD JOIST
CC
g. 2.1 g. 2.2

Note: Refer to to the Projector Mount Directory for projector mounting pattern and fasteners.
SHOULDER
FRONT OF
PROJECTOR
1Attach plate (A) to projector using three
M3 x 12 mm socket pin serrated washer head
screws (O), #4 at washers (K) and spacers (L).
2
CONFIGURATION A
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
4 of 11
LA
O
K
LD
Note: When attaching extension brackets (B) be sure to keep fasteners in the center of the slot.
POSITION SCREW,
SPACER AND WASHER
IN CENTER OF SLOT
B
CORRECT
INCORRECT

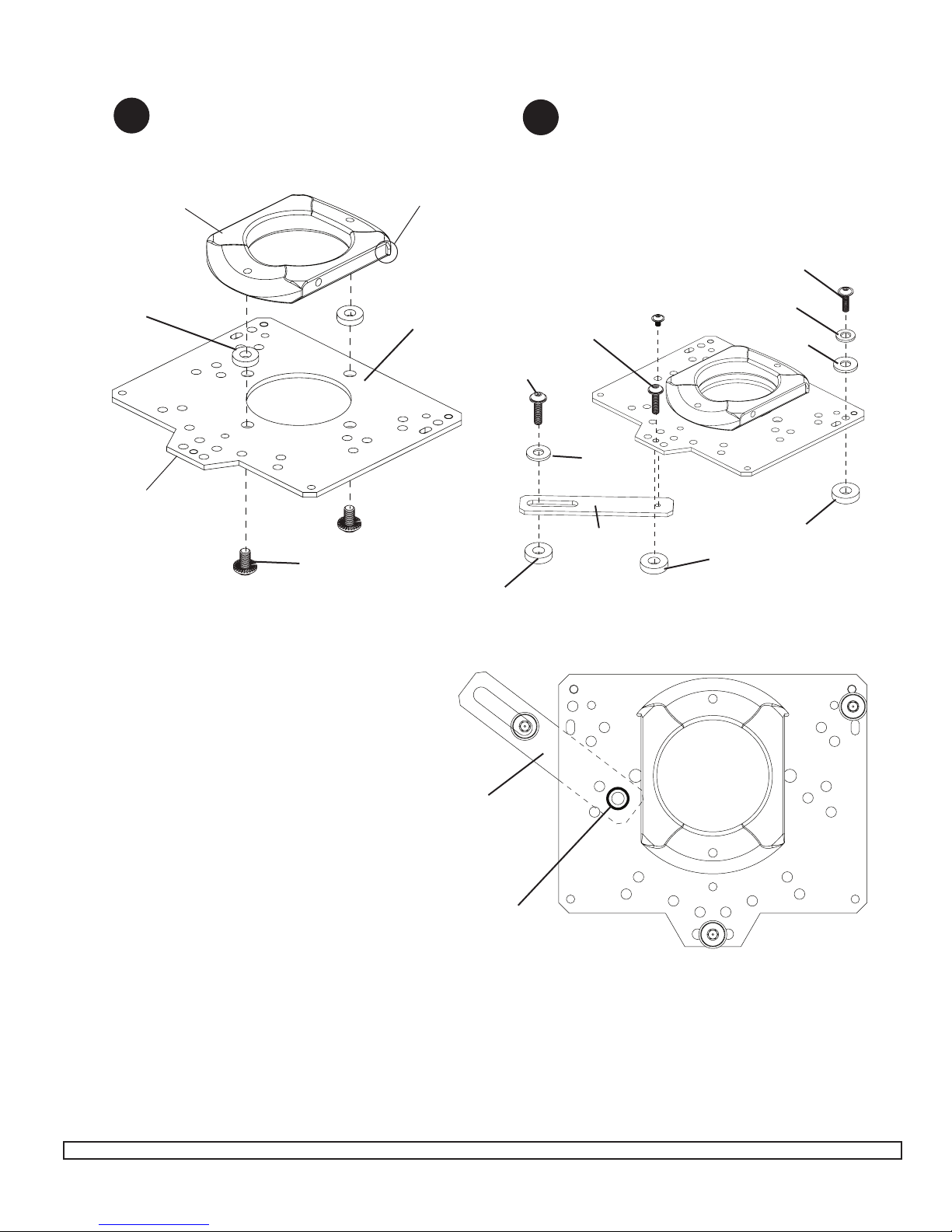

Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
(used in PRG) and .219 ID x .5 OD x .125 spac-
ers (L).
AA

12
2
1
CONFIGURATION B
CONFIGURATION C
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
5 of 11
SHOULDER
FRONT OF
PROJECTOR
A
L
SHOULDER
FRONT OF
PROJECTOR
C
LA
O
K
L
O
K
L
D
D

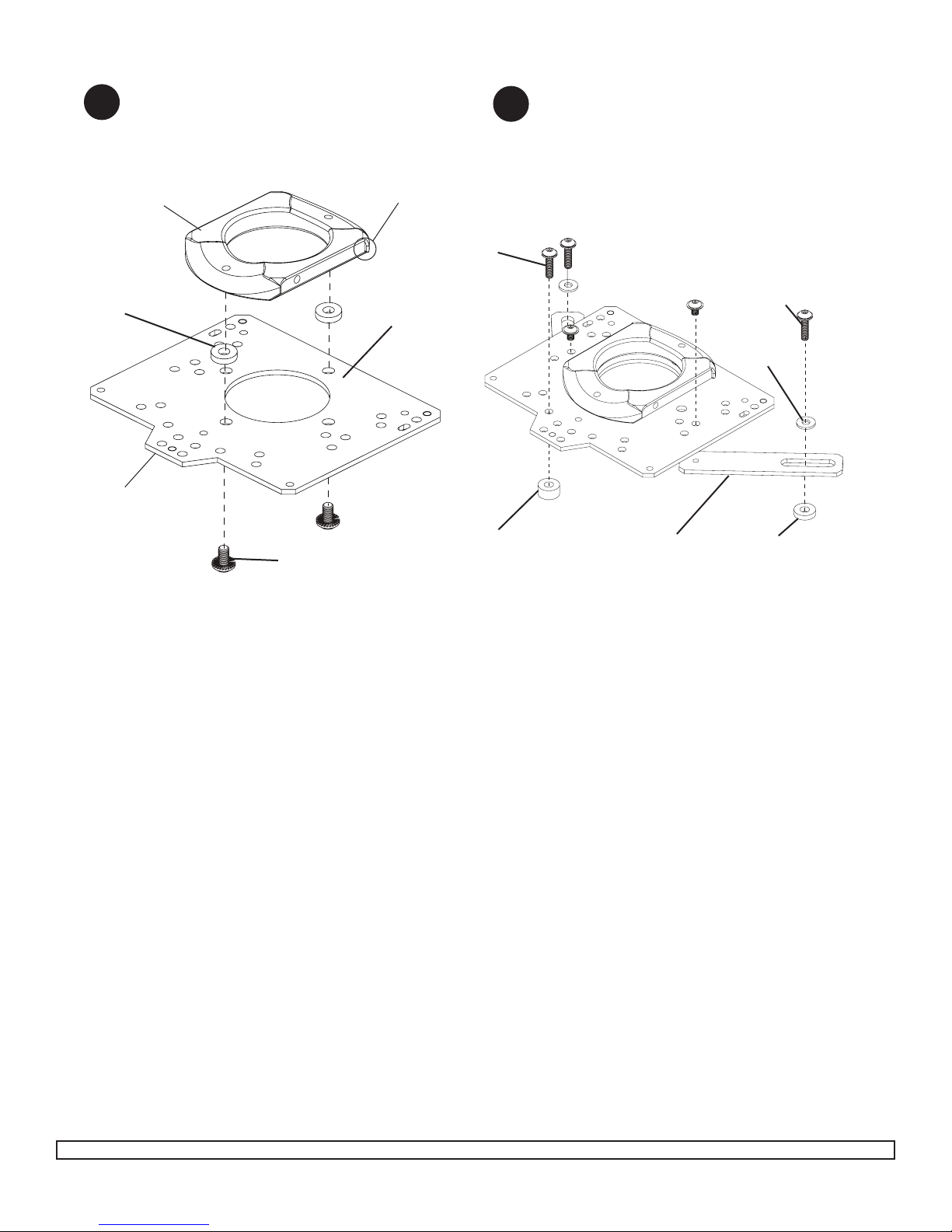

Attach plate (A) to projector using four
M3 x 12 mm socket pin serrated washer head
screws (O), #4 at washers (K) and spacers (L).
Attach plate (A) to projector using three
M3 x 12 mm socket pin serrated washer head
screws (O), #4 at washers (K) and spacers (L).
CORRECT
INCORRECT
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
AA
AA

2
1
12
CONFIGURATION D
CONFIGURATION E
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
6 of 11
SHOULDER
LA
SHOULDER
FRONT OF
PROJECTOR
LA
FRONT OF
PROJECTOR
P
M
O
K
L
Q
D
D
B

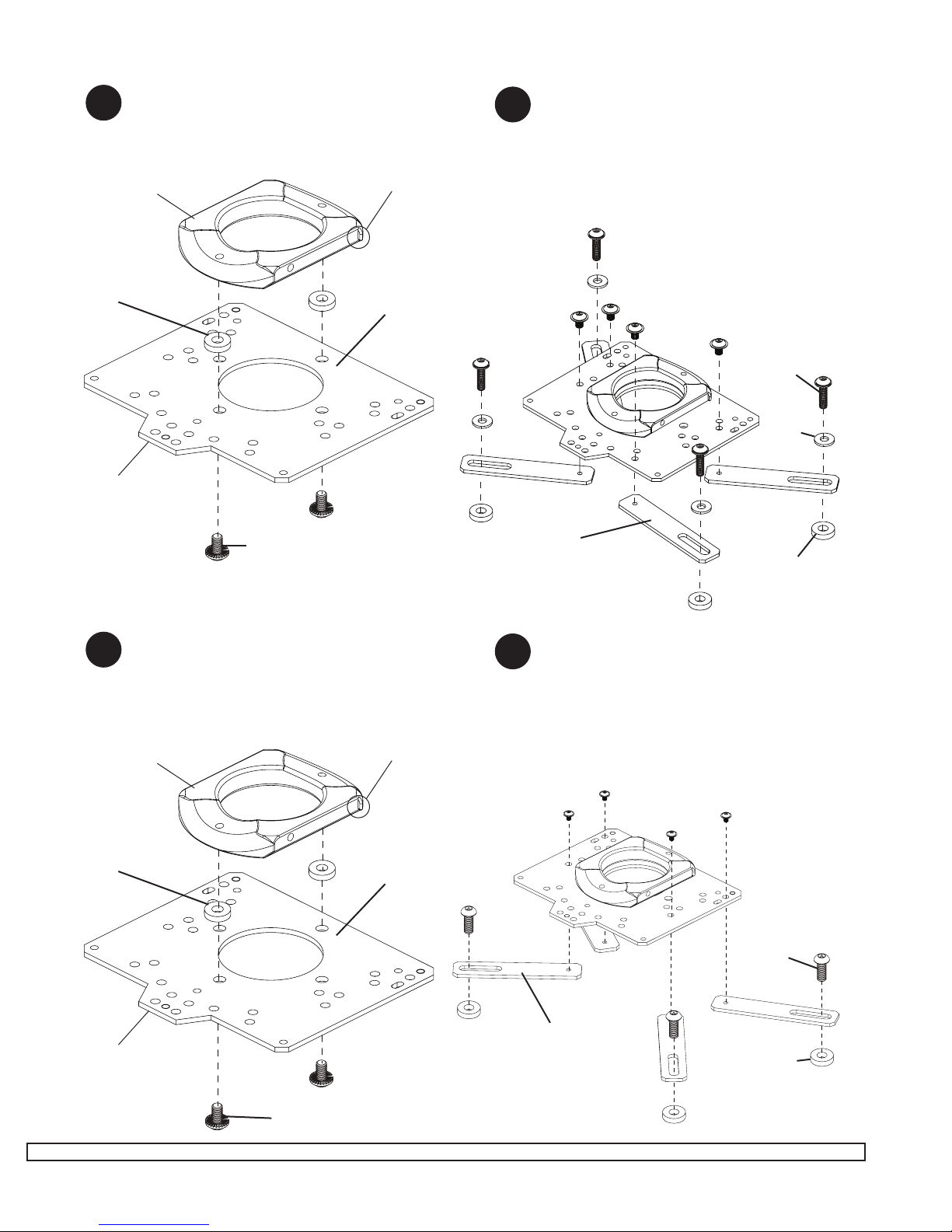

Attach plate (A) to projector using three
M4 x 16 mm socket pin serrated washer head
screws (P), and spacer (M).
Attach three extension brackets (B) to plate
(A) using three M4 x 8 mm serrated socket pin
screws (Q). Attach extension brackets (B) to
projector using three .125” spacers (L), #4 at
washers (K), and three M3 x 12 mm socket pin
serrated washer head screws (O).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
AA
AA

1Attach two extension brackets (B) to plate
(A) using two M4 x 8 mm serrated socket pin
screws (Q). Attach plate (A) to projector using
one .25” spacer (M), and one M3 x 12 mm
screw (O). Attach extension brackets (B) to
projector using two M3 x 12 mm screws (O),
at washers (K), and .125” spacers (L).
2
2
1
CONFIGURATION F
CONFIGURATION G
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
7 of 11
SHOULDER
FRONT OF
PROJECTOR
LA
SHOULDER
FRONT OF
PROJECTOR
LAO
K
L
Q
O
K
L
Q
D
D
B
B
M
Attach three extension brackets (B) to plate
(A) using three M4 x 8 mm serrated socket pin
screws (Q). Attach extension brackets (B) to
projector using three .125” spacers (L), #4 at
washers (K), and three M3 x 12 mm socket pin
serrated washer head screws (O).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
O
AA
AA

12
12
CONFIGURATION H
CONFIGURATION I
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
8 of 11
SHOULDER
FRONT OF
PROJECTOR
LA
SHOULDER
FRONT OF
PROJECTOR
LA
O
K
L
Q
R
L
Q
D
D
B
B
Attach four extension brackets (B) to plate
(A) using four M4 x 8 mm serrated socket pin
screws (Q). Attach extension brackets (B) to
projector using four .125” spacers (L), #4 at
washers (K), and four M3 x 12 mm socket pin
serrated washer head screws (O).
Attach four extension brackets (B) to plate
(A) using four M4 x 8 mm serrated socket pin
screws (Q). Attach extension brackets (B) to
projector using four .125” spacers (L), and four
M6 x 16 mm socket pin serrated washer head
screws (R).
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
Attach connection block (AA) to plate (A)
using two #10-32 x 3/8” serrated socket pin
screws (D) and .219 ID x .5 OD x .125 spac-
ers (L).
AA
AA

12
CONFIGURATION J
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
9 of 11
SHOULDER
FRONT OF
PROJECTOR
LA
O
K
L
L
DBL
K
N
O
O
Q
Attach one extension bracket (B) to plate (A)
using one M4 x 8 mm serrated socket pin
screw (Q). Attach plate (A) to projector using
two .125” spacers (L), one #4 at washer (K),
one #8 at washer (N) and two M3 x 12 mm
screws (O). Attach extension bracket (B) to
projector using one M3 x 12 mm screw (O),
at washers (K), and .125” spacers (L).
Attach connection block (AA) to plate (A)
using two #10-32 x 3/8” serrated socket
pin screws (D) and .219 ID x .5 OD x .125
spacers (L).
Q
B
TOP VIEW
FRONT OF PROJECTOR
AA

1Attach two extension brackets (B) to plate
(A) using two M4 x 8 mm serrated socket pin
screws (Q). Attach plate (A) to projector using
one .25” spacer (M), and one M4 x 16 mm
screw (P). Attach extension brackets (B) to
projector using two M4 x 16 mm screws (P),
at washers (K), and .125” spacers (L).
2
CONFIGURATION K
SHOULDER
FRONT OF
PROJECTOR
LAP
K
L
Q
DB
M
Attach connection block (AA) to plate (A) using
two #10-32 x 3/8” serrated socket pin screws (D)
and .219 ID x .5 OD x .125
spacers (L).
P
AA
ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
10 of 11

ISSUED: 04-20-09 SHEET #: 056-9019-7 09-07-10
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.
11 of 11
Slide connection block (AA) with precision gear projector mount (C) as shown. Tighten captive screw to secure
precision gear projector mount (C).
• Do not lift more weight than you can handle. Use additional man power or mechanical lifting equipment to safely
handle placement of the screen.
WARNING
Attaching Adapter Plate to Projector Mount
AA
C
FRONT OF MOUNT
CAPTIVE SCREW
ARROW
INDICATES
FRONT OF
MOUNT
3
IMPORTANT: For security installations, insert one #10-32 x 1/4" socket pin screw (E) through precision gear pro-
jector mount (C) and into connection block (AA) as shown. Tighten screw using 4mm security allen wrench (F).
C
E
4
AA
