Oriental motor TM Series User manual

Table of contents
HM-9413-3
Torque Motor and Power Controller
Package TM Series
OPERATING MANUAL
(Motor) (Power controller)
Thank you for purchasing an Oriental Motor product.
This operating manual describes product handling procedures and safety precautions.
•Please read it thoroughly to ensure safe operation.
•Always keep the manual where it is readily available.
1 Introduction.....................................2
2 Safety precautions..........................3
3 Precautions for use.........................6
4 Preparation.....................................7
4.1 Checking the product....................7
4.2 List of combinations ......................7
4.3 Information about nameplate ........8
4.4 Names and functions of parts .......9
4.5 Installing/removing the cover ........9
5 Installation.....................................10
5.1 Location for installation ...............10
5.2 Installing the motor......................10
5.3 Installing the power controller .....12
5.4 Mounting the capacitor................12
5.5 Conformity to the EMC
Directive......................................12
6 Connection....................................14
6.1 Connection terminals ..................14
6.2 Connection example ...................16
6.3 Connecting the main circuit
terminals......................................18
6.4 Connecting the control circuit
terminals......................................19
7 Operation......................................23
7.1 Basic operations..........................23
7.2 Torque setting using an external
potentiometer or external DC
voltage.........................................24
7.3 Timing chart.................................26
7.4 Parallel operation........................27
7.5 Adjustment using the torque
ne-tuning potentiometer ............28
8 Alarm output .................................29
8.1 Alarm output signal circuit...........29
8.2 Timing chart.................................30
9 Switching between sink logic and
source logic...................................31
10 Maintenance and inspection.........35
10.1 Inspection....................................35
10.2 Product warranty.........................35
10.3 Disposal ......................................35
11 Troubleshooting and remedial
actions ..........................................36
12 Peripheral equipment
(sold separately)...........................38

−2−
Introduction
1 Introduction
1.1 Before using the motor
Only qualied personnel of electrical and mechanical engineering should work with the product.
Use the product correctly after thoroughly reading the section “2 Safety precautions” on p.3.
In addition, be sure to observe the contents described in warning, caution, and note in this manual.
The product described in this manual has been designed and manufactured to be incorporated in general
industrial equipment. Do not use for any other purpose. Oriental Motor Co., Ltd. is not responsible for any
damage caused through failure to observe this warning.
1.2 Overview of the product
Power controller torque-controls a torque motor based on open-loop phase control. When an open state of
the built-in thermal protector of the motor is detected, the power controller will cause the ALARM LED to
blink and turn the alarm output OFF to prevent the motor from restarting upon automatic reset of the thermal
protector.
1.3 Standard and CE Marking
 UL Standards, CSA Standards
The motors are recognized by UL under the UL and CSA Standards.
The power controller is recognized by UL under the UL Standards.
 CE Marking
This product is axed with the marks under the following directives.
•Low Voltage Directive
Installation conditions
Motor Power controller
Overvoltage category:Ⅱ
Pollution degree: 2
Degree of protection: IP20
Protection against electric shock: ClassⅠ
Overvoltage category:Ⅱ
Pollution degree: 2
Degree of protection: IP20
Protection against electric shock: ClassⅡ
If the overvoltage category Ⅲ and pollution degree 3 are required for the equipment, install the motor and
power controller in an enclosure whose degree of protection is equivalent to IP54 or higher, and supply a
rated voltage via the insulation transformer.
•This product cannot be used in IT power distribution systems.
•Isolate the cable for connecting between the motor and the driver, the power supply cable and other drive
cables from the signal cables by means of double insulation.
•EMC Directive
Refer to “5.5 Conformity to the EMC Directive” on p.12 for details about conformity.
 RoHS Directive
This products do not contain the substances exceeding the restriction values.
 CCC System
The motors are axed with the CCC Marking under the China Compulsory Certication System. It is also
certied by CQC.
 Republic of Korea, Radio Waves Act.
KC Mark is axed to this product under the Radio Waves Act, the republic of Korea.

−3−
Safety precautions
2 Safety precautions
The precautions described below are intended to prevent danger or injury to the user and other personnel
through safe, correct use of the product. Use the product only after carefully reading and fully understanding
these instructions.
Warning
Handling the product without observing the instructions that accompany a
“Warning” symbol may result in serious injury or death.
Caution
Handling the product without observing the instructions that accompany a
“Caution” symbol may result in injury or property damage.
NoteNote
The items under this heading contain important handling instructions that the
user should observe to ensure safe use of the product.
Explanation of graphic symbols
Indicates "prohibited" actions that must
not be performed. Indicates "compulsory" actions that must be performed.
Warning
Do not use the product in explosive or corrosive environments, in the presence of ammable gases,
in places subjected to splashing water, or near combustibles. Doing so may result in re, electric
shock or injury.
Do not transport, install the product, perform connections or inspections when the power is on.
Always turn the power o󰀨 before carrying out these operations. Failure to do so may result in
electric shock.
Do not forcibly bend, pull or pinch the lead wire or cable. Doing so may result in re and electric
shock.
Do not change the power frequency while the power controller is receiving power. Doing so may
result in re or equipment damage.
Do not touch the terminal block of the power controller’s motor and power immediately after the
power is turned o󰀨 (for a period of 1 minute). This may cause electric shock.
Do not disassemble or modify the motor and power controller. This may cause electric shock or
injury.
Only qualied and educated personnel should be allowed to perform installation, connection,
operation and inspection/troubleshooting of the product. Handling by unqualied and uneducated
personnel may result in re, electric shock, injury or equipment damage.
The motor is Class Ⅰequipment. Install the motor so as to avoid contact with hands, or ground it
to prevent the risk of electric shock.
Install the motor and power controller in their enclosures in order to prevent electric shock or injury.
The supply voltage input to the power controller should correspond to the supply voltage
specication of the motor. If the two power supplies do not match, re or equipment damage may
occur.
As for the DC power supply (+24 V) for the control circuit of the power controller, use a power
supply with overcurrent protection function, or install an overcurrent protection device (such as a
fuse) in the output section. Failure to take these measures may result in re or equipment damage.
Connect the cables securely according to the wiring diagram in order to prevent re and electric
shock.
Be sure to observe the specied cable sizes. Use of unspecied cable sizes may result in re.
Be sure to insulate the connection terminal of the capacitor. Failure to do so may result in electric
shock.
To prevent electric shock, be sure to install the power controller’s after making connections.

−4−
Safety precautions
Warning
Turn o󰀨 the power in the event of a power failure, or the motor may suddenly start when power is
restored and may cause injury or damage to equipment.
Turn o󰀨 the power in the event the overheat protection device (thermal protector) is triggered.
Failure to do so may result in injury or damage to equipment, since the motor will start abruptly
when the overheat protection device (thermal protector) is automatically reset.
Caution
Do not use the motor and power controller beyond the specications, or electric shock, injury or
damage to equipment may result.
Do not hold the motor output shaft or motor lead wires. This may cause injury.
Keep the area around the motor and power controller free of combustible materials. Failure to do
so may result in re or a skin burn(s).
Do not leave anything around the motor and power controller that would obstruct ventilation. Doing
so may result in damage to equipment.
Do not install an electromagnetic contactor or power relay between the motor and power controller.
If the direction is switched between forward and reverse using an electromagnetic contactor, etc.,
equipment damage may occur.
To prevent bodily injury, do not touch the rotating parts (output shaft) of the motor during operation.
Do not touch the terminals during the insulation resistance measurement or dielectric strength test.
Failure to do so may result in electric shock.
If the alarm output of the power controller has turned OFF, remove the cause of the problem and
then reset the alarm. Failure to do so may result in injury or equipment damage.
Use a power controller and motor only in the specied combination. An incorrect combination may
cause a re.
Provide an emergency stop device or emergency stop circuit external to the equipment so that the
entire equipment will operate safely in the event of a system failure or malfunction. Failure to do so
may result in injury.
Turn on the power to the power controller after turning OFF the CW input and CCW input (to stop
the motor). Failure to do so may cause the motor to start suddenly and result in injury or equipment
damage.
Immediately when trouble has occurred, stop running and turn o󰀨 the power controller power.
Failure to do so may result in re, electric shock or injury.
The power controller allows for easy adjustment of motor torque. Before starting the inverter,
thoroughly check the allowable speed ranges of the motor and equipment. Failure to do so may
result in injury.
The motor surface temperature may exceed 70 °C (158 °F) even under normal
operating conditions. If the operator is allowed to approach a running motor, attach
a warning label as shown in the gure in a conspicuous position. Failure to do so
may result in skin burn(s). Warning label
Conduct the insulation resistance measurement or dielectric strength test separately on the motor
and the power controller. Conducting the insulation resistance measurement or dielectric strength
test with the motor and power controller connected may result in injury or damage to equipment.

−5−
Safety precautions
 Warning labels
Warnings are indicated on the cover of the power controller.
Always observe such information when handling the power
controller.

−6−
Precautions for use
3 Precautions for use
This chapter explains the limitations and other items the user must note when using the motor, power controller.
•Always use the power controller with Oriental Motor’s torque motor.
Check the permitted power controller/motor combinations in “4.4 Names and functions of parts” on p.9.
•If your equipment needs to be able to actuate an emergency stop of the motor, provide
a mechanical function to stop the motor and hold its position.
Once the thermal protector of the motor is actuated (becomes open), output from the power controller will
stop. However, the protective function alone cannot stop the motor immediately. If your equipment needs to
be able to actuate an emergency stop of the motor, provide a mechanical function to stop the motor and hold
its position.
•Do not install an electromagnetic contactor or power relay between the motor and
power controller.
If the direction is switched between forward and reverse using an electromagnetic contactor, etc., the power
controller may be damaged.
•Connect a protective device to the primary power circuit.
Install a protective device between the power supply and inverter to protect the inverter’s primary circuit.
For details on selecting an appropriate protective device for this purpose, refer to the following to select a
protective device.
Circuit breaker or earth leakage breaker
Motor rated voltage Single-phase 100-115 V Single-phase 200-230 V
Ratings of protective device 125 VAC 5 A (quick cuto󰀨 type) 250 VAC 3 A (quick cuto󰀨 type)
If an earth leakage breaker is to be used, use one with a current sensitivity of 10 mA or more.
•Cable size and wiring distance
Use a power cable and motor cable of AWG18 to 14 (0.75 to 2.0 mm2) in size.
The maximum extendable wiring distance between the motor and power controller is 20 m (65.6 ft.). If the
wiring distance between the power controller and motor must exceed 20 m (65.6 ft.), please contact your
nearest Oriental Motor branch or sales oce.
Minimize the length of the signal cable. Also, wire the control lines away from the main circuits, relay
sequence circuits and other high-power circuits of peripherals, in order to prevent induction by peripherals.
•Noise elimination
See “5.5 Conformity to the EMC Directive” on p.12 for measures with regard to external noise.
•Grease measures
On rare occasions, grease may ooze out from the gearhead. If there is a concern over possible environmental
damage resulting from the leakage of grease, provide an oil tray or similar oil catching mechanism in order
not to cause a secondary damage.
Grease leakage may lead to problems in the customer’s equipment or products.

−7−
Preparation
4 Preparation
This section covers the points to be checked along with the names and functions of the respective parts.
4.1 Checking the product
Verify that the items listed below are included. Report any missing or damaged items to the branch or sales
oce from which you purchased the product.
Conrm the model of the unit against the model name shown on the package label.
Conrm the models of the motor, gearhead and power controller against the model names shown on their
respective nameplates.
•Motor ......................................... 1 unit
•Power controller ........................ 1 unit
•Capacitor ................................... 1 piece
•Capacitor cap ............................. 1 piece
•Instructions and Precautions for
Safe Use .................................... 1 copy
Combination type only
•Mounting screw ................................. 1 set
(Mounting screws, hexagonal nuts, washers,
spring washers 4 pieces each, parallel key 1 piece.*)
*A parallel key is included with motors having key
grooves on the output shaft.
4.2 List of combinations
Model names for motor, capacitor, gearhead and power controller are shown below.
•“” in the unit model represents a number indicating the gear ratio for combination types. This symbol
is “GN” for pinion shaft types, and “A” for round shaft types. “” in the gearhead model represents a
number indicating the gear ratio.
“S” in the unit model is appended only for combination types.
•With round shaft types, “GN” in the motor model is replaced by “A.”
•On combination types, the motor and gearhead come preassembled.
•Gearheads are sold separately for pinion shaft types.
•100/110/115 V type
Model name Motor model Capacitor model Gearhead model Power controller model
TM203A-SJ 2TK3GN-AW2 CH70CFAUL2 2GNS
TMP-1
TM203A-SU CH60CFAUL2
TM306A-SJ 3TK6GN-AW2 CH110CFAUL2 3GNS
TM306A-SU CH90CFAUL2
TM410A-SJ 4TK10GN-AW2 CH140CFAUL2 4GNS
TM410A-SU CH110CFAUL2
TM520A-SJ 5TK20GN-AW2 CH180CFAUL2 5GNS
TM520A-SU CH140CFAUL2
•200/220/230 V type
Model name Motor model Capacitor model Gearhead model Power controller model
TM203C-SJ 2TK3GN-CW2 CH18BFAUL 2GNS
TMP-1
TM203C-SE CH15BFAUL
TM306C-SJ 3TK6GN-CW2 CH30BFAUL 3GNS
TM306C-SE CH25BFAUL
TM410C-SJ 4TK10GN-CW2 CH35BFAUL 4GNS
TM410C-SE CH30BFAUL
TM520C-SJ 5TK20GN-CW2 CH45BFAUL 5GNS
TM520C-SE CH40BFAUL

−8−
Preparation
4.3 Information about nameplate
 Motor
MODEL
TORQUE MOTOR
ORIENTAL MOTOR CO.,LTD.
TOKYO 110-8536 JAPA NMADE IN JAPA N
фսդ͹ؠ଍૴ڑ࠵Ԉߑ
Ӳଭ֌դ͹Бސ௛ଇ߼ڔѫ Ӳଭ֪͹ޙߎ
ଋࢽґܔ͹ࢽґܔ
Motor model
Motor specifications
Serial number
Manufacturing
date
 Power controller
Serial numbe
r
Power controller specifications
Manufacturing date
TMP-1 Model
The position describing the information may vary depending on the product.

−9−
Preparation
4.4 Names and functions of parts
The gure shows a view with the cover removed. After connection, be sure to install the cover.
6
1
2
3
4
Mounting holes
8
5
7
DIN lever
Mounting holes
100230V㹼
CAPACITOR
BLK RED WHT
1234
567
MOTOR
LN
SOURCE SINK
5V10V
Y0 C0 VH VM VL C2 C3
24V 0V X0 X1 X2 X3 C1
No. Name Description
1 POWERLED (green) This LED will be lit when the AC power supply is input to the
power controller.
2 ALARM LED (red) This LED will blink when an alarm occurs. TheALARM output
will become OFF (H level). (→ p.29)
3Internal torque potentiometer
(TORQUE) This potentiometer is used to set the motor torque. (→ p.23)
4Torque ne-tuning potentiometer
(ADJUST) This potentiometer is used to ne-tune the variation in motor torque relative to the torque setting. (→ p.28)
5 Sink/source input selector switch Used for switching the input circuit between sink and source
logic modes. (→ p.31)
6 External DC voltage select switch When external DC voltage is used to set the torque, change the setting of this switch in accordance with the actual external DC
voltage to be used. Select either 5 V or 10 V. (→ p.25)
7 Control circuit terminal Connect the control DC power supply and I/O signal cable.
(→ p.15)
8 Main circuit terminal Connect the AC power supply, motor and capacitor. (→ p.14)
4.5 Installing/removing the cover
•How to remove the cover
Pull the cover strongly toward you, and the cover will come o.
•How to install the cover
1.Insert the two hooks at the bottom of the cover into the corresponding holes in the controller
body.
2.Push in the cover by using the two tabs at the top of the cover as guides.
Push in the cover all the way until you hear a “click”

−10−
Installation
5 Installation
This chapter explains the installation location and installation methods of the motor, power controller, as well
as how to install a load. The installation and wiring methods in compliance with the EMC Directive are also
explained.
5.1 Location for installation
This motor, power controller is designed and manufactured for installation in equipment.
Install it in a well-ventilated place satisfying the following conditions, where the inverter can be inspected
easily:
•Inside an enclosure installed indoors
•Operating ambient temperature
Motor: 100 V, 200 V −10 to +50 °C (+14 to +122 °F) (non-freezing)
110/115 V, 220/230 V −10 to +40 °C (+14 to +104 °F) (non-freezing)
Power controller: 0 to +50 °C (+32 to +122 °F) (non-freezing)
•Operating ambient humidity 85% or less (non-condensing)
•Area that is free of explosive atmosphere or toxic gas (such as sulfuric gas) or liquid
•Area free from combustibles
•Area not exposed to direct sun
•Area free of excessive amount of dust, iron particles or the like
•Area not subject to splashing water (rain, water droplets), oil (oil droplets) or other liquids
•Area free of excessive salt
•Area not subject to continuous vibration or excessive shocks
•Area free of excessive electromagnetic noise (from welders, power machinery, etc.)
•Area free of radioactive materials, magnetic elds or vacuum
•Altitude of 1000 m (3300 ft.) or less
5.2 Installing the motor
 Combination type

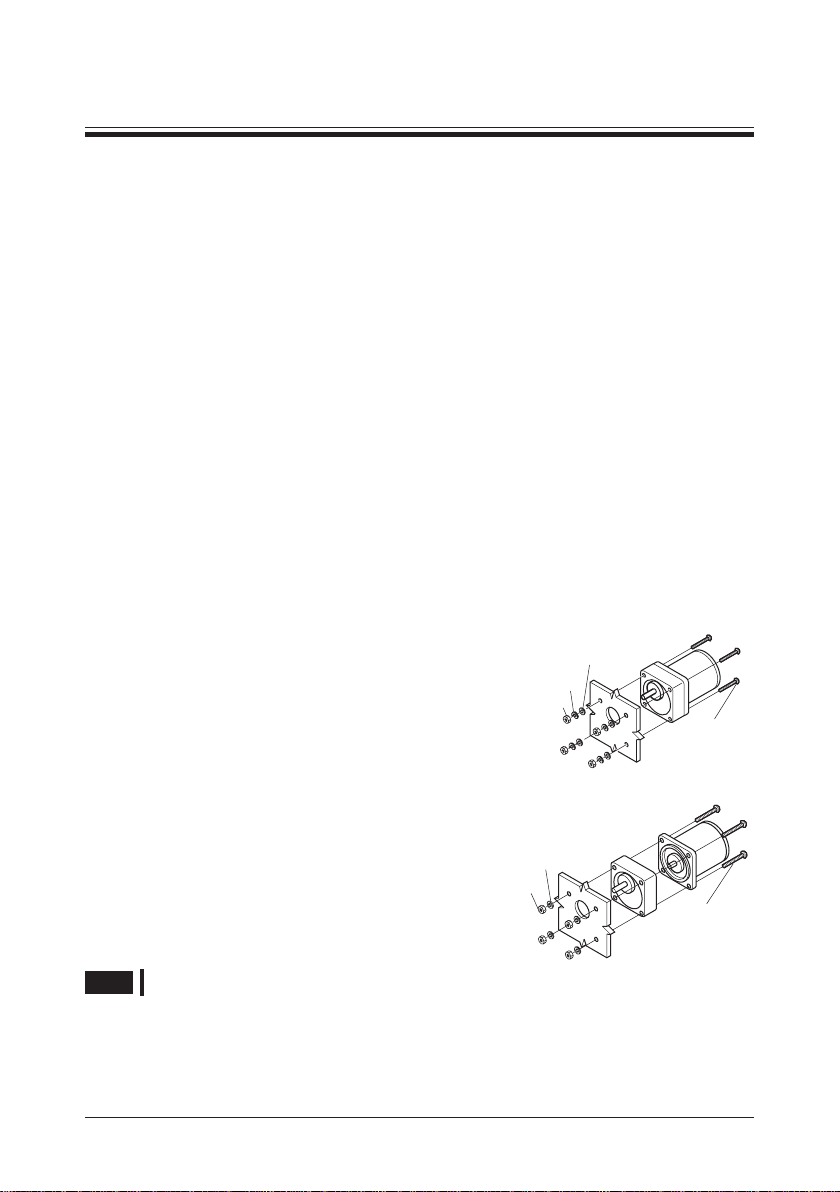

Drill holes on the mounting plate and x the motor and gearhead
on the plate using four screws (supplied).
Pay attention not to create a gap between the motor/gearhead
assembly and the installation surface.
Motor
Screw
(supplied)
Gearhead
Washer
Spring
washer
Nut
Mounting plate
 Pinion shaft type
Drill holes on the mounting plate and x the motor and gearhead
on the plate using screws supplied with the gearhead. Be careful
there is no gap between the motor ange and the gearhead.
For details of installation, see the operating manual supplied
with the gearhead, which is sold separately.
Motor
Gearhead
Screw supplied
with gearhead
Mounting plate
Nut
Washer
Note Use the gearhead with pinion shaft which is identical with one of motor.

−11−
Installation
 Rround shaft type
Drill holes on the mounting plate and x the motor on the plate using screws, nuts, and washers (not supplied).
Be careful there is no gap between the motor installation surface and the bracket.
Motor model Nominal diameter
of screw Tightening torque [N·m (lb-in)] Motor
Mounting
screw
Mounting plate
Nut
Washer
2TK3 M4 2.0 (17.7)
3TK6 M5 2.5 (22)
4TK10
5TK20 M6 3.0 (26)
Note Do not insert the motor into the mounting hole at an angle or force it in, as this may scratch the
ange pilot section and damage the motor.
 Attaching load
To shaft of the gearhead has been machined to an outer
diameter tolerance of h7 and is provided with a key slot for
connecting the transmission parts.
(The 2GN type has a surface cut by milling.)
When connecting the transmission parts, ensure that the
shaft and parts have a clearance t, and always x the
parallel key to the output shaft with a screw to prevent the
parts from rattling or spinning.
Motor
Gearhead
Parallel key
Fixing screw
Transmission parts
Note Do not use excessive force, or hammer the transmission parts onto the gearhead shaft as
damage may occur.
 Removing/Installing the gearhead
See the following steps to replace the gearhead or to change the outlet position of the lead wires.
Removing the gearhead from the motor
Remove the hexagonal socket head screws
(2 pieces) assembling the motor and gearhead
and detach the motor from the gearhead.
Hexagonal socket head screw
Installing the gearhead to the motor
1.Keep the pilot sections of the motor and
gearhead in parallel, and assemble the
gearhead with the motor while slowly
rotating it clockwise/counterclockwise.
At this time, note so that the pinion of the
motor output shaft does not hit the side
panel or gears of the gearhead strongly.
Pinion of
the motor
output shaft
Pilot section
Assemble the gearhead to the motor in a condition
where the motor output shaft is in an upward direction.
Side panel
2.Check no gaps remain between the motor and gearhead, and tighten them with hexagonal
socket head screws (2 pieces).
After the motor and gearhead have been assembled, install the motor/gearhead assembly using mounting
screws by referring to the explanation under “Combination type” on p.10.
Note
•Do not forcibly assemble the motor and gearhead. Also, do not let metal objects or other
foreign matters enter the gearhead. The pinion or gear of the motor output shaft may be
damaged, resulting in noise or shorter service life.
•The hexagonal socket head screws used to assemble the motor and gearhead together only
tentatively secure the two components. Always use the four supplied mounting screws when
installing the motor/gearhead assembly.

−12−
Installation
5.3 Installing the power controller
Install the power controller on a DIN rail or secure the controller directly onto the target structure using screws
installed through the two mounting holes provided in the controller body.
 Installation on DIN rail
Use a DIN rail 35 mm (1.38 in.) wide to mount the power controller. When removing from DIN rail , pull the
DIN lever.
 Using screws
Secure the power controller with two screws (M4: not supplied) through the two mounting holes provided.
Tightening torque: 0.7 N·m (6.2 lb-in)
5.4 Mounting the capacitor
Mount the capacitor securely by using M4 screws (not provided).
Ø4.3 mm
(0.169 in.)
Note
•Do not let the screw fastening torque exceed 1 N·m (8.8 lb-in) to
prevent damage to the mounting foot.
•Mount capacitor at least 10 cm (3.94 in.) away from the motor.
If it is located closer, the life of the capacitor will be shortened.
5.5 Conformity to the EMC Directive
Eective measures must be taken against the EMI that the motor and power controller may give to adjacent
control system equipment, as well as the EMS of the motor and power controller itself, in order to prevent
a serious functional impediment in the machinery. The use of the following installation and wiring methods
will enable the motor and power controller to be compliant with the EMC directive.
Oriental Motor conducts EMC testing on its motors and power controllers in accordance with “Example of
installation and wiring” on p.13. The user is responsible for ensuring the machine's compliance with the
EMC Directive, based on the installation and wiring explained below.
Caution
This equipment is not intended for use in residential environments nor for use
on a low-voltage public network supplied in residential premises, and it may not
provide adequate protection to radio reception interference in such environ-
ments.
 Connecting a mains lter for power supply line
Connect a mains lter in the AC input line to prevent the noise generating in the power controller from
irradiating out via the power supply lines.
Use the following product or an equivalent mains lter.
Manufacturer Model
Scha󰀨ner EMC FN2070-10-06
SOSHIN ELECTRIC CO., LTD NF2010A-UP
•Install the mains lter at a position as close as possible to the inverter. Also, use cable clamps, etc., to
securely ax the input and output cables of the mains lter to the enclosure in order to prevent the cables
from separating from the enclosure surface. Use as thick a cable as possible to connect the grounding
terminal of the mains lter to a grounding point over the minimum distance.
•Do not wire the AC input cable and the mains lter’s output cable in parallel. Doing so may allow the noise
in the enclosure to enter the power supply cable via stray capacitance and compromise the eect of the
mains lter.

−13−
Installation
 Connecting surge arrester
Use a surge arrester or equivalent as below.
Manufacturer Model
SOSHIN ELECTRIC CO., LTD LT-C12G801WS
OKAYAELECTRIC INDUSTRIES CO., LTD. R·C·M-601BQZ-4
PHOENIX CONTACT GmbH & Co. KG VAL-MS 230 VF ST
Note When measuring dielectric strength of the equipment, be sure to remove the surge arrester, or
the surge arrester may be damaged.
 Grounding methods
To prevent an electric potential dierence from generating at a grounding point, ground each of the motor
and mains lter over the minimum distance using as thick a cable as possible. Provide a wide, thick and
uniform conductive surface at each grounding point.
 Connecting the motor cable
Connect the motor using a cable of 20 m (65.5 ft.) or shorter. For the connection method, refer to “6.3
Connecting the main circuit terminals” on p.18.
 Wiring the control cable
Wire each control cable of the power controller over the minimum distance using a shielded cable. For the
applicable cable, refer to “6.4 Connecting the control circuit terminals” on p.19.
 Wiring a shielded cable
Ground each shielded cable using a metal cable
clamp that contacts the entire periphery of the
shielded cable. Install the cable clamp at the tip of
the shielded cable and connect it to an appropriate
grounding point.
Cable clamp
Shielded cable
 Notes about installation and wiring
•Connect the motor directly to their grounding points so as not to generate dierence in grounding electrical
potential between the motor/inverter and control system equipment nearby.
•If a relay or electromagnetic switch is used with the inverter, connect a mainslter or surge absorber to
absorb any surge voltage that may generate from the relay or electromagnetic switch.
•Minimize the wiring length of each cable and do not loop or bundle any extra length.
•Wire the power cables such as the motor cable and power supply cable separately from the control cables,
and keep a minimum distance of 100 mm (3.94 in.) between the two sets of cables. Also keep as much
distance as possible between the AC input cable and output cable of the mains lter.
 Example of installation and wiring
Motor
Capacitor
Power controller
Control cables [2 m (6.6 ft)]
(shielded cable)
Power supply cable
(shielded cable)
Motor cable [20 m (65.5 ft.)]
Grounded panel
Mains filter
Cable
clamp Surge arrester
Cable
clamp

−14−
Connection
6 Connection
This chapter explains the connection method of the power controller, power supply and motor as well as the
connection example.
6.1 Connection terminals
The gure shows a view with the cover removed. After connection, be sure to install the cover.
100230V㹼
CAPACITOR
BLK RED WHT
1234
567
MOTOR
LN
SOURCE SINK
5V10V
Y0 C0 VH VM VL C2 C3
24V 0V X0 X1 X2 X3 C1
Main circuit terminals
Control circuit terminal
•Main circuit terminals
Terminal No. Terminal name Name Description
1 N AC power supply
connection terminal Connect the AC power supply. N: neutral, L: live
2 L
3CAPACITOR Capacitor connection
terminal Connect the capacitor.
4
5 BLK Motor connection
terminal Connect the motor. BLK: black, RED: red, WHT: white
6 RED
7 WHT

−15−
Connection
•Control circuit terminal
Terminal
No. Name Description
24V +DC24 V Connect the DC power supply (24 V) for control circuit.
0V 0 V
X0 CW input Control the rotating direction of the motor and run/stop actions. If
both inputs are turned ON simultaneously, the motor will stop.
X1 CCW input
X2 INT/EXT
switching input Switch between external and internal torque potentiometer.
X3 ALARM RESET
input Clear the alarm condition.
C1
IN-COM0 Sink: 0 V / Source: 24 V (The polarity changes according to whether the sink logic or
source logic is selected.)
Y0 ALARM output Output the alarm signals. Once generated, an alarm will be held
until it is reset (26.4 V, 40 mA or less).
This output remains ON (L level) in a normal condition, and will
turn OFF (H level) when an alarm occurs.
C0 OUT-COM
VH VH input Torque can be set using the external torque potentiometer or
external DC voltage.
VM VM input
VL VL input
C2 IN-COM1 (0 V)
Used in common with 0 V terminal for the power controller control
circuit. (Input signal common: 0 V)
Connect these terminals to the GND line of the external power
supply when using the source logic.
C3
Note
•As for the DC power supply (+24 V) for the control circuit of the power controller, use a
power supply with overcurrent protection function, or install an overcurrent protection device
(such as a fuse) in the output section. Failure to take these measures may result in re or
equipment damage.
•If the internal power supply is used while the source logic is selected, do not connect
anything to the C2 and C3 terminals. If these terminals are shorted due to miswiring, the
power controller may be damaged.

−16−
Connection
6.2 Connection example

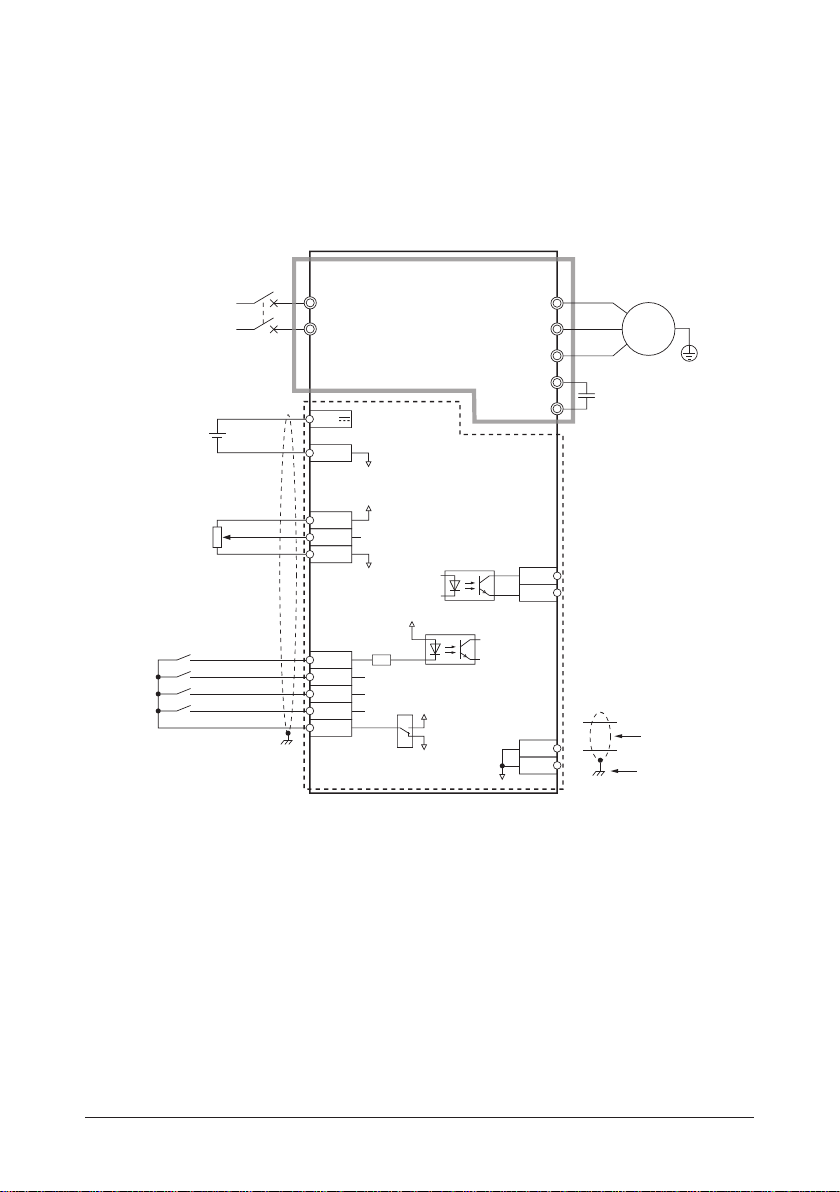

 Sink logic:
SINK/SOURCE input selector switch is set to the SINK position.
The connection example explained in this section assumes that the motor is operated using relays and
switches.
An DC power supply (24 VDC) is needed to control the power controller.
∗3
∗1
0 V
+24 V
WHT 7
RED 6
BLK 5
VL
1 N
MOTOR
2 L
X0
X1
X2
X3
C1
VH
VM Torque command voltage
Output circuit
Circuit breaker
Input signals CW
CCW
INT/EXT
ALARM-RESET
This indicates a
shielded cable.
This indicates a frame
or enclosure.
0 V Y0
Main circuit
Control circuit∗2
Input circuit
Selector
switch
+24 V
4.7 kΩ
Peripheral equipment
PAVR-20KZ
(20 kΩ1/4 W)
Power controller
C0
I/O signal connection
Motor cable connection
I/O signal connection
Torque setting via
an external potentiometer
C3
C2
0 V
+5 V
0 V
24 V
24 VDC±10%
100 mA
4
3
CAPACITOR Capacitor
100-115 VAC
or
200-230 VAC
Motor
Control DC power supply
Power
supply
*1Power-supply input for the power controller should be the same as the power supply voltage of the motor.
*2The control circuit is a SELV circuit. It is isolated from dangerous voltages by means of protective
isolation based on reinforced insulation. The power supply and other devices connected to the control
circuit terminals should be isolated from dangerous voltages by reinforced insulation.
*3The input signals X0 to X3 and C1 are based on sequence connection of mechanical contact or sink
transistor type.
Note that the mechanical contacts and transistors connected to the input signals X0 to X3 should have a
leak current of not more than 1 mA.
Refer to p.22 for connection
of output signals.

−17−
Connection

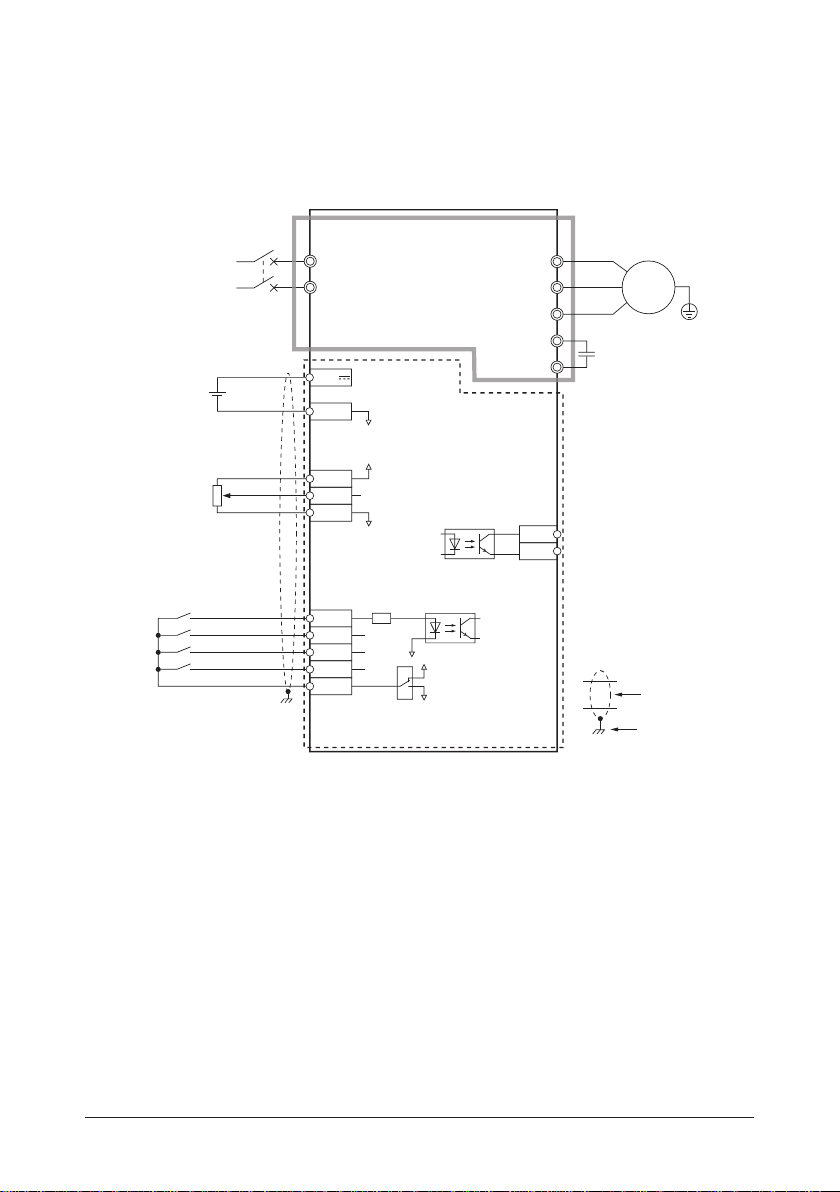

 Source logic:
SINK/SOURCE input selector switch is set to the SOURCE position.
The connection example explained in this section assumes that the motor is operated using relays and
switches.
An DC power supply (24 VDC) is needed to control the power controller.
∗3
∗1
0 V
4.7 kΩ
0 V
+24 V
WHT 7
RED 6
BLK 5
VL
1 N
MOTOR
2 L
X0
X1
X2
X3
C1
VH
VM Torque command voltage
Output circuit
Circuit breaker
Input signals CW
CCW
INT/EXT
ALARM-RESET
This indicates a
shielded cable.
This indicates a frame
or enclosure.
0 V Y0
Main circuit
Control circuit∗2
Input circuit
Selector
switch
Peripheral equipment
PAVR-20KZ
(20 kΩ1/4 W)
Power controller
C0
I/O signal connection
Motor cable connection
I/O signal connection
Torque setting via
an external potentiometer +5 V
0 V
24 V
24 VDC±10%
100 mA
4
3
CAPACITOR Capacitor
100-115 VAC
or
200-230 VAC
Motor
Control DC power supply
Power
supply
*1Power-supply input for the power controller should be the same as the power supply voltage of the motor.
*2The control circuit is a SELV circuit. It is isolated from dangerous voltages by means of protective
isolation based on reinforced insulation. The power supply and other devices connected to the control
circuit terminals should be isolated from dangerous voltages by reinforced insulation.
*3The input signals X0 to X3 and C1 are based on sequence connection of mechanical contact or source
transistor type.
Note that the mechanical contacts and transistors connected to the input signals X0 to X3 should have a
leak current of not more than 1 mA.
Refer to p.22 for
connection of output signals.

−18−
Connection

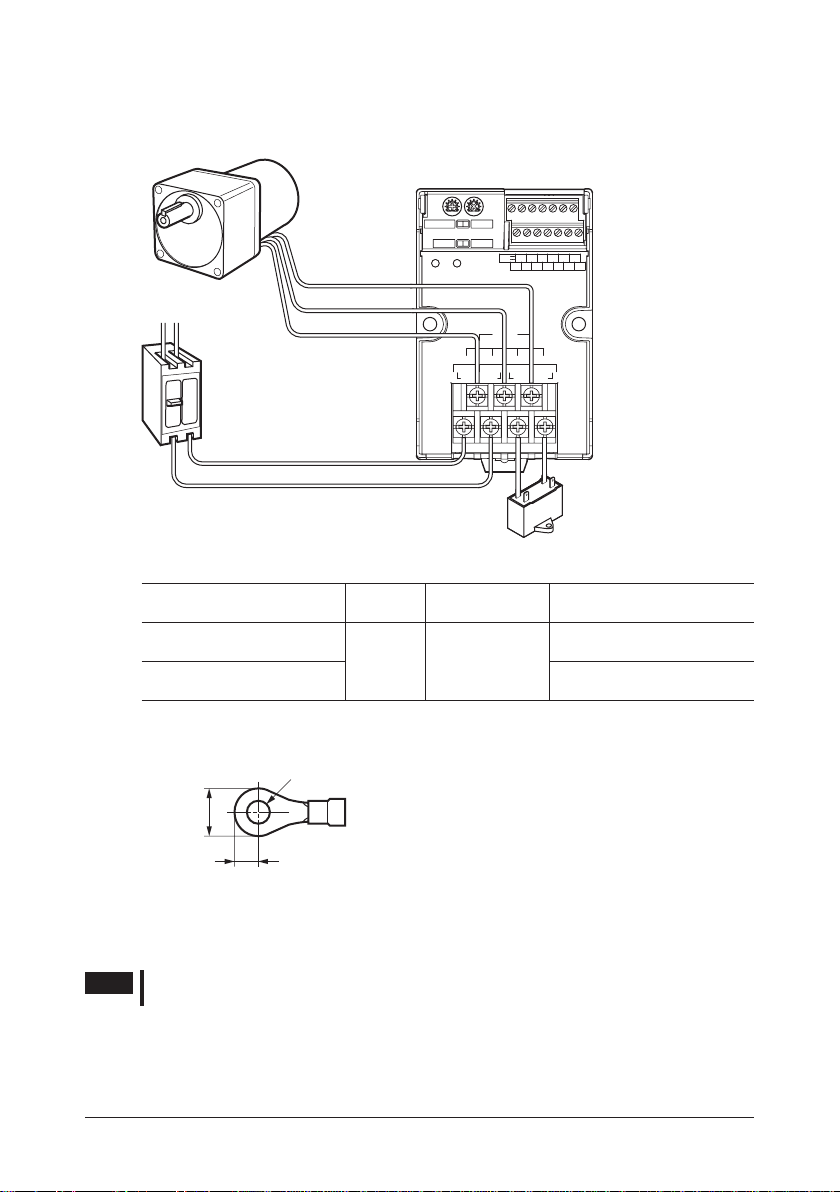

6.3 Connecting the main circuit terminals
Connect the AC power supply, motor and capacitor to the corresponding main circuit terminals using round
crimp terminals with insulating cover.
Power supply
input, molded-case circuit
breaker, earth-leakage breaker
or fuse
Motor
Capacitor
100230V㹼
CAPACITOR
BLK RED WHT
1234
567
MOTOR
LN
SOURCE SINK
5V10V
Y0 C0 VH VM VL C2 C3
24V 0V X0 X1 X2 X3 C1
 Terminal thread size and applicable cable size
Position Terminal
thread size Tightening torque Applicable cable size *
Power connection terminal and
cable M3.5 0.9 to 1.0 N·m
(8.0 to 9.0 lb·in)
AWG18 to 14 (0.75 to 2.0 mm2)
Motor connection terminal and
cable AWG20 to 14 (0.5 to 2.0 mm2)
*The cable size specied above is based on an assumed maximum ambient temperature of 60/75 °C
(140/167 °F) and use of copper wire.
Applicable crimp terminal: Round terminal with insulating cover
3.9 mm
(0.154 in.) or less
7.8 mm
(0.307 in.)
or less
Ø3.6 mm
(0.142 in.) or more
If your equipment is to be sold as a UL certied product, also use certied crimp terminals and cables.
 Connecting the AC power supply
Connect the neutral side of the power cable to the N terminal, and connect the live side to the L terminal.
Note To prevent damage to the product or AC power supply due to miswiring, connect the protective
device shown on p.6 to the power line.

−19−
Connection

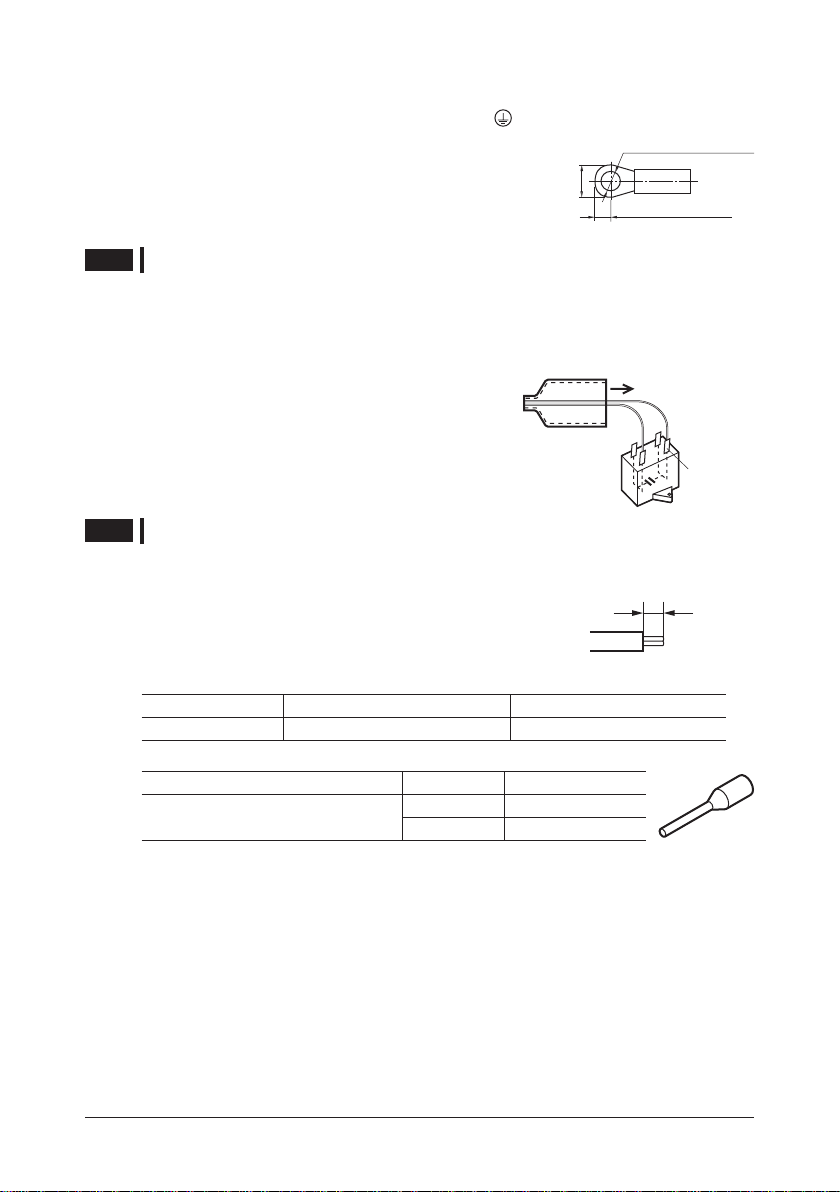

 Grounding the motor
Ground the motor using the motor’s Protective Earth Terminal .
Applicable crimp terminal:Round crimp terminal with insulation cover
Thread size of terminal: M4
Tightening torque: 1.0 to 1.3 N·m (8.8 to 11.5 lb-in)
Applicable lead wire: AWG18 (0.75 mm2) or thicker
Ø4.1 (0.161) or more
4.8 (0.189) or less
9.5 (0.374) or less
Unit [mm (in.)]
Note Do not use screws other than the protective earth terminal screws attached on the product.
 Connecting the motor
Connect the black, red and white leads on the motor to the BLK, RED and WHT motor terminals on the
power controller, respectively. Ground the motor using the motor’s protective earth terminal.
 Capacitor connection
The capacitor internal wiring as follows:
Capacitor terminals are internally electrically connection in
twos; A-B and C-D for easy connection. For easy to install
terminals use 187 series FASTON terminals (TE Connectivity).
Use the supplied capacitor cap to insulate the capacitor terminal
connection.
187 series
Capacitor
Capacitor cap
AB
CD
Note For lead wire connection, use one lead wire for each individual terminal.
6.4 Connecting the control circuit terminals
Keep the lengths of cables to 2 m (6.6 ft.) or less and wire them away from
the power lines. To allow torque setting via external signals, use a twisted-pair
shielded cable, shielded cable, etc.
Strip the signal cable by 5.5 mm (0.22 in.) from the end.
5.5 mm
(0.22 in.)
 Terminal thread size and applicable cable size
Terminal thread size Tightening torque Applicable cable size
M2 0.17 to 0.28 N·m (1.5 to 2.5 lb·in) AWG26 to 16 (0.14 to 1.25 mm2)
When using crimp terminals, use the following products.
Manufacturer Part number Applicable wire size
PHOENIX CONTACT GmbH & Co. KG AI0.5-6 AWG20 (0.5 mm2)
AI0.75-6 AWG18 (0.75 mm2)

−20−
Connection
 Input signal circuit
The input signals of this inverter are photo-coupler inputs. All control circuit terminals are isolated from
dangerous voltages based on reinforced insulation. When using an external control device, make sure its leak
current is 1 mA or less and ON voltage is 1.6 V or less.
The default setting is sink logic. Use the SINK/SOURCE input selector switch to switch between the sink
logic and source logic in accordance with the external control device to be used. Refer to p.31 for logic
switching, and p.32 for connection example of input circuit.
•Sink logic
䊻SINKSOURCE
4.7 kΩ
+24 V
CW
CCW
INT/EXT select
ALARM reset
X0
X1
X2
X3
Power controller internal
Input circuit
IN-COM0 C1 0 V
+24 V
Selector
switch
•Source logic
䊹SINKSOURCE
Note Do not short C1 terminal and C2 and C3 terminals. The power controller may be damaged.
Connection example 1:
Using an internal power supply Connection example 2: Using an external power supply
4.7 kΩ
0 V
C1
IN-COM0
X0
X1
X2
X3
Power controller internal
CW
CCW
INT/EXT select
ALARM reset
Input circuit
0 V
+24 V
Selector
switch
4.7 kΩ
0 V
C2
C3 0 V
24 VDC
10 mA
or more
IN-COM1
X0
X1
X2
X3
CW
CCW
INT/EXT select
ALARM reset
Power controller internal
Input circuit
