oticon amigo FM-CI User manual

FM-CI
Cochlear Implant Adaptor
Instructions for Use

FM-CI adaptor features 4
Amigo receiver features 5
Adaptor cords 6-7
System setup 8-9
Inserting batteries 10
Wearing instructions 11-14
FM system listening check 15-16
Troubleshooting 17-19
Warranty 20-23
2
Contents
3
Please familiarise yourself with the entire
contents of this booklet before using your Amigo
FM-CI Adaptor. The booklet contains various
statements, safety instructions and important
information about the use and handling of your
Amigo FM-CI Adaptor.
Oticon recommends the FM-CI cochlear
implant adaptor be fitted by a Hearing Care
Professional trained to fit and program the
speech processor to which the adaptor will be
attached.
Important notice

1
2
3
4
56
4

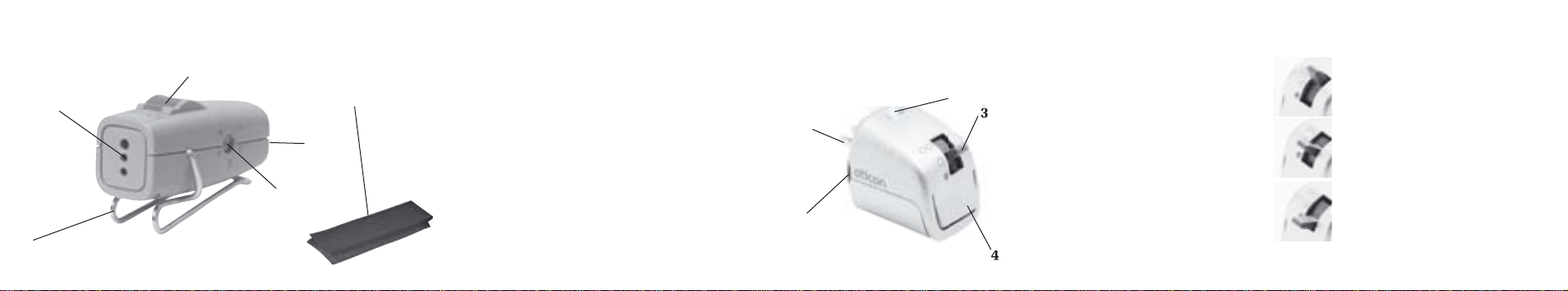

FM-CIAdaptor Features 1. Tamper proof battery compartment
(size 13 battery)
2. Audio output
3. Gain control
4. Belt/clothing clip
5. Europin jack
6. Hook and loop velcro
1
23
4
5
1. Europins
2. LED status indicator
3. 3-position mode switch
4. Channel seek/toggle (R2 only)
5. Europin rotation lock
Amigo receiver features (sold separately)
Turns on the Amigo receiver
and FM-CI adaptor.
Mode setting depends on the
CI-processor used.
Turns off the Amigo receiver
and FM-CI adaptor.
5

Adaptor cords are used to connect the FM-CI
adaptor to the various speech processors. Cords
are available with different lengths and plug
styles to allow users flexibility when connecting
to their particular processor. Additional adaptors
and adaptor cords specific to the speech proces-
sor may be required to accommodate the FM
system. These can be obtained directly from the
CI manufacturer.
Adaptor cords (sold separately)
CI adaptor cord
Speech processor
FM-CI adaptor
Adaptor cords
CI-11 384-10-050-00 EMI filter 20 in 50 cm 3.5mm, audio straight
CI-20 384-10-020-00 2k + EMI filter 5 in 12 cm 3.5mm, audio straight
CI-21 384-10-010-00 2k + EMI filter 14 in 35 cm 3.5mm, audio straight
CI-30 384-10-030-00 15k 3 in 7 cm 3.5mm, audio* 90˚
CI-31 384-10-060-00 15k 20 in 50 cm 3.5mm, audio* straight
CI-40 384-10-040-00 22k 20 in 50 cm Microtronic CS44 straight
CI-50 384-10-080-00 220k + 1nF 5 in 12 cm 3.5mm, audio 90˚
CI-51 384-10-070-00 220k + 1nF 20 in 50 cm 3.5mm, audio straight
Cord
name Part number Cord properties Length Plug style
Processor end Adaptor end
* Stereo, all others mono
6 7

The FM-CI adaptor can be fitted to the speech
processors through a combination of the correct
adaptor cord, FM-CI gain setting, Amigo receiver
gain setting and Amigo receiver three position
switch. Additional adaptors and adaptor cords
specific to the speech processor may be required
to accommodate an FM system. These can be
obtained directly from the CI manufacturer.
Consult the FM-CI fitting guide for more detailed
instructions. It may be necessary to make changes
in the speech processor program options to
accommodate an FM system and maximize user
benefits. Speech processor programming options
may vary from product to product and manufac-
turer to manufacturer.
Oticon recommends the FM-CI cochlear
implant adaptor be fitted by a Hearing Care
Professional trained to fit and program the
speech processor to which the adaptor will be
attached.
System setup IMPORTANT!
The cochlear implant speech processors and
FM systems contain sophisticated electronic
components. It is important to verify speech
processor functionality and FM system func-
tionality independently, prior to connecting the
systems together. (See page 18 for listening check
details).
Assuring independent system functionality will
greatly assist in fine tuning and troubleshooting.
System setup
8 9

Use a small screwdriver to open the tamper-
proof battery compartment on the FM-CI adaptor
and insert a size 13 battery. Note the polarity
markings on the battery door for proper battery
orientation.
Warning: Never change the battery in front of
infants, small children or people with learning
difficulties. If a battery is swallowed, see a doctor
immediately.
Inserting batteries Depending on how the processor is worn, it may
be necessary to experiment with different FM-CI
adaptor cords and FM-CI adaptor placement
to ensure an optimal balance between wearing
comfort and FM reception quality.
Wearing instructions
10 11

The FM-CI adaptor can be attached to your
clothing via the included clip. To ensure the best
FM reception, place the FM-CI adaptor on the
front of your chest.

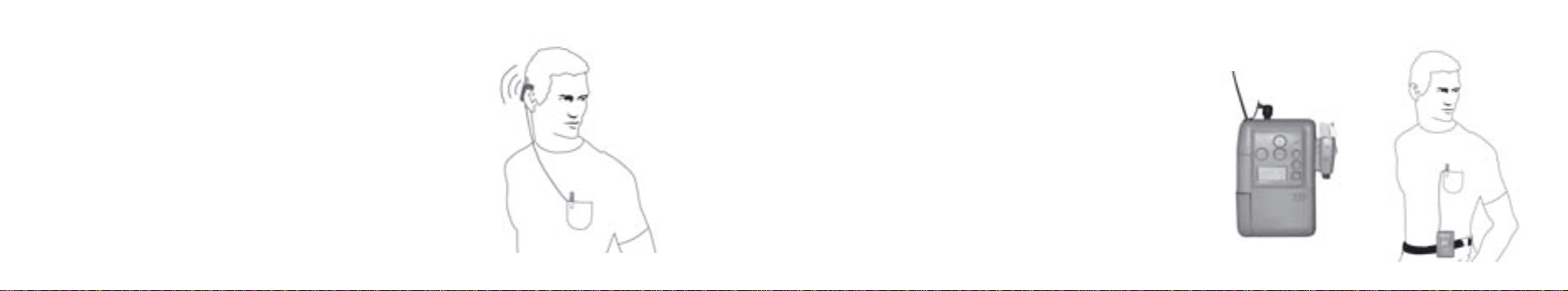

Wearing instructions With body-worn processors you have two
wearing options:
Option 1:
Connect the adaptor to the processor using a
short cord. Attach the FM-CI adaptor directly to
the processor by removing the clothing clip and
using the hook and loop tape.
Option 2:
Connect the adaptor to the processor using a
long cord. Attach the FM-CI adaptor to the user’s
clothing using the attached clothing clip.
Wearing instructions
12 13

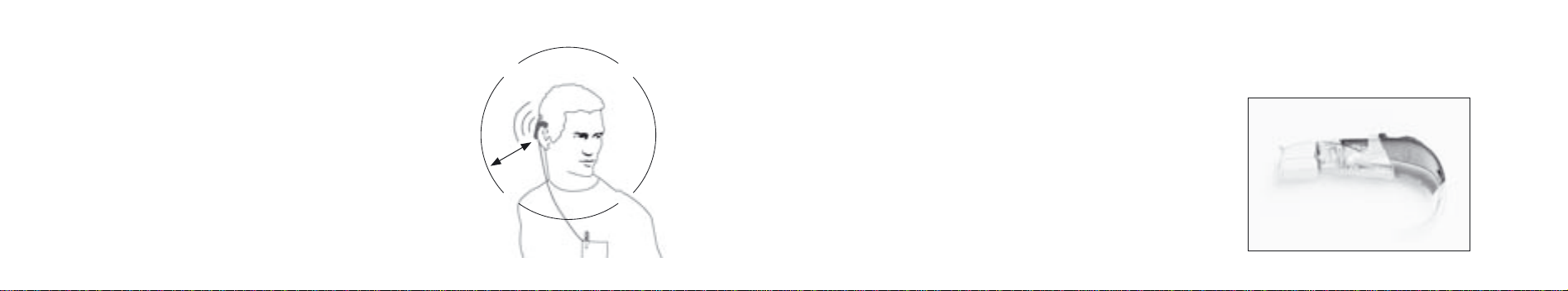

The CI headpiece can be a source of electromag-
netic interference (EMI) and radio frequency (RF)
interference for FM receivers, depending on the
settings of the processor program. To optimise FM
reception, quality and transmission range the FM-
CI adaptor should be placed a minimum of
12 in/30 cm from the CI headpiece.
Wearing instructions
12In/
30cm
A listening check should be performed on the
FM system prior to connecting it to the CI speech
processor.
Using a hearing instrument with an FM adaptor:
• Attach audio shoe to the hearing instrument.
• Attach the Amigo receiver to the audio shoe
and switch to the ”o” position.
• Turn on the hearing instrument and the Amigo
FM transmitter and begin speaking into the
microphone. Listen to the audio output using
stetoclips to avoid feedback.
FM system listening check
14 15

NOTE: For specific details on hearing instrument
compatibility visit www.oticon.com. Ensure the
hearing instrument battery is new, the Amigo
transmitter batteries are fully charged and the
Amigo receiver and transmitter are on the same
channel.
FM system listening check Processor Checklist
• Verify that the correct coil cable is being used
• Verify all connections are in place and cords
are not damaged
• Verify that the batteries are new
• Perform a listening check
FM Checklist
• Verify that the transmitter is ON and batteries
are fully charged
• Verify that the receiver three position switch is
in the correct setting
• Verify all connections are in place and cords
are not damaged
Troubleshooting
16 17

No FM Signal
• Turn the processor OFF, then ON to reset the
processor
• Verify that the Amigo receiver gain is on the
correct setting
• Verify that the Amigo transmitter and receiver
are ON and are on the same channel
• Verify that the processor and FM-CI adaptor
have new batteries and that the Amigo trans-
mitter is fully charged
Intermittent Sound
• Turn the processor OFF, then ON to reset the
processor
• Verify that the processor and FM-CI adaptor
have new batteries and that the Amigo trans-
mitter is fully charged
• Verify the Amigo receiver is firmly attached to
the FM adaptor and that the FM adaptor cords
are firmly attached to the processor
• If an accessory microphone is being used for
the transmitter, make sure that the connections
are clean, firmly attached and the cord is not
damaged.
Short FM Range
• For maximum range, the Amigo transmitter
should have the external antenna (or micro-
phone cord) attached and it should be hanging
freely. Do not coil or wrap the antenna around
the transmitter
Static/Interference
• Verify that the correct adaptor cord is being
used
• Change transmitter and receiver channels
• Remove obstructions between transmitter
and receiver
• Move away from sources of EMI (electromag-
netic interference): fluorescent lights, computer
monitors, televisions, some digital cell phones,
etc.
18 19

The manufacturer, Oticon, issues a one-year
limited warranty to the original consumer of this
product.
This warranty comes into effect upon the date
of original purchase of this equipment, and will
remain in effect for one calendar year from that
date.
Please notice that extended warranties may apply
in your country. Please contact your local Hearing
Care Professional for more information.
What is covered by this warranty?
Any electronic component which, because of
workmanship, manufacturing or design defects,
fails to function properly under normal use
during the life of this warranty will be replaced
or repaired at no charge for parts or labour when
returned to the point of purchase. Transportation
is paid by the customer. If it is determined that re-
pair is not feasible, the entire unit may be replaced
with an equivalent unit upon mutual agreement of
the Hearing Care Professional and customer.
Manufacturer’s warranty What is not covered by this warranty?
This one-year limited warranty does not cover:
• Malfunctions resulting from abuse, neglect or
accident.
• Peripheral accessories as itemised within the
product brochure, when such items are later
than 90 days from the original purchase.
• Batteries.
• Instruments connected, installed, used or ad-
justed in a manner contrary to the instructions
provided.
• Consequential damages and damages result-
ing from delay or loss of this instrument. The
exclusive remedy under this warranty is strictly
limited to repair or replacement as herein pro-
vided.
• Products damaged in transit unless investigated
by the shipper and returned to the warrantor
with the investigation report.
20 21

The manufacturer reserves the right to make
changes in the design or construction of any of its
instruments at any time without incurring any ob-
ligation to make any changes whatsoever on units
previously purchased. This warranty is in lieu of
all other expressed warranties by the manufac-
turer. No representative or person is authorized
to represent or assume for the manufacturer any
liability in connection with the sale or use of this
product other than as set forth above.
If your Amigo system requires service under the
terms of this warranty, carefully package the in-
strument to prevent damage in transit and return
it to the point of purchase. Include a detailed de-
scription of the problem, your full name, billing
and shipping address and telephone number.
The above warranty does not affect any legal
rights that you might have under applicable
national legislation governing sale of consumer
goods. Your point of purchase may have issued
a warranty that goes beyond the clauses of this
limited warranty. Please consult your point of
purchase for further information.
Hereby Oticon declares that this Amigo is in
compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Declaration of conformity is available at
Oticon A/S
Kongebakken 9
DK-2765 Smørum
Denmark.
22 23

Date of purchase:
Amigo serial numbers:
Microphone:
Receiver left:
Receiver right:
www.oticon.com
Waste from electronic equipment
must be handled according to local
regulations.
Oticon A/S
9, Kongebakken
DK-2765 Smørum
0543
24
Amigo parts can be dangerous if swallowed:
• The Amigo system is not a toy and therefore
should be kept out of the reach of children and
anyone else who might swallow parts or other-
wise cause injury to themselves. Special atten-
tion should be paid to the smaller components
in order to prevent children from swallowing
them and perhaps choking.
• Never change the battery and never connect the
receiver to the hearing instrument in front of
infants, small children or persons with learning
difficulties.
If a part is swallowed, see a doctor immediately.
24
Warnings

906 68 810 00 / 07.06 Printed in Denmark

906 68 810 00 / 07.06 Printed in Denmark
