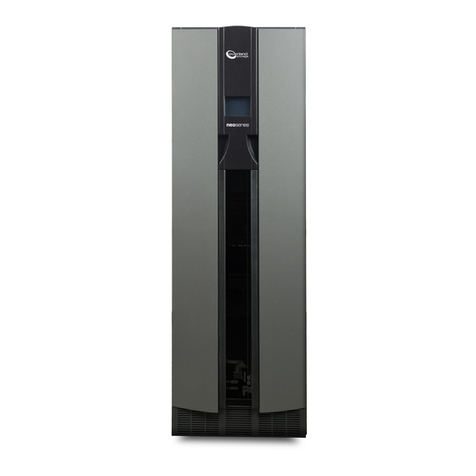

Overland Storage NEO 8000 User manual

Part Number 10400003-101 12/2005 ©2005 Overland Storage, Inc. WPage 1 of 2
The NEO 8000 contains blower assemblies located above
the Primary and Secondary card cages. This document
describes how to remove and replace either the Primary or
Secondary blower assembly in a NEO 8000 Library from
Overland Storage.
Unpacking the Spare
Carefully unpack the spare part and verify that you have
all the parts:
•Blower assembly
•Three M3x10mm Phillips panhead screws
•These Remove & Replace Instructions
Electrostatic Discharge Information
A discharge of static electricity can damage micro-circuitry
or static-sensitive devices. To help prevent electrostatic
damage, observe the following precautions:
•Transport and store items in static-safe containers.
•Keep electrostatic-sensitive parts in their containers
until they arrive at static-free stations.
•Use a wrist strap and properly-grounded tools.
•Make sure you are always properly grounded when
touching a static-sensitive component or assembly.
•Keep the work area free of non-conductive materials.
•Avoid touching pins, leads, or circuitry.
WARNING: The library’s GUI touch screen does not
completely shut off NEO 8000 system power. To
reduce the risk of electric shock or damage to
equipment, unplug both power cords.
1. Power down the library at the front panel.
2. Set the library circuit breakers to the OFF (“O”)
position.
3. Remove and retain the power cords.
4. Locate the blower assembly being replaced
(Figure 1).
The process is the same for both the Primary and
Secondary blower assemblies.
Figure 1. NEO 8000 Blower Assembly Locations
NEO 8000 Library
Remove & Replace
Instructions
Blower Assembly Spare
Overview & Notes
NEO-8132
Preparing the Library for Replacement
NEO-8105
Primary
Secondary
Card Cage
Card Cage
Blower
Blower
Assembly
Assembly

Part Number 10400003-101 12/2005 ©2005 Overland Storage, Inc. WPage 2 of 2
1. Remove the three M3x10mm screws on the blower
assembly (Figure 2).
2. Pull the blower out just enough to access the
connector located on the rear wiring.
3. Unplug the connector and position the cable harness
so that it doesn’t fall behind the card cage.
4. Position the new blower at the top of the card cage.
5. Reconnect the cable harness to the new blower
wiring.
6. Carefully slide the new blower assembly back into the
opening keeping the cable harness from snagging.
7. Refasten the assembly with the three new M3x10mm
screws.
CAUTION: Be sure to use the 10mm screws for the blower
assembly. Using shorter 8mm card cage screws may strip
the threads and prevent proper assembly.
Figure 2. Blower Assembly Attachment Points
1. Reattach both power cords.
2. Set the library circuit breakers to the ON (“|”) position.
3. Verify that air is blowing from the new blower fan.
All information contained in or disclosed by this document is considered proprietary by Overland Storage. By accepting this material, the recipient agrees that this material and the information contained therein are
held in confidence and in trust and will not be used, reproduced in whole or in part, nor its contents revealed to others, except to meet the purpose for which it was delivered. It is understood that no right is conveyed
to reproduce or have reproduced any item herein disclosed without express permission from Overland Storage. Overland Storage provides this document as is, without warranty of any kind, either expressed or
implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Overland Storage may make improvements or changes in the product(s) or program(s) described
in this document at any time. These changes will be incorporated in new editions of this publication.
Overland Storage assumes no responsibility for the accuracy, completeness, sufficiency, or usefulness of this document, nor for any problem that might arise from the use of the information in this document.
Replacing the Card Cage
NEO-8033
Blower
Assembly
Screws
Reactivating the Library
Getting Help
You can get technical support on the Internet at
support.overlandstorage.com,
or call 1-877-654-3429 (toll-free U.S. & Canada)
or 858-571-5555x5 (International).
