PAC RSIC-SI-CRC EZ User manual

RSIC-SI-CRC EZ INSTALLATION GUIDE
RSIC-SI-CRC EZ
PAC International, LLC. All Rights Reserved. • [phone] • Fax [phone]
RSIC® is a registered Trade Mark of PAC International, LLC.
PAC International, Inc. Tel: [phone] Technical: [phone] Web Site: www.pac-intl.com
SHIPPED FULLY
ASSSEMBLED
AND CALIBRATED

Drywall Furring Channel:
 Furring Channel: 25 gauge hemmed edge, or 20 gauge standard.
Meets or exceeds SSMA requirements.
 Depth: 7/8 inch
 Width Bottom: 2-9/16to 2-11/16inch wide nominal.
 Width Top: 1-1/4 inch wide
Splice drywall furring channel (hat track) with 6 inch overlap in mid
span (between two clips) secure with 18 ga tie wire, or two 7/16
framing screws.
RSIC-SI-CRC EZ Spring Isolator
 Maximum Spacing: 48oc. with Cold Rolled Channel
 Finish elevation is 1/2” below preset height.
 Silver = 80 Lbs
 Red = 40 Lbs
 Green = 30 Lbs
 Blue = 20 Lbs
 White = 10 Lbs
 Yellow = 5 Lbs
RSIC-SI-CRC EZ SOUND ISOLATION CLIP
PAC International, LLC. All Rights Reserved. • [phone] • Fax [phone]
RSIC® is a registered Trade Mark of PAC International, LLC.
PAC International, Inc. Tel: [phone] Technical: [phone] Web Site: www.pac-intl.com
10 Lb
20 Lb
30 Lb
40 Lb
80 Lb
5 Lb

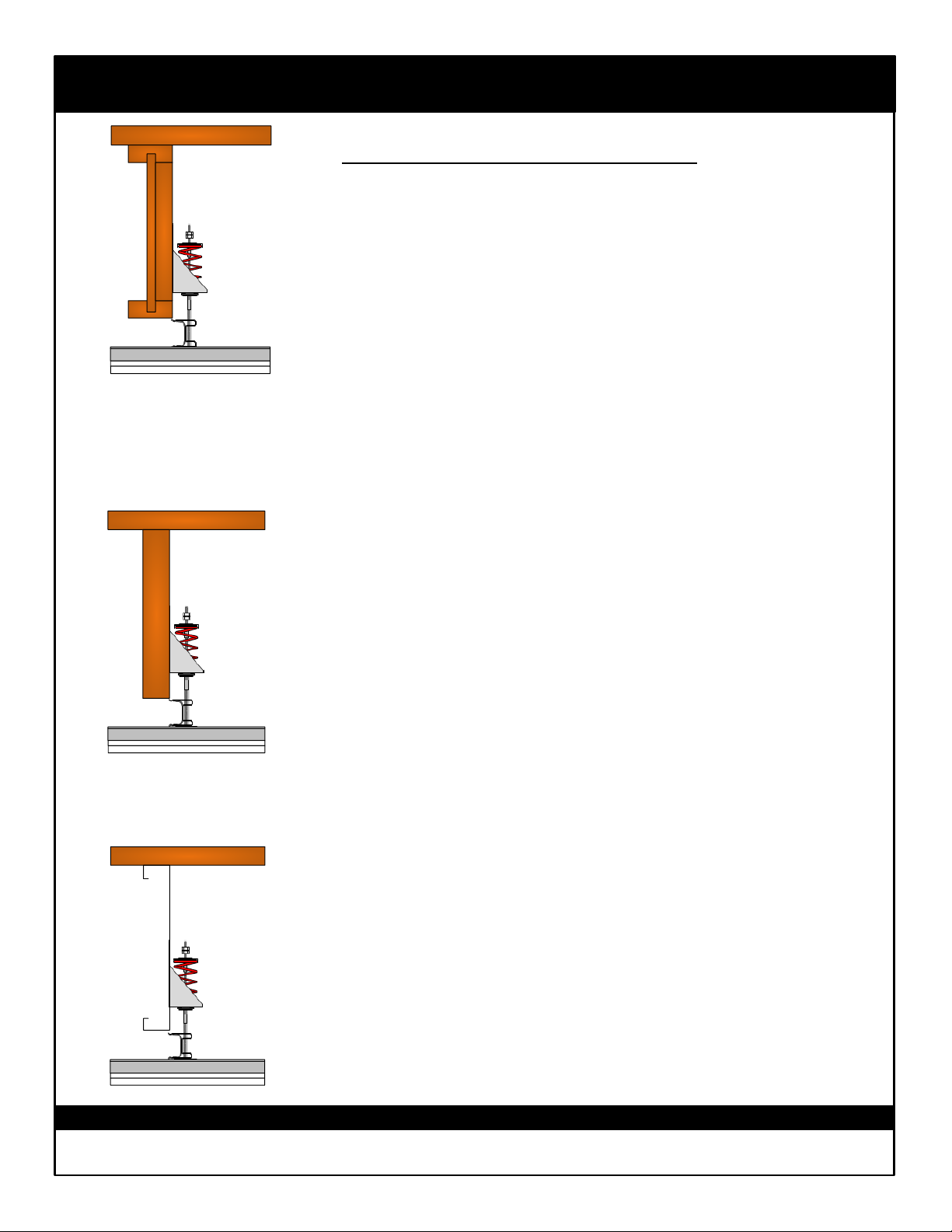

Carrier Channel Options:
 48” spacing 16 Gauge Cold Rolled Channel (CRC) Dim: 1/2x
1.5x 1/2SSMA code: 150U050-54
 CRC and Steel Studs must meet or exceed SSMA standards
Fasteners:
 RSIC-SI-CRC EZ to Wood: #8 x 1-5/8 inch minimum size coarse
thread screw. (Recommended #12 or #10 x 1-5/8 inch hex head)
 RSIC-SI-CRC EZ to Steel: # 8 x 1inch minimum size fine thread
screw. (Recommended #12 or #10 x 1inch hex head)
 1.5” x 16 Gauge Cold Rolled Channel (CRC) 1/2” x 1.5” Use min
9/16self drilling framing screws to fasten the 1.5CRC channel
RSIC-SI-CRC EZ
 CRC and Steel Studs must meet or exceed SSMA standards
-



RSIC-SI-CRC EZ SOUND ISOLATION CLIP
PAC International, LLC. All Rights Reserved. • [phone] • Fax [phone]
RSIC® is a registered Trade Mark of PAC International, LLC.
PAC International, Inc. Tel: [phone] Technical: [phone] Web Site: www.pac-intl.com
Ceilings: RSIC-SI-CRC EZ clips installed 48” oc
 Resilient Sound Isolation Clips (RSIC-SI-CRC EZ) shall be max 48 inches
on center .
 Layout the RSIC-SI-CRC EZ clips according to general guidelines
represented in this installation manual.
 Any additional or non standard room dimensions need to be addressed by a
professional engineer.
 Carefully remove RSIC-SI-CRC EZ pre-assembled, and pre-calibrated
clips from packaging.
 Be cautious to not rotate the RSIC-SI-CRC EZ clips separate from the
Upper bracket. This may change the factory calibration of RSIC-SI-CRC
EZ.
 Verify the correct quantity of each RSIC-SI-CRC EZ isolator (weight /
color) is included in the shipment.
 Layout the RSIC-SI-CRC EZ clips out on the floor (reflecting the ceiling
above) Ensure there are no additional items required to complete the
installation, IE: Additional blocking to support the RSIC-SI-CRC EZ clips,
or additional clips to support the drywall furring channel.
 Fasten the Resilient Sound Isolation Clip (RSIC-SI-CRC EZ) to the
structure with fasteners approved for a minimum pull-out and sheer of 200
lbs. Allowing for 1/2deflection after the gypsum board has been installed.
 Using a laser level, or tape measure set the height for all of the RSIC-SI-
CRC EZ brackets at the same height
 At the perimeter, the distance between the wall and first support for the
drywall shall be less than 8
 Snap the 16 Ga cold rolled channel to the RSIC-SI-CRC EZ clip. This is a
temporary connection to speed up installation.
 Screw the RSIC-SI-CRC EZ clip to the CRC channel with 2 1/2min
screws to make a permanent connection.
 Wire tie the drywall furring channel to the cold rolled channel @ 24oc or
16oc. (24oc for 1 or 2 layers of gyp board, 16oc for 3 layers of gyp
board)
 Optional, Field Calibrate each isolator based on the weight they will be
holding. Variances in the field may require additional adjustment to ensure
a consistent system. (see field calibration guide on page 5)
 Silver = 80 Lbs
 Red = 40 Lbs
 Green = 30 Lbs
 Blue = 20 Lbs
 White = 10 Lbs
 Yellow = 5 Lbs

RSIC-SI-CRC EZ SOUND ISOLATION CLIP
PAC International, LLC. All Rights Reserved. • [phone] • Fax [phone]
RSIC® is a registered Trade Mark of PAC International, LLC.
PAC International, Inc. Tel: [phone] Technical: [phone] Web Site: www.pac-intl.com
Calibration and Adjustment:
 To field adjust the RSIC-SI-CRC EZ clip, rotate the Screw attaching
the RSIC-SI-CRC EZ clip to the spring. Clockwise to raise. In
converse rotate the screw counter clockwise to lower. Lowering the
RSIC-1 clip will not loosen the spring. To adjust the spring itself you
will need to hold the top Cup washer and turn the threaded rod from
the top side.
 The Pre-Calibration of the RSIC-SI-CRC EZ clip is designed to
deflect only 1/2from its pre-loaded (pre-set) position after the 2nd
layer gypsum board has been installed.
Ceilings:
 IF required add strong back consisting of 1.5Cold Rolled Channel
or 2 pieces of drywall furring channel nested together, on the top side
of the standard drywall furring channel to assist in leveling the
ceiling at or near the perimeter. The strong back shall be placed
perpendicular to the main drywall furring channels
 Install the gypsum board to the drywall furring channel leaving a 1/
8to 1/4gap around the perimeter of the entire ceiling.
 Caulk around the entire perimeter of the ceiling wall intersection.
 Use fire and smoke rated acoustical sealant where required.
 The RSIC-SI-CRC EZ is engineered for use with a minimum of 2
layers of 5/8gypsum board.
 * RSIC OHD Adapter used for attaching directly to Concrete
General Information:
 Resilient Sound Isolation Clip Spring Isolator (RSIC-SI-CRC EZ),
furring channel (hat track) and gypsum board shall not carry heavy
loads such as Projectors, HVAC Ducting, Curtains, etc. For these
items use additional RSIC isolation clips specifically designed for
that purpose.
 Splice furring channel (hat track) with 6 inch overlap in mid span,
secure with 18 ga. tie wire or with two framing screws (7/16)
 Seal all potential air leaks with non-hardening acoustical caulking to
achieve best noise control results. Use fire rated sealant where
required.
 When attaching the RSIC-SI-CRC EZ clips to a steel Joist the
minimum allowable thickness is 20 ga. (0.030).
Fire Test Information:
WWW.PAC-INTL.COM
Check UL Fire Resistance Directory File # R16638
Check ULs web pages. www.ul.com/database
Contact UL (877) UL– HELPS

RSIC-SI-CRC EZ SOUND ISOLATION CLIP
PAC International, LLC. All Rights Reserved. • [phone] • Fax [phone]
RSIC® is a registered Trade Mark of PAC International, LLC.
PAC International, Inc. Tel: [phone] Technical: [phone] Web Site: www.pac-intl.com
5
10
40
2
ea
2
ea
10
ea
8
ea
25 Ga. Drywall Furring Channel
20
Carrier Channel
2
ea
20
80
20

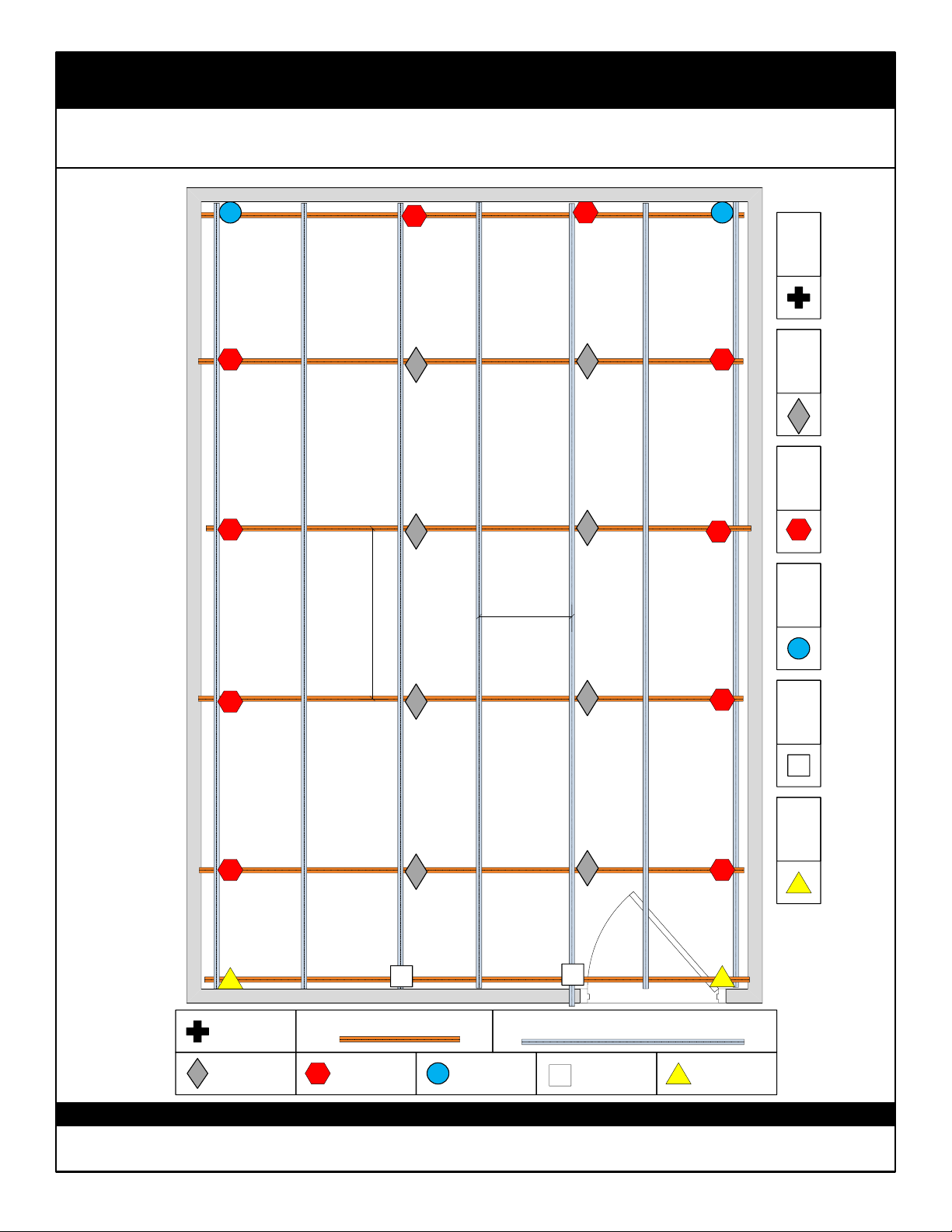

RSIC-DC04-SI CLIPS @ 48" OC PARALLEL OR PERPENDICULAR TO JOIST.
CARRIER CHANNEL @ 48" OC, DRYWALL FURRING CHANNEL @ 24" OC.
510 10 5
40
40
40 40
40 40
4040
40 40
48"
24"
160 Lb
RSIC-DC04-SI
80 Lb
RSIC-DC04-SI 40 Lb
RSIC-DC04-SI 20 Lb RSIC-DC04-SI 10 Lb RSIC-DC04-SI 5 Lb
RSIC-DC04-SI
0
ea
160
80 80
80 80
80 80
80 80
Sample layout 48” oc.
