Pall Allegro User manual

USD3183
Instructions For Use
Allegro™ Powder Bag Lift

2
Contents
1. Introduction ................................................................................................................................................. 5
2. Warning........................................................................................................................................................ 5
3. Receipt of Equipment ................................................................................................................................. 6
3.1 Take Caution........................................................................................................................................... 6
3.2 What’s in the Crate ................................................................................................................................. 6
4. Safety, Maintenance and Service Instructions.......................................................................................... 7
4.1 Warning Signals ...................................................................................................................................... 7
4.2 Safety...................................................................................................................................................... 8
5. Important Information ................................................................................................................................. 9
5.1 Product Description ................................................................................................................................ 9
5.2 Battery Information.................................................................................................................................. 9
6. Lift Specication ....................................................................................................................................... 10
6.1 Pictures................................................................................................................................................. 10
6.2 Specications........................................................................................................................................ 11
7. Installing..................................................................................................................................................... 13
7.1 Battery Pack ......................................................................................................................................... 13
7.2 Attachment ........................................................................................................................................... 14
8. Usage ...................................................................................................................................................... 15
8.1 Step by Step Overview.......................................................................................................................... 15
8.2 Locking and Unlocking Wheels ............................................................................................................. 16
8.3 Power ................................................................................................................................................... 16
8.4 Safety Features ..................................................................................................................................... 17
8.5 Raising and Lowering the Lifting Hook Attachment ............................................................................... 17
8.6 Adjusting the Sensor ............................................................................................................................. 18
8.7 Moving the Lifting Device ...................................................................................................................... 19
8.8 Adjusting Wheel Base Width ................................................................................................................. 19
8.9 Adjusting the Hooks.............................................................................................................................. 19
8.10 Installing the Powder Bag.................................................................................................................... 20
8.11 Usage in Combination with Hardware ................................................................................................. 20

www.pall.com/biopharm 3
9. Troubleshooting ........................................................................................................................................ 21
10. General Maintenance.............................................................................................................................. 22
11. WEEE Declaration ................................................................................................................................... 24
12. Warranty .................................................................................................................................................. 24
13. Cleaning Recommendations .................................................................................................................. 24
14. Manufacturer Details............................................................................................................................... 24
15. CE Declaration ........................................................................................................................................ 25
16. Appendix 1: Lifting Device Drawings..................................................................................................... 26
17. Appendix 2: Powder Bag Lift Compatibility Chart ................................................................................ 28
18. Appendix 3: Spare Parts List.................................................................................................................. 29
18.1 LGRMXPBSM.................................................................................................................................... 29
18.2 LGRMXPBSL..................................................................................................................................... 30

4
1. Introduction
The purpose of this manual is to inform the operator and the maintenance engineer regarding the safe
and correct use of the Allegro Powder Bag Lift. This includes all people who have the task of installing,
commissioning, adjusting, maintaining, cleaning, repairing, transporting or scrapping this lift.
Before using this machine all people involved should thoroughly read and understand the user manual.
All safety precautions and safety provisions in use in the company must be known and respected.
This user manual must always be available. It is very important that all instructions are carefully followed
and, where appropriate, they should be incorporated into the user’s standard operating procedures. If
some of the procedures do not suit your needs, please consult Pall before nalizing your system. Use
of this product in a manner other than in accordance with Pall’s current recommendations may lead to
injury or product loss. Pall cannot accept liability for such injury or loss.
2. Warning
Operation outside the specications dened in this manual may cause personal injury and result
in damage to the equipment.
3. Receipt of Equipment
3.1 Take Caution
• Take care when removing the supplied lifting device from the shipping container to prevent
damage to the machine or injury of the operator. Only use appropriate equipment.
• Locate or store the hardware in an appropriate indoor location. The equipment is designed
for operation in clean rooms and classied areas and as such should be maintained in a
clean state and stored when not in use, in an appropriate clean location, free from adverse
environmental conditions.
• Only use the lifting device when brakes are engaged on the castors.
• When moving the lifting device between rooms or buildings, ensure the lifting hook attachment
is in the lowest position.
• When the lifting hook attachment is in the highest position, movement is limited to approximately
one meter for positioning the lifting device under the designated Pall hardware.
• Use on at surface.
3.2. What’s in the Crate
• Lifting device
• Lifting hook attachment
• Documentation binder
• Battery pack
• Allen key for installing the hook attachment
• Power cable

www.pall.com/biopharm 5
4. Safety, Maintenance and Service Instructions
4.1 Warning Signals
Do not use the lift while it is plugged into an outlet.
Do not use device as a passenger lift! Do not stand underneath the raised platform.
When in motion, lower the load so that it is level with the “moving position” sticker on the side of
the mast.
When the lifting hook attachment is in the highest position, movement is limited to approximately
one meter for position the lifting device under the designated Pall hardware.
WARNING! Risk of hands and feet getting caught in machine! Do not stand on or rest your feet
on the legs or battery casing. Do not put hands or ngers on the mast or close to the sleigh or
chain as this poses risk of getting caught!
Stay clear of the indicated area at all times! Make sure the area underneath the lifting hook
attachment is always completely clear. If the lifting hook attachment gets caught on an object
during descent there is a risk of the lifting device tipping over.
The lifting device is meant to be used during a normal work shift (1 shift) and re-charged during
off hours (normally night time). Always charge minimum 8 hours consecutively. There is no risk
of the battery overcharging.
4.2 Safety
1. The lifting device is designed for indoor use only; use on a smooth, even oor/surface. Use
caution when passing over thresholds, oor drains, hoses or cables to prevent risk of the
lifting device tipping over.
2. Never spray or pour water onto the casing containing the battery, charger and motor.
Clean with a damp cloth only. IPA (70%) is safe to use for cleaning the lifting device.
3. Recharge in a designated dry area.
4. Always apply the brakes when moving the lifting hook attachment up and down.
5. NEVER exceed the indicated maximum load capacity. The limit indicated on the lifting hook
attachment must always be followed. The maximum load capacity is stated for the maximum
centered weight of the load positioned at the maximum distance from the mast.
6. Make sure to have the brakes on when using the lift to pick up and lower goods. Not using
the brakes may cause the lifting device to tilt backwards and consequently causing the
operator serious injuries or death.
7. Load must never be forced downward when hitting a surface. Doing so may cause the lifting
device to tip onto the operator, causing body injuries.
8. Use the lifting device only in accordance with all instructions in this manual. Keep this manual
accessible to all staff. This appliance is not intended for use by people with reduced physical,
sensory or mental capabilities, or lack of experience or knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
9. Use only original spare parts. See Chapter 18, Appendix 3: Spare parts list.

6
10. Any part of this lifting device which shows signs of wear or other damage must be replaced
immediately. The lifting device must not be used before the damaged part is replaced.
Welding and other mechanical modications to the lifting device must be carried out by
authorized staff.
11. Always follow any local/national recommendations as well as the instructions in this manual.
In some countries the inspection of lifting equipment by a third party, after installation and
then on a yearly basis, is mandatory. Check the regulations in your country.
5. Important Information
To prevent damages and injuries caused by improper use and not to compromise the warranty and
liability: Follow all instructions in this manual at all times.
5.1 Product Description
This lifting device is used to transport powder handling bags. The lifting device is equipped with
a battery driven handling tool that allows goods to be raised and lowered. The user moves the
lifting device by pushing it, and prevents it from moving when stationary with the aid of brakes.
To charge the battery, the lifting device is connected to an electrical outlet (100-240 V). The
battery is fully charged after 8 hours. The lifting device can be plugged in for a longer period,
since it cannot be overcharged.
5.2 Battery Information
Battery type: Maintenance-free, totally sealed lead acid battery.
IMPORTANT! Used battery/circuit board should either be returned to an authorized
representative or handed over to a station for chemical waste. All other parts can be
discarded and assorted for recycling.
6. Lift Specication
6.1 Pictures
Translation lock pin
T-bar connection
Mast
Detachable control
Handlebars
Power cable holder
Battery pack
Swivel rear wheels with brake
Safety tape
switches
Lifting hook
attachment
Hooks for powder
handling bags

www.pall.com/biopharm 7
6.2 Specications
Part numbers LGRMXPBSM / LGRMXPBSL
Lifting capacity 50 kg with center of load at max 800 mm from mast
Max lifting height 2740 / 3630 mm
Min lifting height 1350 mm
Weight of unit Approximately 80 kg
Battery voltage & capacity 24 V DC 17Ah
Charging voltage 120 / 240 V AC 55 W
Control board Yes
Battery runtime 120 times up and down 1 meter with a max weight of 50 kg.
Hand control Detachable two-speed control.
Battery charging procedure When the battery status display is green, the lift is ready to be used. In this state
the battery can be charged intermittently.
When the display is red, the battery needs to charge at least 8 hours without
interruption before use.
Brake system Rear wheels separately braked.
Always apply the brakes
when unloading or loading
Peak load controller/ Yes, reset by reducing load.
main switch
Safety tape switches Placed on top of legs.
Lifting height limiter Lifting height can be limited by adjusting the sensor on the side of the mast.
Wheel base 660 mm, adjustable between 660-750 mm.
Hook position Hook position is adjustable @322, 522 and 722 mm from the mast.
Hook attachments Hook has 3 attachment points for holding different sized powder handling bags.
www.pall.com/biopharm 7
Battery status LEDs
Main switch

8
7. Installing

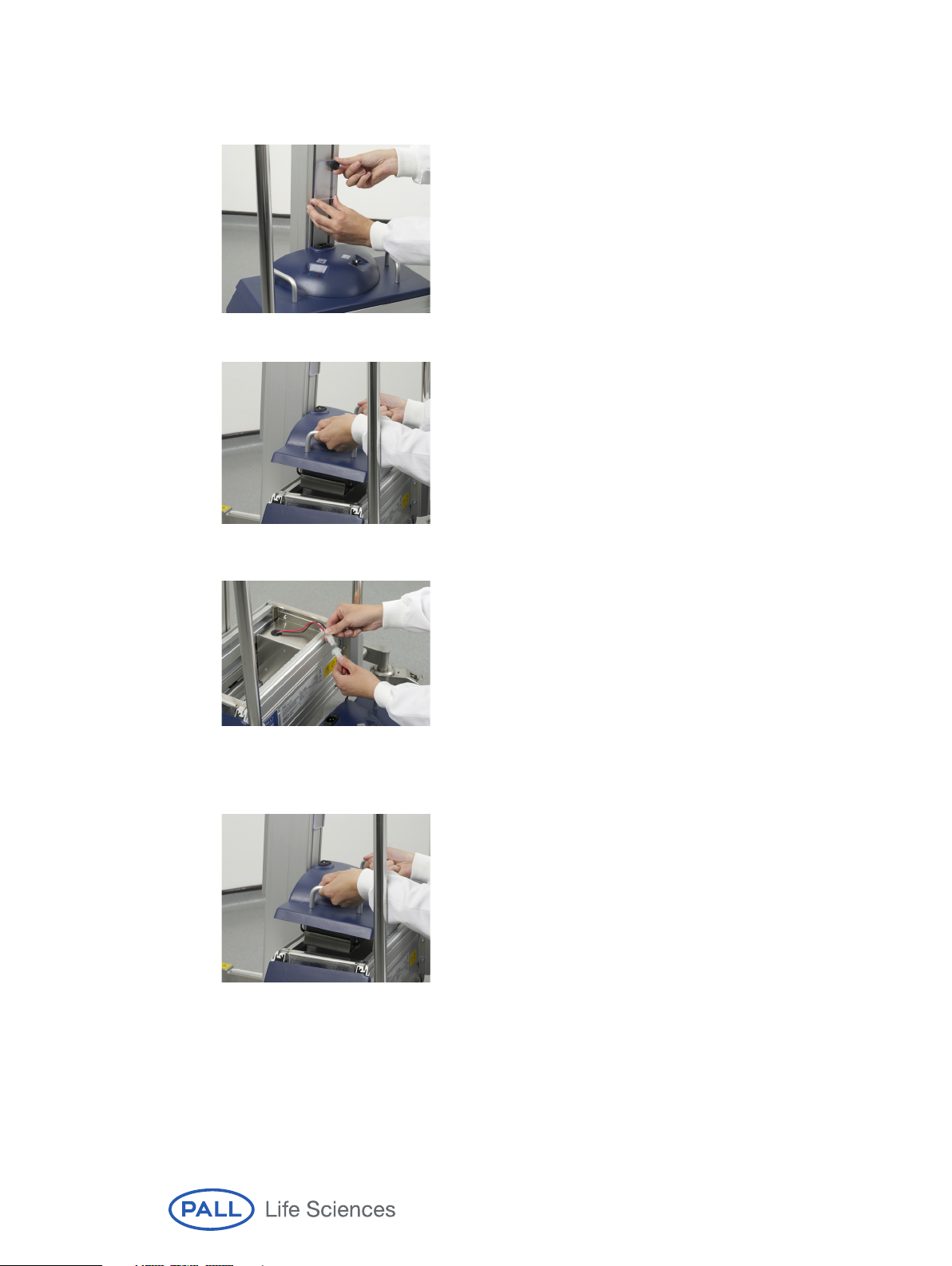

7.1 Battery Pack
1. Loosen the locking plate with the black thumb screw and slide it to the top.
2. Lift the battery pack out of the battery compartment.
3. Connect the cables.
4. Put the battery back into the battery compartment.
Be careful not to trap the cables.
Sliding the right side in rst makes installing easier.

www.pall.com/biopharm 9
7.2 Attachment
1. Make sure the lifting height is at the minimum position before installing.
(see Section 9.4.Raising and lowering the lifting hook attachment)
Slide the lifting hook attachment in the T-bar connection of the lift.
2. Hand tighten all 6 bolts of the lifting hook attachment by using the provided Allen key.
3. Install the provided plugs.

10
8. Usage
8.1 Step by Step Overview
Step
Number Description Section Reference
1. Check that wheels are locked. Section 9.2. Locking and unlocking wheels
2. Turn on power. Section 9.3. Power
3. Test safety equipment. Section 9.4. Safety features
4. Lower lifting hook attachment to the Section 9.5. Raising and lowering the lifting
lowest position. hook attachment
5. If necessary, adjust height limit sensor to the maximum Section 9.6. Adjusting the sensor
height of the designated room.
6. Unlock the wheels. Section 9.2. Locking and unlocking wheels
7. Move lift to the vicinity of the designated Section 9.7. Moving the lifting device
8. If necessary, adjust wheel base width of the lifting Section 9.8. Adjusting wheel base width
device to t under the used Pall hardware.
9. Lock the wheels. Section 9.2. Locking and unlocking wheels
10. Adjust the hooks on the lifting hook attachment to suit Section 9.9. Adjusting the hooks
the designated Pall hardware.
11. Raise the lifting hook attachment to an appropriate Section 9.5. Raising and lowering the lifting
height to attach the powder handling bag hook attachment
12. Install the powder handling bag. Section 9.10. Installing the powder bag
13. Unlock the wheels. Section 9.3. Locking and unlocking wheels
14. Align the lift with the designated Pall hardware. Section 9.11. Usage in combination with
hardware
15. Raise and/or lower the lifting hook attachment to Section 9.5. Raising and lowering the lifting
align the powder handling bag connector with the hook attachment
powder port on the biocontainer.
16. When the nal alignment is complete, lock the wheels. Section 9.2. Locking and unlocking wheels
8.2 Locking and Unlocking Wheels
Make certain that the wheels rotate smoothly.
Make certain that the brakes on the rear wheels are functioning properly.
Before lifting activities are being performed, apply both brakes of the rear wheels.
Engage brake Brake released Brake engaged

www.pall.com/biopharm 11
8.3 Power
Make certain that the correct power cord for your country is installed on the lift. Plug the power
cord into an electric outlet and charge the battery for 8 hours. When charging is complete, pull
the power cord out of the electric outlet. Make sure that the battery is charged before use. Turn
the power on by pressing the main switch.
8.4 Safety Features
Safety Tape Switches
Make sure that the emergency tape switches on the legs are functioning properly. By pressing
the tape switch, the buzzer should sound.
If the buzzer fails to sound, have the tape switches repaired prior to using the lift.
The safety tape switches ensure no weight is placed on top of the wheel frames. This can cause
damage to the lifting device. This will also ensure that the operator is not located directly under
the lifting hook attachment, which can cause injury during use of the lifting device.
Peak Load Controller
The lifting device is equipped with a peak load controller which will prevent the lifting hook at-
tachment from being raised or lowered when the maximum capacity is exceeded. The load must
be reduced and the main switch needs to be reset before further use. For resetting the lift turn
the main switch off and back on.
The lift should only be used when it is in perfect working order.
8.5 Raising and Lowering the Lifting Hook Attachment
Use the detachable two-speed controller to raise or lower the lifting hook attachment. Press-
ing the buttons gently will move the lifting hook attachment at a low speed. Pressing hard will
increase the speed.
Main switch

12

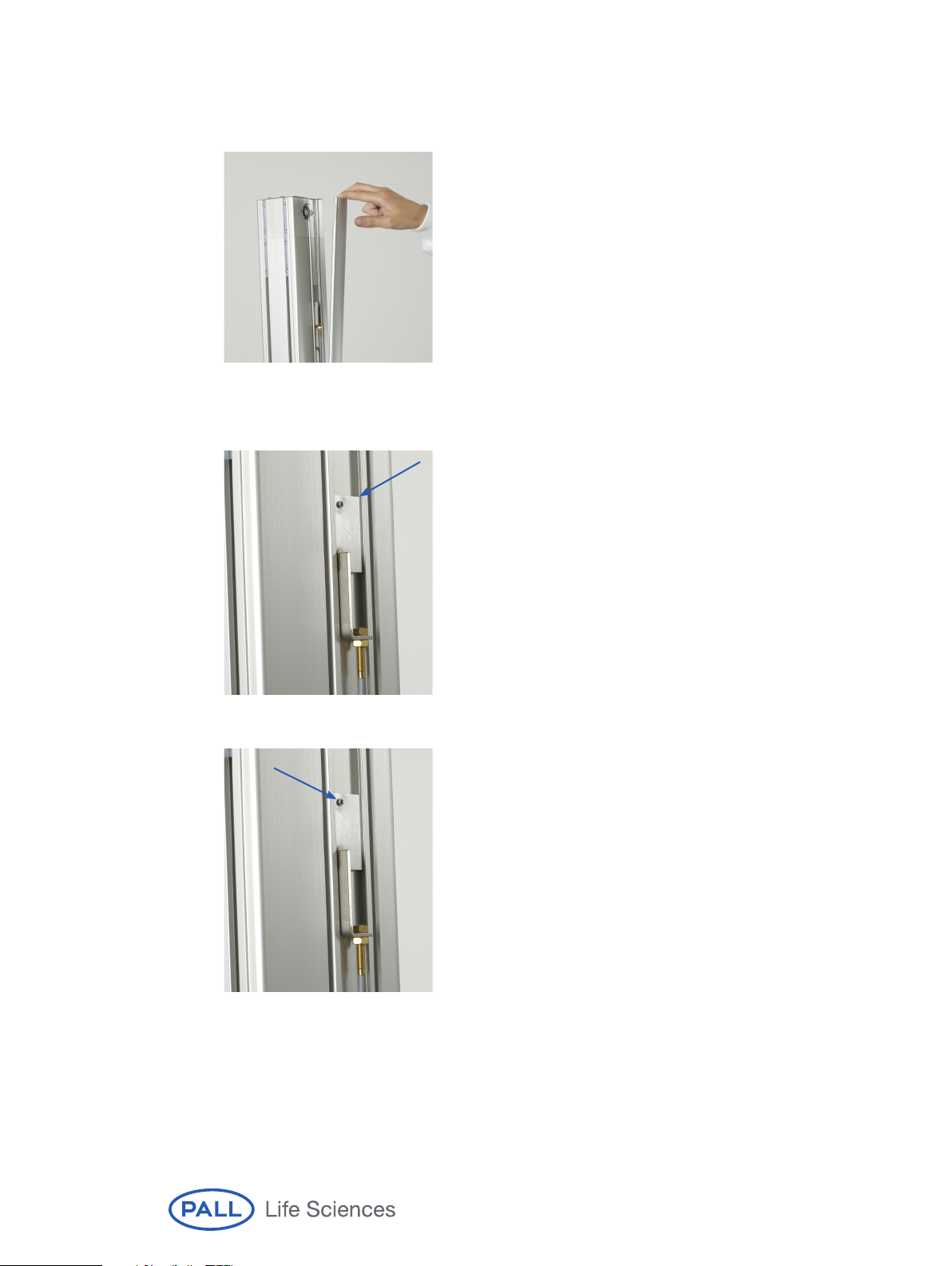

8.6 Adjusting the Sensor
The lift has an adjustable sensor to limit the height of the lifting hook attachment. This can be
useful in cases where the ceiling is lower than the total height of the lift.
1. Remove protective cover on the side. Careful not to damage the lift.
2. Before adjusting the sensor, make sure the current position is marked. If it is not, mark the
current position. This is the highest possible position of the lifting hook attachment. If the
sensor is placed any higher, there is risk of detaching the internal drive system.
3. Using an Allen key, loosen the sensor and adjust to the necessary position.
4. Test if the position is correct by lowering and raising the lifting hook attachment.
5. Adjust if necessary.
6. Hand tighten the Allen screw and close the cover.

www.pall.com/biopharm 13
8.7 Moving the Lifting Device
Use the handlebars to move the lift around.
For safety reasons only move when the lifting hook attachment is at bottom position.
Take into account that the rear wheels can swivel, the front wheels are xed.
8.8 Adjusting Wheel Base Width
The wheel base can be widened in case the alignment of the lift with the Pall hardware is not
ideal. This can only be executed with proper safety measures and by the correct technical per-
sonal within the company.
Loosen the two bolts in the front and the back and slide the wheel bars outwards. Faster when
the adjustment is complete.
8.9 Adjusting the Hooks
Pull out the translation lock pin to slide the hook to one of the three predened positions. Slide it
back in to x the position. The pin is protected with a push button.
Choose the most appropriate position to use with the designated Pall hardware.
Translation lock pin
Bolt position (front) Bolt position (rear)

14
8.10 Installing the Powder Bag
The lifting device can be used with powder handling bags with a single or double handle. To
mount the powder handling bags, the handles of the bag must be placed on the hooks of the
lifting hook attachment.
For best use, the single handle powder handling bag should be placed on the center hook.
The double handle powder handling bag should be placed with the handles on the outer hooks.
8.11 Usage in Combination with Hardware
When all of the previous steps have been completed you can now use the lift in combination
with a designated Pall container or other Pall hardware. Depending on the type of hardware you
can place the lift on the sides or the front/back.
Additional adjustments in wheel base or hook position can still be made to have a perfect
alignment with the powder port to transfer powder into a single-use mixing biocontainer.
Single handle powder handling bag Double handle powder handling bag

www.pall.com/biopharm 15
9. Troubleshooting
Error Cause Finding Clearing
Motor does not run. Rechargeable battery Battery status display red. Plug power cord into electric
not charged. outlet and charge battery for
10 hours.
Peak load protection activated. Main switch button released. Reduce load to stated maximum
capacity. The load must be
reduced and the main switch
needs to be reset before further
use. For resetting the lift turn
the main switch off and back
on.
Main switch popped out. Battery status display off. Push in main switch button.
Loading platform Rechargeable battery weak. Battery status display red. Have device repaired by
moves too slowly. manufacturer.
Rechargeable battery No power from electrical outlet. Check outlet. Change outlet.
cannot be charged.
Rechargeable battery defective. Battery status display still red Replace rechargeable battery.
after battery is charged.
Battery status Main switch off. Main switch button released. Push in main switch button.
display off.
Battery or battery status display – Have device repaired by
defective. manufacturer.
Buzzer on tape switches Buzzer defective. Buzzer fails to sound when an Have device repaired by the
fails to sound. object comes in contact with manufacturer.
the tape switches.
Tape switches defective. Loading platform fails to stop Have device repaired by the
while being lowered when an manufacturer.
object comes in contact with
the tape switches.

16
10. General Maintenance
It is recommended that the Allegro Powder Bag Lift is serviced on an annual basis. For further details on
technical service, maintenance or repair, please contact your Pall representative.
If any damage is found or any part of the product is not functioning normally then do not continue using
the product and contact Pall for help and advice.
Inspection intervals Daily Monthly Yearly
Identication/ signs CE-mark and serial number visible X
and rating visibility
Inspection sticker with correct date X
Max lifting capacity visible X
Warning / operating signs visible X
Chassis Wheels and bearings running smoothly, function and signs of X
damage/wear
Brakes, function and signs of damage / wear X
Safety switch warning signal on front legs, function X
(or visible warning stickers)
Check all screws and nuts for damage / wear, tighten X
Mast *Sleigh, correct attachment and signs of damage / wear X
*Sprockets, signs of damage/wear X
Upper/lower switch, function X
Check all screws and nuts for damage / wear, tighten X
Torque tighten (10 Nm) all screws that keeps the mast in place X
Electrical installation *Battery voltage X
*Charger voltage X
Wiring, complete overhaul, signs of damage / wear X
*Main switch / overload functions, check with max load capacity X
+10% approximately
*Control board parameters, function / settings X
Hand control, function X
Positioning stops (optional), function X
Variable speed control (optional), function X
Attachments T-bar connection to mast, check lifting hook attachment and for signs X
of damage / wear
Function of lifting hook attachment X
Spring (lock) pins X
*Service point must be carried out by Pall or an accredited testing agency recommended by Pall.
IMPORTANT!
If inspection is not carried out as specied above, this lift can pose serious risks to the safety of people
exposed, both operators and passers-by. Therefore, the service inspection must be assigned to Pall, or
an accredited testing agency recommended by Pall.
Pall must authorize all modications to this product. Pall assumes no responsibility for unauthorized
modications and the warranty will automatically become invalid.
For component replacement instructions please contact Pall.
Spare parts list, see Appendix 3: Spare parts list.

www.pall.com/biopharm 17
11. WEEE Declaration
The presence of this label on a product means that the product contains electrical or electronic materials
and therefore should not be disposed of as unsorted waste but instead treated separately. The presence
of these materials may, if not disposed of properly, have potential adverse effects on the environment
and human health. Within the European Union users are urged to recycle such products when being re-
placed with a newer version or when they have outlived their useful lives. However, as the legislation and
facilities vary throughout the member states, please contact your local Pall sales ofce or distributor to
discuss the available options for correctly disposing of this product.
12. Warranty
` Pall warrants that Allegro hardware and systems manufactured by Pall, when properly stored and
installed, and operated at ratings, specications and design conditions, will be free from defects in
material and workmanship during their shelf life. Pall liability under any warranty is limited solely to
replacing, or issuing credit for the hardware that may become defective during the Warranty Period
13. Cleaning Recommendations
The frame and stainless steel components can be cleaned using a soft cloth and a neutral detergent or
alcohol solution. Do not use abrasive cleaning agents. The plastic parts may be wiped down with a cloth
(not directly sprayed) using a mixture of up to 70% ethanol or isopropyl to water.
14. Manufacturer Details
The Powder Bag Lift is manufactured by:
Pall UK Manufacturing
Walton Road
Farlington
Portsmouth
Hampshire
P06 1TD
GBR
[phone]

18
15. CE Declaration
Document Number:
QADC EFF 7260 Rev 1
Document Title:
EC Declaration of Conformity
EC DECLARATION OF CONFORMITY
Issued in accordance with the
MACHINERY DIRECTIVE 2006/42/EC
LOW VOLTAGE DIRECTIVE 2006/95/EC
EMC DIRECTIVE 2004/108/EC
RoHS DIRECTIVE 2002/95/EC
WEEE DIRECTIVE 2012/19/EU
REACH REGULATION 1907/2006
Manufacturers Address Pall Portsmouth
Pall Manufacturing UK Ltd
Walton Road, Farlington, Portsmouth
Hampshire, PO6 1TD, England
Pall Portsmouth Manufactured Systems Group hereby declares that in compliance with the above
directive, the product(s) detailed have been designed and manufactured in accordance with the
standards stated below.
Part Number and Product Description: LGRMXPBSL: Powder Bag Lift Large
LGRMXPBSM: Powder Bag Lift Medium
Serial No’s.: M
As approved by:
Notified Body Number:
Inspecta Sweden AB
0409
Was designed and constructed using the following standards:
Quality management systems.
Safety of electrical appliances household and
similar purposes.
Safety of machinery. General principles for
design-risk assessment and risk reduction.
Industrial trucks-verification of stability.
Pedestrian-propelled trucks.
BS EN ISO 9001:2008
EN603351-1:2002 + A1:2004 + A11:20014 +
A12:2006 + A2:2006 + A13:2008 + A14
BS EN ISO 12100:2010
BS ISO 22915-16:2014
Signed: __________________________
Title: __________________________
Print: __________________________
Date: __________________________

www.pall.com/biopharm 19
16. Appendix 1: Lifting Device Drawings
POWDER BAG LIFT (MEDIUM)
CUSTOMER DRAWING OF LGRMXPBSM
K MASONE
SEE NOTES
ISSUE A - 09 MAY 2016 - KM ORIGINAL ISSUE FOR CUSTOMER REF: DOR 2088
11
NTS
09-MAY-2016
THIS DOCUMENT MAY CONTAIN CONFIDENTIAL TECHNICAL DATA, INCLUDING TRADE SECRETS PROPRIETARY TO PALL CORPORATION. THE
DRAWING, DESIGN RIGHTS AND ALL OTHER DISCLOSURES IN THIS DOCUMENT ARE THE PROPERTY OF PALL CORPORATION. UNAUTHORIZED
USE, COPYING, DISTRIBUTION TO THIRD PARTIES, MANUFACTURE, OR REPRODUCTION IN WHOLE OR IN PART IS PROHIBITED.
COPYRIGHT (2016) © PALL CORPORATION
±0.1
UNSPECIFIED TOLERANCESALL DIMENSIONS IN MM. ANGULAR TOLERANCE ±0.25 REMOVE SHARP EDGES
DRAWING TITLE
MATERIAL
PAGE OF
SCALE
DWG NoDATEDRAWN
3rd ANGLE PROJECTION
PORTSMOUTH,
ENGLAND
DRAWN CHECKED
LEFT HAND VIEW
SUPPLY SERIALNUMBER YEAROFMANUFACTURE PARTNUMBER
80KgMACHINEWEI GHT
MADEINUK
50KgMAXLOAD
100-240VAC50/60Hz 55W
LGRMXPBSM
THISEQUIPMENTMUST BEOPERATEDAND MAINTAINEDBYTRAINED PERSONNELONLY, INSTRICT A C C OR DA N CE WITHTHE OPERATINGI NST RUCTIONSPR OV IDE D
PowderBoxLiftMedium Allegro
Fribourg,
Manufacturedby Pal l Portsmouth Switzerland. ForPallInternationalSàrl,
TM
REAR VIEW
PLAN VIEW
RIGHT HAND VIEW
ISOMETRIC VIEW
ALLEN KEY FOR MOUNTING TOOL IS SUPPLIED WITH LIFT
PLUGS FOR HOLES
END PLUG IN BOTTOM/TOP
MOTOR COVER
SPLASH GUARD
LEGS
FRONT WHEEL
SWIVEL REAR
WHEELS W ITH BRAKE
HANDLEBAR
BOTTOM/TOP PLATE
BATTERY PACK WITH IEC C14 CONNECTOR
A
ENLARGED DETAIL A
780
1987
770
63
366
200
200
SPRING PIN TO LOCK TOOL POSITION
40
125
69
10


30
ADJUSTMENT BETWEEN 660/750mm
2740
1347
588
1091
2915
660
NOTES 1. FRAME AND PLATES MATERIAL: AISI304 2. SURFACE FINISH: GLASS BEADBLAST, DIAMETER 125 TO 250 MICRON 3. WHEEL MATERIAL: AISI 304 WITH NYLON CASTERS. 4. BATTERY VOLTAGE & CAPACITY 24VDC 17Ah. 5. CHARGING VOLTAGE 100-240V AC 55W 6. MAX LOAD IS 50kg AT 800mm FROM MAST 7. APPROX WEIGHT: 80kg (176lb)
2016.06.27 09:02:08 +01'00'
2016.06.27 09:16:47 +01'00'

20
POWDER BAG LIFT (LARGE)
CUSTOMER DRAWING OF LGRMXPBSL
K MASONE
SEE NOTES
11
NTS
09-MAY-2016
THIS DOCUMENT MAY CONTAIN CONFIDENTIAL TECHNICAL DATA, INCLUDING TRADE SECRETS PROPRIETARY TO PALL CORPORATION. THE
DRAWING, DESIGN RIGHTS AND ALL OTHER DISCLOSURES IN THIS DOCUMENT ARE THE PROPERTY OF PALL CORPORATION. UNAUTHORIZED
USE, COPYING, DISTRIBUTION TO THIRD PARTIES, MANUFACTURE, OR REPRODUCTION IN WHOLE OR IN PART IS PROHIBITED.
COPYRIGHT (2016) © PALL CORPORATION
±0.1
UNSPECIFIED TOLERANCESALL DIMENSIONS IN MM. ANGULAR TOLERANCE
±0.25
REMOVE SHARP EDGES
DRAWING TITLE
MATERIAL
PAGE OF
SCALE
DWG NoDATEDRAWN
3rd ANGLE PROJECTION
PORTSMOUTH,
ENGLAND
DRAWN CHECKED
ISSUE A - 09 MAY 2016 - KM ORIGINAL ISSUE FOR CUSTOMER REF: DOR 2088
LEFT HAND VIEW ISOMETRIC VIEW
SUPPLY SERIALNUMBER YEAROFMANUF A CT U RE PARTNUMBER
80KgMACHINEWEIGHT
MADEINUK
50KgMAXLOAD
100-240VAC50/60 Hz 55W
LGRMXPBSL
THISEQUIPMENTMUSTBE OPERATEDAND MAINTAINEDBYTRAINED PE RSON NEL ONLY, INSTRICTA CCORDA NCE W IT H TH E OPERATINGINSTRUCTIONSPROVI DED
PowderBoxLift Large Allegro
Fribourg,
Manufacturedby PallPortsmouth Switzerland. ForPallInter nationalSàrl,
TM
REAR VIEW RIGHT HAND VIEW
ALLEN KEY FOR MOUNTING TOOL IS SUPPLIED WITH LIFT
PLUGS FOR HOLES
END PLUG IN BOTTOM/TOP MOTOR COVER
SPLASH GUARD
LEGS
FRONT WHEEL
SWIVEL REAR
WHEELS W ITH BRAKE
HANDLEBAR
BOTTOM/TOP PLATE
BATTERY PACK WITH IEC C14 CONNECTOR
A
ENLARGED DETAIL A
SPRING PIN TO LOCK TOOL POSITION
780
125
40
69
10


30
770
200
200
588
1091
ADJUSTMENT BETWEEN 660/750mm
660
3803
2886
366
63
1347
3629
NOTES 1. FRAME AND PLATES MATERIAL: AISI304 2. SURFACE FINISH: GLASS BEADBLAST, DIAMETER 125 TO 250 MICRON 3. WHEEL MATERIAL: AISI 304 WITH NYLON CASTERS. 4. BATTERY VOLTAGE & CAPACITY 24VDC 17Ah. 5. CHARGING VOLTAGE 100-240V AC 55W 6. MAX LOAD IS 50kg AT 800mm FROM MAST 7. APPROX WEIGHT: 80kg (176lb)
2016.06.27 09:01:48 +01'00'
2016.06.27 09:15:57 +01'00'
