Pall Minimate EVO User manual

MinimateTM EVO System Quick Start Guide
P/N 97071

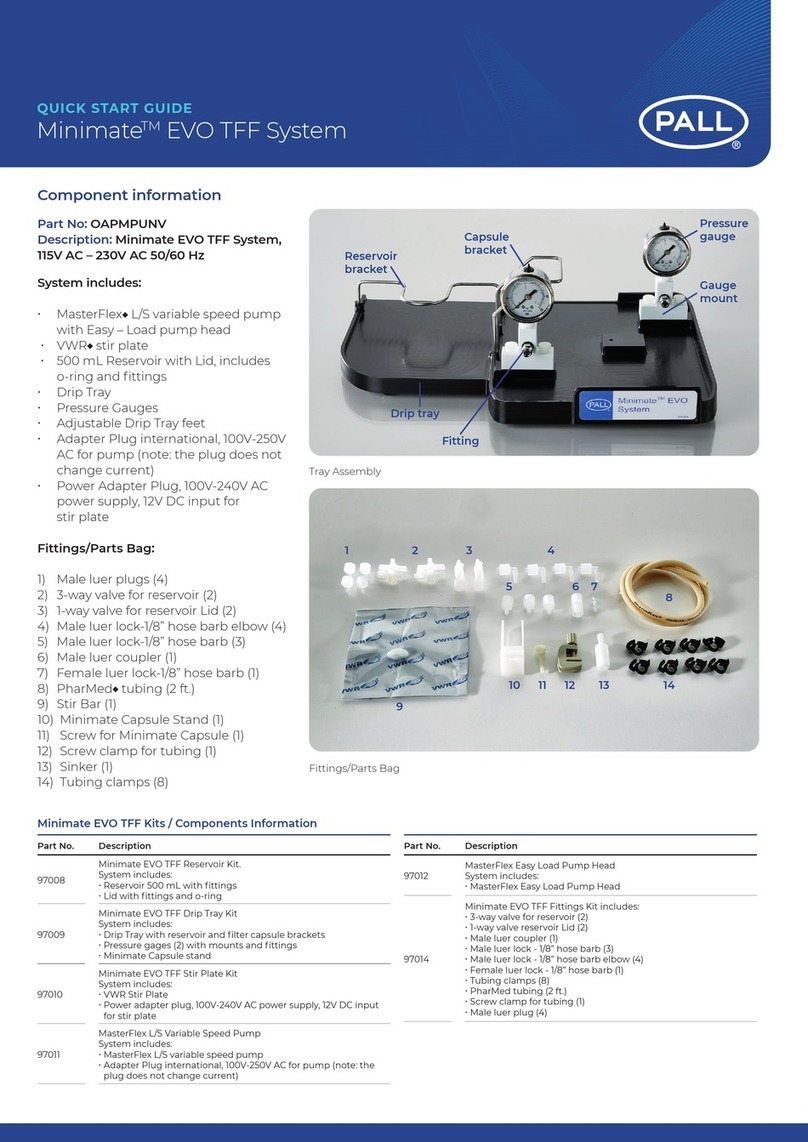

Component information
OAPMPUNV MinimateTM EVO System, 115V AC –
230V AC 50/60 Hz
System includes:
MasterFlex® L/S variable speed pump with
Easy – Load pump head
VWR® stir plate
500 mL Reservoir with Lid, includes
o-ring and fittings
Drip Tray
Pressure Gauges
Adjustable Drip Tray feet
Adapter Plug international, 100V-250V AC
for pump (note: the plug does not change
current).
Power Adapter Plug, 100V-240V AC
power supply, 12V DC input for stir plate.
Fittings/Parts Bag:
1) Male luer plugs (4)
2) 3-way valve for reservoir (2)
3) 1-way valve for reservoir Lid (2)
4) Male luer lock-1/8” hose barb elbow (4)
5) Male luer lock-1/8” hose barb (3)
6) Male luer coupler (1)
7) Female luer lock-1/8” hose barb (1)
8) Pharmed ® tubing (2 ft.)
9) Stir Bar (1)
10) MinimateTM Capsule Stand (1)
11) Screw for MinimateTM Capsule (1)
12) Screw clamp for tubing (1)
13) Sinker (1)
14) Tubing clamps (8)
Minimate EVO Kits / Components Information
97008 MinimateTM EVO Reservoir Kit
System includes:
Reservoir 500 mL with fittings
Lid with fittings and o-ring
97009 MinimateTM EVO Drip Tray Kit
System Includes:
Drip Tray with reservoir and filter capsule
brackets
Pressure gages (2) with mounts and fittings
MinimateTM Capsule stand
97010 MinimateTM EVO Stir Plate Kit
System Includes:
VWR® Stir Plate
Power adapter plug, 100V-240V AC power
supply, 12V DC input for stir plate
97011 MasterFlex® L/S Variable Speed Pump
System Includes:
MasterFlex® L/S variable speed pump
Adapter Plug international, 100V-250V AC for
pump (note: the plug does not change current)
97012 MasterFlex® Easy Load Pump Head
System Includes:
MasterFlex® Easy Load Pump Head
97014 MinimateTM EVO Fittings Kit
System Includes:
3-way valve for reservoir (2)
1-way valve reservoir Lid (2)
Male luer coupler (1)
Male luer lock - 1/8” hose barb (3)
Male luer lock - 1/8” hose barb elbow (4)
Female luer lock - 1/8” hose barb (1)
Tubing clamps (8)
Pharmed ® tubing (2 ft.)
Screw clamp for tubing (1)
Male luer plug (4)
Part No. Description Part No. Description
Short tube 3-7/8” (99 mm) long
Mid length tube 7” (178 mm) long
Long tube 8-1/2” (216 mm) long
Tray Assembly below
Male luer lock-1/8” Hose Barb Elbow
Male luer lock-1/8” Hose Barb
Fittings / Parts Bag
123
8
5 7
10 11 12 13
6
149
4
Figure 1: Cut Pharmed tubing (yellow) from Minimate EVO System to match lengths of tubing below (tubing in illustration are to length)
Tubing clamp
Reservoir bracket
Drip Tray
Capsule bracket
Gauge
mount
Pressure
Gau
g
e
Fitting
20
10 25.4 mm
1”
0 1/2”

Assemble System
Installation
1. Verify all components have been provided. (See Tray
Assembly and Fittings/ Part Bag Figures on reverse
side)
2. Cut Pharmed tubing (yellow) to lengths specified in
Figure 1 shown on reverse side.
3. Slide tube clamps onto tubing and insert fittings into
tubing as shown in Figure 1. Slide clamps over fitting
ends and pinch together (use pliers if necessary to
assist).
4. Lay drip tray on work counter.
(Note: if there is any rocking
of tray, the bottom feet can
be adjusted by rotating as
necessary as shown in
figure 2).
Figure 2
5. Slide stir plate into left compartment of drip tray
underneath reservoir bracket. Attach capsule stand
on raised boss in center of drip tray with screw in
threaded hole. Turn screw until snug fit, but allows
the stand to move. (See Figure 3)
Figure 3
6. Connect 3-way valves to fittings on reservoir outlet
and inlet. Attach male luer plugs onto female luer
connectors on 3-way valves. (See Figure 4)
Figure 4
7. Place reservoir onto stir plate with outlet toward rear
of plate. (See figure 5)
Figure 5
8. Connect “long tube” to 3-way valve at reservoir outlet
and to fitting on rear gauge mount. (See figure 5)
9. Attach pump head onto pump with supplied screws.
(See Figure 6)
Figure 6
10. Place tray in front of pump and insert tubing into
open pump head, close pump head onto tubing. (See
figure 7).
11. Attach male luer coupler to fitting on front of gauge
mount. Attach Minimate Capsule feed port to
coupler, rotate capsule to left into capsule stand and
onto capsule bracket for support. (See figure 7)
12. Connect “mid-length” tube to fitting on rear of forward
gauge mount and to retentate port on capsule filter.
(See figure 7)
13. Connect “short tube” to fitting on front of gauge
mount and to 3-way valve on reservoir inlet. Attach
adjustable screw clamp to tube. Remove clamp
when not in use, tubing can deform over time without
fluid passing through tubing. (See Figure 7)
Figure 7
14. Cut a length of tubing from Minimate
TM
Capsule
packaging long enough to reach filtrate collection
vessel from filtrate port on filter capsule. Attach
tubing clamp and female luer-1/8” hose barb to tube.
Connect fitting to filtrate port and place open tube
end into filtrate receiver vessel. (See Figure 8).
Figure 8
15. If performing diafiltration, place lid onto reservoir.
Connect 1-way valves onto fittings on top of
reservoir. From the Minimate Capsule filter
packaging, cut a length of tubing to reach from 1-way
valve on reservoir lid top to diafiltration vessel. Attach
male luer-1/8” hose barb elbow and tubing clamp.
Attach elbow to 1-way valve on lid and other tube
end into diafiltration vessel, sinker at end of tube
optional. (See Figure 8).
16. Plug pump cord into pump and power socket
(international adapter plug is provided for
international power sockets. Note: the plug does not
change current).
17. Plug stir plate power plug into stir plate and power
socket. (international adapter plug is provided for
international power sockets. Note: for stir plate only)
Operation
Confirm all fittings are secure prior to running liquid
through system.
Refer to VWR® stir plate operating manual for
operation of stir plate. Use of reverse mode is not
recommended on stir plate with Minimate EVO
System. If stir bar stops rotating when increasing stir
plate speed, reduce speed until stir bar is again
spinning.
Refer to MasterFlex® Pump and Pump Head
manuals for use.
Refer to Minimate Capsule Care and Use manual for
operation of the TFF capsule.
