WandMixer®
Single-Use Mixing System
OPERATOR MANUAL
BENCH-TOP SYSTEM
RDUA003A, RDUA005A, RDUA005B, RDUA005C
USD 3187

Document #: 5100000 Revision: C Page #: 2 of 20
Safeguards and Precautions
1. Read and follow all instructions in this manual carefully, and retain this manual for
future reference. Operation manual can be provided electronically in alternate languages
upon request.
2. Do not use this instrument in any manner inconsistent with these operating
instructions or under any conditions that exceed the environmental specifications stated.
3. Do not plug the drive unit of the mixer in before verifying voltage configuration.
4. Do not attempt to service or reposition the drive unit while shaft/shaft adaptor is
rotating.
5. Use caution when lifting the equipment: Hold equipment by the frame and not by the
motor or motor positioner. Lifting may require more than one person.
6. Do not allow loose clothing or parts of the body to come near the rotating drive unit
shaft/shaft adaptor.
7. Prior to servicing the drive unit, always turn the power off using the ON/OFF switch on
the front of the unit. Unplug and remove power cord to avoid tangling or breaking.
8. Do not attempt to open or repair the drive. Removal or destruction of the housing
voids any warranty, explicit or implied. Consult the manufacturer or distributor for
qualified technical service assistance.
9. Use only Pall®Rotational Wands and Pall heavy duty frames. Use of non-Pall rotational
wands or frames could result in injury to the operator or damage to the mixing system.
DO NOT submerge drive unit in water
DO NOT cut ground plug
CAUTION Disconnect all power before servicing
WARNING Risk of Electric Shock
CAUTION Disconnection of the Protective Earth Connector may impair the protection
provided by the system
ATTENTION Mains outlet used to power the equipment must be within 3 meters of the
device and easily accessible

Document #: 5100000 Revision: C Page #: 3 of 20

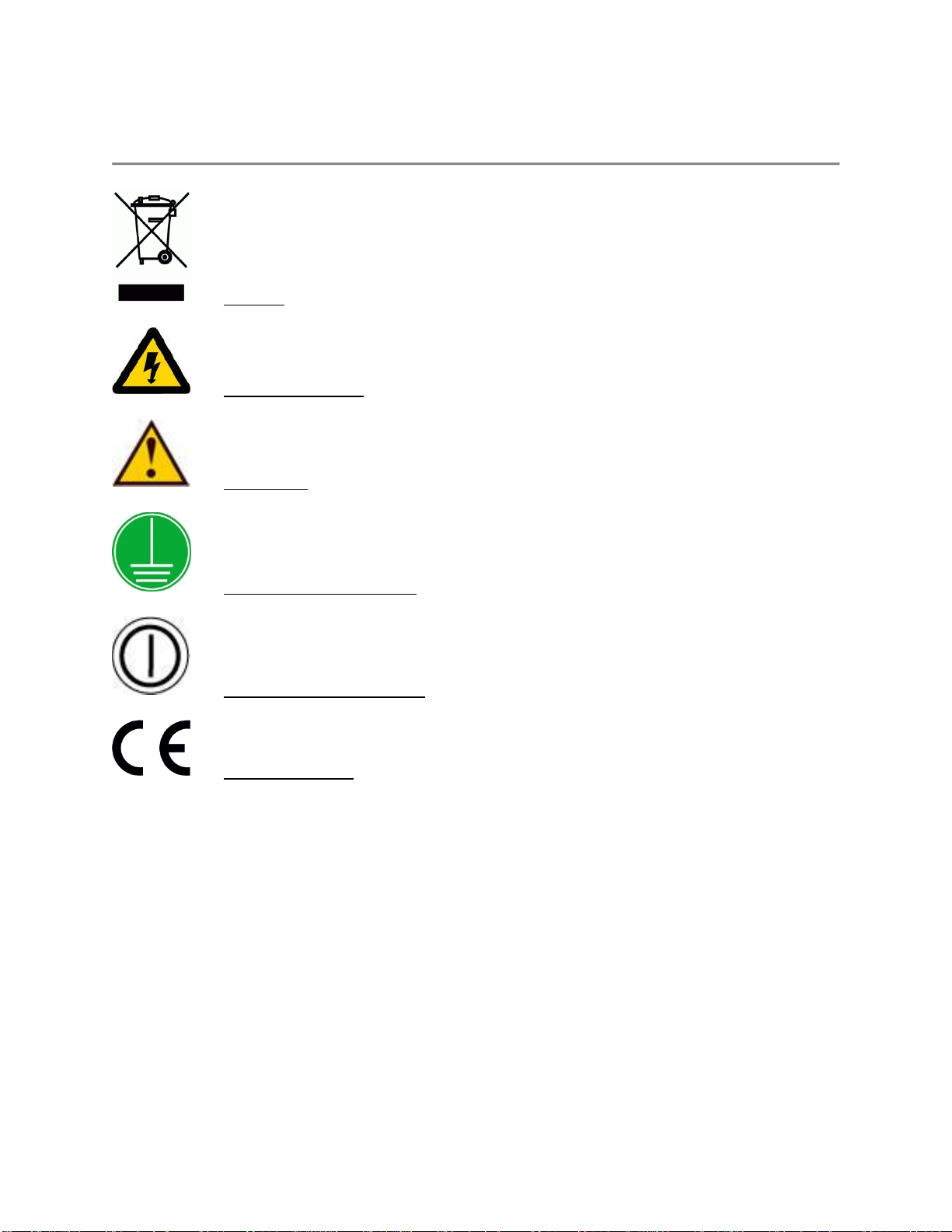

EXPLANATION OF SYMBOLS
WEEE: Waste of Electrical and Electronic Equipment
HIGH VOLTAGE
CAUTION
PROTECTIVE EARTH: Ground
MAIN POWER SWITCH
CE CERTIFIED

Document #: 5100000 Revision: C Page #: 4 of 20
TABLE OF CONTENTS
Section Page #(s)
Table of contents 4
Specifications & Electrical Schematic 5-6
Introduction 6
Principle of Operation 7
WandMixer System Components 8-12
Frame and Drive Motor 13
Assembly Prior to Mixing 13-15
Drive motor operation 16
Disconnecting Bag from Motor 17
Service 18
Spare Parts 18

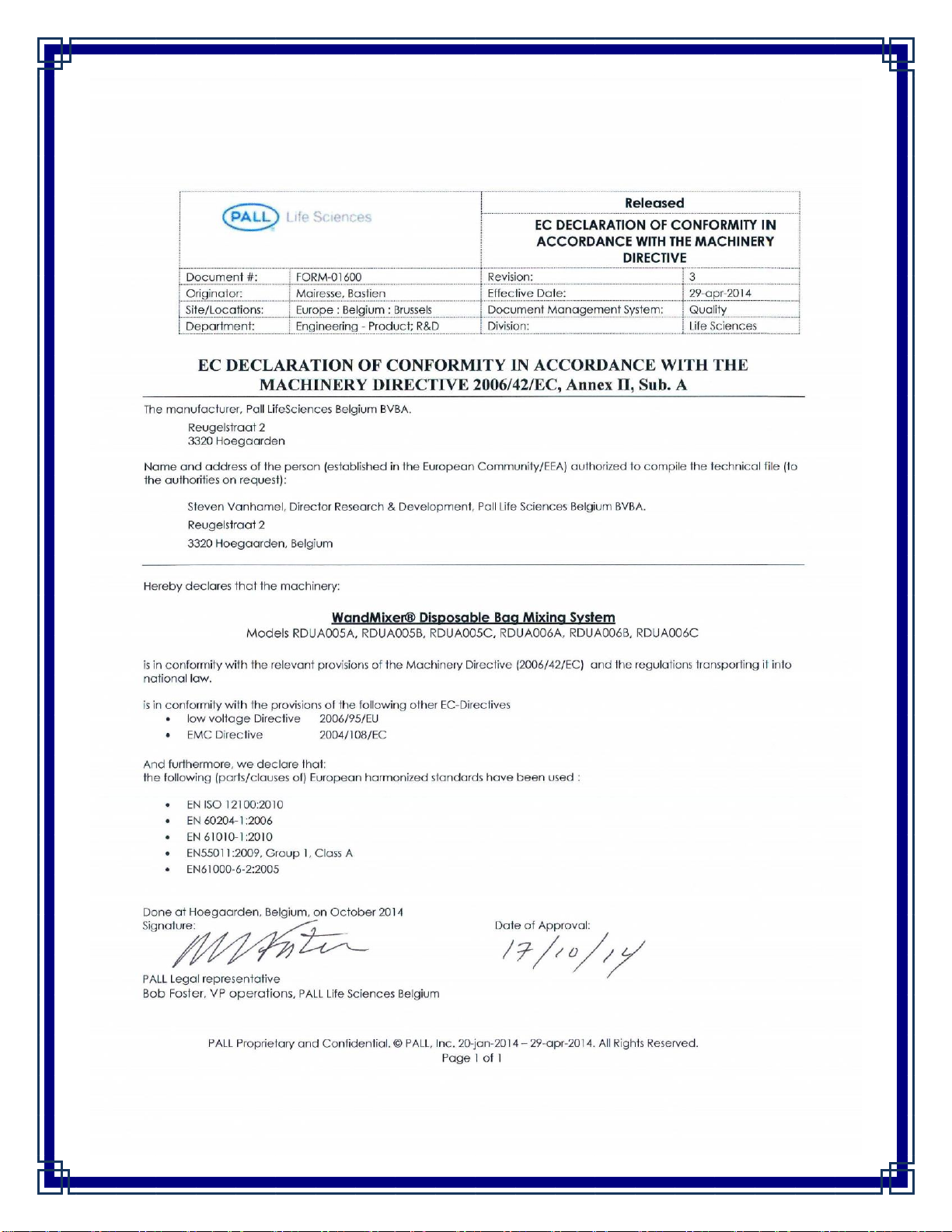

Declaration of CE Conformity 19

Document #: 5100000 Revision: C Page #: 5 of 20
1. SPECIFICATIONS
Power:
Single Phase 115/230 VAC 50/60 Hz, full load current 2.0/1.0 A
Input Wattage:
Less than 180 Watts at maximum speed
Speed Range
0-350 RPM
Degree of Protection:
NEMA 4X, IP 65
Altitude
Up to 1000 m (3280 ft.)
Ambient Temperature:
0-40oC
Max Humidity:
85% (non-condensing), *avoid condensation, *for indoor use
Vibration:
Not subject to continuous vibration or excessive impact. In
conformance with JIS C 60068-2-6, “Sine-Wave Vibration Test”
Voltage fluctuation:
MAINS supply voltage fluctuations up to + 10% of the nominal
voltage
Drive Unit Footprint:
28 in x 16.25 in (71 cm x 41 cm)
Drive Unit Height:
36 in (91 cm)
Drive Unit Weight:
70 lb (32 kg)
Electrical Schematic, 115 VAC:

Document #: 5100000 Revision: C Page #: 6 of 20
Electrical Schematic, 230 VAC:
2. INTRODUCTION
The WandMixer® System is a revolutionary mixer that provides efficient mixing utilizing a
patented rotational wand technology in a sterile closed bag. The WandMixer®System is
able to mix in sterile disposable hermetically sealed bags ranging in volume from 5L to
50L.
The system hardware has seven major components:
1. Drive motor with rotational speed display and shaft adaptor
2. Bench Top stainless steel frame for supporting drive unit above the bag
3. Retaining tank (plastic or steel)
4. Rotational wand with hex head
5. Wand coupler
6. Wand bushing
7. Wand Clamp

Document #: 5100000 Revision: C Page #: 7 of 20
3. PRINCIPLE OF OPERATION
Pall®rotational wand mixing technology provides non-invasive mixing inside sterile
plastic bags. It is based on rotating of the curved rod pre-introduced in the sleeve of the
mixing bag. The rod is separated from the processed sterile fluid by sleeve which is
hermetically sealed on one end. Rotation of rod induces rotational motion of the sleeve
due to flexural shape changes. Flexural rotational motion of the sleeve results in
efficient mixing inside the bag.

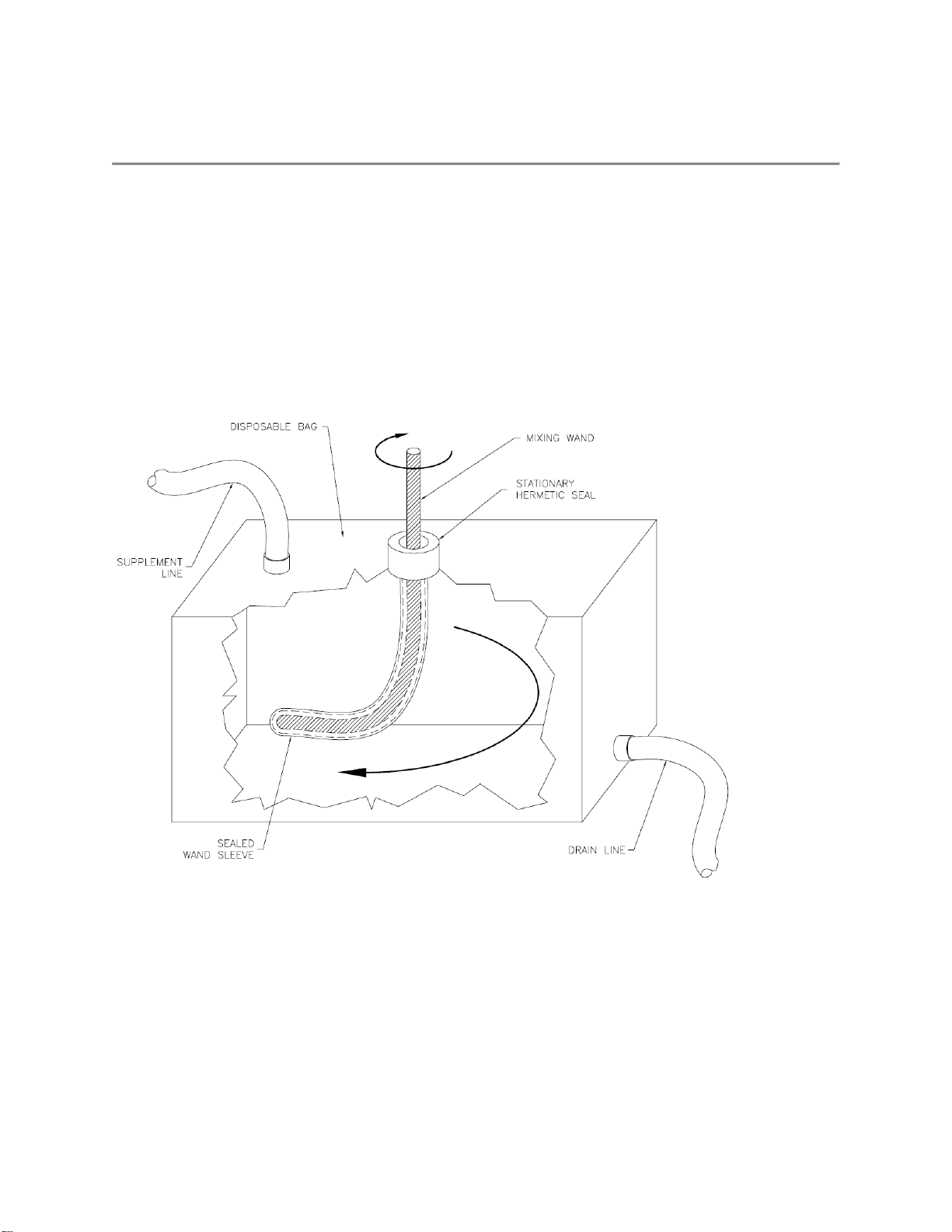

Figure 1: Rotational wand is pre-introduced inside the sleeve of the bag. Once rotation of the wand is
activated by external drive, sleeve performs rotational motion based on its flexing. The mixing procedure
is non-invasive leaving the processed fluid contained in sealed bag.

Document #: 5100000 Revision: C Page #: 8 of 20
4. WandMixer®SYSTEM COMPONENTS
Figure 2: Main components of WandMixer®disposable mixing system (shown with 20L tank)
Control Box
Motor Positioner
Drive Motor
Frame
Coupling System
Tank with
Mixing Bag

Document #: 5100000 Revision: C Page #: 9 of 20
4.1 Coupler
Stainless steel coupler provides mechanical interface between the bag and the driving
motor. It has hollow bore that receives the wand fitting on the bag. The coupler is
secured on the sleeve fitting of the bag with two thumb screws. The coupler has flanged
end that mates with the flange of the shaft adaptor.

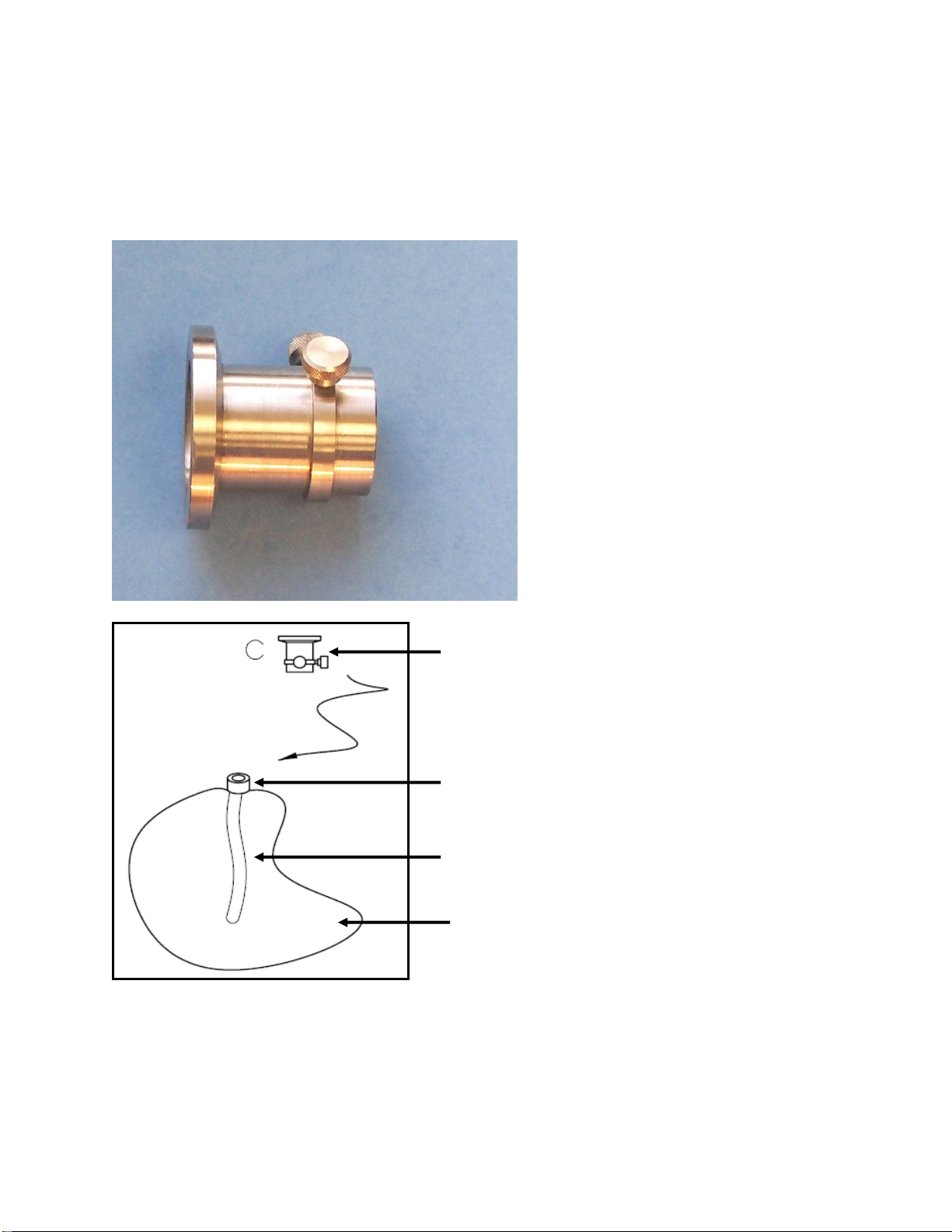

Figure 3: Coupler and procedure for its attachment to the bag
Wand Sleeve
Coupler
Mixing Bag
Sleeve Fitting

Document #: 5100000 Revision: C Page #: 10 of 20
4.2 Rotational wand
Rotational wand provides the rotational motion of the mixing sleeve in inside the bag.
The wand is introduced in the open end of the sleeve, while its hexagonal head is
received by motor shaft adaptor.
Figure 4: Stainless steel Rotational Wand
4.3 Bushing
Plastic wand bushing centers the wand in the sleeve fitting. Wand is inserted into the
bushing prior to wand insertion into the bag.
Figure 5: Wand Bushing

Document #: 5100000 Revision: C Page #: 11 of 20
Figure 6: Assembly of Rotational wand with Wand Bushing
4.4 Shaft adaptor
The shaft adaptor interfaces between the coupler and the driving motor. Adaptor
receives the hexagonal head of rotational wand. The bearing in the flange of the shaft
adaptor decouples the rotation of the shaft from the bag.
Motor Enclosure
Shaft Adaptor
Figure 7: Motor with Shaft Adaptor

Document #: 5100000 Revision: C Page #: 12 of 20
4.5 Clamp
The clamp secures the connection between the mating flanges of coupler and shaft
adaptor.

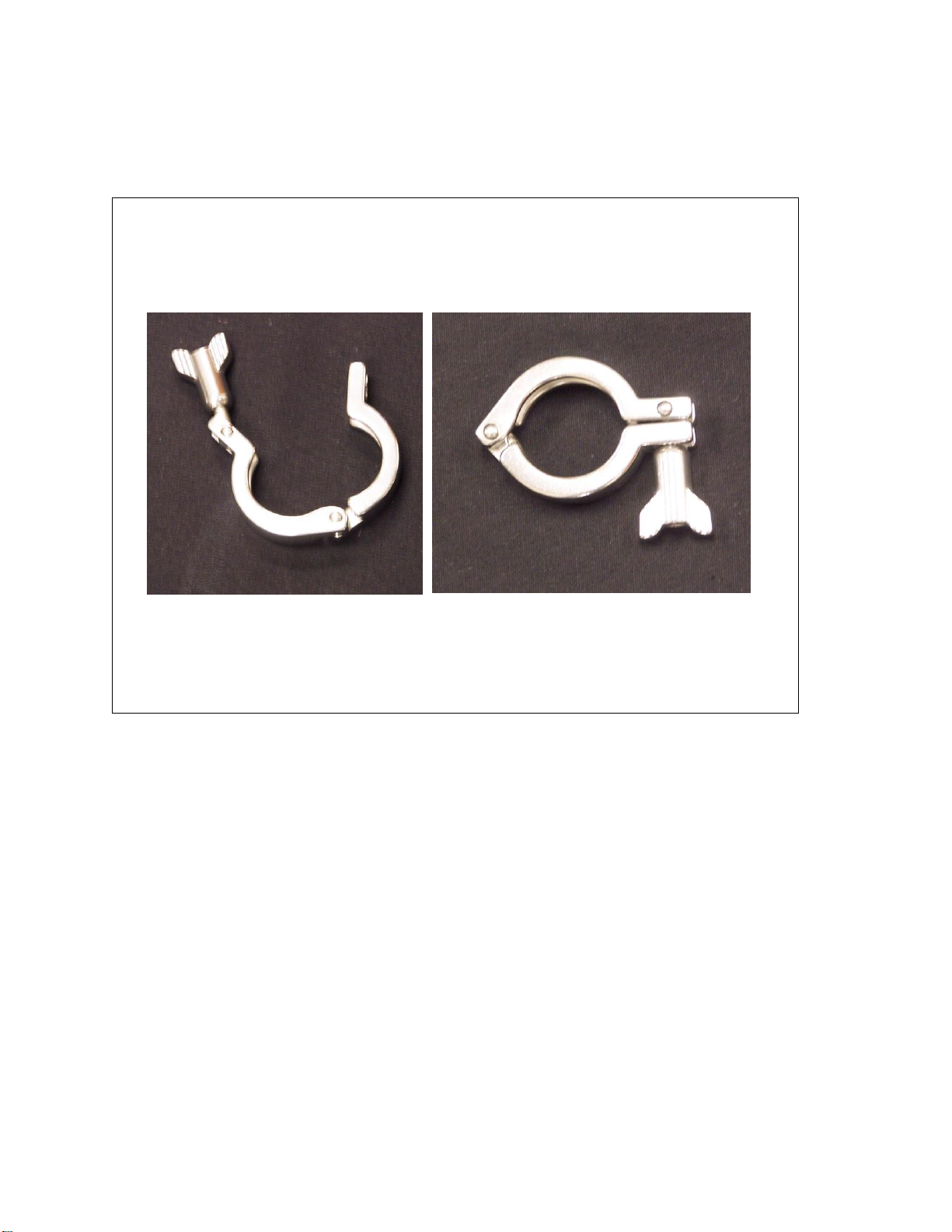

Figure 8: Stainless steel clamp open (left) closed (right)

Document #: 5100000 Revision: C Page #: 13 of 20
5. FRAME AND DRIVE MOTOR
The frame of the mixing system houses the driving motor, motor positioner and control
box, see Figure 2 (page 8). Motor positioner allows an adjustment of the vertical
position of the motor by rotating the handle on the top of the positioner. The adjustable
position of the motor allows for usage of the retaining tanks with different heights.
6. ASSEMBLY PROCEDURE PRIOR TO MIXING
6.1 Introduce mixing bag into appropriate retaining tank and fill it with fluid by using the
appropriate tube line. Make sure that retaining tank is compatible with the bag volume.
6.2 Ensure that the two thumb screws do not penetrate beyond the inner surface of the
coupler. Assemble the coupler with the bag by sliding the coupler over the sleeve fitting
all the way down to the film of the bag (see Figure 9, below).
6.3 Secure the coupler against the fitting by tightening both thumb screws.
6.4 The wand part number is stamped on its hexagonal head. Use only specified
wand. Insert rotational wand into the bushing, then insert the assembly into the sleeve
of the bag (see Figure 9, below).

Document #: 5100000 Revision: C Page #: 14 of 20
Figure 9: Sequence of steps to assemble mixing bag with coupler and wand
a-rotational wand, b-bushing, c-coupler

Document #: 5100000 Revision: C Page #: 15 of 20
6.5 Position the mixing bag with retaining tank in such a way that fitting with coupler is
located approximately under the shaft adaptor (see Figure 10, below).
6.6 Adjust vertical position of the motor by rotating the handle of the motor positioner
until the distance between the coupler and the shaft adaptor is about 2 inches.
6.7 Hold the coupler, move it toward the shaft adaptor, insert the hex head of the wand
in the receiving hex cavity inside the adaptor, bring the mating surfaces of two flanges
together (see Figure 10, below).
6.8 Secure the flanges of the coupler and shaft adaptor against each other by clamp
(see Figure 10, below). Tighten the screw on the clamp.
6.9 Move the motor coupled with the bag slightly up by turning the handle of the
motor positioner until noticeable bag tension is developed.

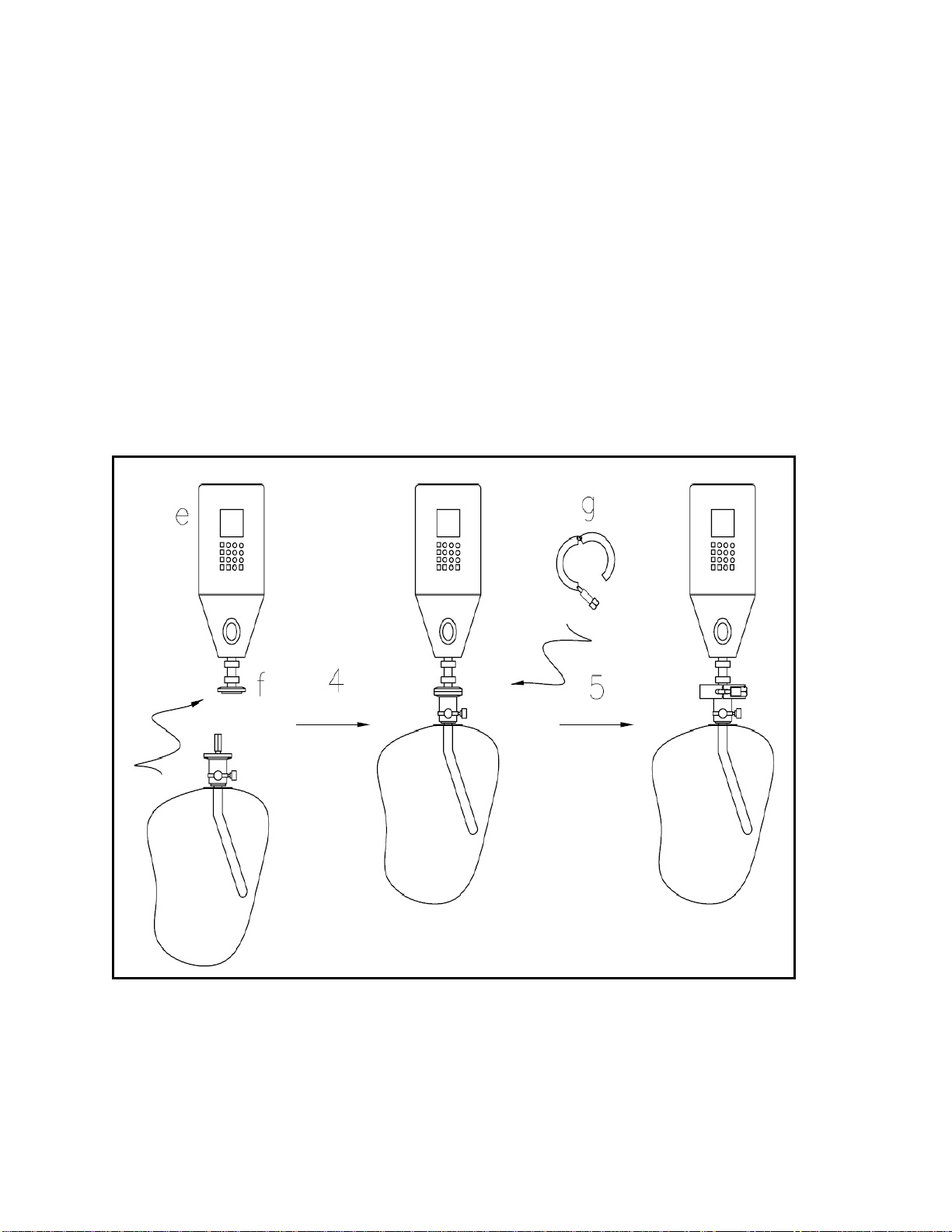

Figure 10: Sequence of steps to connect mixing bag with drive motor
e-drive motor, f-shaft adaptor, g-clamp

Document #: 5100000 Revision: C Page #: 16 of 20
7. OPERATING DRIVE MOTOR
7.1 Plug the power cord in to the proper power source identified on the nameplate of the
system.
7.2Depress the round button of the main switch to energize the system (the button will
illuminate).
7.3 Place the knob of the speed control potentiometer in ZERO position by turning it all
the way counterclockwise.
7.4 Press the RUN (green) button on the speed readout.
7.5 Set the speed of the mixer by turning the potentiometer clockwise until the desired
speed value illuminates on display.
7.6 To stop the motor press the STOP (red) button on the speed readout. Press the
RUN (green) button to resume motor operation at a preset speed. See Figure 11
(below) for details on the control Box.

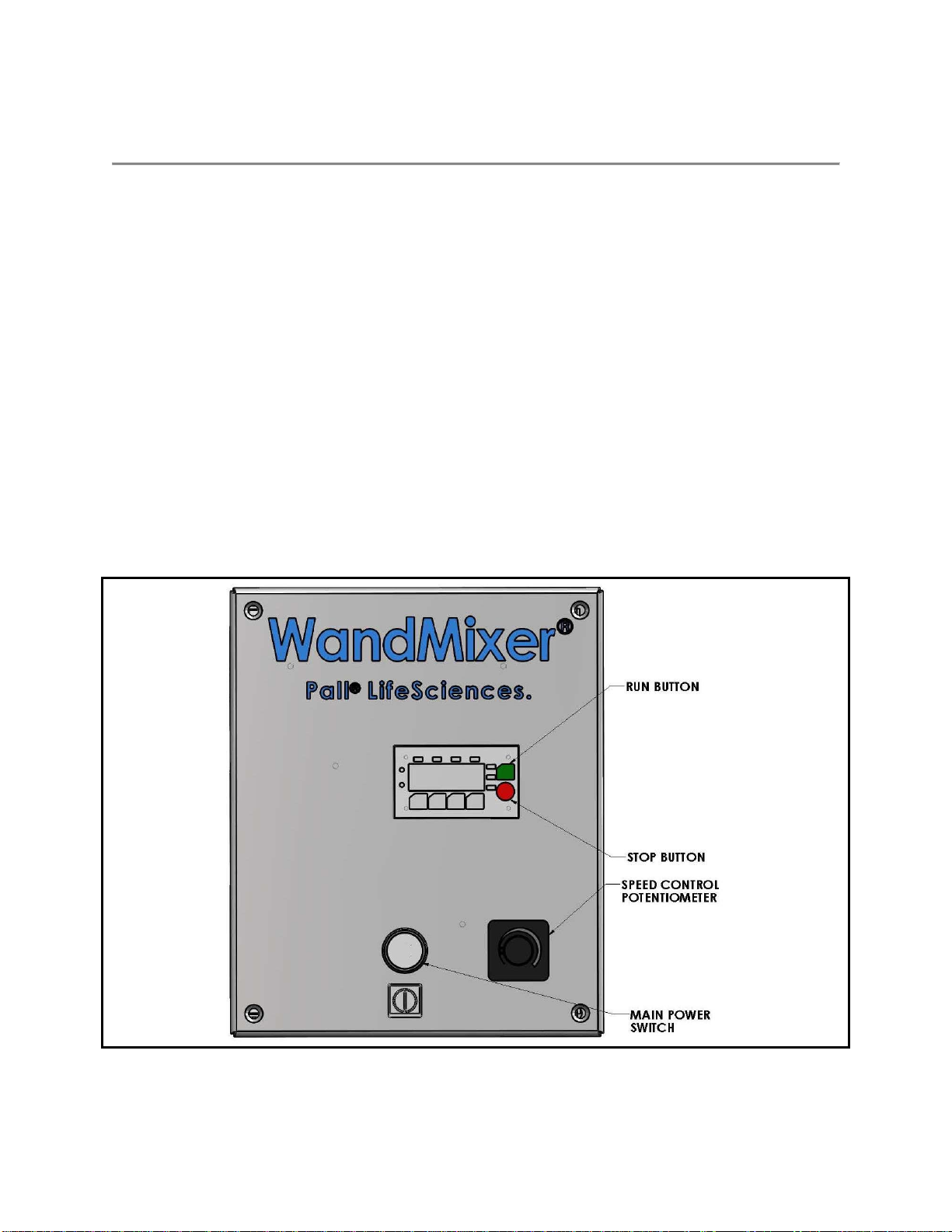

Figure 11: Control Box

Document #: 5100000 Revision: C Page #: 17 of 20
8. DISCONNECTING BAG FROM MOTOR
8.1 Stop the motor by pressing STOP (red) button on speed display. Turn speed control
potentiometer to ZERO position by turning its knob all the way counterclockwise.
8.2 Press and release the main switch button on the control box. The button will stop
illumination indicating that the power is off.
8.3 Remove the clamp connecting the coupler with shaft adaptor.
8.4 Push the coupler down away from shaft adaptor by 1-2 inches.
8.5 Reach the wand and push it down away from shaft adaptor until the hex head of the
wand is released from adaptor. Use small bearing on wand for better grip.
8.6 Once the hex head of the wand is released, raise the motor up 1-2 inches (by
rotating the handle on the top of the motor positioner) for better clearance from the bag.
8.7 Roll the tank with the bag out of the mixer’s frame.
8.8 Pull the wand from the sleeve holding plastic bushing inside the coupler.
8.9 Loosen thumb screws on the coupler, slide coupler out of the sleeve fitting.
8.10 Take plastic bushing out of the coupler.
8.11 Mixer is now ready to accommodate new mixing bag.

Document #: 5100000 Revision: C Page #: 18 of 20
Pall®LifeSciences –SERVICE
The WandMixer®mixing system was developed exclusively for mixing fluids and solids into
fluids in specially designed disposable bags. Only use the WandMixer®for these applications to
ensure a long service life.
Should your WandMixer require service, contact:
North America:
PALL Life Sciences
20 Walkup Drive
Westborough, MA 01581
E-mail: PASS_Suppor[email protected]
Europe:
PALL Life Sciences
Reugelstraat 2, B-3320 Hoegaarden, Belgium
Phone: [phone]
Fax: [phone]
WandMixer
Patents:
Pall.com/patents
SPARE PARTS
RWCA001A Coupler
RBUA001A Wand Bushing
RCLA001A Stainless Steel Clamp
1100025 Shaft Adapter Assembly
2100024 Fuse

Document #: 5100000 Revision: C Page #: 20 of 20
Pall Life Sciences. USA: Port Washington, NY, USA 1 800 717 7255 toll free (USA),[phone] phone,
[email protected] e-mail, www.pall.com. Europe: Fribourg, Switzerland [phone] phone, LifeScien[email protected] e-
mail. Asia-Pacific : [phone] phone, sgcustome[email protected] e-mail
© 2012, Pall Corporation. Pall, Allegro, Kleenpak, Stax and the Allegro Design are trademarks of Pall Corporation. ® indicates a
trademark registered in the USA and TM indicates a common law trademark.
Filtration.Separation.Solution is a service mark of Pall Corporation.
PAGE INTENTIONALLY LEFT BLANK
