operating anual & parts list 61101C
1-Ton
ARBOR PRESS WITH
DEPTH STOP COLLAR
Read carefully and follow all safety rules and operating instructions before
first use of this product.
37082.00 - 0113

DESCRIPTION
Palmgren Arbor Press is designed for riveting, squeezing,
bending, punching, flattening, removing a bearing or pressing
in bearings. Removable, rotating, machined anvil has 4-slots
to provide convenient support for workpieces that vary in
size and shape. Arbor press comes with three punches and a
magnetic insert to hold the punch. Press is equipped with
handwheel to perform light presswork. Press is suited for
work in production lines as well as in machine shops, auto-
motive repair shops and home workshops.
SAFETY RULES
•For best operation, the arbor press must be bolted to a
stationary object that is also affixed to the floor.
•When using the press, be sure the work is mounted
securely in it. Do not attempt to use the press with the
workpiece mounted on an angle.
•Use only accessories designed for the arbor press.
Attachments and equipment used in the pressing opera-
tion must be as strong as the press. Use steel collars and
blocks to press against the workpiece.
•Do not overload the press by using handle extensions
(cheater bars).
•Remove arm-handle from arbor press before using
handwheel.
•When not in use, the ram should be in the down position
to prevent accidents.
•Know the arbor press and accessories. Read and under-
stand owner’s manual.
•Wear a face shield or safety glasses.
•Never place hands in jeopardy.
•Always check your set up, i.e., see that the ram contacts
workpiece squarely before applying pressure.
•Keep your mind on your work. Be alert.
•Make sure workpiece, punch, anvil and accessories are
securely clamped.
•Don’t force the arbor press or its accessories.
DIMENSIONS
Refer to Figure 1.
OPERATION
Refer to Figure 2.
•Mount arbor press to bench or stand. Secure arbor press
using two mounting holes on the body (Ref. No. 1).
(Hardware is not supplied.)
•To use with a punch remove set screw, handwheel and
key (Ref. Nos. 18, 17 and 8) from pinion (Ref. No. 3).
Remove pinion from the body. Remove ram (Ref. No. 2),
mount ram upside down so the punch hole is facing
down. Replace pinion, key, handwheel and set screw.
Insert the punch (Ref. No. 20) best suited to the job. Make
sure that magnetic insert (Ref. No. 15) is holding the
punch.
•To adjust the ram action to your requirements, use set
screws (Ref. No. 13). All set screws should be tightened
with the same amount of pressure. Secure set screws by
tightening nuts (Ref. No. 12).
WARNING: Do not use handwheel before removing
arm-handle from the arbor press. Failure to remove
arm-handle may result in injury to operator or others.
•To use handwheel for light presswork, remove bolt (Ref.
No. 4), cap (Ref. No. 5) and arm-handle (Ref. No. 7) from
pinion.
DEPTH STOP COLLAR INSTALLATION:
The Depth Stop Collar allows to precisely adjust and/or limit
the Arbor Press Ram Stroke. To install the Depth Stop Collar:
•Position the Collar over the Ram such that the two set
screws is on the front side of the arbor press.
2
A
W
BD
H
R

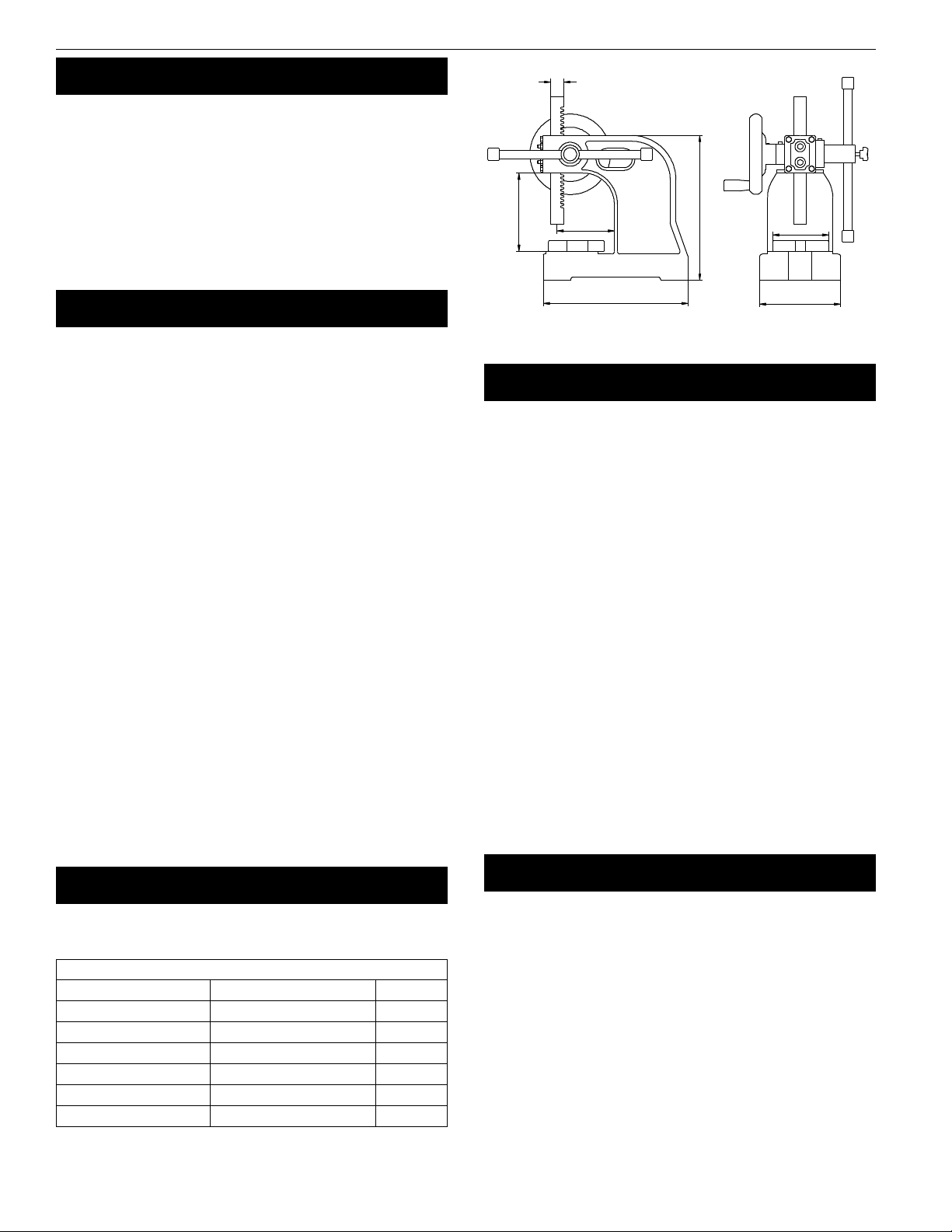

Figure 1 - Di ensions
Model Type 61101C
Base ength 103/4“
Base Width W6
5/16“
Height H 111/8“
Max. Work Height A6
1/8“
Swing 2B 8”
Anvil Diameter D4
1/2“
Ram Dimension R x R 1 x 1”
Palmgren Operating Manual & Parts ist 61101C

3
Palmgren Operating Manual & Parts ist 61101C
•oosen the two set screws slightly with a wrench (not
supplied) and slide the Collar over the Ram. Position the
Collar at the desired height and tighten both the set
screws
•For precise depth stop adjustment, turn the screw on the
hex nut to the desired height. Secure the position of the
screw by tightening the hex nut until it bottoms out on
the arbor press frame. MAINTENANCE
MAINTENANCE
•Oil the pinion periodically through the oil fitting, and
grease the ram rack whenever necessary. Keep work area
clean. Clean the arbor press of dirt and debris after every
use.
•If the ram is loose and drops by itself, tighten screws (Ref.
No. 13) for adjustment. All screws should be tightened
with the same amount of pressure.
WARRANTY
Palmgren warrants their products to be free of deficiency in material or workmanship. The duration of this warranty is
expressively limited to one year parts and labor unless otherwise noted beginning from the date of delivery to the original
user. The following Palmgren products carry the following warranties on parts with a 1 year warranty on labor:
The obligation of Palmgren is limited solely to the repair or replacement, at our option, at its factory or authorized repair
agent of any part that should prove deficient. The warranty does not cover expendable and/or wear parts (i.e. v-belts, coated
abrasives), damage to tools arising from alteration, abuse or use other than their intended purpose, packing and freight.
Purchaser must lubricate and maintain the product under normal operating conditions at all times. Proper use and care
instructions are provided in the operator’s manual. Failure to follow these instructions will void the warranty.
This warranty is the purchaser’s exclusive remedy against Palmgren for any deficiency in its products. Under no circumstances
is Palmgren liable for any direct, indirect, incidental, special or consequential damages including lost profits in any way related
to the use or inability to use our products. This warranty gives you specific legal rights which may vary from state to state.
SERVICE & REPAIR
1. If a Palmgren product requires a repair or warranty service DO NOT return the product to the place of purchase.
2. All warranty related work must be evaluated and approved by Palmgren.
3. Prior to returning any item the user must obtain factory approval and a valid RGA number.
4. For instructions and RGA number call toll free [phone].
•USA Machine vises – ifetime
•Imported Machine vises – 2 years
•Bench vises – 2 years
•Positioning tables – 2 years
•Bench grinders & buffers – 3 years
•Tapping machines – 2 years
•Drilling machines – 2 years
•Finishing machines – 2 years
•Band saws – 2 years
•Work stands – 2 years

Palmgren Operating Manual & Parts ist 61101C
∆Not Shown.
* Standard hardware item available locally.
† Not available as replacement part.
Ref. Part Nu ber for:
No. Description 61101C Qty.
1 Body †1
2 Ram with Magnet 28803.00 1
3 Pinion 28804.00 1
4 6-1.0 x 25mm Socket Head Bolt *2
5 Cap 28805.00 2
6 Knob 28806.00 1
7 Arm-handle 28807.00 1
8 6 x 6 x 16mm Key 17330.00 1
9 Table Pin 01596.00 1
10 Anvil 28808.00 1
11 6-1.0 x 25mm Hex Head Bolt *4
12 6-1.0mm Hex Nut *4
13 6-1.0 x 20mm Set Screw *4
14 Face Plate 28809.00 1
15 Oil Fitting 17335.00 2
16 Handwheel 28810.00 1
17 8-1.25 x 8mm Set Screw *1
18 Handle 28811.00 1
19 Punch Set (3 pieces-round; point; square) 28722.00 1
∆Depth Stop Collar Assembly 35409.00 1
∆Operator’s Manual 37082.00 1
REPLACEMENT PARTS LIST FOR ARBOR PRESS
8
7
6
1
10
18
13
13
12
12
15
17 16
9
4
4
5
5
3
2
14
11
11
19
Figure 2 - Replace ent Parts Illustration for 1-Ton Arbor Press
