Operating Guide
Remote Operation Panel
Model No. AK-HRP1000G

Connecting the Unit to AJ-CX4000 Cameras 3
Connections 3
Compatible Functions List 4
ROP Menu (during AJ-CX4000 Connection) 8
ROP menu list 8
01 SHUTTER SPEED 13
02 PEDESTAL 14
03 CHROMA 15
04 GAIN 16
05 COLOR TEMP 17
06 WHITE BALANCE 18
07 FLARE 19
08 GAMMA 20
09 KNEE 21
10 WHITE CLIP 22
11 DRS 23
12 DETAIL 24
13 SKIN TONE DTL 25
14 MATRIX 26
15 COLOR CORRECTION 27
16 SYSTEM CAM 30
17 CAMERA MENU CONTROL 31
18 ROP SETTING 32
19 CONNECT SETTING 32
20 ROP IP SETTING 32
21 CAMERA IP SETTING 32
22 AUTO IRIS SETTING 33
23 SWITCHER LINK 34
24 AW CONTROLLER LINK 34
- 2 -
Table of Contents

Connecting the Unit to AJ-CX4000 Cameras
Connections
Use a LAN cable to connect the <REMOTE> connector at the rear of the AJ-CX4000 to the <LAN> connector of the AK-
HRP1000G.
Set the connection setting to “LAN(AJ2)” in the [CONNECT SETTING] menu.
ヤヰワワユヤヵチヴユヵヵリワヨ
ヒチバチヒヒ
ヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナ
ワヰワワヰワ
ヤモヮベヤモヮペ
ロモワドモルビナワヰワワヰワワヰワワヰワワヰワ
ヤモヮフ
ワヰワ
ヤモヮヘヤモヮビヤモヮピヤモヮヒヤモヮブヤモヮプ
- 3 -
Connecting the Unit to AJ-CX4000 Cameras

Compatible Functions List
When the unit is used in conjunction with an AJ-CX4000 Memory Card Camera-Recorder, a portion of the unit’s button, dial, and other con-
trol functions will be limited or disabled. Be sure to refer to the following table.
Front panel 1
Front panel 2
Front panel 3
Front panel 4
Front panel 5
Front panel 6
Front panel 7
Front panel 8
Front panel 9
Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 1
[POWER HEAD] button ×
[POWER VF] button ×
[BARS/TEST] button ✓Only the ON/OFF for the color bar signal output will
function.
[REF. RECALL] button ×
[AUTO WHITE] button ✓This functions when the [WHITE BALANCE] >
[W.BAL SELECT] setting is “A” or “B”.
[AUTO BLACK] button ✓
[AUTO SET UP] button ×
[CHARA] button ✓
[MATRIX] button ✓
[SKIN DTL] button ✓This only turns skin detail A ON/OFF.
[DRS] button ✓
[B.GAMMA] button ×
[ASSIGN] button ✓
- 4 -
Connecting the Unit to AJ-CX4000 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 2
[ASSIGN STATUS] button ✓
Buttons [1] to [5] (CONTROL/MODE) ✓
[CONTROL/MODE] button ✓
Front panel 3
LCD panel ✓
[MENU] dial ✓
[EXIT] button ✓
[UNDO] button ×
[MENU] button ✓
Front panel 4
[ON] indicator (SCENE FILE) ✓This is always lit.
Scene file page switching button ×
[1/6], [2/7], [3/8], [4/EXT1], and
[5/EXT2] buttons (SCENE FILE)
✓Scenes 1 to 6 are enabled.
[STORE] button ✓When you press this at the same time as the [HEAD]
button, recording starts or stops.
Front panel 5
[ND] indicator ×
[ND] setting buttons ×
[ND] display ✓Displayed but cannot be adjusted.
[CC] indicator ×
[CC] setting buttons ×
[CC] display ✓Displayed but cannot be adjusted.
[HEAD] button ✓When you press this at the same time as the
[STORE] button, recording starts or stops.
[ECC] button ×
[M.GAIN] indicator ✓
[M.GAIN] setting buttons ✓
[M.GAIN] display ✓Display varies depending on the selected mode.
When dB mode is selected:
Displays the dB setting value.
When ISO mode is selected:
Displays the ISO setting value (the last two digits
of the setting value are not displayed). A dot is
displayed at the bottom right.
[VAR] button ×
- 5 -
Connecting the Unit to AJ-CX4000 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 6
[SHUTTER] display ✓Display varies depending on the shutter mode.
When auto shutter is selected:
Displays “AUTO”.
When fixed shutter is selected:
Displays the numerical value for the denom-
inator of the shutter speed.
When synchro scan (time display) is selected:
Displays the numerical value for the denom-
inator of the shutter speed. When the value is
four or more digits, the digits after the decimal
point are not displayed.
When synchro scan (shutter open angle dis-
play) is selected:
Displays the shutter open angle.
[ON] button (SHUTTER) ✓
[SYNC] button (SHUTTER) ✓Changes the shutter mode of the electronic shutter.
OFF:
Fixed shutter (FIX)
ON:
Synchro scan (SYNC)
[SHUTTER] setting buttons ✓
Front panel 7
[GAIN R], [GAIN G], and [GAIN B]
dials
✓[GAIN G] dial is disabled.
[BLACK R], [BLACK G], and [BLACK
B] dials
✓
[FLARE] button ✓
[PAINT LOCK] button ✓
[DTL] dial ✓
[CAM SEL] indicator ✓
[SELECT] dial ✓
[TEMP] indicator ✓
[SYNC] indicator ✓
[MFLR] indicator ×
[USER] indicator ✓
- 6 -
Connecting the Unit to AJ-CX4000 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 8
[EXT] indicator ×
[D.EXT] indicator ×
[IRIS] lever ✓
[M.PED] dial ✓
[RELATIVE] button ×
[SENSE] dial ✓
[COARSE] dial ✓
[IRIS] display ✓
[AUTO] button ✓
[CLOSE] button ×
[M.PED] display ✓
[IRIS LOCK] button ✓
[M.PED LOCK] button ✓
Front panel 9
Camera number/tally display ✓
[ALM] indicator ✓
[OPT] indicator ×
[PANEL ACTIVE] button ✓
[CALL] button ×
[PREVIEW] button ×
Memory card slot ✓
Memory card access indicator ✓
Torque adjustment screw ✓
- 7 -
Connecting the Unit to AJ-CX4000 Cameras

ROP Menu (during AJ-CX4000 Connection)
ROP menu list
When an AJ-CX4000 Memory Card Camera-Recorder is connected, the ROP menu will be as follows. For setting values related to the cam-
era, refer to the Operating Instructions for the camera.
For details on menu operations, refer to the following sections in the Operating Instructions.
“Displaying menus”
“Basic menu operations”
NOTE
To perform menu operations, upgrade the version of the unit system to 4.82-00-0.00 or later.
The setting values of functions that are not supported are indicated as “－”.
01 SHUTTER SPEED
SHUTTER “SHUTTER” (see page 13)
SPEED MODE “SPEED MODE” (see page 13)
SYNC TYPE “SYNC TYPE” (see page 13)
SPEED “SPEED” (see page 13)
02 PEDESTAL
M.PED “M.PED” (see page 14)
OFFSET “OFFSET” (see page 14)
PED R “PED R” (see page 14)
PED G “PED G” (see page 14)
PED B “PED B” (see page 14)
03 CHROMA
LEVEL % “LEVEL %” (see page 15)
PHASE “PHASE” (see page 15)
04 GAIN
GAIN “GAIN” (see page 16)
AGC “AGC” (see page 16)
AGC LIMIT “AGC LIMIT” (see page 16)
AGC POINT “AGC POINT” (see page 16)
05 COLOR TEMP
COLOR TEMP “COLOR TEMP” (see page 17)
GAIN R “GAIN R” (see page 17)
AXIS G “AXIS G” (see page 17)
GAIN B “GAIN B” (see page 17)
06 WHITE BALANCE
W.BAL SELECT “W.BAL SELECT” (see page 18)
GAIN OFFSET “GAIN OFFSET” (see page 18)
GAIN R “GAIN R” (see page 18)
GAIN B “GAIN B” (see page 18)
ATW SPEED “ATW SPEED” (see page 18)
ATW TARGET R “ATW TARGET R” (see page 18)
ATW TARGET B “ATW TARGET B” (see page 18)
07 FLARE
FLARE R “FLARE R” (see page 19)
FLARE G “FLARE G” (see page 19)
FLARE B “FLARE B” (see page 19)
SW “SW” (see page 19)
- 8 -
ROP Menu (during AJ-CX4000 Connection)

08 GAMMA
MODE “MODE” (see page 20)
GAMMA “GAMMA” (see page 20)
SW “SW” (see page 20)
F-REC DYNMC LV “F-REC DYNMC LV” (see page 20)
F-REC BLK.S LV “F-REC BLK.S LV” (see page 20)
V-REC K.SLOPE “V-REC K.SLOPE” (see page 20)
V-REC K.POINT “V-REC K.POINT” (see page 20)
BLACK GAMMA “BLACK GAMMA” (see page 20)
B.GAMMA RANGE “B.GAMMA RANGE” (see page 20)
09 KNEE
MODE “MODE” (see page 21)
POINT “POINT” (see page 21)
SLOPE “SLOPE” (see page 21)
AUTO KNEE RSPNS “AUTO KNEE RSPNS” (see page 21)
AUTO KNEE POINT “AUTO KNEE POINT” (see page 21)
AUTO KNEE LEVEL “AUTO KNEE LEVEL” (see page 21)
HLG KNEE SW “HLG KNEE SW” (see page 21)
HLG KNEE POINT “HLG KNEE POINT” (see page 21)
HLG KNEE SLOPE “HLG KNEE SLOPE” (see page 21)
H.COLOR SW “H.COLOR SW” (see page 21)
10 WHITE CLIP
WHITE CLIP SW “WHITE CLIP SW” (see page 22)
WHITE CLIP LEVEL(%) “WHITE CLIP LEVEL(%)” (see page 22)
11 DRS
DRS “DRS” (see page 23)
EFFECT DEPTH “EFFECT DEPTH” (see page 23)
12 DETAIL
DTL “DTL” (see page 24)
CORING “CORING” (see page 24)
H.DTL LEVEL “H.DTL LEVEL” (see page 24)
V.DTL LEVEL “V.DTL LEVEL” (see page 24)
FREQ. “FREQ.” (see page 24)
LEVEL DEPEND. “LEVEL DEPEND.” (see page 24)
KNEE APE LV “KNEE APE LV” (see page 24)
GAIN(+) “GAIN(+)” (see page 24)
GAIN (-) “GAIN(-)” (see page 24)
DTL SW “DTL SW” (see page 24)
13 SKIN TONE DTL
SKIN TONE DTL A “SKIN TONE DTL A” (see page 25)
SKIN TONE DTL B “SKIN TONE DTL B” (see page 25)
SKIN TONE DTL C “SKIN TONE DTL C” (see page 25)
DETECT TBL “DETECT TBL” (see page 25)
EFFECT “EFFECT” (see page 25)
I CENTER “I CENTER” (see page 25)
I WIDTH “I WIDTH” (see page 25)
Q WIDTH “Q WIDTH” (see page 25)
Q PHASE “Q PHASE” (see page 25)
- 9 -
ROP Menu (during AJ-CX4000 Connection)

14 MATRIX
TABLE “TABLE” (see page 26)
ADAPTIVE MATRIX “ADAPTIVE MATRIX” (see page 26)
R-G “R-G” (see page 26)
R-B “R-B” (see page 26)
G-R “G-R” (see page 26)
G-B “G-B” (see page 26)
B-R “B-R” (see page 26)
B-G “B-G” (see page 26)
15 COLOR CORRECTION
SAT R “SAT R” (see page 28)
PHASE R “PHASE R” (see page 28)
SAT R-R-Mg “SAT R-R-Mg” (see page 28)
PHASE R-R-Mg “PHASE R-R-Mg” (see page 28)
SAT R-Mg “SAT R-Mg” (see page 28)
PHASE R-Mg “PHASE R-Mg” (see page 28)
SAT Mg “SAT Mg” (see page 28)
PHASE Mg “PHASE Mg” (see page 28)
SAT Mg-B “SAT Mg-B” (see page 28)
PHASE Mg-B “PHASE Mg-B” (see page 28)
SAT B “SAT B” (see page 28)
PHASE B “PHASE B” (see page 28)
SAT B-Cy “SAT B-Cy” (see page 28)
PHASE B-Cy “PHASE B-Cy” (see page 28)
SAT Cy “SAT Cy” (see page 28)
PHASE Cy “PHASE Cy” (see page 28)
SAT Cy-G “SAT Cy-G” (see page 28)
PHASE Cy-G “PHASE Cy-G” (see page 28)
SAT G “SAT G” (see page 28)
PHASE G “PHASE G” (see page 28)
SAT G-Yl “SAT G-Yl” (see page 28)
PHASE G-Yl “PHASE G-Yl” (see page 28)
SAT G-Yl-Yl “SAT G-Yl-Yl” (see page 28)
PHASE G-Yl-Yl “PHASE G-Yl-Yl” (see page 28)
SAT Yl “SAT Yl” (see page 28)
PHASE Yl “PHASE Yl” (see page 28)
SAT Yl-Yl-R “SAT Yl-Yl-R” (see page 28)
PHASE Yl-Yl-R “PHASE Yl-Yl-R” (see page 29)
SAT Yl-R “SAT Yl-R” (see page 29)
PHASE Yl-R “PHASE Yl-R” (see page 29)
SAT Yl-R-R “SAT Yl-R-R” (see page 29)
PHASE Yl-R-R “PHASE Yl-R-R” (see page 29)
SW “SW” (see page 29)
16 SYSTEM CAM
TALLY CONTROL “TALLY CONTROL” (see page 30)
TALLY INPUT “TALLY INPUT” (see page 30)
TALLY SIGNAL “TALLY SIGNAL” (see page 30)
TALLY CONT MD “TALLY CONT MD” (see page 30)
- 10 -
ROP Menu (during AJ-CX4000 Connection)

17 CAMERA MENU CONTROL
MENU ON/OFF “MENU ON/OFF” (see page 31)
CURSOR/PARAMETER “CURSOR/PARAMETER” (see page 31)
EXECUTE “EXECUTE” (see page 31)
MENU EXIT “MENU EXIT” (see page 31)
18 ROP SETTING
CONTROL(MENU)1 “18 ROP SETTING” (see page 32)
CONTROL(MENU)2
CONTROL(MENU)3
CONTROL(MENU)4
CONTROL(MENU)5
B.GAMMA SW
MODE(ON/OFF)1
MODE(ON/OFF)2
MODE(ON/OFF)3
MODE(ON/OFF)4
MODE(ON/OFF)5
ECC BTN CTRL
ASSIGN BUTTON
USER ASSIGN
IRIS LEV MODE
CAM SEL
DTL VOL
SKIN DTL SW
LCD BRIGHT
PANEL LED BRIGHT
7SEG BRIGHT GROUP1
7SEG BRIGHT GROUP2
BUZZER
PERIOD
CYCLE
STD POSITION M.GAIN
STD POSITION VAR
STD POSITION ND
STD POSITION CC
IRIS PRIORITY
ROP DATA SAVE
ROP DATA LOAD
SD CARD FORMAT
INITIAL with NW
INITIAL
POWER BUTTON
IRIS CALIBRATION TOP
IRIS CALIBRATION BOTTOM
RELATIVE MODE
UPGRADE
PAINT VOL CO
SYSTEM VERSION
SOFT VERSION
FPGA VERSION
- 11 -
ROP Menu (during AJ-CX4000 Connection)

19 CONNECT SETTING
CONNECT MODE CAM1(push) “19 CONNECT SETTING” (see page 32)
CONNECT MODE CAM2 to CAM99
(push)
20 ROP IP SETTING
ROP IP ADDRESS Refer to the following section in the Operating Instructions.
“36 ROP IP SETTING”
ROP PORT
UPLOAD
ROP SUBNET MASK
UPLOAD
ROP DEFAULT GATEWAY
UPLOAD
MAC ADDRESS
21 CAMERA IP SETTING
CAM1 to CAM99 IP ADDRESS Refer to the following section in the Operating Instructions.
“37 CAMERA IP SETTING”
CAM1 to CAM99 PORT
CAM1 to CAM99 INF UPLOAD
22 AUTO IRIS SETTING
AUTO IRIS LEVEL “AUTO IRIS LEVEL” (see page 33)
AUTO IRIS WINDOW “AUTO IRIS WINDOW” (see page 33)
23 SWITCHER LINK
SWITCHER IP ADDRESS Refer to the following section in the Operating Instructions.
“44 SWITCHER LINK”
SWITCHER UDP PORT
INFO UPLOAD
SWITCHER LINK
TALLY RECEIVE
PREVIEW
TALLY ACTION MATERIAL
TALLY ACTION CAM No.
24 AW CONTROLLER LINK
RECEIVE PORT Refer to the following section in the Operating Instructions.
“45 AW CONTROLLER LINK”
INFO UPLOAD
AW CONT LINK
- 12 -
ROP Menu (during AJ-CX4000 Connection)

01 SHUTTER SPEED
ヴラヶヵヵユンチヴヱユユュ
ヒチバチヒ
ヴラヶヵヵユンヴヱユユュヮヰュユヴヺワヤヵヺヱユヴヱユユュヴユヤヰワ
ノ
ョリヹ
Item Setting details
SHUTTER Switches the shutter function ON/OFF.
SPEED MODE Switches between fixed shutter and synchro scan.
SYNC TYPE Switches the unit of the shutter setting.
SPEED Sets the shutter speed in the unit selected in [SPEED MODE].
- 13 -
ROP Menu (during AJ-CX4000 Connection)

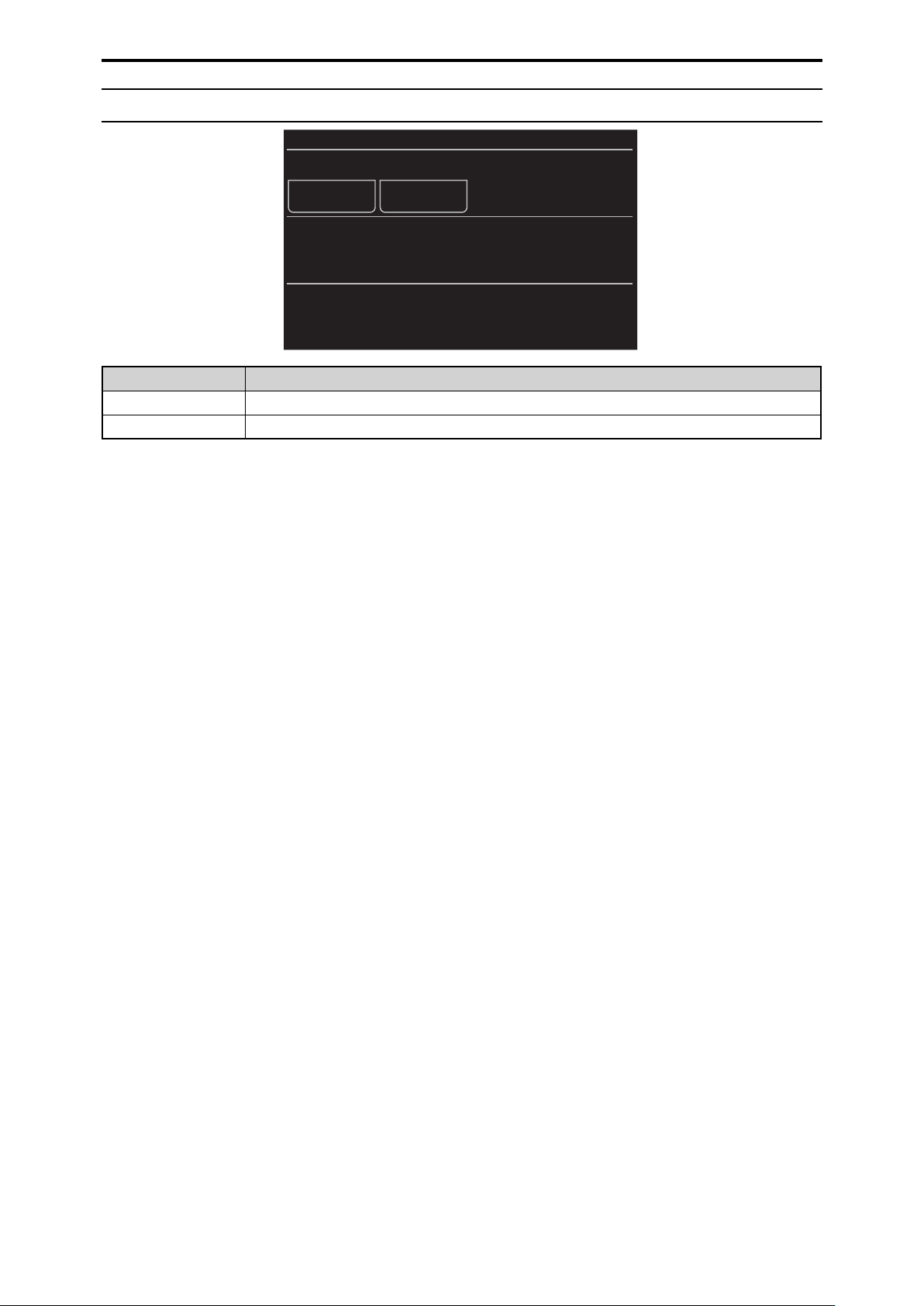

02 PEDESTAL
ヱユュユヴヵモロ
ヒチバチヒ
ヮハヱユュヰョョヴユヵヰョョヒプパンヨパパャヱユュ
Item Setting details
M.PED Adjusts the black level (master pedestal level adjustment).
OFFSET Sets whether or not to retain the pedestal levels of the R, G, and B channels when the auto black balance is
adjusted.
PED R Sets the red correction level for the master pedestal.
PED G Sets the green correction level for the master pedestal.
PED B Sets the blue correction level for the master pedestal.
- 14 -
ROP Menu (during AJ-CX4000 Connection)

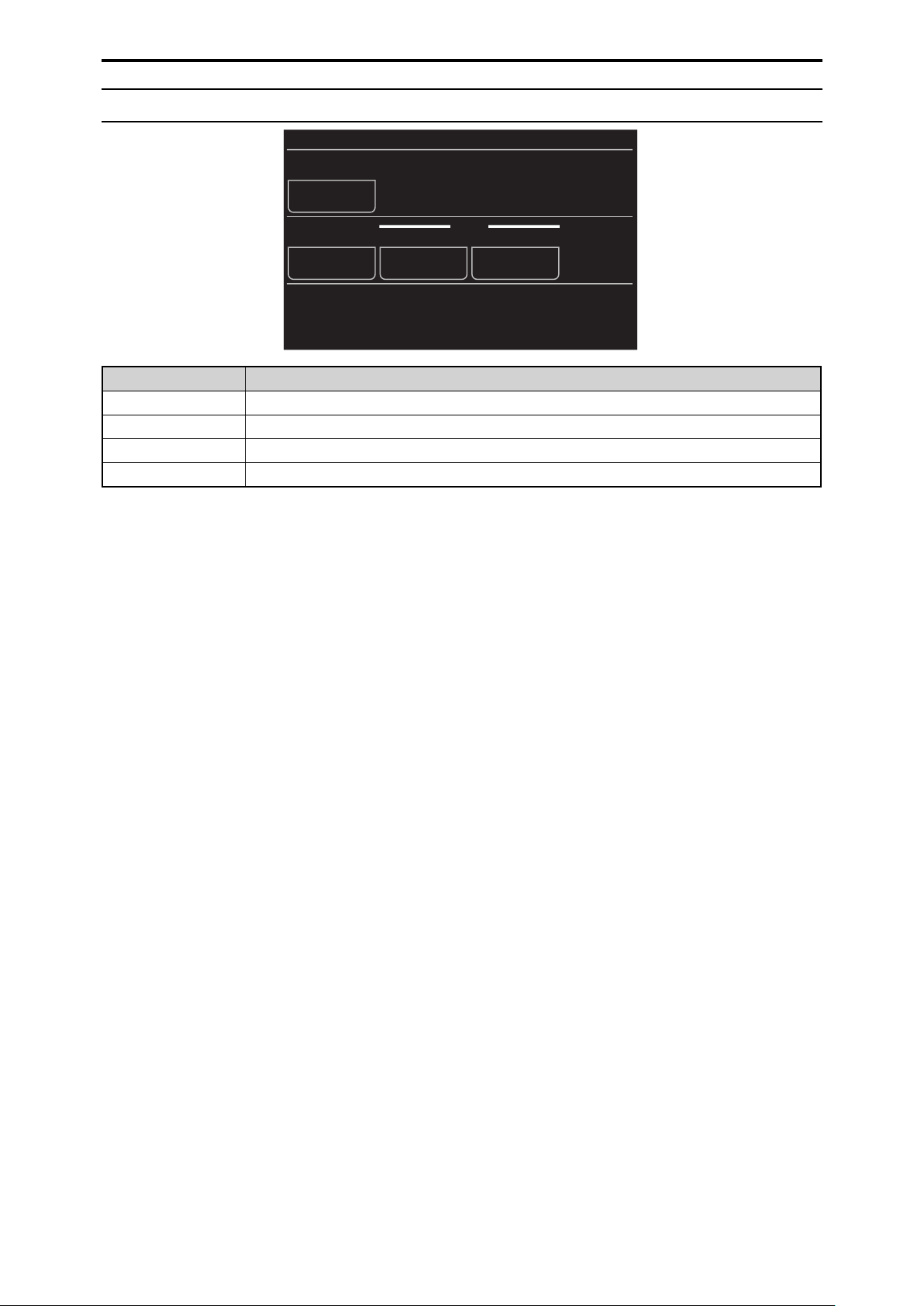

03 CHROMA
ヤランヰヮモ
ヒチバチヒ
ロユヷユロチテヱラモヴユパパ
Item Setting details
LEVEL % Sets the chroma level for the PR and PB signals.
PHASE Finely adjusts the chroma phase for the PR and PB signals.
- 15 -
ROP Menu (during AJ-CX4000 Connection)

04 GAIN
ヨモリワ
ヒチバチヒ
ヨモリワモヨヤチロリヮリヵチヱヰリワヵプㄅャョフハパパㄅャヰョョモヨヤ
Item Setting details
GAIN Adjusts the gain of video.
AGC Turns auto gain control ON/OFF.
AGC LIMIT Sets the maximum gain value for when [AGC] is “ON”.
AGC POINT Sets the F value to switch control from auto iris to auto gain when [AGC] is “ON”.
- 16 -
ROP Menu (during AJ-CX4000 Connection)

05 COLOR TEMP
ヤヰロヰンチヵユヮヱ
ヒチバチヒ
ヤヰロヰンヵユヮヱピビパパヨモリワモヹリヴヨモリワパンヨパパャ
Item Setting details
COLOR TEMP Sets the color temperature.
GAIN R Sets the red correction level for the color temperature.
AXIS G Sets the green correction level for the color temperature.
GAIN B Sets the blue correction level for the color temperature.
- 17 -
ROP Menu (during AJ-CX4000 Connection)

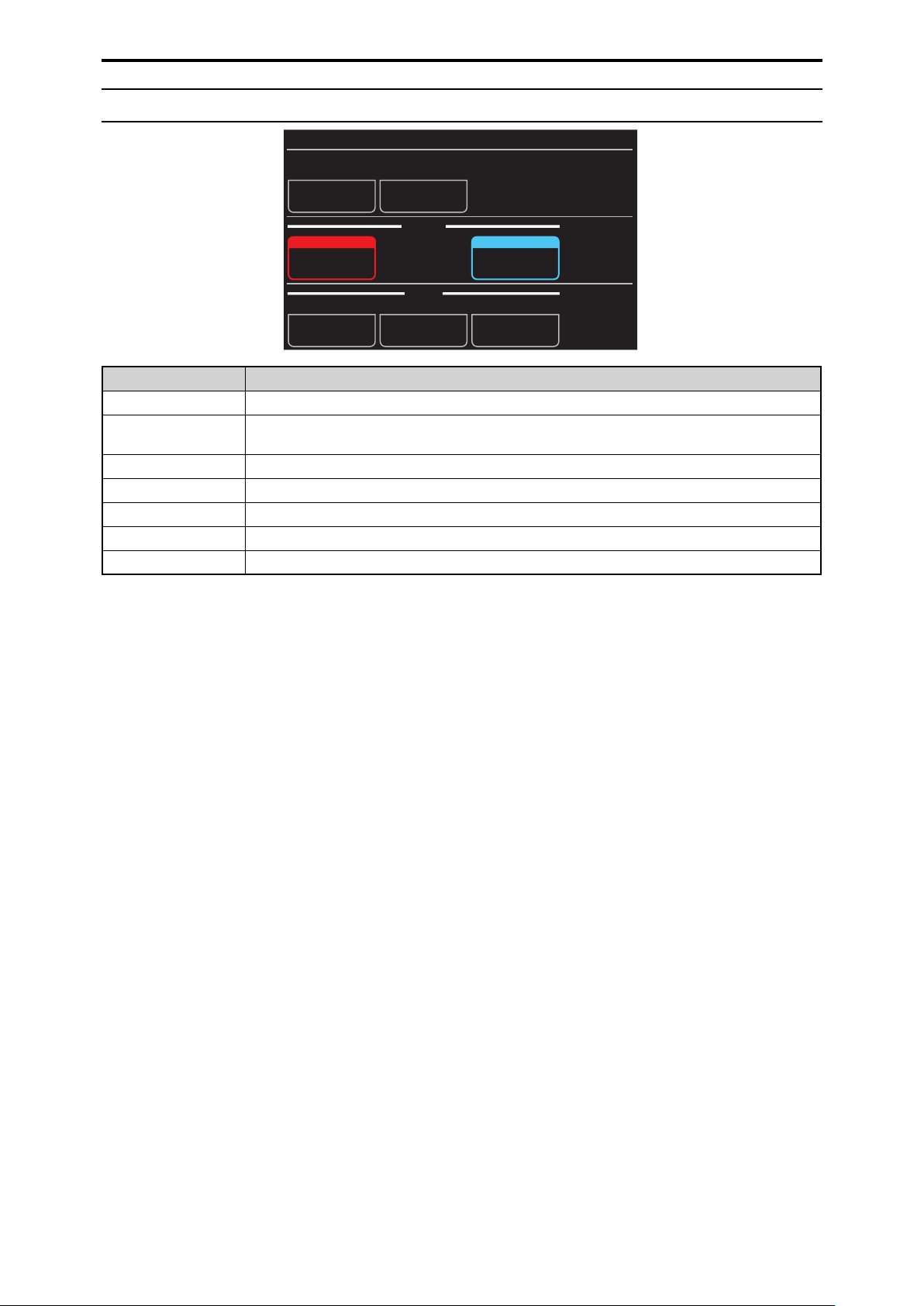

06 WHITE BALANCE
ヸラリヵユチャモロモワヤユ
ヒチバチヒ
ヸハャモロヴユロユヤヵヨモリワヰョョヴユヵヴヱユユュヵモンヨユヵチンヵモンヨユヵチャワヰンヮモロモヰョョパパパンパャモヵヸヨモリワ
Item Setting details
W.BAL SELECT Sets the mode for the white balance.
GAIN OFFSET Sets the value of the R channel gain and B channel gain for when [W.BAL SELECT] is set to A (AWB A) or B
(AWB B) and automatic white balance is performed.
GAIN R Adjusts the R channel gain.
GAIN B Adjusts the B channel gain.
ATW SPEED Sets the control speed of the auto tracking white balance function.
ATW TARGET R Finely adjusts the R channel output for convergence with the auto tracking white balance operation.
ATW TARGET B Finely adjusts the B channel output for convergence with the auto tracking white balance operation.
- 18 -
ROP Menu (during AJ-CX4000 Connection)

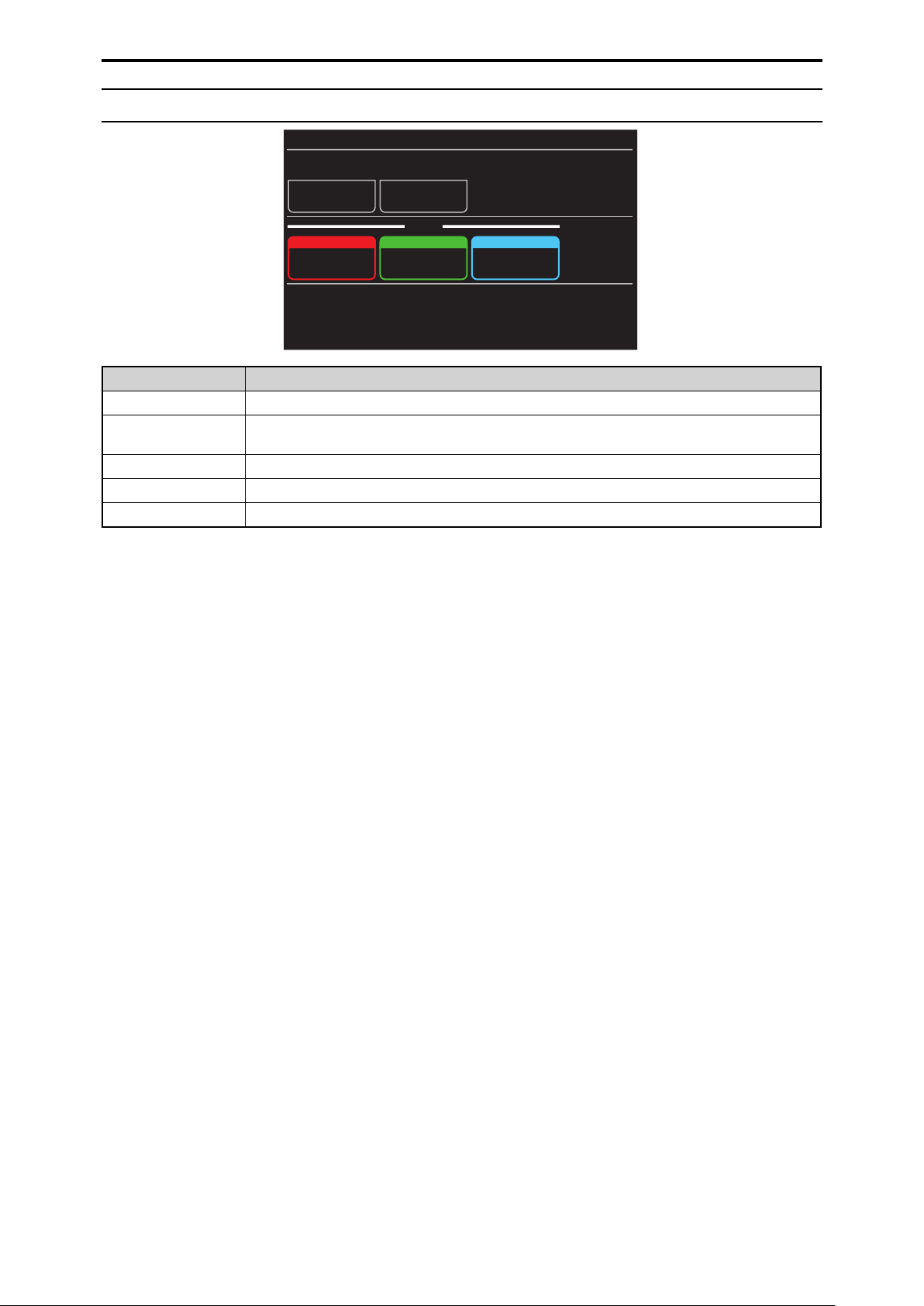

07 FLARE
ョロモンユ
ヒチバチヒ
ヴヸヰワンヨパパパャョロモンユ
Item Setting details
FLARE R Adjusts the R channel flare.
FLARE G Adjusts the G channel flare.
FLARE B Adjusts the B channel flare.
SW Sets flare correction to ON/OFF.
- 19 -
ROP Menu (during AJ-CX4000 Connection)

08 GAMMA
ヨモヮヮモ
ヒチバチビ
ヮヰュユヨモヮヮモヴヸュヺワヮヤチロヷャロレハヴチロヷレハヴロヰヱユレハヱヰリワヵヰワラュプパパパハフブブパパパピパヷノンユヤョノンユヤ
ヨモヮヮモ
ビチバチビ
ャロモヤレヨモヮヮモャハヨモヮヮモチンモワヨユヒパ
Item Setting details
MODE Selects the gamma mode.
GAMMA Adjusts the gamma correction level. This is enabled when [MODE] is other than “HLG”.
SW Sets gamma correction to ON/OFF.
F-REC DYNMC LV Sets the dynamic range. This is enabled when [MODE] is “F-REC” (FILM REC).
F-REC BLK.S LV Sets the black stretch. This is enabled when [MODE] is “F-REC” (FILM REC).
V-REC K.SLOPE Sets the knee slope. This is enabled when [MODE] is “V-REC” (VIDEO REC).
V-REC K.POINT Sets the knee point. This is enabled when [MODE] is “V-REC” (VIDEO REC).
BLACK GAMMA Sets the gamma curve for dark areas.
B.GAMMA RANGE Sets the maximum level for compression/expansion.
- 20 -
ROP Menu (during AJ-CX4000 Connection)
