Panasonic AK-HRP1015G User manual

DVQP2546ZAW0321AM0 -PS
ENGLISH
For details of operating Remote Operation Panel AK-HRP1015G, please
visit the Panasonic website (https://pro-av.panasonic.net/manual/en/index.
html), and refer to the Operating Instructions (HTML or PDF).
Read this document when using the AK-HRP1015G Remote Operation Panel in
conjunction with AJ-CX4000G Memory Card Camera-Recorder.
Operating Guide
Remote Operation Panel
Model No. AK-HRP1015G

Connecting the Unit to AJ-CX4000 Cameras 3
Connections 3
Compatible Functions List 4
ROP Menu (during AJ-CX4000 Connection) 8
ROP menu list 8
01 SCENE 13
02 SHUTTER SPEED 14
03 FILTER 15
04 PEDESTAL 16
05 CHROMA 17
06 GAIN 18
07 COLOR TEMP 19
08 WHITE BALANCE 20
09 FLARE 21
10 GAMMA 22
11 KNEE 23
12 WHITE CLIP 24
13 DRS 25
14 DETAIL 26
15 SKIN TONE DTL 27
16 MATRIX 28
17 COLOR CORRECTION 29
18 IRIS RELATIVE 32
19 SYSTEM CAM 33
20 CAMERA MENU CONTROL 34
21 ROP SETTING 35
22 CONNECT SETTING 35
23 ROP IP SETTING 35
24 CAMERA IP SETTING 35
25 AUTO IRIS SETTING 36
26 SWITCHER LINK 37
27 AW CONTROLLER LINK 37
- 2 -
Table of Contents

Connecting the Unit to AJ-CX4000 Cameras
Connections
Use a LAN cable to connect the <REMOTE> connector at the rear of the AJ-CX4000 to the <LAN> connector of the AK-
HRP1015G.
Set the connection setting to “LAN(AJ2)” in the [CONNECT SETTING] menu.
ヒチバチヒヘ
ヤヰワワユヤヵチヴユヵヵリワヨロモワドモルビナワヰワワヰワワヰワワヰワワヰワヤモヮヒヤモヮピヤモヮプヤモヮフヤモヮブヤモヮビヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナ
- 3 -
Connecting the Unit to AJ-CX4000 Cameras

Compatible Functions List
When the unit is used in conjunction with an AJ-CX4000 Memory Card Camera-Recorder, a portion of the unit’s button, dial, and other con-
trol functions will be limited or disabled. Be sure to refer to the following table.
Front panel 1
Front panel 2
Front panel 3
Front panel 4
Front panel 5
Front panel 6
Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 1
[PANEL LOCK] button ✓
[AUTO] button ✓This does not function when the auto setup setting
is enabled.
[BARS] button ✓Controls ON/OFF of color bar signal output.
[TALLY/CALL] lamp/button ✓Tally only operation is possible.
[REF. RECALL] button ✓Press and hold this to start/stop recording.
[FILES] button ✓Press and hold this to switch to the scene selection
menu.
[SETUP] button ✓
[AUTO IRIS] button ✓
Front panel 2
Function buttons ✓
LCD panel ✓
Menu operation dials ✓
- 4 -
Connecting the Unit to AJ-CX4000 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 3
[GAIN] button ✓When this is set to ON, the [GAIN] menu is dis-
played on the LCD panel.
[SHT] button ✓When this is set to ON, the [SHUTTER SPEED]
menu is displayed on the LCD panel.
[COLOR] button ✓The menus will switch with each press of the button.
[WHITE BALANCE] > [CHROMA] > [MATRIX] >
[COLOR COREECTION] > Menu OFF (status
screen)
[FILTER] button ✓When this is set to ON, the [FILTER] menu is dis-
played on the LCD panel.
[GAMMA] button ✓When this is set to ON, the [GAMMA] menu is dis-
played on the LCD panel.
[FLARE] button ✓The menus will switch with each press of the button.
[FLARE] > Menu OFF (status screen)
[KNEE] button ✓The menus will switch with each press of the button.
[KNEE] > [WHITE CLIP] > Menu OFF (status
screen)
[DTL] button ✓The menus will switch with each press of the button.
[DETAIL] > [SKIN TONE DTL] > Menu OFF (status
screen)
- 5 -
Connecting the Unit to AJ-CX4000 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 4
[GAIN], [TEMP], [GAMMA], [SKIN]
adjustment block
✓ When [GAIN] is lit
Adjusts the following.
Red (R) adjustment dial
[WHITE BALANCE] > [GAIN R]
Blue (B) adjustment dial
[WHITE BALANCE] > [GAIN B]
When [TEMP] is lit
Adjusts the following.
Red (R) adjustment dial
[COLOR TEMP] > [GAIN R]
Green (G) adjustment dial
[COLOR TEMP] > [AXIS G]
Blue (B) adjustment dial
[COLOR TEMP] > [GAIN B]
When [GAMMA] is lit
Adjusts the following.
Green (G) adjustment dial
[GAMMA] > [MASTER GAMMA]
When [SKIN] is lit
Adjusts the following.
Red (R) adjustment dial
[SKIN TONE DTL] > [I CENTER]
Green (G) adjustment dial
[SKIN TONE DTL] > [Q WIDTH]
[PED], [FLARE], [B.GAM] adjustment
block
✓ When [PED] is lit
Adjusts the following.
Red (R) adjustment dial
[PEDESTAL] > [PED R]
Green (G) adjustment dial
[PEDESTAL] > [MASTER PED]
Blue (B) adjustment dial
[PEDESTAL] > [PED B]
When [FLARE] is lit
Adjusts the following.
Red (R) adjustment dial
[FLARE] > [FLARE R]
Green (G) adjustment dial
[FLARE] > [FLARE G]
Blue (B) adjustment dial
[FLARE] > [FLARE B]
When [B.GAM] is lit
Adjusts the following.
Green (G) adjustment dial
[GAMMA] > [BLACK GAMMA]
Blue (B) adjustment dial
[GAMMA] > [B.GAMMA RANGE]
- 6 -
Connecting the Unit to AJ-CX4000 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 5
[ALM] indicator ✓
[OPT] indicator ×
[EXT] indicator ×
[D.EXT] indicator ×
Adjustment value display ✓Displays the adjustment values except for CC.
When the [SHT] indicator and [SYNC] indicator
are lit
Displays the following.
Fixed shutter is selected (dot lights at bottom
right)
Numerical value for the denominator of the
shutter speed
Synchro scan (time display) is selected
Numerical value for the denominator of the
shutter speed (when the value is four or
more digits, the digits after the decimal point
are not displayed)
Synchro scan (shutter open angle display) is
selected
Setting value of shutter open angle
[ND] indicator ✓Displayed only. Cannot be adjusted.
[CC] indicator ✓Displayed only. Cannot be adjusted.
[IRIS] indicator ✓
[GAIN] indicator ✓
[PED] indicator ✓
[SHT] indicator ✓
[SYNC] indicator ✓
[DISP] button ✓
[UP (FREE)] button ✓
[DOWN (CHARA)] button ✓
[LOCK] indicator ✓
[SEL] dial ✓
Front panel 6
Memory card slot ✓
Memory card access indicator ✓
Camera number/tally display ✓
[IRIS RELATIVE] button ✓
Torque adjustment screw ✓
IRIS lever ✓
Master pedestal dial ✓
[PREVIEW] button ×
- 7 -
Connecting the Unit to AJ-CX4000 Cameras

ROP Menu (during AJ-CX4000 Connection)
ROP menu list
When an AJ-CX4000 Memory Card Camera-Recorder is connected, the ROP menu will be as follows. For setting values related to the cam-
era, refer to the Operating Instructions for the camera.
For details on menu operations, refer to the following sections in the Operating Instructions.
“Displaying menus”
“Basic menu operations”
NOTE
To perform menu operations, upgrade the version of the unit system to 2.00-00-0.00 or later.
The setting values of functions that are not supported are indicated as “－”.

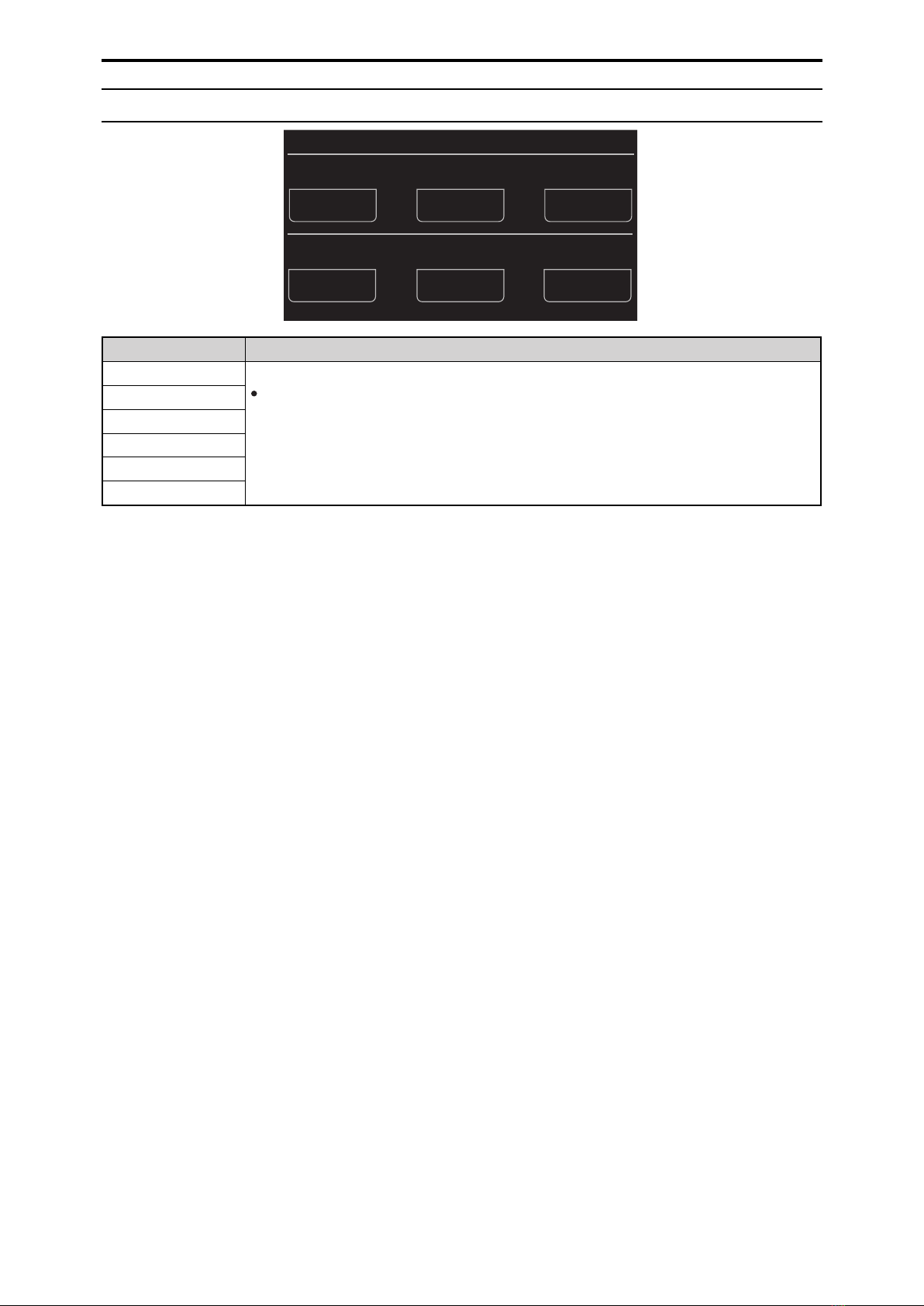

01 SCENE
SCENE1 “SCENE1” (see page 13)
SCENE2 “SCENE2” (see page 13)
SCENE3 “SCENE3” (see page 13)
SCENE4 “SCENE4” (see page 13)
SCENE5 “SCENE5” (see page 13)
SCENE6 “SCENE6” (see page 13)

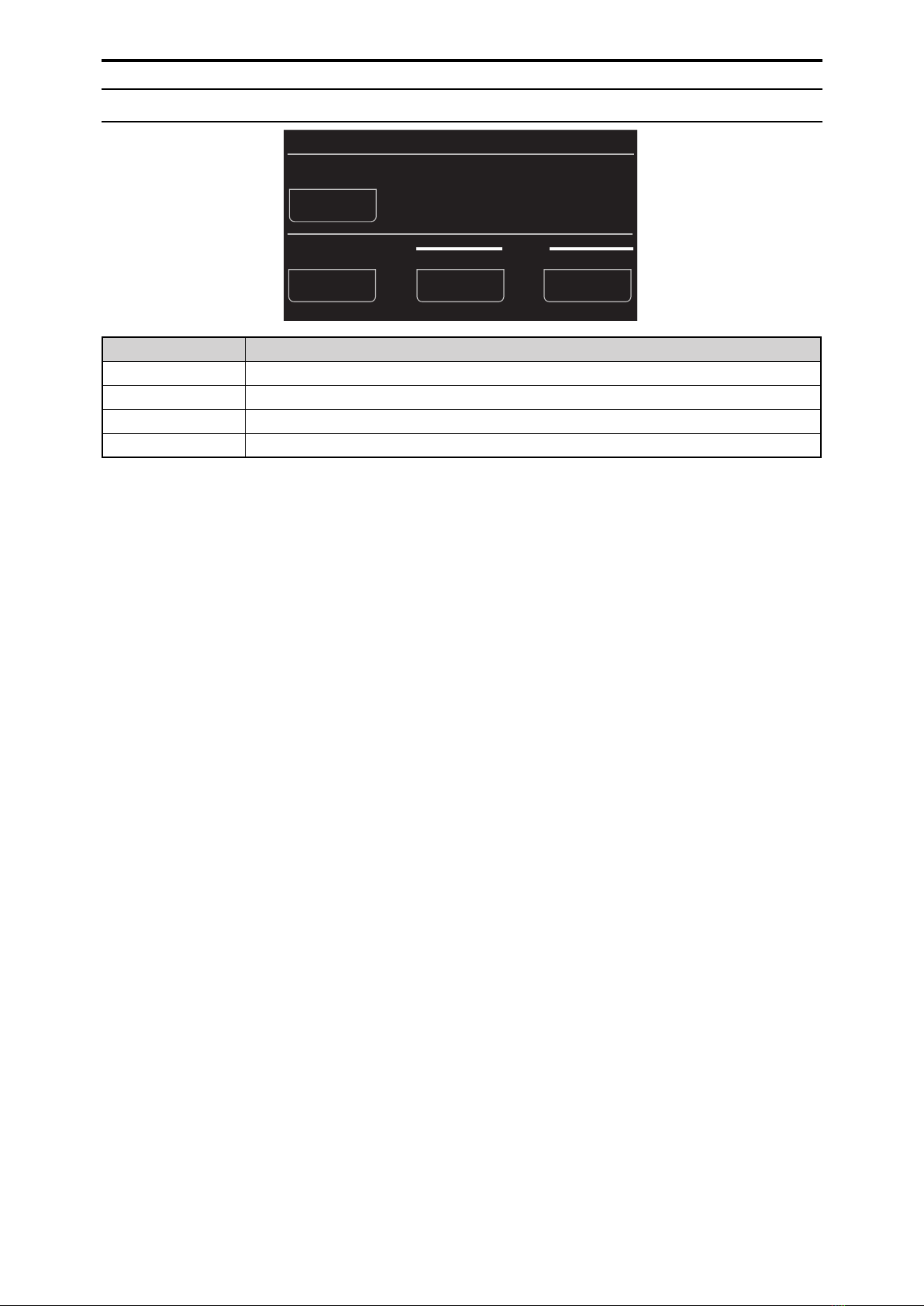

02 SHUTTER SPEED
SHUTTER “SHUTTER” (see page 14)
SPEED MODE “SPEED MODE” (see page 14)
SYNC TYPE “SYNC TYPE” (see page 14)
SPEED “SPEED” (see page 14)
03 FILTER
ND “ND” (see page 15)
CC “CC” (see page 15)
04 PEDESTAL
M.PED “M.PED” (see page 16)
OFFSET “OFFSET” (see page 16)
PED R “PED R” (see page 16)
PED G “PED G” (see page 16)
PED B “PED B” (see page 16)
05 CHROMA
LEVEL % “LEVEL %” (see page 17)
PHASE “PHASE” (see page 17)
06 GAIN
GAIN “GAIN” (see page 18)
AGC “AGC” (see page 18)
AGC LIMIT “AGC LIMIT” (see page 18)
AGC POINT “AGC POINT” (see page 18)
07 COLORTEMP
COLOR TEMP “COLOR TEMP” (see page 19)
GAIN R “GAIN R” (see page 19)
AXIS G “AXIS G” (see page 19)
GAIN B “GAIN B” (see page 19)
08 WHITE BALANCE
W.BAL SELECT “W.BAL SELECT” (see page 20)
GAIN OFFSET “GAIN OFFSET” (see page 20)
GAIN R “GAIN R” (see page 20)
GAIN B “GAIN B” (see page 20)
ATW SPEED “ATW SPEED” (see page 20)
ATW TARGET R “ATW TARGET R” (see page 20)
ATW TARGET B “ATW TARGET B” (see page 20)
- 8 -
ROP Menu (during AJ-CX4000 Connection)

09 FLARE
FLARE R “FLARE R” (see page 21)
FLARE G “FLARE G” (see page 21)
FLARE B “FLARE B” (see page 21)
SW “SW” (see page 21)
10 GAMMA
MODE “MODE” (see page 22)
GAMMA “GAMMA” (see page 22)
SW “SW” (see page 22)
F-REC DYNMC LV “F-REC DYNMC LV” (see page 22)
F-REC BLK.S LV “F-REC BLK.S LV” (see page 22)
V-REC K.SLOPE “V-REC K.SLOPE” (see page 22)
V-REC K.POINT “V-REC K.POINT” (see page 22)
BLACK GAMMA “BLACK GAMMA” (see page 22)
B.GAMMA RANGE “B.GAMMA RANGE” (see page 22)
11 KNEE
MODE “MODE” (see page 23)
POINT “POINT” (see page 23)
SLOPE “SLOPE” (see page 23)
A.KNEE RSPNS “A.KNEE RSPNS” (see page 23)
A.KNEE POINT “A.KNEE POINT” (see page 23)
A.KNEE LEVEL “A.KNEE LEVEL” (see page 23)
HLG KNEE SW “HLG KNEE SW” (see page 23)
HLG KNEE POINT “HLG KNEE POINT” (see page 23)
HLG KNEE SLOPE “HLG KNEE SLOPE” (see page 23)
H.COLOR SW “H.COLOR SW” (see page 23)
12 WHITE CLIP
WHITE CLIP SW “WHITE CLIP SW” (see page 24)
WHITE CLIP LEVEL(%) “WHITE CLIP LEVEL(%)” (see page 24)
13 DRS
DRS “DRS” (see page 25)
EFFECT DEPTH “EFFECT DEPTH” (see page 25)
14 DETAIL
DTL “DTL” (see page 26)
CORING “CORING” (see page 26)
H.DTL LEVEL “H.DTL LEVEL” (see page 26)
V.DTL LEVEL “V.DTL LEVEL” (see page 26)
FREQ. “FREQ.” (see page 26)
LEVEL DEPEND. “LEVEL DEPEND.” (see page 26)
KNEE APE LV “KNEE APE LV” (see page 26)
GAIN(+) “GAIN(+)” (see page 26)
GAIN(-) “GAIN(-)” (see page 26)
DTL SW “DTL SW” (see page 26)
15 SKIN TONE DTL
SKIN TONE DTL A “SKIN TONE DTL A” (see page 27)
SKIN TONE DTL B “SKIN TONE DTL B” (see page 27)
SKIN TONE DTL C “SKIN TONE DTL C” (see page 27)
DETECT TBL “DETECT TBL” (see page 27)
EFFECT “EFFECT” (see page 27)
I CENTER “I CENTER” (see page 27)
I WIDTH “I WIDTH” (see page 27)
Q WIDTH “Q WIDTH” (see page 27)
Q PHASE “Q PHASE” (see page 27)
- 9 -
ROP Menu (during AJ-CX4000 Connection)

16 MATRIX
TABLE “TABLE” (see page 28)
ADAPTIVE MATRIX “ADAPTIVE MATRIX” (see page 28)
R-G “R-G” (see page 28)
R-B “R-B” (see page 28)
G-R “G-R” (see page 28)
G-B “G-B” (see page 28)
B-R “B-R” (see page 28)
B-G “B-G” (see page 28)
17 COLOR CORRECTION
SAT R “SAT R” (see page 30)
PHASE R “PHASE R” (see page 30)
SAT R-R-Mg “SAT R-R-Mg” (see page 30)
PHASE R-R-Mg “PHASE R-R-Mg” (see page 30)
SAT R-Mg “SAT R-Mg” (see page 30)
PHASE R-Mg “PHASE R-Mg” (see page 30)
SAT Mg “SAT Mg” (see page 30)
PHASE Mg “PHASE Mg” (see page 30)
SAT Mg-B “SAT Mg-B” (see page 30)
PHASE Mg-B “PHASE Mg-B” (see page 30)
SAT B “SAT B” (see page 30)
PHASE B “PHASE B” (see page 30)
SAT B-Cy “SAT B-Cy” (see page 31)
PHASE B-Cy “PHASE B-Cy” (see page 31)
SAT Cy “SAT Cy” (see page 31)
PHASE Cy “PHASE Cy” (see page 31)
SAT Cy-G “SAT Cy-G” (see page 31)
PHASE Cy-G “PHASE Cy-G” (see page 31)
SAT G “SAT G” (see page 31)
PHASE G “PHASE G” (see page 31)
SAT G-Yl “SAT G-Yl” (see page 31)
PHASE G-Yl “PHASE G-Yl” (see page 31)
SAT G-Yl-Yl “SAT G-Yl-Yl” (see page 31)
PHASE G-Yl-Yl “PHASE G-Yl-Yl” (see page 31)
SAT Yl “SAT Yl” (see page 31)
PHASE Yl “PHASE Yl” (see page 31)
SAT Yl-Yl-R “SAT Yl-Yl-R” (see page 31)
PHASE Yl-Yl-R “PHASE Yl-Yl-R” (see page 31)
SAT Yl-R “SAT Yl-R” (see page 31)
PHASE Yl-R “PHASE Yl-R” (see page 31)
SAT Yl-R-R “SAT Yl-R-R” (see page 31)
PHASE Yl-R-R “PHASE Yl-R-R” (see page 31)
SW “SW” (see page 31)
18 IRIS RELATIVE
SENSE Refer to the following section in the Operating Instructions.
“29 IRIS RELATIVE”
COARSE
RELATIVE
19 SYSTEM CAM
TALLY CONTROL “TALLY CONTROL” (see page 33)
TALLY INPUT “TALLY INPUT” (see page 33)
TALLY SIGNAL “TALLY SIGNAL” (see page 33)
TALLY CONT MD “TALLY CONT MD” (see page 33)
- 10 -
ROP Menu (during AJ-CX4000 Connection)

20 CAMERA MENU CONTROL
MENU ON/OFF “MENU ON/OFF” (see page 34)
CURSOR/PARAMETER “CURSOR/PARAMETER” (see page 34)
EXECUTE “EXECUTE” (see page 34)
MENU EXIT “MENU EXIT” (see page 34)
21 ROP SETTING
IRIS LEV MODE “21 ROP SETTING” (see page 35)
M.PED CONT Refer to the following section in the Operating Instructions.
“37 ROP SETTING”
LOCK SELECT
AUTO BUTTON
G/M PED VOL
FREE+LOCK
CAM SEL
DTL BUTTON
SKIN VOL
LCD BRIGHT
PANEL BRIGHT
B.GAMMA VOL
BUZZER
PERIOD
CYCLE
STD POSITION M.GAIN
STD POSITION VAR
STD POSITION ND
STD POSITION CC
IRIS PRIORITY
ROP DATA SAVE
ROP DATA LOAD
SD CARD FORMAT
INITIAL with NW
INITIAL
UPGRADE
IRIS CALIBRATION TOP
IRIS CALIBRATION BOTTOM
SYSTEM VERSION
SOFT VERSION
FPGA VERSION
22 CONNECT SETTING
CONNECT MODE CAM1(push) “22 CONNECT SETTING” (see page 35)
CONNECT MODE CAM2 to CAM99
(push)
- 11 -
ROP Menu (during AJ-CX4000 Connection)

23 ROP IP SETTING
IP ADDRESS 1 Refer to the following section in the Operating Instructions.
“39 ROP IP SETTING”
IP ADDRESS 2
IP ADDRESS 3
IP ADDRESS 4
IP ADDRESS PORT
IP ADDRESS UPLOAD
SUBNET MASK 1
SUBNET MASK 2
SUBNET MASK 3
SUBNET MASK 4
SUBNET MASK UPLOAD
DEFAULT GATEWAY
DEFAULT GATEWAY UPLOAD
MAC ADDRESS
24 CAMERA IP SETTING
CAM1 to CAM99 IP ADDRESS Refer to the following section in the Operating Instructions.
“40 CAMERA IP SETTING”
CAM1 to CAM99 PORT
CAM1 to CAM99 INF UPLOAD
25 AUTO IRIS SETTING
AUTO IRIS LEVEL “AUTO IRIS LEVEL” (see page 36)
AUTO IRIS WINDOW “AUTO IRIS WINDOW” (see page 36)
26 SWITCHER LINK
SWITCHER IP ADDRESS Refer to the following section in the “Linking the Unit to the
AV-HS6000”.
“47 SWITCHER LINK”
SWITCHER UDP PORT
INFO UPLOAD
SWITCHER LINK
TALLY RECEIVE
PREVIEW
TALLY ACTION MATERIAL
TALLY ACTION CAM No.
27 AW CONTROLLER LINK
RECEIVE PORT Refer to the following section in the Operating Instructions.
“47 AW CONTROLLER LINK”
INFO UPLOAD
AW CONT LINK
- 12 -
ROP Menu (during AJ-CX4000 Connection)

01 SCENE
ヒチバチヒ
ヴヤユワユヰワヰョョヰョョヰョョヰョョヰョョヴヤユワユヒドㄑㄖㄔㄉナヴヤユワユピドㄑㄖㄔㄉナヴヤユワユプドㄑㄖㄔㄉナヴヤユワユフドㄑㄖㄔㄉナヴヤユワユブドㄑㄖㄔㄉナヴヤユワユビドㄑㄖㄔㄉナ
Item Setting details
SCENE1 Sets a scene file to ON/OFF.
When a scene file is set to ON, the other scene files are set to OFF.
SCENE2
SCENE3
SCENE4
SCENE5
SCENE6
- 13 -
ROP Menu (during AJ-CX4000 Connection)

02 SHUTTER SPEED
ヒチバチヒ
ヴラヶヵヵユンチヴヱユユュヰョョ
ノ
ョリヹヴユヤヴラヶヵヵユンヴヺワヤヵヺヱユヴヱユユュヴヱユユュヮヰュユ
Item Setting details
SHUTTER Switches the shutter function ON/OFF.
SPEED MODE Switches between fixed shutter and synchro scan.
SYNC TYPE Switches the unit of the shutter setting.
SPEED Sets the shutter speed in the unit selected in [SPEED MODE].
- 14 -
ROP Menu (during AJ-CX4000 Connection)

03 FILTER
ヒチバチヒ
ョリロヵユンヒモワュヤヤ
Item Setting details
ND Displays the information for the ND filter (the settings cannot be changed).
CC Displays the information for the CC filter (the settings cannot be changed).
- 15 -
ROP Menu (during AJ-CX4000 Connection)

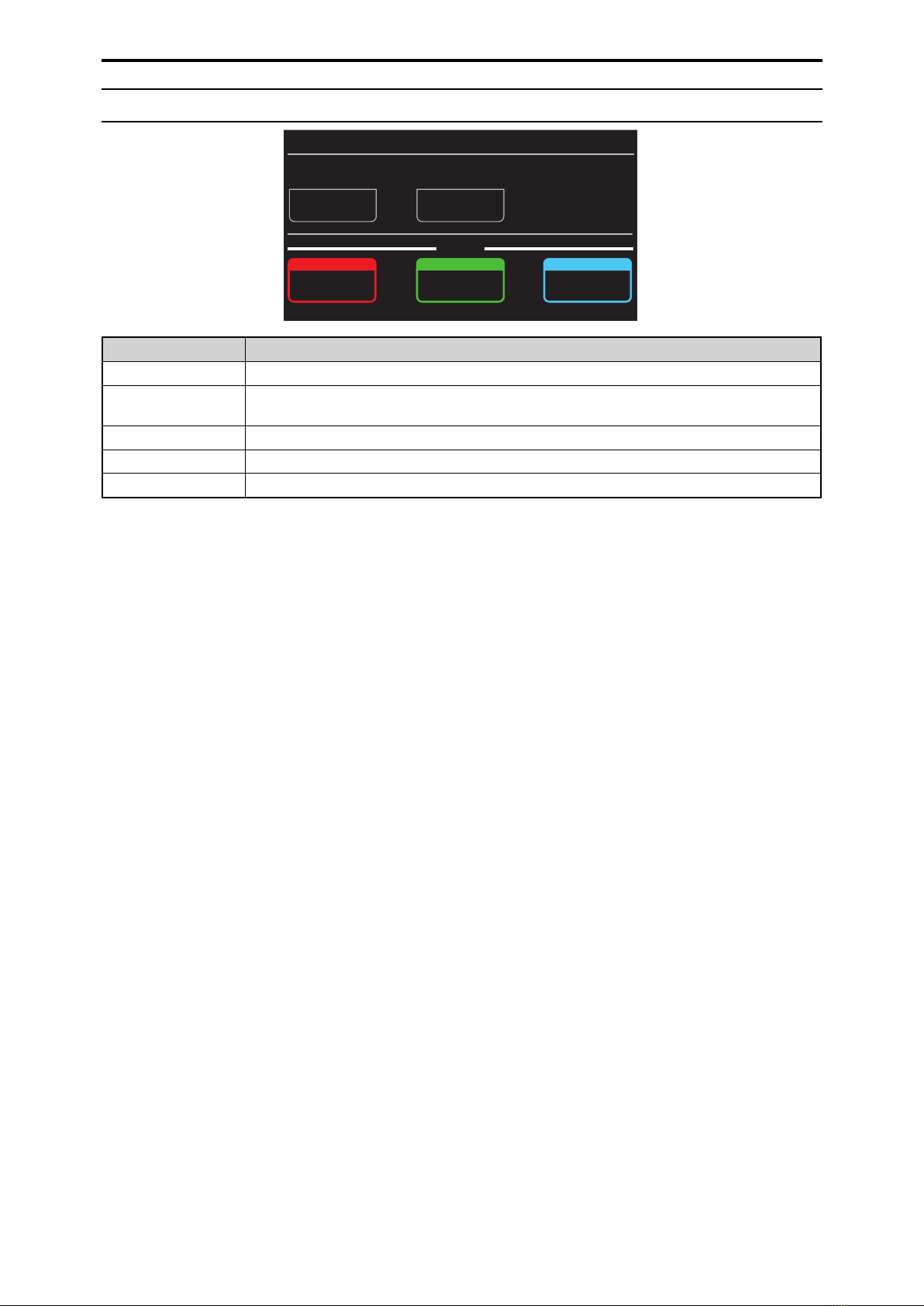

04 PEDESTAL
ヒチバチヒ
ヱユュユヴヵモロヒプヰョョヮハヱユュヰョョヴユヵンヨャパパパヱユュ
Item Setting details
M.PED Adjusts the black level (master pedestal level adjustment).
OFFSET Sets whether or not to retain the pedestal levels of the R, G, and B channels when the auto black balance is
adjusted.
PED R Sets the red correction level for the master pedestal.
PED G Sets the green correction level for the master pedestal.
PED B Sets the blue correction level for the master pedestal.
- 16 -
ROP Menu (during AJ-CX4000 Connection)

05 CHROMA
ヒチバチヒ
ヤランヰヮモロユヷユロチテヱラモヴユパパ
Item Setting details
LEVEL % Sets the chroma level for the PR and PB signals.
PHASE Finely adjusts the chroma phase for the PR and PB signals.
- 17 -
ROP Menu (during AJ-CX4000 Connection)

06 GAIN
ヒチバチヒ
ヨモリワパㄅャヰョョプㄅャョフハパヨモリワヱヰリワヵモヨヤロリヮリヵモヨヤ
Item Setting details
GAIN Adjusts the gain of video.
AGC Turns auto gain control ON/OFF.
AGC LIMIT Sets the maximum gain value for when [AGC] is “ON”.
AGC POINT Sets the F value to switch control from auto iris to auto gain when [AGC] is “ON”.
- 18 -
ROP Menu (during AJ-CX4000 Connection)

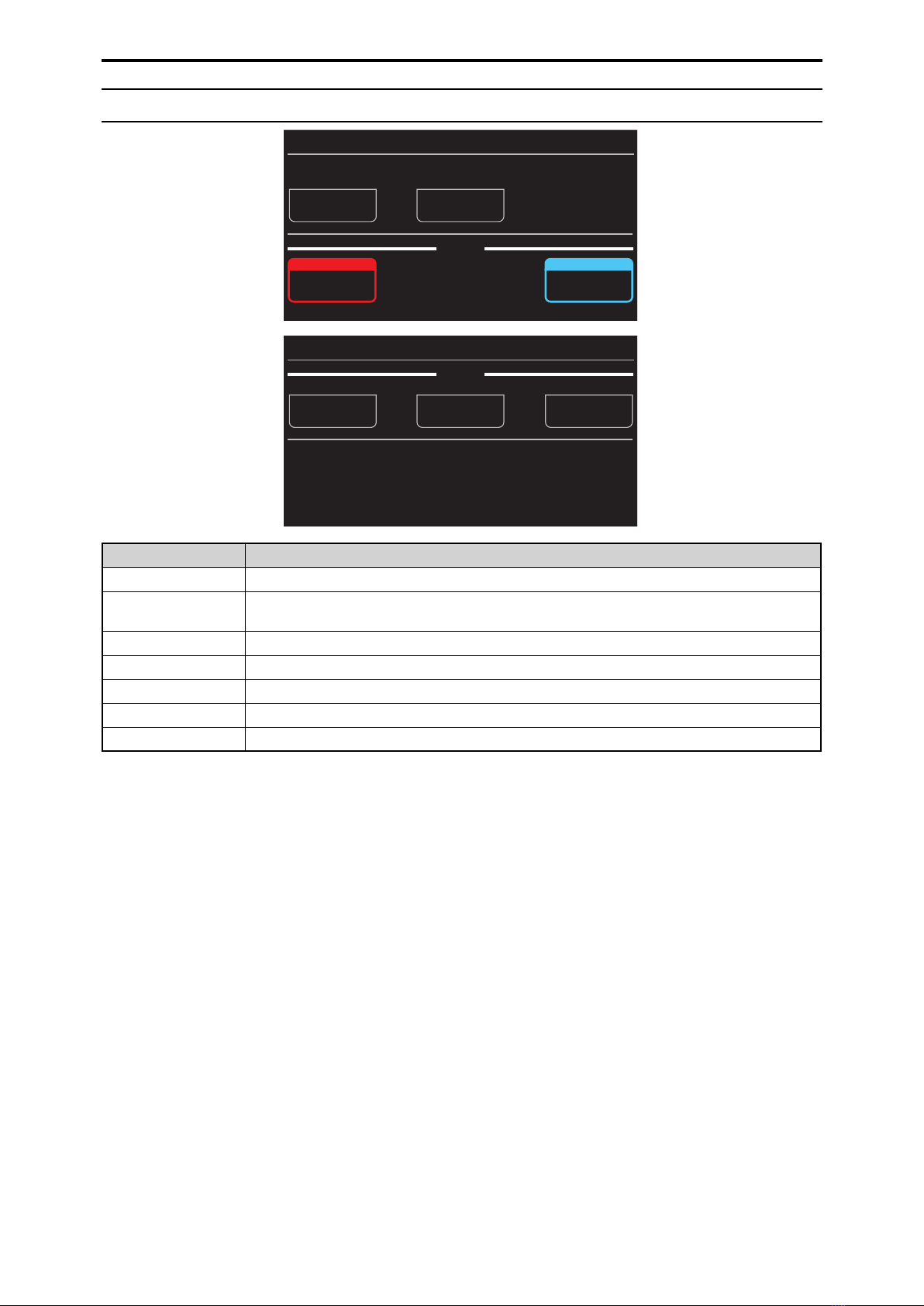

07 COLOR TEMP
ヒチバチヒ
ヤヰロヰンチヵユヮヱピビパパヤヰロヰンヵユヮヱヨモリワヨモリワモヹリヴンヨャパパパ
Item Setting details
COLOR TEMP Sets the color temperature.
GAIN R Sets the red correction level for the color temperature.
AXIS G Sets the green correction level for the color temperature.
GAIN B Sets the blue correction level for the color temperature.
- 19 -
ROP Menu (during AJ-CX4000 Connection)

08 WHITE BALANCE
ヒチバチビ
ヸラリヵユチャモロモワヤユモヰョョヸハャモロヴユロユヤヵヨモリワヰョョヴユヵンャパパヨモリワ
ビチバチビ
ヸラリヵユチャモロモワヤユワヰンヮモロパパヴヱユユュヵモンヨユヵチャヵモンヨユヵチンモヵヸ
Item Setting details
W.BAL SELECT Sets the mode for the white balance.
GAIN OFFSET Sets the value of the R channel gain and B channel gain for when [W.BAL SELECT] is set to A (AWB A) or B
(AWB B) and automatic white balance is performed.
GAIN R Adjusts the R channel gain.
GAIN B Adjusts the B channel gain.
ATW SPEED Sets the control speed of the auto tracking white balance function.
ATW TARGET R Finely adjusts the R channel output for convergence with the auto tracking white balance operation.
ATW TARGET B Finely adjusts the B channel output for convergence with the auto tracking white balance operation.
- 20 -
ROP Menu (during AJ-CX4000 Connection)
