Panasonic AK-HRP1000G User manual

DVQP2489ZAW0321AM0 -PS
ENGLISH
For details of operating Remote Operation Panel AK-HRP1000G, please
visit the Panasonic website (https://pro-av.panasonic.net/manual/en/index.
html), and refer to the Operating Instructions (HTML or PDF).
Read this document when using the AK-HRP1000G Remote Operation Panel in
conjunction with AW-UE100 4K Integrated Camera.
Operating Guide
Remote Operation Panel
Model No. AK-HRP1000G

Connecting the Unit to AW-UE100 Cameras 3
Connection Example 3
Connections 4
Compatible Functions List 5
ROP Menu (during AW-UE100 connection) 9
ROP Menu List 9
01 SHUTTER SPEED 15
02 PEDESTAL 16
03 CHROMA 17
04 GAIN 18
05 WHITE BALANCE 19
06 GAMMA 20
07 BLACK GAMMA 21
08 KNEE 22
09 WHITE CLIP 23
10 DRS 24
11 DETAIL 25
12 MATRIX 26
13 COLOR CORRECTION 27
14 DNR 30
15 BRIGHTNESS 31
16 LENS CONTROL 32
17 SYSTEM CAM 33
18 CAMERA MENU CONTROL 35
19 ROP SETTING 36
20 CONNECT SETTING 37
21 ROP IP SETTING 38
22 CAMERA IP SETTING 38
23 AUTO IRIS SETTING 39
24 SWITCHER LINK 40
25 AW CONTROLLER LINK 40
- 2 -
Table of Contents

Connecting the Unit to AW-UE100 Cameras
Connection Example
Serial connection with AW-UE100
DC IN 12 V
IR ID
AUDIO IN
RS-422
SERVICE
12G SDI OUT3G SDI OUT
G/L IN
LAN
LINK ACT
<RS-422> connector
PoE injector
* Prepare a cable that is in accordance
with the following serial connection
cable specifications.
Supplied AC adapter
4K Integrated Camera
AW-UE100
IP connection with AW-UE100
DC IN 12 V
IR ID
AUDIO IN
RS-422
SERVICE
12G SDI OUT3G SDI OUT
G/L IN
LAN
LINK ACT
<LAN LINK/ACT> connector
4K Integrated Camera
AW-UE100
LAN cable (straight cable)
LAN cable (straight cable)
Switching hub
with PoE support
Supplied AC adapter
Serial connection cable specifications
ヒヤモヮチチュモヵユドラナ⾺⾺⾼⾼ヱㄊㄏチワㄐハョㄖㄏ㄄ㄕㄊㄐㄏヱㄐㄍ㄂ㄓㄊㄕㄚョㄍㄐㄘチㄐㄇチㄔㄊㄈㄏ㄂ㄍビヤモヮチチュモヵユドロナピヤモヮチチヤヰワヵドラナフヤモヮチチヤヰワヵドロナヤモヮēチンヰヱヤモヮēチンヰヱンヰヱチēチヤモヮンヰヱチēチヤモヮブヤモヮチチワㄐハチモプヤモヮチチワㄐハチャヘヤモヮチチワㄐハチヤベヤモヮチチワㄐハチュペ
ヒビチヷ
ヒパヨワュヒヨワュン㄀ヵモロロヺ㄀リワンヹュノヵヹュノヵヹュヌンヹュヌヰヱヵリヰワ㄀ヰヶヵヒヰヱヵリヰワ㄀ヰヶヵビビピフブプヘベラㄊㄓㄐㄔㄆチホチランヒパモノヒパンノヒパヱチドヘヒナ
AW-UE100
<RS-422> connector side (RJ-45)
AK-HRP1000G
<CCU> connector side
- 3 -
Connecting the Unit to AW-UE100 Cameras

Connections
Set the connection setting to “Serial(AW5)” or “LAN(AW5)” in the [CONNECT SETTING] menu.
ヤヰワワユヤヵチヴユヵヵリワヨ
ヒチバチヒヒ
ヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤモヮヒヤモヮビヤモヮピヤモヮフヤモヮブヤモヮプヤモヮヘヤモヮベヤモヮペワヰワワヰワワヰワワヰワワヰワワヰワヴㄆㄓㄊ㄂ㄍドモヸブナロモワドモヸブナワヰワ
When connecting, observe the following points.
Serial connection
Use a dedicated cable to connect the <CCU> connector of this unit to the <RS-422> connector of the AW-UE100.
Use a PoE injector for the power supply.
LAN connection
Connect the <LAN> connector on this unit to the <LAN LINK/ACT> connector on the AW-UE100 using a LAN cable (sold
separately).
Configure the camera IP address and port number settings of the connection destinations in [CAMERA IP SETTING] as
well.
This unit can be powered using PoE. Use a switching hub with PoE support.
Use a straight cable (category 5e or higher; up to 100 m (328.0 ft) in length) for the LAN cable (STP).
For details on switching hubs and PoE injectors that have been verified to support PoE, consult with your dealer.
- 4 -
Connecting the Unit to AW-UE100 Cameras

Compatible Functions List
When the unit is used in conjunction with an AW-UE100 4K Integrated Camera, there will be functions that are limited or disabled for some
of the unit's buttons, dials, and other controls. Be sure to refer to the following table.
Front panel 1
Front panel 2
Front panel 3
Front panel 4
Front panel 5
Front panel 6
Front panel 7
Front panel 8
Front panel 9
Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 1
[POWER HEAD] button ✓
[POWER VF] button ×
[BARS/TEST] button ✓Only the ON/OFF for the color bar signal output
will function.
[REF. RECALL] button ×
[AUTO WHITE] button ✓
[AUTO BLACK] button ✓
[AUTO SET UP] button ×
[CHARA] button ×
[MATRIX] button ✓
[SKIN DTL] button ✓This is enabled when [DETAIL] > [DTL SW] is
“ON”.
[DRS] button ✓
[B.GAMMA] button ×
[ASSIGN] button ✓Functions only when “W.CLIP” or “UHD.D” has
been assigned.
- 5 -
Connecting the Unit to AW-UE100 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 2
[ASSIGN STATUS] button ✓
Buttons 1 to 5 (CONTROL/MODE) ✓Functions only when the following functions have
been assigned.
CONTROL(MENU)1 to 5
SHUT
PED
U.CHRM
GAIN
GAMMA
B.GAM
KNEE
W.CLIP
DRS
UHD.D
MATRIX
C.CORR
DNR
A.IRIS
CAM_MN
MODE(ON/OFF)1 to 5
W.CLIP
UHD.D
D.EXT
UP
DOWN
D.EXT2
[CONTROL/MODE] button ✓
Front panel 3
LCD panel ✓
[MENU] dial ✓
[EXIT] button ✓
[UNDO] button ✓
[MENU] button ✓
Front panel 4
[(SCENE FILE) ON] indicator ✓This is always lit.
Scene file page switching button ×
[1/6], [2/7], [3/8], [4/EXT1], and [5/EXT2]
buttons (SCENE FILE)
✓Only scenes 1 to 4 are enabled.
[STORE] button ×
Front panel 5
[ND] indicator ✓
[ND] setting button ✓
[ND] display ✓
[CC] indicator ×
[CC] setting button ×
[CC] display ×
[HEAD] button ×
[ECC] button ×
[M.GAIN] indicator ✓
[M.GAIN] setting button ✓
[M.GAIN] display ✓
[VAR] button ✓Functions as ON/OFF of the super gain.
- 6 -
Connecting the Unit to AW-UE100 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 6
[SHUTTER] display ✓“ELC” is displayed on the [SHUTTER] display
when ELC is selected.
[(SHUTTER) ON] button ✓
[(SHUTTER) SYNC] button ✓
[SHUTTER] setting buttons ✓
Front panel 7
[GAIN R] and [GAIN B] dials ✓
[GAIN G] dial ×
[BLACK R], [BLACK G] and [BLACK B] dials ✓Only the pedestal can be adjusted.
[FLARE] button ✓Flare adjustment cannot be performed.
[PAINT LOCK] button ✓
[DTL] dial ✓
[CAM SEL] indicator ✓
[SELECT] dial ✓
[TEMP] indicator ✓
[SYNC] indicator ✓
[MFLR] indicator ×
[USER] indicator ✓Functions only when the following functions have
been assigned.
GAIN
M.GAMM
U.CHRM
KNEE.S
Front panel 8
[EXT] indicator ×
[D.EXT] indicator ✓
[IRIS] lever ✓
[M.PED] dial ✓
[RELATIVE] button ✓
[SENSE] dial ✓
[COARSE] dial ✓
[IRIS] display ✓
[AUTO] button ✓
[CLOSE] button ×
[M.PED] display ✓
[IRIS LOCK] button ✓
[M.PED LOCK] button ✓
- 7 -
Connecting the Unit to AW-UE100 Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 9
Camera number/tally display ✓
[ALM] indicator ✓
[OPT] indicator ×
[PANEL ACTIVE] button ✓
[CALL] button ×
[PREVIEW] button ✓
Memory card slot ✓
Memory card access indicator ✓
Torque adjustment screw ✓
- 8 -
Connecting the Unit to AW-UE100 Cameras

ROP Menu (during AW-UE100 connection)
ROP Menu List
When an AW-UE100 4K Integrated Camera is connected, the ROP menu will be as follows.
NOTE
To perform menu operations, upgrade the system version of the unit to V5.00-00-0.00 or later.
For details on menu operations, refer to the following sections in the Operating Instructions.
“Displaying menus”
“Basic menu operations”
01 SHUTTER SPEED
MODE “MODE” (see page 15)
SPEED “SPEED” (see page 15)
ELC “ELC” (see page 15)
02 PEDESTAL
M.PED “M.PED” (see page 16)
OFFSET “OFFSET” (see page 16)
PED R “PED R” (see page 16)
PED G “PED G” (see page 16)
PED B “PED B” (see page 16)
03 CHROMA
LEVEL “LEVEL” (see page 17)
PHASE “PHASE” (see page 17)
04 GAIN
SUPER GAIN “SUPER GAIN” (see page 18)
GAIN “GAIN” (see page 18)
AGC MAX GAIN “AGC MAX GAIN” (see page 18)
05 WHITE BALANCE
MODE “MODE” (see page 19)
COLOR TEMP “COLOR TEMP” (see page 19)
GAIN OFFSET “GAIN OFFSET” (see page 19)
GAIN R “GAIN R” (see page 19)
GAIN B “GAIN B” (see page 19)
ATW SPEED “ATW SPEED” (see page 19)
ATW TRGT R “ATW TRGT R” (see page 19)
ATW TRGT B “ATW TRGT B” (see page 19)
06 GAMMA
MODE “MODE” (see page 20)
GAMMA “GAMMA” (see page 20)
07 BLACK GAMMA
BLACK GAMMA “BLACK GAMMA” (see page 21)
RANGE “RANGE” (see page 21)
08 KNEE
MODE “MODE” (see page 22)
A.KNEE RESPONSE “A.KNEE RESPONSE” (see page 22)
POINT “POINT” (see page 22)
SLOPE “SLOPE” (see page 22)
09 WHITE CLIP
WHITE CLIP “WHITE CLIP” (see page 23)
WHITE CLP LV “WHITE CLP LV” (see page 23)
10 DRS DRS “DRS” (see page 24)
- 9 -
ROP Menu (during AW-UE100 connection)

11 DETAIL
MASTER DTL “MASTER DTL” (see page 25)
CORING “CORING” (see page 25)
V DTL LEVEL “V DTL LEVEL” (see page 25)
FREQ “FREQ” (see page 25)
LEVEL DEPEND. “LEVEL DEPEND.” (see page 25)
KNEE APE.LEVEL “KNEE APE.LEVEL” (see page 25)
GAIN(+) “GAIN(+)” (see page 25)
GAIN(-) “GAIN(-)” (see page 25)
SKIN DTL “SKIN DTL” (see page 25)
SKIN DTL EFFECT “SKIN DTL EFFECT” (see page 25)
DTL SW “DTL SW” (see page 25)
12 MATRIX
TYPE “TYPE” (see page 26)
ADAPTIVE MATRIX “ADAPTIVE MATRIX” (see page 26)
R-G “R-G” (see page 26)
R-B “R-B” (see page 26)
G-R “G-R” (see page 26)
G-B “G-B” (see page 26)
B-R “B-R” (see page 26)
B-G “B-G” (see page 26)
- 10 -
ROP Menu (during AW-UE100 connection)

13 COLOR CORRECTION
TYPE “TYPE” (see page 28)
ADAPTIVE MATRIX “ADAPTIVE MATRIX” (see page 28)
COLOR CORRECT “COLOR CORRECT” (see page 28)
SAT “SAT” (see page 28)
PHASE “PHASE” (see page 28)
SAT B_Mg “SAT B_Mg” (see page 28)
PHASE B_Mg “PHASE B_Mg” (see page 28)
SAT Mg “SAT Mg” (see page 28)
PHASE Mg “PHASE Mg” (see page 28)
SAT Mg_R “SAT Mg_R” (see page 28)
PHASE Mg_R “PHASE Mg_R” (see page 28)
SAT Mg_R_R “SAT Mg_R_R” (see page 28)
PHASE Mg_R_R “PHASE Mg_R_R” (see page 28)
SAT R “SAT R” (see page 28)
PHASE R “PHASE R” (see page 28)
SAT R_R_Yl “SAT R_R_Yl” (see page 28)
PHASE R_R_Yl “PHASE R_R_Yl” (see page 28)
SAT R_Yl “SAT R_Yl” (see page 28)
PHASE R_Yl “PHASE R_Yl” (see page 28)
SAT R_Yl_Yl “SAT R_Yl_Yl” (see page 28)
PHASE R_Yl_Yl “PHASE R_Yl_Yl” (see page 28)
SAT Yl “SAT Yl” (see page 28)
PHASE Yl “PHASE Yl” (see page 28)
SAT Yl_Yl_G “SAT Yl_Yl_G” (see page 28)
PHASE Yl_Yl_G “PHASE Yl_Yl_G” (see page 28)
SAT Yl_G “SAT Yl_G” (see page 28)
PHASE Yl_G “PHASE Yl_G” (see page 28)
SAT G “SAT G” (see page 29)
PHASE G “PHASE G” (see page 29)
SAT G_CY “SAT G_CY” (see page 29)
PHASE G_CY “PHASE G_CY” (see page 29)
SAT CY “SAT CY” (see page 29)
PHASE CY “PHASE CY” (see page 29)
SAT CY_B “SAT CY_B” (see page 29)
PHASE CY_B “PHASE CY_B” (see page 29)
SAT B “SAT B” (see page 29)
PHASE B “PHASE B” (see page 29)
14 DNR DNR “DNR” (see page 30)
15 BRIGHTNESS
PICTURE LEVEL “PICTURE LEVEL” (see page 31)
FRAME MIX “FRAME MIX” (see page 31)
DAY/NIGHT “DAY/NIGHT” (see page 31)
A.F.MIX GAIN “A.F.MIX GAIN” (see page 31)
- 11 -
ROP Menu (during AW-UE100 connection)

16 LENS CONTROL
FOCUS MODE “FOCUS MODE” (see page 32)
FOCUS SPEED “FOCUS SPEED” (see page 32)
FOCUS “FOCUS” (see page 32)
ZOOM TELE “ZOOM TELE” (see page 32)
ZOOM SPEED “ZOOM SPEED” (see page 32)
ZOOM WIDE “ZOOM WIDE” (see page 32)
DIGITAL ZOOM SW “DIGITAL ZOOM SW” (see page 32)
DIGITAL ZOOM MAX “DIGITAL ZOOM MAX” (see page 32)
DIGITAL ZOOM D.EXT “DIGITAL ZOOM D.EXT” (see page 32)
17 SYSTEM CAM
FORMAT “FORMAT” (see page 33)
FREQUENCY “FREQUENCY” (see page 33)
12G 3G SDI “12G 3G SDI” (see page 33)
3G 3G SDI “3G 3G SDI” (see page 33)
I.S. “I.S.” (see page 33)
OSD 12G “OSD 12G” (see page 33)
OSD 3G “OSD 3G” (see page 33)
OSD MONI “OSD MONI” (see page 33)
OSD HDMI “OSD HDMI” (see page 33)
OSD IP “OSD IP” (see page 33)
OSD STATUS “OSD STATUS” (see page 33)
AUDIO “AUDIO” (see page 33)
GENLOCK PHASE “GENLOCK PHASE” (see page 34)
TALLY CONTROL “TALLY CONTROL” (see page 34)
TALLY INPUT “TALLY INPUT” (see page 34)
TALLY SIGNAL “TALLY SIGNAL” (see page 34)
TALLY CONT MD “TALLY CONT MD” (see page 34)
18 CAMERA MENU CONTROL
MENU ON/OFF “MENU ON/OFF” (see page 35)
CURSOR/PARAMETER “CURSOR/PARAMETER” (see page 35)
EXECUTE “EXECUTE” (see page 35)
- 12 -
ROP Menu (during AW-UE100 connection)

19 ROP SETTING
CONTROL(MENU)1 Refer to the following section in the Operating Instructions.
“34 ROP SETTING”
CONTROL(MENU)2
CONTROL(MENU)3
CONTROL(MENU)4
CONTROL(MENU)5
B.GAMMA SW
MODE(ON/OFF)1
MODE(ON/OFF)2
MODE(ON/OFF)3
MODE(ON/OFF)4
MODE(ON/OFF)5
ECC BTN CTRL
ASSIGN BUTTON
USER ASSIGN
IRIS LEV MODE
CAM SEL
DTL VOL
SKIN DTL SW
LCD BRIGHT
PANEL LED BRIGHT
7SEG BRIGHT GROUP1
7SEG BRIGHT GROUP2
BUZZER
PERIOD
CYCLE
STD POSITION M.GAIN
STD POSITION VAR
STD POSITION ND
STD POSITION CC
IRIS PRIORITY
ROP DATA SAVE
ROP DATA LOAD
SD CARD FORMAT
INITIAL with NW
INITIAL
POWER BUTTON
IRIS CALIBRATION TOP
IRIS CALIBRATION BOTTOM
UPGRADE
PAINT VOL CO
SYSTEM VERSION
20 CONNECT SETTING
CONNECT MODE(push) CAM1 “CONNECT MODE(push) CAM1” (see page 37)
CONNECT MODE(push) CAM2
to CAM99 “CONNECT MODE(push) CAM2 to CAM99” (see page 37)
- 13 -
ROP Menu (during AW-UE100 connection)

21 ROP IP SETTING
ROP IP ADDRESS Refer to the following section in the Operating Instructions.
“36 ROP IP SETTING”
ROP PORT
UPLOAD
ROP SUBNET MASK
UPLOAD
ROP DEFAULT GATEWAY
UPLOAD
MAC ADDRESS
22 CAMERA IP SETTING
CAM1 to CAM99 IP ADDRESS Refer to the following section in the Operating Instructions.
“37 CAMERA IP SETTING”
CAM1 to CAM99 PORT
CAM1 to CAM99 INF UPLOAD
23 AUTO IRIS SETTING
IRIS SPEED “IRIS SPEED” (see page 39)
IRIS WINDOW “IRIS WINDOW” (see page 39)
24 SWITCHER LINK
SWITCHER IP ADDRESS Refer to the following sections in “Functions Added by Version
Updates”.
“Functions linking with AV-HS6000”
RECEIVE UDP PORT
INFO UPLOAD
SWITCHER LINK
TALLY RECEIVE
PREVIEW
TALLY ACTION MATERIAL
TALLY ACTION CAM No.
25 AW CONTROLLER LINK
RECEIVE PORT Refer to the following sections in “Functions Added by Version
Updates”.
“Function linking with AW-RP150”
INFO UPLOAD
AW CONT LINK
- 14 -
ROP Menu (during AW-UE100 connection)

01 SHUTTER SPEED
ヴラヶヵヵユンチヴヱユユュ
ヒチバチヒ
ヮヰュユヴヱユユュユロヤヰョョ
ノノ
Item Setting details
MODE Selects the operation mode of the shutter.
SPEED Sets the shutter speed.
ELC Sets the maximum shutter value for ELC operation.
- 15 -
ROP Menu (during AW-UE100 connection)

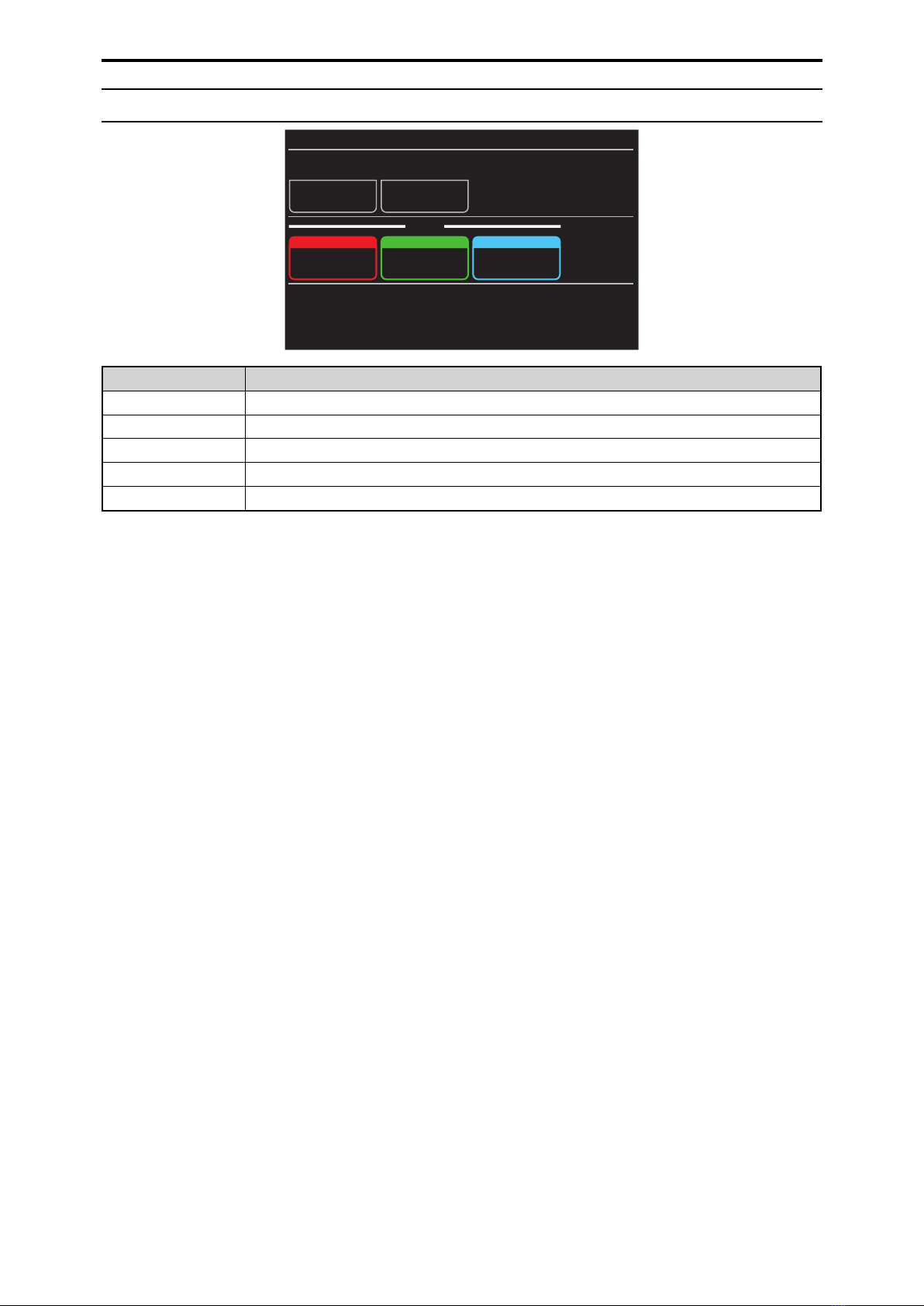

02 PEDESTAL
ヱユュユヴヵモロ
ヒチバチヒ
ヮハヱユュヰョョヴユヵパヰョョパンヨパパャヱユュ
Item Setting details
M.PED Adjusts the black level of the master pedestal.
OFFSET Sets the [PED R], [PED G], and [PED B] pedestal levels when the auto black balance is adjusted.
PED R Sets the correction level of red to the master pedestal.
PED G Sets the correction level of green to the master pedestal.
PED B Sets the correction level of blue to the master pedestal.
- 16 -
ROP Menu (during AW-UE100 connection)

03 CHROMA
ヤランヰヮモ
ヒチバチヒ
ロユヷユロヱラモヴユパパ
Item Setting details
LEVEL Sets the color intensity of images.
PHASE Finely adjusts the color phase of images.
- 17 -
ROP Menu (during AW-UE100 connection)

04 GAIN
ヨモリワ
ヒチバチヒ
ヴヶヱユンヨモリワヨモリワモヨヤヮモヹチヨモリワチチチヰョョパヒベ
Item Setting details
SUPER GAIN Sets the super gain (increased sensitivity) to ON/OFF.
GAIN Adjusts the gain of images.
AGC MAX GAIN When “AUTO” is selected as the [GAIN] setting, the maximum gain-up amount can be set.
- 18 -
ROP Menu (during AW-UE100 connection)

05 WHITE BALANCE
ヸラリヵユチャモロモワヤユチチチチチチチチチチチチチチチ
ヒチバチヒ
ヮヰュユヤヰロヰンヵユヮヱヨモリワヰョョヴユヵヴヱユユュヵンヨヵチンヵンヨヵチャヰョョワヰンヮモロモヸャチモピビパパレパパパンパャモヵヸヨモリワ
Item Setting details
MODE Sets the white balance mode.
COLOR TEMP Sets color temperature settings.
GAIN OFFSET Sets the [GAIN R] and [GAIN B] values when the [MODE] is set to “AWB A” or “AWB B”.
GAIN R Adjusts the R gain.
GAIN B Adjusts the B gain.
ATW SPEED Sets the control speed of the ATW function.
ATW TRGT R Finely adjusts the [GAIN R] output when converged in the auto tracking white balance operation.
ATW TRGT B Finely adjusts the [GAIN B] output when converged in the auto tracking white balance operation.
- 19 -
ROP Menu (during AW-UE100 connection)

06 GAMMA
ヨモヮヮモ
ヒチバチヒ
ヮヰュユヨモヮヮモラュパハフブ
Item Setting details
MODE Selects the type of gamma curve.
GAMMA Sets the gamma.
- 20 -
ROP Menu (during AW-UE100 connection)
