Panasonic AV-HS60C4P User manual

Operating Instructions Excerpted Version
Control Panel
Model No. AV-HS60C4P
Model No. AV-HS60C4E
ENGLISH
VQT5L76-1
FJ0815MS1032 -YI
Printed in Japan
This manual is an excerpted version of the Operating Guide. For more information, please visit the Panasonic
website (http://pro-av.panasonic.net/en/manual/index.html), and refer to the Operating Guide (PDF).
Before operating this product, please read the instructions carefully and save this manual for future use.
Please carefully read the “Read this first!” (P. 2 to 6) of this Manual before use.

2
Read this rst! (For AV-HS60C4P)
Read this rst! (For AV-HS60C4P)
indicates safety information.
WARNING:
Installation should only be performed by qualified
installation personnel.
Improper installation may result in the entire
apparatus falling down and causing injury.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING:
This equipment must be grounded.
To ensure safe operation, the three-pin plug must
be inserted only into a standard three-pin power
outlet which is effectively grounded through
normal household wiring.
Extension cords used with the equipment must
have three cores and be correctly wired to provide
connection to the ground. Wrongly wired extension
cords are a major cause of fatalities.
The fact that the equipment operates satisfactorily
does not imply that the power outlet is grounded
or that the installation is completely safe. For your
safety, if you are in any doubt about the effective
grounding of the power outlet, please consult a
qualified electrician.
WARNING:
• To reduce the risk of fire or electric shock, do not
expose this equipment to rain or moisture.
• To reduce the risk of fire or electric shock, keep
this equipment away from all liquids. Use and
store only in locations which are not exposed
to the risk of dripping or splashing liquids, and
do not place any liquid containers on top of the
equipment.
WARNING:
This equipment is compliant with Class A of
CISPR 32.
In a residential environment this equipment may
cause radio interference.
WARNING:
Always keep switch blank caps (large)/(small) and
memory cards (optional accessories) out of the
reach of babies and small children.
WARNING:
Fuse replacement should only be performed by
qualified personnel.
For continued protection against risk of fire,
replace only with the same type; 3.15 AH - 250 V
fuse for F1/F2.
CAUTION:
To reduce the risk of fire or electric shock and
annoying interference, use the recommended
accessories only.
CAUTION:
In order to maintain adequate ventilation, do
not install or place this unit in a bookcase, built-
in cabinet or any other confined space. To
prevent risk of electric shock or fire hazard due to
overheating, ensure that curtains and any other
materials do not obstruct the ventilation.
CAUTION:
The mains plug of the power supply cord shall
remain readily operable.
The AC receptacle (mains socket outlet) shall
be installed near the equipment and shall be
easily accessible. To completely disconnect this
equipment from the AC mains, disconnect the
power cord plug from the AC receptacle.
CAUTION:
This apparatus can be operated at a voltage in the
range of 100 – 240 V AC.
Voltages other than 120 V are not intended for
U.S.A. and Canada.
Operation at a voltage other than 120 V AC may
require the use of a different AC plug. Please
contact either a local or foreign Panasonic
authorized service center for assistance in
selecting an alternate AC plug.

Read this rst! (For AV-HS60C4P)
3
indicates safety information.
CAUTION:
Naked flame sources, such as lighted candles,
should not be placed on the apparatus.
Use the apparatus in tropical and/or moderate
climates.
FCC NOTICE (USA)
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Note:
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Warning:
To assure continued FCC emission limit compliance, the user must use only shielded interface cables
when connecting to external units. If DVI-D port is to be used it must be connected to PC by compatible
interface cable with two ferrite cores. Also, any unauthorized changes or modifications to this equipment
could void the user’s authority to operate it.
NOTIFICATION (Canada)
CAN ICES-003(A)/NMB-003(A)
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord form being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

4
Read this rst! (For AV-HS60C4E)
Read this rst! (For AV-HS60C4E)
indicates safety information.
WARNING:
Installation should only be performed by qualified
installation personnel.
Improper installation may result in the entire
apparatus falling down and causing injury.
WARNING:
This equipment must be earthed.
To ensure safe operation, the three-pin plug must
be inserted only into a standard three-pin power
point which is effectively earthed through the
normal household wiring.
Extension cords used with the equipment must
have three cores and be correctly wired to provide
connection to the earth. Wrongly wired extension
cords are a major cause of fatalities.
The fact that the equipment operates satisfactorily
does not imply that the power point is earthed or
that the installation is completely safe. For your
safety, if you are in any doubt about the effective
earthing of the power point, please consult a
qualified electrician.
WARNING:
• To reduce the risk of fire or electric shock, do
not expose this equipment to rain or moisture.
• To reduce the risk of fire or electric shock, keep
this equipment away from all liquids. Use and
store only in locations which are not exposed
to the risk of dripping or splashing liquids, and
do not place any liquid containers on top of the
equipment.
WARNING:
Always keep switch blank caps (large)/(small) and
memory cards (optional accessories) out of the
reach of babies and small children.
WARNING:
Fuse replacement should only be performed by
qualified personnel.
For continued protection against risk of fire,
replace only with the same type; 3.15 AH - 250 V
fuse for F1/F2.
WARNING:
This equipment is compliant with Class A of
CISPR 32.
In a residential environment this equipment may
cause radio interference.
CAUTION:
Do not remove panel covers by unscrewing.
To reduce the risk of electric shock, do not remove
the covers. No user serviceable parts inside.
Refer servicing to qualified service personnel.
CAUTION:
To reduce the risk of fire or electric shock and
annoying interference, use the recommended
accessories only.
CAUTION:
In order to maintain adequate ventilation, do
not install or place this unit in a bookcase, built-
in cabinet or any other confined space. To
prevent risk of electric shock or fire hazard due to
overheating, ensure that curtains and any other
materials do not obstruct the ventilation.
CAUTION:
The mains plug of the power supply cord shall
remain readily operable.
The AC receptacle (mains socket outlet) shall
be installed near the equipment and shall be
easily accessible. To completely disconnect this
equipment from the AC mains, disconnect the
power cord plug from the AC receptacle.
CAUTION:
Naked flame sources, such as lighted candles,
should not be placed on the apparatus.
Use the apparatus in tropical and/or moderate
climates.

Read this rst! (For AV-HS60C4E)
5
indicates safety information.
Caution for AC Mains Lead
FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This product is equipped with 2 types of AC mains cable. One is for continental Europe, etc. and the other one
is only for U.K.
Appropriate mains cable must be used in each local area, since the other type of mains cable is not suitable.
FOR CONTINENTAL EUROPE, ETC.
Not to be used in the U.K.
FOR U.K. ONLY
If the plug supplied is not suitable for your socket outlet,
it should be cut off and appropriate one fitted.
FOR U.K. ONLY
This appliance is supplied with a moulded three pin mains
plug for your safety and convenience.
A 13 amp fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that
the replacement fuse has a rating of 13 amps and that it
is approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark on the
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local Panasonic Dealer.
How to replace the fuse
1. Open the fuse compartment with a screwdriver.
2. Replace the fuse.
Fuse
AEEE Yönetmeliğine Uygundur.
AEEE Complies with Directive of Turkey.
Manufactured by:
Panasonic Connect Co., Ltd.
4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan
Importer:
Panasonic Connect Europe GmbH
Authorized Representative in EU:
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
Importer for UK:
Panasonic Connect UK,
a branch of Panasonic Connect Europe GmbH,
Maxis 2, Western Road, Bracknell, Berkshire, RG12 1RT

6
Read this rst! (For AV-HS60C4E)
EMC NOTICE FOR THE PURCHASER/USER OF THE APPARATUS
1. Pre-requisite conditions to achieving compliance with the above standards
<1> Peripheral equipment to be connected to the apparatus and special connecting cables
• The purchaser/user is urged to use only equipment which has been recommended by us as peripheral equipment
to be connected to the apparatus.
• The purchaser/user is urged to use only the connecting cables described below.
<2> For the connecting cables, use shielded cables which suit the intended purpose of the apparatus.
• Video signal connecting cables
Use double shielded coaxial cables, which are designed for 75-ohm type high-frequency applications, for SDI
(Serial Digital Interface).
Coaxial cables, which are designed for 75-ohm type high-frequency applications, are recommended for analog
video signals.
• Audio signal connecting cables
If your apparatus supports AES/EBU serial digital audio signals, use cables designed for AES/EBU.
Use shielded cables, which provide quality performance for high-frequency transmission applications, for analog
audio signals.
• Other connecting cables (IEEE1394, USB)
Use double shielded cables, which provide quality performance for high-frequency applications, as connecting
cables.
• When connecting to the DVI signal terminal, use a cable with a ferrite core.
• If your apparatus is supplied with ferrite core(s), they must be attached on cable(s) following instructions in this
manual.
2. Performance level
The performance level of the apparatus is equivalent to or better than the performance level required by these
standards.
However, the apparatus may be adversely affected by interference if it is being used in an EMC environment, such as an
area where strong electromagnetic fields are generated (by the presence of signal transmission towers, cellular phones,
etc.). In order to minimize the adverse effects of the interference on the apparatus in cases like this, it is recommended
that the following steps be taken with the apparatus being affected and with its operating environment:
1. Place the apparatus at a distance from the source of the interference.
2. Change the direction of the apparatus.
3. Change the connection method used for the apparatus.
4. Connect the apparatus to another power outlet where the power is not shared by any other appliances.
ІНФОРМАЦІЯ ПРО ПІДТВЕРДЖЕННЯ ВІДПОВІДНОСТІ ПРОДУКТУ
Виробник: Panasonic Connect Co., Ltd. Панасонік Коннект Ко., Лтд.
Адреса виробника: Fukuoka, Japan Фукуока Японія
Країна походження: Japan Японія
Уповноважений Представник: ТОВ “ПАНАСОНІК УКРАЇНА ЛТД”
Адреса Уповноваженого Представника: вул. Васильківська, буд. 30, м. Київ, 03022, Україна
Примітки:
Термін служби виробу 7 років
Дату виготовлення можна визначити за комбінацією букв і цифр серійного номера, що розташований на маркувальній
табличці виробу.
Приклад: X X
XXXXXXX
Рік: остання цифра року (0 – 2020, 1 – 2021,…9 – 2029)
Місяць: А – Січень, В – Лютий… L – Грудень

Contents
7
Contents
Read this rst! (For AV-HS60C4P) 2
Read this rst! (For AV-HS60C4E) 4
Overview 8
Overview 8
Ratings display 8
Installation 8
Accessories 8
Part Names and Functions 9
Operation panel 9
Front panel 13
Rear panel 14
Side (right) 15
Notication when the power is turned on for the rst time 1 6
Specications 18
How to read this document
rAbbreviations
The following abbreviations are used in this document.
fThe model numbers of the Main Frames AV-HS60U1P/AV-HS60U2P, AV-HS60U1E/AV-HS60U2E are described as “AV-HS60U1”/“AV-HS60U2”.
fThe model numbers of the Control Panels AV-HS60C1P/AV-HS60C2P, AV-HS60C1E/AV-HS60C2E are described as “AV-HS60C1”/“AV-HS60C2”.
fThe model numbers of the Control Panels AV-HS60C4P and AV-HS60C4E are described as “AV-HS60C4”.
fThe model number of the Menu Panel AV-HS60C3G is described as “AV-HS60C3”.

8
Overview
Overview
Overview
AV-HS60C4 is the Control Panel with 2ME and 16 crosspoint buttons, which congures the switcher system of AV-HS6000.
This is a redundant power supply model.
For detailed operations, refer to the Operating Guide of the AV-HS6000 series.
Ratings display
The name, model number, and electrical ratings of the unit are indicated on its rear panel.
Installation
Refer to the Operating Guide of the AV-HS6000 series.
Accessories
fAC cable
-AV-HS60C4P: 2 cables
-AV-HS60C4E: 4 cables
fLAN cable: 1 cable (used to connect with the Main Frame AV-HS60U1/AV-HS60U2)
fSwitch blank cap (large): 16 caps
fSwitch blank cap (small): 8 caps
@@NOTE
tAfter removing the product from its container, dispose of the AC cable cap and packing materials in an appropriate manner.

Part Names and Functions
9
Part Names and Functions

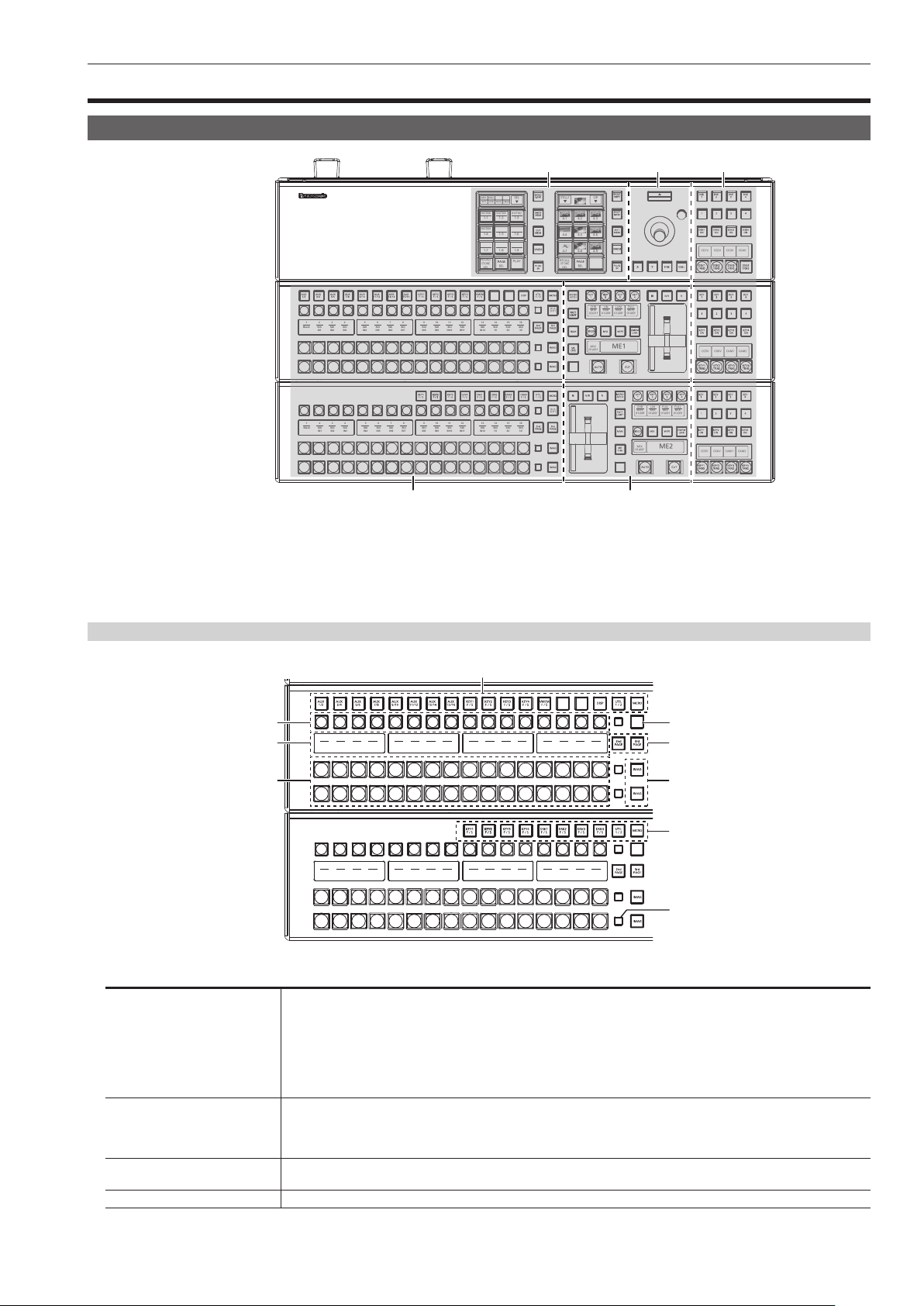

Operation panel
CHR LIN LUM FULL
4
SDI
IN3
3
SDI
IN2
2
SDI
IN1
1
Black
16151413121110
SDI
IN9
9
SDI
IN8
SDI
IN11
SDI
IN12
Still
1V
Still
2V
Still
3V
SDI
IN10
8
SDI
IN7
7
SDI
IN6
6
SDI
IN5
5
SDI
IN4
RECALL
STORE
DEL
RECALL
CBGD
STORE
DEL
MIX
02s01f
MIX
01s00f
MIX
01s00f
WIPE
01s00f
CHR LIN FULL FULL
WIPE
01s00f
MIX
01s00f
MIX
01s00f
MIX
CG5V CG6V CAM1 CAM2
CG5V CG6V CAM1 CAM2
CG1V CG2V CG3V CG4V
01s00f
MIX ME2
01s00f
MIX ME1
01s00f
BUS
SHFT
BUS
SHFT
1-7
4-1
1-8 1-9
SHOT000
1-1
SHOT001
1-2
SHOT002
1-3
SHOT003
1-4 1-5 1-6
PL AY
SEL
AUKDSK
ME2
XPT
ME1
4
SDI
IN3
3
SDI
IN2
2
SDI
IN1
1
Black
16151413121110
SDI
IN9
9
SDI
IN8
SDI
IN11
SDI
IN12
Still
1V
Still
2V
Still
3V
SDI
IN10
8
SDI
IN7
7
SDI
IN6
6
SDI
IN5
5
SDI
IN4
4-34-2
4-4 4-64-5
4-7 4-94-8
OP
STILL1
1
2
3
45
1 Crosspoint area
2 Multi-selection panel area
3 Transition area
4 KEY/DSK operation area
5 Positioner area
Crosspoint area
4
SDI
IN3
3
SDI
IN2
2
SDI
IN1
1
Black
16151413121110
SDI
IN9
9
SDI
IN8
SDI
IN11
SDI
IN12
Still
1V
Still
2V
Still
3V
SDI
IN10
8
SDI
IN7
7
SDI
IN6
6
SDI
IN5
5
SDI
IN4
BUS
SHFT
BUS
SHFT
4
SDI
IN3
3
SDI
IN2
2
SDI
IN1
1
Black
16151413121110
SDI
IN9
9
SDI
IN8
SDI
IN11
SDI
IN12
Still
1V
Still
2V
Still
3V
SDI
IN10
8
SDI
IN7
7
SDI
IN6
6
SDI
IN5
5
SDI
IN4
1
2
3
4
5
6
7
8
1
1 KEY bus selector buttons (KEY BUS DELEGATION)
Switches functions that can be operated using the KEY bus crosspoint buttons.
<AUX 1/2> to <AUX 15/16>
buttons
Switches to the source selector buttons for the AUX buses.
fIf you press the same buttons again while the <AUX 1/2> to <AUX 15/16> buttons are selected, the bus in the
background is selected.
Example)
If you press the <AUX 1/2> button again while the AUX1 bus is selected, the AUX2 bus is selected.
fThe <AUX 1/2> to <AUX 3/4> buttons have the MIX transition function.
fThe <AUX 1/2> to <AUX 15/16> buttons have the crosspoint link coupling function.
<KEY1 F/S> to <KEY4 F/S>
buttons
Switches to the source selector buttons for the key ll buses or key source buses.
fIf you select key ll signal or key source signal using the KEY bus crosspoint buttons, the signals are linked and
another signal is automatically selected. The unit’s linking operation has two modes. The mode setting can be made
from the <CONF> button on the top menu → [SOURCE LINK] → [Key Assign] tab → [Master/Slave].
<VMEM F/S> button Switches the source selector buttons for the ll buses or source buses of [CLIP1] through [CLIP4] (video memory) and
[STILL1] through [STILL4] (still image memory) input buses.
<DISP> button Switches to the source selector buttons for the DISP buses to be displayed on the Menu Panel AV-HS60C3.

10
Part Names and Functions
<UTIL 1/2> button Switches to the source selector buttons for the utility 1 bus/utility 2 bus that can be inserted to background wipe borders
and key edges.
<MCRO> button Switches to the start button to play back the macro memory assigned to the KEY bus crosspoint buttons. The
assignment can be made from the <MEM> button on the top menu → [MACRO] → [XPT Assign] tab.
<DSK1 F/S> to <DSK4 F/S>
buttons
Switches to the source selector buttons for the DSK ll buses or DSK source buses.
fIf you select key ll signal or key source signal using the KEY bus crosspoint buttons, the signals are linked and
another signal is automatically selected. The unit’s linking operation has two modes. The mode setting can be made
from the <CONF> button on the top menu → [SOURCE LINK] → [Key Assign] tab → [Master/Slave].
2 KEY bus crosspoint buttons (1 to 16)
Selects the source of the bus which was selected by the KEY bus selector buttons.
Source can be selected using the <2nd PAGE>/<3rd PAGE> button. (Maximum of 64) (page 10)
3 Source name display panels
Displays applications of the crosspoint buttons. The display settings of the source name display panels can be made from the <CONF> button on the
top menu → [SOURCE NAME] → [Panel Name] tab.
When operating other than macro bus: “crosspoint number” on the upper line, “input source name” on the lower line
When operating macro bus: “macro name” on the upper line, “input source name” on the lower line
4 PGM/A bus crosspoint buttons (1 to 16), PST/B bus crosspoint buttons (1 to 16)
Selects the video signals of the PGM/A bus and PST/B bus.
Source can be selected using the <2nd PAGE>/<3rd PAGE> button. (Maximum of 64) (page 10)
fBus mode can be selected from the <CONF> button on the top menu → [OPERATE] → [Transition] tab → [Bus Mode] column → [Bus Mode].
5 <BUS SHFT> button
Press the <AUX 1/2> to <AUX 15/16>/<KEY1 F/S> to <KEY4 F/S>/<VMEM F/S>/<UTIL 1/2>/<DSK1 F/S> to <DSK4 F/S> buttons while holding
down the <BUS SHFT> button to switch the bus selection applications. For the <AUX 1/2> to <AUX 15/16> buttons, the bus selection applications
can be switched even when the selected button is pressed again.
Example) <KEY1 F/S> button
When only the <KEY1 F/S> button is pressed, the KEY bus crosspoint buttons are switched to the source selector buttons of the KEY1 ll bus.
When the <KEY1 F/S> button is pressed while the <BUS SHFT> button is held down, the KEY bus crosspoint buttons are switched to the source
selector buttons of the KEY1 source bus.
6 <2nd PAGE>/<3rd PAGE> buttons
Switch the page to select the source with the KEY bus crosspoint buttons, PGM/A bus crosspoint buttons, or PST/B bus crosspoint buttons.
fThe pages of the buses included in the corresponding ME can be switched at once. To switch pages at individual buses, assign the <2nd
PAGE>/<3rd PAGE> button to the KEY bus crosspoint buttons, PGM/A bus crosspoint buttons, and the PST/B bus crosspoint buttons.
Button status Displayed page
<2nd PAGE> button <3rd PAGE> button
Off Off First page
Lit Off Second page
Off Lit Third page
Lit Lit Fourth page
7 <IMAG> button
Enables/disables image effects (paint, mono colors, mosaics, defocusing, etc.) to be added to images selected at the PGM/A bus and PST/B bus.
fThe setting to enable/disable image effects to be added to images selected in the KEY bus can be made from the <ME1>/<ME2> button on the top
menu → [IMAGE] → [Key1]/[Key2] tab → [Mosaic/Defocus] column.
8 Bus tally
Indicates the output status of the buses. The buses that comprise the on-air tallies will light up.

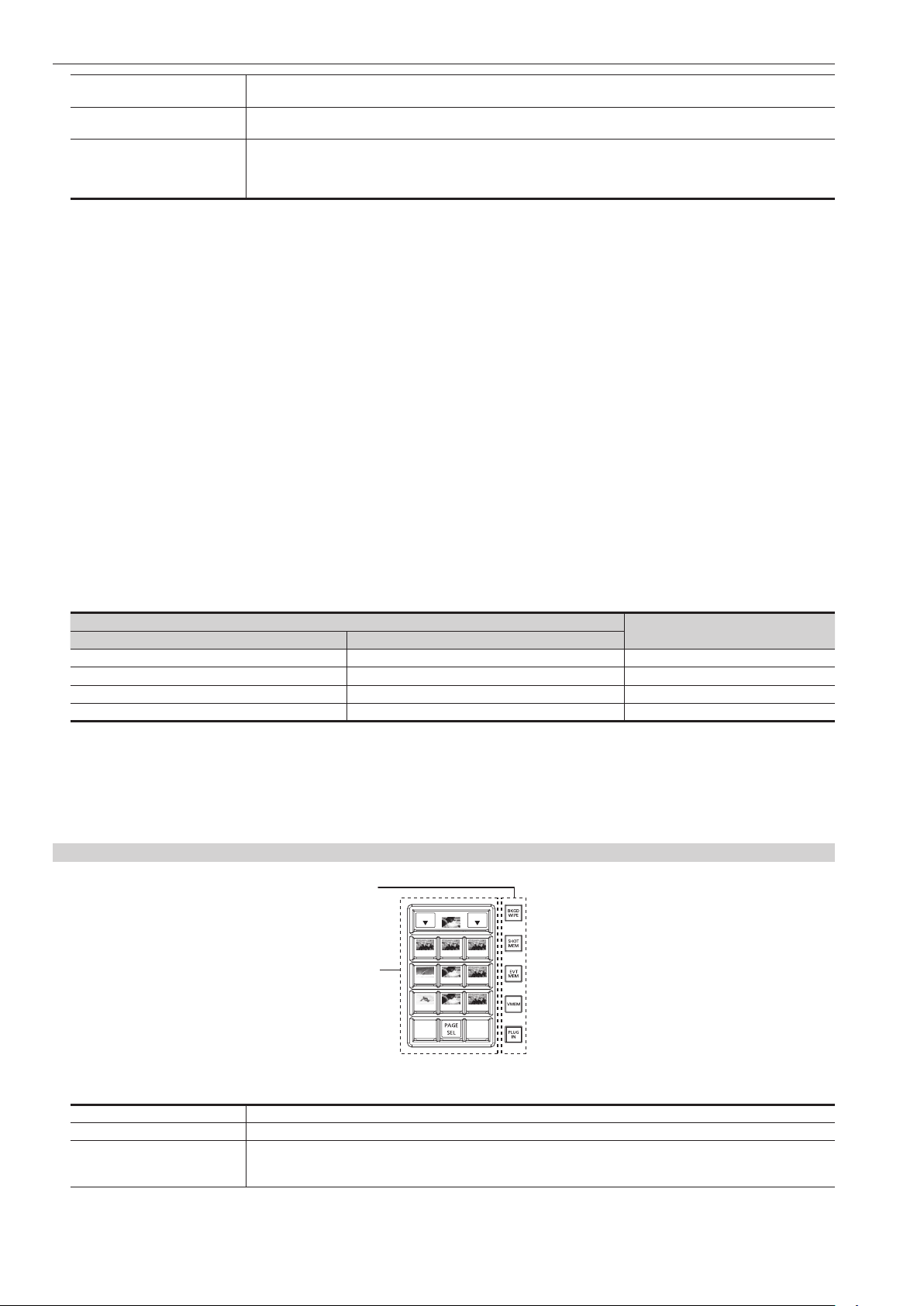

Multi-selection panel area
RECALL
STORE
DEL
4-1 4-34-2
4-4 4-64-5
4-7 4-94-8
OP
STILL1
1
2
1 Mode selection button
Switches functions that can be operated on the multi-selection panel.
<BKGD WIPE> button Selects background wipe preset.
<SHOT MEM> button Registers/recalls/deletes register memories of the shot memory.
<EVT MEM> button
Recalls register memories of the event memory. This button is also used to select register memories during EMEM-LINK
transition.
fRegistration/editing are performed using the menu.

Part Names and Functions
11
<VMEM> button
Records [CLIP1] through [CLIP4] (video memory) and [STILL1] through [STILL4] (still image memory) to the current
frame memories and plays them back.
fWhen using the Storage Module AV-HS60D1 (optional), register memories can be registered/recalled/deleted on SSD
installed in the Main Frame AV-HS60U1/AV-HS60U2.
<PLUG IN> button* Used as a plug-in software menu.
* This is a function to be supported in the future.
2 Multi-selection menu panel
When the mode selection button is pressed, the menu to be displayed is switched.
For details, refer to “Basic operations for the multi-selection panel area” in Operating Guide (PDF).
Transition area
CHR LIN LUM FULL
MIX
02s01f
MIX
01s00f
MIX
01s00f
WIPE
01s00f
MIX ME1
01s00f
2
1
4
8
5
6
3
1
7
10
9
3
1 Transition target selection buttons (<BKGD>/<KEY1>/<KEY2>/<KEY3>/<KEY4>)
Sets the operation target for the next transition to be executed when the fader lever or <AUTO>/<CUT> button is operated.
2 <MCRO ATCH> button
Switches between enabling/disabling macro attach functions assigned to the button of the corresponding ME.
fWhen set to on, the macro attach function is enabled.
fThe button to which the macro attach function is assigned is illuminated in a specic color while it is on. The light color setting can be made from
the <SYS> button on the top menu → [CTRL PANEL] → [Button Color] tab → [Macro Attach] in the [No Sel Other] column.
3 Status display
Displays the key type (KEY only)/transition type/transition time.
4 <PATT LIMIT> button
Restricts the amount of the background wipe transition for the corresponding ME.
fWhen set to on, the pattern limit function is enabled.
fSet pattern limit details from the <ME1>/<ME2> button on the top menu → [BKGD] → [Position] tab → [Pattern Limit] column.
5 Transition type selection buttons (<NAM>/<MIX>/<WIPE>/<EMEM LINK>)
<MIX> button
Switches images while overlapping. During the transition, the output total of the A bus and B bus is kept at 100%.
In background transition, the above operation is applied when the <NAM> button is off.
It will perform non-additive mixing or color mix mixing depending on the setting of the top menu <ME1>/<ME2> button
→ [BKGD] → [Transition] tab → [Trans Type] column when the <NAM> button is on. For details, refer to “<NAM> button
setting” in Operating Guide (PDF).
<WIPE> button Performs transition according to the patterns set in the menu or selected at the wipe preset on the multi-selection panel
area.
<EMEM LINK> button Performs transition according to the patterns registered in the event memory.
6 <ME CHG> button
Switches the display of the multi-selection panel area to the menu for changing ME which is the operation target.
7 Wipe direction selection buttons
Selects the wipe direction when executing the background transition. The operation is not performed when the transition is a key.
<N> button Wiping proceeds in the normal direction.
<R> button Wiping proceeds in the reverse direction.
<N/R> button The normal direction is replaced with the reverse direction (or vice versa) when the transition is completed.
fOn/off of the <N>/<R> button is also switched according to the wipe direction.
8 Fader lever/transition status
Used to execute background or key transitions. When the lever is moved as far as it will go, the transition is completed. If the fader lever has been
operated during auto transition, auto transition will be switched to manual operation as soon as the fader lever position overtakes the amount of the
transition being executed.
For details on the transition status display, refer to “Transition status display” (page 12).

12
Part Names and Functions
9 ME status area
Displays the ME of the operations target. Use the <ME CHG> button to switch the ME of the operation target.
10 transition execution button
<AUTO> button
Automatically executes transition. (Auto transition)
fTo set the transition time, select the <ME1>/<ME2> button on the top menu → [BKGD] → [Transition] tab →
[Transition] column → [Time].
<CUT> button Executes transition instantly.
rTransition status display
Fig. 1 Fig. 2 Fig. 3 Fig. 4
The transition status display at the left side of the fader lever indicates not the lever position but the amount of transition, and also works during auto
transition.
During pattern limitation, the amount of limitation will also be displayed. (Fig. 1)
If the fader lever position and the amount of images do not match after memory playback or auto transition execution, every other display will be
displayed. When displayed at one side (Fig. 2, Fig. 3), push the lever towards the displayed side to make the lever position recognize.
If multiple operations of BKGD and KEY1 to KEY4 are performed in the next transition, both sides may become unmatched. In such a case, the display
will be like Fig. 4, so move the fader lever back and forth to make the lever position recognize.
KEY/DSK operation areas
CG5V CG6V CAM1 CAM2 CG1V CG2V CG3V CG4V
1
2
3
4
5
1
2
3
4
5
KEY operation area DSK operation area
1 Operation target selection buttons (<KEY1>/<KEY2>/<KEY3>/<KEY4>/<DSK1>/<DSK2>/<DSK3>/<DSK4>)
Selects the operation target for key/DSK preset memory.
Switches target to be displayed in the SEL KEYPVW output.
2 Key/DSK preset memory buttons (<1>/<2>/<3>/<4>)
Recalls/stores the key preset memory.
fShort press: Recalls data saved to the corresponding button. (Recall)
fLong press: Stores the current key settings to the corresponding button. (Store)
Current key setting can be deleted (Delete) by press and holding. For details, refer to “Key preset” in Operating Guide (PDF).
3 <KEY1 ON>/<KEY2 ON>/<KEY3 ON>/<KEY4 ON>/<DSK1 ON>/<DSK2 ON>/<DSK3 ON>/<DSK4 ON> buttons
Executes/cancels each key with a cut transition.
4 Source name display panels
Displays the source name selected for each key.
5 <KEY1 TRNS>/<KEY2 TRNS>/<KEY3 TRNS>/<KEY4 TRNS>/<DSK1 TRNS>/<DSK2 TRNS>/<DSK3 TRNS>/<DSK4 TRNS> buttons
Executes transition with the transition type and transition time for each key set in the menu.
Positioner area
2
1
3
4
5
6
7

Part Names and Functions
13
1 Memory card access LED
Lights up while accessing the memory card.
Do not turn off the power of the unit or eject the memory card while lit. The memory card or data in the memory card may be damaged.
2 Memory card slot
Insert an SD memory card (optional) or an SDHC memory card (optional).
3 Positioner buttons (<X>/<Y>)
<X> button Enables/disables the X-axis operation of the positioner (horizontal direction). When set to on, operation is enabled.
<Y> button Enables/disables the Y-axis operation of the positioner (vertical direction).
4 Z-axis dial
Used to set the numeric values at the numeric entry items on the Menu Panel AV-HS60C3.
It corresponds to the third from the left of the rotary encoders on the Menu Panel AV-HS60C3.
5 Positioner
Used to set the numeric values at the numeric entry items on the Menu Panel AV-HS60C3.
fX axis (horizontal direction): Corresponds to the leftmost of the rotary encoders on the Menu Panel AV-HS60C3.
fY axis (vertical direction): Corresponds to the second from the left of the rotary encoders on the Menu Panel AV-HS60C3.
6 <FINE> button
Changes the amount of change in parameter for the positioner operation.
When set to on, ner adjustments can be made.
7 <ENBL> button
Lit: Enables operations of the positioner and Z-axis dial.
Off: Disables operations of the positioner and Z-axis dial.
@@NOTE
tThis unit detects the position of the positioner and sets the position to the center by the time when the startup is completed after power is turned on.
Do not touch the positioner until the startup of the unit is completed.
rMemory cards
Memory cards used with the unit should conform to SD or SDHC standards.
Be sure to format memory cards using the unit.
Memory cards with the following capacity can be used for the unit. The unit does not support SDXC memory cards.
SD memory card: 8 MB to 2 GB
SDHC memory card: 4 GB to 32 GB
For the latest information not available in the Operating Guide, visit the following website.
https://pro-av.panasonic.net/ (English only)
fKeep the following points in mind when using or storing memory cards.
-Avoid high temperatures/humidities.
-Do not expose to water droplets.
-Avoid electrical charges.

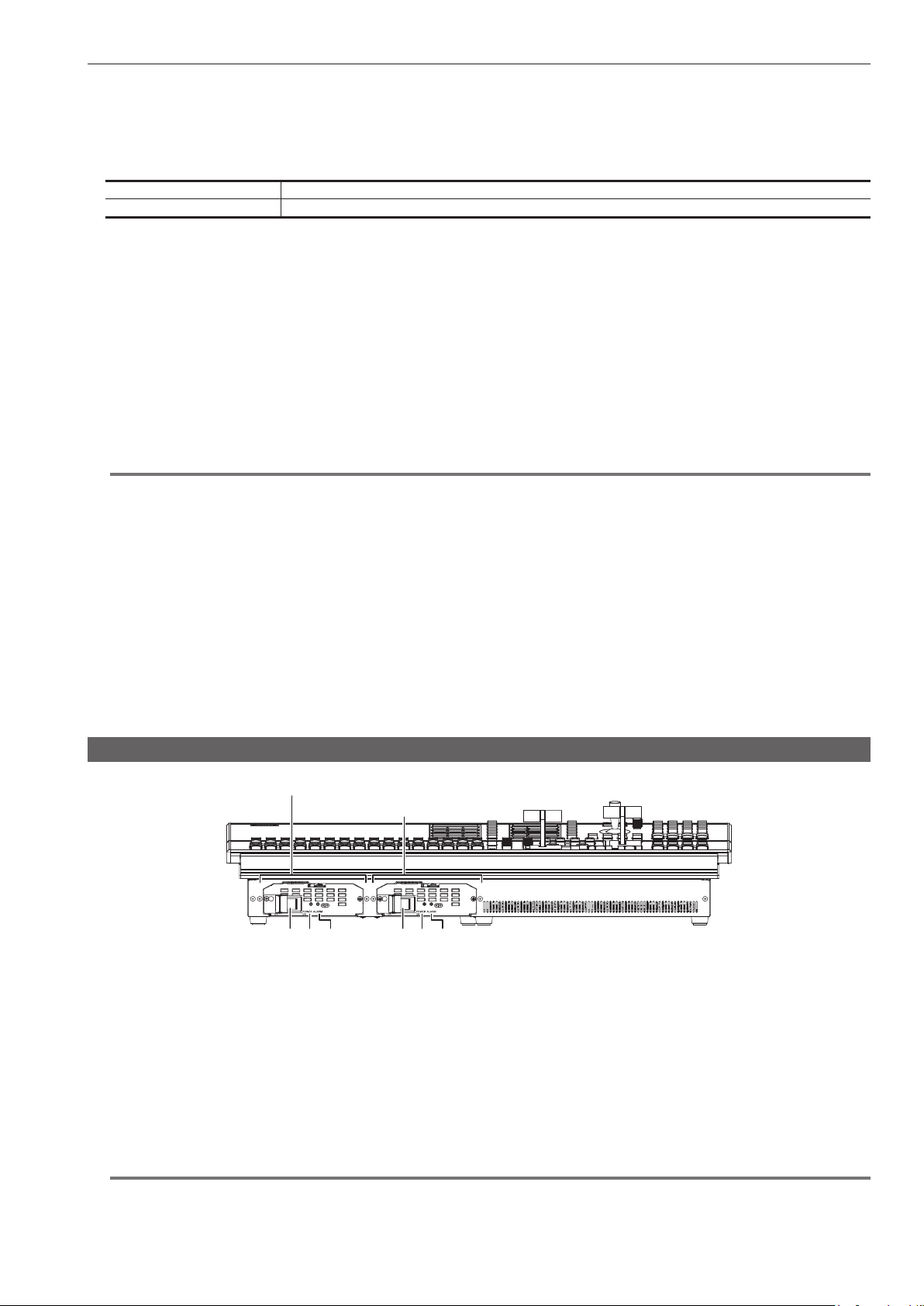

Front panel
2 3 2 31 1
Power supply 1
Power supply 2
1 <POWER> switch (with safety guard)
Turns power on/off.
fWhen turning off the power, set both the <POWER> switch for the power supply 1 and the <POWER> switch 2 for the power supply 2 to <OFF>.
2 Power indicator
When power is input into the <AC IN 1>/<AC IN 2> terminal, both <POWER> switches of the power supply 1 and the power supply 2 will light up
when they are set to <ON>.
3 Alarm indicator <ALARM>
Lights up when there is a problem (voltage decrease) in the power supply of the Control Panel AV-HS60C4. At this time, an alarm message is
displayed on the Menu Panel AV-HS60C3.
An alarm will be displayed if both <POWER> switches of the power supply 1 and the power supply 2 have not turned on.
When an alarm has occurred, details of the problem can be checked from the <SYS> button on the top menu → [MAINTENANCE] → [Alarm] tab.
The alarm status can be output from the <GPI I/O> terminal of the Control Panel AV-HS60C4 to external devices.
@@NOTE
tWhen an alarm has occurred, stop using the unit immediately, and be sure to contact your dealer. Continuous use of the unit even after an alarm has
occurred could damage the unit.

14
Part Names and Functions
Rear panel
MENU PANEL
MAIN FRAME GPI I/OCOM1 (M) COM2 (RS-232)
DVI-D USB
2 3 54 6 7 8 9
1
10 11
1 <AC IN 1>/<AC IN 2> terminals (signal: AC)
Connects one end of the supplied AC cable to this terminal and the other end to the AC outlet. (AC 100 V to 240 V, 50 Hz/60 Hz)
fThe supplied AC cable has a 3-pin plug with a grounding terminal. Connect to a 3-pin power outlet which is equipped with a grounding terminal.
fIf a 3-point power outlet is not available, be sure to consult your dealer.
2 <MAIN FRAME> terminal (connector: RJ-45/signal: 100Base-TX)
Connects to the <PANEL> terminal or <LAN> terminal of the Main Frame AV-HS60U1/AV-HS60U2.
fWhen connected to the <LAN> terminal, no video will be displayed on the Menu Panel AV-HS60C3.
3 <MENU PANEL> terminal (connector: DVI-D/signal: independent signal)
Connects the Menu Panel AV-HS60C3.
fCannot be used concurrently with a DVI monitor (computer) connected to the <DVI-D> terminal. Select with the display selector switch.
fThis is the dedicated interface for the Menu Panel AV-HS60C3. Do not connect with DVI output devices.
4 Display selector switch
Switches the terminal to be used to the <MENU PANEL> terminal or <DVI-D> terminal depending on the connected device.
Switch this when the power is off. Output will not be performed properly if switched with the power turned on. Restarting of the unit will be necessary.
Set the power to <OFF>, and then set it back to <ON>.
5 <DVI-D> terminal (connector: DVI-D/signal:DVI OUT)
Connects the DVI monitor (computer) used for the menu display.
fMonitor resolution: 1366×768 compatible monitor
fCannot be used concurrently with the <MENU PANEL> terminal. Select with the display selector switch.
6 <USB> terminal (connector: USB (type A, female)/signal: USB)
Used for the menu operation of the DVI monitor (computer).
fCannot be used for the Menu Panel AV-HS60C3.
7 <COM1 (M)> terminal (connector: D-sub 9-pin (female), inch screw/signal: RS-422)
Used for master connection of external devices.
8 <COM2 (RS-232)> terminal (connector: D-sub 9-pin (male), inch screw/signal: RS-232)
Used to control external device.
9 <GPI I/O> terminal (connector: D-sub 25-pin (female), inch screw/signal: GPI)
Equipped with 8 contact input ports (GPI IN) that control the unit externally, 10 output ports (GPI OUT) that output tallies or status information from
the unit, and an alarm output port (ALARM OUT).
10 <F1>/<F2> terminals
(Fuse)
11 <SIGNAL GND> terminal (signal: SG)
Connects to the ground of the system.
@@NOTE
tFor the cable connecting to the <DVI-D> terminal, use a double-shielded cable.
tFor the cable connecting to the <MAIN FRAME> terminal, <COM1 (M)>/<COM2 (RS-232)> terminal, and <GPI I/O> terminal, use a shielded cable.
tThe <COM1 (M)> terminal and the <COM2 (RS-232)> terminal cannot be used with the sub control panel.

Part Names and Functions
15
Side (right)
1 2
(Front) (Rear)
1 Reset switch
The reset switch for the Control Panel. (For maintenance)
2 Service switch
The switch for maintenance. Normally use it by setting to forward.

16
Notication when the power is turned on for the rst time
Notication when the power is turned on for the rst time
When using the products for the rst time, connect the Control Panel AV-HS60C1/AV-HS60C2/AV-HS60C4 to the <PANEL> terminal of the Main Frame
AV-HS60U1/AV-HS60U2, and then turn on the power.
Depending on the combination of the purchased Main Frame and the Control Panel, the version of the rmware for each may not match.
When the version of the rmware for the Main Frame and the Control Panel does not match, the Control Panel will not correctly boot when the power is
turned on.

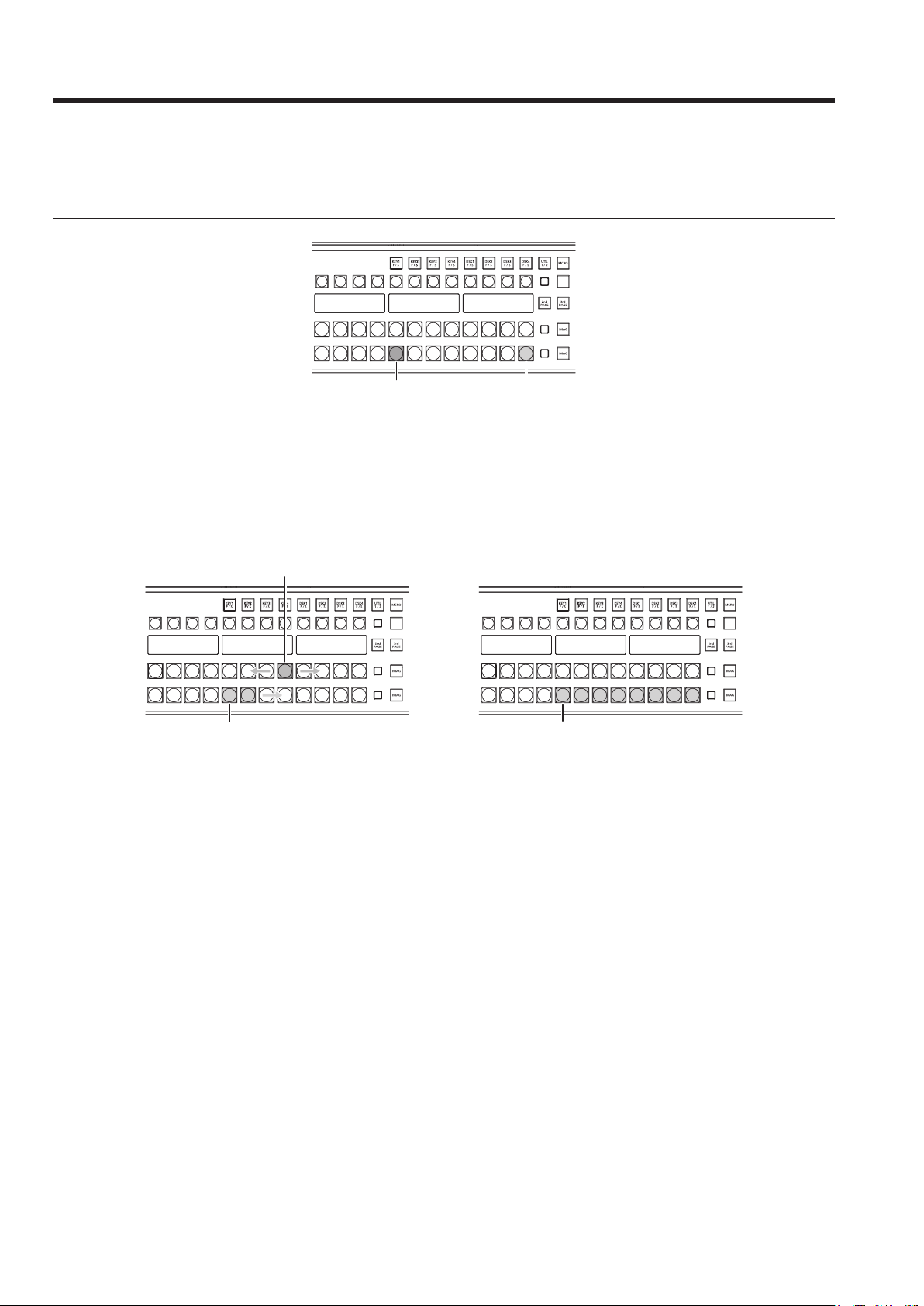

Boot status when the versions do not match
Two buttons out of PST/B bus crosspoint buttons in the ME line in front will blink. One button will blink in green, and the other will blink in red. (Fig. 1)
BUS
SHFT
Green Red
Fig. 1
fWhen it goes into this status, it is necessary to match the rmware version of the Control Panel to the Main Frame.
fIf it does not go into this status and the Control Panel boots normally, the rmware versions of the Main Frame and the Control Panel do match.
fCheck the latest software information and perform the version update of the software if necessary. For details, refer to “To perform the version update
of the software” (page 16).
rTo match the rmware version of the Control Panel to the Main Frame
The rmware of the Control Panel is updated when the following operation is performed. Once the update is correctly performed, the rmware version of
the Control Panel will match with the rmware version of the Main Frame, and it will boot in normal status.
RECALL
STORE
DEL
CHR LIN FULL FULL
WIPE
01s00f
MIX
01s00f
MIX
01s00f
MIX
CG5V CG6V CAM1 CAM2
01s00f
MIX ME2
01s00f
BUS
SHFT
4-1 4-34-2
4-4 4-64-5
4-7 4-94-8
OP
STILL1
BUS
SHFT
4
SDI
IN3
3
SDI
IN2
2
SDI
IN1
1
Black
121110
SDI
IN9
9
SDI
IN8
SDI
IN11
SDI
IN10
8
SDI
IN7
7
SDI
IN6
6
SDI
IN5
5
SDI
IN4
Red Red
Blue
Fig. 2 Fig. 3
1 Press the button blinking in red (Fig. 1).
Update of the rmware is started.
fStatus when the rmware of the Control Panel is being updated (Fig. 2)
- Eight buttons out of the PGM/A bus crosspoint buttons in the ME line in front will repeatedly blink in blue from left to right.
- Eight buttons out of the PST/B bus crosspoint buttons in the ME line in front will blink in red sequentially from left to right.
Update of the rmware will complete after approximately two minutes.
fStatus when the update of the rmware of the Control Panel is completed
- Eight buttons out of the PST/B bus crosspoint buttons in the ME in front will continue to blink in red. (Fig. 3)
- Depending on the version of the rmware of the Main Frame, the Control Panel may automatically reboot. The rmware of the Control Panel is
updated correctly for this too.
2 Turn off the power of the Main Frame and the Control Panel.
fTurn off the power after completing the update of the rmware of the Control Panel.
fDo not turn off the power of the Main Frame and the Control Panel while the rmware of the Control Panel is still updating (Fig. 2).
3 Turn on the power of the Main Frame and the Control Panel.
Control Panel is booted and the menu screen is displayed in the menu panel when the rmware is correctly updated.
4 Select the <SYS> button → [MAINTENANCE] → [Boot] tab → [Initial] column → [Initial] button.
5 Select [OK] in the confirmation screen.
The AV-HS6000 is initialized.
Go on to the procedure in “To perform the version update of the software” (page 16).
rTo perform the version update of the software
Check the latest software information and perform the version update of the software if necessary.
1 Check the <SYS> button → [MAINTENANCE] → [Status] tab → [System Version] column → [System Version].

Notication when the power is turned on for the rst time
17
2 Perform the version update of the software if necessary.
Check the latest software information in the following website, and perform the software version update if necessary.
https://pro-av.panasonic.net/ (English only)
fThe Control Panel AV-HS60C4 operates normally only when the version of the software is 3.10-00-0.00 or later.
Be sure to perform the version update if the version of the software checked in step 1 is earlier than 3.10-00-0.00.

18
Specications
Specications
Power supply
AC d 100 V to 240 V, 50 Hz/60 Hz
Power consumption
40 W
Supports redundant power supply.
indicates safety information.
Control terminal
<MAIN FRAME> terminal Compatible with 100Base-TX and AUTO-MDIX (For Main Frame AV-HS60U1/AV-HS60U2 connection)
fConnection cable (supplied with AV-HS60C4): LAN cable (CAT5E), straight cable, STP (Shielded Twisted Pair), 10 m
(32.8 ft)
fConnector: RJ-45
* When connected to the <LAN> terminal, no video will be displayed on the Menu Panel AV-HS60C3.
<MENU PANEL> terminal Used only for the Menu Panel AV-HS60C3
fConnector: DVI-D
fCannot be displayed on a DVI-D monitor because an independent signal format is used.
fCannot be used concurrently with a DVI-D monitor (computer) connected to the <DVI-D> terminal. Select with the
display selector switch.
<DVI-D> terminal Used for displaying menus to the DVI monitor (computer)
fConnector: DVI-D
fMonitor resolution: 1366×768 compatible monitor
fCannot be used concurrently with the <MENU PANEL> terminal. Select with the display selector switch.
<USB> terminal For DVI monitor (computer) menu operation
fConnector: USB (Type A, female)
fCannot be used for the Menu Panel AV-HS60C3.
Display selector switch Switch for selecting <MENU PANEL> terminal or <DVI-D> terminal
<COM1 (M)> terminal RS-422 control terminal
For master connection for controlling external devices
fConnector: D-sub 9-pin (female), inch screw
<COM2 (RS-232)> terminal RS-232 control terminal
For external device control connections
fConnector: D-sub 9-pin (male), inch screw
<GPI I/O> terminal GPI IN: 8 inputs, general-purpose, photocoupler sensing
ALARM OUT: 1 output, open collector output (negative logic)
GPI OUT: 10 outputs, selected from general purpose, tally
Open collector output
fConnector: D-sub 25-pin (female), inch screw
fLogic is switchable by menu.
ME number 2ME
Other
Ambient operating temperature 0 °C to 40 °C (32 °F to 104 °F)
Humidity 10% to 90% (no condensation)
Dimensions (W×H×D) 656 mm×160 mm×400 mm (25-27/32 inches×6-5/16 inches×15-3/4 inches) (excluding protrusions)
Mass Approx. 15.0 k] (33.1 lbs.) (excluding accessories)
rFor AV-HS60C4
Inrush current, measured according to European standard EN55103-1, on initial switch-on: 3 A, after a supply interruption of 5 s: 25 A (Each mains
input)


19
