Panasonic CZ-TACG1 User manual

Model No. CZ-TACG1
USER’S MANUAL
Controller (Network Adaptor)
POWER LINK STATUS
SETUP
CHECK

2
Safety Precautions .................................................2 ~ 3
System Overview..........................................................4
Before Installing the Adaptor ......................................4
Parts Identification .......................................................4
Parts...............................................................................5
Adaptor Installation......................................................5
Connecting Network.....................................................6
Starting “Panasonic Comfort Cloud” .........................6
Use the “Panasonic Comfort Cloud”..........................9
Troubleshooting .........................................................14
Information..................................................................15
Firmware Update Function ........................................15
Software License Information ...................................16
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before using this product, and save this
manual for future use.
Table of Contents
Model No. CZ-TACG1
Controller (Network Adaptor) Safety Precautions
Read the following “SAFETY PRECAUTIONS” carefully before
installation.
Electrical work must be installed by a licensed electrician. Be
sure to use the correct rating and main circuit for the model to
be installed.
The caution items stated here must be followed because
these important contents are related to safety. The meaning of
each indication used is as below. Incorrect installation due to
ignoring of the instruction will cause harm or damage, and the
seriousness is classified by the following indications.
Please provide this setup guide to the user after installation.
Instruct user to keep it with the instruction manuals of the air
conditioner in safe location.
WARNING This indication shows the possibility
of causing death or serious injury.
CAUTION
This indication shows the possibility
of causing injury or damage to
properties.
The items to be followed are classified by the symbols:
Symbol with white background denotes item that is
PROHIBITED from doing.
Symbol with dark background denotes item that must
be carried out.
WARNING
Do not set up in places where there is a lot of
steam, such as bathrooms.
- This can cause electric shock or ignition due to
shorting.
Do not disassemble or modify.
- This can cause electric shock or ignition.

3
Do not touch with wet hands.
- This can cause electric shock or ignition due to
shorting.
Do not set up in hospitals or places where
electronic medical devices are located.
- Radio waves emitting from this adaptor may interfere
with electronic medical devices and cause them to
malfunction.
Do not set up where children can reach the adaptor.
- They may pull on it or cause themselves an injury.
Do not wipe with wet cloths or wash in water.
- This can cause electric shock or ignition.
WARNING
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
Request installation only from the place of purchase
or an installer.
- Not doing so may cause electric shock or ignition.
Shut off the power supply when installing this
adaptor.
- Not doing so may cause electric shock.
Use only the specified parts when installing the
adaptor and perform the installation correctly by
following the instructions.
- Not doing so may cause electric shock or ignition.
Ensure cables are installed properly so that external
forces cannot affect them.
- Not doing so may cause overheating which can lead
to ignition.
Stop use as soon as you notice any problems or
malfunctions and shut off the electric supply to the
connected appliance.
- Not doing so may cause smoke, ignition, electric
shock, or burns.
- Examples of problems and malfunctions
• There is a burning smell
• Water or a foreign object has gotten inside
Immediately request repair from the place of
purchase or the installer.
CAUTION
The adaptor is indoor use only. Do not set up
outside or in unsecured locations.
- It may provide an entry point for unauthorised network
access.
Do not set up in locations exposed to direct
sunlight, where the temperature may exceed 45°C or
go below -5°C.
- This can cause deformation.
Do not install in locations where oils are used a lot
or where steam or sulphurous gases are emitted.
- This can cause loss of performance or deformation.
Before connecting wires and cables, discharge any
static electricity.
- Not doing so may cause malfunction.

4
System Overview
CAUTION
Do not stand on an unstable surface when operating
or checking the adaptor.
- This can cause injury from falls.
Indoor unit
Network adaptor
CZ-TACG1
Wireless LAN
Router
Internet
Before Installing the Adaptor
• Requires a Smartphone that is iOS/Android compatible;
• The Network adaptor (adaptor) is designed specifically as a terminal for the
“Panasonic Comfort Cloud”;
• Do not attach the adaptor to metal as wireless performance will be adversely
affected;
• The adaptor recommended to be installed outside of the indoor unit. (It needs to
be accessed when connecting it or when there is a problem.);
• The Wireless LAN network coverage must include the air conditioner installation
location;
• Do connect the Wireless LAN to a compatible Panasonic Air Conditioner with a
connectivity interface port.
Specification
Input Voltage DC 12V (From air conditioner indoor unit)
Power consumption Max: 660 mW
Size 66 mm (H) x 36 mm (W) x 12 mm (D)
Weight Approx. 85g
Interface 1x Wireless LAN
Wireless LAN standard IEEE 802.11 b/g/n
Frequency range 2.4 GHz band
Encryption WPA2-PSK (TKIP/AES)
Parts Identification
5
4
321
6
No Item Description
1 Power LED Indicates that the adaptor is being supplied with
power.
2 Link LED Indicate the communication status of adaptor to
the server.
3 Status LED Indicate the communication status of adaptor to
the air-conditional.
Green: status without weekly timer
Orange: status with weekly timer
Red: Abnormality
Red Orange Green : Auto updating
adaptor firmware
During signal strength checking:-
Strong: 
Medium: 
Weak: 
No signal: 
4 Setup Switch* Connection setup mode switching
5 Check Switch* Signal strength checking (press and hold for 5
seconds then release)
Disable LEDs display (press and hold for 10
seconds then release)
6 Reset* Soft reset
* The device factory reset can be done by press and hold CHECK and SETUP
button for 10 seconds. After release the CHECK and SETUP button, press the
reset button.

5
Parts
Adaptor Unit
(CZ-TACG1)
POWER LINK STATUS
SETUP
CHECK
Screw for mounting
(M4 x 20 – 1 piece)
Mounting cord clamp
(1 piece)
Cable tie (1 piece)
Double-sided
adhesive tape
Wall plug
Adaptor Installation
1. Attach the Adaptor unit with double-sided adhesive tape
on the wall near the indoor unit.
- Shut off the power supply when installing this adaptor.
- Make sure the wall is clean and free from dirt.
Adaptor
Adhesive tape
Wall
2. Use the cord clamp to fix the cable to the wall.
Pull the cable around as shown in the diagram so that the external force cannot
act on the connector in the adaptor. Furthermore, on the indoor unit end, use
the included cable tie to fix the cables together when necessary.
LN1 23 Cable tie
Cord clamp
General illustration for
installation use
3. Connect the cable to the CN-CNT connector at the indoor
unit.
Take note each indoor unit CN-CNT connector location might be different.
Please consult authorized dealer.

6
Connecting Network
Establish network connection to the internet via Wireless mode.
1. Turn on the power supply to the indoor unit.
- The Power LED lights (green).
- The Status LED blinking (green).
STATUS LINK POWER
2. Download and install the “Panasonic Comfort Cloud”.
3. Follow the instruction of the app to complete the
installation setup. Refer to next page.
- All LEDs lights (green).
STATUS LINK POWER
Starting “Panasonic Comfort Cloud”
Use a Smartphone that is iOS/Android compatible.
• User interface image may change without notification.
• There is no charge for using this application. However, other charges may be
incurred for connection and operation.
• Updates to the service may mean there are changes to the design of the screen
and display.
1. Login to the “Panasonic Comfort Cloud”
Login with your Panasonic ID and password.
Panasonic ID can be registered free from the link on the
page or at the following URL.
(https://csapl.pcpf.panasonic.com/Account/Register 001)

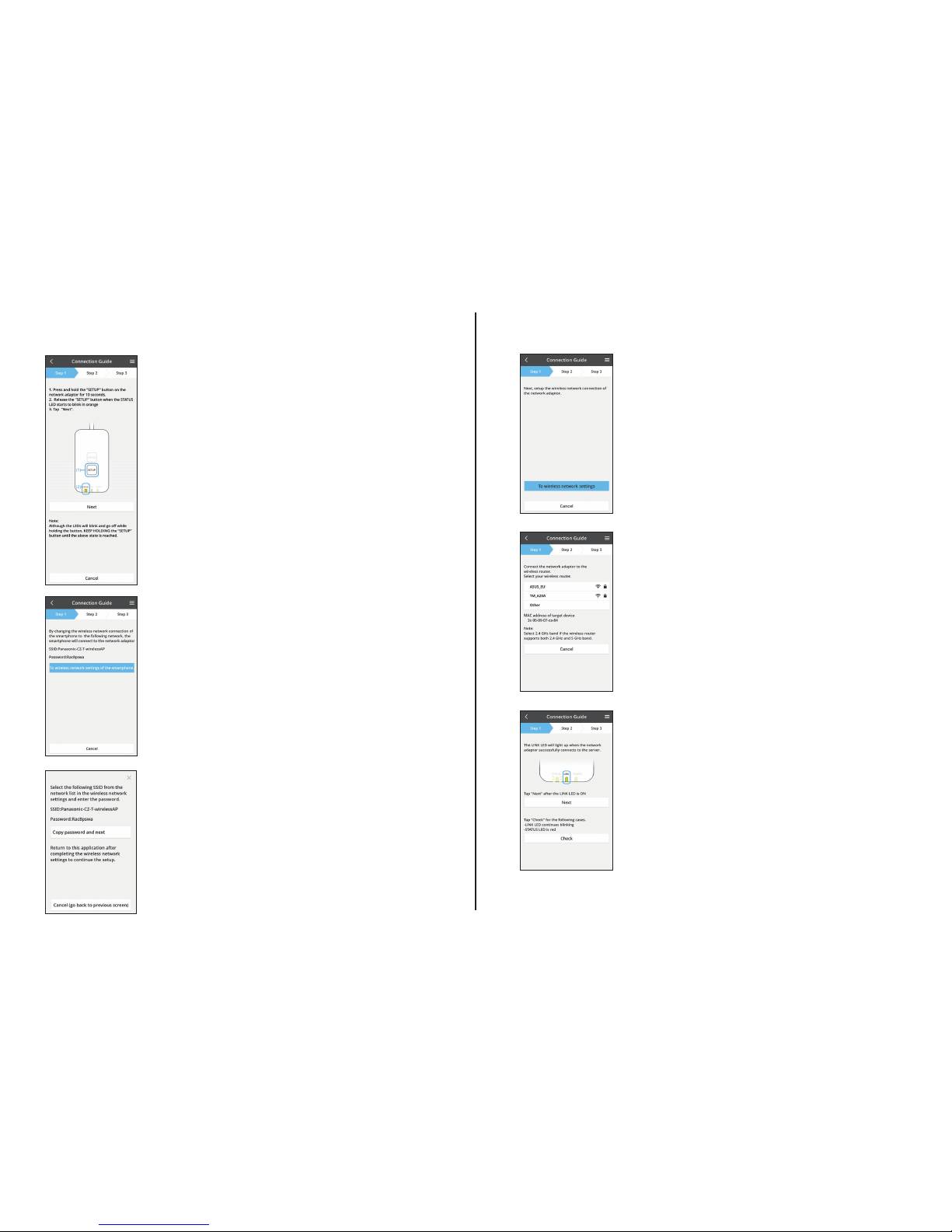

2. Connection Guide
i. At My Home screen, tap “+” to add new product.
ii. Select the product that you want to add.
iii. Tap “Start” to begin the connection setup.

7
iv. Tap “Next” after confirming the POWER LED of the
network adaptor is ON.
v. If you are the first user (administrator) to operate the
air conditioner via this application, reset the network
adaptor with a pin and tap “Next”.
vi. Choose the button that matches the status of LINK
LED on the network adaptor.
vii. Tap on the preferred connection setup mode.
- To “Connect with WPS mode”, proceed to
instruction 3.1 (For router that supports WPS)
- To “Connect with AP mode”, proceed to instruction
3.2 (For router that does not support WPS)
3.1 Connect with WPS Mode
i. Press the “WPS” button on the router to establish
connection.
ii. Tap “Next” after the router is ready for connection.
iii. Press and hold the “SETUP” button on the network
adaptor for 5 seconds.
iv. Release the “SETUP” button when both STATUS
LED and LINK LED start to blink. Tap “NEXT”.
v. Wait until LINK LED is ON indicates the connection
setup is complete. Tap “NEXT” and proceed to
instruction 4.

8
3.2 Connect with AP Mode
i. Press and hold the “SETUP” button on the network
adaptor for 10 seconds.
ii. Release the “SETUP” button when the STATUS LED
starts to blink in orange.
iii. Tap “NEXT”.
iv. Tap “To wireless network settings of the smartphone”
to change the wireless network connection of the
smartphone to the following network, the smartphone
will connect to the network adaptor.
SSID: Panasonic-CZ-T-wirelessAP
Password: Rac8pswa
v. A window will prompt, tap “Copy password and next”
to proceed to smartphone wireless network setting.
vi. Connect to “Panasonic-CZ-T-wirelessAP” network
and back to the application to continue with the
setup.
vii. Tap “To wireless network setting” to setup the
wireless network connection of the network
adaptor.
viii. Connect the network adaptor to wireless router.
Select your wireless router.
ix. Enter the password of the selected wireless router.
x. The LINK LED will light up when the network
adaptor successfully connects to the server.
Tap “NEXT” and proceed to instruction 4.
*During network adaptor connecting to wireless
router, STATUS LED and LINK LED will blink
simultaneously.

9
4. Setup completion
i. Input the Device ID. Device ID is written at name
plate attached to the network adaptor or label
attached on the packaging.
ii. Set the password for the network adaptor.
iii. Tap “Register” to complete the setup.
iv. You can name the air conditioner unit to help you
identify it.
Use the “Panasonic Comfort Cloud”
User's manual can be found under Menu tab.
The “Panasonic Comfort Cloud” is connected to the
network adaptor and ready for use.
Login
Install and launch the app
“Panasonic Comfort Cloud”
(Android 4.4 and above)
“Panasonic Comfort Cloud”
(iOS 9 and above)
Login Page
Home Screen
Panasonic ID
Password
Reset Panasonic ID / Password
Register for new Panasonic ID
Start a demostration
Main Menu (Page 10)
1st Group
Device
2nd Group
Add new device

10

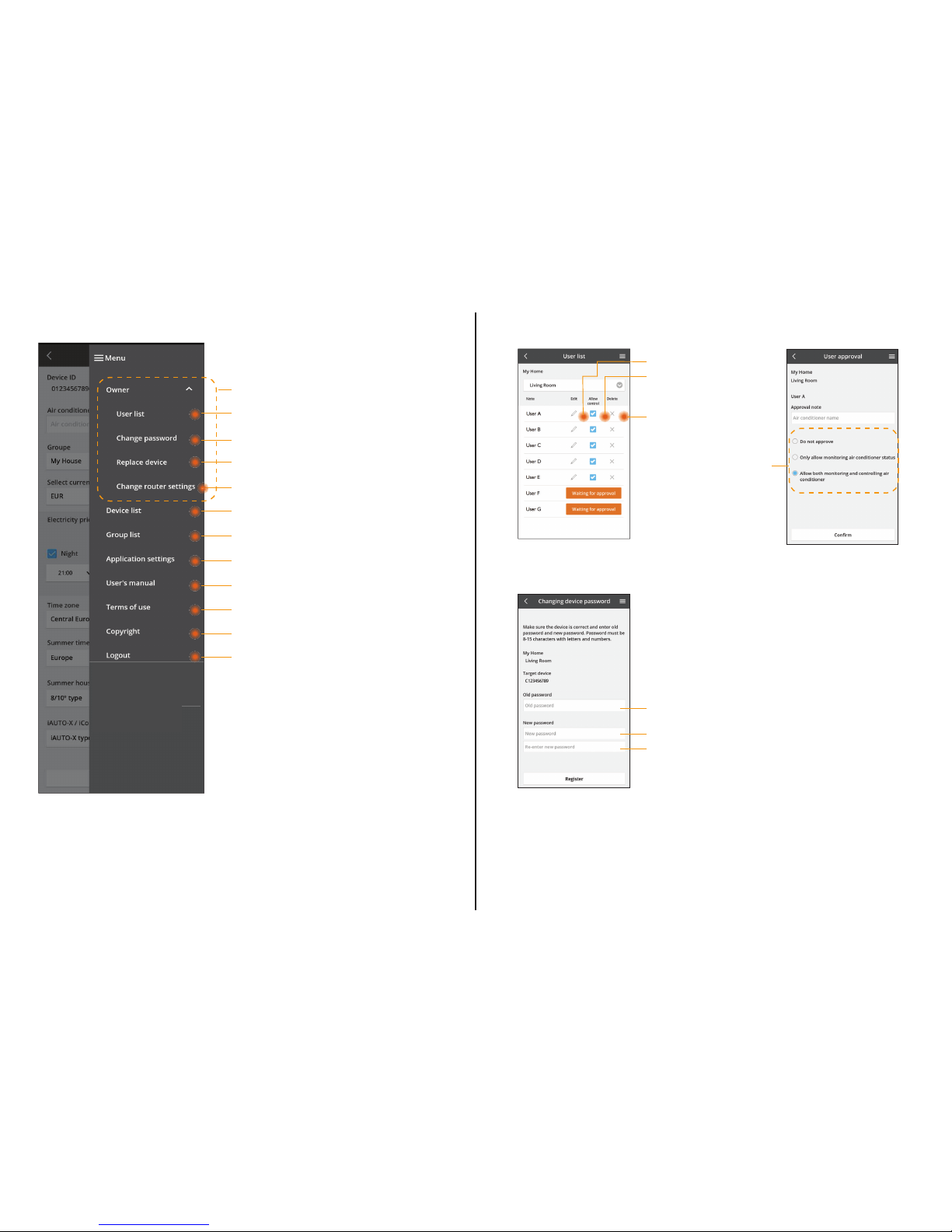

Main Menu
Options for administrator only
User list (Page 10)
Change device password (Page 10)
Replace the device (Page 11)
Change router setting (Page 11)
List of device (Page 11)
List of group (Page 12)
Change the language of the app
User Manual
Terms of use
Copyright
Logout from current Panasonic ID
User list
Change of device password
Edit the name of the user
Enable control of user
User’s control rights
Input old password
Input new password
Retype new password
Edit / delete the user control

11
Replace the device
Change the router setting
Tap Start
Tap Start
Follow the step by
step instruction from
app
Follow the step by
step instruction from
app
Select “Replace device”
from the menu
Select “Change router
setting” from the menu
Device list
Delete the device
Edit the device
information and setting
Edit device name
Change device group
Time zone selection
Features selection

12
Group List
Edit the group name
Delete the group
Input new group name
Add new group
Main Device Screen
Information
Back
Information
Switch between
device
Off / On air conditioner
Statistic (Page 13)
Weekly timer
(Page 14)
Basic features
Operating Mode
(Page 13)
Setting temperature
change
Set temperature
Setting temperature
change
Advance setting
(Page 13)
Status for all air
conditioner in the
same group (Page 13)
User Approval
User’s control right
Air conditioner error
messages
Notifications
Indoor air temperature
*Subject to model
compatibility
Outdoor ambient
temperature

13
Air Conditioner Status
Advance setting Operating mode
Air conditioners status
(Off / On, mode and set temperature)
Individual off / on toggle
All off / on
Change fan speed
Auto fan
Mode selection
*Subject to model
compatibility
Change swing
position
Auto air swing
Additional features
off / on
Statistics
Comparison
Date selection Week selection
Month selection Year selection
Selection of type
Chart
Set temperature
Outdoor Temperature
Indoor Temperature
Comparison Date
Selection
Date Selection
Information of the
selection date
* Estimated energy consumption may not be supported
by certain models.
Information of the
selection comparison date

14

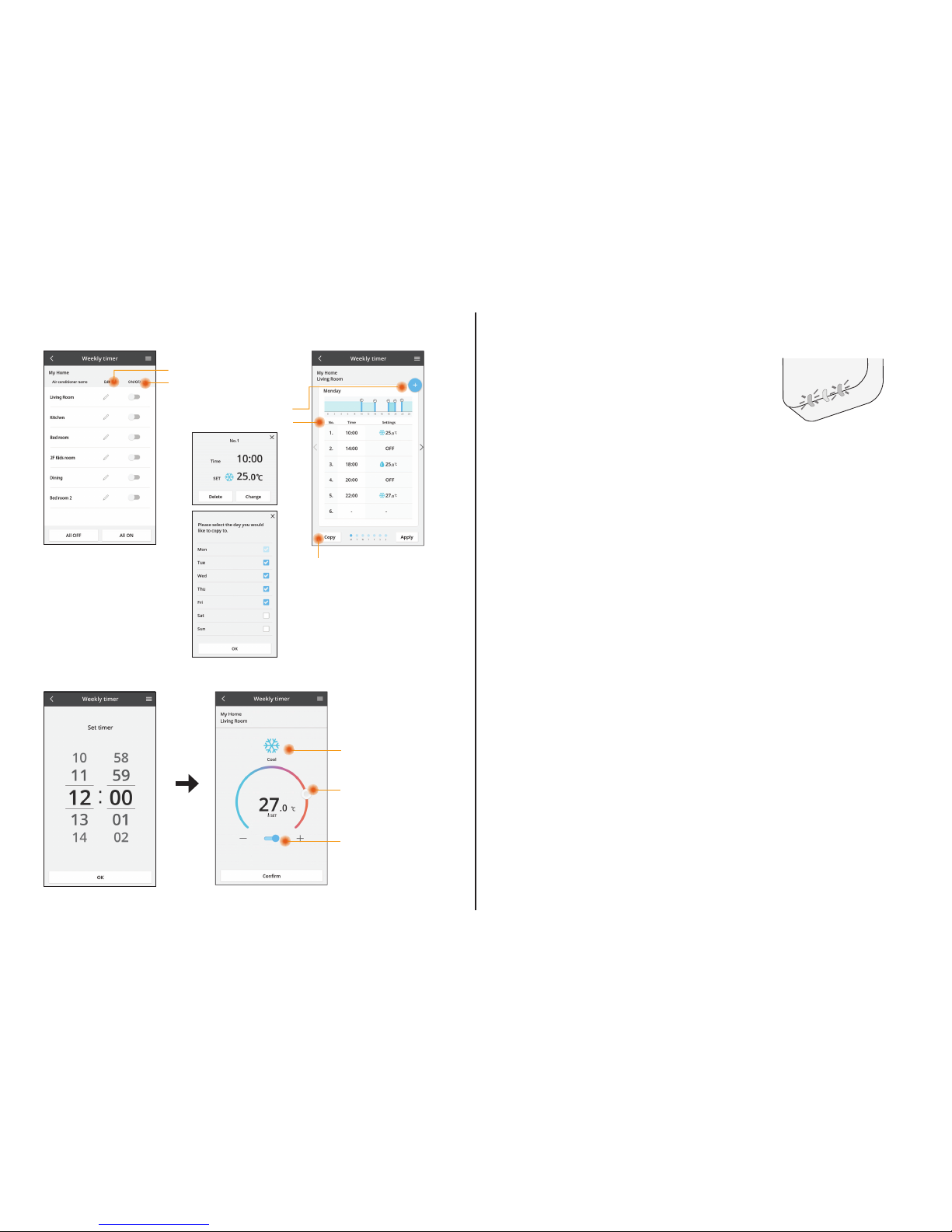

Weekly Timer
Add new timer
Set time Set conditions
Edit timer
Off / On timer
Add new timer
Edit Timer
Copy timer
Select mode
Select temperature
Off / On
Troubleshooting
 When the power LED does not light up
(no power supply to the adaptor)
Check the power supply.
Check the connection of the cable.
 When the status LED does not light up
(Adaptor can’t communicate with air-conditioner)
Check the connection of the cable.
 The connection between your device and a client through wireless network
cannot be established.
Ensure that the wireless network function is enabled.
Refresh the network list and select the correct SSID.
Check the IP address, and ensure that your client can automatically obtain
an IP address.
Enter the correct network key (wireless network password) when you connect
with AP mode.
 Reset device Password
(In case you forgot the device Password)
Remove the device from device list and add back the device.
Factory reset the device and add back the device. The device factory reset
can be done by press and hold CHECK and SETUP button for 10 seconds.
After release the CHECK and SETUP button, press the reset button.
STATUS LINK POWER

15
Information for Users on Collection and Disposal of Old Equipment
 Your product is marked with this symbol. This symbol means that
electrical and electronic products shall not be mixed with unsorted
household waste.
 Do not try to dismantle the system yourself: the dismantling of the
product and of other parts must be done by a qualified installer in
accordance with relevant local and national legislation.
 Product and waste must be treated at a specialized treatment
facility for re-use, recycling and recovery.
English
These symbols on the products, packaging, and/or accompanying documents mean
that used electrical and electronic products and batteries should not be mixed with
general household waste.
For proper treatment, recovery and recycling of old products and used batteries,
please take them to applicable collection points, in accordance with your national
legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable
resources and prevent any potential negative effects on human health and the
environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries,
please contact your local municipality, your waste disposal service or the point of
sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with
national legislation.
For users in the European Union
If you wish to discard electrical and electronic equipment, please contact your
dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these
items, please contact your local authorities or dealer and ask for the correct method
of disposal.
Declaration of Conformity (DOC)
Hereby, “Panasonic Corporation” declares that this product
is in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU
The full text of the EU declaration of conformity is available at the
following internet address: http://www.ptc.panasonic.eu/
Authorized Representative: Panasonic Testing Centre, Panasonic
Marketing Europe GmbH, Winsbergring 15, 22525 Hamburg, Germany
Norway: There are usage restrictions within a radius of 20 km from the
centre of Ny-Alesund on Svalbard.
Information Firmware Update Function
This product has functionality for connecting to the Panasonic firmware update
server over the Internet to automatically update the device firmware to the latest
version.
To update the firmware, the device will do check, once per day, whether its firmware
is the latest version after power up. And if an update is required, the update is
applied and the device restarts automatically. Operations are not possible while the
device is being restarted (which takes about 1-5 minutes).

16
Software License Information
This product incorporates the following software:
(1) The software developed independently by or for Panasonic Corporation,
(2) The software owned by third party and licensed to Panasonic Corporation,
(3) The open source software under the BSD licence and/or equivalent licenses.
The software categorized as of (3) is distributed in the hope that it will be
useful, but WITHOUT ANY WARRANTY, without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
The following license terms shall be applied to Open-Sourced Components.
1. Supplicant license
Copyright (C) 2003-2016, Jouni Malinen <j@w1.fi> and contributors.
All rights reserved.
This software may be distributed, used, and modified under the terms of BSD
license:
Redistribution and use in source and binary forms, with or without modification, are
permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this
list of conditions and the following disclaimer in the documentation and/or other
materials provided with the distribution.
3. Neither the name(s) of the above-listed copyright holder(s) nor the names of
its contributors may be used to endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
AS IS AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Setting Information
Wireless interface address (MAC)
Wireless interface serial number (ID)
Wireless interface code (PIN)
Indoor unit model name
Indoor unit serial number
Outdoor unit model name
Outdoor unit serial number
System commissioning date
Wireless interface installation date
Installer Contact Details
Name
Telephone number
Maximum radio-frequency power transmitted in the frequency
bands
Type of wireless Frequency band Max EIRP (dBm)
WLAN 2412-2472 MHz 20 dBm
Manufactured by: Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan
Importer for Europe: Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
