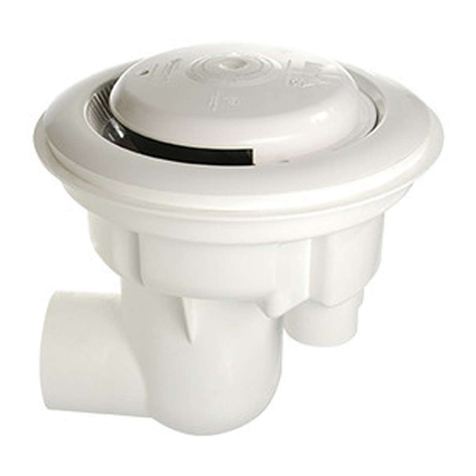

Paramount Fitness MDX-R3 Programming manual

8175 W. Buckeye Rd., Phoenix, AZ 85043
Toll Free: 1.800.621.5886 • Phone: [phone] • Fax: [phone]
[email protected] • www.1Paramount.com
US and Foreign patents and patents pending
see www.1paramount.com/support/patent-numbers/
VGB Compliant ANSI/APSP/ICC-16 2017 LISTED
Certificate of conformity available at
https://www.1paramount.com/downloads/manuals/mdxr3/MDXR3CertificateOfConformity.pdf
MDX-R3 and SDX2 must be installed in accordance with Paramount’s
written instruction manual, and in conformity with applicable Federal,
State, Local and Swimming pool industry building and safety codes.
Any modification that increases the flow rate of the circulation system shall require reevaluation
of the cover/grate and sump to ensure that the flow rating of the Suction Outlet Fitting Assembly
(SOFA) is not exceeded.
When installing and using this equipment, basic safety precautions
shall always be followed, including the following:
IMPORTANT SAFETY INSTRUCTIONS.
TO INSTALLERS: READ, UNDERSTAND,
AND FOLLOW ALL INSTRUCTIONS AND
WARNINGS.
Give these instructions to the facility owner to keep for future reference. Follow all codes and
regulations that apply to the design, installation and use of suction outlet fittings.
NOTICE
WARNING
SAVE THESE INSTRUCTIONS
MDX-R3 FOR NON-ADJUSTABLE CONCRETE POOLS
OWNER’S MANUAL AND INSTALLATION GUIDE
SUBMERGED SUCTION OUTLET
FOR MULTIPLE DRAIN USE FOR USE ON FLOOR
SEE SPECIAL INSTRUCTIONS FOR CALIFORNIA ON PAGE 7
004-027-8810-00 REV04 ECN_1999 PUB 020521 ©2021 Hayward Industries, Inc.

For technical assistance call 1.800.621.5886 or contact your regional representative
2
PLEASE REVIEW THE OWNER’S MANUAL AND INSTALLATION GUIDE IN ITS ENTIRETY AND HEED
ALL SAFETY INFORMATION. Failure to follow these instructions and warnings can result in DEATH OR
SERIOUS INJURY.
DANGER indicates
a hazardous
situation which, if
not avoided, will result in death or serious injury.
DANGER
Signal Words and Symbols Used In This Manual
This Owner’s Manual and Installation Guide contains specific precautions and symbols to identify safety-
related information. You will find DANGER, CAUTION, WARNING and NOTICE symbols which require
special attention. Please read them carefully and follow these precautions as indicated! They will explain how to
avoid hazards that may endanger you or persons using or maintaining your pool or spa.
SUCTION ENTRAPMENT HAZARD:
DEATH or SERIOUS INJURY will result from pool or spa drain covers or
grates that are improperly installed, missing, clogged, or broken.
• Inspect pool and spa before each use to ensure that drain covers and
grates are properly in place and secured.
• Ensure that drain covers are not damaged, cracked, broken, loose, clogged, not properly
secured, or missing because these conditions increase the chance of death or serious injury from
entrapment.
• If a drain cover is discovered damaged, cracked, broken, loose, clogged, not properly secured, or
missing, you shall:
• Close the pool or spa immediately; and,
• Post a closure notice and keep the pool or spa closed until an appropriate ANSI/APSP/ICC-16
2017 certified drain cover is properly installed.
• Missing, broken, or cracked SOFA component shall be replaced before bathers are allowed to use the pool.
• Loose cover/grates shall be reattached before bathers are allowed to use the pool.
DANGER
DANGER DEATH or SERIOUS INJURY will result from hair entanglement or
limb entrapment.
• Keep clear of pool and spa drains.
• Hair sucked into pool or spa drains will tangle and knot trapping the
swimmer underwater. Avoid placing your hair near a pool or spa drain.
• Avoid sitting on pool or spa drains because the suction can cause
severe intestinal damage, evisceration, and/or disembowelment.
WARNING indicates
a hazardous situation
which, if not avoided,
could result in death or serious injury.
WARNING
CAUTION indicates
a hazardous situation
which, if not avoided,
could result in minor or moderate injury.
CAUTION NOTICE is used to
address practices
not related to
physical injury.
NOTICE
• DEATH or SERIOUS INJURY will result if a drain cover or grate is
not installed and used correctly.
• Pool and spa pumps produce high levels of suction and move high volumes
of water, which can cause death or serious injury if a person comes in close proximity to pool or spa drains.
• SOFA shall not be located on seats or the back rests for seats
• Any modification that increases the flow rate of the circulation system shall require reevaluation of the cover/
grate and sump to ensure that the flow rating of the Suction Outlet Fitting Assembly (SOFA) is not exceeded.
• Keep clear of pool and spa drains to avoid death or serious injury from suction.
DANGER

For technical assistance call 1.800.621.5886 or contact your regional representative
3
DANGER DEATH or SERIOUS INJURY will result from contact with a
damaged, loose, or missing drain cover.
• Do not allow limbs to contact or be inserted into a drain pipe with a
damaged, loose, or missing drain cover. This could result in swelling of
the limb and/or trapping a swimmer underwater.
• Avoid mechanical entrapment of jewelry, swimsuit, hair decorations,
finger, toe, or knuckle in a drain pipe with damaged, loose, or missing
drain cover. This may result in trapping a swimmer underwater.
• Do not allow body to come into contact with a drain pipe that has a damaged, loose, or missing
drain cover. This may result in trapping a swimmer underwater.
MAINTENANCE INSTRUCTIONS & WARNINGS:
WARNING DEATH or SERIOUS INJURY can result from pool or spa drain covers
or grates that are clogged by debris.
• Any field modification made to a SOFA not authorized by the
manufacturer’s instructions shall void the SOFA certification.
• No modification shall be made to the SOFA structure or flow path unless the new configuration has
been certified as a new SOFA.
• All pool and spa drain covers may become obstructed by debris and should be cleaned periodically
due to clogging from debris, such as pieces of plastic, hair, fabric, twigs, leaves, seeds, etc.
• The frequency of periodic cleaning will vary depending on the amount and type of debris introduced
into the pool or spa
• Clogging of the drain cover will increase the suction effect and increase the likelihood of death or
serious injury from those hazards listed above.
• A clogged drain can negatively affect the safety of the drain.
• It is advisable to have a qualified pool or spa professional perform this inspection and debris removal
from the pool an spa drain covers.
• When servicing the drain cover, the pump connected to the suction must be turned off.
• Do not perform any service of the drain cover in water level above your waist.
• Use drain covers only with a pumping system rated for the corresponding flow or less. Failure to do
so can result in hair or body entrapment which can cause death or serious injury. If in doubt about
the rating of your system, consult a qualified pool or spa professional.
• Use only the supplied stainless-steel screws with the drain cover. Screws put into the frame
anywhere except in the original screw holes will not hold and will allow the drain cover to come off
the main drain, causing an entrapment hazard. If a screw hole(s) is stripped, inserts missing, loose,
or damaged, consult your owner’s manual and installation guide for proper steps to replace, correct,
or reattach the compromised drain or drain component.
• The use of adhesives or other attachment methods that prevent access to suction piping or SOFA
components requiring periodic service is prohibited.
WARNING Suction can pose a serious hazard to swimmers just as electricity can be a
hazard. Both are important for proper water filtration and both must be treated
with respect. Suction safety begins with a professional design that includes a
quality suction system installed by a certified contractor.
Certified builders will address the following issues when designing and installing a proper filtration system:
• Properly bond-grounded pumps, time clocks, switches and any other metal in or near water. This is required to
address Electrical Shock Hazards.
• Design the suction piping so there are no single-point suction hazards; single-point suction (one drain) is a
leading cause of Body Suction Entrapment Hazards. Note: your certified builder has many effective options for
addressing this hazard; they may include dual-drain systems, like MDX-R3, skimmers, gutters, negative edge
features and many more products and piping designs known to professionals.
• Install ANSI/APSP/ICC-16 2017 listed drains, suction covers and debris removal systems. This is the ONLY
approved option for preventing Hair Entrapment Hazards, the leading cause of suction related injuries.
• Design and install an effective circulation system (including optional cleaning systems), to direct filtered water
to all areas and interior surfaces. NOTE: Suction fittings can NOT clean or direct filtered water for proper
sanitation; that can only be done on the pressure (return) side of the filtration system.

For technical assistance call 1.800.621.5886 or contact your regional representative
4
While suction injuries are extremely rare, drowning and diving injuries are far too common and there is little your
certified builder can do to eliminate these hazards. You must educate yourself and your guests. Below are some
important safety issues every swimmer must know and recognize.
• PREVENT DROWNING: Watch children at all times, no swimming alone.
• NO DIVING IN SHALLOW WATER: You can be permanently injured.
• PREVENT SUCTION ENTRAPMENT: Inspect suction covers before swimming, keep swimmers away from
suction fittings, protect long hair, don’t swim with loose clothing or large and dangling jewelry.
For more information about the Virginia Graeme Baker Pool and Spa Safety Act, contact the Consumer
Product Safety Commission at [phone] or visit www.cpsc.gov.
Always turn off all power to the pool pump before installing the cover
or working on any suction outlet.
WARNING
• Cover/Grates and all other SOFA components shall be replaced at or before the end of their service
life. Service life begins the month and year in which the SOFA is installed with or without water. See
parts breakdown at end of this manual for specific component service life notations.
• Any SOFA component that is severely faded, chalking, or brittle when flexed shall be replaced even if it
has not reached its indicated service life.
• If the sump/mud ring or any screw receptacle is stripped, cracked or broken that component must be
replaced.
• Any SOFA component held in place by the pool finish or concrete substrate that becomes cracked
or broken; the material that holds it must be stripped from around the SOFA and new components
“mudded” in place. The surface substrate must be free of deterioration and voids.
ADHERE REPLACE COVER ASSEMBLY
STICKER TO THIS PAGE
SAMPLE
Replace cover assembly within (5) five years.
Replace all other components within (25) years.
MDX-R3 pool floor drain cover part #005-252-8243-XX
Maximum GPM = 132 (500 LPM)
Circle year and month of installation.
8175 W. Buckeye Rd., Phoenix, AZ 85043
1-800-621-5886 • 1paramount.com
Adhere this label to page 4 of the installation manual.
Must mark year and month of installation
Year 2021 2022 2023 2024 2025
Month 01 02 03 04 05 06 07 08 09 10 11 12
System flow rate ____________________________________
Installed location ____________________________________
001-025-8818-00 ECN 2034 REV02 PUB 042221
©2021 Hayward Industries, Inc.

For technical assistance call 1.800.621.5886 or contact your regional representative
5
For technical assistance call 1.800.621.5886 or contact your regional representative
5
MDX-R3 SYSTEM DESIGN
These MDX-R3 instructions provide two methods to choose from, with additional methods for specific
jurisdictions, (California specifically but not limited to that state). Your local codes may require additional
safety measures. Paramount Pool & Spa Systems and its representatives cannot recommend or endorse
installation methods other than those provided in these MDX-R3 instructions.
MDXR3 is a blockable SOFA and must be installed only as a multiple SOFA system as described in this
installation manual.
Maximum Pump Size:
MDX-R3 is rated for a maximum of 132 GPM (500 LPM). While system
flow rate will vary with pump size and the Total Head Loss for a given
system, virtually any modern pump is capable of exceeding this limit, therefore it is the responsibility
of the system designer to make sure it is not possible to exceed 132 GPM (500 LPM). This VGBA
Suction outlet has an installation specific flow rating and this product
SHALL NOT be installed on a pumping system that is capable of exceeding this limit, which varies
based on the number and location of installed suction outlets. READ and FOLLOW the section
of the included installation instructions explaining how to calculate the suction system flow ratings
and that of the installed pumping system.
WARNING
In the event of one suction outlet being completely blocked, the remaining suction outlets serving that
system shall have a flow rating capable of the full flow of the pump(s) for the specific suction system.
MDX-R3 VGB COMPLIANT DEBRIS DRAIN
STANDARD POOL DESIGN
DUAL DRAIN
SDX2
2 1/2" MINIMUM
ENLARGED SUCTION ELEMENT
SECOND DRAIN
PIPE DIAMETER MUST
BE THE SAME MINIMUM 2 1/2”
ANY ORIENTATION
2 1/2" TEE MINIMUM
2" OR LARGER
CIRCULATION LINE
The use of two 45˚ in place of a 90˚ allows for the best debris removal
and minimizes large debris from getting caught in the line.
NOTICE
NOTICE
Plumbing of the included enlarged suction element to the
4" port of the MDX-R3 is required. After the enlarged suction
element, a reducer may then be used to reduce the pipe size to 2½".
A 3" pipe may be attached to the inside diameter of the enlarged suction element or a 4" x 13"
minimum length pipe directly to the drain socket for systems where the flow through the MDX-R3
is intended to exceed 90 GPM. Use of 2½"pipe minimum throughout the suction side
of the system is strongly encouraged for optimum performance. For your convenience,
Paramount Pool & Spa Systems includes the single piece enlarged suction element or the reducer
adapter and enlarged suction element with the MDX-R3. To order separately, please see parts
page for the part number.
NOTICE
Design Flow Rate = 132 GPM (500 LPM)
Maximum GPM = 132 (500 LPM)
Velocity at 132 GPM = 1.294 FPS (.39 MPS)
Velocity in suction
plumbing must be
designed to not
exceed 6 ft./sec. per APSP-7-2006.
NOTICE
NOTICE
Design Flow Rate = 132 GPM (500 LPM)
Maximum GPM = 132 (500 LPM)
Velocity at 132 GPM = 1.294 FPS (.39 MPS)
Velocity in suction
plumbing must be
designed to not
exceed 6 ft./sec. per APSP-7-2006.
NOTICE
NOTICE
MDX-R3 VGB COMPLIANT DEBRIS DRAIN
STANDARD POOL DESIGN
DUAL DRAIN
SDX2
2 1/2" MINIMUM
ENLARGED SUCTION ELEMEN
T
SECOND DRAIN
ANY ORIENTATION
2 1/2" TEE
2" OR LARGER
CIRCULATION LINE

6
FLOW HEAD LOSS CURVE
MDX-R3 INSTALLATION METHOD 1 - SINGLE MDX-R3
*Note: Canister requires 1½" equalizer line through pool wall. (Not Shown)
WITH CANISTER WITHOUT CANISTER
ENLARGED SUCTION ELEMENT
IF NOT USING HYDROSTAT
PLUG 2" PORT
SDX2
2ND SUCTION OUTLET
2 1/2"
EQUAL SIZE 2 1/2" MINIMUM
TO PUMP
TRUNK LINE MUST BE
SIZED TO MEET MAXIMUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
METHOD 1 WITH CANISTER AND MV FUSE
MV FUSE IN
CANISTER
IF NOT USING HYDROSTAT
PLUG 2" PORT ENLARGED SUCTION ELEMENT
2 1/2"
EQUAL SIZE 2 1/2" MINIMUM
TRUNK LINE MUST BE
SIZED TO MEET MAXINUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
TO PUMP
SDX2
2ND SUCTION OUTLET
METHOD 1 WITH DECK CANISTER AND MV FUSE
MV FUSE DECK SIDE
SDX2
2ND SUCTION OUTLET
EQUAL SIZE 2 1/2" MINIMUM
2 1/2"
ENLARGED SUCTION ELEMENT
IF NOT USING HYDROSTAT
PLUG 2" PORT
TRUNK LINE MUST BE
SIZED TO MEET MAXIMUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
TO PUMP
METHOD 1 WITH CANISTER, WITHOUT MV FUSE
TO PUMP
TRUNK LINE MUST BE
SIZED TO MEET MAXIMUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
SDX2
2ND SUCTION OUTLET
2 1/2"
ENLARGED SUCTION ELEMENT
METHOD 1 WITHOUT CANISTER, WITHOUT MV FUSE
IF NOT USING HYDROSTAT
PLUG 2" PORT
EQUAL SIZE 2 1/2" MINIMUM
*Note: Canister requires 1½" equalizer line through pool wall. (Not Shown)
MV FUSE IN
CANISTER
0.0
0.1
0.2
0.3
0.4
20 40 60 80 10 0
FLOW RATE (GPM)
HEAD LOSS CURVE MDX-R3
HEAD LOSS (inHG)
HEAD LOSS (cmHG)
12 0140 16 0180 200
0.5
0.6
0.7
0.8
0.9
0.0
0.3
0.5
0.8
1.0
1.3
1.5
1.8
2.0
2.3

7
MDX-R3 two pack drain installations require the use of all plumbing
connections provided to ensure drain is set 3' apart at the inside edge. Do not
add or remove any fittings from the assembly before the reduction after the
enlarged suction element. See diagram on page 12.
WITH CANISTER WITHOUT CANISTER
MDX-R3 INSTALLATION METHOD 2 - DUAL MDX-R3
WITH CANISTER WITHOUT CANISTER
CALIFORNIA INSTALLATION METHOD 1
WITH CANISTER AND MV FUSE
ENLARGED SUCTION ELEMENT
IF NOT USING HYDROSTAT PORT
PLUG 2" PORT
SDX2
2ND SUCTION OUTLET
TO PUMP
TRUNK LINE MUST BE
SIZED TO MEET MAXIMUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
2 1/2"
EQUAL SIZE AND LENGTH
FROM TEE TO EACH DRAIN
MV FUSE IN
CANISTER
CALIFORNIA METHOD 1 WITH
DECK CANISTER AND MV FUSE
ENLARGED SUCTION ELEMENT
IF NOT USING HYDROSTAT
PLUG 2" PORT
SDX2
2ND SUCTION OUTLET
TRUNK LINE MUST BE
SIZED TO MEET MAXIMUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
2 1/2"
EQUAL SIZE AND LENGTH
FROM TEE TO EACH DRAIN
TO PUMP
MV FUSE DECK SIDE
*Note: Canister requires 1½" equalizer line through pool wall. (Not Shown)
IF NOT USING HYDROSTAT
PLUG 2" PORT
ENLARGED SUCTION ELEMENT
TRUNK LINE MUST BE
SIZED TO MEET MAXIMUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
MV FUSE IN
CANISTER
2 1/2" OR 3"
TO PUMP
IF NOT USING HYDROSTAT
PLUG 2" PORT
CALIFORNIA INSTALLATION METHOD 1
WITHOUT CANISTER, WITHOUT MV FUSE
2 1/2"
ENLARGED SUCTION ELEMENT
TRUNK LINE MUST BE
SIZED TO MEET MAXIMUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
TO PUMP
EQUAL SIZE AND LENGTH
FROM TEE TO EACH DRAIN
SDX2
2ND SUCTION OUTLET
CALIFORNIA INSTALLATION METHOD 1
WITH CANISTER, WITHOUT MV FUSE
IF NOT USING HYDROSTAT
PLUG 2" PORT
ENLARGED SUCTION ELEMENT
TO PUMP
TRUNK LINE MUST BE
SIZED TO MEET MAXIMUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
2 1/2"
EQUAL SIZE AND LENGTH
FROM TEE TO EACH DRAIN
SDX2
2ND SUCTION OUTLET
*Note: Canister requires 1½" equalizer line through pool wall. (Not Shown)
IF NOT USING HYDROSTAT
PLUG 2" PORT
2 1/2" OR 3"
TO PUMP
TRUNK LINE MUST BE
SIZED TO MEET MAXIMUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
ENLARGED SUCTION ELEMENT
IF NOT USING HYDROSTAT
PLUG 2" PORT
2 1/2" OR 3"
ENLARGED SUCTION ELEMENT
TRUNK LINE MUST BE
SIZED TO MEET MAXIMUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
TO PUMP
MV FUSE DECK SIDE
IF NOT USING HYDROSTAT
PLUG 2" PORT
2 1/2" OR 3"
ENLARGED SUCTION ELEMENT
TRUNK LINE MUST BE
SIZED TO MEET MAXIMUM
VELOCITY REQUIREMENTS
FOR SUCTION PLUMBING
PER LOCAL CODE.
TO PUMP
*Note: Canister requires 1½" equalizer line through pool wall. (Not Shown)
*NOTE: Canister requires 1½" equalizer line through pool wall. (Not Shown)
NOTE: Drains 3' separation edge to edge with supplied fittings approximately 50" center to center.
MDX-R3 INSTALLATION METHOD 1 FOR CALIFORNIA
DANGER

8
MDX-R3 Plumbing (Fig. 1)
1. Position the MDX-R3 sump even with the
finished depth of the pool, spa or basin
(Fig. 1). Orientate the sump so the elbow is
perpendicular to inside wall or end wall of pool.
2. Position the REQUIRED SDX2 High Flow
Safety Drain® on a sidewall of the pool below
water level (if pool will be winterized, place it
high enough to reach from the deck). Option:
The SDX2 High Flow Safety Drain may be
positioned on the floor a MINIMUM of three (3)
feet away from any other Suction Outlet.
HYDROSTATIC FITTING: The hydrostatic
port inside the MDX-R3 Sump is equivalent to
a 2" Threaded Female Adapter and a 2" Slip
Fitting Outside the MDX-R3 Sump. This port is
for the purpose of a hydrostat only. Paramount
recommends the use of the 2" thread plug
provided. Do not use check valves here that
are prone to sticking open causing the need to
open the drain cover exposing a suction risk. If a
hydrostat is not used, plug this port from bottom
with pipe and cap. Do not install any suction
equipment (pump) to this port!
Pressure Test-READ BEFORE
INSTALLATION: New Style Test Plug
The 4" pressure test plugs (005-252-1610-00)
use an o-ring to make the seal.
Wrap once with Teflon tape to prevent plastic
threads from binding. Insert plug into threaded
socket. Use an adjustable wrench, a 1½" 12 pt
socket or pliers on lug and tighten by hand until
snug. Over tightening may cause parts to break.
Pressure should remain on the system through
construction until interior cleanup.
Fig. 2
Fig. 1
MDX-R3 PLUMBING
MDX-R3 PRESSURE TESTING
Release pressure on
the system before
removing plugs
WARNING
4" PLUG
2 1/2" PORT IS BLOCKED
OFF IN US VERSION
2" HYDROSTATIC PLUG
CONCRETE SHELL
EARTH
FUTURE INTERIOR FINISH

9

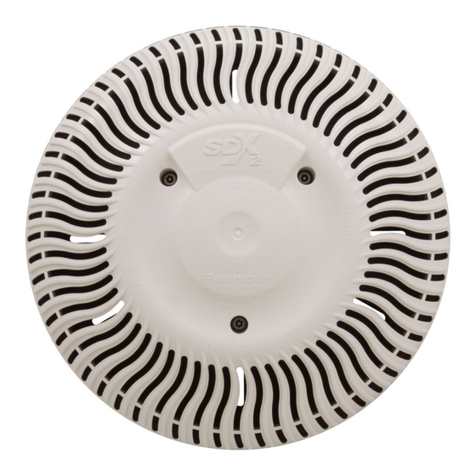

The SDX2 High Flow Safety Drain® installed
in a concrete shell utilizes a small cutout in the
concrete to form the sump which is sometimes
made of plastic or fiberglass. This concrete sump
provides superior shell strength by eliminating the
large hole associated with plastic sumps. The
water seal is formed against the suction pipe in the
same way a water tight seal is formed with return
pipes. The concrete cutout is typically eleven (11)
inches wide, by two (2) inches deep, with a finger
size cutout around the pipe to allow room for a
watertight seal. (Fig. 3)
Rebar Steel (Fig. 5)
Concrete reinforcing steel should be kept 3" away
from all pipe and fittings.
Concrete Shell Sump (Fig. 3)
Form a concrete sump around each suction pipe.
Concrete Shell Preparation (Fig. 4)
Prior to installing the interior finish, cut each SDX2
riser pipe approximately 1" behind the concrete
shell’s surface.
Fig. 3
Fig. 4
11" (typ)
2" Deep (typ)
1" Deep (typ)
SDX2 CONCRETE INSTALLATION
Suction Safety
Standards require
that main drain
grates used to cover concrete sumps, must
have the suction pipe cut at least 1 ½ times
the pipe diameter behind the drain cover. This
is to allow room for even water flow through all
drain cover holes. This is not necessary with
the SDX2 drain because the Patented Design
provides uniform suction regardless of pipe
location. However, if the pipe is too close to
the surface, it may restrict water flow to the
pump, reducing hydraulic efficiency, but this
does not pose a suction safety hazard.
NOTICE
Finger
Size
Cutout

10
Concrete Ring Installation (Fig. 5)
1. Apply interior finishing material.
2. Position the SDX2 Concrete Ring with the
semi-circle tab located at the top and then
press the ring into finishing material.
3. Trowel the finishing material around outside
and inside of the SDX2 Concrete Ring.
4. Form a watertight seal around the suction
pipe.
5. Wipe clean any finishing material that remains
on the SDX2 Concrete Ring’s top edge and
mounting surface.
Concrete Cover Assembly (Fig. 6)
1. Align the SDX2 Concrete Support with the
alignment tab located on the SDX2 Concrete
Ring.
2. SOFA components and fastener receptacles
shall be clean and free of debris and
obstruction during installation of cover/grate
fasteners.
3. Install three (3) machine screws through the
SDX2 Concrete Support. Secure the screws
without over tightening to 18 in-lbs.
4. Align the SDX2 Cover with the SDX2
Support holes.
5. Install three (3) security screws through the
SDX2 cover. Secure screws to (14 in-lbs)
6. After securing each SOFA component hand
check that it is snug to the sump /frame
before proceeding to the next component.
Fig. 5
3" Min (typ) Fig. 6
MDX-R3 DEBRIS REMOVAL SYSTEM STANDARD POOL/SPA/BASIN DESIGN STEEL CAGE
3
3"
31
4
"
3
31
4
"
TOP OF PIPE
6
12
6
12
6
171
4
"
CUTOUT
3
4
"
CUT OUT DEPTH
1 1/2" - 2"
CONCRETE SHELL
EARTH
FUTURE INTERIOR FINISH
CONCRETE SHELL
EARTH
FUTURE INTERIOR FINISH
Keep rebar 3" away from MDX-R3 sump. (Fig. 7)
1. To allow the sump to be fully encased in concrete, clear dirt to completely expose the sweep elbow. (Fig.
8)
2. Pack concrete around and under sump (Fig. 8) to ensure seal and strength of shell
3. Angle shell down to MDX-R3 sump. (Fig. 8)
4. Make cut-out around MDX-R3 sump. 17¼" round by ¾" deep to water stop down . (Fig. 9 & 11)
Fig. 8 Fig. 9
Fig. 7
STEEL AND CONCRETE INSTRUCTIONS
DO NOT USE POWER TOOLS TO INSTALL FASTENERS. Start all
fasteners by hand to prevent cross threading.
NOTICE

11
WITH CANISTER
If vacuum relief suction outlets are located below freeze line skip steps 1 and 2.
1. Remove grate from wall drain and install a 13-¾ blow through plug and blow line to achieve
airlock.
2. If 3rd suction line is installed remove grate, install a 13-¾ blow-through plug and blow line
to achieve airlock.
3. If vent tube is installed, install blow through plug and blow line to achieve airlock. Repeat
vacuum out canister. For winterizing canister visit www.1Paramount.com and click on
winterization instructions.
WITHOUT CANISTER
If vacuum relief suction outlets are located below freeze line skip steps 1 and 2.
1. Remove grate from wall drain and install a 13-¾ blow through plug and blow line to achieve
airlock.
2. If 3rd suction line is installed remove grate, install a 13-¾ blow-through plug and blow line
to achieve airlock.
3. If vent line is installed in main suction line, plug vent line and install blow through plug in
pump inlet and blow line to achieve airlock.
4. Lastly, blow vent line to achieve airlock.
MDX-R3 WINTERIZATION
Plaster:
Remove all plugs before starting final finish application. Use an adjustable wrench or pliers to remove
4" plug.
1. Plaster to top edge of the sump.
2. Pack plaster around water stop.
Assemble the drain PRIOR TO ADDING WATER
DO NOT USE POWER TOOLS TO INSTALL FASTENERS. Start
all fasteners by hand to prevent cross threading. Cover/grate when
installed shall not protrude more than 2" (51mm) from the finish surface
of the pool in which the SOFA is installed.
NOTICE
1. Remove 4" pressure plug.
2. SOFA components and fastener receptacles shall be clean and free of debris and obstruction
during installation of cover/grate fasteners.
3. Install funnel assembly (#3) onto leveling ring (#5) and secure with 4 (four) security screws (#2) with
screw driver security T25 (#15). Secure self-threading screws to 14 in-lbs on initial install and 10
in-lbs for subsequent insertions.
4. Install the cover (#1) onto the funnel assembly (#3) and secure with 3 (three) security screws (#2).
Secure self-threading screws to 34 in-lbs on initial install and 20 in-lbs for subsequent insertions.
5. After securing each SOFA component hand check that it is snug to the sump /frame before
proceeding to the next component.
440mm
FLAT ALL AROUND
CONCRETE SHELL
EARTH
FUTURE INTERIOR FINISH
1¾"
Fig. 10
17
1
4
"
CUTOU
T
Fig. 11

12
**Replace cover within 05 installed years. ***Replace all other
components within 25 installed years
Item Part Number Description
**1 005-252-2110-XX Cover (XX = Color Code)
**2 005-262-0840-00 Screw Pack (7pcs) 316 SS
**3 005-252-8234-XX Funnel Assembly
**4 005-252-1045-00 Funnel Adapter
***5 004-262-2033-00 Sump
6 005-252-1605-00 2" Plug NPT (6pcs)
7 005-252-1610-00 4" Plug with O-Ring
8 005-252-2540-00 4" x 3"Enlarged Suction Element
*9 2" Pipe - Not Included - Cap If Not Used
*10 2" Cap - Not Included - Cap If Not Used
*11 005-262-1153-00 Plaster Cap
12 005-262-1150-00 Sump Construction Cap
13 005-252-0895-00 T25 Security Screwdriver
**14005-525-2097-XX SDX2 High Flow Safety Drain
**15005-252-2066-00 SDX2 Support Concrete
***16 005-252-2050-00 SDX2 Ring Concrete
* Not part of MDX-R3
MDX-R3 WITH SDX2 FOR CONCRETE POOLS
MDX-R3 2 PACK FOR CONCRETE POOLS
1
2
3
4
5
6
7
8
9
10
Item Part Number Description
**1 005-252-2110-XX Cover (XX = Color Code)
**2 005-252-8234-XX Funnel Assembly
**3 005-252-1045-00 Funnel Adapter
***4 004-262-2033-00 Sump
5 005-252-1605-00 2" Threaded Plugs
6 005-262-0840-00 Screw Pack (7pcs) 316 SS
7 Screw Pack (12pcs) 316 SS
8 005-252-0895-00 T25 Security Screwdriver
9 005-252-1610-00 4" Plug with O-Ring
10 4" Tee
11 005-252-2540-00 4" x 3" Enlarged Suction Element
12 17" PVC Pipe
*13 005-262-1150-00 Sump Construction Cap
*14 005-262-1153-00 Plaster Cap
* Not part of MDX-R3
6
7
8
9
10
11
12
13
14
1
2
3
4
5
Available Construction Caps
12
11
13
14
15
16
