Parker TPQ Series User manual

3-Way High-Response
Valve with
VCD®Technology
Operation Manual
Series TPQ
Design ≥ 60
Bulletin MSG11-5715-653/UK
Parker Hannifin
Manufacturing Germany GmbH & Co. KG
Industrial Systems Division Europe
Gutenbergstr. 38
41564 Kaarst, Germany
Tel.: [phone]
E-mail: [e-mail]
Copyright © 2019, Parker Hannifin Corp.

2
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED
HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY
DAMAGE.
This document and other information from Parker-Hannifin Corporation, its subsidiaries and
authorized distributors provide product or system options for further investigation by users having
technical expertise.
The user, through its own analysis and testing, is solely responsible for making the final selection
of the system and components and assuring that all performance, endurance, maintenance,
safety and warning requirements of the application are met. The user must analyze all aspects
of the application, follow applicable industry standards, and follow the information concerning
the product in the current product catalog and in any other materials provided from Parker or its
subsidiaries or authorized distributors.
To the extent that Parker or its subsidiaries or authorized distributors provide component or
system options based upon data or specifications provided by the user, the user is responsible for
determining that such data and specifications are suitable and sufficient for all applications and
reasonably foreseeable uses of the components or systems.
WARNING — USER RESPONSIBILITY

3
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
Content Page
1. Introduction 4
Characteristics of Valve Driver 4
Order Code 4
Block Diagram of Integral Electronics 5
Technical Data 6
2. Safety Instructions 7
Symbols 7
Work at the Valve 7
3. Important Details 7
Intended Usage 7
Common Instructions 7
Liability 7
Storage 7
4. Mounting / Installation 8
Scope of Supply 8
Mounting 8
Mounting Bolts 8
Operation Limits 8
Pressure Fluids 8
Electrical Connection 9
Electrical Interfacing 10
5. Operation Instructions 12
Solenoid Current Monitoring 12
ProPxD Parameterizing Software 12
Air Bleeding of Hydraulic System 14
Filter 14
Flushing 14
6. Trouble Shooting 14
7. Accessories / Spare Parts 15
Accessories 15
Spare Parts 15

4
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
1. Introduction
ParkerTPQ 3-way high-response valves with VCD®
technology have an integral electronic and requires
only one sole electrical common for the control
system.Different flow sizes are available to achieve
an optimal adaption for different applications.
Characteristics of Valve Driver
The described integral electronic driver combines
all necessary functions for the optimal operation of
the valve.Thanks to its excellent dynamic the valve
is usable within closed loop control applications.
The most important features are:
Ordering Code
3-way high-
response
valve with
LVDT Pilot oil
(supply external,
drain external)
Seal
Design
series
(not required
for ordering)
Linear
spool
Nominal
size
Standard
electronics
Input
signal
TPQ W H 2 5 2 0
Parker Slip-
in cartridge
Closed loop,
VCD®performance,
integrated
electronics
Code Seal
N NBR
V FPM
H for HFC fluids
Flow
Spool type
Code Signal range
B0...±10 V
E 0...±20 mA
S 4...+20 mA
• high dynamic actuator principle with special
designed electronic driver
• closed loop controlled spool position
• constant current actuator control with overcur-
rent shutoff
• excellent properties for response sensitivity and
temperature drift
• differential input stage with various command
signal options
• diagnostic output for spool stroke
• standard central connection
• compatible to the relevant European EMC-
standards
Code Nominal size
025 NG25
032 NG32
040 NG40
050 NG50
063 NG63
080 NG80
Position overlap
Code
Spool type Fail
save
Input signal
- 0 +
P
A
PT
P →A
T
A
PT
A →T
Please order connector separately
Angle female connector must be used for NG25 to NG50.

5
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
Blockdiagram of integrated electronics
PE
0... 10 V
±
22...30 V=
E
F
D
AB
U
U
I
I
Command
Diagnostic
spool stroke
Supply
voltage
G
Enable
+5...30 V
C
µC
E: mA
B: 0... 10 V
0... 20
S: 4...12...20 mA
±
±
Parametrizing
interface
0V
Reference1)
Function symbol
Basic position spool type P
YX
TP
BA
P T
XX
G
U
G
U
A
1)
SP
2)
MY
1)
MA
1)
MB
1)
1) NG25 and NG32 without accu port XX
A
PT
A
PT
TP
A
PT
A
PT
TP
Basic position:
Zero position:
1) Do not connect with the supply voltage zero.
B T A
XY
P
A
T
XX
MY
SP
SP

6
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
Technical data
General
Design Proportional throttle valve, slip-in cartridge
Nominal size DIN NG25 NG32 NG40 NG50 NG63 NG80
Mounting position unrestricted
Ambient temperature [°C] -20...+50
Weight [kg] 11 13 15 26 52 105
Vibration resistance [g] 10 sinus 5...2000 Hz acc. IEC 68-2-6
10 (RMS) random noise 20...2000 Hz acc. IEC 68-2-36
15 shock acc. IEC 68-2-27
Hydraulic
Max. operating pressure [bar] Ports A, P, T, X up to 350, XX 1) observe permissible pressure rating; port
Y: max. 35
Fluid Hydraulic oil according to DIN 51524
Fluid temperature [°C] -20 ... +60 (NBR -25...+60)
Viscosity recommended [cSt]/
permitted [cSt]/
[mm²/s]
[mm²/s]
30 ... 80
20 ... 400
Filtration ISO 4406; 18/16/13
Nominal flow at ∆p = 5 bar [l/min] 200 320 550 800 1450 2700
Recommended max. flow [l/min] 500 1000 1600 2250 3500 6500
Nominal overlap [%] < 1.5
Flow direction A to T or P to A
Pilot pressue [bar] must be as high as system pressure
Pilot oil supply external via X
drain external via Y
Leakage in pilot valve at 100 bar [ml/min] < 400
Leakage in main stage at 100 bar [l/min] NG32 to 63 < 2.5; NG80 < 4.0
Pilot valve size NG06 NG10
Max. pilot flow at 140 bar pilot press. [l/min] 25 25 25 25 50 60
Static/dynamic
Step response at pilot press. >140 bar [ms] 7 11 11 18 19 20
Frequency response at pilot press. >140 bar
Amplitude -3 dB; ±5 % [Hz] 210 105 70 45 35 30
Phase -90°; ±5 % [Hz] 170 125 110 95 75 70
Hysteresis [%] < 0.1
Sensitivity [%] < 0.05
Temperature drift of center position [%/K] < 0.025
1) Accu port XX: Please contact Parker for installation recommendation.
Electrical
Duty ratio [%] 100
Protection class IP65 in accordance with EN 60529 (with correctly mounted plug-in con-
nector)
Supply voltage / ripple [V] DC 22 ... 30, electric shut-off at < 19, ripple < 5 % eff., surge free
Current consumption max. [A] 3.5
Pre-fusing [A] 4.0 A medium lag
Input signal Code B Voltage
Impedance
Code E Current
Impedance
Code S Current
Impedance
[V]
[kOhm]
[mA]
[Ohm]
[mA]
[Ohm]
+10...0...-10, ripple < 0.01 % eff., surge free
100
+20...0...-20, ripple < 0.01 % eff., surge free
< 250
4...12...20, ripple < 0.01 % eff., surge free
< 3.6 mA = disable, > 3.8 mA = enble on according to NAMUR NE43
< 250
Differential input max. [V] 30 for terminal D and E against PE (terminal G),
[V] 11 for terminal D and E against 0V (terminal B)
Enable signal [V] 5...30, Ri = > 8 kOhm
Diagnostic signal [V] +10...0...-10 / +12.5 error detection, rated max. 5 mA
EMC EN 61000-6-2, EN 61000-6-4
Electrical connection 6 + PE acc. EN 175201-804
Wiring min. [mm2] 7x1.0 (AWG16) overall braid shield
Wiring length [m] 50

7
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
2. Safety Instructions
Please read the operation manual before instal-
lation, startup, service, repair or stocking! Paying
no attention may result in damaging the valve or
incorporated system parts.
Symbols
This manual uses symbols which have to be fol-
lowed accordingly:
Instructions with regard to the warranty
Instructions with regard to possible
damaging of the valve or linked system
components
Helpful additional instructions
Work at the Valve
Workings in the area of installation, commissioning,
maintenance and repair of the valve may only be
allowed by qualified personnel.This means persons
which have, because of education, experience and
instruction, sufficient knowledge on relevant direc-
tives and approved technical rules.
3. Important Details
Intended Usage
This operation manual is valid for 3-way high-
response valves TPQ series. Any different or
beyond it usage is deemed to be as not intended.
The manufacturer is not liable for warranty claims
resulting from this.
Common Instructions
We reserve the right for technical modifications of
the described product. Illustrations and drawings
within this manual are simplified representations.
Due to further development, improvement and
modification of the product the illustrations might
not match precisely with the described valve. The
technical specifications and dimensions are not
binding.No claim may resulting out of it.Copyrights
are reserved.
Liability
The manufacturer does not assume liability for
damage due to the following failures:
• incorrect mounting / installation
• improper handling
• lack of maintenance
• operation outside the specifications
Do not disassemble the valve! In case of
suspicion for a defect please contact Parker.
Storage
In case of temporary storage the valve must be
protected against contamination, atmospheric ex-
posure and mechanical damages. Each valve has
been factory tested with hydraulic oil, resulting in
protection of the core parts against corrosion. Yet
this protection is only ensured under the following
conditions:
Outdoor storage or within sea and tropical
climate will lead to corrosion and might disable
the valve!
Storage
period Storage requirements
12 months constant humidity < 60 % as well
as constant temperature < 25 °C
6 months varying humidity as well as vary-
ing temperature < 35 °C

8
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
Available Bolt Kits
Size Ordering no. Dimensions Torque
TPQ025 BK504 4 pcs. M12x100 108 Nm
TPQ032 BK529 4 pcs. M16x100 264 Nm
TPQ040 BK481 4 pcs. M20x110 517 Nm
TPQ050 BK481 4 pcs. M20x110 517 Nm
TPQ063 BK518 4 pcs. M30x160 1775 Nm
TPQ080 BK530 8 pcs. M24x160 890 Nm
• Remove protection plate from the valve mounting
surface
• Check the proper position of the valve ports
and the O-rings.
• Mounting bolts:use property class 12.9, ISO 4762
Insufficient condition of the valve mounting
surface might create malfunction!
Incorrect mounting resp. bolt torque may
result in abrupt leakage of hydraulic fluid on
the valve ports.
Y-port has always to be tied directly and
separately to tank!
Limits of Use
The valve may be operated within the determined
limits only. Please refer to the “technical data“ sec-
tion as well as to the “characteristic curves“ in the
Parker catalogue HY11-3500/UK "HydraulicValves
Industrial Standard".
Follow the environmental conditions! Unal-
lowable temperatures, shock load, aggresive
chemicals exposure, radiation exposure,
illegal electromagnetic emissions may result
in operating trouble and may lead to failure!
Follow the operating limits listed in the “speci-
fications“ table!
4. Mounting / Installation
Scope of Supply
Please check immediately after receiving the valve,
if the content is matching with the specified scope
of supply. The delivery includes:
• valve
• operation manual
The central connector has to be ordered separately
and is not included in the delivery.
Please check the delivery immediately after
receiving the shipment for apparent damages
due to shipping. Report shipment losses at
once to the carrier and the supplier!
Mounting
• Compare valve type (located on the name plate)
with part list resp. circuit diagram.
• The valve may be mounted fix or movable in
any direction.
• Verify the mounting surface for the valve.Uneve-
ness of 0.01 mm/100 mm, surface finish of 6.3
µm are tolerable values.
Keep valve mounting surface and work envi-
ronment clean!
Pressure Fluids
The following rules applies for the operation with
various pressure fluids:
This information serves for orientation and
does not substitute user tests among the
particular operating conditions.Particularly no
liabiliy for media compatibility may be derived
out of it.
Mineral oil: usable without restriction.
HFC: choose the right seal option.
For operation with the following pressure fluids
please consult Parker:
HFA Oil-in-water emulsion
HFB Water-in-oil emulsion
HFD Unhydrous fluids (Phosphor-Ester)
For detailed information concerning pressure
fluids noteVDMA-document 24317 as well as
DIN 51524 & 51502.
Special gaskets may be available depending on
the utilized fluid.
In case of doubt please consult Parker.

9
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
The connecting cable has to comply to the follow-
ing specification:
Cable type control cable, flexible,
7 conductors, overall braid
shield
Cross section min. AWG16
Outer dimension 8...12 mm
Cable length max. 50 m
For cable lengths > 50 m consult factory.
The connection cable is coupled to the female
connector by solder joints.
Skinning lengths for the connecting cable:
Electrical Connection
The electrical connection of the valve takes place
by one common cable, which is coupled to the
integrated electronic driver by a central connector
assembly.
The connection requires a 6 + PE female connector
EN 175201-804.
Female connector (ordering no. 5004072)
For NG63 and NG80
7/8-20
UNEF-2B
Ø28.6
max. 67
PG13.5
A female connector with metal housing is
required! Plastic made models may create
function problems due to insufficient EMC-
characteristics.
Do not disconnect cable socket under tension!
Angled female connector (ordering no. 5005160)
For NG25 to NG50

10
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
Wiring diagram of supply voltage
PE
B
C
D
E
F
G
A
+Us
0V
~
=
4 Am
22...30 V
control system valve
Electrical Interfacing
Supply Voltage
The supply voltage for the valve has to cover the
range of 22...30 V. Valve is de-energized below
19 V. The residual ripple may not exceed 5 % eff.
The applied power supply must comply to the
relevant regulations (DIN EN 61558) and must
carry a CE-mark. The operating voltage for
the valve must be free of inductive surges.
Do not exceed the max. value of 30 V!
Higher voltage can lead to failure of the valve.
The increased inrush current of the valve
should be considered when selecting the
power supply. A stabilized power supply with
overcurrent limiting feature should not be
used. Due to the inrush current of the valve
the current limit circuit may respond prema-
turely and create problems during energizing
of the supply voltage.
The operation of the valve is blocked if the
supply voltage polarity is interchanged.
Each valve requires a separate pre-fuse of 4
Amp semi time-lag. Failure to observe this
instruction may create irreparable damage of
valve respectively incorporated system parts.
The backshell nut of the cable gland has to be
tighten with a suitable tool. The target value for
the tightening torque is 4 Nm. Tighten the cap nut
with a torque of 5 Nm after attaching the female
connector on the socket.
Incomplete tightening of backshell nut respec-
tively cap nut may result in undesired release
of the connection as well as degradation of
the water tightness.
When using female connectors of other
manufacturers, the relevant regulations must
be observed.
The cable may only be connected to the female
connector by authorized and qualified person-
nel. A short between individual conductors
resp.to the connector housing , bad soldering
as well as improper shield connection may
result in malfunction and breakdown of the
valve.
The mounting surface of the valve has to be
connected to the earth grounded machine
frame. The earth ground wire from the valve
connecting cable as well as the cable shield
have to be tied to the protective earth termi-
nal within the control unit. It is necessary to
use a low ohmic potential connection between
control unit and machine frame to prevent
earth loops (cross section AWG 6).

11
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
Command signal input
The spool stroke behaves proportional to the com-
mand signal amplitude.
The command input signal needs to be filtered
as well as free of inductive surges and modu-
lations. Due to the sensitivity of the valve a
high signal quality is recommended, this will
prevent malfunction.
Enable input
A signal voltage enables the actuator drive of the
valve. Continuous operation of the valve requires a
permanent voltage 5...30V (i.e.the supply voltage).
In case of disabling the signal the valve will reach its
power down position spring-actuated independently
from the command signal value.
The enable function represents no safety ar-
rangement against unwanted valve operation
in terms of rules for accident prevention!
The option 4...20 mA uses the “3.6 mA“
condition as breakdown-information. If the
input signal line is interrupted, an evaluable
failure information is available. In this case
the actuator drive will be switched off. The
drive will switch on when the input signal
reaches a value of 3.8 mA, it switches off
when the command falls below 3.6 mA. This
determination follows the NAMUR-specifica-
tion NE43.
Diagnostics output
A diagnostics signal is available. Its voltage repre-
sents the operating condition of the valve.
The output may drive a load of max. 5 mA.
Exceeding of this limit leads to malfunction.
Code
command
signal
Command
signal VCD actuator Diagnostic signal
B
0…+10 V on 0…+10 V
0…-10 V on 0…-10 V
Overload off 12.5 V
E
0…+20 mA on 0…+10 V
0…-20 mA on 0…-10 V
Overload off 12.5 V
K
0…+10 V on 0…-10 V
0…-10 V on 0…+10 V
Overload off 12.5 V
S
4…12 mA on 0…-10 V
12…20 mA on 0…+10 V
0…3.6 mA off Cable break,
12.5 V
Overload off 12.5 V
Code
command
signal
Command
signal VCD actuator Diagnostic signal
B
0…+10 V on 0…-10 V
0…-10 V on 0…+10 V
Overload off 12.5 V
E
0…+20 mA on 0…-10 V
0…-20 mA on 0…+10 V
Overload off 12.5 V
K
0…+10 V on 0…+10 V
0…-10 V on 0…-10 V
Overload off 12.5 V
S
4…12 mA on 0…+10 V
12…20 mA on 0…-10 V
0…3.6 mA off Cable break,
12.5 V
Overload off 12.5 V
Valves NG25 to NG50 Valves NG63 and NG80

12
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
ProPxD parameterizing software
The ProPxD software permits comfortable param-
eter setting for the module electronic.Via the clearly
arranged entry mask the parameters can be noticed
and modified. Storage of complete parameter sets
is possible as well as printout or record as a text
file for further documentation.
The PC software can be downloaded free of charge
at www.parker.com/isde - see page “Support” or
directly at www.parker.com/propxd.
For program installation and software operating
please see operation manual 5715-687.The manual
can be downloaded at www.parker.com/isde – see
page “Support”
Please check periodical for updates.
Cable Specification
Attention! The valve electronic provides no
USB interface, but can only be parametrized
via an RS232C connection. Therefore the
usage of USB standard cables is not allowed
and may result in damaging of valve resp.PC.
Hardware requirements
• PC with operating system from Windows®XP
upwards
• interface RS232C
• display resolution min. 800 x 600
• connection cable between PC and electronic
module
• storage requirement approx. 40 MB
If your PC has no serial interface according
to RS232 standard you require in addition an
USB-RS232C adapter.
Parametrizing
Ordering code: 40982923
The cover plug has to be re-installed after
completion of the parametrizing work.
Plug for
parametering interface
5. Operating Instructions
Attention! Supply pressure must be ensured
before valve is energized!
To reach the closed position in case of valve
electronic failure, pilot pressure is required.
Solenoid Current Monitoring
If the actuator current time interval exceeds 10
seconds, the actuator is switched off to prevent
overheating. For normal operating conditions this
state will not reached, but it may occur with a con-
taminated sluggish valve.
In this case the reason for the contamination
should be repaired (hydraulic fluid exchange,
filtration review, valve flushing).
The overcurrent shutoff condition may be resetted
by temporary disconnection of the enable signal.
The shutoff of the VCD actuator due to overload
will be indicated via the diagnostics output.

13
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19

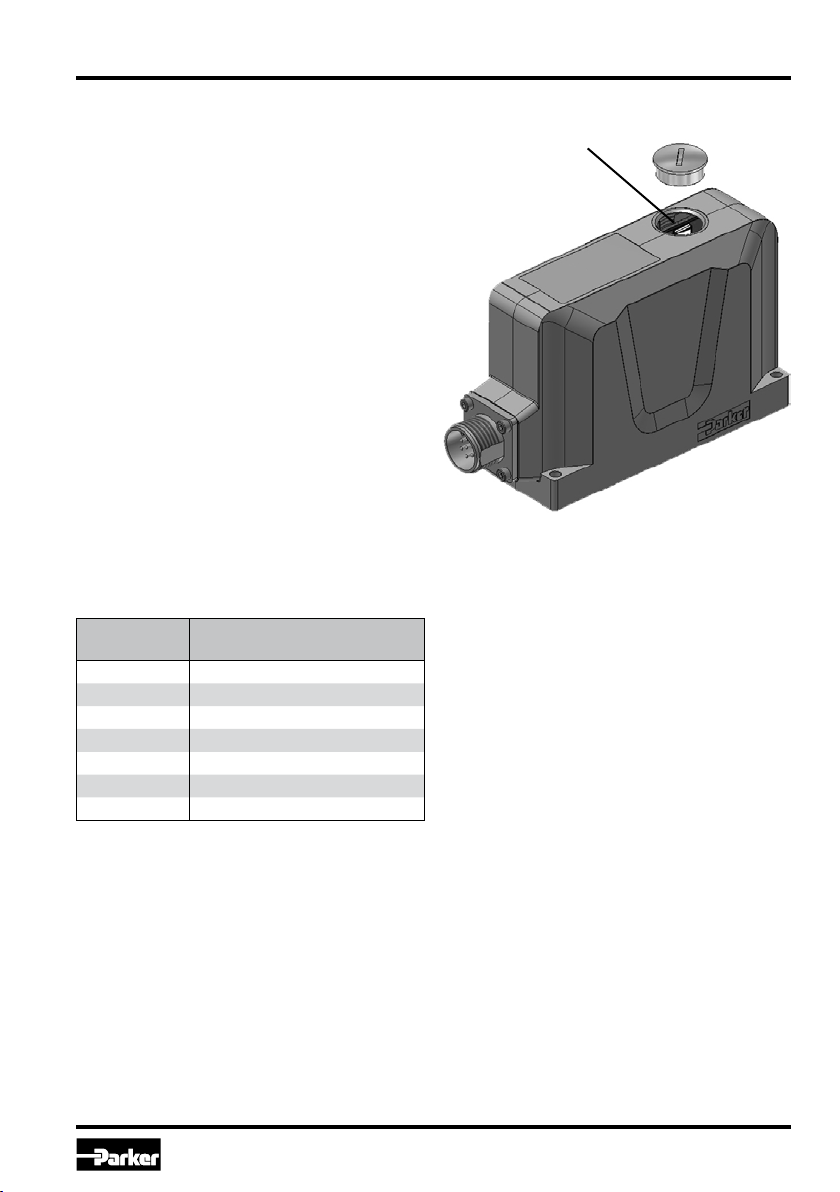

LED flashing signals of the valve electronics
enable valve OK: approx. 0.5 Hz (slowly, green)
disable valve OK: approx. 1 Hz (fast, green)
valve error: approx. 10 Hz (very fast, green)
Closer information can be can be displayed via
the ProPxD Parametrier software.
LED
Error code
(additive) Error description
0no errors
1over current
2cable break command signal
4cable break feedback signal
8undervoltage error
16 bus communication error
32 hardware failure
Error code

14
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
Air Bleeding of Hydraulic System
During initial startup, after an oil change as well as
after the opening of lines or valves the hydraulic
system must be air bleeded.
Filter
The function and lifetime of the valve are strongly
affected by the cleanliness of the fluid.
Purity level class of 18/16/13 acc. ISO4406 is
required.
Flushing
It is recommended to flush the pipelines by short
circuiting the pressure and return lines.This prevents
the installation dirt from entering the valve.
malfunction at hydraulic load runtime
- generally no function
- high frequent oscillation
- low frequent oscillation
- speed variations at unchanging command
- different speeds depending on travel direction
- speed too low
- drifting without command
possible reasons for malfunction corrective actions
Xhydraulic pump resp. motor defective replace hydraulic pump resp. motor
X X X X X drive overloaded reduce pressure resp. speed, increase valve size
X X X X X X valve contaminated clean pressure fluid, filter / flush valve
X X hydraulic fluid too viscous / too cold change fluid grade, provide operational temperature
X X too low oil level within tank refill pressure fluid
X X X filter contaminated clean resp. replace filter
X X X X supply voltage too low keep supply voltage range
Xsupply voltage carries too much ripple reduce ripple
X X command signal too low increase command signal
Xcommand signal carries too much ripple reduce ripple
Xcenter position adjustment incorrect check center position adjustment
X X X X X contacts of central connector contaminated clean contacts / replace plug
Xfeed cable interrupted fix feed cable
X X X X X X wiring sequence incorrect correct wiring sequence
X X feed cable without shielding change cable grade
6. Troubleshooting
Basis of troubleshooting is always a systematic
approach.
For suspect of a sluggish spool the valve may
be flushed with clean pressure fluid.
Troubleshooting in a hydraulic system requires
detailed knowledge about function and con-
struction of the system. Therefore the work
may exclusively be performed by qualified
personnel.

15
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
Spare parts / seal kits
7. Accessories
The following accessories are available for the
valve series TPQ*H:
female connector 6+PE ordering code 5004072
Mounting bolts see table on page 8.
Hotline in Europe
Tel.: [phone]
Please direct technical product enquiries to:
Parker Hannifin
Manufacturing Germany GmbH & Co. KG
Industrial Systems Division Europe
Gutenbergstr. 38
41564 Kaarst, Germany
Tel.: [phone]
E-mail: [e-mail]
Size NBR FPM
TPQ025 SK-TPQ025EN30 SK-TPQ025EV30
TPQ032 SK-TPQ025EN30 SK-TPQ032EV30
TPQ040 SK-TPQ040EN30 SK-TPQ040EV30
TPQ050 SK-TPQ050EN30 SK-TPQ050EV30
TPQ063 SK-TPQ063EN30 SK-TPQ063EV30
TPQ080 SK-TPQ080EN30 SK-TPQ080EV30

16
3-Way high-response valve with VCD®
Series TPQ
Operation Manual
Parker Hannifin Corporation
TPQ 5715-653 UK 29.04.19
