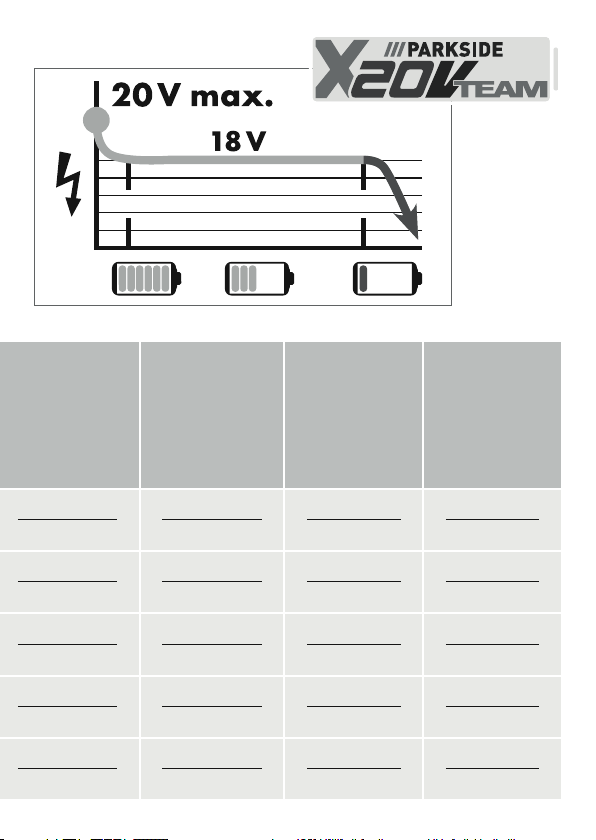

Charging times
Ladezeiten
Temps de charge
Charging currents
Ladeströme
Courants de charge
2 Ah PAP 20 A1/B1
Battery pack · Akku · Batterie
3 Ah PAP 20 A2
Battery pack · Akku · Batterie
4 Ah PAP 20 A3/B3
Battery pack · Akku · Batterie
4 Ah PAPS 204 A1
Battery pack · Akku · Batterie
8 Ah PAPS 208 A1
Battery pack · Akku · Batterie

max. 2,4 A
Charger
Ladegerät
Chargeur
PLG 20 A1/A4/C1
max. 3,5 A
Charger
Ladegerät
Chargeur
PLG 20 A2/C2
max. 4,5 A
Charger
Ladegerät
Chargeur
PLG 20 A3/C3
max. 4,5 A
Charger
Ladegerät
Chargeur
PDSLG 20 A1
60 min
2,4 A
45 min
3,5 A
35 min
3,8 A
35 min
3,8 A
90 min
2,4 A
60 min
3,5 A
45 min
4,5 A
45 min
4,5 A
120 min
2,4 A
80 min
3,5 A
60 min
4,5 A
60 min
4,5 A
120 min
2,4 A
80 min
3,5 A
50 min
4,5 A
50 min
4,5 A
210 min
2,4 A
165 min
3,5 A
120 min
4,5 A
120 min
4,5 A

PLG 20 C1 GB│IE │ 1 ■
Contents
Introduction...................................2
Intended use..........................................2
Features .............................................3
Package contents ......................................3
Technical specifications .................................3
General safety instructions ......................4
Extended safety guidelines...............................5
Safety guidelines for battery chargers ......................6
Before use ....................................7
Charging the battery pack (see fig. A)......................7
Checking the battery charge level .........................8
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Maintenance and storage .......................8
Kompernass Handels GmbH warranty ............9
Service......................................12
Importer ....................................12
Disposal.....................................12
Notes on the EC declaration of conformity.........14

PLG 20 C1
■ 2 │ GB│IE
Introduction
Congratulations on the purchase of your new appliance. You have
chosen a high-quality product. The operating instructions are part of
this product. They contain important information about safety, usage
and disposal. Before using the product, please familiarise yourself
with all the operating and safety instructions. Use the product only
as described and for the range of applications specified. Please
also pass these operating instructions on to any future owner.
Intended use
This charger is intended exclusively for charging PARKSIDE
PAP20A1/A2/A3/B1/B3/PAPS204A1/PAPS208A1 series
batteries.
This appliance is suitable for:
The appliance is not intended for commercial use. Any other
usage or modification of the appliance is deemed to be improper
and carries a significant risk of accidents. The manufacturer
accepts no responsibility for damage attributable to misuse.

PLG 20 C1 GB│IE │ 3 ■
Features
Battery pack (not included)
High-speed charger
Red charge control LED
Green charge control LED
Battery charge level button (not supplied)
Battery display LED (not supplied)
Package contents
1 battery charger 20V 2.4A
1 set of operating instructions
Technical specifications
Battery Charger 20V 2.4A PLG 20 C1
INPUT
Rated voltage 230–240 V ∼ (AC), 50 Hz
Rated power consumption 65 W
Fuse (internal) 3.15 A T3.15A
OUTPUT
Rated voltage 21.5 V (DC)
Rated current 2.4 A
Charging time approx. 60 min (2 Ah – 100%)
approx. 90 min (3 Ah)
approx. 120 min (4 Ah)
approx. 210 min (8 Ah)
Protection class II/ (double insulation)

PLG 20 C1
■ 4 │ GB│IE
General safety instructions
WARNING!
■Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire
and/or serious injury. Save all warnings and instructions for
future reference.
a) Charge a rechargeable battery unit using only the charger
recommended by the manufacturer. Chargers are often designed
for a particular type of rechargeable battery unit. There is the
danger of fire if other types of rechargeable battery units are
used.
b) Only the rechargeable battery units supplied are to be used
with an electrical power tool. The use of other rechargeable
battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery
units away from paperclips, coins, keys, nails, screws or
other small metal objects that could cause the contacts to be
bridged.
Short-circuiting the contacts of a rechargeable battery unit may
result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are
misused. If this happens, avoid contact with the fluid. If contact
occurs, flush the affected area with water. Seek additional
medical help if any of the fluid gets into your eyes. Escaping
battery fluid may cause skin irritation or burns.

PLG 20 C1 GB│IE │ 5 ■
CAUTION! RISK OF EXPLOSION!
Never charge non-rechargeable batteries.
Protect the rechargeable battery from
heat; for example, from continuous exposure to sunlight, fire,
water and moisture. There is a risk of explosion.
Extended safety guidelines
■Do not use a damaged or modified battery. Damaged or
modified batteries may behave unexpectedly and cause fires,
explosions or pose a risk of injury.
■Do not expose a battery to fire or excessively high tempera-
tures. Fire or temperatures in excess of 130°C (265°F) can
cause an explosion.
■Follow all instructions regarding charging and never charge
the battery or the cordless tool outside the temperature range
given in the operating instructions.
Incorrect charging or charging outside of the approved tempera-
ture range can destroy the battery and increase the risk of fire.
■Ensure that the mains voltage corresponds to the specifications
on the charger type plate.
There is a risk of electric shock.

PLG 20 C1
■ 6 │ GB│IE
Safety guidelines for battery chargers
■ This appliance may be used by children aged
8years and above and by persons with limited
physical, sensory or mental capabilities or lack of
experience and knowledge, provided that they
are under supervision or have been told how to
use the appliance safely and are aware of the
potential risks. Do not allow children to use the
appliance as a toy. Cleaning and user mainte-
nance tasks may not be carried out by children
unless they are supervised.
■ To avoid potential risks, damaged mains cables
should be replaced by the manufacturer, their
customer service department or asimilarly quali-
fied person.
The charger is suitable for indoor use only.
ATTENTION!
► This charger can only charge the following batteries:
PAP 20 A1/PAP 20 A2/PAP 20 A3/PAP 20 B1/PAP 20 B3/
PAPS 204 A1/PAPS 208 A1.
► A current battery compatibility list can be found at
www.lidl.de/akku.

PLG 20 C1 GB│IE │ 7 ■
WARNING!
■ To avoid potential risks, damaged mains cables should be
replaced by the manufacturer, their customer service depart-
ment or a similarly qualified person.
Before use
Charging the battery pack (see fig. A)
CAUTION!
► Always unplug the appliance before you remove the battery
pack from or connect the battery pack to the charger.
NOTE
► Never charge the battery pack at an ambient temperature of
below 10°C or above 40°C. If a lithium-ion battery is to be
stored for an extended period, the charge level should be
checked regularly. The optimum charge level is between 50%
and 80%. The storage climate should be cool and dry and the
ambient temperature should be between 0°C and 50°C.
♦ Connect the battery pack to the high-speed battery charger
(see fig. A).
♦ Insert the power plug into the socket. The control LED lights
up red.
♦ The green control LED indicates that the charging process is
complete and the battery pack is ready.

PLG 20 C1
■ 8 │ GB│IE
ATTENTION!
♦ If the red control LED flashes, this means that the battery
pack has overheated and cannot be charged.
♦ If the red and green control LEDs both flash, this means
that the battery pack is defective.
♦ Push the battery pack into the appliance.
♦ Switch off the charger for at least 15 minutes between successive
charging sessions. Also disconnect the power plug from the mains
power socket.
Checking the battery charge level
♦ Press the battery charge level button to check the status of
the battery (see also main diagram). The status/remaining
charge will be shown on the battery display LED as follows:
RED/ORANGE/GREEN = maximum charge
RED/ORANGE = medium charge
RED = low charge – charge the battery
Cleaning
CAUTION!
► Always unplug the charger before cleaning it.
► Do not clean the charger with water.
■ Clean the appliance with a dry cloth or brush. Do not use water
or metallic objects.
Maintenance and storage
■ If you do not intend to use the appliance for an extended period,
remove the batteries and store it in a clean, dry place away from
direct sunlight.

PLG 20 C1 GB│IE │ 9 ■
Kompernass Handels GmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the date of purchase.
If this product has any faults, you, the buyer, have certain statutory
rights. Your statutory rights are not restricted in any way by the war-
ranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your
receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the
date of purchase of the product, we will either repair or replace the
product for you or refund the purchase price (at our discretion). This
warranty service requires that you present the defective appliance
and the proof of purchase (receipt) within the three-year warranty
period, along with a brief written description of the fault and of
when it occurred.
If the defect is covered by the warranty, your product will either be
repaired or replaced by us. The repair or replacement of a product
does not signify the beginning of a new warranty period.
X 12 V and X 20 V Team Series battery packs come with a 3-year
warranty valid from the date of purchase.
Warranty period and statutory claims
for defects
The warranty period is not prolonged by repairs effected under the
warranty. This also applies to replaced and repaired components.
Any damage and defects present at the time of purchase must be
reported immediately after unpacking. Repairs carried out after expi-
ry of the warranty period shall be subject to a fee.

PLG 20 C1
■ 10 │ GB│IE
Scope of the warranty
This appliance has been manufactured in accordance with strict quali-
ty guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warran-
ty does not extend to product parts subject to normal wear and tear
or to fragile parts which could be considered as consumable parts
such as switches or parts made of glass.
The warranty does not apply if the product has been damaged,
improperly used or improperly maintained. The directions in the oper-
ating instructions for the product regarding proper use of the product
are to be strictly followed. Uses and actions that are discouraged
in the operating instructions or which are warned against must be
avoided.
This product is intended solely for private use and not for commercial
purposes. The warranty shall be deemed void in cases of misuse or
improper handling, use of force and modifications / repairs which
have not been carried out by one of our authorised Service centres.
The warranty period does not apply to
■ Normal reduction of the battery capacity overtime
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions,
operating errors
■ Damage caused by natural hazards

PLG 20 C1 GB│IE │ 11 ■
Warranty claim procedure
To ensure quick processing of your case, please observe the follow-
ing instructions:
■ Please have the till receipt and the item number
(IAN)380775_2110 available as proof of purchase.
■ You will find the item number on the type plate on the product,
an engraving on the product, on the front page of the operating
instructions (below left) or on the sticker on the rear or bottom of
the product.
■ If functional or other defects occur, please contact the service
department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the ser-
vice address that will be provided to you. Ensure that you enclose
the proof of purchase (till receipt) and information about what the
defect is and when it occurred.
You can download these instructions along with
many other manuals, product videos and installation
software at www.lidl-service.com.
This QR code will take you directly to the Lidl service
page (www.lidl-service.com) where you can open your operating
instructions by entering the item number (IAN) 380775_2110.
WARNING!
►Have your appliances repaired by the Service Centre or a
qualified electrician and only using genuine replacement parts.
This will ensure that the safety of the appliance is maintained.
►Always ensure that the power plug and power cord are
replaced only by the manufacturer of the appliance or the
its customer service. This will ensure that the safety of the
appliance is maintained.

PLG 20 C1
■ 12 │ GB│IE
Service
Service Great Britain
Tel.: [phone]
E-Mail: [email protected]
Service Ireland
Tel.: [phone]
E-Mail: [email protected]
IAN 380775_2110
Importer
Please note that the following address is not the service address.
Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Disposal
Do not dispose of power tools
in your normal domestic waste!
The adjacent symbol of a crossed-out dustbin means that
this appliance is subject to Directive 2012/19/EU. This
directive states that this appliance may not be disposed of in the nor-
mal household waste at the end of its useful life, but must be taken
to specially set-up collection locations, recycling depots or disposal
companies. The disposal is free of charge for the user. Protect
the environment and dispose of this appliance properly.

PLG 20 C1 GB│IE │ 13 ■
Your local community or municipal authorities can
provide information on how to dispose of the worn-out
product.
Do not dispose of batteries in
your normal household waste!
Defective or worn-out rechargeable batteries must be
recycled according to Directive 2006/66/EC. Batteries/
rechargeable batteries must be treated as hazardous waste and
must therefore be disposed of in an environmentally sound manner
by appropriate bodies (dealers, specialist dealers, public municipal
bodies, commercial disposal companies). Batteries/rechargeable
batteries may contain toxic heavy metals.
For this reason, do not dispose of batteries/rechargeable batteries
in domestic waste. Take them to a specialist collection point. Only
return batteries that are fully discharged.
The packaging is made from environmentally friendly
material and can be disposed of at your local recycling
plant.
Dispose of the packaging in an environmentally friendly
manner. Note the labelling on the packaging and sepa-
rate the packaging material components for disposal if
necessary. The packaging material is labelled with ab-
breviations (a) and numbers (b) with the following meanings:
1–7: plastics, 20–22: paper and cardboard, 80–98: composites.
The product is recyclable, subject to extended producer
responsibility and is collected separately.

PLG 20 C1
■ 14 │ GB│IE
Notes on the EC declaration of conformity
This appliance complies with the basic requirements and other
relevant provisions of the Electromagnetic Compatibility Directive
2014/30/EU and the Low-Voltage Directive 2014/35/EU.
The complete original Declaration of Conformity is available from
the importer.
RoHS Directive
(2011/65/EU)*
* The manufacturer bears the full responsibility for compliance with this
conformity declaration. The object of the declaration described above
complies with the requirements of the Directive 2011/65/EU of the
European Parliament and Council of 8 June 2011 on the limitations of use
of certain dangerous substances in electrical and electronic appliances.
