PASCO PS-3211 User manual

Reference Guide
013-14971A
Wireless Voltage Sensor
PS-3211
®
800-772-8700 (US) [phone]
www.pasco.com [email protected]
Hardware
Introduction
The Wireless Voltage Sensor is a combination wireless
and USB sensor that connects to a computer or tablet
device through , and can also connect to a
computer with a USB cable (included). The sensor
measures voltage in the range between -15 volts (V) and
+15 V. The sensor has built-in overload protection. The
PASCO Data Collection Software will display and ana-
lyze the measurements from the sensor. NOTE: The
software also supports “remote data logging” for long
term experiments.
The sensor is designed to optimize the battery usage
time. Since each sensor has a unique Device ID
number, more than one can be connected to a computer
or tablet at the same time.

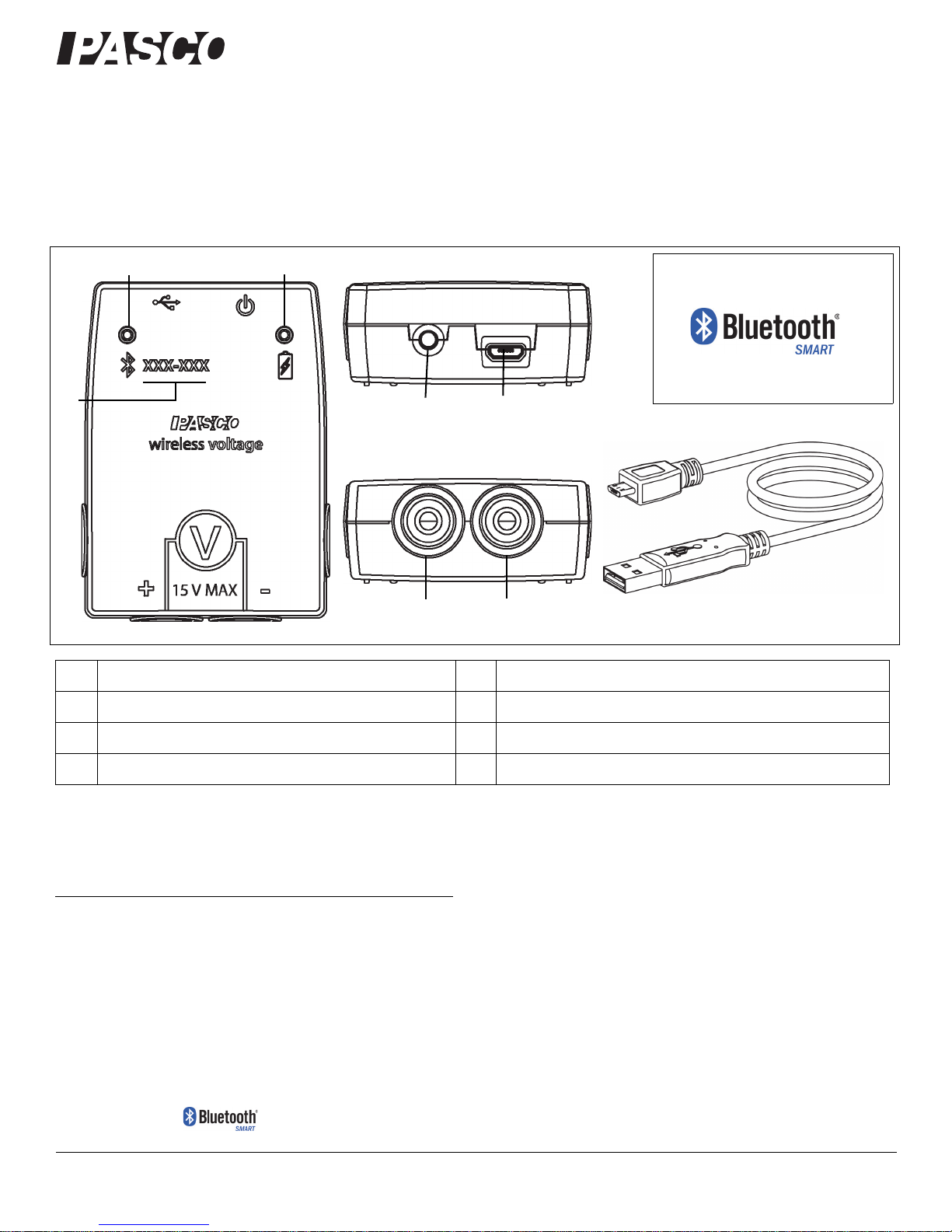

1Device ID Number 5 Micro USB Port
2Bluetooth Status LED 6 Red Test Lead Jack
3Battery Status LED 7 Black Test Lead Jack
4ON Button 8 Micro USB Cable
5
4
Power: Rechargeable Battery
OR
USB Cable
8
Connection:
3
2
67
1
Included Equipment Part Number
Wireless Voltage Sensor PS-3211
Micro USB Cable (1 meter)
Test Leads, Shrouded (Red/Black)

®
Wireless Voltage Sensor PS-3211
2013-14971A
Data Collection Software
See the PASCO Web page at
www.pasco.com/software
for help in selecting the right PASCO software and to
check the latest versions.
Software Help
See the SPARKvue Help or PASCO Capstone Help for
information about collecting, displaying, and analyzing
data.
• In SPARKvue, select the HELP button in any screen
including the Home Screen.
• In PASCO Capstone, select PASCO Capstone Help
from the Help menu, or press F1.
Compatibility
Check the PASCO Web page at
www.pasco.com/compatibility
for the latest information.
See Appendix A for more information about the PS-3500 Adapter and
Mac OS X models.

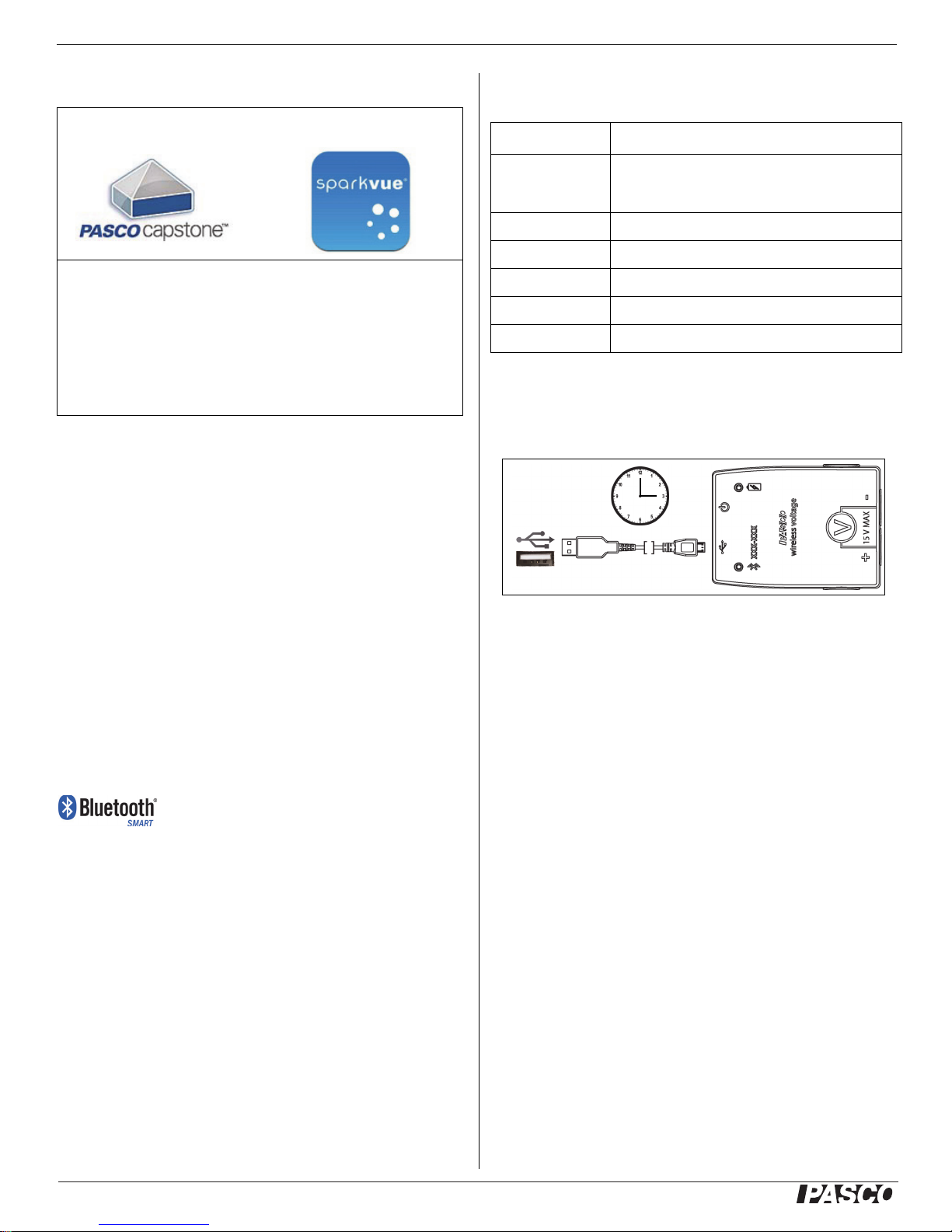

Initial Step: Charge the Battery
• Connect the Cable: Use the Micro USB Cable to
connect the micro USB port on the back end of the
Wireless Voltage Sensor to a USB port or USB
charger such as the PASCO PS-3501 USB
Charging Station. See the diagram.
• Charging begins automatically. The charger circuit
inside the sensor turns itself off when the unit is fully
charged.
• The battery status LED will shine yellow as the
battery is charging, and will shine green when the
battery is charged.
• The battery is partially charged at the factory. Initial
charging time may be three hours or longer
depending on the power source.
ON/OFF Information
To turn the sensor off, press and hold the ON button on
the back end of the sensor for a moment until the status
LEDs stop blinking. The Wireless Voltage Sensor puts
itself to sleep after several minutes of inactivity if not
connected and about one hour of inactivity if connected.
PASCO Capstone SPARKvue
• Mac OS X • Mac OS X
• Windows • Windows
•iOS
•Android
• Chromebook
Platform Bluetooth SMART Compatibility
iOS iPad 3 and later
iPhone 4S and later
iPod touch 5 and later
SPARK Element All models
Android Android 4.3 and later
Chromebook Chrome OS (requires PS-3500 Adapter*)
Mac OS X Models introduced July 2011 or later*
Windows Windows 7 and later (requires PS-3500 Adapter*)

®
Set Up the Hardware PS-3211
3
013-14971A
LED Information
The Bluetooth and the Battery Status LEDs operate as
follows depending on the type of connection:
For a wireless Bluetooth connection:
For a micro USB cable connection to a USB
port :
For a micro USB cable connection to a USB
charger
:
*Logging: PASCO wireless sensors can either stream
live data to a compatible device for “real-time” viewing or
log data (save it to the sensor’s memory). After logging,
the data can be uploaded to the computing device for
display and analysis at a later time. Logging capability
supports long-term or remote data collection while not
connected to a device.
Check the PASCO Web page at:
www.pasco.com/software
for the latest software version.
Set Up the Hardware
Connecting the Shrouded Test Leads to the
Sensor
• Connect the boot-shaped shrouded end of the red
test lead to the red voltage jack on the front end of
the sensor.
• Connect the end of the black test lead to the black
voltage jack on the sensor.

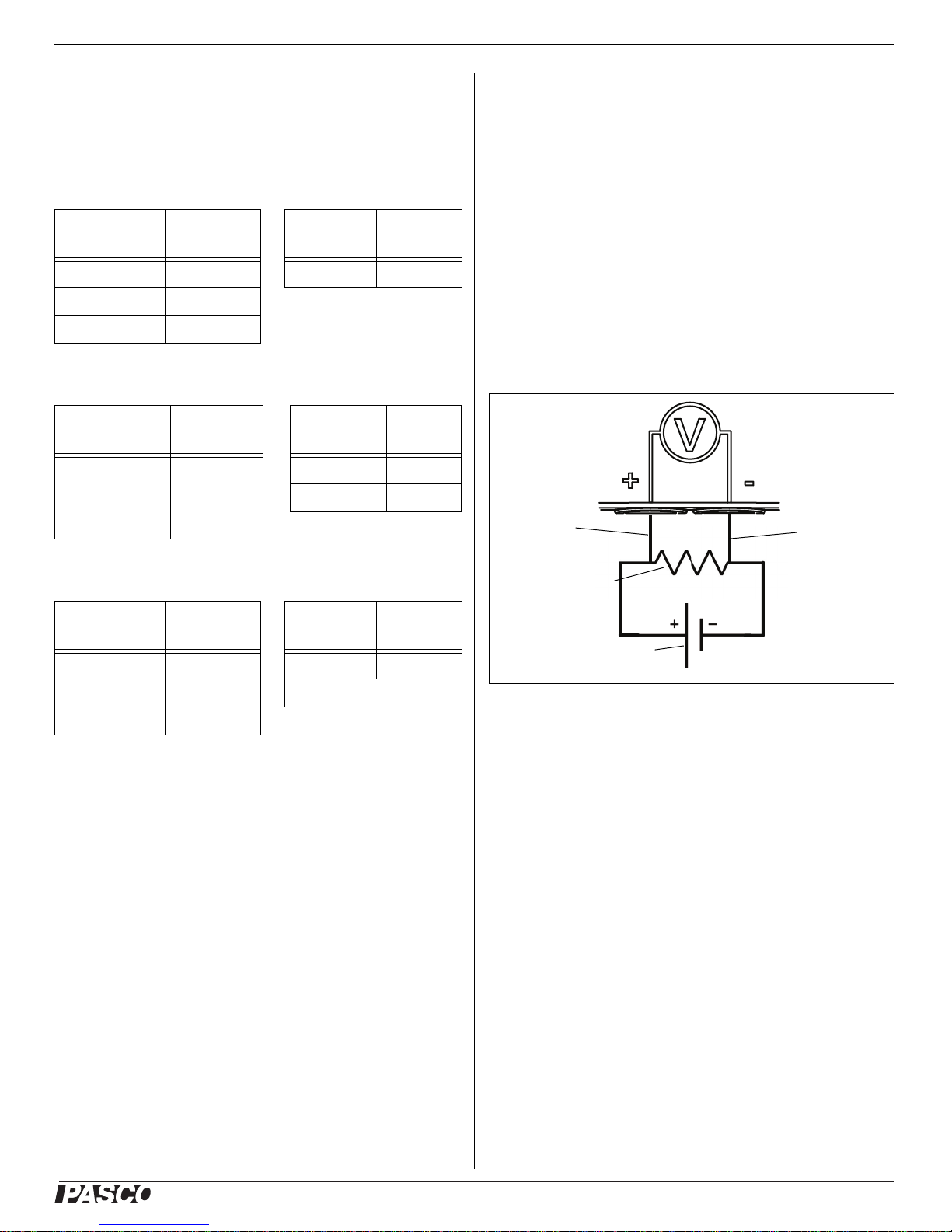

Connecting the Sensor for Measurement
Voltage is measured from one point to another point. For
example, voltage is measured “across” a component in a
circuit. The sensor is connected in parallel to the circuit;
not in series as a part of the circuit.
For example, in the diagram, the alligator clip of the red
test lead is connected to one end of a resistor that is in a
circuit with a battery. The alligator clip of the black test
lead is connected to the other end of the resistor. The
Wireless Voltage Sensor measures the “voltage drop”
across the resistor.
Set Up the Software
SPARKvue
Connecting the Wireless Sensor to a Tablet or a
Computer via Bluetooth
• For SPARKvue, select the Bluetooth icon to open
the Wireless Devices list. In the Wireless Devices
list, the sensors are ordered by proximity to the
device.
• Select the correct address that matches the
XXX-XXX number found on the sensor.
Bluetooth
LED
Status Battery
LED
Status
Red blink Ready to pair Red blink Low power
Green blink Connected
Yellow blink Logging*
Bluetooth LED Status Battery
LED
Status
OFF -- Yellow ON Charging
OFF -- Green ON Charged
Yellow blink Logging*
Bluetooth
LED
Status Battery
LED
Status
Red blink Ready to pair Yellow ON Charging
Green blink Connected Green ON Charged
Yellow blink Logging*
15 V MAX15 V MAX
Red Test
Lead
Black Test
Lead
Resistor Symbol
Battery Symbol

®
Wireless Voltage Sensor PS-3211
4013-14971A
• Select Done. A list of measurements appears under
the sensor in the Home Screen.
Connecting the Wireless Sensor to a Computer with the
Micro USB Cable
• Connect the micro end of the included Micro USB
Cable into the micro USB port on the end of the
sensor.
• Connect the other end of the Micro USB Cable to a
USB port on the computer, or into a powered USB
hub connected to the computer.
Collect Data
• In the SPARKvue Home Screen, select a
measurement from the list under the sensor’s name.
A graph of the measurement versus time opens.
• In SPARKvue, select the Start button to begin
collecting data.
PASCO Capstone
Connecting the Wireless Sensor to a Tablet or a
Computer via Bluetooth
• For PASCO Capstone, select Hardware Setup in the
Tools palette. The sensors in the list are ordered by
proximity to the wireless device.
• Select the sensor with the address that matches the
XXX-XXX Device ID number on the sensor.
Connecting the Wireless Sensor to a Computer with the
Micro USB Cable
• Connect the micro end of the included Micro USB
Cable into the micro USB port on the end of the
sensor.
• Connect the other end of the Micro USB Cable to a
USB port on the computer, or into a powered USB
hub connected to the computer.
Collect Data
• In PASCO Capstone, select a display in the main
window or from the Display palette. In the display,
use the <Select Measurement> menu to pick a
measurement to be shown.
• Select Record to begin collecting data.
Troubleshooting the Wireless Voltage Sensor
• If the Wireless Voltage Sensor loses Bluetooth
connection and will not reconnect, try cycling the ON
button. Press and briefly hold the button until the
status LEDs blink in sequence, and then release the
button. Start the sensor in the usual way.
• If the sensor stops communicating with the
computer software or tablet application, try
restarting the software or application.
• If the problem remains, press and hold the ON
button for 10 seconds and then release. Start the
sensor in the usual way.
• Turn Bluetooth off and then turn it back on. Retry.
About the Battery
The Wireless Voltage Sensor’s battery is partially
charged at the factory. If the battery status LED blinks
red, use the included micro USB cable to connect the
sensor to a USB port or a USB charger.
Battery Usage
Battery life is very important to making the sensor simple
and always ready to use, so all of the PASCO wireless
products are designed for long battery life. For example,
the sensor turns itself off after a few minutes of inactivity
to conserve battery life.
The battery life between charges for the sensor varies
depending on the sampling rate. The battery life ranges
between eleven hours for high sample rates to more
than 70 hours for low sample rates.
In typical classroom/lab use, this would translate to a
battery life between charges ranging from one to four
weeks or more, because full-day continuous sampling
would be unusual. Even in the most extreme case with a
high sample rate, the Voltage Sensor battery would
support a full day of use before needing to recharge.
Maximizing Battery Life
One of the factors that affects battery life is the storage
temperature. Therefore, avoid storing the sensor in very
cold or very hot environments.
Suggested Experiments
Practically any experiment that uses a voltage
measurement can be done with the PS-3211 Wireless
Voltage Sensor. See the PASCO Web site at
www.pasco.com/products/lab-manuals

®
Technical Support PS-3211
5
013-14971A
and also select “Training & Resources” at the top of the
page for more information about experiments.
Or, enter “voltage” into the Search window at
www.pasco.com
Specifications
Accessories
• PS-3501 10 Port USB Charging Station
• SE-6484 Ergopedia Electric Circuits and Electronics
Teacher Resources
• EM-8622 Basic Electricity Lab
• UI-5210 Resistor Capacitor Inductor Network
Technical Support
For assistance with any PASCO product, contact
PASCO at:
The Reference Guide will be updated periodically. For
the latest revision of this Reference Guide, visit the
PASCO Web site at
www.pasco.com/manuals
and enter the product number, PS-3211, in the text
window.
Replacement Parts
For information about possible replacement parts,
contact Technical Support:
• USB Cable, Micro-to-USB A
• Shrouded Test Leads (Red/Black)
Limited Warranty
For a description of the product warranty, see the PASCO catalog. For
more information visit www.pasco.com/legal
Copyright
This PASCO scientific
Reference Guide is copyrighted with all rights
reserved. Permission is granted to non-profit educational institutions for
reproduction of any part of this manual, providing the reproductions are
used only in their laboratories and classrooms, and are not sold for profit.
Reproduction under any other circumstances, without the written consent
of PASCO scientific, is prohibited. Version 23-07-2016.
Trademarks
PASCO, PASCO scientific, PASCO Capstone, PASPORT, and
SPARKvue are trademarks or registered trademarks of PASCO scientific,
in the United States and/or in other countries. All other brands, products,
or service names are or may be trademarks or service marks of, and are
used to identify, products or services of their respective owners. For more
information visit www.pasco.com/legal.
FCC Statement
This Class A digital device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
CE Statement
This device has been tested and found to comply with the essential
requirements and other relevant provisions of the applicable EU
Directives.
Product End of Life Disposal Instructions:
This electronic product is subject to disposal and recycling regulations that
vary by country and region. It is your responsibility to recycle your
electronic equipment per your local environmental laws and regulations to
ensure that it will be recycled in a manner that protects human health and
the environment. To find out where you can drop off your waste equipment
for recycling, please contact your local waste recycle/disposal service, or
the place where you purchased the product.
The European Union WEEE (Waste Electronic and
Electrical Equipment) symbol (to the right) and on the
product or its packaging indicates that this product
must not be disposed of in a standard waste
container.
Item Value
Range ±15 V
Input Voltage Protection 250 V AC
Input Resistance >1 megaohm
Battery Rechargeable
Lithium-Polymer.
Expected life of 3 to 4
months on a single charge
with normal use.
Connectivity Bluetooth SMART or USB
Max Wireless Range 30 m (unobstructed)
Max Sample Rate 1000 samples/second via
Bluetooth.
100,000 samples/second
via USB in burst mod.e
Address: PASCO scientific
10101 Foothills Blvd.
Roseville, CA 95747-7100
Phone: [phone] (worldwide)
8700-772-8700 (U.S.)
Web: www.pasco.com/support
Email: [email protected]

®
Wireless Voltage Sensor PS-3211
6013-14971A
Battery Disposal Instructions:
Batteries contain chemicals that, if released, may affect the environment
and human health. Batteries should be collected separately for recycling,
and recycled at a local hazardous material disposal location adhering to
your country and local government regulations. To find out where you can
drop off your waste battery for recycling, please contact your local waste
disposal service, or the product representative.
The Lithium Polymer (Li-Poly) rechargeable battery used in this product is
marked with the International symbols to indicate the need for the
separate collection and recycling of batteries.
Appendix A: Compatibility
Check the PASCO Web page at
www.pasco.com/compatibility
for the latest information on Bluetooth SMART
compatibility.
*The PS-3500 USB Bluetooth 4.0
Adapter, when connected to a USB
port, allows up to three Bluetooth
SMART devices, such as this PASCO
wireless device, to connect to Windows
computers, Chromebooks, and older
Macintosh computers.
Note: The PS-3500 USB Bluetooth 4,0
Adapter is the only adapter we can currently
recommend. Many other Bluetooth 4.0 adapters are
available but this adapter has a specific design that
enables in-app pairing of Bluetooth SMART sensors.
1To check the Mac computer’s Bluetooth compatibility,
do the following:
• Click the  (Apple) Menu.
•Select
About This Mac
• Click the More Info ... button.
• Click the
System Report ... button.
•Select
Bluetooth from the sidebar on the left,
underneath
Hardware .
• Scan down the list of information until you find “LMP
Version”.
• If your Mac is equipped with Bluetooth SMART, the
LMP Version will show 0x6. (Anything lower than
0x6 means an older version of Bluetooth. Your
device will need the PS-3500 USB Bluetooth 4.0
Adapter.)
1The Mac Mini and MacBook Air were updated with
Bluetooth SMART support in 2011. The MacBook Pro
was updated in 2012. The Mac Pro that debuted in
December 2013 has Bluetooth SMART support.
Exception: Before you upgrade to El Capitan (Mac OS X
10.11.x), if you have a Macintosh with LMP version “0x4”
that requires the PS-3500 USB Bluetooth 4.0 Adapter,
please contact PASCO Technical Support for further
instructions.
What is Bluetooth SMART®?
Bluetooth SMART (also known as Bluetooth Low Energy
or Version 4.0 of the Bluetooth specification) is the latest
protocol of the proprietary open wireless technology
standard created by telecoms vendor Ericsson in 1994.
It is the power- and application-friendly version of
Bluetooth that was built for the Internet of Things (IoT).
Platform Bluetooth SMART Compatibility
iOS iPad 3 and later
iPhone 4S and later
iPod touch 5 and later
SPARK Element All models
Android Android 4.3 and later
Chromebook Chrome OS (requires PS-3500 Adapter*)
Mac OS X1Models introduced July 2011 or later
Windows Windows 7 and later (requires PS-3500 Adapter*)
PS-3500 USB
Bluetooth 4.0
Adapter
