Paslode 3250-F16 Quick start guide

MODEL 3250-F16
FINISH NAILER
IMPORTANT!
DO NOT DESTROY
Always refer to safety and maintenance
manual #403606 for detailed information on
this tool. It is the customer's responsibility to
have all operators and service personnel
read and understand this information.
TOOLSCHEMATICAND PARTS
P

45 091622 1 Reducing Pipe Bushing
46 004502 2 Socket Head Capscrew, #10-32 x 5/8"
47 403746 1 Rail Bracket Assembly
48 402731 1 Logo-Rail
49 092037 2 Lock Nut, #10 - 32
50 091966 1 O-Ring, Sleeve
➔51 500766 1 Guide Block
➔*52 500772 1 Spring, Work Contacting Element
➔53 500768 1 Intermediate Work Contacting Element
➔54 004224 2 Socket Head Capscrew, #10 - 32 x 3/8"
55 004238 2 Lock Washer #10
56 402629 1 Hardened Washer
57 405076 1 Spring
58 403712 1 Front Guide Latch Assembly
59 403724 1 Rail Cover Assembly
60 403708 1 Negator Assembly
61 403710 1 Roller, Negator
62 403702 2 Wear Strip
63 403745 1 Rail Assembly
➔64 500840 1 Work Contacting Element Assembly
65 404180 1 Tip, Deep Drive (Black)
66 403715 1 Follower Assembly
67 403711 1 Latch Pin, Follower
68 091536 1 Spring, Follower Latch Pin
69 403713 1 Retaining Ring
70 404243 4 Spacer
71 500488 1 Grip, Handle
72 404274 1 Washer
73 403812 2 Flat Washer
74 009397 2 Capscrew #10-24 x 1/2"
**75 500458 1 Warning Label
77 401988 1 Spring, Front Guide Latch
78 094295 1 "O" Ring
79 404054 1 Seal, Main Valve
*80 090927 1 "O" Ring, Main Valve
*81 092775 1 "O" Ring, Main Valve
*82 092773 1 "O" Ring, Main Valve
83 404056 1 Lower Valve Piston
84 403599 1 Spacer
85 403731 1 Rivet
86 405147 1 Lever, Trigger
87 005849 1 Roll Pin
88 405243 1 Flange, Sleeve
89 403716 3 Socket Head Capscrew 10-32 x 5/16"
1091362 4 Socket Head Capscrew, 1/4-20 x 1-1/2"
2002187 4 Lock Washer, 1/4"
3091447 4 Flat Washer
4404242 1 Cap, Diffuser
5006310 1 Socket Head Capscrew, #6-32 x 1/2"
6402704 1 Cap
7402717 1 Conical Spring
8404230 1 Retaining Ring
*9 091537 1 "O" Ring, Main Valve Assembly
10 404122 1 Upper Valve Piston
11 404055 1 Post, Main Valve
*12 404256 1 "O" Ring, Main Valve Post
*13 402723 1 "O" Ring, Piston
14 403563 1 Piston
15 403582 1 Jam Nut
*16 403594 1 Driver Blade
17 402725 1 Seal, Sleeve
18 405245 1 Sleeve
*19 402728 1 "O" Ring, Flange
*20 402729 1 "O" Ring, Sleeve
21 403854 1 Retaining Bumper
*22 403853 1 Bumper
23 403705 1 Seal, Driver Blade
*24 402707 1 Gasket, Cap
25 402701 1 Housing
26 404939 2 Logo, Housing
➔27 500883 1 Nameplate
28 402708 1 Gasket, Flange
29 402706 1 Flange
30 091545 4 Socket Head Capscrew, 1/4-20 x 7/8"
31 405144 1 Trigger
32 402079 1 Pin, Trigger
33 404325 1 Stop Nut
34 026133 2 Roll Pin, 1/8" Dia. x 1" Lg.
35 402730 1 Pivot Pin, Front Guide
36 404698 2 Roll Pin, Assembly
37 403592 1 Front Guide
38 403591 1 Back Plate
39 401958 1 Valve Body
*40 092174 1 "O" Ring, Valve Body
41 097746 1 Valve Pin
42 097748 1 Spring, Valve Pin
*43 091591 1 "O" Ring, End Plug
44 401940 1 End Plug
* Denotes normal wear items
** Make sure Warning Label (500458) is properly affixed.
Replace if necessary. Label available at no charge
through Service Department.
▲ Apply Loctite 242 (Blue)
➔ Denotes New Change
PARTS LEGEND 3250-F16, 403700

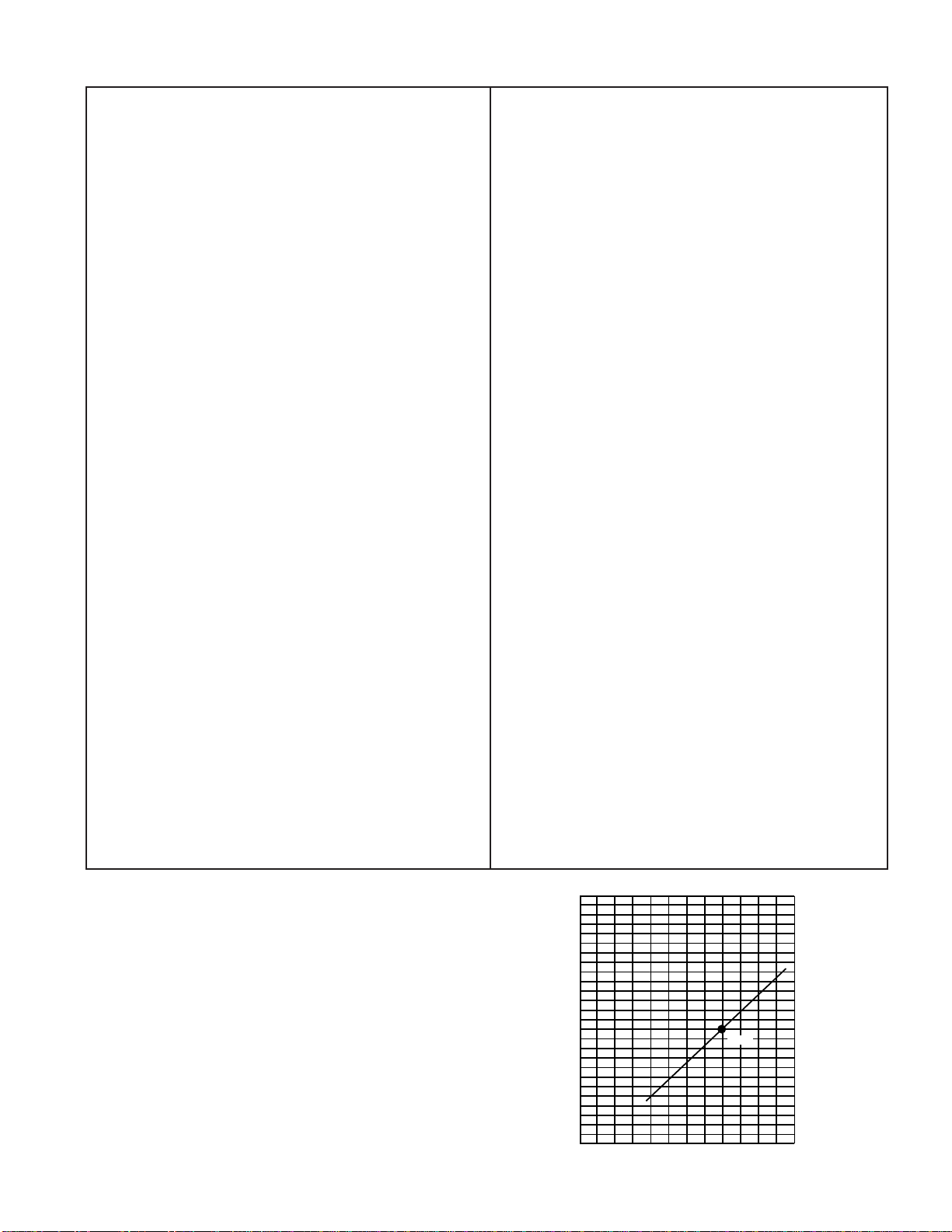

AIR CONSUMPTION CHART
AIR CONSUMPTION - SCFM/FASTENER
70 80 90 100 110 120
.050
.045
.040
.035
.030
.040
AIR PRESSURE - PSIG

Trigger
Assembly
#402408
3250-F16
403700
WARNING
All parts must be periodically inspected and replaced if worn or broken. Failure to do
this can affect the tool's operation and present a safety hazard.
Main Valve
Assembly #404188
Cap
Assembly
#402709
Piston Assembly
#404344
75
62
68
67
48
64
65
59
71
5
4
3
89
89
34 51 53
52
55
BS013
BS134
BS-031
BS027
BS027

Safety Glasses
Clear Part No. 402510
Tinted Part No. 402512
Degreaser Cleaner
Ideal cleaner for all Paslode tools. Part No. 219086
Finish Nailer Repair Kit
This kit repairs all air leaks except for the trigger valve.
Part No. 219221
Trigger Valve Repair Kit
This kit repairs trigger valve air leaks.
Part No. 219224
ACCESSORIES
Sequential Operating Kit
This special attachment is designed for sequential operation ("stops contact firing").
The operator must depress and hold the work contacting element against
the work surface before pulling the trigger. This sequencemust be repeated each
time the tool drives a fastener. Part No. 406006
Remote Fire Valve
This valve via a positive air signal allows a machine mounted tool
to be operated from an automatic air valve or foot pedal system. Part No. 1x0713
Printed in U.S.A.
© 2002, Illinois Tool Works, Inc.
An Illinois Tool Works Company
888 Forest Edge Dr.
Vernon Hills, Illinois 60061
Never use any bottled air or gases
such as oxygen to operate the
tool since they could cause the
tool to explode.
400586-26
08/02
Always wear hearing protection and eye
protection devices, including side shields
when operating or working in the vicinity
of a tool.
60
0
120
60
0
120
Operate the tool using only the
recommended air pressure. Do not exceed
the maximum air pressure marked on the
tool. Be sure the air pressure gauge is
operating properly and check it at least twice
a day.
SAFETY INSTRUCTIONS
WEAR EYE AND HEARING PROTECTION DO NOT EXCEED MAXIMUM
RECOMMENDED AIR PRESSURE
Lubricants and Loctite
Chemplex 710 Lubricant 1 lb. Part No. 403734
Lubricating Oil 8 oz. Part No. 219026
Lubricating Oil with Antifreeze Part No. 219090
Loctite 242 (Blue) 1 oz. Part No. 093500
Back Plate Insert
This insert accommodates 1 1/4" and shorter finish nails. Also
prevents nails from tumbling and jamming. Part No. 1X1210
Universal Belt Hook
Attaches to cap of tool enabling you to carry tool on belt holder
(offered below). Part No. 219017
Belt Hook Holder
Attaches to work belt and carries tool using the above belt hook.
Part No. 219028
