PEERLESS PRS SERIES PRS-KIT0811 User manual

PRS Series Adjustable Extension
Projector Mount Kit
For Multimedia Projectors up to 25 lb (11 kg)
The PRS Series Projector Mount adjustable height ceiling kits provide an all in one solution for
quick and easy installations where variable drop length is needed. The kitted ceiling mount is
available in three adjustable sizes to accommodate various desired drop lengths. It can be
mounted to any common ceiling structure, and can be ush mounted where a low-prole
application is needed. The PRS adjustable height kits are specically designed to save time
and money when mounting projectors.
EFFORTLESS PROJECTOR
MAINTENANCE
With its intuitively designed
quick-release thumbscrew that
smoothly unwinds to enable
easy-glide removal of the
projector in and out of the
mount. No tools required.
Max load: 25 lb (11 kg)
PRS-KIT0811
PRS-KIT1420
PRS-KIT2026
Comes in three
adjustable height ranges
(in 1" increments):
PRS-KIT0811:
8"-11" (203-297 mm)
PRS-KIT1420:
14"-20" (356-508 mm)
PRS-KIT2026:
20"-26" (508-660 mm)
 Pre-assembled design
reduces installation time
Cable management allows
cables to be routed through
projector mount out of sight
Quick-release mechanism to
easily service projector
Ceiling plate is included
in the box for an all in one
mounting solution
Includes PRS Series Projector
Mount for quick and precise
image alignment
 Specications:
Tilt: +5°/ -20°
Roll: ±10°
Swivel: 360°
CLICK: www.peerlessmounts.com CALL: 800.865.2112 FAX: [phone]
FEATURES
ACHIEVE PRECISE
HEIGHT RANGE
Comes in three adjustable
height ranges in 1" increments
IMAGE ALIGNMENT MADE EASY
Includes PRS Series Projector
Mount that features four
independent adjustment points
allowing for quick and precise
image alignment
UNIVERSAL COMPATIBILITY
Includes the Spider®Universal
Adapter Plate which extends
up to 17.63" (448 mm) to t most
projector models

Package Specifications
Accessories
DIMENSIONS (W x H x D)
with adapter plate PRODUCT WEIGHT LOAD CAPACITY FINISH AVAILABLE COLORS
PRS-KIT0811 8.5-17.63” x 9.66”-12.66” x 8.41-13.34”
(216-448 x 245-320 x 216-448 mm) 6.18 lb (2.8 kg)
25 lb (11 kg)
Scratch
resistant
fused
epoxy
Black
PRS-KIT1420 8.5-17.63” x 15.66”-21.66” x 8.5-17.63”
(216-448 x 398-550 x 216-448 mm) 8.18 lb (3.71 kg)
PRS-KIT2026 8.5-17.63” x 21.66”-27.66” x 8.5-17.63”
(216-448 x 550-703 x 216-448 mm) 10.18 lb (4.62 kg)
Product Specifications
Model Numbers WARRANTY: Limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
AssembThe Universal Projector Ceiling Mount shall be a Peerless model PRS-KIT0811; PRS-KIT1420; PRS-KIT2026 and shall be located where indicated on the plans.
It shall feature 25°(+5°/-20°) pitch, 20°(+10°) roll, 360° yaw. It shall have a 25 lb load capacity. It shall have a quick release spring loaded screw for easy removal
and installation of the projector. It shall be constructed of aluminum alloy nished in black. Assembly and installation shall be done according to instructions
provided by the manufacturer.ly and installation shall be done according to instructions provided by the manAufacturer.
CMJ Models, ACC570, ACC571, ACC912: Ceiling Kits
ACC840/845: Anti-Vibration Mount
Visit peerlessmounts.com to see the full line of Peerless LCD/plasma, projector and TV/monitor mounts. © 2009 Peerless Industries, Inc. All rights reserved.
Peerless Industries, Inc. 3215 W. North Avenue Melrose Park, IL 60160 [phone] [phone] Fax: [phone] www.peerlessmounts.com
All dimensions = inch (mm)
ACC800/850 & ACC852/856: Cable Management Adapter
ACC830: Side-to-Side Adjuster
PRS-KIT0811 PRS Series Adjustable Extension Kit 8"-11" (203-297 mm)
PRS-KIT1420 PRS Series Adjustable Extension Kit 14"-20" (356-508 mm)
PRS-KIT2026 PRS Series Adjustable Extension Kit 20"-26" (508-660 mm)
LIT-0383
PACKAGE SIZE
(W xH xD)
PACKAGE
SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN
PACKAGE
PRS-KIT0811 12.25” x 9.625” x 4”
(311 x 244 x 1016 mm) 7.18 lb (3.26 kg)
735029238140
Ceiling plate, adjustable extension columns, PRS Series
Projector Mount, Spider® Universal Adapter Plate,
mounting and projector attachment hardware,
assembly instructions
1
PRS-KIT1420 14.5” x 6.5” x 4”
(368 x 165 x 101 mm) 9.18 lb (4.16 kg) 735029238157
PRS-KIT2026 14.5” x 6.5” x 4”
(368 x 165 x 101 mm) 11.18 lb (5.07 kg) 735029238164

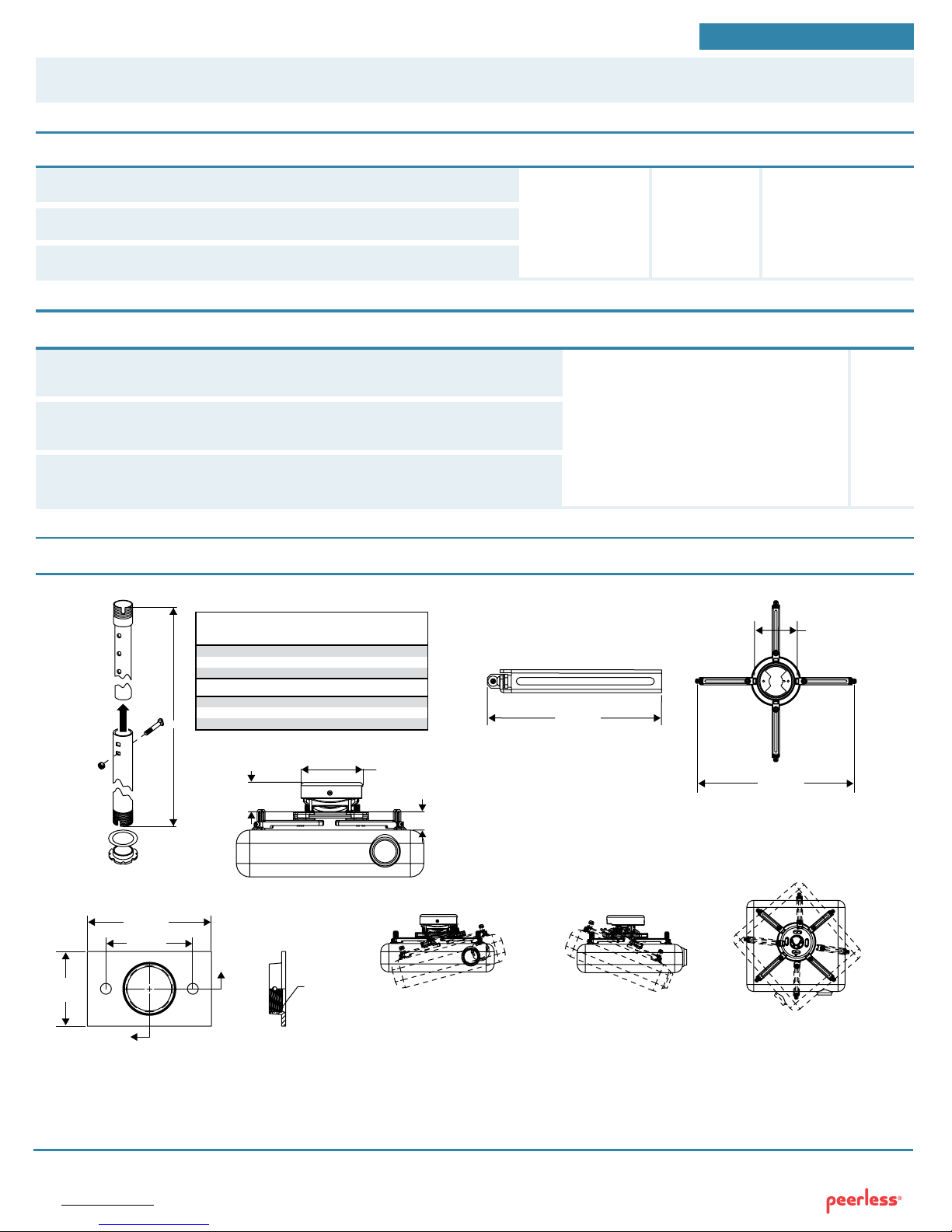

[122 mm]
4.79"
[448 mm]
17.63"
[160 mm]
6.29"
TOP VIEW OF
ADAPTER PLATE
Y
1-1/2 x 11.5 NPT
3.5"
(89 mm)
5"
(127 mm)
3"
(76 mm)
2.22"
(56 mm)
4.63"
(118 mm)
X
FRONT VIEW
SIDE VIEW ROLL ±10° PITCH +5°/-20° YAW360 (WHEN ATTACHED (WHEN
ATTACHED TO AN EXTENSION COLAUMN),
+/- 15 (WHEN FLUSH MOUNTED).
TOP VIEW
(CELING PLATE DETAIL)
PRS-KIT0811�1.23" (31 mm) 2.23" (57 mm)
PRS-KIT1420�1.23" (31 mm) 2.23" (57 mm)
PRS-KIT2026�1.23" (31 mm) 2.23" (57 mm)
PRS-KIT0811�6" (152 mm) 9" (229 mm)
PRS-KIT1420�12" (305 mm) 18" (457 mm)
PRS-KIT2026�18" (457 mm) 24" (610 mm)
RANGE Y�MINIMUM MAXIMUM
RANGE X�MINIMUM MAXIMUM
PRS-KIT HEIGHT
