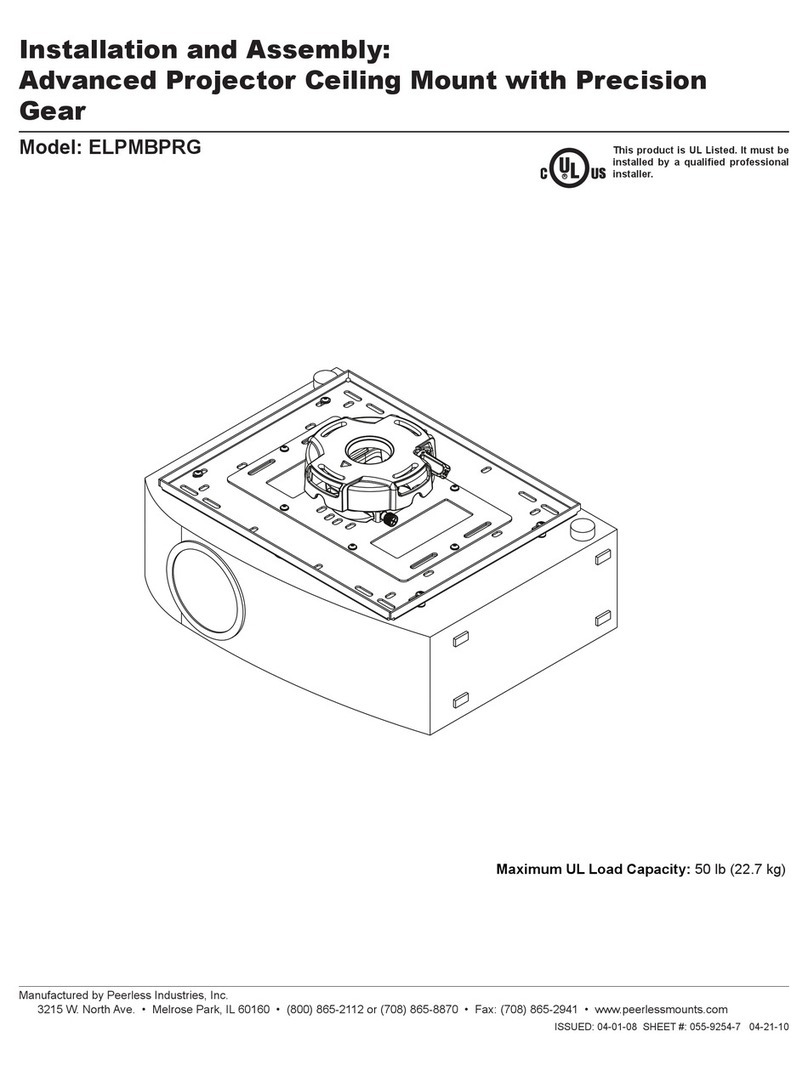

PEERLESS ELPMBPRG - Advanced Projector Ceiling Mount Guide

Installation and Assembly:
Advanced Projector Ceiling Mount with Precision Gear
Model: ELPMBPRG
3215 W. North Ave. • Melrose Park, IL 60160 • [phone] or [phone] • Fax: [phone] • www.peerlessmounts.com
Maximum UL Load Capacity: 50 lb (22.7 kg)
This product is UL Listed. It must be
installed by a qualified professional
installer.
R
Manufactured by Peerless Industries, Inc.
ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08

ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08
2 of 12
Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
NOTE: Read entire instruction sheet before you start installation and assembly.
• DonotbegintoinstallyourPeerlessproductuntilyouhavereadandunderstoodtheinstructionsandwarningscon-
tained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, call Peerless
customercareat1-800-729-0307.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Makesurethatthesupportingsurface will safely support the combined load of the equipment and all attached hard-
wareand components.
• Never exceed the maximum ULload capacity.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Thisproductisintendedforindooruseonly. Use of this product outdoors could lead to product failure and personal
injury.
• Tightenscrewsfirmly,butdo not overtighten. Overtightening candamagetheitems, greatly reducing their holding
power.Seesuggestedtorque values where applicablewithinthese instructions.
• When installing or adjusting the ceiling mount, do not use adhesives, lubricants or oils, to prevent the screws from
loosening. If you use adhesives, lubricants, or oils to prevent the screws from loosening, the casing may crack and the
projector may fall, causing serious injury and damage to the projector.
WARNING
Table of Contents
Parts List..............................................................................................................................................................................3
Installationto ExtensionColumn...........................................................................................................................................4
InstallationToWoodJoistCeilings .......................................................................................................................................5
InstallationtoConcreteCeilings............................................................................................................................................6
Installing Plates to Projector .................................................................................................................................................7
Installing Connection Block to Projector Mount Assembly....................................................................................................9
CableManagement .............................................................................................................................................................10
ProjectorAlignment ............................................................................................................................................................11
AccessoriesandWarrantyInformation ...............................................................................................................................12
Tools Needed for Assembly
•studfinder("edgeto edge" stud finder is recommended)
•phillipsscrewdriver
•drill
•1/4" bit for concrete surface
•5/32" bit for wood joist
•3/8" (10 mm) socket or open end wrench

ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08
3 of 12
Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
NOTE: Actualparts may appear slightly different than illustrated.
DE
L
FGI
H
JK
B
C
A
Parts List
Description Qty. Part Numbe
r
A
projector mount assembly 1 055-2804
Badapter plate 1 055-2806
Cdedicated adapter plate 1 055-2871
DM4 x 20 mm socket pin serrated washer head screw 4 510-2163
EM5 x 20 mm socket pin serrated washer head screw 4 510-2065
F3/8" spacer 4 590-2150
GM4 x 6 mm socket pin serrated washer head screw 6 510-2059
HAlligator
®
anchor 2 590-0097
I10-32 x 1/4'' socket pin screw with lock 1 520-2196
J4 mm security allen wrench 1 560-9646
Kwasher 2 540-1078
L#14 x 2.5'' wood screw 2 5S1-015-C04
Before you start check the parts list to ensure all of the parts shown are included.

ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08
4 of 12
Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
NOTE: Refertoaccompanying instructions forELPMBP01,ELPMBP02, ELPMBP03 orCMJand ACC SeriesCeiling
Mounts (sold separately) for installing these models to ceiling.
Screw projector mount assembly (A) onto extension column as shown in figure 1.1.
NOTE: Swivel stop screw is used to jam against threads of extension column or flush mount tube to prevent any
excessmovementof projectormountassembly(A) asshownin detail1. Donot overtightenscrew;overtightening
screw will damage threads making it difficult to separate products.
Skip to step 2.
1
Installation to Extension Column
SWIVELSTOP
SCREW
A
fig. 1.2
DETAIL 1
A
ARROW
INDICATES
FRONTOF
MOUNT
fig. 1.1
A
EXTENSION COLUMN
(UL Listed ELPMBC01 or UL Listed
EXT andADJ Series)
(Sold Separately)
NotShown: ULListedELPMBP01,ELPMBP02,ELPMBP03 orUL
Listed CMJ and ACC Series Ceiling Mounts (Sold Separately).

ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08
5 of 12
Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
Place projector mount assembly (A) on ceiling as a template and mark the center of the two mounting holes. Make
sure that the mounting holes are in the center of the wood joist. Drill two 5/32" (4 mm) dia. holes to a minimum
depth of 2.5" (64 mm). Attach projector mount assembly (A) with two #14 x 2.5" (6 mm x 65 mm) wood screws (L)
andtwoflat washers (K)asshownin figure 1.3 orfigure1.4depending on joistorientation.
NOTE:Mountingslotsonprojector mountassemblyallowfor30°(±15°)of swiveladjustmentbeforefullysecuring
woodscrews.
Tightenwoodscrews(L) using 3/8" (10mm)socketor open end wrenchorphillipsscrewdriver until projector mount
assembly (A) is firmly attached.
Skip to step 2.
LL
A
WOODJOIST
KK
WOODJOIST
A
ACCESSSLOTFOR
OPENENDWRENCH
ALLOWSTIGHTENING
OFWOODSCREW(L)
1
Installation To Wood Joist Ceilings
fig. 1.3 fig. 1.4
ARROW
INDICATES
FRONTOF
MOUNT
ARROW
INDICATES
FRONTOF
MOUNT
• Installermustverifythatthe supporting surface will safely support the combined load oftheequipmentandallattached
hardwareand components.
• Tightenwoodscrewssothat projector mount assembly is firmly attached,butdonotovertighten.Overtightening can
damagethescrews, greatly reducing theirholdingpower.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is
highlyrecommended.
• Hardwareprovidedisfor attachment of mount throughstandardthicknessdrywallor plaster into wood studs.Installers
areresponsibleto providehardwarefor other typesofmounting situations (notULapproved).
WARNING

ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08
6 of 12
Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
Place projector mount assembly (A) on ceiling as a
template and mark the center of the two mounting holes.
Drill two 1/4" (6 mm) dia. holes to a minimum depth of 2.5"
(64 mm). Attach projector mount assembly (A) using two
Alligator® concreteanchors(H),twoflat washers (K),and
two #14 x 2.5" wood screws (L) as shown in Illustration A
and 1, 2and 3).
NOTE:Mounting slots onprojectormount assemblyallow
for30°(±15°)ofswiveladjustmentbeforefullysecuring
woodscrews.
Tighten wood screws (L) using 3/8" (10 mm) socket or
openendwrenchorphillipsscrewdriveruntilprojector
mount assembly (A) is firmly attached.
Installation to Concrete Ceilings
1
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Makesurethatthesupportingsurface will safely support the combined load of the equipment and all attached hard-
wareand components.
WARNING
1
3
Drill hole and insert anchor
CONCRETE
CEILING
L
L
2A
H
H
H
Place mount over anchor and secure with screw and
washer
After repeating step one tighten all fasteners
CUTAWAYVIEW
INCORRECT
concrete
plaster/
drywall
CORRECT
concrete
plaster/
drywall
A
A
Illustration A
H
L
K
A
CONCRETECEILING
K
K
• Alwaysattachconcreteanchorsdirectly to load-bearing
concrete.
• Neverattachconcrete anchors toconcretecoveredwith
plaster, drywall, or otherfinishingmaterial.Ifmounting to
concretesurfacescovered with a finishing surfaceis
unavoidable,thefinishing surfacemustbecounterbored as
shown below. Be sure concrete anchors do not pull away
fromconcretewhentightening screws. If plaster/drywall is
thicker than 5/8", custom fasteners must be supplied by
installer(not ULapproved).
• Tightenwoodscrews firmly, butdonotovertighten.
Overtighteningcandamage the screws,greatlyreducing
theirholding power.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
WARNING
ARROW
INDICATES
FRONTOF
MOUNT

ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08
7 of 12
Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
2
Installing Plates to Projector
Adapter Plate: PowerLite 1700c, 1705c, 1710c,
1715c, 1810p, 1825, S5, 77c, 83+, 822+, S6, 78, W6
Use adapter plate (B) as shown. Continue to step 3.
2-Plate Horizontal Configuration: PowerLitePro
G5200WNL,G5350NL, G5150NL,6110i
Attach adapter plate (B) plate (C) using six M4 x 6
mm socket pin screws (G). G
B
C
2
• All spacers shall be used where indicated. Not using spacers can cause damage to projector.
• It is the responsibility of the installer to ensure that the projector is properly ventilated.
CAUTION
NOTE: ForallPowerLite®models,the manufacturer's product weight must bereviewedtoensurethat the weight does not
exceed 50 lbs.
B

ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08
8 of 12
Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
D. PowerLiteProG5350NL,
G5200WNL,G5150NL
A. PowerLite1700c,1705c, 1710c,
1715c C. PowerLite 6110i
Hole Patterns
C
D
B. PowerLite S5, 77c, 83+, 400W,
822+, 1810p, 1825, S6, 78, W6
2
NOTE:SHOULDER
INDICATESTHEBACKOF
ADAPTERPLATE(B)
FRONT
FRONT FRONT FRONT
FRONT
NOTE: Shoulderindicates back ofadapterplate(B)
Flip projector upside down. Find your projector model from the hole patterns listed below. Using the holes indicated on
thecorrespondinghole pattern diagram, attachadapterplate(B) toprojectorusingthe appropriate number of
M4 x 20 mm socket pin serrated washer head screws (D) and spacers (F).
NOTE:Retainingspacersgo betweenadapterplate and projector.
F

ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08
9 of 12
Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
CONNECTIONBLOCK
A
FRONTOFMOUNT
Slide connection block with projector into projector mount assembly (A) as shown. Tighten captive screw to secure
projectortoprojectormountassembly (A).
IMPORTANT: For security installations, insert one #10-32 x 1/4" socket pin screw (I) through projector mount
assembly (A) and into connection block as shown.
3
4
A
CONNECTIONBLOCK
• Always use an assistant or mechanical lifting equipment to safely lift and position the projector.
WARNING
Installing Connection Block to Projector Mount Assembly
CAPTIVE
SCREW
ARROW
INDICATES
FRONTOF
MOUNT
I

ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08
10 of 12
Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
Cable Management
To make an opening to route cables through
projector mount assembly, adjust projector mount
assembly to full upward tilt position and maximum
left or right roll position by turning knobs for
adjustments as shown in figure 5.1.
NOTE: Be certain tamper resistant screws are
not engaged before making adjustments (see
step 6-1).
Route cables through top of extension column as
showninfigure5.2andfigure5.3.
NOTE: Amethod for assisting cables through
extensioncolumn may be required (example: string
tied to connector to help pull through extension
column).
Route cables through projector mount assembly as
shown in figure 5.4 and connect to projector.
KNOBFORTILT
ADJUSTMENT
MAXIMUM
WIDTH
1-9/16"
(40 mm)
HEIGHTDIMENSION
WILLVARYDEPENDING
ONWIDTHDIMENSION
DONOT
CRIMP
WIRES
BENDWIRESOFRCA
PLUGSINOPPOSITE
DIRECTION
MAXIMUM DIMENSIONS
EXTENSIONCOLUMN
WILL ALLOW
fig. 5.4
fig. 5.1
KNOBFORROLL
ADJUSTMENT
OPENINGFOR
ROUTINGCABLES
ROUTE
CONNECTOR
THROUGH
FIRST
fig. 5.3
CABLES WITH COMBINATION
OFVGACONNECTOR
ANDRCA PLUGS
5
EXTENSION
COLUMN
fig. 5.2
