PEERLESS PAP 40 Guide

ISSUED: 07-31-01 SHEET #: 055-9029-5 08-05-04
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
1 of 2
IMPORTANT! Read entire instruction sheet
before you start installation and assembly.

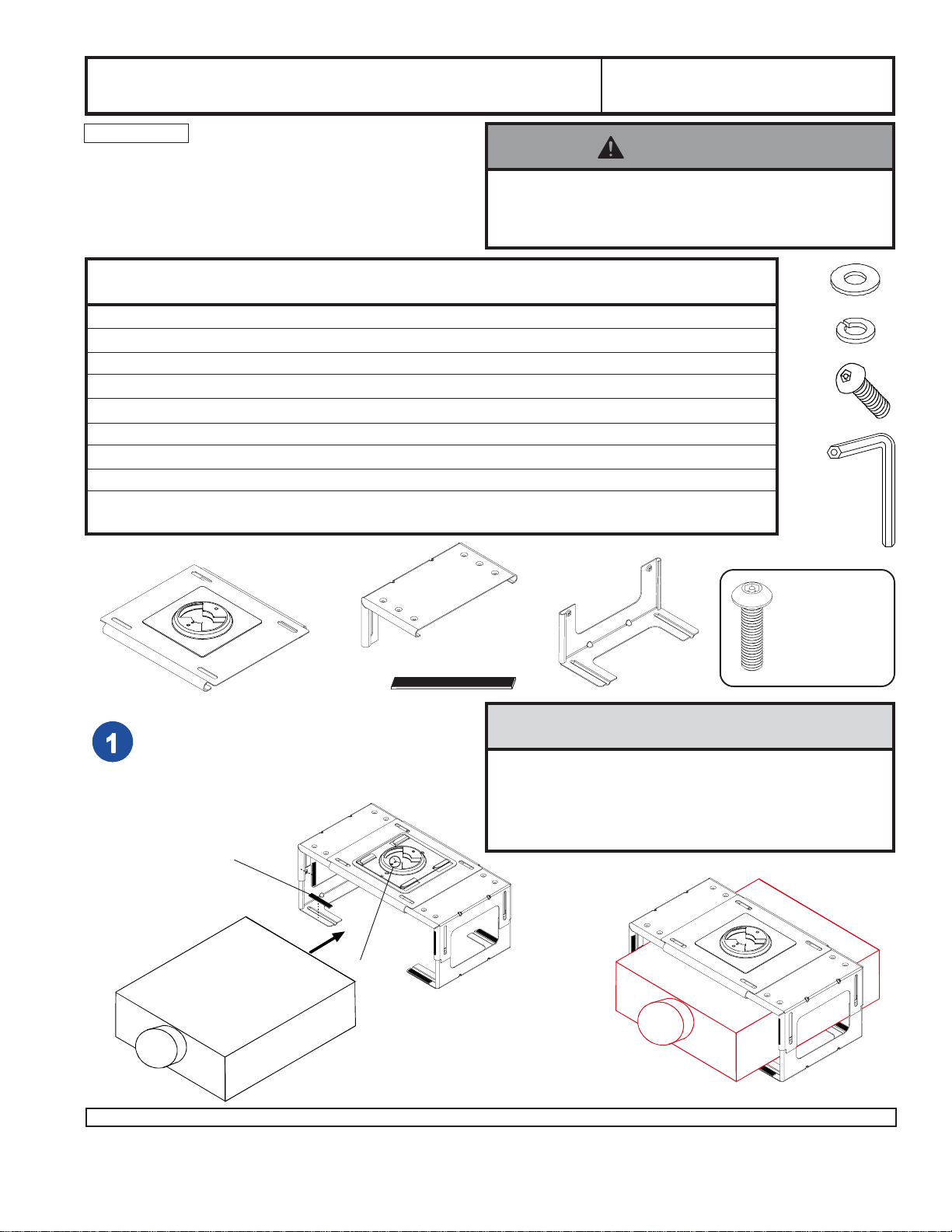

Installation andAssembly - Universal Projector Mount Models: PAP 40, PAP 40-S, PAP 40-W
PAP 45, PAP 45-S, PAP 45-W
Before you start check the parts list below to
make sure all of the parts shown are included.
Description
Atop plate 1 055-1093 055-4093 055-2093 055-1108 055-4108 055-2108
Bhorizontal slide 2 054-1094 054-4094 054-2094 054-1109 054-4109 054-2109
Cvertical slide 2 054-1095 054-4095 054-2095 054-1110 054-4110 054-2110
DM6 x 1 x 12 mm security screw 8 520-1050 520-2050 520-2050 520-1050 520-2050 520-2050
EVCR foam 3/8" x 12.75" x 1/8" 4 599-3802 570-0015 570-0015 599-3802 570-0015 570-0015
Fallen wrench 4 mm security 1 560-9646 560-9646 560-9646 560-9646 560-9646 560-9646
G1/4" Flat washer 8 540-9440 540-9444 540-9444 540-9440 540-9444 540-9444
H1/4" lock washer 8 540-9402 540-9447 540-9447 540-9402 540-9447 540-9447
I#10-32 x .75" socket pin screw 2 510-2128 510-2128 510-2128 510-2128 510-2128 510-2128
Parts List Qty. Model Model Model Model Model Model
PAP 40 PAP 40-S PAP 40-W PAP 45 PAP 45-S PAP 45-W
NOTE: *Notchindicatesfront.
CutVCR foam (E)to properlength to line
Universalmount assembly(as shown).
Placeprojector incenter ofUniversal mount
assembly (as shown in far right side).
Note: Actual parts may appear slightly different than illustrated.
C
B
D
E
F
H
G
IPRSMOUNT
FASTENERS
Refer to PRS mount
instructions for adapter
plate attachment.
A
• Installer must verify that the ceiling will safely support
fourtimes the combined weight of all attached equip-
mentandhardware.
WARNING
E
*
• Beforeinstallation, identify the location of all vents and
ports on the projector to ensure they will not be
obstructedby the universal mount. Blocked vents
may cause damage to the equipment.
CAUTION

ISSUED: 07-31-01 SHEET #: 055-9029-5 08-05-04
Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.
2 of 2
Slideboth horizontal slides (B) inward until left and
rightsides are against projector (as shown). Fasten
with four M6 screws (D), lock washers (H), and flat
washers (G). Note: Be sure to center top plate (A).
Tighten using 4 mm security allen wrench (F).
Slide top assembly downward until top and bottom sides
areagainst projector (as shown). Fasten with four M6
screws(D), lock washers (H), and flat washers (G). Tighten
using 4 mm security allen wrench (F).
B
D
D
F
F
G
H
GH
