PEERLESS A100WALLARM2 Guide

Maximum UL Load Capacity: 40 lb (18 kg)
3215 W. North Ave. • Melrose Park, IL 60160 • [phone] or [phone] • Fax: [phone] • www.peerlessmounts.com
ISSUED: 08-17-09 SHEET #: 090-9186-4 02-09-10
Installation and Assembly:

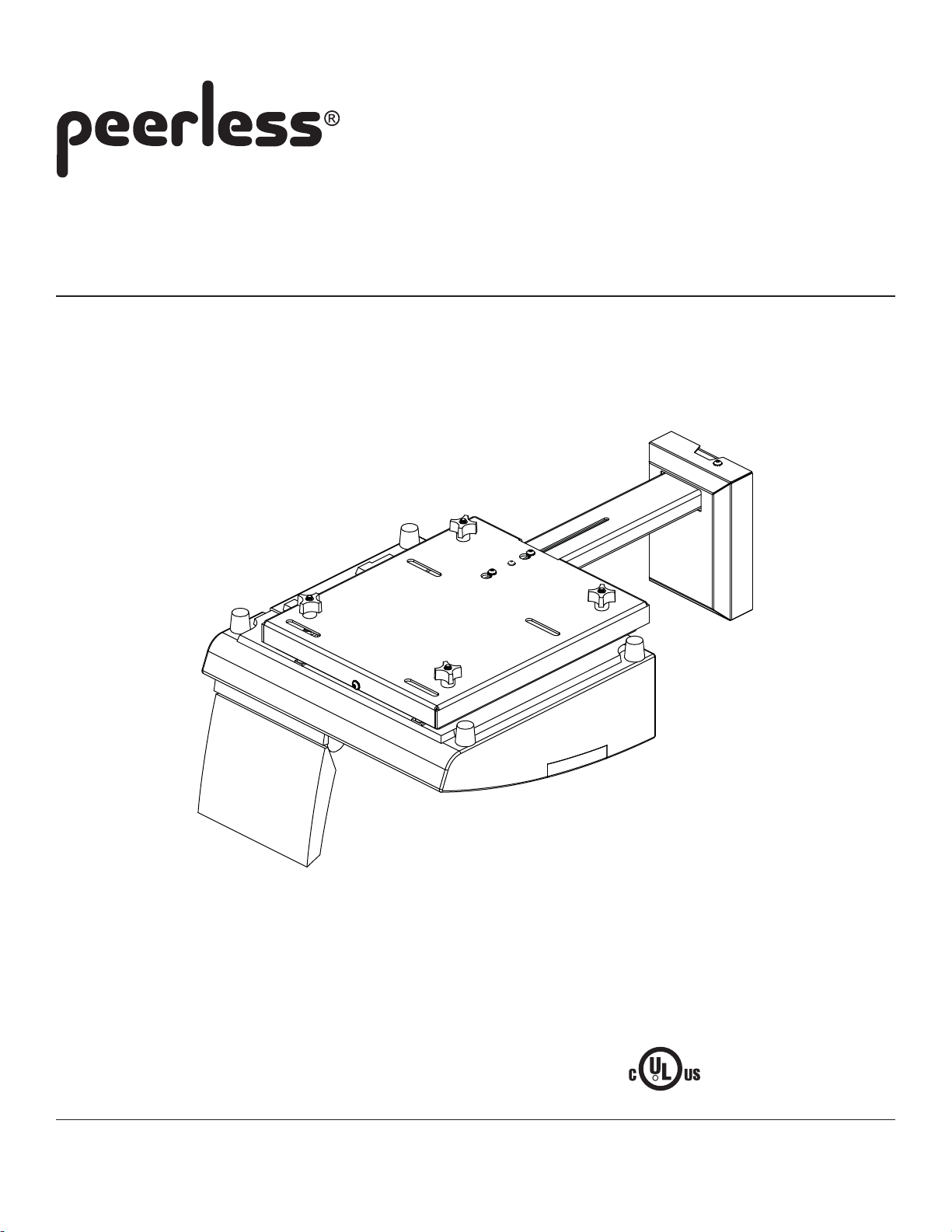

HITACHI PROJECTOR SHORT THROW WALL ARM
Model: A100WALLARM2
R
This product is intended for use with UL
Listed products and must be installed by a
qualified professional installer.

2 of 11 ISSUED: 08-17-09 SHEET #: 090-9186-4 02-09-10
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your
localdistributor.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardwareandcomponents.
• Never exceed the Maximum ULLoad Capacity. See page one.
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an
“edgetoedge” stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tightenscrewsfirmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
• This product was designed to be installed on the following wall construction only;
WALLCONSTRUCTION HARDWAREREQUIRED
• Wood Stud Included
• Wood Beam Included
• SolidConcrete Included
• CinderBlock Included
• Brick ContactQualifiedProfessional (Notevaluated by UL)
• Otherorunsure? ContactQualifiedProfessional
WARNING
Tools Needed for Assembly
•studfinder ("edge to edge" stud finder is recommended)
•phillipsscrewdriver
•drill
•1/4" bit for concrete and cinder block wall
•5/32" bit for wood stud wall
•level
•masking tape
•6mm allen wrench
Table of Contents
Parts List..............................................................................................................................................................................3
MountPositionandThrowDistance......................................................................................................................................4
TemplateInstructions............................................................................................................................................................4
Option 1 - Installation to Single Wood Stud Wall ..................................................................................................................5
Option 2 - Installation to Solid Concrete and Cinder Block Wall............................................................................................6
Attaching Wall Arm Assembly and Adapter Plate.................................................................................................................7
Attaching Projector to Adapter Plate..................................................................................................................................8-9
AdjustingtheProjector..................................................................................................................................................... 9-11

3 of 11 ISSUED: 08-17-09 SHEET #: 090-9186-4 02-09-10
Some parts may appear slightly different than illustrated.
Before you start make sure all parts listed are included with your product.
F
A
E
GH I J
K
BD
C
NL
O
M
Description Qty. Part #
Awall bracket 1 055-1951
Bwall arm assembly 1 055-1959
Ccover 1 055-1953
Dadapter plate assembly 1 055-1958
E#14 x 2.5 wood screw 4 5S1-015-C03
FM5 x 8 mm pan head screw 4 570-0005
GAlligator® concrete anchor 4 590-0097
H.25" ID x .5" OD x .25 spacer 4 590-1050
IM6 x 16 mm security screw 4 520-1132
JM5 x 25 mm security washer head screw 2 510-1122
K#10 washer 4 540-9400
Lwall plate 1 055-1956
MM10 x 15 mm socket screw 2 520-9262
NM5 x 12 mm security washer head screw 3 510-1064
O4 mm allen wrench 1 560-9646
wall template for A100WALLARM2 (not shown) 1 LIT-0406
PARTS LIST

4 of 11 ISSUED: 08-17-09 SHEET #: 090-9186-4 02-09-10
CENTEROFIMAGE ON
WHITEBOARD
NOTE: Use charts (see fig 1.1 or fig 1.2) below to determine the placement of projector in relation to mounting
location of wall arm and white board. Chart numbers will have a ±8% discrepancy due to the optics of the projector.
Mount Position and Throw Distance
fig. 1.1
SCREEN/WHITEBOARD
CENTER OF
WALLPLATE
The distance from the bottom of the wall plate to the top of the white board when applicable.
PROJECTOR
NOT SHOWN
FORCLARITY
THROW DISTANCE:
(Thedistancefromprojectoredgetoscreensurface)
3.6" (9.1 cm)
(Y)
(X)
(Z)
fig. 1.2
1
SIDE VIEW FRONT VIEW
Follow instructions on template to locate wall plate (L) mounting holes and location of starboard mounting brackets.
Template Instructions
2
TOPOFIMAGE
Table for 4:3 Screen Table for 16:9 Screen
Diagonal ScreenThrowDistance(Y)ImageOffset(Z)Diagonal ScreenThrowDistance(Y)ImageOffset(Z)
Height(X)Inchcm Inchcm Height(X)Inchcm Inchcm
60 36" 4 9.6 6.41 16.3 60 30" 5 13.7 12.41 31.5
70 42" 7 17.2 8.41 21.4 70 34" 9 22 15.41 39.1
80 48" 10 24.8 9.41 23.9 80 39" 12 30.2 17.41 44.2
90 54" 13 32.4 11.41 29 90 44" 15 38.5 19.41 49.3
100 60" 16 39.9 12.41 31.5 100 49" 18 46.6 22.41 56.9
**
*

5 of 11 ISSUED: 08-17-09 SHEET #: 090-9186-4 02-09-10
Using wall plate (L) as a template, drill four 5/32" (4 mm) dia. holes to a minimum depth of 2.5" (64 mm). Attach wall
plate (L) to centers of wood studs using four #14 x 2.5" wood screws (E) shown in figure 3.1.
Fasten wall bracket (A) loosely to wall plate (L) using four M5 x 8 mm pan head screws (F), and #10 washers (K).
Option 1 - Installation to Single Wood Stud Wall
3
FK
L
L
E
DIAMONDINDICATES
TOPOFWALLPLATE
A
fig 3.1 fig 3.2
• Installermustverifythatthesupportingsurfacewillsafely support the combined load of the equipment and all attached
hardwareand components.
• Tightenwoodscrewssothatwall plate is firmly attached, but do not overtighten. Overtightening can damage the
screws,greatlyreducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is
highlyrecommended.
• Hardwareprovidedisfor attachment of mount through standard thickness drywallorplasterintowoodstuds. Installers
areresponsibleto provide hardware forothertypesof mounting situations (NotevaluatedbyUL).
WARNING

6 of 11 ISSUED: 08-17-09 SHEET #: 090-9186-4 02-09-10
NOTE: Prior to tightening #14 x 2 -1/2 wood screws
(E) test fit the M10 x 15 mm (M) socket head screws
making sure that they don't interfere with the wood
screws as shown in the assembly of step 9.
Position wall bracket (A) at desired position on wall.Use
wall bracket (A), making sure that it is level, as a template
to mark holes. Drill four 1/4" (6 mm) dia. holes to a
minimumdepthof2-1/2"(64mm).Concretemustbe2000
psi density minimum. Insert anchors (G) in holes flush
with wall as shown in figure 4.3. Place wall bracket (A)
overanchorsandsecurewithfour#14x2-1/2"wood
screws (E) as shown in figure 4.4. Make sure wall plate is
levelandtightenallfasteners.

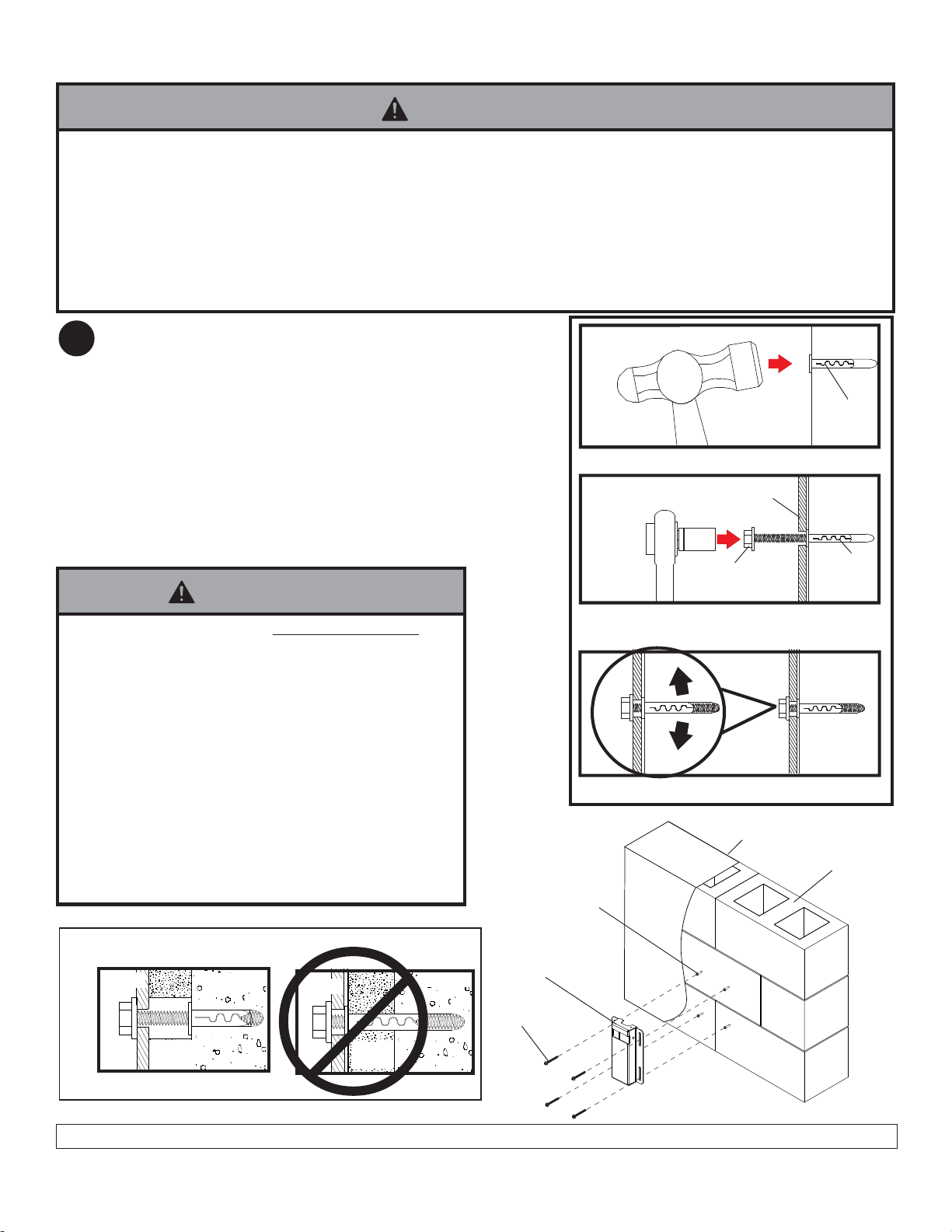

Option 2 - Installation to Solid Concrete and Cinder Block Wall
4
CUTAWAYVIEW
INCORRECT
concrete
plaster/
drywall
A
CORRECT
concrete
plaster/
drywall
A
concrete
wall
Drill holes and insert anchors
Place wall bracket (A) over anchors (G) and secure
with screws (E)
Tighten all fasteners
E
A
1
2
• Tightenwoodscrewsfirmly, but do notovertighten.
Overtighteningcandamage the screws, greatly
reducingtheir holdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
• Concreteanchors are notintended for attachment to
concretewallcoveredwitha layer of plaster,drywall,
orotherfinishingmaterial as shown below. If mounting
toconcretewallcoveredwith plaster/drywall is un-
avoidable(Notevaluated byUL),plaster/drywall (up to
5/8" thick) must be counterbored as shown below. Be
sureconcreteanchorsdo not pull away from concrete
whentighteningscrews.Ifplaster/drywallisthicker
than 5/8", custom fasteners must be supplied by
installer. (NotevaluatedbyUL).
WARNING
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete
thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid
part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifications.
It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid
breakingoutthebackoftheholewhenentering a void or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Makesure that the supporting surface will safely support the combined load of the equipment andall attached hard-
wareand components.
WARNING
G
G
E
G
fig 4.3
fig 4.4
CINDERBLOCK
SOLIDCONCRETE
A
3

7 of 11 ISSUED: 08-17-09 SHEET #: 090-9186-4 02-09-10
8
C
B
Placefrontofupperadapterplateontoflatsurface
andslide down wall arm assembly (B) and thread
one M5 x 12 mm security washer head screw (N).
Use security wrench (O) to tighten all screws.
Placeupperadapter plate onto edge of table and
hook M5 x 12 mm screws on wall arm assembly (B)
into keyhole slots on upper adapter plate.
NOTE: Screws may need to be loosened if unable to
slide on.
Removeknobsand1/4"washersfromtopofadapter
plate assembly (D).
5 6
7
B
B
N
D
KNOBS
1/4" WASHERS
UPPER ADAPTER PLATE
KEYHOLESLOTS
UPPER ADAPTER PLATE
NOTE: Leavewallarmassembly(B) loose until
desiredadjustmentisdetermined.
M5X 12 MMSCREWS

8 of 11 ISSUED: 08-17-09 SHEET #: 090-9186-4 02-09-10
Attachupper adapter plate to lower adapter plate with
knobs and 1/4" washers.
Runcordsthroughwall arm (B)and down
through wall bracket (A).Attach wall arm
assembly (B) to wall bracket (A) using two
M10 x 15 mm socket head screws (M).
NOTE:Arm must be tilted upward to access
mountingholes.
Attach lower adapter plate (E) to projector using four
M6 x 16 mm socket pin security screws (I), and .25"
ID x .5" OD x .25 spacers (H).
9
SUPPORTING SURFACE NOT
SHOWN FOR CLARITY
B
A
M
CORDS
10
H
I
PROJECTOR
11
KNOBS
1/4" WASHERS
LOWER ADAPTERPLATE
UPPERADAPTERPLATE
E
LOWERADAPTERPLATE

9 of 11 ISSUED: 08-17-09 SHEET #: 090-9186-4 02-09-10
Secureupperadapterplatetoloweradapterplate
using two M5 x 25 mm washer head security
screws (J).
Use security wrench (O) to fasten all screws.
Knobsmust be level before adjusting for Swivel, Roll and Pitch.
12
Grip sides of projector and gently rotate to desired
position.
Swivel Adjustment
SUPPORTING SURFACE NOT
SHOWN FOR CLARITY
D
J
14
UPPER ADAPTER PLATE
LOWER ADAPTER PLATE
Adjust mount to desired mount position using chart
on page 3 fig. 1.1. Once mount position is
determined tighten all M5 x 12 mm screws as
shownbelow.
12-1
TIGHTEN ALLM5X 12MM SCREWS
13
J
KNOB

10 of 11 ISSUED: 08-17-09 SHEET #: 090-9186-4 02-09-10
Pitch Adjustment
Loosenknobs on front of projector, and tighten knobs
onback of projector to pitch projector forward.
Reverseforprojectortopitchbackward.
SUPPORTING SURFACE NOT
SHOWN FOR CLARITY
Roll Adjustment
Loosen knobs on left side of projector, and tighten
knobs on right side of projector to roll projector to the
right.Reverse for projector roll to the left.
SUPPORTING SURFACE NOT
SHOWN FOR CLARITY
LOOSEN DO NOT
ADJUST
TIGHTEN
LOOSEN DO NOT
ADJUST
TIGHTEN

11 of 11 ISSUED: 08-17-09 SHEET #: 090-9186-4 02-09-10
Secure cover (C)towall bracket (A) using two
M5 x 12 mm security washer head screws (N).
Note:Adjust height of wall plate prior to fastening cover (C) for
projector image location. Use security wrench (O) to fasten screws.
SUPPORTING SURFACE NOT
SHOWN FOR CLARITY
N
C
A
Combination for Pitch and Roll Rotation
SUPPORTING SURFACE NOT
SHOWN FOR CLARITY
Tighten knob on back right of projector,andloosen
knob on left front of projector to pitch and rotate
projector backward to the right as shown in fig. 14.1.
Reversefor projector to pitch backward to the left.
Loosen knob on back right of projector, and tighten
knob on left front of projector to pitch and rotate
projector backward to the right as shown in fig. 14.2.
Reversefor projector to pitch backward to the left.
Fig. 14.1 Fig. 14.2
NOTE: Formore adjustment, knobs can be
turnedindividually
15 LOOSEN DO NOT
ADJUST
TIGHTEN
©2009PeerlessIndustries,Inc. Allrightsreserved.
PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
