Installation and Assembly Manual:
PRS, RTR Series Projector Mount
Models: PRS-UNV, PRS-UNV-S, PRS-UNV-W
PRS-UNVP, PRS-UNVP-S, PRS-UNVP-W
RTR-UNB, RTR-UNS, RTR-UNW
Maximum UL Load Capacity:
25 lb (11.34 kg)
R
This product is intended for use with UL
Listed products and must be installed by a
qualified professional installer.
3215 W. North Ave. • Melrose Park, IL 60160 • [phone] or [phone] • Fax: [phone] • www.peerlessmounts.com

ISSUED: 09-19-05 SHEET #: 055-9441-5 10-31-08
Visit the Peerless Web Site at www.peerlessmounts.com 2 of 12 For customer care call 1-800-729-0307 or 708-865-8870.
Table of Contents
Parts List.......................................................................................................................................................................... 3
Installation to Extension Columns / Ceiling Plate.............................................................................................................. 4
Installation to Wood Joist Ceilings .................................................................................................................................... 5
InstallationtoConcreteCeilings........................................................................................................................................ 6
InstallationtoThreadedRods............................................................................................................................................ 7
Attaching Adapter Plate to Projector................................................................................................................................. 8
ProjectorAlignment ........................................................................................................................................................ 10

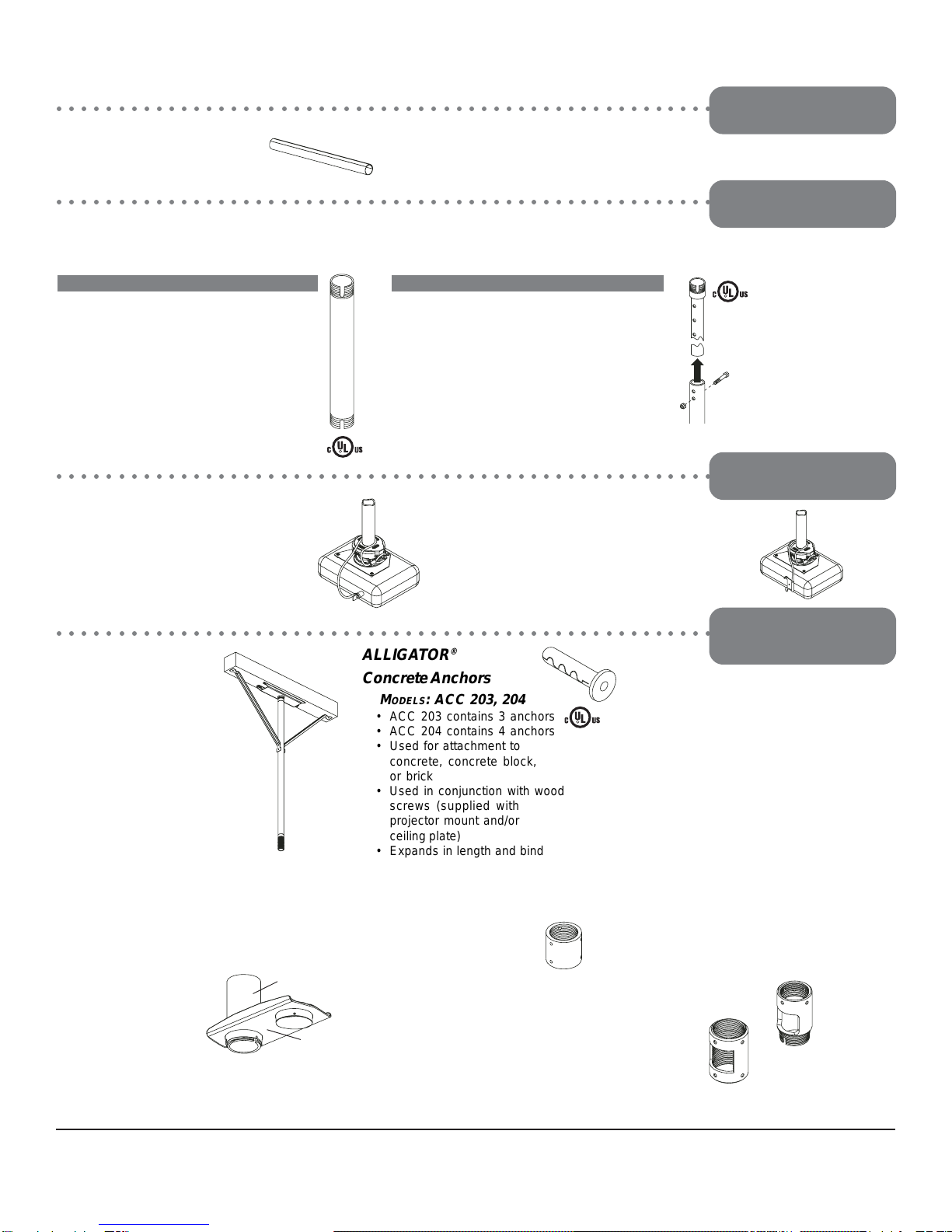

Accessories.............................................................................................................................................................. 11,12
Tools Needed for Assembly
•studfinder ("edge toedge" stud finderis recommended)
•phillipsscrewdriver
•drill
Note: Read entire instruction sheet before you start installation and assembly.
•1/4" bit for concrete surface
•5/32" bit for wood studs
•level
• Donot begin toinstall your Peerlessproductuntil you haveread and understoodthe instructions and warnings
containedin this InstallationSheet. If you haveany questions regardingany of the instructionsor warnings, please
callPeerlesscustomer care at 1-800-865-2112.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Makesure that thesupporting surface willsafely support thecombined load ofthe equipment andall attached hard-
wareandcomponents.
• Neverexceed the MaximumLoadCapacity.See page1.
• If mounting to wood ceiling studs, make sure that mounting screws are anchored into the center of the studs. Use of
an"edge to edge"stud finder ishighly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tightenscrewsfirmly, but do notovertighten.Overtighteningcan damage theitems, greatlyreducingtheir holding
power.
• Thisproductisintendedforindooruseonly. Use ofthis product outdoorscouldleadtoproductfailureandpersonal injury.
• Thisproduct was designed andintendedto be mountedtothe following supporting surfacescheckedbelow with the
hardware included in this product as specified in the installation sheet.To mount this product to an alternative support-
ing surface, contact Peerless customer care at 1 800 865-2112.
• This product was designed to be installed on the following ceiling construction only;
CEILINGCONSTRUCTION ADDITIONALHARDWAREREQUIRED
xWoodStud None
xWoodBeam None
xSolidConcrete None
CinderBlock ContactCustomerService
Metal Stud Contact CustomerService
Brick ContactCustomerService
Otherorunsure? ContactCustomerService
WARNING

ISSUED: 09-19-05 SHEET #: 055-9441-5 10-31-08
Visit the Peerless Web Site at www.peerlessmounts.com 3 of 12 For customer care call 1-800-729-0307 or 708-865-8870.
Description Qty.
PRS-UNV,
PRS-UNVP
RTR-UNB
Part #
PRS-UNV-S,
PRS-UNVP-S
RTR-UNS
Part #
PRS-UNV-W,
PRS-UNVP-W
RTR-UNW
Part #
Aprojector mount assembly (non-security adjustments) 1 055-0607 055-0608 055-0609
projector mount assembly (security adjustments) 1 055-0604 055-0605 055-0606
Badapter plate 1 055-1879 055-4879 055-2879
C#14 x 2.5 phillips hex head wood screw 2 5S1-015-C03 5S1-015-C04 5S1-015-C04
Dconcrete anchor 2 590-0097 590-0097 590-0097
E#10-32 x 1/4" socket pin screw 1 520-1196 520-2196 520-2196
F1/4" flat washer 2 540-1078 540-1078 540-1078
GM3 x 8 mm socket pin serrated washer head screw 4 510-1004 510-2004 510-2004
HM4 x 10 mm socket pin serrated washer head screw 4 510-1060 510-2060 510-2060
IM5 x 10 mm socket pin serrated washer head screw 4 510-1126 510-2063 510-2063
JM6 x 10 mm socket pin serrated washer head screw 4 510-1066 510-2066 510-2066
K#6 flat washer 4 540-1025 540-2025 540-2025
L4 mm security t-wrench 1 560-1718 560-1718 560-1718
M2 mm security allen wrench 1 560-1097 560-1097 560-1097
Parts List
Before you start check the parts list to insure all of the parts shown are included.
A
D
C
Note: Actual parts may appear slightly different than illustrated.
E
Security adjustments
Models:PRS-UNV,PRS-UNV-S,PRS-UNV-W
B
F
HGI
JKLM
Non-Securityadjustments
Models:PRS-UNVP,PRS-UNVP-S, PRS-UNVP-W,
RTR-UNB,RTR-UNS,RTR-UNW
SOCKETPIN
ADJUSTMENTSCREWS
PHILLIPSADJUSTMENT
SCREWS
A

ISSUED: 09-19-05 SHEET #: 055-9441-5 10-31-08
Visit the Peerless Web Site at www.peerlessmounts.com 4 of 12 For customer care call 1-800-729-0307 or 708-865-8870.
BACKOF
MOUNT
Installation to Extension Column / Ceiling Plate
NOTE: Referto accompanying instructions with ceilingplates (sold separately)for installing thesemodels to
ceiling.
Screw projector mount assembly (A) onto extension column as shown in figure 1.1.
NOTE: For 3/4" extension columns, reducer ACC 913 will be required as shown in figure 1.2.Tighten swivel stop
screw against extension column, flush mount tube or reducer using 4 mm security t-wrench (L) as shown in figure
1.3.
NOTE: Swivel stop screw is used to jam against threads of extension column, flush mount tube or reducer to
preventanyexcessmovementofprojectormountassembly(A).Donotovertightenscrew;overtighteningscrewwill
damagethreads making it difficulttoseparate products.
Skip to step 5.
A
11/2"EXTENSION
COLUMN
(SOLDSEPARATELY)
ULLISTEDEXTORADJ
SERIES)
A
3/4"EXTENSIONCOLUMN
(SOLDSEPARATELY)
ACC 913
(NOTUL LISTED)
(SOLDSEPARATELY)
1
SWIVELSTOP
SCREW
CMJ455
(SOLDSEPARATELY)
BACKOF
MOUNT
fig. 1.1 fig. 1.2
fig. 1.3

ISSUED: 09-19-05 SHEET #: 055-9441-5 10-31-08
Visit the Peerless Web Site at www.peerlessmounts.com 5 of 12 For customer care call 1-800-729-0307 or 708-865-8870.
Place projector mount assembly (A) on ceiling as a template and mark the center of the two mounting holes. Make
sure that the mounting holes are in the center of the wood joist. Drill two 5/32" (4 mm) dia. holes to a minimum
depth of 2.5" (64 mm). Attach projector mount assembly (A) with two #14 x 2.5" (6 mm x 65 mm) wood screws (C)
and two flat washers (F) as shown in figure 2.1 or figure 2.2 depending on joist orientation.
Note:Mountingslotsonprojectormount assembly allow for 30° (±15°)of rotationbefore fullysecuring wood screws.
Tightenwood screws (C)using 3/8"(10 mm) socket wrenchor phillips screwdriver untilprojector mount assembly
(A) is firmly attached.
Skip to step 5.
Installation To Wood Joist Ceilings
CC
A
WOODJOIST
FRONTOF
MOUNT
FF
WOODJOIST
AFRONTOF
MOUNT
2
• Installermust verify thatthesupporting surface willsafelysupport the combinedloadof the equipmentandall attached
hardwareandcomponents.
• Tightenwood screws sothatprojector mount assembly isfirmly attached, but donotovertighten. Overtightening can
damagethescrews, greatly reducing theirholdingpower.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is
highlyrecommended.
• Hardwareprovided is for attachmentofmount through standard thicknessdrywallor plaster into woodstuds.Installers
areresponsibletoprovidehardware for other types of mounting situations(not UL approved).
WARNING
fig. 2.1 fig. 2.2

ISSUED: 09-19-05 SHEET #: 055-9441-5 10-31-08
Visit the Peerless Web Site at www.peerlessmounts.com 6 of 12 For customer care call 1-800-729-0307 or 708-865-8870.
Place projector mount assembly (A) on ceiling as a
template and mark the center of the two mounting
holes. Drill two 1/4" (6 mm) dia. holes to a minimum
depth of 2.5" (64 mm). Attach projector mount
assembly (A) using two concrete anchors (D), two
flat washers (F), and two #14 x 2.5" wood screws (C)
as shown in Illustration A and 1, 2, and 3.
Note: Mounting slots on projector mount assembly
allowfor30°(±15°)ofrotationbeforefullysecuring
woodscrew.
Tighten wood screws (C) using 3/8" (10 mm) socket
wrenchorphillipsscrewdriveruntilprojectormount
assembly (A) is firmly attached.
Skip to step 5.
C
Illustration A
Installation to Concrete Ceilings
A
F
D
FRONTOF
MOUNT
• Tightenwoodscrews firmly,but do not overtighten.
Overtighteningcandamagethe screws, greatly
reducingtheirholdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
3
• Always attach concrete anchors directly to load-
bearingconcrete.
• Neverattachconcreteanchorsto concrete covered
withplaster,drywall, or otherfinishingmaterial. If
mountingtoconcrete surfaces covered withafinishing
surfaceisunavoidable, the finishing surfacemustbe
counterboredasshown below.Besureconcrete
anchorsdo not pull awayfromconcrete when tighten-
ing screws. If plaster/drywall is thicker than 5/8",
custom fasteners must be supplied by installer (not
ULapproved).
WARNING concrete
surface
1
3
2
D
Drill holes and insert anchors (D).
Place plate (A) over anchors (D) and secure with screws (C).
Tighten all fasteners.
A
D
C
CUTAWAYVIEW
INCORRECT CORRECT
plaster/
drywall
concrete concrete
plaster/
drywall
A
A
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Makesure that thesupporting surface willsafely support thecombined load ofthe equipment andall attached hard-
wareandcomponents.
WARNING

ISSUED: 09-19-05 SHEET #: 055-9441-5 10-31-08
Visit the Peerless Web Site at www.peerlessmounts.com 7 of 12 For customer care call 1-800-729-0307 or 708-865-8870.
3/8-16 THREADEDROD
(NOTINCLUDED)
Thread two3/8-16 hex thin nylon-insertlocknuts(not included) ontwo3/8-16 threaded rods (notincluded)to the
desired height of projector mount assembly. Attach projector mount assembly (A)to thetwo 3/8-16 threadedrods
using two 3/8-16 hex thin nylon-insert locknuts as shown in figure 4.1 or figure 4.2.
A
Installation to Threaded Rod
(Not evaluated by UL - Professional installation only)
3/8-16 THREADEDROD
(NOTINCLUDED)
A
3/8-16HEX THIN
NYLON-INSERT
LOCKNUT
(NOTINCLUDED)
4
3/8-16HEX THIN
NYLON-INSERT
LOCKNUT
(NOTINCLUDED)
3/8-16HEX THIN
NYLON-INSERT
LOCKNUT
(NOTINCLUDED)
3/8-16HEX THIN
NYLON-INSERT
LOCKNUT
(NOTINCLUDED)
FRONTOF
MOUNT FRONTOF
MOUNT
fig. 4.1 fig. 4.2

ISSUED: 09-19-05 SHEET #: 055-9441-5 10-31-08
Visit the Peerless Web Site at www.peerlessmounts.com 8 of 12 For customer care call 1-800-729-0307 or 708-865-8870.
Attach adapter plate (B) to projector using one screw (G, H, I or J) for each channel as shown below. Tighten all
screws, while keeping the center of gravity. Be sure that adapter plate (B) is straight.Adjust the feet of the
channels to keep the adapter plate level. Tighten all screws with 4 mm security t-wrench (L) while keeping the
center of gravity. If M3 screws (G) are used, tighten using 2 mm security allen wrench (M).
Note: Projectors will require different size screws for mounting. Use a combination of screws (G, H, I or J) and
foot adjustment that will result in channels of adapter plate (B) fitting tightly against projector. Important: In order
to properly engage the threads in the mounting holes, the screw must be turned at least 3 full turns.
Note: Ifusing screw (G), placewasher(K)betweenscrew (G)and foot of channel.
B
• It is the responsibility of the installer to ensure that the
projectorisproperly ventilated. Feet ofchannelsare
usedto raisethe mount offthe projector surface.
CAUTION
G, H, I or J
GenericProjector
Placeprojector upside down.Locateadapter plate (B)with notch facing forwardas close to projectorcenterof
gravity as possible without covering any mounting holes. Loosen channels with 4 mm security t-wrench (L), and if
there are only three mounting holes remove fourth channel. Using one channel for each mounting hole,
position feet ofchannels over mounting holes asshown below. Important:If projectordoesnot have atleast
three mounting holes, do not use this adapter plate.
Note: Some projectorshavefeet which can beremoved andthecorresponding threaded insert canbeusedfor a
mountinghole.
Note:Oncechannels are inpositionretighten fasteners.
*Notchindicatesfront of projector.
Note:Theprojector you are installingmay differ in appearance fromthesample illustrated below.
*
Mounting
hole
B
5
6
Channel
FootofChannel
Attaching Adapter Plate to Projector
FootofChannel

ISSUED: 09-19-05 SHEET #: 055-9441-5 10-31-08
Visit the Peerless Web Site at www.peerlessmounts.com 9 of 12 For customer care call 1-800-729-0307 or 708-865-8870.
Slide connection block with projector into projector mount assembly (A) as shown. Push in and tighten captive screw
to secure projector to projector mount assembly (A).
IMPORTANT: For security installations, insert one #10-32 x 1/4" socket pin screw (E) through projector mount
assembly (A) and into connection block as shown. Tighten screw with 4mm security t-wrench (L).
CONNECTIONBLOCK
A
CAPTIVESCREW
FRONTOFMOUNT
• Always use an assistant or mechanical lifting equipment to safely lift and position the projector.
WARNING
CONNECTIONBLOCK
A
E
7
8
FRONTOF
MOUNT
Attaching Adapter Plate to Projector (continued)

ISSUED: 09-19-05 SHEET #: 055-9441-5 10-31-08
Visit the Peerless Web Site at www.peerlessmounts.com 10 of 12 For customer care call 1-800-729-0307 or 708-865-8870.
To adjust yaw (swivel) for threaded rod mounting applications:Loosen locknuts on threaded rods (refer to step
four), until projector mount can be rotated. Rotate mount to desired position and retighten screws or locknuts.
To adjust yaw (swivel) for extension column applications: Loosen screw on projector mount assembly (A)
indicated below until projector mount can be rotated. Rotate mount to desired position and retighten screw.
To adjust pitch (forward and backward tilt): Using 4 mm security t-wrench (L) (security adjustment models) or a
phillipsscrewdriver (non-security adjustment models), loosentwoscrews for pitchadjustmenton projector mount
assembly (A) indicated below. Tilt mount to desired position and retighten screws.
To adjust roll (side to side tilt): Using 4 mm security t-wrench (L) (security adjustment models) or a phillips
screwdriver(non-security adjustment models), loosentwoscrews for roll adjustmentonprojectormount assembly (A)
indicated below. Tilt mount to desired position and retighten screws.
Projector Alignment
A
9
SCREWSFORPITCH
ADJUSTMENT
SCREWFORSWIVELSTOP
SCREWSFORROLL
ADJUSTMENT

ISSUED: 09-19-05 SHEET #: 055-9441-5 10-31-08
Visit the Peerless Web Site at www.peerlessmounts.com 11 of 12 For customer care call 1-800-729-0307 or 708-865-8870.
PRS Series Projector Mount Accessories
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
I-BeamClamps
M ODELS :
ACC 558, ACC 559
M AX L OAD : 250 lbs. (113.4 kg.)
C OLOR : Black
• ACC 558 clamps onto 4"-8" I-Beam
• ACC 559 clamps onto 7"-12" I-Beam
Unistrut
®
Adapter
M ODEL : ACC 550
M
AX L OAD : 250 lbs. (113.4 kg.)
C OLOR : Black
• Designed for use with
1 5/8" x 1 5/8" 12 gauge Unistrut
Accessory Pack for CMJ 455
M ODEL : ACC 455*
This pack includes 4 hanger brackets and
4hangerclamps foradditionalstability. For
use with model CMJ 455.
TrussCeiling Adapter
M ODEL : ACC 557*
M
AX L OAD : 250 lbs. (113.4 kg.)
C OLOR : Black
• Attaches to a square, round,
rectangular, or I-Beam truss up to 3" in
diameter
EscutcheonRing
M ODEL : ACC 640
• Covers hole where extension
column passes through ceiling
• Hinged ring wraps around extension column
• Included with CMJ 500
LightweightCathedral
Ceiling Plate
M ODEL : ACC 912*
M
AX L OAD : 60 lbs. (27.2 kg.)
C OLOR : Black
• Designed specifically for projectors
• Allows a projector to be mounted
on an angled ceiling
New!
LightweightAdjustable
Suspended Ceiling Kit
M ODEL : CMJ 500
M
AX L OAD : 60 lbs. (27.2 kg.)
C OLOR : White
• Mounts above 2’ x 4’ or 2’ x 2’ false
ceiling tile
• Includes tie wire supports, flush mount
tube, and offers two knockout panels
for outlet boxes
• Offers unlimited adjustment for
projector placement
New!
Lightweight Suspended Ceiling Kit
M ODEL : CMJ 455
M
AX L OAD : 50 lbs. (22.7 kg.)
C OLOR : White
• Five different projector
mount attachment points
• Includes tie wire supports,
flush mount tube, and
offers two knockout panels
for outlet boxes
• May either replace a 2’ x 2’ false
ceiling tile or mount above an existing
2’ x 2’ or 2’ x 4’ ceiling tile
Anti-Vibration Ceiling Plates
M ODELS :
ACC 840*, ACC 845*
M
AX L OAD : 60 lbs. (27.2 kg.)
C OLOR : Black
• ACC 840 was designed for
a structural ceiling (wood only)
• ACC 845 was designed for
a Unistrut ceiling (1 5/8" x 1 5/8"
12 gauge Unistrut)
• Reduces unwanted vibrations
that may cause internal damage
to the equipment and/or cause the
screen image to vibrate
• Features two cord management
access holes
• Patentpending
Unistrutor Structural
CeilingPlates
M ODELS :
CMJ 300*, CMJ 310*
M AX L OAD :
250 lbs. (113.4 kg.)
C OLOR : Black
• CMJ 300 is a 4" x 4" ceiling plate
• CMJ 310 is a 8" x 8" ceiling plate
• Designed for a Unistrut ceiling
(1 5/8" x 1 5/8" 12 gauge Unistrut)
or a solid structural ceiling
(mounting hardware not included)
Unistrut
Ceiling plate
R
R
R
Ceiling Plates
R
*
= Not UL Listed
Round Ceiling Plate
M ODEL :
ACC570(S)(W)
C
OLOR : Black, silver or white
M AX L OAD : 150 lb (68 kg)
S HIP W EIGHT : 1.7 lb (.8 kg)
• Designed for finished or
structural ceilings (wood or
concrete)
• Features a cord management
R

ISSUED: 09-19-05 SHEET #: 055-9441-5 10-31-08
Visit the Peerless Web Site at www.peerlessmounts.com 12 of 12 For customer care call 1-800-729-0307 or 708-865-8870.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
ALLIGATOR
®
ConcreteAnchors
MODELS: ACC 203, 204
• ACC 203 contains 3 anchors
• ACC 204 contains 4 anchors
• Used for attachment to
concrete, concrete block,
or brick
• Used in conjunction with wood
screws (supplied with
projector mount and/or
ceiling plate)
• Expands in length and binds to
the contours of the hole and
the screw
Cord Wrap
MODELS: ACC 852(W)(S)*
COLOR:
Black, White, or Silver
Side-To-Side Adjuster
MODEL: ACC 830*
COLOR:
Black
• Provides 4" of radial
adjustment side to side
• Includes Flush Mount
Tube, EXT 002
Armor Lock
TM
Plus Security Cables
MODEL: ACC 021*
• With 1/4" security cable and fasteners
• Includes adhesive for non-fastener applica
tions
MODEL: ACC 020*
• With security lock
• For use with projectors that have a built-in
security slot
Extension
column
Extension Columns
Security Accessories
Additional Projector
Mount Accessories
Cord Management
Fixed Length 1 1/2"
ExtensionColumns
COLOR: Black
R
COLOR: Black
Adjustable Length 1 1/2"
ExtensionColumns
MODEL Drop Length Ship Weight
ADJ 006009 8"-11" 4 lbs.
(1.81 kg)
ADJ 012018 14"-20" 4.75 lbs. (2.15 kg)
ADJ 018024 20"-26" 6.25 lbs. (2.83 kg)
ADJ 0203 26"-38" 8 lbs. (3.63 kg)
ADJ 0305 38"-62" 13.5 lbs. (6.12 kg)
ADJ 0406 50"-74" 16.25 lbs. (7.37 kg)
ADJ 0507 62"-86" 18.5 lbs. (8.39 kg)
ADJ 0608 74"-98" 21.75 lbs. (9.87 kg)
ADJ 0709 86"-110" 24.5 lbs. (11.11 kg)
ADJ 0810 98"-122" 27lbs. (12.25 kg)
ADJ 0911 110"-134" 29 lbs. (13.15 kg)
ADJ 1012 122"-146" 31lbs. (14.06 kg)
R
R
*
= Not UL Listed
• Includes, four, 2' sections
• Designed to externally route cords along the
outside of an 1/2" extension column
• Sections can be stacked to create longer lengths
or cut to desired length
ExtensionColumn
Stabilizer Kit
MODEL: ACC 050*
COLOR:
Black
• Can be used to reduce
unwanted swaying that may
occur with extension
column installations
• Includes a hose clamp, two
stabilizer column supports,
& hardware for mounting to
wood joists
• For use with extension
columns over 21"
MODEL Drop Length Ship Weight
EXT006 8"
(20cm) 2.5 lbs (1.13 kg)
EXT018 20" (51 cm) 5 lbs (2.27 kg)
EXT101 14" (36 cm) 3.5 lbs (1.59 kg)
EXT102 26" (66 cm) 6 lbs (2.72 kg)
EXT103 38" (97 cm) 9.25 lbs (4.2 kg)
EXT104 50" (127cm) 12 lbs (5.44 kg)
EXT105 62" (158cm) 14.75 lbs (6.69 kg)
EXT106 74" (188cm) 18 lbs (8.16 kg)
EXT107 86" (219cm) 20.75 lbs (9.41 kg)
EXT108 98" (249cm) 23.25 lbs (10.55 kg)
EXT109 110" (279cm) 26.5 lbs (12.02 kg)
EXT110 122" (310cm) 29 lbs (13.15 kg)
Side to side
adjuster
ExtensionColumn
Connector
MODEL: ACC 109*
COLOR:
Black
• Can be used to join two
1-1/2" extension columns to
create a maximum length
of 20’
• Secures to columns with
Armor LockTM Security
screws
Extension Column Connector
with Cord Management
MODEL: ACC800, ACC850(S)
COLOR: ACC800
Black
ACC850 Black or Silver
• 1-1/2" access hole for internal cord
management
• Unit has 1-1/2"-11.5 NPT fitting for
attachment of extension column
• Security screws included
• ACC800: One male and one female
connection to provide internal cord
management between extension
column and mount or ceiling plate
• ACC850: Two female connectors to
join two extension columns to
create maximum length of 20’
ACC850
ACC800
PRS Series Projector Mount Accessories
©2008,PeerlessIndustries,Inc.Allrightsreserved.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
