PEERLESS SMARTMOUNT SF 635P Guide

Max ULLoad Capacity: 115 lb (52.2 kg)
3215 W. North Ave. • Melrose Park, IL 60160 • [phone] or [phone] • Fax: [phone] • www.peerlessmounts.com
ISSUED: 04-20-05 SHEET #: 201-9429-6 02-01-06
Features:
• For 10" to 37" flat panel screens
• Ultra-slim design holds the screen flat against the wall
Installation and Assembly:
Universal Flat Wall Mount for 10" - 37" LCD Flat Panel
Screens
Models: SF 635P, SF 635P-S, SF 635, SF 635-S, SF 632P, SF 632P-S, SF 632,
SF 632-S
This product is UL Listed. It must be
installed by a qualified professional
installer.
R

2 of 8 ISSUED: 04-20-05 SHEET #: 201-9429-6 02-01-06
Note: Read entire instruction sheet before you start installation and assembly.
Tools Needed for Assembly
•studfinder ("edgeto edge"stud finderis recommended)
•phillipsscrewdriver
•drill
•1/4" bit for concrete and cinder block wall
•5/32" bit for wood stud wall
•level
Accessories
• Metal Stud Fastener Kit (ACC 215) (Not evaluated by UL)
• VideoConferencing Shelf (ACC309) (Not evaluatedby UL)
• Accessory Shelves (PM 600, PM 610) (Not evaluated by UL)
• Donot beginto installyour Peerlessproduct untilyou have readand understoodthe instructionsand warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please
callPeerless customer careat 1-800-729-0307.
• Thisproduct shouldonly be installedby aqualified professional.
• Makesure that the wall will safely support the combined load of the equipmentand allattached hardwareand compo-
nents.
• Neverexceed theMaximum ULLoadCapacityof 115 lb(52.2 kg).
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an
"edgeto edge"stud finderishighly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screwsfirmly, butdonot overtighten.Overtightening can damagethe items, greatlyreducing theirholding
power.
WARNING
Table of Contents
Parts List..............................................................................................................................................................................3
Installation to Single Wood Stud Wall...................................................................................................................................4
Installation to Solid Concrete or Cinder Block .......................................................................................................................5
Attaching Adapter Plate to Screen with VESA 200 or 200 x 200 Mounting Pattern ..............................................................6
Attaching Hook Bracket to Screen with VESA 75 or 100 Mounting Pattern ..........................................................................7
InstallingandRemovingFlatPanelScreen ...........................................................................................................................8
Forcustomer carecall [phone]or [phone].

3 of 8 ISSUED: 04-20-05 SHEET #: 201-9429-6 02-01-06
SF 635P, SF 635P-S, SF 635, SF 635-S,
SF 632P SF 632P-S SF 632 SF 632-S
Description Qty Part # Part # Part # Part #
Awall plate 1 095-1320 095-4320 095-1320 095-4320
Bhook bracket 1 095-1321 095-4321 095-1321 095-4321
Cadapter plate 1 095-1322 095-4322 095-1322 095-4322
DM5 x 12 mm screw 2 520-1027 520-1027 520-1064 520-1064
EM5 x 6 mm phillips screw 4 520-1023 520-1023 520-1023 520-1023
F#10 SAE washer 4 540-9400 540-9400 540-9400 540-9400
G#14 x 2.5" hex head wood screw 2 5S1-015-C03 5S1-015-C03 5S1-015-C03 5S1-015-C0
3
HAlligator® anchor 2 590-0097 590-0097 590-0097 590-0097
IM6 x 12 mm phillips screw 4 520-1128 520-1128 520-1128 520-1128
JM6 x 20 mm phillips screw 4 520-9402 520-9402 520-9402 520-9402
KM6 x 30 mm phillips screw 4 510-9109 510-9109 510-9109 510-9109
LM4 x 10 mm phillips screw 4 504-9012 504-9012 504-9012 504-9012
MM4 x 20 mm phillips screw 4 504-9020 504-9020 504-9020 504-9020
N.198" ID x .313" OD x .437" H retaining spacer 4 590-5005 590-5005 590-5005 590-5005
O4 mm security allen wrench 1 560-1145 560-1145
Parts List
B
G HFE
C
A
JKLM NI
D
O

4 of 8 ISSUED: 04-20-05 SHEET #: 201-9429-6 02-01-06
Installation to Single Wood Stud Wall
1Use a stud finder to locate the edges of the stud. Use of an edge-to-edge stud finder is highly recommended. Based
on its edges, draw a vertical line down the stud’s center. Place wall plate (A) on wall as a template, making sure that
the two mounting holes are over the stud centerline. Level plate, and mark the center of the two holes. Drill two
5/32" (4 mm) dia. holes 2-1/2" (65 mm) deep. Make sure that the wall plate is level, secure it using two #14 x 2.5"
wood screws (G) as shown.
Skip to step 2 on page 6 for VESA 200 mm and 200 mm x 200 mm patterns.
Skip to step 2 on page 7 for VESA 75 mm and 100 mm patterns.
• Make sure that the wall will safely support the combined load of the equipment and all attached hardware and
components.
WARNING
• Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is
highly recommended.
• Hardwareprovided isforattachment ofmount through standardthickness drywallorplaster intowood studs. Installers
areresponsible to providehardwarefor othertypesof mountingsituations.
WARNING
G
A

5 of 8 ISSUED: 04-20-05 SHEET #: 201-9429-6 02-01-06

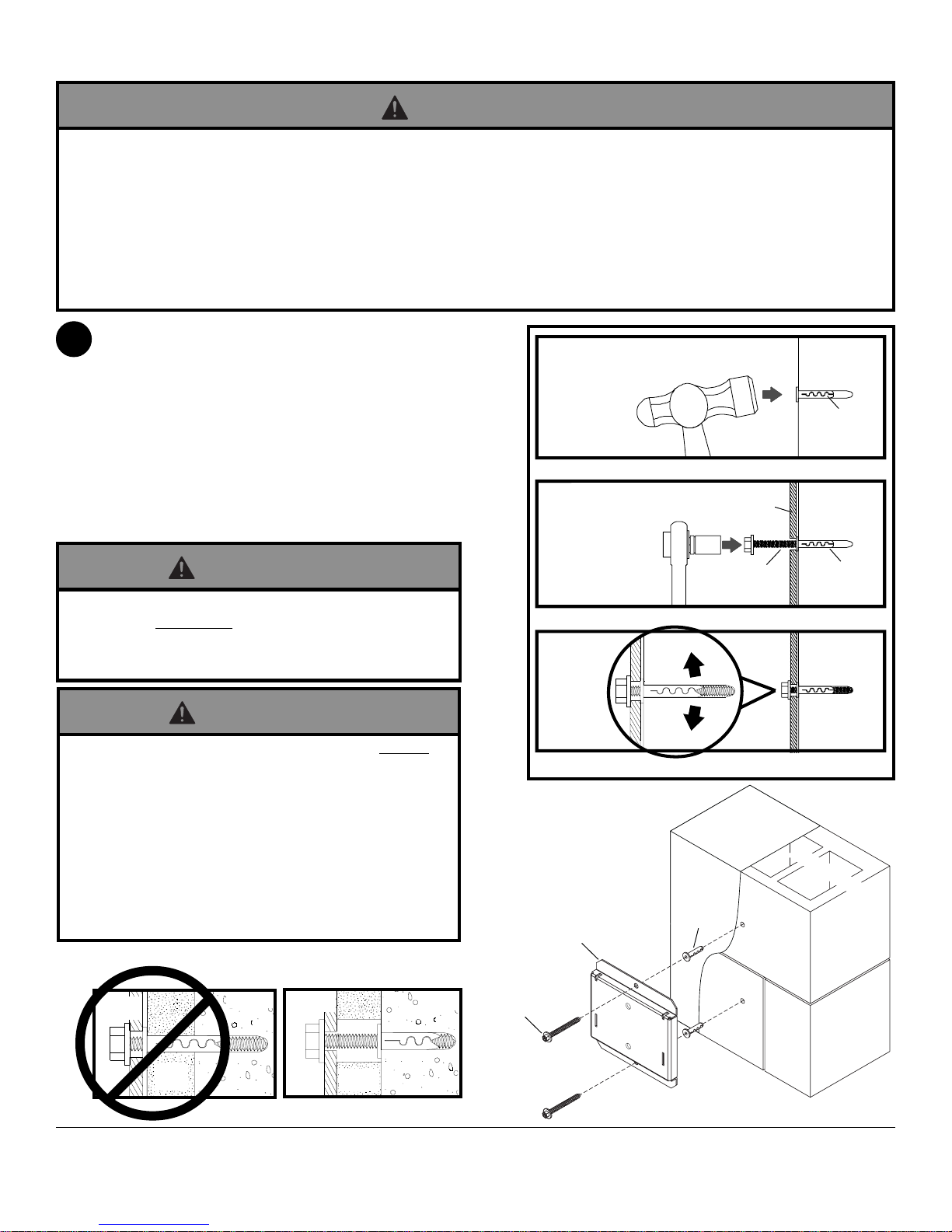

Installation to Solid Concrete or Cinder Block
1Make sure that wall plate (A) is level, use it as a
template to mark two mounting holes. Drill two 1/4"
(6 mm) dia. holes to a minimum depth of 2.5" (64
mm). Insert anchors (H) in holes flush with wall as
shown(right). Placewall plateover anchorsand
secure with two #14 x 2.5" screws (G). Level, then
tightenall fasteners.
Skip to step 2 on page 6 for VESA 200 mm and
200 mm x 200 mm patterns.
Skip to step 2 on page 7 for VESA 75 mm and
100 mm patterns.
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete
thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid
part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-
tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to
avoid breaking out the back of the hole when entering a void or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the wall will safely support four times the combined load of the equipment and all attached hardware
and components.
WARNING
concrete
surface
1
3
2
Drill holes and insert anchors (H).
Place plate (A)over anchors (H) and secure with screws (G).
Tighten all fasteners.
• Always attach concrete expansion anchors directly to
load-bearingconcrete.
• Neverattach concreteexpansionanchors toconcrete
coveredwith plaster,drywall,orother finishingmate-
rial.If mountingtoconcrete surfacescovered witha
finishingsurfaceis unavoidable,thefinishingsurface
mustbe counterboredas shown below.Be sure
concreteanchors donot pullawayfrom concrete
whentightening screws.If plaster/drywallisthicker
than 5/8", custom fasteners must be supplied by
installer.
WARNING
A
• Tighten screws so that wall plate is firmly attached,
but do not overtighten. Overtightening can damage
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
WARNING H
G
G
CINDERBLOCK
SOLID
CONCRETE
AH
H
CUTAWAY VIEW
INCORRECT CORRECT
wall
plate
plaster/
drywall
concrete wall plate concrete
plaster/
drywall

6 of 8 ISSUED: 04-20-05 SHEET #: 201-9429-6 02-01-06
F
B
C
E
D
Attaching Adapter Plate to Screen with VESA 200 or 200 x 200 Mounting Pattern
Thread M5 socket pin screws (D) to hook bracket (B)
making the screws flush with bracket as shown.
Attach hook bracket (B) to adapter plate (C) using
four M5 x 6 mm screws (E) and #10 washers (F) as
shown.
2
Note: For VESA 75 mm and 100 mm patterns, see
followingpage.
L
C
I
C
• If screws don't get three complete turns in the screen inserts or if screws bottom out and adapter plate is still not
tightly secured, damage may occur to screen or product may fail.
WARNING
3FORVESA200MOUNTINGPATTERN:
Chooseholepatternasshownbelow. Attach adapter
plate (C) to back of screen using four M4 x 10 mm
screws (L) as shown below.
*Note: If screw (L) gets less than three threads of
engagement, attach adapterplate(C) to backof
screen using four M4 x 20 mm screws (M) and four
spacers(N) as indicatedbelow.
Skip to step 4 on page 8.
FORVESA200x200MOUNTINGPATTERN:
Chooseholepatternasshownbelow. Attach adapter
plate (C) to back of screen using four M6 x 12 mm
screws (I) as shown below.
*Note: If screw (I) gets less than three threads of
engagement, attach adapterplate(C) to backof
screen using four M6 x 20 mm screws (J). If screw
(J) still gets less than three threads of engagement,
use four M6 x 30 mm screws (K).
Skip to step 4 on page 8.
M
*For screens with a hole
pattern in a pocket,
spacers (N) go between
adapter plate (C) and
screen. N

7 of 8 ISSUED: 04-20-05 SHEET #: 201-9429-6 02-01-06
Attaching Hook Bracket to Screen with VESA 75 or 100 Mounting Pattern
ThreadM5 phillipsscrews (D)tohook bracket(B)
making the screws flush with bracket as shown in
figures2.1and2.2.
2
B
DD
B
fig. 2.1 fig. 2.2
M
*For screens with a hole
pattern in a pocket,
spacers (N) go between
hook bracket (B) and
screen.
L
FORVESA100MOUNTINGPATTERN:
Choosehole patternas shownbelow. Attachhook
bracket (B) to back of screen using four M4 x 10 mm
screws (L) as shown below.
L
3FORVESA75MOUNTINGPATTERN:
Choosehole patternas shownbelow. Attachhook
bracket (B) to back of screen using four M4 x 10 mm
screws (L) as shown below.
*Note: If hole pattern is in a pocket, attach hook
bracket (B) to back of screen using four M4 x 20 mm
screws(M)and fourspacers (N)asindicated below.
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
B
B
N

8 of 8 ISSUED: 04-20-05 SHEET #: 201-9429-6 02-01-06
©2005PeerlessIndustries,Inc.Allrightsreserved.
PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.
Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
Hookscreen ontowall plate(A) figure4.1. Tighten
M5 x 12 mm screws (D), shown in figure 4.2 and
detail 1.
Note: For security models, use 4 mm security allen
wrench (O) to tighten M5 x 12 mm screws (D).
Toremove screenfrom mount,loosen screws (D)
and lift screen off of mount.
Installing and Removing Flat Panel Screen
4A
SCREEN
• Do not lift more weight than you can handle. Use
additionalman power ormechanicallifting equipment
to safely handle placement of the screen.
• Failure to lock hook bracket with screws (D) can
cause screen to come off mount if hit accidentally.
• Do not tighten screws with excessive force.
Overtighteningcancause damagetomount. Tighten
screws to 20 in. • lb (2.26 N.M.) maximum torque.
CAUTION
WARNING
DETAIL 1
fig. 4.2
fig. 4.1
A
D
B
BA
