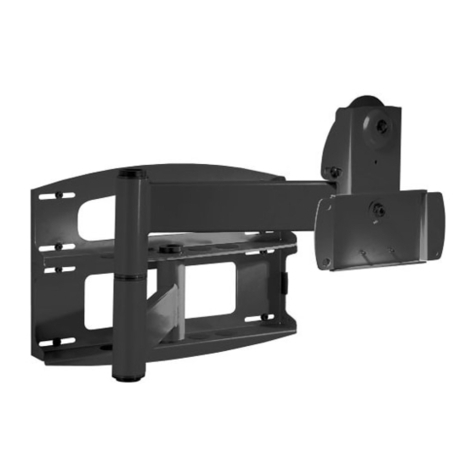

PEERLESS PLA 60  and assembly Guide

PEERLESS

PEERLESS PLA 60 and assembly Guide

PEERLESS Jumbo 2000 JM 2630S Guide

PEERLESS

PEERLESS Jumbo 2000 JM 2630S Guide

PEERLESS MIS374A Guide

PEERLESS

PEERLESS MIS374A Guide

PEERLESS SlimLine SLWS210/BK User manual

PEERLESS

PEERLESS SlimLine SLWS210/BK User manual

PEERLESS HP432-002 Guide

PEERLESS

PEERLESS HP432-002 Guide

PEERLESS MM746PU User manual

PEERLESS

PEERLESS MM746PU User manual

PEERLESS PARAMOUNT PT640  and assembly Instruction Manual

PEERLESS

PEERLESS PARAMOUNT PT640 and assembly Instruction Manual

PEERLESS SmartMount SA740P Guide

PEERLESS

PEERLESS SmartMount SA740P Guide

Popular TV Mount manuals by other brands

Krüger & Matz KM1300 owner's manual

Krüger & Matz

Krüger & Matz KM1300 owner's manual

Barkan E220 manual

Barkan

Barkan E220 manual

Bauhn ACTVB-1120 installation guide

Bauhn

Bauhn ACTVB-1120 installation guide

Vantage Point Products CB01 instructions

Vantage Point Products

Vantage Point Products CB01 instructions

Ergotron Neo Flex Cantilever UHD user guide

Ergotron

Ergotron Neo Flex Cantilever UHD user guide

ECG LD 174203 instruction manual

ECG

ECG LD 174203 instruction manual

StarTech.com FPCEILBTB user manual

StarTech.com

StarTech.com FPCEILBTB user manual

VonHaus 05/038 instruction manual

VonHaus

VonHaus 05/038 instruction manual

Techlink ECHO TV manual

Techlink

Techlink ECHO TV manual

Sandstrom SSTVMC12X instruction manual

Sandstrom

Sandstrom SSTVMC12X instruction manual

Kanto RCAD590 user manual

Kanto

Kanto RCAD590 user manual

Forging Mount HY9440 instruction manual

Forging Mount

Forging Mount HY9440 instruction manual

ICW SCACC18 installation instructions

ICW

ICW SCACC18 installation instructions

LG WM-L640V owner's manual

LG

LG WM-L640V owner's manual

Gembird WM-65ST-01 user manual

Gembird

Gembird WM-65ST-01 user manual

ERARD FiTUP XXL 035320 quick start guide

ERARD

ERARD FiTUP XXL 035320 quick start guide

GEM GEM GP001 instructions

GEM

GEM GEM GP001 instructions

Gladiator Joe GJ0A0053 quick start guide

Gladiator Joe

Gladiator Joe GJ0A0053 quick start guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

ISSUED: 03-24-09 SHEET #: 125-9056-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
1 of 2
Models: WSP816,
WSP816-W
Use a stud finder to locate stud centers. Use wall
plate (A) as a template to mark stud centers
through slots. Drill 3/4" (19 mm) dia. holes through
drywall and studs. Insert togglers (E) as shown
below. Six 1/4-20 x 2.5" phillips screws (D) and six
washers (C) are provided. Place screws (D) through
wall plate (A). Partially fasten the toggler (E) to the
back of the screw. Pivot ends of toggler (E) 90°.
• Make sure that mounting screws are anchored into
the center of the studs. The use of an "edge to edge"
stud finder is highly recommended.
WARNING
A
BC
D
E
A
E
D
E
D
A
A
DC
E
Installation and Assembly:
Metal Stud Wall Plate for FPS-1000 or SP850
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
Maximum Load Capacity: 150 lb (68 kg)
D
E
A
C
Push toggler (E) through hole.
Pull screw (D) back until toggler (E) hits the inside of
the metal stud. Fasten all six screws (D) tight, until
wall plate (A) is flush with wall.
WSP816 WSP816-W
Description Qt
y
. Part # Part #
A
16" wall plate 1 024-1047 024-2047
B1/4-20 x 1/2 phillips head screw 4 510-9108 510-9108
C1/4" flat washer 10 540-9440 540-9440
D1/4-20 x 2.5 phillips head screw 6 520-9522 520-9522
Etoggler 6 590-1093 590-1093
Parts List
ISSUED: 03-24-09 SHEET #: 125-9056-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
2 of 2
© 2009 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
Secure FPS-1000, or SP850 to wall plate using
four 1/4-20 x 1/2" phillips head screws (B) and
1/4" flat washers (C).
B
C
FPS-1000 OR SP850
