Peg-Perego Baby carriage User manual

book pop-up
U.S.A./CANADA
EN Instructions for use
ES Instrucciones de uso
FR Notice d’emploi

3
2
1

6
5
4
1
2

8
7
9

12
11
10
11
2
2

13
14
15

16
17
18

19
20
21

22
23
24 NO
OK

25
26
27
OK

28
29
31
30
32
a a
b

33
35
37
34
36
38

39
41
43
40
42
44
A
b
c

45 46
2
5
6
1
3
4
7
8
Seat Pop-Up
1 BCASPO00•
2 ASPI0167L50N
3 BSASPONA•
4 SAPI7549N
5 MUCI5P22N
6 BSPSPO00•
7 CFRPPR00--NER
8 ITSEPO•N

25
6
24
24
13
14
15
1
3
4
7
12
11
8
10 9
17
22
21
20
19
18
16
23
Chassis Pop-Up
1 SPST7372DGR
SPST7372SGR
2 SPST7302N
SPST7302KN
3 SPST7357NPEG
4 SPST6232KN
5 SAPI7255JN
6 SPST7255N
7 ARPI0693L32NGR
8 SPST7309N
9 SPST7328N
10 SOTF0377C
11 MUCI0027N
12 SPST7263N
13 SPST7286WDNPEG
SPST7286WSNPEG
14 SAPI7304N
15 SAPI7251JNNS
16 MMST0087N
SPST7303N
MMRA0007
MMCA0007L30
17 SPST7323N
MMVI0526
18 SPST7351N
MMVA0260N
19 ARPI0675NGRNEROG
20 ITCBO01NANL77
21 SPST7301N
22 ASPI0152L31
23 ERSHBP00-NY01RT01
24 MMMO0025D

- 16 -
12
3
4
56
Bassinet Pop-Up
1) MUCI0136N
2) SPST7518N
SPST7519N
3) ASPI0166L31
4) SPST7551N
5) SPST7523GP
6dx) ARPI0677DNGP
6sx) ARPI0677SNGP
EN Spare parts available in different colours to be specified when ordering.
ES Repuestos disponibles en otros colores que se especificarán en el pedido.
FR Pièces de rechange disponibles en plusieurs couleurs à spécifier dans la demande.

- 17 -
MOVING PARTS.
_ ALL OPERATING AND ASSEMBLY
PROCEDURES SHOULD BE
PERFORMED BY AN ADULT.
_ DO NOT LIFT THE STROLLER BY
GRIPPING THE FRONT BAR. THE
FRONT BAR IS NOT DESIGNED TO
WITH STAND LOADS.
_ ENSURE THAT THE STROLLER IS
OPENED CORRECTLY AND LOCKED IN
POSITION OF USE.
_ CHECK TO MAKE SURE THAT THE
CAR SEAT OR THE BABY CARRIAGE
IS CORRECTLY FASTENED TO THE
STROLLER (WHERE APPLICABLE).
_ DO NOT DRIVE THIS PRODUCT
AROUND STAIRS OR STEPS; CARE
MUST BE TAKEN IF UNIT IS USED ON
STAIRS OR ESCALATORS.
_ DO NOT USE THE PRODUCT IF IT HAS
BROKEN OR MISSING PARTS.
_ DO NOT USE NEAR FIRE OR EXPOSED
FLAME.
_ WHEN USED IN COMBINATION WITH
BASSINET.
_ WARNING: DO NOT
ADD A MATTRESS PAD.
NOTICE
THIS ARTICLE MEETS OR EXCEEDS
ALL REQUIREMENTS COVERED IN
ASTM F833 STANDARD AND LATEST
REVISIONS.
FOR USE IN COMBINATION
WITH BASSINET:
WARNING
_ READ THE INSTRUCTIONS CAREFULLY
BEFORE USE AND KEEP THEM FOR
FUTURE REFERENCE.
FAILURE TO FOLLOW THESE
WARNINGS AND INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY
OR DEATH.
_ DO NOT USE THIS BASSINET IF YOU
CANNOT EXACTLY FOLLOW THE
ACCOMPANYING INSTRUCTIONS.
_ DO NOT USE THIS BASSINET FOR A
CHILD WHO CAN ROLL OVER OR WHO
HAS REACHED THE MANUFACTURER’S
EN_English
Thank you for choosing a Peg-Pérego product.
WARNING
_ READ THE INSTRUCTIONS CAREFULLY
BEFORE USE AND KEEP THEM FOR
FUTURE REFERENCE.
FAILURE TO FOLLOW THESE
WARNINGS AND INSTRUCTIONS
COULD RESULT IN SERIOUS INJURY
OR DEATH.
_ THIS PRODUCT IS DESIGNED FOR
CHILDREN WHOSE MAXIMUM WEIGHT
IS 50 POUNDS (22.7 KG) AND WHOSE
MAXIMUM HEIGHT IS 43 INCHES (110
CM). THIS SHOPPER BASKET IS DESIGNED
TO CARRY A MAXIMUM WEIGHT OF 11
POUNDS (5 KG). ANY POACH OR POCKET
PROVIDED WITH THIS UNIT IS DESIGNED
TO CARRY A MAXIMUM WEIGHT OF 0.44
POUNDS (0.2 KG).
_ THIS ITEM WAS DESIGNED FOR
USE IN COMBINATION WITH 1 PEG-
PÉREGO GANCIOMATIC “PRIMO
VIAGGIO” CAR SEAT (GROUP 0+),
"BASSINET POP-UP" BASSINET, "SEAT
POP-UP" OR "PRATICO" SEAT.
_ BEFORE USE CHECK THAT THE “PRIMO
VIAGGIO” CAR SEAT (GROUP 0+),
"BASSINET POP-UP" BASSINET, "SEAT
POP-UP" OR "PRATICO" SEAT ARE
CORRECTLY FIXED TO THE ITEM.
_ IF PRESENT DO NOT PUT HOT DRINKS
IN THE DRINK-HOLDER, NOR ITEMS
WEIGHING MORE THAN 0,5 KG (1 LBS).
_ FAILURE TO FOLLOW MANUFACTURER’S
SPECIFICATIONS OR USE OF
ACCESSORIES OTHER THAN THOSE
APPROVED BY THE MANUFACTURER MAY
CAUSE THE UNIT TO BECOME UNSTABLE.
_ WARNING: AVOID
SERIOUS INJURY FROM FALLING
OR SLIDING OUT. ALWAYS USE
COMPLETE 5 POINT SEAT BELT.
_ WARNING: NEVER
LEAVE YOUR CHILD UNATTENDED.
_ ALWAYS USE ALL THE BRAKES
WHENEVER PARKED.
_ TO AVOID SERIOUS INJURY, WHEN
MAKING ADJUSTMENTS ENSURE
THE CHILD’S BODY IS CLEAR OF ALL

- 18 -
RECOMMENDED WEIGHT LIMIT.
_ THIS PRODUCT IS DESIGNED FOR
CHILDREN FROM BIRTH UP TO A
WEIGHT OF 20 LBS (9 KG).
_ FALL HAZARD: DO NOT USE THIS
BASSINET WHEN THE INFANTS
BEGINS TO PUSH UP ON HANDS OR
KNEES OR HAS REACHED 20 LBS.
_ SUFFOCATION HAZARD: INFANTS HAVE
SUFFOCATED IN GAPS BETWEEN EXTRA
PADDING AND SIDE OF THE BASSINET/
CRADLE OR ON SOFT BEDDING.
USE ONLY THE PAD PROVIDED BY
MANUFACTURER. NEVER ADD A PILLOW,
COMFORTER, OR ANOTHER MATTRESS
FOR PADDING.
_ NEVER LEAVE YOUR CHILD
UNATTENDED.
_ TO REDUCE THE RISK OF SIDS, PLACE
THE INFANTS ON HIS BACK TO SLEEP.
_ USE OF STAND: THIS PRODUCT
IS DESIGNED TO BE USED IN
CONJUNCTION WITH A STAND. ALWAYS
USE ONLY PEGPEREGO SPECIFIC
STAND. MAKE SURE THIS BASSINET IS
CORRECTLY ATTACHED TO THE STAND
BEFORE USE.
_ DO NOT USE NEAR HEAT SOURCES,
OPEN FLAMES OR DANGEROUS
OBJECTS THAT ARE WITHIN REACH OF
THE CHILD.
_ ONLY USE THE PRODUCT ON
SURFACES THAT ARE HARD,
HORIZONTAL AND DRY.
_ DO NOT LEAVE OTHER CHILDREN
PLAYING UNATTENDED NEAR THE
CARRIAGE.
_ BEFORE PLACING THE CHILD IN THE
BASSINET, MAKE SURE THAT EVERY
PART IS PROPERLY AND SECURELY IN
PLACE.
_ ASSEMBLY AND PREPARATION OF
THE ITEM MUST BE CARRIED OUT BY
ADULTS.
_ DO NOT USE THE PRODUCT IF THERE
ARE MISSING OR BROKEN PARTS.
_ BEFORE USE MAKE SURE THAT ALL OF
THE ATTACHMENT MECHANISMS ARE
CONNECTED PROPERLY.
_ DO NOT INSERT FINGERS INTO THE
MECHANISMS.
_ IT COULD BE DANGEROUS TO USE
ACCESSORIES WHICH ARE NOT
APPROVED BY THE MANUFACTURER.
_ DO NOT USE THE BASSINET
WITHOUT ITS FABRIC COVERING,
WHICH CANNOT BE REPLACED
WITH ONE NOT APPROVED BY THE
MANUFACTURER.
_ TAKE CARE WHEN ADJUSTING THE
MECHANISMS (HANDLE, BACKREST)
WITH THE CHILD IN THE PRODUCT.
_ IF A SHEET IS USED, CHECK THAT
DIMENSIONS FIT THE DIMENSIONS
OF THIS BASSINET.
_ STRINGS CAN CAUSE
STRANGULATION! DO NOT PLACE
ITEMS WITH A STRING AROUND
A CHILD’S NECK, SUCH AS HOOD
STRINGS OR PACIFIER CORDS. DO NOT
SUSPEND STRINGS OVER A BASSINET
OR CRADLE OR ATTACH STRINGS TO
TOYS.
_ DO NOT PLACE THIS BASSINET NEAR
A WINDOW OR A PATIO DOOR WHERE
A CHILD COULD REACH THE CORD
OF A BLIND OR CURTAIN AND BE
STRANGLED.
_ THIS PRODUCT IS DESIGNED TO
HOLD A SLEEPING BABY. WHEN THE
CHILD IS ASLEEP, THE BASSINET
BACKREST SHOULD BE FULLY
LOWERED.
NOTICE
THIS ARTICLE MEETS OR EXCEEDS
ALL REQUIREMENTS COVERED IN
ASTM F 2194 STANDARD AND LATEST
REVISIONS.
______________________________________________
CHASSIS POP-UP
COMPONENTS OF THE ITEM
Check the contents of the packaging and if
you have any complaints please contact the
Assistance Service.
_ Chassis book Pop-Up : basket; 2 rear wheels
with brake gear, rear wheel bar, 2 front

- 19 -
wheels, solid handle.
INSTRUCTIONS

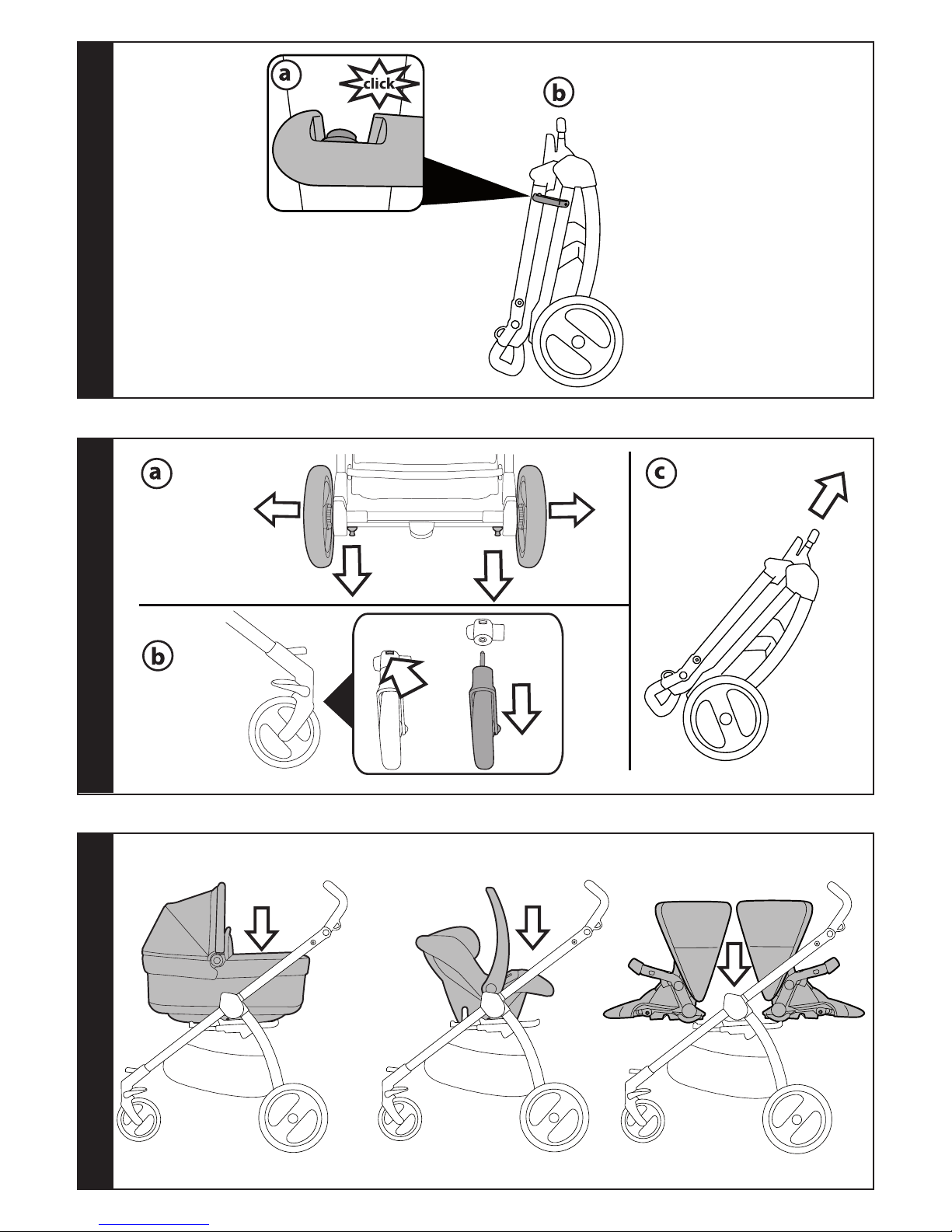

1 OPENING: Before opening the frame, remove
(without using blades) any die-cut cardboard.
Press down the side fastener, hold the upper
section of the handle and rotate it towards
you until the frame is fully opened (fig_a).
Open frame (fig_b).
The frame is properly opened when the
attachment on the base clicks into place,
as shown. CAUTION: When placing the seat
on the frame, press the seat downwards to
ensure it engages securely onto the base.
2 FITTING THE WHEELS: Slot the uprights into
the rear wheel crosspiece (fig_a), ensuring
that it is facing the right way, then push the
rear wheels on and make sure that they click
into place (fig_b). To mount the front wheels,
fit them into the uprights until they lock into
place (fig_c).
3 ATTACHING THE MAIN HANDLE: if the handle
tube faces upwards, align it with the stroller
(Fig_a).
Fasten the handle to the frame as shown in
the figure (Fig_b).
To complete the operation, press the two side
buttons on the handle (Fig_c) to ensure the
handle pushes in all the way, until it clicks
into place (Fig_d).
4 FITTING THE BASKET: if lowered, lift the basket
tube to the horizontal position. Press the silver
buttons under the metal basket tube located at
the back of the stroller (fig_a) and remove the
metal tube (fig_b). Thread the tube through the
fabric loop on the back of the basket, making
sure that the two silver buttons are facing
downward (fig_c). Re-attach the tube to the
housings (fig_d).
5 Secure the two upper basket vinyl eyelets to the
two grey buttons on either side of the metal tube
housing. Please note that the eyelets open (fig_e).
Remove the cardboard from the lower rear bar.
IMPORTANT! Secure the two lower basket vinyl
eyelets to the two grey buttons on the top of the
lower rear bar. Please note that the eyelets open
(fig_f).
WARNING! If this operation is not performed
correctly, the basket will not properly hold the
weight.
Attach the basket tabs to the grey buttons on the
front of the frame (figure).
REFER TO OUR INSTALLATION INSTRUCTIONS
VIDEO AT:
WWW.PEGPEREGO.COM
6 FIXED OR SWIVEL FRONT WHEELS: to fix
the front wheels, rotate the lever counter
clockwise to the locked padlock (fig_a); to
release the wheels, turn the lever clockwise
to the unlocked padlock (fig_b). On difficult
terrain, we recommend using fixed wheels.
7 BRAKE: Press the lever down to apply the
brake on the chassis and lift it to release the
brake.
8 ADJUSTABLE HANDLEBAR: To adjust the
height of the handlebar, press both of the
side buttons at the same time (fig_a) and
swing it into the desired position (fig_b), then
release the buttons.
9 FOLDING UP: The chassis can be folded up
without the seat, with the seat facing the
person pushing (recline the backrest before
folding it) or with the seat facing forward.
To fold the stroller, it is best to set the front
wheels to their fixed position and close the
hood (if fitted). Place the handle as shown in
the figure (fig_a).
Pull the inside handle on the base (fig_b) and
lift it (fig_c); the handle will drop forward
until the frame is closed.
10 To ensure the frame is closed properly, check
that the side fastener is enabled (fig_a). When
closed, the frame remains in the upright
position (fig_b).
11 For greater compactness, it is possible to
remove the wheels.
To remove the rear wheels: pull the pivot
outwards and remove the wheel as shown in
the figure (fig_a).
To remove the front wheels: press the tab as
shown, and remove the wheel (fig_b).
TRANSPORT: the stroller can be carried
comfortably locking the front wheels and
grasping the main handle (fig_c).
GANCIOMATIC SYSTEM
12 Ganciomatic is a fast and practical system
that allows you to attach the Bassinet
Pop-Up,the Primo Viaggio car seat or the
Seggiolino Switch/ Seggiolino Pop-Up seat
to the Ganciomatic Base of the chassis in one
quick step.
Place the item on the Ganciomatic Base and
press down with both hands until it clicks
into place.
Always apply the chassis or stroller brake
before attaching and removing products
(refer to the respective instruction manuals).
Check that the child transport unit is properly
attached.

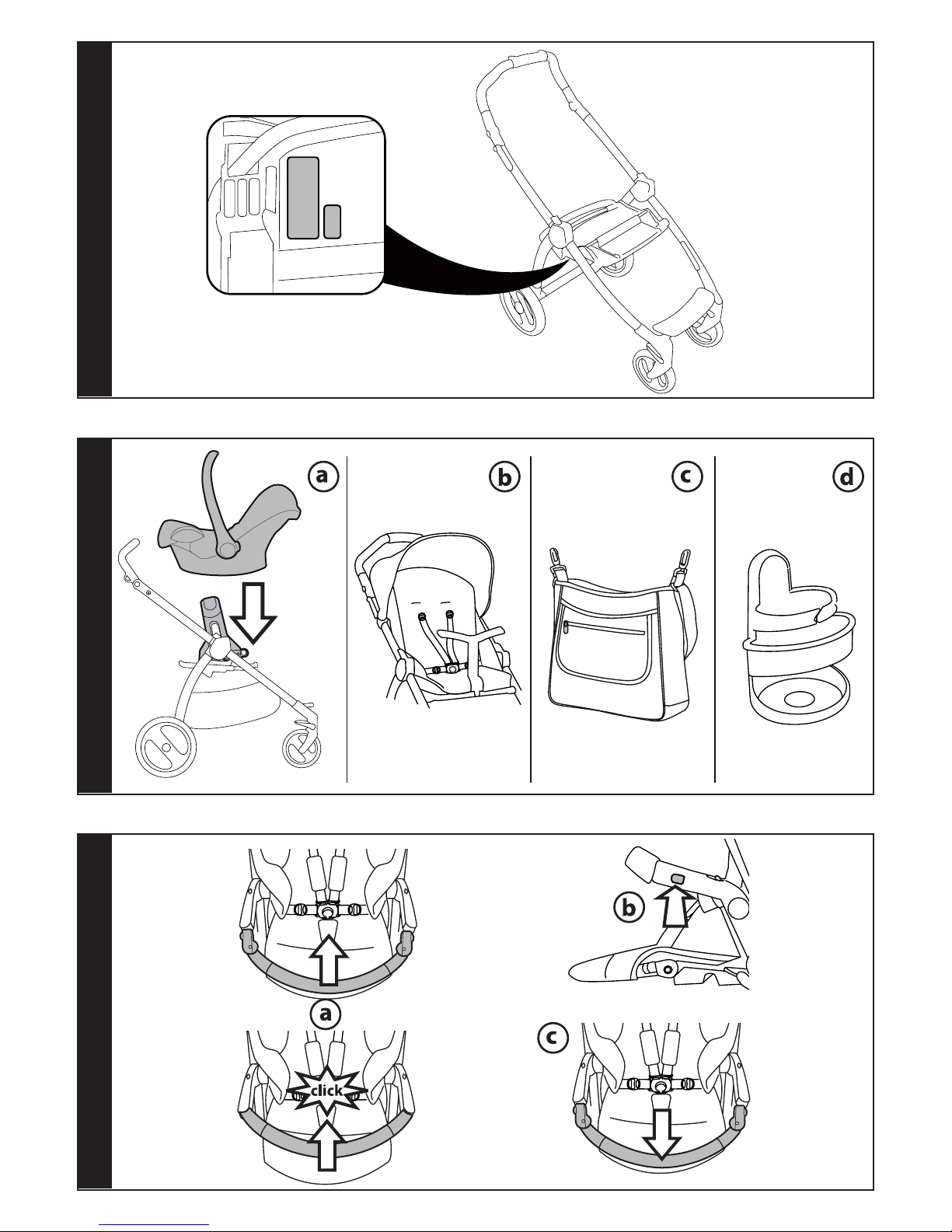

SERIAL NUMBERS
13 Information about the production date can
be found on the Chassis book Pop-Up .
_ The product name, production date and serial
number of the chassis.
This information is required for any
complaints.
ACCESSORY
14 Maxi-Cosi® - Cybex car seat adaptors: PREZI,

- 20 -
MICO, ATON, ATON 2 (A).
PRATICO: Transform your Book Plus S to a
lighter strollerwith our compact Pratico seat
that comes with its very owntravel bag (B).
BORSA. Diaper-Changing Bag with pad for
changing the baby (C).
CUP HOLDER: may be attached to the
mushroom button on the frame of the stroller
(D).
CLEANING AND MAINTENANCE
PRODUCT MAINTENANCE: protect from the
weather: water, rain, or snow; prolonged and
continuous exposure to bright sunlight may
give rise to colour changes of various different
materials; store this product in a dry place.
CLEANING THE CHASSIS: periodically clean all
plastic parts with a damp cloth. Do not use
solvent or similar cleaning products; keep
all metal parts dry to prevent rusting; keep
moving parts clean (adjustment mechanisms,
locking mechanisms, wheels, ...) and free of
dust and sand and, if necessary, lubricate with
light machine oil.
______________________________________________
SEAT POP-UP
INSTRUCTIONS
15 FRONT BAR: To attach the front bar, slide the
attachments into the armrests and push towards
the seat until they lock into place (fig_a). To remove
the front bar, press the two buttons (fig_b) and pull
out (fig_c). Open the front bar on one side only, to
facilitate the child's entry and exit.
16 BACKREST: to adjust the backrest, lift the handle
(fig_a) and recline it to the desired position (fig_b).
The backrest can be adjusted into different
positions.
17 FOOTREST: before adjusting the foot rest,
ensure its cover is accurately fitted; if it isn’t,
fit it accordingly. To lower the footrest push
the two levers downwards and then push
the footrest downwards (fig_a); to raise the
footrest lift it upwards (fig_b).
18 FIVE POINT SAFETY HARNESS: To fasten it,
push the two waist strap buckles (with the
shoulder straps attached – arrow_a) into
the leg divider until they click into place
(arrow_b). To unfasten it, press the round
button in the centre of the buckle (arrow_c)
and pull the waist straps out (arrow_d).
19 To tighten the waist strap, pull on both sides
in the direction of the arrow (arrow_a). To
loosen it, move it in the opposite direction.
20 To adjust the height of the safety harnesses,
release the two buckles on the rear of the
backrest.
Pull the shoulder straps towards you
(arrow_a) until the buckles are released and
insert them in the backrest loops (arrow_b).
Remove the shoulder straps from the sack
(arrow_c) and insert them in the most
appropriate loop (arrow_d), then re-attach
the two buckles on the rear of the backrest
(arrow_e) The buckles are securely attached
when a click is heard (fig_f).
21 HOOD: To fasten, slide the attachments into
the sides of the seat (fig_a) and button the
hood to the back of the backrest (fig_b). To
remove the hood: pull out the attachments
and unbutton. To lift the hood: pull it towards
you; to close the hood: push it back. The hood
includes a slot from which you can hang the
child's favorite toy (fig_c).
22 When the backrest is fully reclined, open
the hood using the double slider on the
back (fig_a). To provide your child greater
ventilation, lift the hood section fastened
with Velcro (fig_b).
23 FASTENING THE SEAT TO THE CARRIAGE: Seat
Pop-Up can be secured to the carriage either
facing mom or the street. Place it centrally
on the carriage alongside the symbols (fig_a)
and press downwards with both hands until
it clicks into place (fig_b). To ensure it is
properly secured, grab the seat from the front
bar and pull upwards.
24 RELEASING THE SEAT FROM THE CARRIAGE:
Press the two buttons on the armrests of
the seat (fig_a) and then the two levers
underneath (fig_b); pull up the seat (fig_c)
until it releases. If the backrest is fully reclined
forward (in the closed position, facing the
world), the seat cannot be released from the
chassis (fig_d). In this case, lift the backrest to
the position of use before releasing the seat
from the chassis (fig_e).
If the backrest is fully
reclined forward (in the closed position, facing the
world), the seat cannot be released from the chassis
(fig_d). In this case, lift the backrest to the position
of use before releasing the seat from the chassis
(fig_e).
25CLOSING THE STROLLER: To close the stroller
with the seat facing the street, press the
backrest adjustment handle (fig_a) and lower
the backrest fully forward (fig_b). To open it,
lift the backrest to the position of use, until
it locks into place (fig_c). To close the stroller
with the seat facing mom, fully recline the
backrest (fig_d).
26 REMOVING THE COVER: unbutton the cover along
the armrests (fig_a) and the backrest (fig_b),
remove the cover from the footrest (fig_c), unfasten
the side elastics (fig_d), unscrew (fig_e) and remove
the harness on both sides, and finally remove the
crotch strap from above, pushing from under the
seat (fig_f).
