Pentair ONGA Eco Select PANTERA evolution User manual

OWNER ’S MANUAL
Should the installer or owner be unfamiliar with the correct installation or operation of this
type of equipment you should contact the distributor/manufacturer for the correct advice
before proceeding with the installation or operation of this product. The pump operator or
owner must be provided with this owner’s manual.
P
ANTER A
evolution
For the Installation, Operation and Service of the
PANTERA
evolution
Dual Speed Pool Pump

Onga and Pentair
Onga has been servicing the Australian and New Zealand markets with the highest quality water
movement products for 47 years. Established in 1967, Onga has a product to meet your every
water need.
Onga is part of the Pentair group, a global leader in swimming pool, spa and aquatic equipment.
The business has built a reputation as an innovation leader, providing high performance, reliable
and energy-efficient filters, controls, sanitizers, pumps, heaters, cleaners, and accessories for
residential and commercial pool owners and operators.
The Eco Select® brand identifies our most eco-friendly products
As the global leader in pool and spa equipment, we've made a strong commitment to develop and offer the
most environmentally responsible products available.
®
When you see the Eco Select brand on one of our products, you'll know it is our “greenest” and most
efficient product in that equipment category.
These products do the best job of saving energy, conserving water, reducing noise, or otherwise
contributing to a more environmentally responsible equipment system. In every case, a product that earns
the Eco Select brand is clearly our “greenest” and most efficient choice.
®
Eco Select

Table of Contents
Features and Benefits
Technical Information
Model Data
Hydraulic Performance
Dimensions
Installation
Pump Positioning
Piping
Pool Outlets
Electrical
Equipotential Bonding
Operation
Priming the Pump
Speed Selection
Other modes
Automation control
Service & Maintenance
Troubleshooting
Troubleshooting Guide
Spare Parts
Page
3
4
5
5
6
6
7
7
7
8
9
9
10
12,13
14
4, 5
6
7
11
12,13

Features & Benefits
The Pantera Evolution is the ideal pump for new or existing pools. Utilising efficient hydraulic design and
the latest technology in permanent magnet, electronic control two speed motors, the Pantera Evolution
has the perfect combination of efficiency and performance. The Pantera Evolution delivers energy savings
and the power when you need it. You will also have the peace of mind that you are doing your bit for the
environment and reducing your carbon foot print.
Dual speed pump, with 2 fixed speeds, allows you to efficiently filter your pool, saving energy with
the low speed mode and delivering extra power with the high speed mode for backwashing and
vacuuming.
2 pole / 4 pole induction motor delivers high efficiency and low noise levels.
Fault protected motor prevents damage by automatically shutting down the motor in the event of a
locked rotor or over current condition.
Low speed operation and efficient fluid dynamics make pump operation incredibly quiet.
Constructed of our durable, Australia made plastic pump components, so you can be sure it will
stand up to the harshest conditions.
A heavy-duty construction and a motor rated for continuous operation make the Pantera Evolution
a tough, long-lasting performer.
The high-capacity trap holds a large amount of debris, so you clean less often.
The transparent lid, features a self lubricated o-ring, so it can be hand tightened, making inspection
and cleaning a breeze.
Quick-disconnect plumbing unions.
Electronic control features high speed priming and 2hour high speed boost modes, for added
functionallity.
Drop in replacement for all LTP (Leisuretime) and PPP (Pantera) pool pumps.
3

Technical Information
Model: Pantera Evolution
RPM: Low 1450RPM (default factory setting)
High 2800RPM (default factory setting)
Electrical Rating: 230-240V 50Hz single phase
Rated Current: Low: 1.0A
High: 5.2A
Input Power (P1): Low: 223W
High: 1180W
Pump Power (P2): Low: 118W
High: 950W
IP Rating: IP25
Inlet (Suction): PVC Barrel Union to suit 40mm PVC pressure pipe
to AS/NZS 1477
Outlet (Discharge): ABS Barrel Union to suit 40mm PVC pressure pipe
to AS/NZS 1477
Max Total Head: 20m
Water Temperature Range: 5°C – 40°C
Maximum Ambient temperature: 5 5°C
Recommended pH Range: 7.2 - 7.8 (Guide Only)
Sound Power Level (Lwa): Low: 53dB
High: 69dB
Motor: 2 pole / 4 pole induction motor
Supply cord: 10A, H07RNF, 2m.
or 50mm spigot
or 50mm spigot
4
Note:
The Low speed of the Pantera Evolution is not adjustable.
It is not recommended to use the Pantera Evolution where there is a suction lift greater than 10m, where
there are excessive pipe runs from pool to pump location, where the pool is greater than 50,000L and
where the sand filter is greater than 25" size.

Technical Information
Hydraulic Performance
Dimensions
5
Head (m)
Flow (L/min)
0.00
2.00
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
20.00
0 50 100 150 200 250 300 350 400 450
Pantera Evolution - Performance Chart
Low - 1450RPM
High - 2800RPM

Installation
The pump must be installed and serviced by a suitably qualified person in order to avoid
hazard. Incorrectly installed or tested equipment may fail, causing severe injury or property
damage.
These instructions are a guide only. Should you the installer or owner of the product be
unfamiliar with the correct installation or operation of this product you should contact a
suitably qualified person for advice.
Do not connect system to high pressure or mains water system.
This pump is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the pump.
The Pantera Evolution is electrically connected. Ensure that it is isolated from electrical
supply during installation and any subsequent service work.
For best performance, allow pump
suction inlet height to be as far
below water level as possible and
allow the use of short, direct suction
pipe with minimum bends (to reduce
friction losses).
1. Plan the position of the pump
a) Have enough ventilation to keep ambient temperature below the motor's rated ambient temperature whenever the pump
is running. If installed in an enclosure/pump house, the enclosure must have adequate ventilation (200sq.cm min, inlet &
outlet) and air circulation Allow 200mm to keep rear of motor clear.
b) Have adequate floor drainage to prevent flooding and be protected from excess moisture.
c) Be solid, level, rigid and vibration free.
d) To reduce vibration and pipe stress, bolt pump to mount. Fixing holes accept 12mm fasteners.
e) Be within 2m of a power outlet for electrical connection (refer to AS/NZS 3000 for rules regarding connection of
electrical equipment in pool zones).
f) Allow adequate access for servicing pump and piping.
2. Piping
For best performance, allow pump
suction inlet height to be as far
below water level as possible and
allow the use of short, direct suction
pipe with minimum bends (to reduce
friction losses).
a) Use only Australian Standard PVC pressure pipe. For best performance use at least 50mm diameter pipe for all
connections to the pump. Never use a suction pipe smaller than pump suction connections (50mm) and use larger pipe
for long suction distances.
b) To avoid stress on the pump, support both suction and discharge pipes independently. Place these supports as close to
the pump as possible.
c) To avoid a strain left by a gap at the last connection, start all piping at the pump and run pipe away from the pump.
6

Installation
3. Pool Outlets
a) The pump suction system must provide protection against hazard of suction entrapment or hair
entrapment/entanglement. The pool outlet piping must be in accordance with the latest AS1926.3 standard
b) Suction outlet covers and skimmers must have been tested and found to comply with the latest AS1926.3 standard or
ASME/ANSI specification for Suction Fittings.
4. Electrical
a) Electrical installation shall be in accordance with the national wiring rules (AS/NZS 3000) taking into account its ratings
(Class I, IPX5). The pump is supplied with a standard Australian 10 amp plug and 2 metres of cord. Select the correct
Pool Zone for installation.
b) An RCD with maximum rated residual current of 30mA is required for the power supply to the pump. Additionally, if a
suitable socket outlet is not available a weatherproof socket must be installed by an electrician in a suitable location.
RCD tripping indicates an electrical problem. If RCD trips and will not reset have a qualified electrician inspect and repair
electrical system.
c) Incorrect voltage can cause fire or seriously damage pump and voids warranty.
d) Voltage at pump must not be more than 6% above or 10% below motor nameplate rated voltage or pump may overheat,
causing overload tripping and reduced component life. If voltage is less than 90% or more than 106% of rated voltage
when pump is running at full load, consult the power company.
e) If supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order
to avoid hazard.
Do not use extension leads as they
are unsafe in and around the
Pool Zone.
Hazardous voltage. Can shock,
burn or cause death.
To avoid dangerous or fatal electrical
shock, turn OFF power to pump and
remove plug from outlet before
working on electrical connections.
5. Equipotential bonding
If equipotential bonding is required (refer to local statutes and regulations), connect all metal parts of the swimming pool or
spa structure and to all electrical equipment, metal conduit, and metal piping in accordance with the wiring rules. Run a
wire from the equipotential bonding terminal on the pump (bottom, left motor bolt with serrated washer) to the pool
bonding structure.
7
Hazardous suction.
Can trap hair or body parts,
causing severe injury or death.
Do not block suction.

Operation
NEVER run pump dry. Running pump dry may damage seals, causing leakage and flooding.
Fill pump with water before starting motor.
Freezing conditions will damage the unit, as water expands as it freezes. Ensure that the
Pantera Evolution is located so that it is not prone to freezing, or ensure that the product is
disconnected and dried of water during cold conditions.
Trapped air in system can cause explosion. Ensure all air is out of the system before
operating or testing equipment
Fire and burn hazard. Modern motors run at high temperatures. To reduce the risk of fire,
do not allow leaves, debris, or foreign matter to collect around the pump motor. To avoid
burns when handling the motor, let it cool for at least 20 minutes before trying to work on
it.
Small children using pool must ALWAYS have close adult supervision
Pump suction is hazardous and can trap and drown or disembowel bathers. Do not use or
operate pump, pool/spas if a suction outlet cover is missing, broken, or loose. Follow the
guidelines below for a pump installation which minimises risk to users of pool and spas.
NEVER tighten or loosen trap lid while pump is operating.
It is not necessary to lubricate the o-
ring. The original equipment O-ring
contains a permanent internal
lubricant.
a) Before removing trap lid, SWITCH OFF POWER SUPPLY to pump.
b) CLOSE SHUT-OFF VALVES on suction and discharge pipes, if present.
c) Remove the trap lid (turn anti-clockwise)
d) Fill trap tank with water.
e) Check the lid o-ring and sealing surface, ensure there is no dust or debris on either, and replace the lid (turn clockwise to
tighten by hand only - no wrenches!).
f) Open the shut-off valves on the suction and discharge pipes, if present.
g) Release all air from filter, pump and piping system (refer filter owner's manual). In a flooded suction system (water
source higher than pump), pump will prime itself when suction and discharge valves are opened and air is released.
h) Switch on power to the pump to start.
I) Pump should start to prime now. Priming time will depend on vertical height of suction lift and horizontal length of
suction piping but is generally between 30 seconds to 2 minutes under normal installation conditions.
j) The Pantera Evolution will start slowly but ramp up to high speed for the first 2 minutes to assist priming. It will then
switch to the selected speed.
* Should the pump not prime, ensure that all valves are open, lint trap is clear of debris and suctions and suction pipe end is submersed
in water, and that there are no leaks in suction pipe. See troubleshooting guide.
1. Priming the pump
8

Operation
2. Speed selection
Speed / Application
Filtration and
water circulation
The Onga Pantera Evolution comes pre-programmed with the following default speeds:
1450RPM 2800RPM
Press for low speed Press for high speed
Off button
Press to turn power on/off.
If power is removed, motor will return to the last speed selected when power is restored.
Motor will remember ON/OFF state.
3. Other modes
If the default speed settings do not perfectly match the particular installation. They can be adjusted as follows.
1.
2.
Press & hold HIGH SPEED button for 5 seconds. Pump will go
to high speed for 2 hours then automatically will return to low.
9
Cleaning with a
suction cleaner
Backwashing
filter.
Operating some
water features such
as jets or waterfalls.
Solar heating
5 sec
Press & hold
for 5 seconds. On each power cycle the pump will power up to
low-high-low-high, etc. This allows for different automated
schedules via chlorinator time clock.
LOW SPEED, HIGH SPEED buttons simultaneously
+
+
5 sec
5 sec
2-Hour
High Speed
Boost
2-Hour
High Speed
Start
Low/High
Alternating
Mode
Will cancel the change and revert back to the original speed and
return to normal operation mode
3.
4.
5 sec
Once 2Hour high speed boost mode (No.1 above) is activated,
press & hold for another 5 seconds.
Pump will start at high speed for 2 hours every time.
Press either LOW SPEED or OFF button to cancel this mode.
HIGH SPEED button

Operation
4. Automation control
Warning! This procedure should only be
undertaken by a trained technician.
Warning! Turn off pump power and remove
plug from outlet prior to making connection.
1. Turn off pump power and remove plug from electrical outlet
2. Undo all six screws securing the cover of the electrical
enclosure on top of the pump.
3. Undo the blank gland nut next to the power cord entry as
shown in Figure 1.
4. Pierce the rubber gland with a screwdriver or drill bit.
5. Feed the control cable through the gland nut and then through
the gland as shown in Figure 2.
6. Connect the control cable to the circuit board connectors
marked “High Speed” and “Low Speed” as shown in Figure 3.
7. Connect the other end of the control cable to the automation
control panel as indicated in Figure 4. The High Speed
connector is to connect to the “2-SPD” terminal and the Low
Speed connector is to connect to the “Filter Pump” terminal.
8. On the control system menu, select the “2-Speed” menu as
shown in Figure 5.
9. In the solar menu, define all the circuits which require the
pump to be in High Speed mode (up to 4 circuits can be
defined) as shown in Figure 6.

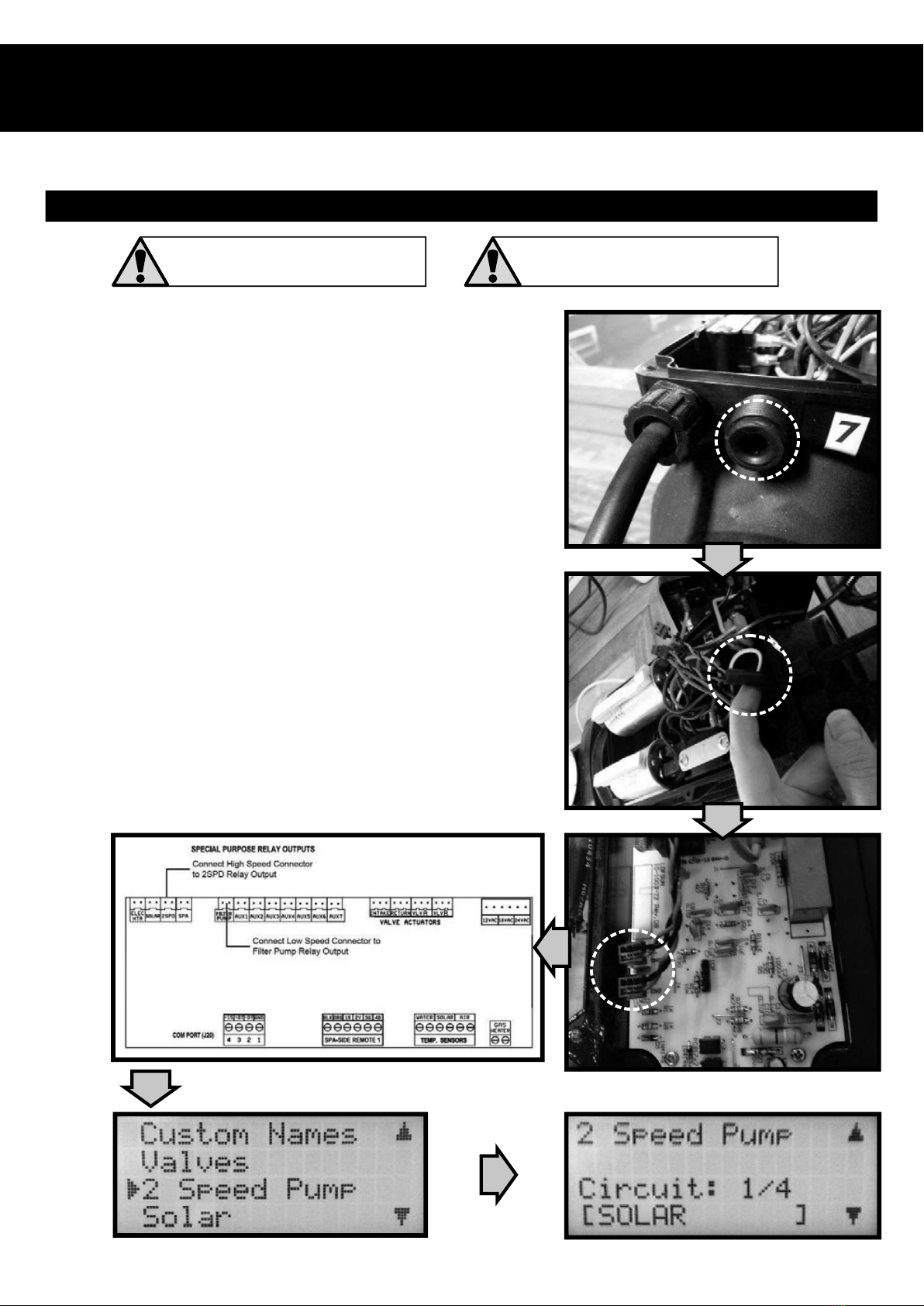

Figure 1.
Figure 2.
Figure 3.
Figure 5. Figure 6.
Figure 4.
10

Service & Maintenance
To avoid dangerous or fatal electrical
shock hazard, turn OFF power to
pump and remove plug from power
outlet before working on pump.
Do not operate pump with trap
basket missing or damaged.
It is essential for the longevity of the pump that regular service and maintenance be carried out. The Onga Eco800
incorporates high velocity moving parts and is pumping water containing harsh pool chemicals. Some parts which will wear
during the normal operation and expected life of the pump.
Once per week Once per month
FREQUENCY
CHECK
Inspect trap basket, and empty of any leaves
and other debris. Leaves and other debris
that collects in basket will choke off water
flow through the pump and reduce efficiency
and performance. See below instructions on
cleaning the trap.
Clean area around pump and ensure there
are no leaves or debris which could become
a fire hazard or choke the motor fan.
Check the pump to ensure no water is leaking
from inlet and outlet joints, whilst pump is
operating. If leaks are noticed, clean and grease
the o-rings or replace if necessary.
Check that there are no leaks from under the
pump. If there are, this could be a sign of a
leaking mechanical seal. Call a Pentair Service
Agent immediately, to prevent damage to the
motor.
Check pump and motor for insects and pest
infestations and ensure that motor fins are clean
of dust and dirt. Clean if necessary.
Follow instructions below to clean trap:
1. Switch off power to pump, close valves in suction and discharge, and release all pressure from system before
proceeding.
2. Remove trap cover (turn counter clockwise). If necessary, tap handles gently with a rubber mallet.
3. Remove strainer basket and clean. Ensure all holes in basket are clear, flush basket with water and replace in trap with
large opening at pipe connection port (between ribs provided). If basket is replaced backwards, the cover will not fit on
trap body.
To clean transparent cover, use water and neutral soap only. Do not use solvents.
4. Clean and inspect lid o-ring; reinstall on trap. Clean O-ring groove on trap body and replace cover. To help keep cover
from sticking, tighten hand tight only.
5. Prime pump (refer priming instructions).
11

Troubleshooting
The Onga Pantera Evolution should only be serviced by certified Pentair service agents. For
best results and to ensure warranty is not void, insist on use of only genuine Pentair service
parts.
To avoid dangerous or fatal electrical shock hazard, turn OFF power to pump and remove
plug from power outlet before working on pump.
The power supply cord has a type 'Y' attachment and if service is required to the power
cord, it must be replaced with the specialised power cord assembly by Pentair Water
service agent or similarly qualified personnel in order to avoid a hazard. Warranty is void if
unauthorised modifications are made to any component.
TROUBLESHOOTING GUIDE
SYMPTOM CAUSE REMEDY
Low water pressure, low flow
from pump.
Suction leaks / lost prime.
Low speed setting.
Clogged pipe / strainer /
impeller / filter system.
Pump must be primed; make sure that
the pump casing and strainer are full of
water. Refer priming instructions.
Make sure there are no leaks in suction
piping and ensure all o-rings are present
and clean.
Make sure suctions pipe inlet is well
below the water level to prevent pump
from sucking air.
Suction lift of 3 to 6 metres will reduce
performance. Suction lift of more than 6
metres will prevent pumping and cause
pump to lose prime. In either instance,
move the pump closer (vertically) to water
source. Ensure that the suction pipe
diameter is large enough.
Check speed setting. Refer to speed
selection section of this manual.
Ensure trap is not clogged with debris;
clean basket and/or filter.
Make sure that the impeller is not clogged.
This should be checked by qualified
personnel only.
Pump may be trying to push too high a
column of water. If so, a higher pressure
pump is required.
12

Troubleshooting
TROUBLESHOOTING GUIDE (continued)
SYMPTOM CAUSE REMEDY
Air ingress to system. Prime the pump. Check that there are no
air leaks in the suction piping or fittings.
Ensure the strainer lid is airtight and
fitted securely. Ensure all o-rings are
present.
Refer to motor fault codes.
Use another electrical appliance that is
known to work to check power outlet.
Check and call electrician if necessary.
Check speed setting. Refer to speed
selection section of this manual.
Ensure motor fins are clean and fan is
intact and free from blockages. Ensure
adequate ventilation and reduce ambient
temperature.
Switch off the power to the pump.
Tighten the casing bolts or replace the
mechanical seal as required.
No water coming from pump
(pump is working).
Pump does not work.
Pump running too slow.
Water leaking from between
the casing and motor.
Motor fault.
No power at outlet.
Blown fuse / Circuit breaker.
Low speed setting.
Motor high temperature
limit exceeded.
Casing bolts are not tightened
sufficiently; worn mechanical
seal requires replacing.
Should problems persist, contact your nearest Pentair Service Agent.
13

Spare Parts
Item Description Part No.
1 MOTOR 801956
2 BASE 702509
4 NUT 5/16inW HEX ST/ST SEE FASTENERS KIT
5 SHAFT SLEEVE SEE SEAL KIT
6 ORING SHAFT SLEEVE SEE SEAL KIT
7 YOKE AND LIP SEAL 412050
8 SCREW 5/16inW x 3/4in HWF S/S 702770
9 BAFFLE 305300
10 ORING CASING 305300
11 MECHANICAL SEAL SEE SEAL KIT
SEAL KIT (INCLUDES ITEMS 5,6,10&11) 800583K
MECHANICAL SEAL (PACK OF 25) 801303
12 DIFFUSER 303460K
13 IMPELLER 506840K
14 SEPERATOR PLATE 408730
15 CASING ASSEMBLY (INCLUDES ITEMS 16.17,18&19) 801200
16 CASING PANTERA POOL SEE CASING ASSEMBLY
17 STRAINER BASKET 302310
18 LID SEE CASING ASSEMBLY / LID & O-RING KIT
19 O-RING CASING & LID SEE CASING ASSEMBLY / LID & O-RING KIT
LID & O-RING KIT (INCLUDES ITEMS 18&19) 800897K
20 BARREL UNION KIT(INCLUDES ITEMS 21,22&23) 800714
23 O-RING TAIL & NUT 702193
24 DRAIN PLUG 3/4" BSP FEMALE 504605
25 SCREW 5/16inW x 1.1/2in HWF SS SEE FASTNERES KIT
FASTENERS KIT (INCLUDES ITEMS 4&25 x4) 801278
14

IMPORTANT
Please attach your sales invoice/docket here as proof of purchase should
warranty service be required.
Please do not return Warranty Form to Pentair Australia -
please retain for your records.
Purchased From ...................................................................................................................
Purchase Date..................................... Serial No.............................. Model No...................
L300260 0616
1-21 Monash Drive,
Dandenong South, Vic 3175
Australia
National Customer Service: Phone: [phone]
Fax: [phone]
National Dealer Locator: Phone: [phone]
Email: [e-mail]
Web: www.pentairpool.com.au
New Zealand
National Customer Service: Phone: [phone]
Fax: [phone]
National Dealer Locator: Phone: [phone]
Email: [e-mail]
Web: www.pentair.co.nz
International Australia/New Zealand
Phone: [phone]
Fax: [phone]
© Information contained here-in remains the property of Pentair Pty Ltd. Any reproduction,display,
publication, modification or distribution is strictly prohibited without the prior written permission of
Pentair Pty Ltd.
Disclaimer:
Every endeavour has been made to publish the correct details in this owners manual.
No responsibility will be taken for errors, omissions or changes in product specifications.
Pentair reserves the right to change product specifications and products details.
All product images are for reference purposes only and may not represent actual
and/or current product.
P ANTER A
evolution
Genuine Onga Spare Parts Supplied By:
Freephone 0508 634 341
7 Monier Pl, Mt Wellington, Auckland 1060, New Zealand
