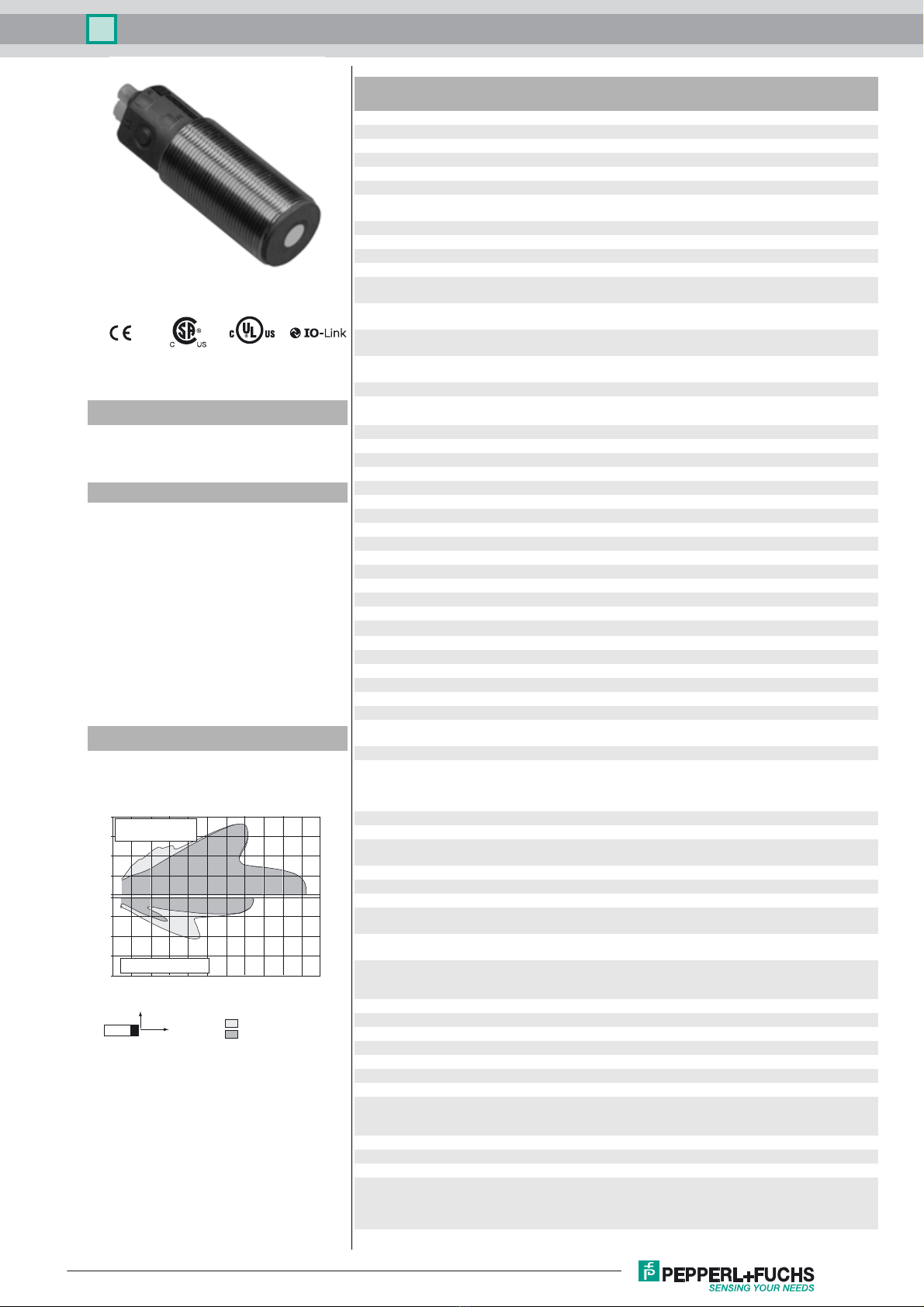

Ultrasonic sensor UC500-30GM-IUEP-IO-V15
Release date: 2013-11-22 10:15 Date of issue: 2013-11-22 191238_eng.xml
Technical data
General specifications
Sensing range 30 ... 500 mm
Adjustment range 50 ... 500 mm
Unusable area 0 ... 30 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx. 380 kHz
Response delay Ex works settings: ≤45 ms
configurable
Memory
Non-volatile memory EEPROM
Write cycles 100000
Indicators/operating means
LED green solid: Power on
flashing: Standby mode or IO link communication
LED yellow 1 solid: Object in evaluation range
flashing: Learning function, object detected
LED yellow 2 solid: Object in evaluation range
flashing: Learning function, object detected
LED red solid red: Error
red, flashing: program function, object not detected
Electrical specifications
Operating voltage UB10 ... 30 V DC , ripple 10 %SS
15 ... 30 V voltage output
No-load supply current I0≤60 mA
Power consumption P0≤1 W
Time delay before availability tv≤100 ms
Interface
Interface type IO-Link
Protocol IO-Link V1.0
Transfer rate Acyclical: typical 240 Bit/s
Cycle time min. 13.2 ms
Mode COM 2 (38.4 kBaud)
Process data witdh 16 bit
SIO mode support yes
Input/Output
Input/output type 1 synchronization connection, bidirectional
0 Level 0 ... 1 V
1 Level 4 V ... UB
Input impedance > 12 kΩ
Output rated operating current < 12 mA
Pulse length 0.5 ... 300 ms (level 1)
Pulse interval ≥14 ms (level 0)
Synchronization frequency
Common mode operation ≤70 Hz
Multiplex operation ≤90 Hz / n , n = number of sensors , n ≤10
(factory setting: n = 5 )
Output
Output type 1 push-pull (4 in 1) output, short-circuit protected, reverse
polarity protected
Current output 4 mA ... 20 mA or
voltage output 0 V ... 10 V configurable
Rated operating current Ie200 mA , short-circuit/overload protected
Voltage drop Ud≤2.5 V
Resolution current output: evaluation range [mm]/3200 but ≥0.05 mm
voltage output: evaluation range [mm]/4000 but ≥0.05 mm
Deviation of the characteristic curve ≤0.2 % of full-scale value
Repeat accuracy ≤0.1 % of full-scale value
Switching frequency f ≤11 Hz
Range hysteresis H 1 % of the adjusted operating range (default settings),
programmable
Load impedance current output: ≤300 Ohm
Voltage output: ≥1000 Ohm
Temperature influence ≤1.5 % from full-scale value (with temperature
compensation)
≤0.2 %/K (without temperature compensation)
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type Connector M12 x 1 , 5-pin
Protection degree IP67
Material
Housing Stainless steel 1.4305 / AISI 303
TPU
Polyamides
Transducer epoxy resin/hollow glass sphere mixture; polyurethane foam
Mass 66 g
Factory settings
Output 1 near switch point: 50 mm
far switch point: 500 mm
output function: Window operation mode
output behavior: NO contact
Model Number
UC500-30GM-IUEP-IO-V15
Single head system
Features
• IO-link interface for service and
process data
• Programmable via DTM with
PACTWARE
• Switch output and analog output
• Selectable sound lobe width
• Latching mode selectable
• Window function can be selected
• Synchronization options
• Temperature compensation
Diagrams
200
150
100
50
0
-50
-100
-150
-200
X
Y
Characteristic response curve
Distance X [mm]
Distance Y [mm]
flat surface
100 mm x 100 mm
round bar, Ø 25 mm
wide sound lobe
narrow sound lobe
0 100 200 300 400 500 600 700 800 900 1000 1100

Ultrasonic sensor UC500-30GM-IUEP-IO-V15
2
Release date: 2013-11-22 10:15 Date of issue: 2013-11-22 191238_eng.xml
Germany: [phone]Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: [phone] Singapore: [phone]
www.pepperl-fuchs.com [e-mail] [email protected].com
[e-mail]

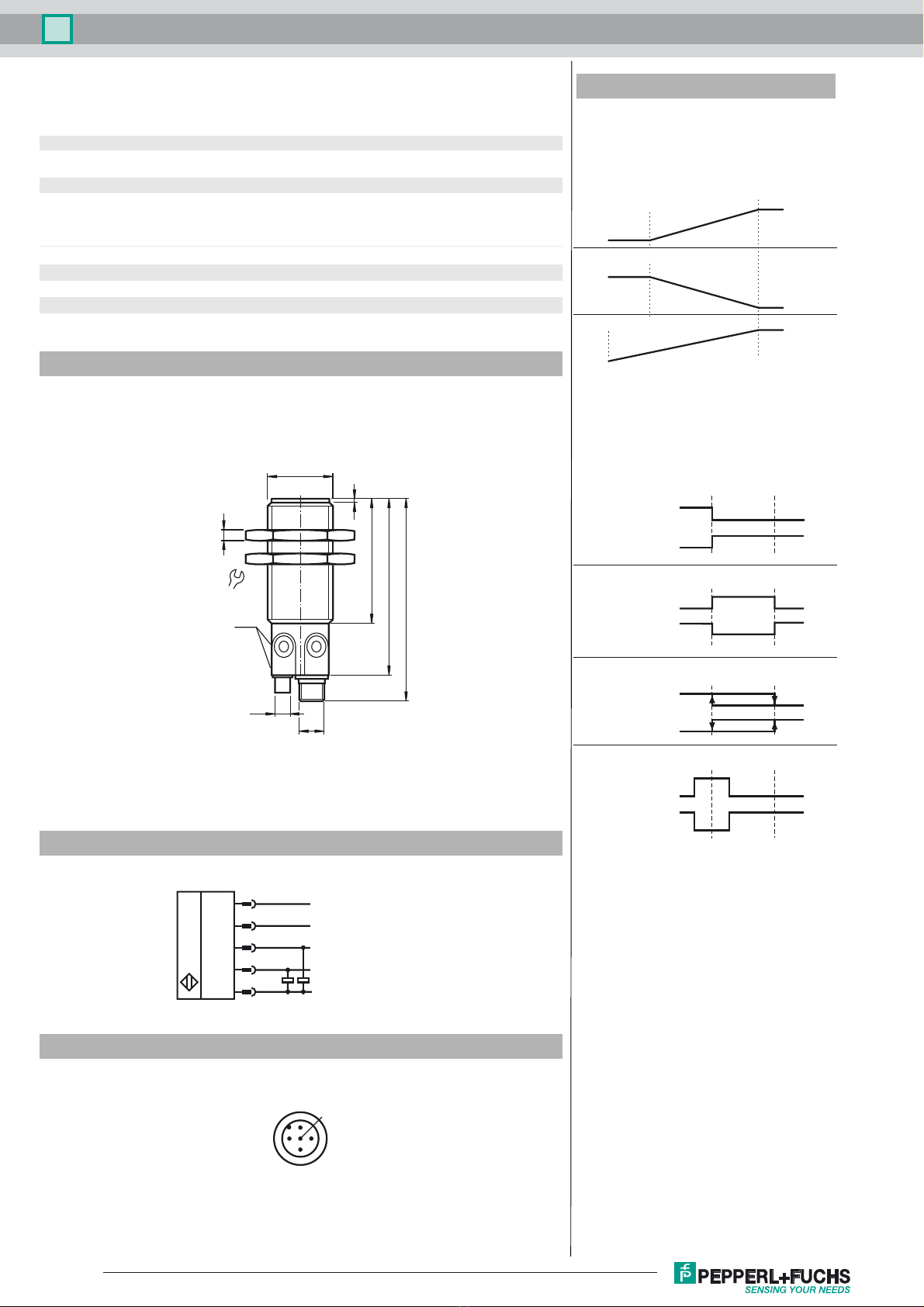

Output 2 near switch point: 100 mm
far switch point: 250 mm
output function: rising slope
output behavior: Current output 4 mA ... 20 mA
Beam width wide
Compliance with standards and
directives
Standard conformity
Standards EN 60947-5-2:2007
IEC 60947-5-2:2007
EN 60947-5-7:2003
IEC 60947-5-7:2003
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval CCC approval / marking not required for products rated
≤36 V
Dimensions
Electrical Connection
Pinout
36
LED
M30 x 1.5
5
2
56
T1 T2
81
ø7
M12
93
Analog output
1
5
2
3
4
L+
L-
Sync.
C/Q
1
3
4
5
2
Additional Information
Analog output operating modes
Near trip value Distant trip value
Analog functions
Rising ramp
Falling ramp
Zero point line
0
Switching output operating modes
Near trip point Distant trip point
NO contact
NC contact
NO contact
NC contact
NO contact
NC contact
1. Trip point mode
2. Window mode
3. Hysteresis mode
NO contact
NC contact
4. Ultrasonic sensor mode

Ultrasonic sensor UC500-30GM-IUEP-IO-V15
3
Release date: 2013-11-22 10:15 Date of issue: 2013-11-22 191238_eng.xml
Germany: [phone]Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: [phone] Singapore: [phone]
www.pepperl-fuchs.com [e-mail] [email protected].com
[e-mail]
Description of Sensor Functions
Programming
The sensor is equipped with two outputs. Two trip points or trip values, as well as the output mode, can be programmed for each output. The
shape of the sensor sound cone can also be programmed. These parameters can be configured using two different methods:
- Using the sensor push buttons
- Using the IO-link interface of the sensor. This method requires an IO-link master (e.g. IO-link master01 USB) and the associated software.
The download link is available on the product page for the sensor with the IO link at www.pepperl-fuchs.de
Configuration using the push buttons is described below. To configure the parameters using the sensor IO-link interface, please read the software
description. The processes for configuring the trip points and the sensor operating modes run completely independently and do not influence one
another.
Note:
- The sensor can only be programmed during the first 5 minutes after switching on. This time is extended during the actual programming pro-
cess. The option of programming the sensor is revoked if no programming activities take place for 5 minutes. After this, programming is no
longer possible until the sensor is switched off and on again.
- The programming activities can be canceled at any time without changing the sensor settings. To do so, press and hold the push button for
10 seconds.
Programming the trip point/trip value of the analog characteristic
Note:
Each push button is assigned to a physical output. The switching output (C/Q) is programmed via push button T1. The analog output is program-
med via push button T2.
A flashing red LED during the programming process indicates unreliable object detection. Should this occur, correct the alignment of the object
until the yellow LED L1 or L2 flashes. Only then will the settings be transferred to the sensor memory.
Programming the trip points/trip values using the push button
Programming the near trip point/trip value of the analog characteristic
1. Position the object at the site of the required near trip point or trip value.
2. Press and hold the push button for 2 seconds (yellow LED flashes)
3. Briefly press the push button (green LED flashes 3 times as confirmation). The sensor returns to normal mode.
Accessories
BF 30
Mounting flange, 30 mm
BF 30-F
Mounting flange with dead stop, 30 mm
BF 5-30
Universal mounting bracket for cylindrical sensors with a diameter of 5 ... 30 mm
V15-W-2M-PUR
Female cordset, M12, 5-pin, PUR cable
V15-W-2M-PVC
Female cordset, M12, 5-pin, PVC cable
IO-Link-Master02-USB
IO-Link master, supply via USB port or separate power supply, LED indicators, M12
plug for sensor connection
IO-Link-Master-USB DTM
Communication DTM for use of IO-Link-Master
IODD Interpreter DTM
Software for the integration of IODDs in a frame application (e. g. PACTware)
PACTware 4.X
FDT-Framework
Microsoft .NET
UVW90-M30
Ultrasonic -deflector
UVW90-K30
Ultrasonic -deflector
DA5-IU-2K-V
Process control and indication equipment
1 BN
2 WH
3 BU
4 BK
5 GY
Wire colors in accordance with EN 60947-5-2
(brown)
(white)
(blue)
(black)
(gray)

Ultrasonic sensor UC500-30GM-IUEP-IO-V15
4
Release date: 2013-11-22 10:15 Date of issue: 2013-11-22 191238_eng.xml
Germany: [phone]Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: [phone] Singapore: [phone]
www.pepperl-fuchs.com [e-mail] [email protected].com
[e-mail]

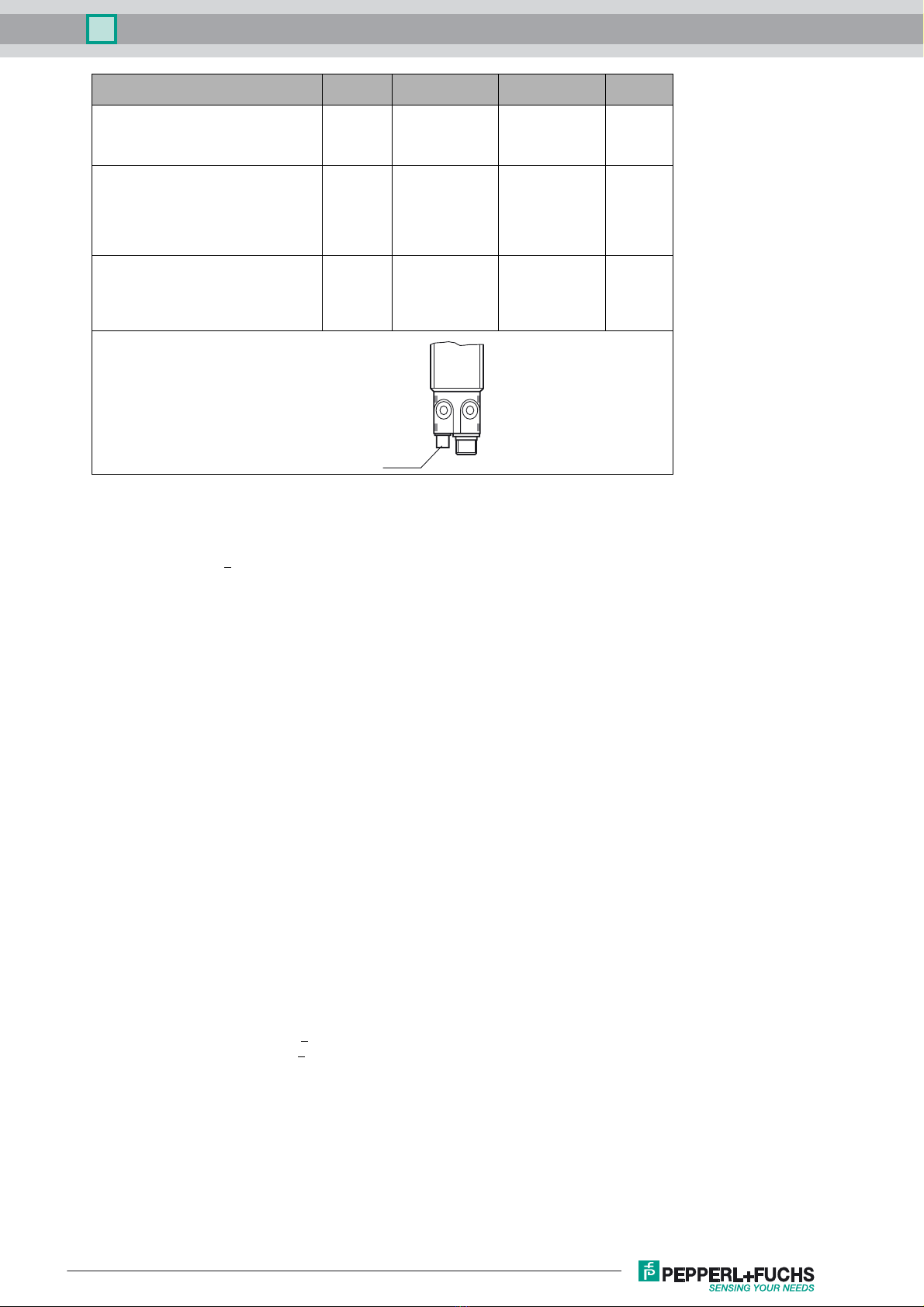

Programming the distant trip point/trip value of the analog characteristic
1. Position the object at the site of the required distant trip point or trip value.
2. Press and hold the push button for 2 seconds (yellow LED flashes)
3. Press and hold the push button for 2 seconds (green LED flashes 3 times as confirmation). The sensor returns to normal mode.
Programming the operating modes
The sensor features a 3-stage process for programming the sensor operating modes. You can program the following with this process:
1. Output function
2. Output behavior of the switching output/analog output
3. The shape of the sound cone
These two stages of the process are programmed in succession. To switch from one programming function to the next, press and hold the push
button for 2 seconds.
Accessing the programming routine
The operating mode can be programmed separately for each of the two switching outputs. The operating mode of the switching output (C/Q) is
programmed via push button T1. The operating mode of the analog output is programmed via push button T2.
To access the programming routine for the sensor operating mode, press the push button for 5 seconds.
Programming the output function
The green LED is now flashing. The number of flashes indicates the output function currently programmed:
Switching output Analog output
1x: Trip point function 1x: rising slope
2x: Window function 2x: falling slope
3x: Hysteresis function 3x: zero point line
4x: Ultrasonic sensor
1. Briefly press the push button to navigate through the output configurations in succession. Use this method to choose the required output
function.
2. Press and hold the push button for 2 seconds to save the selection and switch to the programming routine for the output behavior.
Programming the output behavior
The yellow LED is now flashing. The number of flashes indicates the output behavior currently programmed:
Switching output Analog output
1x: NO contact 1x: Current output (4–20 mA)
2x: NC contact 2x: Voltage output (0–10 V)
3x: Deactivated: high impedance
1. Briefly press the push button to navigate through the output behaviors in succession. Use this method to choose the required output function.
2. Press and hold the push button for 2 seconds to save the selection and switch to the programming routine for the sound cone.
Programming the shape of the sound cone
The red LED is now flashing. The number of flashes indicates the sound cone shape currently programmed:
1x: narrow
2x: medium
3x: wide
1. Briefly press the push button to navigate through the different sound cone shapes in succession. Use this method to choose the required
sound cone shape.
2. Press and hold the push button for 2 seconds to return to normal mode.
Note
The last sound cone shape programmed applies for both outputs in equal measure.
Resetting the sensor to the factory settings
The sensor can be reset to the original factory settings.
1. Disconnect the sensor from the power supply
2. Press and hold one of the push buttons
3. Connect the power supply (yellow and red LEDs flash simultaneously for 5 seconds, followed by the yellow and green LEDs flashing simul-
taneously)
4. Release the push button
The sensor will now function with the original factory settings.
Factory settings
See technical data.
Indicators
The sensor has four LEDs for indicating the status and two buttons for setting parameters.

Ultrasonic sensor UC500-30GM-IUEP-IO-V15
5
Release date: 2013-11-22 10:15 Date of issue: 2013-11-22 191238_eng.xml
Germany: [phone]Pepperl+Fuchs Group
Refer to “General Notes Relating to Pepperl+Fuchs Product Information”.
USA: [phone] Singapore: [phone]
www.pepperl-fuchs.com [e-mail] [email protected].com
[e-mail]
Synchronization
The sensor is fitted with a synchronization input that suppresses mutual interference from external ultrasonic signals. If this input is not connected,
the sensor operates with internally generated cycle pulses. The sensor can be synchronized by creating external rectangular pulses and by set-
ting the appropriate parameters via the IO-link interface. Each falling pulse edge sends an individual ultrasonic pulse. If the signal at the synchro-
nization input is low for >1 second, the sensor reverts to the normal, unsynchronized operating mode. This also occurs if the synchronization input
is disconnected from external signals (see note below).
If a high signal is applied to the synchronization input for > 1 second, the sensor switches to standby. This is indicated by the green LED. In this
operating mode, the last recorded output statuses are retained. Please observe the software description in the event of external synchronization.
Note:
If the option of synchronizing is not used, the synchronization input must be connected to ground (L-) or the sensor must be operated with a V1-
connection cable (4-pin).
The option of synchronization is not available during the programming process. During synchronization, the sensor can switch to programming
via the IO-link interface. This interrupts the synchronization process and the sensor is no longer synchronized.
The following synchronization modes are available:
1. Multiple sensors (see Technical data for the maximum number) can be synchronized by connecting the synchronization inputs on the sen-
sors. In this case, the sensors synchronize themselves in succession in multiplex mode. Only one sensor sends signals at any one time.
(See note below)
2. Multiple sensors (see Technical data for the maximum number) can be synchronized by connecting the synchronization inputs on the sen-
sors. The sensor interface can be used to parameterize the sensors so that one functions as a master and the others function as slaves.
(See interface description) In this case, the sensors in master/slave mode work simultaneously, i.e. in synchronization where the master sen-
sor plays the role of an intelligent external impulse generator.
3. Multiple sensors can be controlled collectively by an external signal. In this case, the sensors are triggered in parallel and operate synchro-
nously, i.e. at the same time. All sensors must be parameterized via the sensor interface so that they are set to external. See the software
description.
4. Several sensors are controlled with a time delay by an external signal. In this case, only one sensor is externally synchronized at any one
time (see note below). All sensors must be parameterized via the sensor interface so that they are set to external. See the software descrip-
tion.
5. A high signal (L+) or a low signal (L-) at the synchronization input switches the sensor to standby in the case of external parameterization.
Note:
The response time of the sensors increases in proportion to the number of sensors in the synchronization chain. In multiplex mode, the measuring
cycles of the individual sensors run in succession in a chronological sequence.
Note:
The synchronization connection of the sensors supplies an output current in the case of a low signal, and generates an input impedance in the
case of a high signal. Please note that the synchronizing device must have the following driver properties:
Driver current according to L+ > n * high level signal/input impedance (n = number of sensors to be synchronized)
Driver current according to L- > n * output current (n = number of sensors to be synchronized).
LED,
green
LED L1, yellow LED L2, yellow LED, red
In normal mode
Error-free operation
Fault (e.g. compressed air)
On
Off
The output status
retains the last
status
The output status
retains the last
status
Off
On
When programming the trip points or
trip values
Object detected
No object detected
Confirmation, programming successful
Warning, programming invalid
Off
Off
Flashes 3x
Off
Flashes
Off
Off
Off
Flashes
Off
Off
Off
Off
Flashes
Off
Flashes 3x
When programming the operating
mode
Programming the output function
Programming the output behavior
Programming the sound cone
Flashes
Off
Off
Off
Flashes
Off
Off
Flashes
Off
Off
Off
Flashes
L1
L2 T1 T2
L1
L2
LED
green/red
LED yellow LED yellow
