2 Product Description
2.1 Overview
Pepperl+Fuchs VisuNet Computing Units TCU1100-*/TCU1200-* and PCU1100-*/PCU1200-*
are ATEX/IECEx certified, UL listed devices intended for use in potentially explosive
atmospheres, such as Zones 1/21 and 2/22 and Class I/II, Div. 2 and Class III.
Connected to Pepperl+Fuchs display units, the TCU and PCU devices serve as thin-client- or
PC-based computing units. The TCU devices run VisuNet RM Shell firmware and allow users
to easily connect to a host system via Ethernet. The PCU devices run a pre-installed
Windows®operating system and allow users to install individual software packages such as
SCADA applications to visualize and control their automation application.
Two USB Ex i interfaces support the connection of intrinsically safe accessories that match with
the provided entity parameters, such as Pepperl+Fuchs' EXTA2 keyboard and mouse system.
The USB Ex-e interface can be used to connect other third-party devices that comply with the
installation requirements.
For extended distances, the computing units are available with an optional multi-mode fiber-
optic interface.
VisuNet computing units are optimized for use with the modular Pepperl+Fuchs HMI
components Display Unit (DPU1100-*/DPU1200-*) and Power Supply unit (PSU1100-
*/PSU1200-*) of the VisuNet GXP product line.

VisuNet Computing Unit
Product Description
2018-11
7

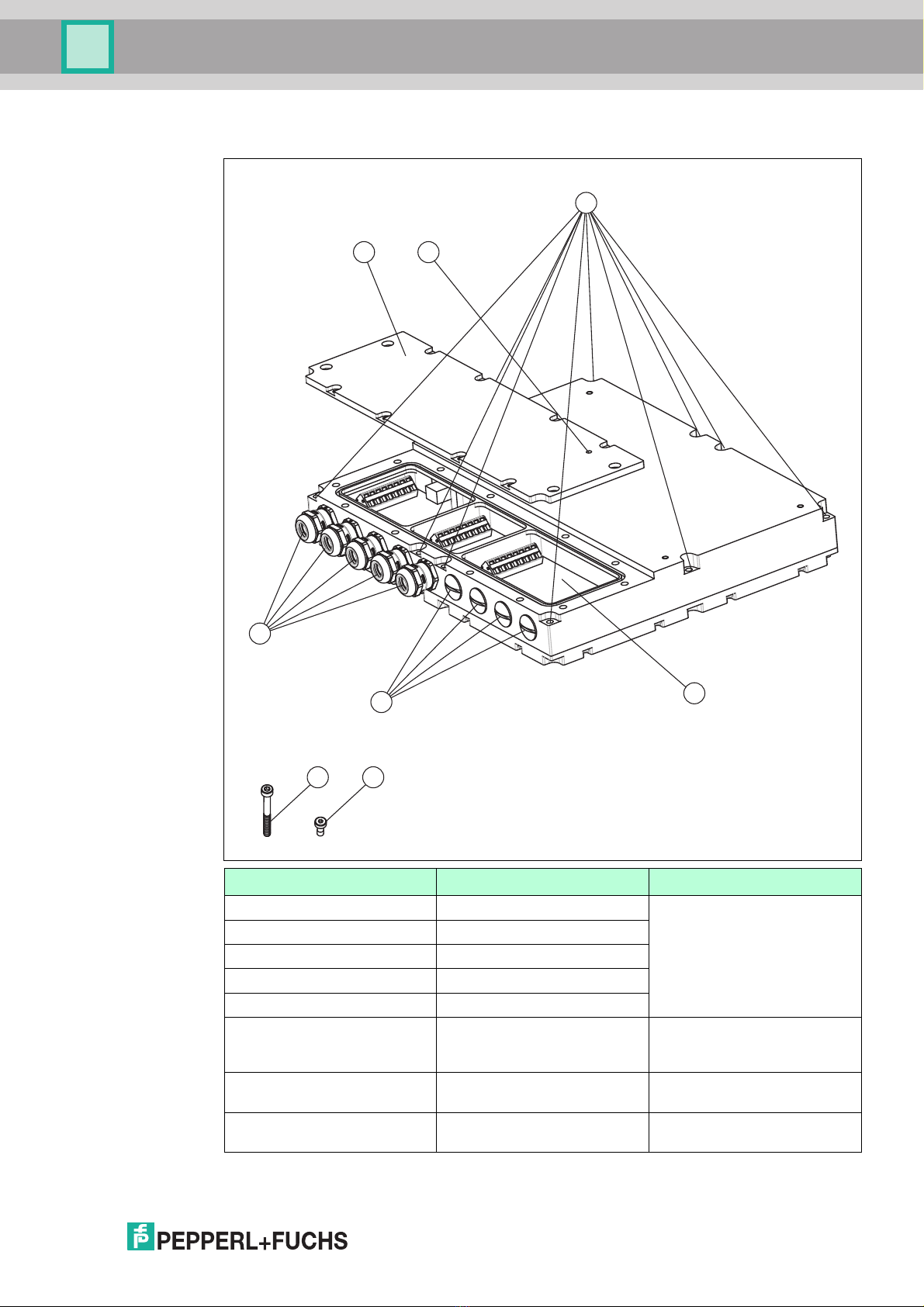

Component Overview
Description Tightening Torque
1Terminal compartment cover
2Breather vent
310 mounting holes
4Terminal compartment
5Optional cable glands
6Standard cable glands for
power supply, USB Ex e,
Ethernet, 2 x USB Ex i
5 Nm
A12 x mounting screws for
terminal compartment cover
1.5 Nm
B10 x mounting screws for
housing
2 Nm
1 2
3
4
AB
6
5

2018-11
8
VisuNet Computing Unit
Product Description
Cable Gland Connection Layout
The cable glands have different inlays in different sizes. Therefore, it is important to use the
correct installation cables with the corresponding cable gland. Do not use the cable glands for
any other cable than stated below. Do not interchange the cables.
Figure 2.1 Cable gland connection layout
Danger!
Accumulation of condensed water within the housing can cause a short and result in an
ignition.
A blocked breather vent cannot provide ventilation or drainage.
Do not block or restrict the breather vent! Do not insert any sharp objects into the breather vent!
Cable gland used for:
Allowed Cable
Diameter Tightening Torque
1Power supply 6-10 mm 5 Nm
2Ethernet 6-10 mm
3USB Ex e 3-7 mm
4USB Ex i 3-7 mm
5USB Ex i 3-7 mm
6User modules
available as options,
e.g., TTY Ex i, RS-232
Interface, RS-485
Interface.
If option not available,
cable gland is
replaced by a blind
plug.
3-7 mm
1
2
3
4
5
6

VisuNet Computing Unit
Product Description
2018-11
9
2.2 Technical Specifications
Technical Data PCU1100-*/PCU1200-*
Note!
Environmental Conditions
This equipment is designed for indoor/outdoor use at a maximum altitude of 2000 m.
Hardware
Processor Intel Bay Trail E3845, 1.91 GHz
RAM 4 GB DDR3L
Mass Storage 128 GByte industrial grade MLC SSD
Supply
Input voltage 24 V DC , 2 A SELV/PELV
Power consumption max. 48 W
Interface
Interface type Pepperl+Fuchs interface v1.0 for display units
1 x Ethernet 100/1000BASE-TX (Ex e) or fiber
optic 1000Base-SX
1 x USB 2.0 (Ex e)
2 x USB 1.1 (Ex i; intended for Pepperl+Fuchs
keyboard and mouse)
optional: 1 x barcode reader interface
Pepperl+Fuchs Pscan-D/B (Ex i)
optional: 1 x barcode reader interface
Pepperl+Fuchs IDM160-D-* and IDMx61-B-*
(Ex i)
optional: 1 x RS-232 (Ex e)
optional: 1 x RS-485 (Ex e)
optional: 1 x Ethernet 100/1000Base-TX
(Ex e)
optional: Bluetooth v4.0, communication
distance up to 30 m in open terrain,
transmission power +8 dBm, transmission
frequency 2.402 ... 2.48 GHz
Software
Operating System Microsoft®Windows®7 Ultimate for
embedded systems , Windows®10 IoT
Enterprise LTSB
Ambient Conditions
Operating temperature -20 ... 65 °C (-4 ... 149 °F)
Storage temperature -20 ... 65 °C (-4 ... 149 °F)
Relative humidity 93% at 40°C, non-condensating, according to
EN60068-2-78
Shock resistance 30 g , 11 ms all axis, IEC 60068-2-27
Vibration restistance 5 ... 100 Hz 1 G, 12 m/s2
Mechanical specifications
Degree of protection IP66 ( when mounted on the display unit from
Pepperl+Fuchs )
Material
Housing anodized aluminum

2018-11
10
VisuNet Computing Unit
Product Description
Technical Data TCU1100-*/TCU1200-*
Seal EPDM
Mass approx. 5 kg (PCU1100-*)
approx. 3 kg (TCU1200-*)
Dimensions 280 mm x 240 mm x 43 mm
Hardware
Processor Intel Bay Trail E3827, 1.75 GHz
RAM 2 GB DDR3L
Mass Storage 32 GB industrial grade MLC SSD
Supply
Input voltage 24 V DC ±10 % (SELV/PELV)
Power dissipation 14 W
Power consumption 14 W average, 30 W max.
Interface
Interface type Pepperl+Fuchs interface v1.0 for display units
1 x Ethernet 100/1000BASE-TX (Ex e) or fiber
optic 1000Base-SX
1 x USB 2.0 (Ex e)
2 x USB 1.1 (Ex i; intended for Pepperl+Fuchs
keyboard and mouse)
optional: 1 x barcode reader interface
Pepperl+Fuchs Pscan-D/B (Ex i)
optional: 1 x barcode reader interface
Pepperl+Fuchs IDM160-D-* and IDMx61-B-*
(Ex i)
optional: 1 x RS-232 (Ex e)
optional: 1 x RS-485 (Ex e)
optional: 1 x Ethernet 100/1000Base-TX (Ex
e)
optional: Bluetooth v4.0, communication
distance up to 30 m in open terrain,
transmission power +8 dBm, transmission
frequency 2.402 ... 2.48 GHz
Software
Operating System VisuNet RM Shell 5.x (based on Windows®
10 IoT LTS)
or VisuNet RM Shell 4.x (based on Microsoft®
Windows®Embedded Standard 7)
Ambient Conditions
Operating temperature -20 ... 65 °C (-4 ... 149 °F)
Storage temperature -20 ... 65 °C (-4 ... 149 °F)
Relative humidity 93% at 40°C, non-condensating, according to
EN60068-2-78
Shock resistance 18 shocks 15 g , 11 ms all axis, IEC 60068-2-
27
Vibration restistance 10 ... 150 Hz, +/- 0.075 mm , 1g, 10 cycles per
axis according to EN60068-2-6
Mechanical specifications

VisuNet Computing Unit
Product Description
2018-11
11

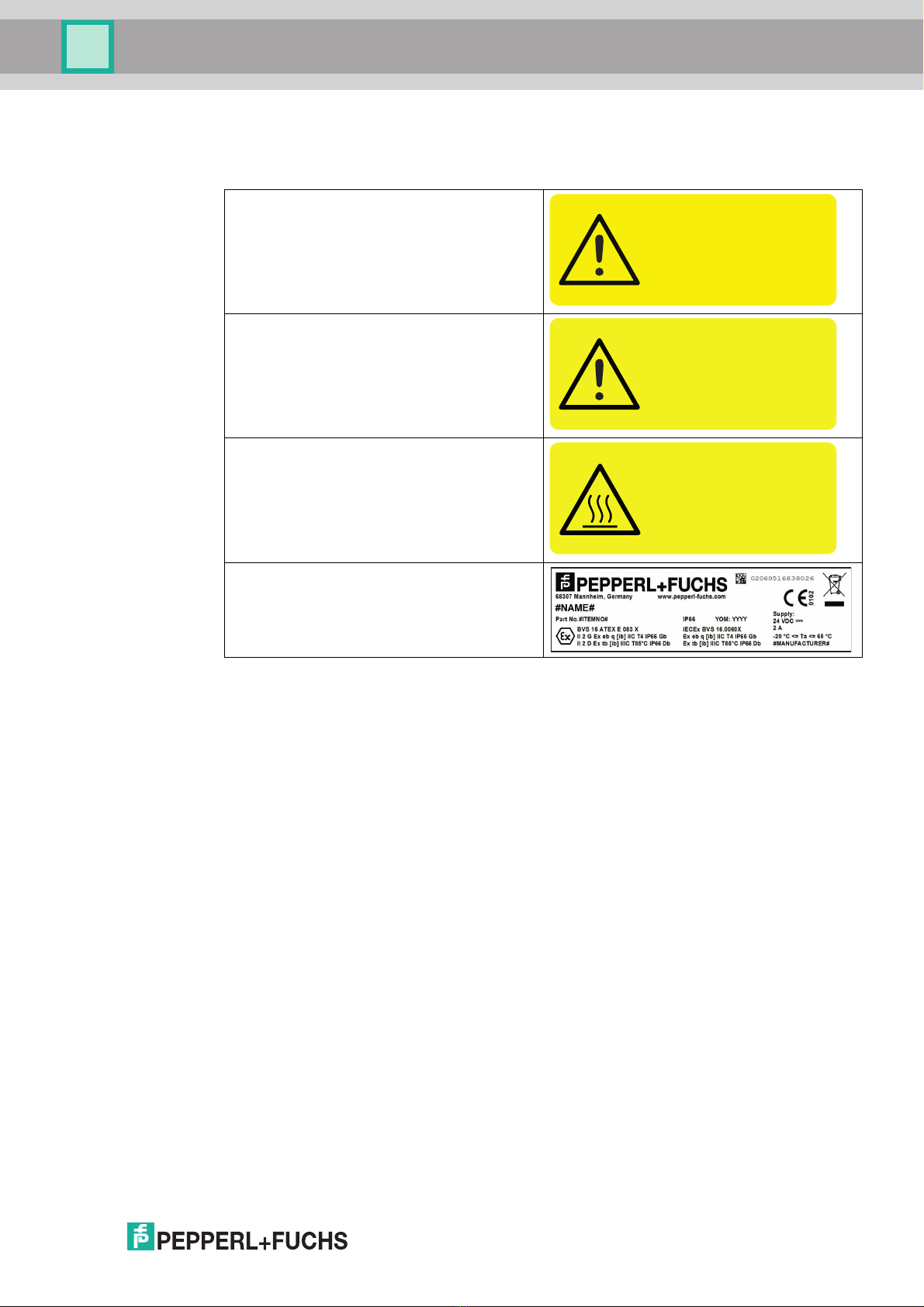

ATEX/IECEx Marking
UL Marking
Degree of protection IP66 (when mounted on the display unit from
Pepperl+Fuchs)
Material
Housing anodized aluminum
Mass approx. 5 kg (TCU1100-*)
approx. 4 kg (TCU1200-*)
Dimensions 280 mm x 240 mm x 43 mm
Thin Client Unit
TCU1100-J1-*
PC Unit
PCU1100-J1-*
Pepperl+Fuchs GmbH
Lilienthalstraße 200, 68307 Mannheim, Germany
ATEX:
II 2G Ex eb q ib IIC T4 IP66 Gb
II 2D Ex tb IIIC T80 °C Db
IECEx:
IECEx BVS 16.0061X
Thin Client Unit
TCU1200-J2-*
PC Unit
PCU1200-J2-*
Pepperl+Fuchs GmbH
Lilienthalstraße 200, 68307 Mannheim, Germany
ATEX:
II 2G Ex eb q ib IIC T4 IP66 Gb
II 2D Ex tb IIIC T80 °C Db
IECEx:
Ex ec [ib] IIC T4 IP66 Gc
Ex tc [ib] IIIC T85 °C IP66 Dc

2018-11
12
VisuNet Computing Unit
Product Description
2.3 Dimensions and Type Labels

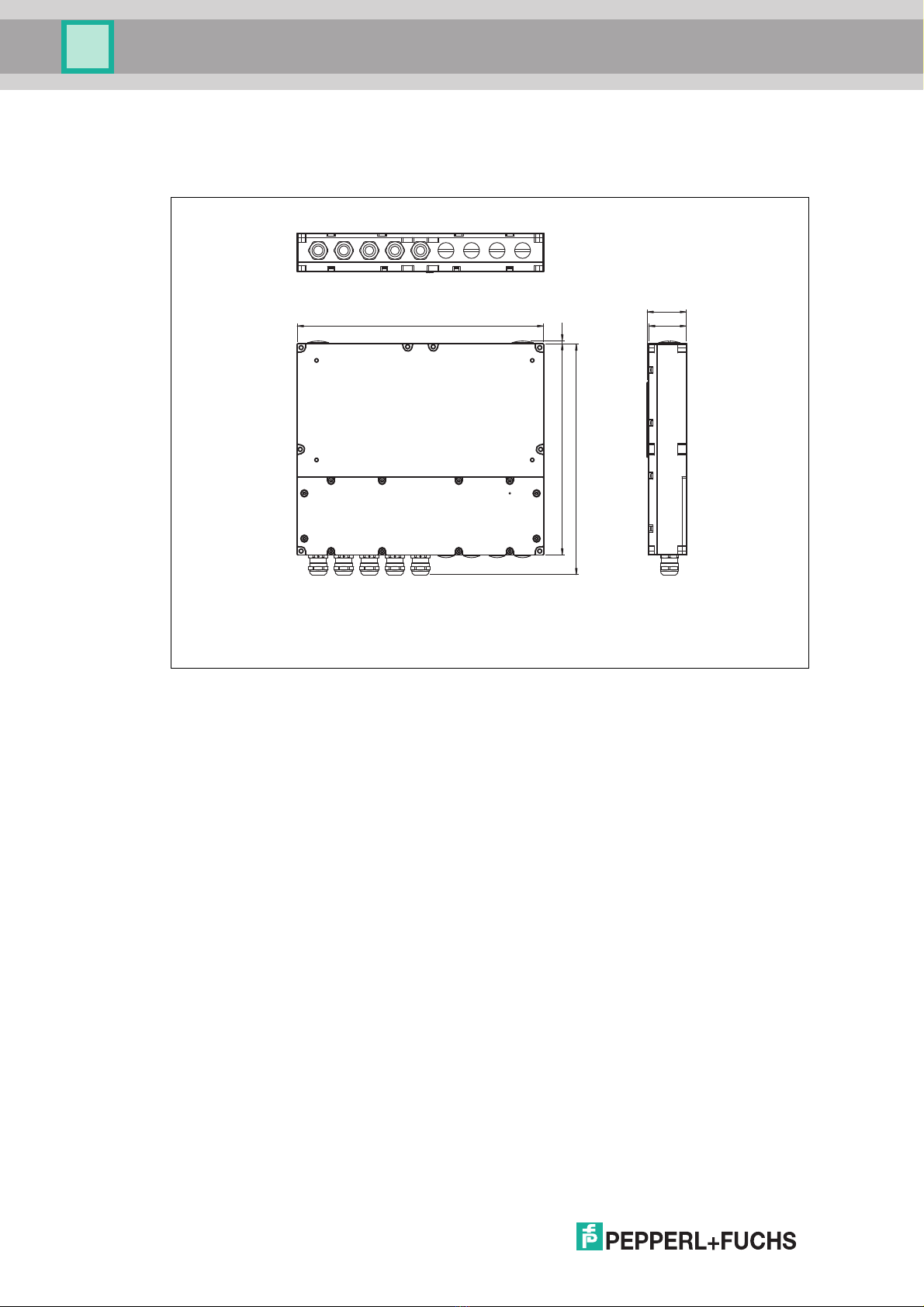

Dimensions
43
44.8
280
240 3
264

VisuNet Computing Unit
Product Description
2018-11
13
Labels
The following labels are present on the TCU/PCU.
2.4 Scope of Delivery
■Thin Client Unit / Personal Computer Unit
■10 x M4 mounting screws
2.5 Disposal
Follow all local and any other requirements for disposing of electronic equipment. When
disposing of any system component, mark VOID across all certification labels.
Warning marking
"Warning –Do not open! This container has
been permanently sealed and cannot be
repaired."
"Avertissement –Cette enveloppe est scellée
en usine. Ne pas l'ouvrir!"
Warning marking
"Warning –Do not open when energized!"
"Warning –Refer to instruction manual!"
"Avertissement –Ne pas ouvrir sous tension!"
"Avertissement –Reportez-vouz au manuel
d'instruction!"
Warning marking
"Warning –Hot surface! Do not touch!"
"Avertissement –Surface chaude! Ne pas
toucher!"
Type label TCU/PCU
Warning - Do not open!
This container has been
permanently sealed and
cannot be repaired
Warning - Refer to
instruction manual!
Warning - Do not open
when energized!
Warning - Hot surface!
Do not touch!

2018-11
14
VisuNet Computing Unit
Installation
3Installation
3.1 General Installation Requirements
■The equipment must be installed by competent personnel in accordance with the
instructions. National laws and regulations must be observed.
■The building installation must provide a 20 A overcurrent protection.
■The installer must make a readily accessible disconnect device available.
■The safety of any system incorporating the power suppply unit is the responsibility of the
assembler of the system.
3.2 Special Conditions of Use
■Input power must be provided by a power supply that meets the requirements for safety
extra-low protective voltage (SELV) or protective extra-low voltage (PELV).
■TCU/PCU must be mated with a suitably certified module, such as a DPU.
■Connection of TCU/PCU and display shall only be made when de-energized.
3.3 Terminal Compartments
There are 3 terminal compartments on the back of the PCU/TCU:
■Terminal Compartment Ex e contains the Ex e power supply interface, an Ex e USB
interface, an Ex e Ethernet interface, and an optional 1000-BASE-SX fiber-optic interface.
■Terminal Compartment Ex i contains a terminal block for 2 Ex i USB connectors.
■The third terminal compartment contains additional optional interfaces for user modules
(TTY
, Ethernet, RS-232, or RS-485, and scanner options).
Figure 3.1 Terminal compartments
Danger!
Danger of Explosion
Disconnecting cables too quickly may trigger an ignition, as device-internal cable capacitances
need some time to discharge.
After de-energizing, wait 3 minutes before opening the compartment room or disconnecting the
device from the display unit.
V+
V+
GND
GND
VCC
D-
D+
GND
.1TX+/D1+
.2TX-/D1-
.3D3+
.4D3-
.5RX+/D2+
.6RX-/D2-
.7D4+
.8D4-
.1
.2
.3
.4
.5
.6
.7
.8
Power Supply
+24 VDC
USB Ex e
Ethernet Ex e
X1
VCC
D-
D+
GND
VCC
D-
D+
GND
.1
.2
.3
.4
.5
.6
.7
.8
USB Ex i USB Ex i
X3
X2
.1
.2
.3
.4
.5
.6
.7
.8
.1
.2
.3
.4
.5
.6
.7
.8
Optional Modules
X4
X5
Terminal Compartment Ex e Terminal Compartment Ex i Terminal Compartment for optional modules
TTY, Ethernet, RS-232, or RS-485
TX RX
Fiber
Optic
Note!
For entity parameters, see the EU-Type Examination Certificate. This document is available on
the TCU/PCU product pages at www.pepperl-fuchs.com.

VisuNet Computing Unit
Installation
2018-11
15
Terminal Compartment Ex e
X1: Power Supply +24 V DC / USB Ex e
The table below gives an overview of the 2 color schemes:
The Ethernet terminal assignment can be done either by EIA/TIA-568A or by EIA/TIA-568B
color scheme. Choose the color scheme according to your factory standard.
We recommend using S/FTP Cat.7 Ethernet cables to achieve best signal quality and longest
communication distances.
X2: Ethernet Ex e
Te r m i n a l
X1.1 V+ Power Supply
X1.2 V+
X1.3 GND
X1.4 GND
X1.5 VCC USB Ex e
X1.6 D-
X1.7 D+
X1.8 GND
Te r m i n a l
Ethernet Terminal
Assignment acc.
EIA/TIA-568B
Ethernet Terminal
Assignment acc.
EIA/TIA-568A
X2.1 Tx+/D1+ white / orange
line
white / green line
OR fully green
X2.2 Tx-/D1- orange / white
line OR fully orange
green / white line
X2.3 D3+ blue / white line
OR fully blue
blue / white line
OR fully blue
X2.4 D3- white / blue line white / blue line
X2.5 RX+/D2+ white / green line white / orange
line
X2.6 RX-/D2- green / white line
OR fully green
orange / white
line OR fully orange
X2.7 D4+ white / brown line white / brown line
X2.8 D4- brown / white line
OR fully brown
brown / white line
OR fully brown

2018-11
16
VisuNet Computing Unit
Installation

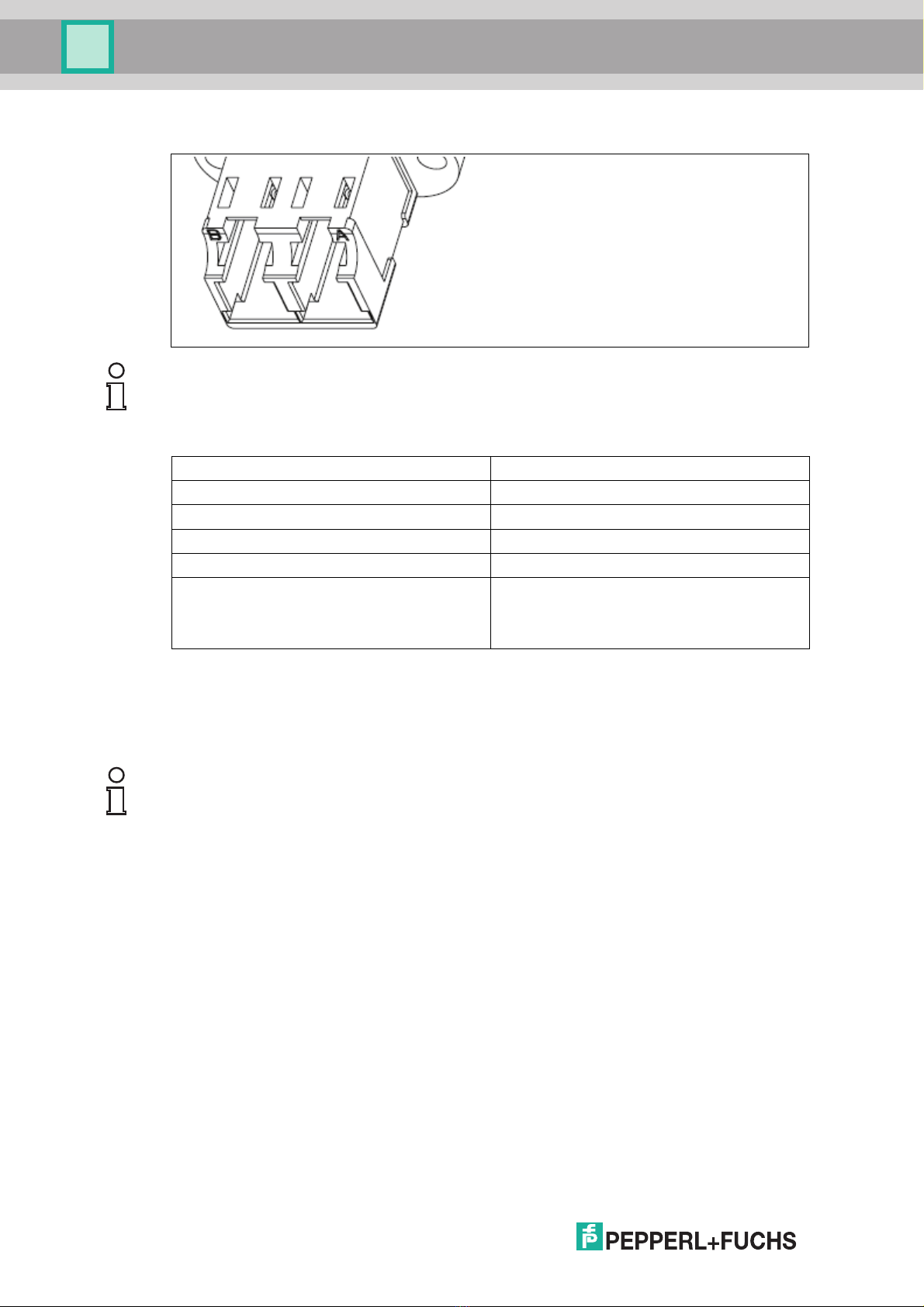

Fiber Optic Specifications
The TX marking on the interface indicates thetransmitted signal from the TCU/PCU to the
connected device (switch). Connect the RX of the fiber-optic cable here.
The RX marking shows the receiving signal of the TCU/PCU from the conneted device
(switch). Connect the TX of the fiber-optic cable here.
Optional Fiber-Optic Interface
TX RX
Note!
When the fiber-optic interface is installed, no terminal connections are available at X2.
Minimum cable requirement OM2 (50/125 µm)
Data rate 1 Gb
Max. distance 550 m
Mode Multimode
Category 1000-BASE-SX
Link budget 3 dB (in addition to cabling with 550 m
OM2)—if counterpart uses Horizon GXP,
AFBR-5710 transceiver, 1002MC/SX media
converter, or equivalent
Note!
The fiber-optic interface of the TCU/PCU can be connected and safely operated with other
devices that comply with Class 1 limits in accordance with IEC 60825-1 or that are classified as
inherently safe optical radiation "op is" in accordance with IEC 60079-28.

VisuNet Computing Unit
Installation
2018-11
17

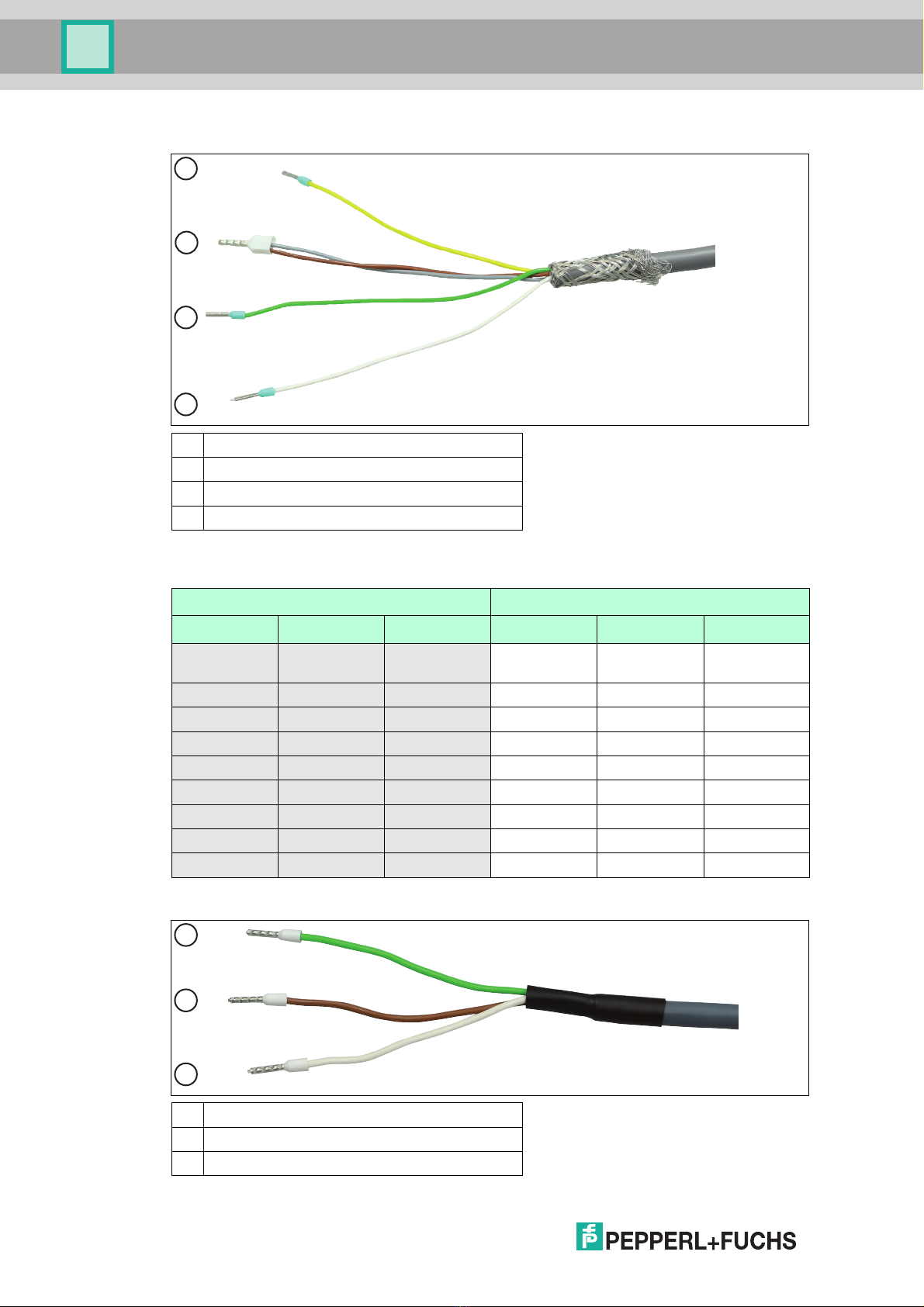

Terminal Compartment Ex i
X3: USB for Keyboard and Mouse EXTA2 Ex i
Terminal Compartment for Optional Modules Ex i
X4 or X5: TTY "BR" Scanner Option for PSCAN-D/PSCAN-B Handheld Reader Ex i
TCU Peripheral
Te r m i n a l Signal Assignment Color coding
Name Direction
X3.1 VCC Supply 1st USB Ex i
(Keyboard)
VCC (Ui) green
X3.2 D- I/O D- gray
X3.3 D+ I/O D+ brown
X3.4 GND Supply GND yellow
X3.5 VCC Supply 2nd USB Ex i
(Mouse)
VCC (Ui) red
X3.6 D- I/O D- pink
X3.7 D+ I/O D+ white
X3.8 GND Supply GND blue
TCU Cable
Te r m i n a l Signal Assignment Color coding
Pin M12
connector
Name Direction
Xx.1 Us Supply Us yellow 4
Xx.2 GND Supply GND brown/gray 1/5
Xx.3 - - - - -
Xx.4 TxD ORxD green 3
Xx.5 - - - - -
Xx.6 RxD ITxD white 2
Xx.7 - - - - -
Xx.8 - - - - -

2018-11
18
VisuNet Computing Unit
Installation
X4 or X5: "S3" Scanner Option for Handheld Reader IDM160* and Base Station IDMx61-
B-N0* Ex i
DATL-PSCAN-D-XX00-N0 Power Cable for PSCAN-*
1yellow (Us)
2brown/gray (GND)
3green (RxD)
4white (TxD)
TCU Cable
Te r m i n a l Signal
Name Direction Assignment Color coding Pin M12
connector
Xx.1 Vcc Supply Vcc green 1
Xx.2 GND Supply GND brown 3
Xx.3 -----
Xx.4 -----
Xx.5 -----
Xx.6 RxD ITxD white 4
Xx.7 -----
Xx.8 -----
DATL-IDM-DB-S-XX00-N0 Power Cable for IDMx60-D-*
1green (Vcc)
2brown (GND)
3white (RxD)
1
3
2
4
1
2
3

VisuNet Computing Unit
Installation
2018-11
19

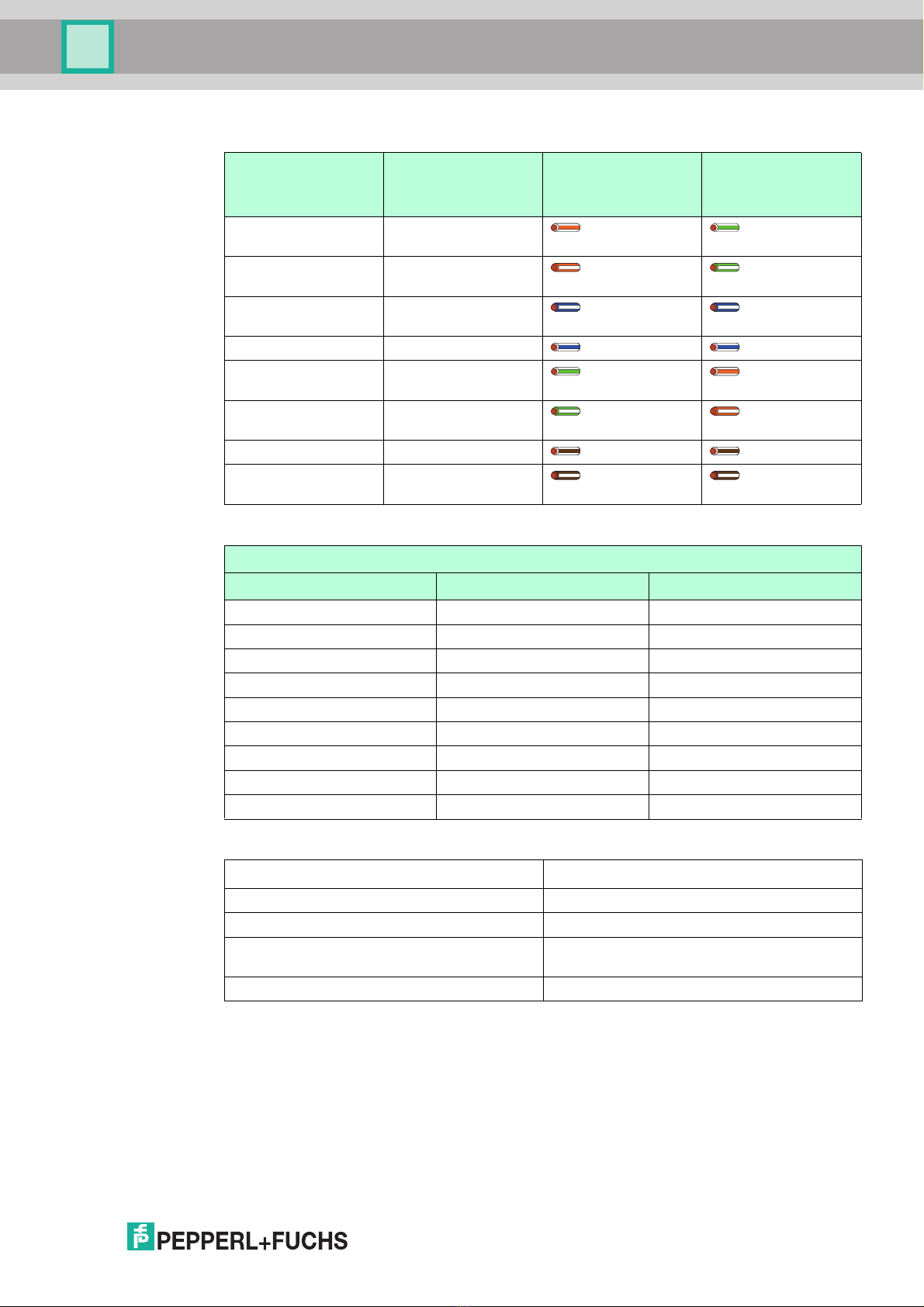

X4 or X5: 100/1000BASE-TX Option "ET" Ex e
X4 or X5: RS-232 Option "S1" Ex e
RS-232 Specifications
Te r m i n a l
Ethernet Terminal
Assignment acc.
EIA/TIA-568B
Ethernet Terminal
Assignment acc.
EIA/TIA-568A
Xx.1 Tx+/D1+ white / orange
line
white / green line
OR fully green
Xx.2 Tx-/D1- orange / white
line OR fully orange
green / white line
Xx.3 D3+ blue / white line
OR fully blue
blue / white line
OR fully blue
Xx.4 D3- white / blue line white / blue line
Xx.5 RX+/D2+ white / green line white / orange
line
Xx.6 RX-/D2- green / white line
OR fully green
orange / white
line OR fully orange
Xx.7 D4+ white / brown line white / brown line
Xx.8 D4- brown / white line
OR fully brown
brown / white line
OR fully brown
TCU
Te r m i n a l Signal
Name Direction
Xx.1 - -
Xx.2 - -
Xx.3 - -
Xx.4 - -
Xx.5 Rx I
Xx.6 Tx O
Xx.7 GND -
Xx.8 - -
Cable Shielded 0.75 mm2(e.g., LiYCY 4 x 0.75)
Max. distance (acc. standard) 15 m
Max. distance (measured) 1000 m
Max. baud rate at 1000 m (depending on
cable)
460.800 kBit/s
Max. baud rate (direct loopback) 1 Mbaud

2018-11
20
VisuNet Computing Unit
Installation
X4 or X5: RS-485 Option "S2" Ex e
TCU
Te r m i n a l Signal
Name Direction
Xx.1 120A Termination
Xx.2 Y O
Xx.3 120Z Termination
Xx.4 A I
Xx.5 B I
Xx.6 Z O
Xx.7 GND -
Xx.8 HD/FD (Control function)
