Pfeiffer Vacuum ASI 35 User manual

OPERATING INSTRUCTIONS
EN
Translation of the Original
ASI 35
Integrable industrial leak detector

Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/108

Table of contents
1 About this manual 7
1.1 Validity 7
1.1.1 Products concerned 7
1.1.2 Applicable documents 7
1.2 Target group 7
1.3 Conventions 7
1.3.1 Pictographs 7
1.3.2 Instructions in the text 8
1.3.3 Labels 8
1.3.4 Abbreviations 10
2 Safety 11
2.1 General safety information 11
2.1.1 Safety instructions 11
2.1.2 Precautions 13
2.2 Intended use 13
2.3 Foreseeable misuse 13
3 Transportation and Storage 15
3.1 Receipt of the product 15
3.2 Handling 15
3.3 Storage 15
4 Product description 17
4.1 Product identification 17
4.2 Scope of delivery 17
4.3 Product overview 17
4.3.1 Vacuum module 17
4.3.2 Electronic module 18
4.3.3 Industrial control panel (option/accessory) 18
4.4 Connection interface 19
4.5 Test methods 20
4.5.1 Hard vacuum test 20
4.5.2 Sniffer test 20
4.6 Control panel description 21
5 Installation 22
5.1 Securing the modules 22
5.1.1 Attaching the vacuum module 22
5.1.2 Attaching the electronic module 23
5.1.3 Attaching the industrial control panel 25
5.2 Connecting the installation to be tested 27
5.2.1 Prerequisites for optimizing measurement 27
5.2.2 Installation instructions to be observed 27
5.2.3 Vacuum circuit of the vacuum module 28
5.2.4 Connection of the primary pump 29
5.2.5 Gross Leak mode port connection 30
5.2.6 Normal mode port connection 31
5.2.7 High Sensitivity mode port connection 32
5.2.8 Connection on the Gross Leak, Normal and High Sensitivity mode
ports
33
5.2.9 Connection in Sniffer mode 34
5.3 Electrical connection 34
5.4 Connecting the exhaust 34
5.5 Gauge connection (accessory) 35
5.5.1 Installation 35
Table of contents
3/108

5.5.2 Setting 36
5.5.3 Atmospheric pressure/ Limit pressure adjustments 37
6 Commissioning 38
6.1 Start-up of the detector 38
6.2 Detector powering off 38
6.3 Familiarize yourself with the control panel 38
7 Operation 39
7.1 Use conditions 39
7.2 Prerequisites for optimizing use 39
7.3 Operation monitoring 39
7.4 Test Start/Stop 40
7.5 Calibration 41
7.5.1 Calibration in hard vacuum test mode with internal calibrated leak 42
7.5.2 Calibration in hard vacuum test mode with external calibrated leak 42
7.5.3 Calibration in hard vacuum test mode with machine calibration 42
7.5.4 Calibration in hard vacuum test with a pumping system in parallel 43
7.5.5 Calibration in sniffer test with external calibrated leak 44
7.5.6 Calibration in sniffer test on concentration 45
7.5.7 Dynamic calibration 45
7.5.8 Calibration check 45
7.6 Zero Function 45
7.7 Touchscreen 45
7.7.1 Navigation 46
7.7.2 Main screen (home) 47
7.7.3 Graph screen 48
7.7.4 Graph screen: graph parameters 48
7.7.5 Graph screen: graph clearing 49
7.7.6 Graph screen: recording a graph 49
7.7.7 Graph screen: scales 50
7.7.8 Graph screen: saving a recording 51
7.7.9 Graph screen: viewing a recording 52
7.7.10Settings screen 53
7.7.11Synoptic screen 53
7.7.12‘Measurement’ window 54
8 Settings 55
8.1 Set points menu 56
8.1.1 Audio alarm and digital voice 56
8.1.2 Pollution function 56
8.1.3 Background maximum 57
8.1.4 Hard vacuum reject point 57
8.1.5 Sniffer reject point 58
8.1.6 Probe clogged threshold 58
8.1.7 Other pressure set points 59
8.2 Test menu 60
8.2.1 Test method 60
8.2.2 Correction factor 60
8.2.3 Test mode 61
8.2.4 Probe type 62
8.2.5 Automatic cycle end 62
8.2.6 Zero activation 62
8.2.7 Memo function 63
8.3 Spectro menu 64
8.3.1 Tracer gas 64
8.3.2 Filament parameters 65
8.3.3 Calibrated leak 65
8.4 Maintenance menu 66
Table of contents
4/108

8.4.1 Detector 66
8.4.2 Timers 66
8.4.3 Detector information 68
8.4.4 Pump Information 68
8.4.5 Event history 69
8.4.6 Calibration history 70
8.4.7 Last maintenance 70
8.5 Configuration menu 70
8.5.1 Time – Date – Unit – Language 70
8.5.2 Function keys 71
8.5.3 Application windows 72
8.5.4 Screen settings 74
8.5.5 Access – Password 75
8.6 Advanced menu 78
8.6.1 Leak Detection: Start Up timer 78
8.6.2 Leak Detection: Detector pressure gauge 78
8.6.3 Leak Detection: External gauge 79
8.6.4 Leak Detection: Calibration 80
8.6.5 Leak Detection: Analyzer cell 81
8.6.6 Leak Detection: Dynamic calibration 81
8.6.7 Leak Detection: Signal processing 83
8.6.8 Input/Output: Serial link 1 and Serial link 2 83
8.6.9 Input/Output: I/O connector 84
8.6.10Secondary Pump Speed 84
8.6.11SD Card menu 85
8.6.12Service 85
9 Maintenance/Replacement 86
10 Service solutions by Pfeiffer Vacuum 87
11 Accessories 89
12 Technical data and dimensions 90
12.1 General 90
12.2 Technical characteristics 90
12.3 Units of pressure 91
12.4 Gas throughputs 91
12.5 Dimensions 92
13 Annex 93
13.1 ASI 20 MD / ASI 30 / ASI35 specific features 93
13.2 Tree diagram of the Settings menu 94
EC Declaration of Conformity 106
UK Declaration of Conformity 107
Table of contents
5/108

List of tables
Tbl. 1: Units of pressure and their conversion 91
Tbl. 2: Gas throughputs and their conversion 91
Tbl. 3: Default settings: ‘Set Points’ menu 95
Tbl. 4: Default settings: ‘Test’ menu 96
Tbl. 5: Default settings: ‘Spectro’ menu 97
Tbl. 6: Default settings: ‘Maintenance’ menu 98
Tbl. 7: Default settings: ‘Configuration’ menu 101
Tbl. 8: Default settings: ‘Advanced’ menu 104
Tbl. 9: Initial settings: Graph screen - Graph parameters 105
List of tables
6/108

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
These operating instructions are a customer document of Pfeiffer Vacuum. The operating instructions
describe the functions of the named product and provide the most important information for the safe use
of the device. The description is written in accordance with the valid directives. The information in these
operating instructions refers to the product's current development status. The document shall remain
valid provided that the customer does not make any changes to the product.
1.1.1 Products concerned
This document applies to products with the following part numbers:
Part Number Description
Sxxx0x0xMM9A ASI 35 (all models)
1.1.2 Applicable documents
Document Part Number
Operating instructions - Detection communication interface 130417 1)
Operating instructions - Internal calibration kit 123588 1)
Operating instructions - Sniffer kit 123589 1)
Operating instructions - Standard sniffer probe 121780 1)
Operating Instructions - Smart sniffer probe BG5268 1)
Operating instructions - Spray gun 121781 1)
Operating instructions - ASI 20 MD module 123358 1)
2xxx/3xxx module - Operating instructions 123359 1)
ASI 35 Maintenance instructions 127801M
EC Declaration of conformity Included with these instructions
1) also available at www.pfeiffer-vacuum.com
1.2 Target group
This user manual is intended for all persons in charge of transport, installation, commissioning/decom-
missioning, use, maintenance or storage of the product.
The work described in this document must only be carried out by persons with suitable technical training
(specialized staff) or persons who have undergone Pfeiffer Vacuum training.
1.3 Conventions
1.3.1 Pictographs
Pictographs used in the document indicate useful information.
Note
Tip
About this manual
7/108

Key point on the illustration to be checked
Stated tightening torque to be applied
1 2 3
12
Respect the chronological order of operations and/or assembly/disassembly direction
1.3.2 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
1.3.3 Labels
INPUTS/OUTPUTS Inputs/Outputs communication interface connector
SERIAL 9-pin D-Sub RS-232 serial link connector
NETWORK Ethernet plug
USB USB plug
MAIN POWER Power supply
CONTROL PANEL Control panel
PRESSURE Pressure
VACUUM BLOCK Vacuum block
ACCESSORIES Accessories
HIGH SENS High Sensitivity mode
NORMAL Normal mode
GROSS Gross Leak mode
FOREPUMP Roughing pump
90/240V 50-60Hz Max 300W Operating voltage - Use frequency - Maximum power consumption
6 45 12 13 12
1 2 3 9 1110 14 15
7 8
About this manual
8/108

Packaging
-
FR AEOF 00165062 - assurance qualité / quality control
This label guarantees to the user that the product packaging has not been opened
since leaving the factory.
Electronic module
1
Pu_GL : 1 Pu_N : 1
Mu_GL : 12856 Mu_N : 31
Mu_Cal : 1 Mu_LDS : 1800
(Example)
For service centers use only
2
Factory Firmware /Logiciel usine
L0232 V3302 E17D
L0264 V3200 FD87E7D
L0285 V3200 8C9D
DD-MM-YY
12 3
4
(Example)
This label provides information regarding firmware installed in the product.
1 Firmware name 3 Firmware checksum
2 Firmware version 4 Publication date
3
PRODUIT PERSONNALISE
CUSTOMIZED PRODUCT
This label indicates that the product has been customized at the customer’s
request.
4 This label indicates that the product is subject to regulations for the treatment
of electrical and electronic equipment waste (refer to the EC declaration of
conformity for the product).
5
HLD1302577 - RS232
Bluetooth MAC address
XXXXXX / None
Network MAC address
xx:xx:xx:xx:xx:xx / None
(Example)
This label indicates the MAC address for the options installed in the product.
6 - Electronic module rating plate
S/N ACxxxxxx
7DO NOT OPERATE WITH UN-
GROUND POWER CABLE
This label indicates that some of the internal parts are electrically live and
could cause electrical shock in case of contact.
● Do not use the product if the main power supply cable is not earthed.
8DISCONNECT BEFORE MAINTE-
NANCE
This label indicates that some of the internal parts are electrically live and
could cause electrical shock in case of contact.
● Disconnect the main power supply cable (product side and customer in-
stallation side) from the product before servicing the product.
Vacuum module
9 - Vacuum module rating plate
S/N SBxxxxxx
10
warranty seal
This label indicates that the pump body has been sealed at the factory.
Any damage to or tearing of the label shall void the warranty.
● Do not open the product during the warranty period.
● If applications require service intervals shorter than the warranty period,
contact customer service.
11 - Analyzer cell rating plate
S/N SBxxxxxx
12 This label indicates the grounding point on the product.
About this manual
9/108

13
1 2
5 6
7
3 4
98 avenue de Brogny F-74000 ANNECY
Kg
P/N :
S/N :
V Hz W
8
Made in France
Product rating plate.
S/N HLDxxxxxx
This rating plate can be consulted on the detection module (2 labels: 1 on the
connection port side and 1 on the module frame.
1 Weight 5 Part Number
2 Use voltage 6 Designation
3 Use frequency 7 Serial number
4 Maximum power consumption 8 Date of manufacture
14
TO BE REMOVED BEFORE
USE OF LEAK DETECTOR
TO BE KEPT FOR MAINTENANCE
This label indicates that the blanking plate fitted on the manual valve must be
removed before using the leak detector. Keep for maintenance or storage
15 This label indicates that the product has been certified compliant with quality
control upon leaving the factory.
1.3.4 Abbreviations
I/O Input/Output
4He Helium 4
3He Helium 3
H2Hydrogen
[XXXXXX] Control panel menus and settings
e.g. [Measure] [Tracer Gas] to select the tracer gas used for the test.
About this manual
10/108

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.1.1 Safety instructions
All safety instructions in this document are based on the results of the risk assessment carried out in
accordance with Low-Voltage Directive 2014/35/EU regarding electrical safety. Where applicable, all life
cycle phases of the product were taken into account.
WARNING
Risk of electric shock due to non-compliant electrical installations
This product uses mains voltage for its electrical supply. Non-compliant electrical installations or in-
stallations not done to professional standards may endanger the user’s life.
►Only qualified technicians trained in the relevant electrical safety and EMC regulations are au-
thorized to work on the electrical installation.
►This product must not be modified or converted arbitrarily.
WARNING
Danger from magnetic fields
The product has a magnetic field that disturbs or impairs the function of electronic devices (e.g. pace-
makers).
►Maintain the distances specified by the manufacturer of the pacemakers.
–Pfeiffer Vacuum recommends a safety distance of at least 130 mm between the pacemaker
and the product.
►Avoid the influence of strong magnetic fields by means of magnetic field shielding.
Safety
11/108

WARNING
Electric shock hazard
Voltage and current can cause electric shock.
Only skilled, authorized people may carry out maintenance work.
►Insulate and lock the power supply circuit by setting the switch to O.
►Disconnect the power supply cable from all power sources before working on the product and/or
removing the covers.
WARNING
Risk of electric shock in case of contact with products that are not electrically isolated
When powering off _mains switch to O_, certain components located between the mains connection
and the switch will still contain an electric charge (live). There is a risk of electric shock in case of
contact.
►Make sure that the mains connection is always visible and accessible so that it can be unplugged
at any time.
►Disconnect the mains cable from the electrical network before working on the product.
►Wait 5 minutes after power-off before working on the product and/or removing the cover(s).
WARNING
Health risk related to residual traces on the parts tested
A leak detection operation must be carried out under environmental conditions that do not present
any risks to the operator and the equipment. The user and/or integrator of the product are fully re-
sponsible for the operational safety conditions of the equipment.
►Do not test parts or equipment with traces of harsh, chemical, corrosive, inflammable, reactive,
toxic, or explosive substances, nor condensable vapors, even in small amounts.
►Apply the relevant safety instructions in accordance with local regulations.
WARNING
Risk of serious injury due to falling objects
When transporting parts/components and during product maintenance, there is a danger of injury
caused by loads slipping or falling.
►Carry small and medium-size components with both hands.
►Transport components that weigh more than 20 kg using suitable lifting gear.
►Wear safety shoes with steel toes in accordance with directive EN 347.
WARNING
Risk of burns in case of contact with hot surfaces
For the operator’s safety, the products are designed to avoid thermal risk. However, specific operat-
ing conditions may exist that require extra caution on the part of the operator due to the high temper-
atures (surfaces > 70 °C for parts inside the cover(s)).
►Wait for the product to fully cool down before working on it.
►Protective gloves must be worn in accordance with standard EN ISO 21420.
WARNING
Risk of injury from contact with pressurized neutral gas
The product uses a pressurized inert gas (e.g. nitrogen) as the purge gas. Installations that do not
comply with or are not configured according to professional standards can endanger the user's life.
►Install a manual valve on the circuit at a distance of 3 m from the product, so that the neutral gas
supply can be locked out.
►Observe the recommended supply pressure.
►Always lock out and disconnect the neutral gas circuit before working on the product.
►Regularly check the condition of the pipework and supply circuit connections.
Safety
12/108

2.1.2 Precautions
Duty to provide information on potential dangers
The product holder or user is obliged to make all operating personnel aware of dangers
posed by this product.
Every person who is involved in the installation, operation or maintenance of the product
must read, understand and adhere to the safety-related parts of this document.
Obligation to provide personal protective equipment
The operators or employers are obliged to provide the user of the product with the neces-
sary personal protective equipment (PPE).
Persons responsible for installing, operating and repairing the product must wear PPE for
safety.
Infringement of conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the operator
changes the original product or installs additional equipment.
●Following the installation into a system, the operator is required to check and re-evalu-
ate the conformity of the overall system in the context of the relevant European Direc-
tives, before commissioning that system.
Installation and use of the accessories
The products can be fitted with special accessories.
The installation, use and refurbishment of the connected accessories are described in de-
tail in the respective operating instructions.
●Only use original accessories.
●Accessory part numbers (see chapter “Accessories”).
Only qualified personnel trained in safety regulations (EMC, electrical safety, chemical pollution) are au-
thorized to carry out the installation and maintenance described in this manual. Our service centers can
provide the necessary training.
►Do not remove the blanked-off flange from the inlet port while the product is not in use.
►Do not expose any part of the human body to the vacuum.
►Follow the safety and accident prevention requirements.
►Regularly check compliance with all precautionary measurements.
►Do not turn on the product if the cover is not in place.
►Do not move the product while it is in use (product powered on).
2.2 Intended use
The leak detector is designed to detect and/or quantify a possible installation or component leak by
searching for the presence of a tracer gas in the pumped gases.
Only the tracer gases identified in this manual may be used.
The product may be used in an industrial environment.
2.3 Foreseeable misuse
Misuse of the product will render the warranty and any claims void. Any use, whether intended or not,
that diverges from the uses already mentioned will be treated as non-compliant; this includes but is not
limited to:
●use of a tracer gas with a hydrogen concentration greater than 5%,
●testing parts that are soiled or that have traces of water, vapors, paint, adhesive, detergent or rins-
ing products,
●pumping of liquids,
●pumping of dust or solids,
●pumping of corrosive, explosive, aggressive or flammable fluids,
Safety
13/108

●pumping of reactive, chemical or toxic fluids,
●pumping of condensable vapors,
●operation in potentially explosive areas,
●product movement as soon as the product is power on,
●use of accessories or spare parts, which are not named in this manual,
●use of accessories or spare parts, which are not sold by the manufacturer.
The product is not designed to carry people or loads and is not for use as a seat, stepladder or any
other similar purpose.
Safety
14/108

3 Transportation and Storage
3.1 Receipt of the product
Condition of the delivery
●Check that the product has not been damaged during transport.
●If the product is damaged, take the necessary measures with the carrier and notify the
manufacturer.
►Keep the product in its original packaging so it stays as clean as it was when dispatched by us:
only unpack the product once it has arrived at the location where it will be used.
►Keeping the blanking plates on the various inlet ports when the product is not in use.
Keep the packaging (recyclable materials) in case the product needs to be transported or
stored.
3.2 Handling
NOTICE
Damage to the equipment if a detector is handled while switched on
If it is necessary to move or work on the product, the user must first make sure that the detector is
fully shut down, otherwise there is a risk of damage to some of the detector components. When the
main switch is set to O:
►Disconnect the mains cable at both ends.
►Wait 5 minutes after power-off before working on the product and/or removing the cover(s).
3.3 Storage
Pfeiffer Vacuum recommends storing the products in their original transport packaging.
►Store the electronic module, the vacuum module and the industrial control panel in their original
packaging (with the detection module's turbomolecular pump in a vertical position).
►Do not store the product with a desiccant in its packaging.

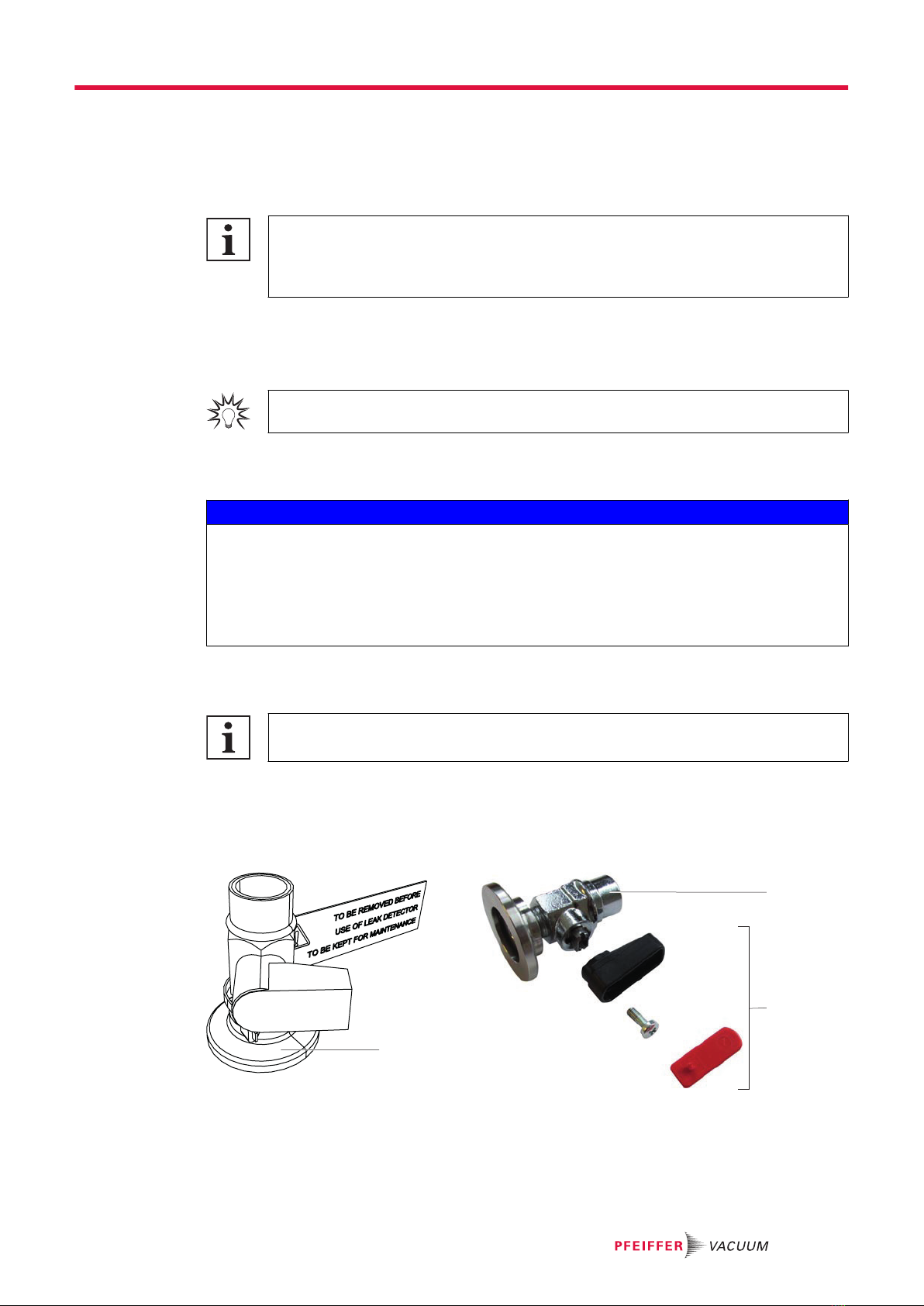

Manual storage valve
1
2
3
1 Blanking plate equipped with a manual valve (1/8' female connection) and the lever 3 Lever kit
2 Blanking plate with a manual valve.
The vacuum module is supplied with a blanking plate fitted with a manual valve on one of the two Gross
Leak inlet ports. This valve is used to place the product under vacuum for storage, to protect it from any
pollution and thus ensure its performance is optimal.
Transportation and Storage
15/108

The lever of the manual valve must be removed to transport the detector: the lever kit is supplied with
the detector. It is not necessary to refit the lever to remove the blanking plate.
1. Remove the blanking plate with manual valve before using the detector, whatever the installation
configuration of the detector in the customer's equipment may be.
2. Keep the blanking plate with manual valve in order to re-use it subsequently when transporting the
detector or storing it for an extended period.
New product storage
►Leave the product in its original packaging.
►Leave the blanking plate in place on each port.
►Store the module in a clean and dry environment according to the permitted temperature condi-
tions (see chapter “Technical data”).
►Beyond 3 months, factors such as temperature, humidity, salt in the air, etc. could damage some
components (elastomers, lubricants, etc.). If this happens, contact your service center.
Extended periods of storage after use
2 procedures must be put in place before any prolonged shutdown and/or disassembly of the detector:
●Keep the detector in the customer's system
●Disassemble the detector from the customer’s system
The vacuum module remains under a vacuum, reducing the degassing time spent when it is switched
on again.
Keep the detector in the customer's system
1. Perform a test.
2. Power off the leak detector.
3. Disconnect the mains cable at both ends.
4. Wait 5 minutes after power-off before working on the product and/or removing the cover.
Disassemble the detector from the customer’s system
1. Power off the leak detector.
2. Disconnect the mains cable at both ends.
3. Wait 5 minutes after power-off before working on the product and/or removing the cover.
4. Disconnect the vacuum module from the installation.
5. Place a blanking plate on each High Sensitivity and Normal inlet port.
6. Place a standard blanking plate on one of the two Gross Leak ports.
7. Check that the lever is fitted on the blanking plate/storage valve assembly (fit it if it has been re-
moved) and that the valve is open.
8. Put the blanking plate fitted with a manual valve on the 2 nd Gross Leak port.
9. Connect a pumping system (or a primary pump) to the blanking plate fitted with a manual valve
and create a vacuum inside the vacuum module.
10. Close the manual valve and remove the lever to prevent any accidentally inlet vent (keep the lever
for subsequent use).
11. Disconnect the pumping unit from the blanking plate fitted with a manual valve.
12. Store the vacuum module in its original packaging.
Transportation and Storage
16/108

4 Product description
4.1 Product identification
To correctly identify the product when communicating with our service center, always have the informa-
tion from the product rating plate available (see chapter "Labels").
4.2 Scope of delivery
●1 leak detector (1 vacuum module + 1 electronic module)
●1 mains power cable for Europe (France/Germany) and 1 mains power cable for the US
●1 set of documentation (USB stick and operating instructions)
●One ½ rack plate for the electronic module
●4 fixing brackets for the electronic module
●1 lever for the manual storage valve
●1 industrial control panel with its cable (according to the selected option)
●1 cable to connect the electronic module and the vacuum module (15-pin D-Sub connector -
length according to the selected option)
●1 cable to connect the electronic module and the vacuum module (25-pin D-Sub connector -
length according to the selected option)
●1 connector (15-pin male Sub-D or 37-pin male Sub-D depending on the option chosen)
●1 adaptor for using the Smart sniffer probe (if ‘Sniffer’ option selected)
●1 special screw for the SplitFlow 50 turbomolecular pump (see the maintenance instructions for
the detector)
4.3 Product overview
3
21
1. Vacuum module
2. A ½ rack 19" 3U-compatible electronic module
3. A ½ rack 19" 3U-compatible industrial control panel (option/accessory)
●The vacuum module and the electronic module are connected by 2 cables, length: 1.5 m, 3.5 m,
5 m or 10 m depending on the selected option.
●The electronic module and the industrial control panel (option/accessory) are connected by a ca-
ble, length 1.8 m, 5 m or 10 m depending on the selected option.
4.3.1 Vacuum module
Description: see chapter "Connection interface" (item C)
The detection module does not include backing pumping (order separately).
Product description
17/108

1
4
2
5
3
9
7
6
8

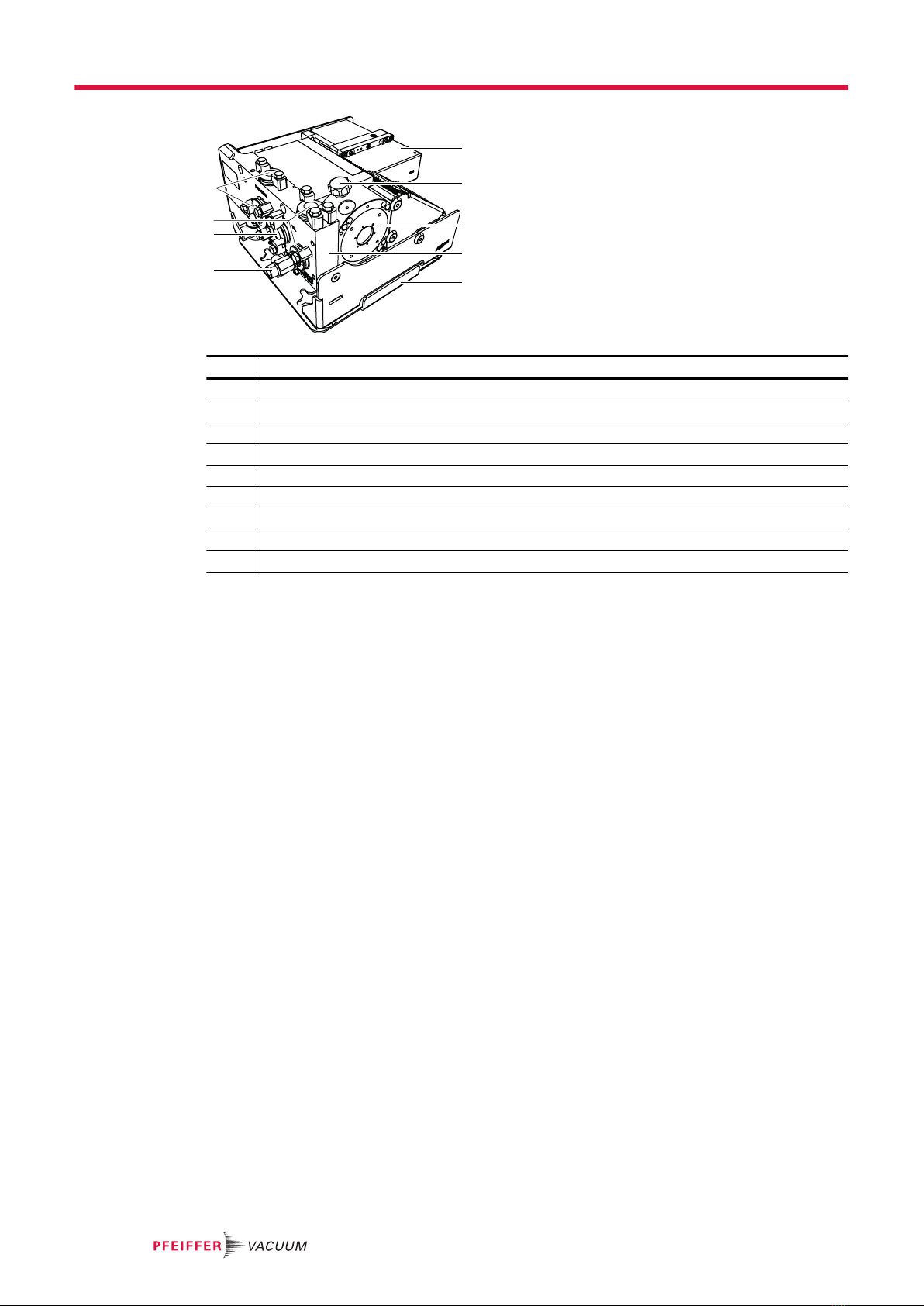

Item Designation
1 Analyzer cell
2 Turbomolecular pump decompression knob (for maintenance use only)
3 SplitFlow 50 secondary detection pump
4 Vacuum block
5 Fixing bracket
6 Blanking plate fitted with a manual valve for storage
7 Normal mode detector inlet port: 1 x DN 16 ISO-KF
8 Gross Leak mode detector inlet port: 2 x DN 16 ISO-KF
9 High Sensitivity mode detector inlet port: 1 x DN 16 SO-KF and 1 x DN 25 ISO-KF
4.3.2 Electronic module
Description: see chapter "Connection interface" (item B)
●Fixing brackets on the electronics module enable it to be fastened (see chapter "Attachment of the
electronics module").
●A plate is supplied with the detector so that the unit can be front mounted in a 19” ½ rack bay (see
chapter “Attachment of the electronic module”).
4.3.3 Industrial control panel (option/accessory)
Description: see chapter "Connection interface" (item A)
Product description
18/108

4.4 Connection interface
START
STAND-BY
A
B
C
5 6
8
16
9
12
11
10
13
87 9
4
1
3
2
14-15
15
A - Industrial control panel 1)
1Standard remote control connector (2)
2 SD card
3Buzzer connector 2)
1) Option/accessory (order separately)
2) Accessory (order separately)
B - Electronic module
4 Power supply (MAIN POWER)
5 Fuses
6 Mains switch
7 Communication interface according to order configuration (example)
8 15-pin Sub-D connector for electronic module/vacuum module cable (VACUUM BLOCK)
9 25-pin Sub-D connector for electronic module/vacuum module cable (ACCESSORIES)
10 Pressure gauge connector (PRESSURE)
11 Industrial control panel connector (see detector maintenance instructions) (CONTROL PANEL)
12 Detector ON indicator LED
13 Detector inlet port (inlet) (see chapter “Product overview”)
Product description
19/108

C - Vacuum module
8 15-pin Sub-D connector for electronic module/vacuum module cable (VACUUM BLOCK)
9 25-pin Sub-D connector for electronic module/vacuum module cable (ACCESSORIES)
14 Standard sniffer probe connector 2)
15 Smart sniffer probe connector 2)
16 24 V presence indicator LED
2) Accessory (order separately)
4.5 Test methods
The test method is chosen depending on the part to be tested. For more information about leak detec-
tion test methods, see Leak detector compendium on the www.pfeiffer-vacuum.com website.
4.5.1 Hard vacuum test
●Part that can be connected to pipe and placed under a vacuum
●Part that can be placed in a vacuum chamber
Spray method
This method involves removing the air from the part to be tested, connecting it to the detector's analyzer
cell, then spraying tracer gas on the points of the part that are likely to leak.
The detector measures the flow of tracer gas that penetrates due to part leakage.
When spraying starts, the leak rate is not displayed instantaneously: there is a response time which de-
pends on the volume V being tested and the tracer gas pumping speed S of the system at the inlet of
the part, according to the following relation:
●T = V/S (where T = seconds, V = liters, S = l/s).
●T is the time required for the leak rate to reach 63% of the final value.
Bombing method
The part is placed ahead of time in a pressurized gas tracer chamber. The tracer gas penetrates the
part through the potential leaks.
Then the part is removed from the chamber and placed in another vacuum chamber and connected to
the detector.
The detector measures the flow of tracer gas that leaks out of the part.
4.5.2 Sniffer test
●Part that can be connected to pipe and cannot be placed under a vacuum.
The part to be tested is pressurized with tracer gas.
The detector measures the flow of tracer gas that leaks out of the part through a sniffer probe that
moves across all the points prone to leaking.
The detector measures the flow of tracer gas that leaks out of the part.
The measured leak rate is not an exact measurement of the leak. The sniffer probe only detects part of
the tracer gas escaping from the part, depending on the distance separating the crack from the tip of the
probe, and the direction of the leak in relation to the probe.
Product description
20/108
